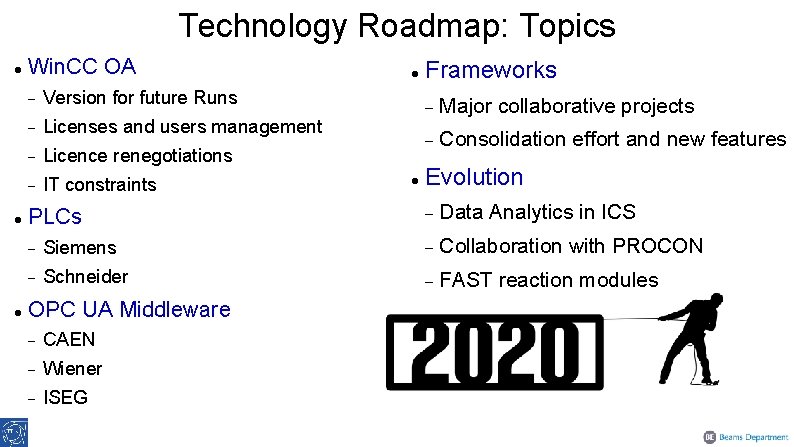

Technology Roadmap: Topics Win. CC OA Version for future Runs Licenses and users management Licence renegotiations IT constraints PLCs Frameworks Major collaborative projects Consolidation effort and new features Evolution Data Analytics in ICS Siemens Collaboration with PROCON Schneider FAST reaction modules OPC UA Middleware CAEN Wiener ISEG

Technology Roadmap: Win. CC OA 3. 16: CERN-wide rollout to production Mandatory upgrade for all systems before the end of LS 2 „Teething problems” of every upgrade to be expected Increase in expert support requests Despite of thorough testing, some faults may only be detected in production environments, necessitating quick follow-ups with the upstream vendor; same applies for OPC-UA servers Regular patches: received from ETM every couple of weeks Combined with upgrades of UNICOS and JCOP Framework to v. 8. 4. 0(+) Mainly fixes but also some features Increased effort required in validation for production systems Win. CC OA 3. 17 will become available in Dec 2019 Will not be used at CERN; 3. 16 used for LHC Run 3 Still the numerous included changes need to be analysed Security in-depth, authentication, licensing, etc

Technology Roadmap: Win. CC OA Consolidation of Win. CCOA License Generator and User Management Critical service for almost 800 users at CERN and 200 external institutes Production and development licenses generated at CERN Review of validity for all user registration, in line with OC 11 requirements cleanup/anonymisation of user data Review of workflows for license and user management planned Technical consolidation of 20+ year old software infrastructure required License-generation already highly automatized; further opportunities for streamlining will be investigated

Technology Roadmap: Win. CC OA Renewal of Win. CC OA contract with Siemens/ETM Current contract (extension) finishes at the end of 2020 Strong request from community to have the contract extended further, with current conditions to cover The existing few hundreds of production systems at CERN: Experiments DCS systems, Accelerator, Technical Infrastructure Development of new systems (e. g. renovation of CV, neutrino platform tests) Cover all new versions of Win. CC OA, possibly for the next 10 years Keep delivering unlimited number of development licenses for CERN users Pre-negotiations starting already Prolongue the long-standing partnership relation with the company Enhanced by participation in the CERN open. Lab program

Technology Roadmap: Win. CC OA Further work to align with changing MAlt landscape Changes in IT infrastructure, change from AD to Free. IPA, etc Changes in policies in hardware and software management (eg. CMF) „Linux Terminal Servers” compatibility Initiative in the scope of MAlt alternative to Windows Terminal Server May potentially resolve numerous stability problems of WTS Technical solution proposed by IT, Fast. X, needs to be validated for compatibility Cent. OS 8 may be required during the Run 3 Not currently supported by Win. CC OA 3. 16 Numerous technical solutions possible (as was done with Cent. OS 7)

Technology Roadmap: Siemens S 7 -300 Phase out „not before” 2023 spares until 2033 + 2 years warranty No new development or features foreseen S 7 -400 phase out not foreseen TIA Portal V 16 and beyond Additional functionality for S 7 -1200: TLS, secure email Additional functionality for S 7 -1500: OPC UA diagnostics, download on RUN for R/H Partial integration with version control (e. g. git, SVN, Team Foundation) Automated testing and verification unit tests, formal verification, static code analysis, styleguide checker

Technology Roadmap: Schneider OPC UA New OPC UA Server integrated in M 580 PLC Rack end of 2019 OFS Server with OPC UA Server 1. 03 release planned end of 2019 Unity Pro / Control Expert upgrades Windows 7 deprecated at the end of 2019 Users must move to Unity Pro V 11 or higher (Windows 10 compatible) All Schneider applications to be upgraded to Control Expert V 14. 1 mid 2020 New web portal in preparation to obtain commercial offers for Schneider components

Technology Roadmap: OPC-UA Middleware OPC-DA OPC-UA No support for legacy OPC-DA servers in 2020 Support provided for integrating CAEN, WIENER and ISEG equipment and for the respective upgraded JCOP framework components SCADA Increased support load expected for 2020 More sophisticated user tests More equipment brought online fw. CAEN fw. ISEG fw. Wiener No major feature development expected from now on Inhouse TSPP capable OPC UA servers for PLCs Might need to be resurrected OPC-UA Middleware

Technology Roadmap: Frameworks New Alarm and Event Screen Development in collaboration with IHEP Alarm Screen functionality nears completion Extensive automated testing in progress First preview of Alarm Screen demonstrated Initial deployment foreseen in Q 1 2020 Event Screen will reuse components and experience of the Alarm Screen Initial deployment foreseen in Q 3 2020

Technology Roadmap: Frameworks Integration of the Win. CC OA Next. Gen Archiver Parallel archiving to Oracle and Influx. DB backends Enables advanced use cases such as Web dashboards in Grafana Prerequisite for improving performance of trending and historical queries Parallel queries implemented in Win. CC OA part Tests/validation of Influx. DB backend: stability, performance, scalability Exposing necessary configuration/monitoring functionality in the frameworks Production deployments ongoing in selected applications ( ALICE ) Further deployments planned for test systems in 2020 CERN-wide deployment: at the timescale of LS 3

Technology Roadmap: Frameworks Quality Assurance Further automation and extending the coverage of tests „Vertical” testing, with full application generation convergence with AP and TE-CRG efforts Test catalogues for manual step-by-step testing Open-source licensing Purpose is to enable outsourcing development, and use of frameworks by external research institutes and industry Over 2 M lines of CERN-developed code, KT oversight required Check of Intelectual Property ownership started in 2019 Aim to have significant parts released in 2020

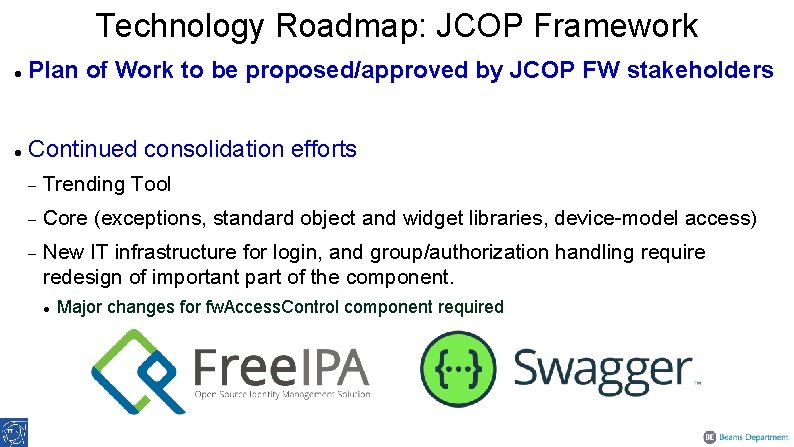

Technology Roadmap: JCOP Framework Plan of Work to be proposed/approved by JCOP FW stakeholders Continued consolidation efforts Trending Tool Core (exceptions, standard object and widget libraries, device-model access) New IT infrastructure for login, and group/authorization handling require redesign of important part of the component. Major changes for fw. Access. Control component required

Technology Roadmap: JCOP Framework Plan of Work to be proposed/approved by JCOP FW stakeholders New features and enhancement Integration of new device models as requested by users Tools for automated library-integrity checks to assist in experiments’ upgrades Further OPC-UA integration Automating configuration and diagnostics of Win. CC OA settings Wiener power supply simulator

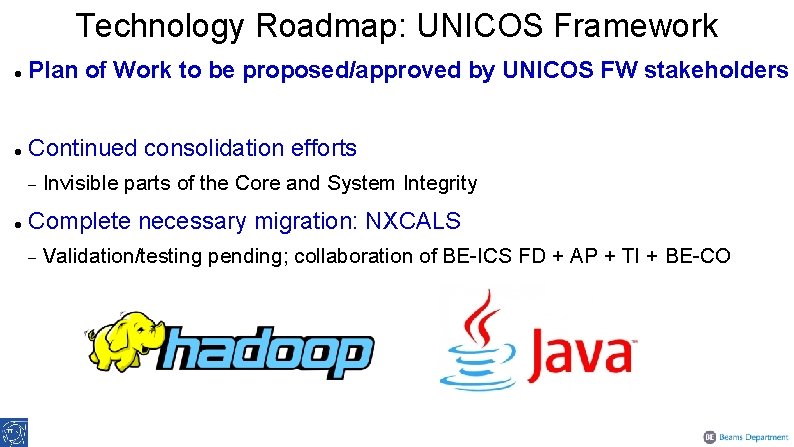

Technology Roadmap: UNICOS Framework Plan of Work to be proposed/approved by UNICOS FW stakeholders Continued consolidation efforts Invisible parts of the Core and System Integrity Complete necessary migration: NXCALS Validation/testing pending; collaboration of BE-ICS FD + AP + TI + BE-CO

Technology Roadmap: UNICOS Framework Plan of Work to be proposed/approved by UNICOS FW stakeholders Proposed enhancements and new features (a subset of) Feature-complete new HMI window Continuation of the effort in 2019; consolidate feedback Integration of asset-management information (Infor. EAM/GMAO codes) KPIs and statistical calculations Automated screenshot-taking Reliability and performance of remote access to applications New Linux Terminal Servers S 7 -1500 integration with reliable events through the new S 7+ driver

Technology Roadmap: UNICOS-CPC Framework Plan of Work to be proposed/approved by UNICOS FW stakeholders S 7 -1500 un. Recipes PLC function refactoring planned Distributed architecture Improvements on ergonomics and engineering workflow Feasibility evaluation for UNICOS-CPC distributed architecture implementation UAB Address performance issues, complete migration to Java 11 Work mainly to be done by TI section

Technology Roadmap: Evolution CERN Open. Lab Data Analytics for Industrial Controls Optimization of LINAC 3 ion source Analysis of oxygen deficiency sensors in the LHC tunnel Room occupancy detection via Io. T infrared sensor Future collaboration with PROCON Machine Learning, Augmented Reality and Predictive Maintenance

Technology Roadmap: Evolution Ongoing evaluation for FAST reaction modules Siemens Fast Boolean Processor to be phased out soon B&R modules evaluated by BE/RF FPGA solution to be presented by BE/CO National Instruments PXI possible 3 rd option Collaboration with CO: interface radiation tolerant field buses with PLCs

Technology Roadmap: Topics Win. CC OA Version for future Runs Licenses and users management Licence renegotiations IT constraints PLCs Frameworks Major collaborative projects Consolidation effort and new features Evolution Data Analytics in ICS Siemens Collaboration with PROCON Schneider FAST reaction modules OPC UA Middleware CAEN Wiener ISEG
