Overview • Application • • • Solution • Technology Design advanced UT systems • TD Focus-Scan • TD Handy-Scan • Proven hardware and software • Multifunctional - addresses all UT requirements • Code compliant: ASTM E 1961, API 1104, DNV OS F 101, BS/EN/ISO 11666 or any ECA • Phoenix ISL – world leading scanners • Magman (manual) • SAW Bug (automated) • Result • • • & Expectations 2 Girth Weld inspection using Zonal Discrimination High Productivity Shortest setup time possible Fast reporting Uncomplicated software and hardware setup Greatly reduced setup time Theoretical scan plan in interactive graphical environment Fast analysis & results Reduced man-time and training Greater profitability Technology Design Ltd. Confidential and Proprietary

TD Systems 5 Technology Design Ltd. Confidential and Proprietary

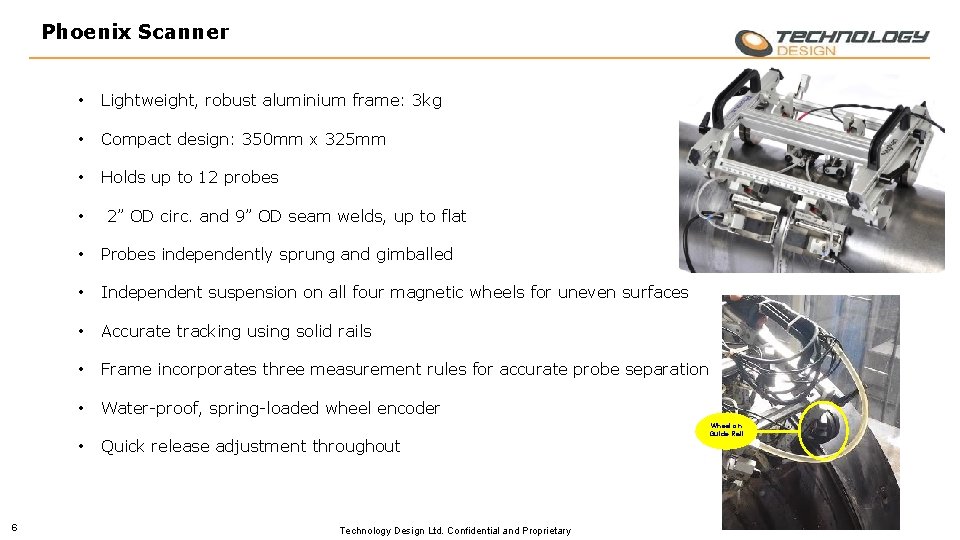

Phoenix Scanner • Lightweight, robust aluminium frame: 3 kg • Compact design: 350 mm x 325 mm • Holds up to 12 probes • • Probes independently sprung and gimballed • Independent suspension on all four magnetic wheels for uneven surfaces • Accurate tracking using solid rails • Frame incorporates three measurement rules for accurate probe separation • Water-proof, spring-loaded wheel encoder • 6 2” OD circ. and 9” OD seam welds, up to flat Quick release adjustment throughout Technology Design Ltd. Confidential and Proprietary Wheel on Guide Rail

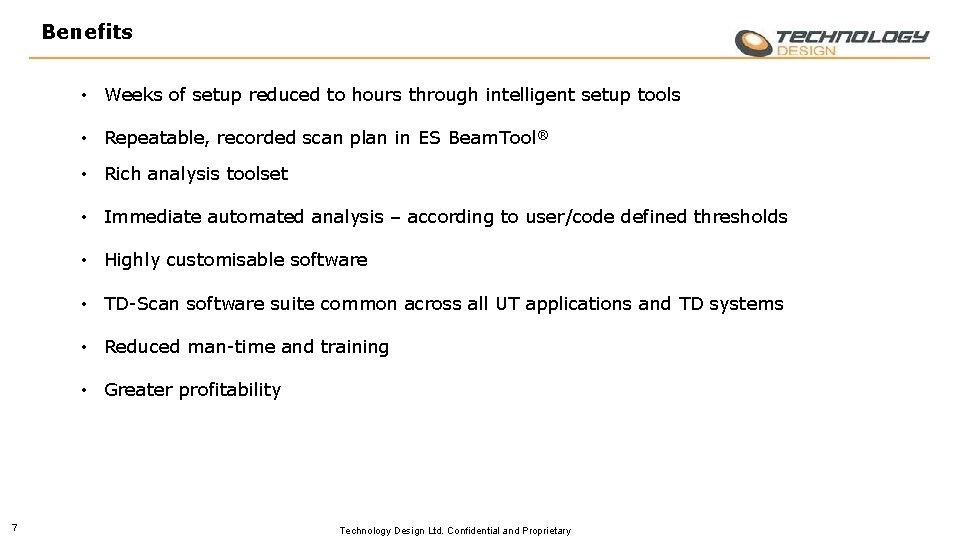

Benefits • Weeks of setup reduced to hours through intelligent setup tools • Repeatable, recorded scan plan in ES Beam. Tool® • Rich analysis toolset • Immediate automated analysis – according to user/code defined thresholds • Highly customisable software • TD-Scan software suite common across all UT applications and TD systems • Reduced man-time and training • Greater profitability 7 Technology Design Ltd. Confidential and Proprietary

Workflow Import. ebwk file into TD-Scan ESBeam. Tool® Scan Plan Analyse Data Optimise reflector response using auto Cal. procedure Acquire Data Save. ebwk file Scanner & Encoder Setup 8 Technology Design Ltd. Confidential and Proprietary Report • Manual Analysis • Print simple image report • Semi-auto defect report • Fully customisable auto report

Calibration Scan 9 Technology Design Ltd. Confidential and Proprietary
