Technology Design A Sketch a day Raymond Moffatt
- Slides: 75
Technology & Design A Sketch a day! Raymond Moffatt welb
Graphic Exercises: You may wish to develop and add to these exercises. Key Stage 3/4
Spheres
Use an HB pencil to render Dark Very light Use colouring pencils Draw the circles and render dark
Cylinders
Limited Plug Gauge Practice, practice

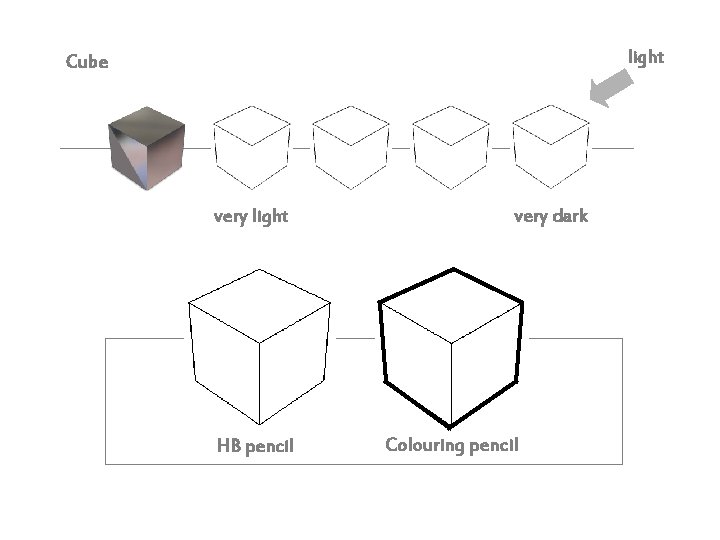

light Cube very light HB pencil very dark Colouring pencil
5 Geometrical Shapes
5 Geometrical Shapes
Cylinders, Spheres & Cones Sketch the cylindrical shapes as shown
Cylinders, Spheres & Cones Sketch the cylindrical shapes as shown
A simple coat hook 1) Sketch the Coat Hook as shown 2) Practice your rendering skills using different media
CAD drawings A USB Drive
light direction A USB Drive 1) Make a sketch of the flash drive in perspective 2) Rendering the flash drive using an HB pencil
pencil biro colouring pencil
Overlay technique Isometric Perspective
Central line Perpendicular to the major axis
Concepts for a tool rack
Cube train
Cube train Plan view
Cube train
Toy Train
Toy Train
Toy Train
Toy Train
Clothes Peg
Gate Catch
Pencil sharpener
Pencil sharpener
Measuring tape
Capacitors
A Desktop ‘Coke’ Light
A Desktop ‘Coke’ Light
An LED Pocket Torch
An LED Pocket Torch
Pen shading
A radiator ‘bleed’ key

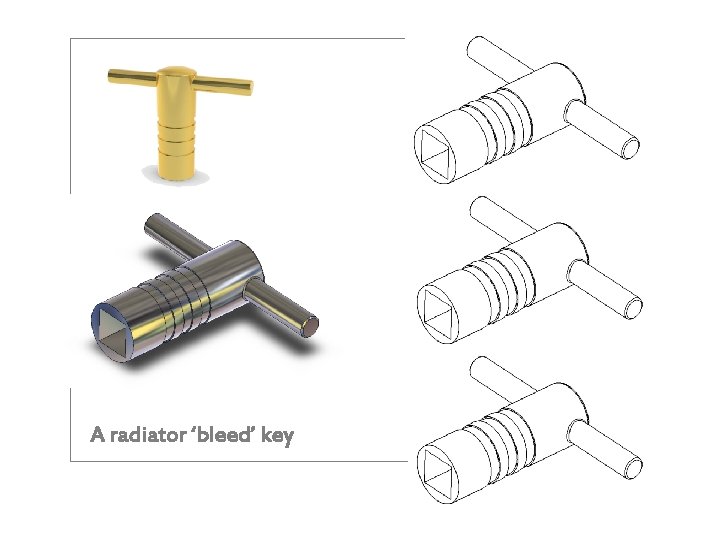

Redesign the radiator key to make it more comfortable to use. A radiator ‘bleed’ key
Screwdriver / flathead
Robbie the Robot
Robbie the Robot
A Digital Camera
Freddie the frog
Freddie the frog
Lego chassis Sketch the chassis & wheels leaving out the detail!

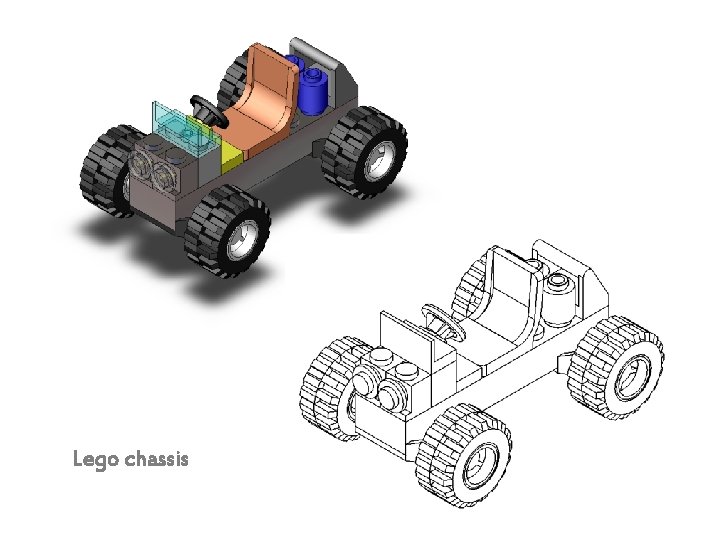

Lego chassis
Mirror design
An Egg Timer
An Egg Timer
ear bud Rendering
ear bud Rendering
Marking gauge
Bevel chisel
240 v Electrical Hand Drill

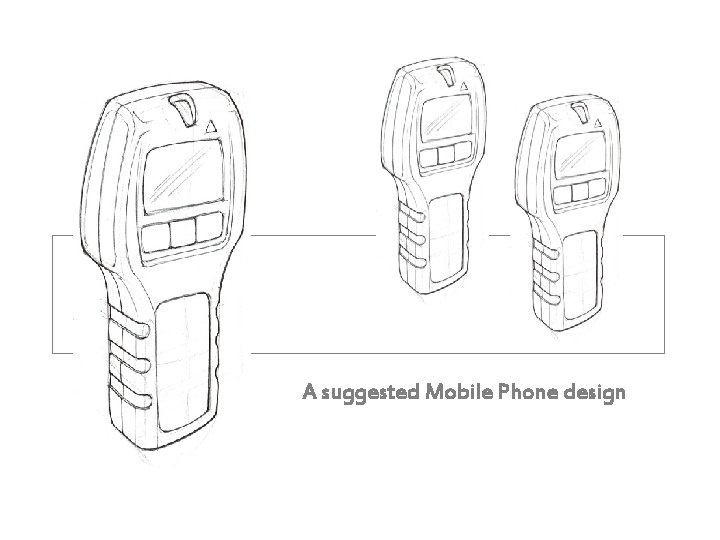

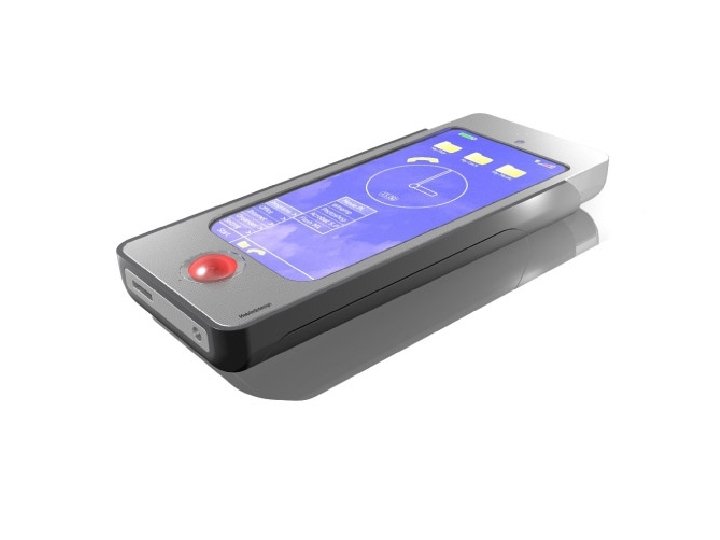

A suggested Mobile Phone design
An example of Digital sketching using ‘Sketchbook Pro’ software Log on to: www. idsketching. com includes video clips on sketching / rendering. .
An adjustable camera stand
An adjustable camera stand
An adjustable camera stand

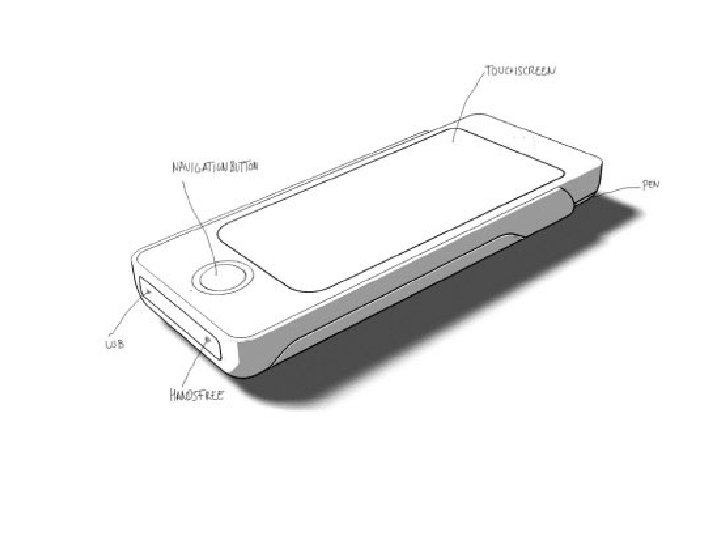

Concept sketches of a Pam-Top computer
Concept sketches of a Pam-Top computer
Concept sketches of a Pam-Top computer
Concept sketches of a Pam-Top computer
A watch design: Sketch the watch design and add an element of detail!

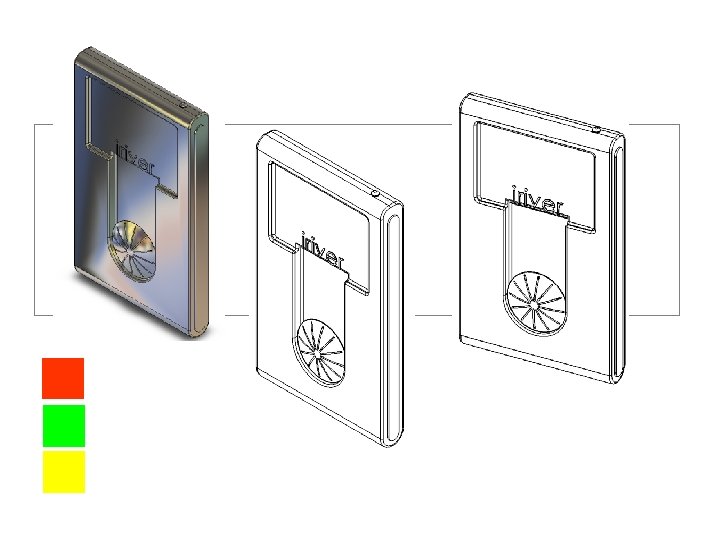

CAD Solid modelling Presentation
