Applied Control Systems Pin configuration

Applied Control Systems Pin configuration

Applied Control Systems Connection of variable resistor / potentiometer Analogue pin connections Input 0

Applied Control Systems Connection of variable resistor / potentiometer Analogue pin connections Input 0 – Pin 17 Input 1 – Pin 18 Input 2 – Pin 1

Applied Control Systems Analogue to Digital conversion PICAXE 18 X: Internal 8 bit analogue

Applied Control Systems Analogue to Digital conversion PICAXE 18 X: Internal 8 bit analogue to digital converter (28 = 256) Possible Voltage input range: - 0 v – 5 v Possible conversion : - 0 – 255 Examples: - 0 v = 0, 5 v = 255, 3 v = 153 Conversion formula: Conversion = Input voltage *255 Supply voltage

Applied Control Systems Connection of Light Dependant Resistor

Applied Control Systems Connection of Light Dependant Resistor

Applied Control Systems

Applied Control Systems

Applied Control Systems

Applied Control Systems

Applied Control Systems Voltage Regulator

Applied Control Systems Voltage Regulator

Applied Control Systems Voltage Regulator with Diode

Applied Control Systems Voltage Regulator with Diode

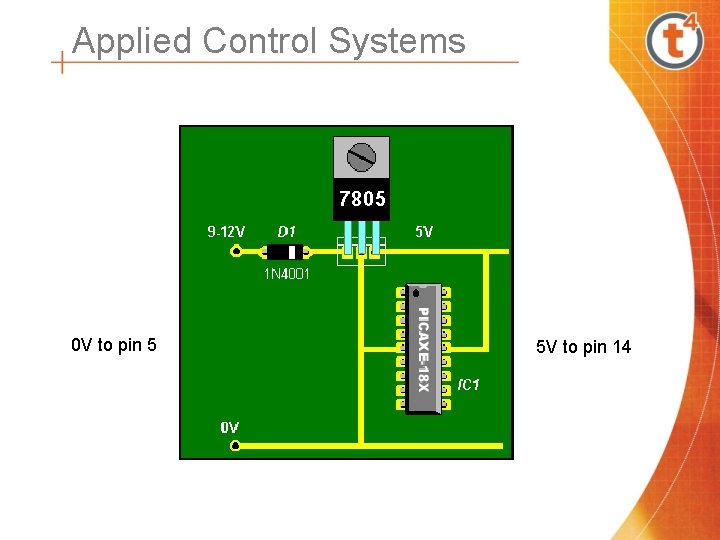

Applied Control Systems 0 V to pin 5 5 V to pin 14

Applied Control Systems 0 V to pin 5 5 V to pin 14

Applied Control Systems

Applied Control Systems

Applied Control Systems

Applied Control Systems

Measure the input voltage.

Measure the input voltage.

Measure the output voltage from the 7805

Measure the output voltage from the 7805

Applied Control Systems Adding Capacitors

Applied Control Systems Adding Capacitors

Applied Control Systems Reset Switch

Applied Control Systems Reset Switch

Applied Control Systems Reset Switch

Applied Control Systems Reset Switch

Applied Control Systems Reset Switch – pin 4

Applied Control Systems Reset Switch – pin 4

What happens when the reset is pressed and released?

What happens when the reset is pressed and released?

Applied Control Systems Resonator

Applied Control Systems Resonator

Applied Control Systems Generic components 1. Power supply 2. Download cable 3. Reset connection

Applied Control Systems Generic components 1. Power supply 2. Download cable 3. Reset connection 4. Available Inputs 5. Available Outputs

Applied Control Systems Generic components 1. Power supply 2. Download cable 3. Reset connection

Applied Control Systems Generic components 1. Power supply 2. Download cable 3. Reset connection 4. Available Inputs 5. Available Outputs

Applied Control Systems Using Outputs

Applied Control Systems Using Outputs

Applied Control Systems Transistor driver output

Applied Control Systems Transistor driver output

What happens when input 7 is pressed and released?

What happens when input 7 is pressed and released?

Set output 7 high for 2 sec- low for 2 sec – loop continually

Set output 7 high for 2 sec- low for 2 sec – loop continually

Applied Control Systems PICAXE 18 X Project Board (5 inputs, 8 outputs) Inputs Outputs

Applied Control Systems PICAXE 18 X Project Board (5 inputs, 8 outputs) Inputs Outputs 4 Terminal blocks 6 LED outputs 1 Digital thermometer Two transistor driven terminal blocks

Applied Control Systems Use circuit No. 8 to help complete the diagram Outputs Inputs

Applied Control Systems Use circuit No. 8 to help complete the diagram Outputs Inputs (a) (b)

Applied Control Systems Green Yellow w Red Green Yellow Red

Applied Control Systems Green Yellow w Red Green Yellow Red

Applied Control Systems

Applied Control Systems

Applied Control Systems

Applied Control Systems

Applied Control Systems Inputs Outputs

Applied Control Systems Inputs Outputs

Applied Control Systems Inputs Outputs Identify your input and output needs

Applied Control Systems Inputs Outputs Identify your input and output needs
