Techniques for automated localization and correction of design errors Jaan Raik Tallinn University of Technology 1

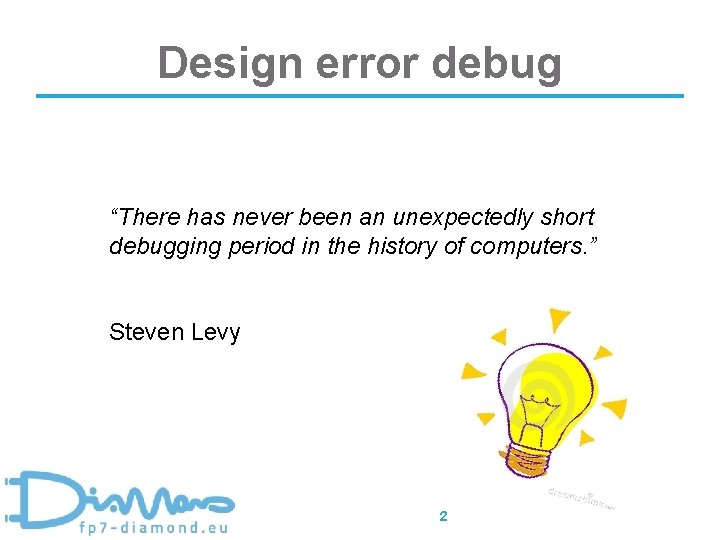

Design error debug “There has never been an unexpectedly short debugging period in the history of computers. ” Steven Levy 2

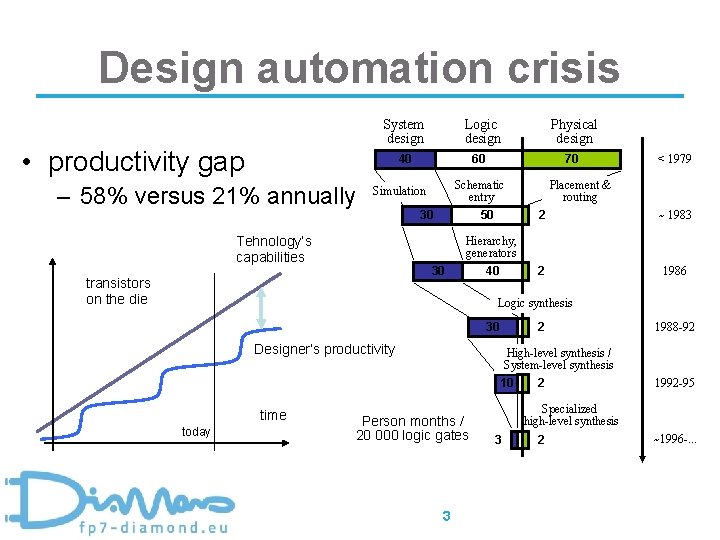

Design automation crisis System design • productivity gap Logic design 40 – 58% versus 21% annually 60 70 Schematic entry Simulation Tehnology’s capabilities Physical design 30 50 < 1979 Placement & routing 2 ~ 1983 2 1986 Hierarchy, generators 30 transistors on the die 40 Logic synthesis 30 2 Designer’s productivity High-level synthesis / System-level synthesis 10 time today 1988 -92 Person months / 20 000 logic gates 3 2 1992 -95 Specialized high-level synthesis 3 2 ~1996 -. . .

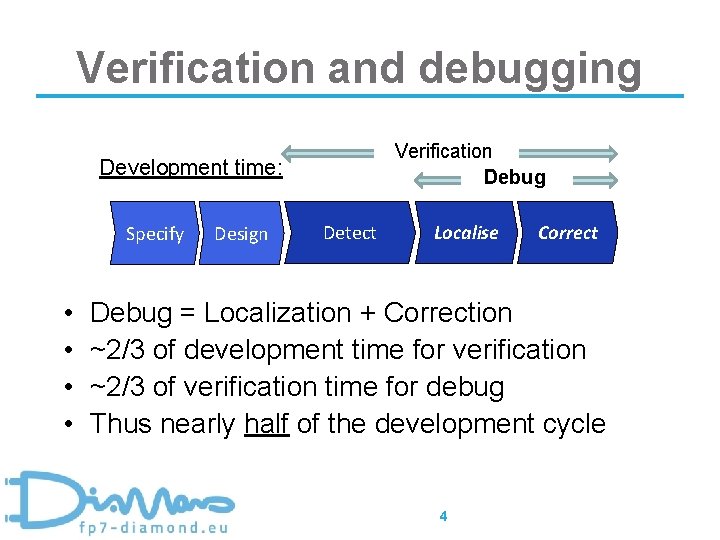

Verification and debugging Verification Debug Development time: Specify • • Design Detect Localise Correct Debug = Localization + Correction ~2/3 of development time for verification ~2/3 of verification time for debug Thus nearly half of the development cycle 4

Bugs are getting „smarter“ CREDES Summer School, June 2 -3, 2011, Tallinn, Estonia 5

Traditional debug flow ? ? ? Spec Design Verification Error! Counter-examples (waveforms), failed assertions, . . . • Too much information • Too little information 6

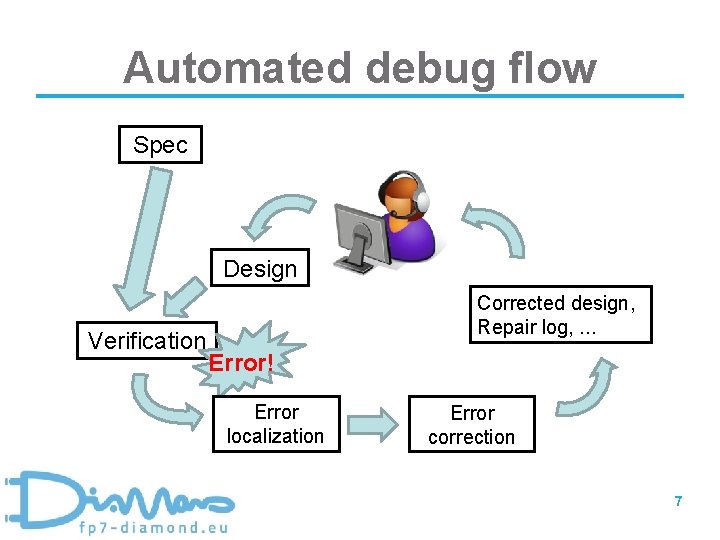

Automated debug flow Spec Design Verification Corrected design, Repair log, . . . Error! Error localization Error correction 7

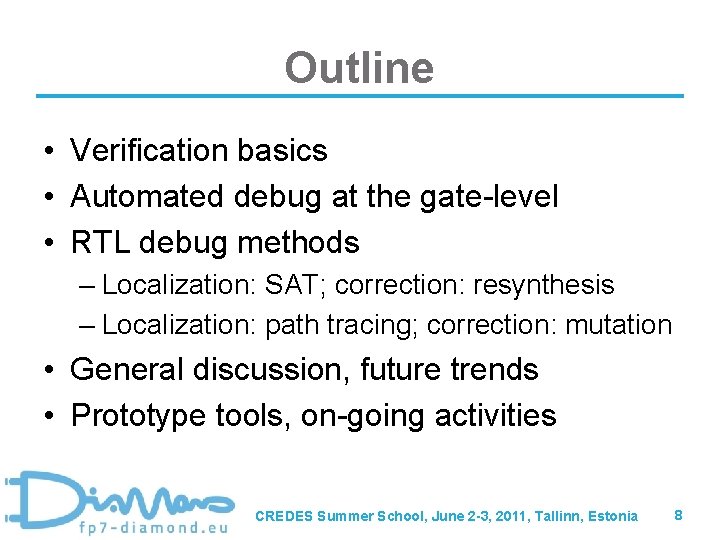

Outline • Verification basics • Automated debug at the gate-level • RTL debug methods – Localization: SAT; correction: resynthesis – Localization: path tracing; correction: mutation • General discussion, future trends • Prototype tools, on-going activities CREDES Summer School, June 2 -3, 2011, Tallinn, Estonia 8

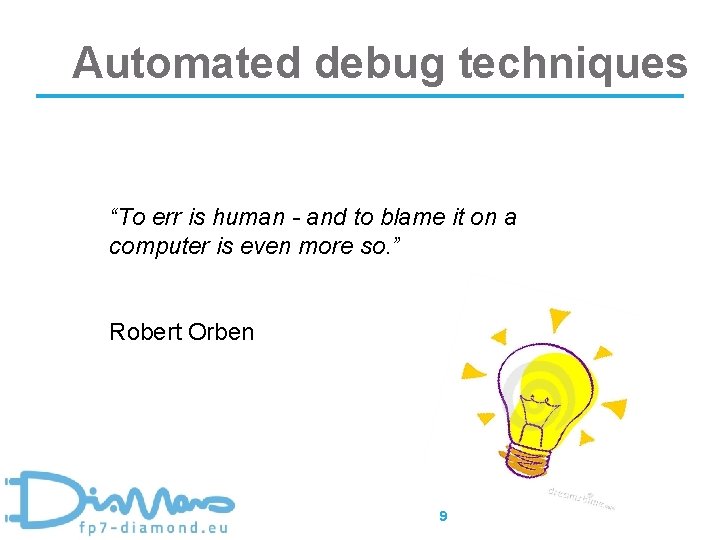

Automated debug techniques “To err is human - and to blame it on a computer is even more so. ” Robert Orben 9

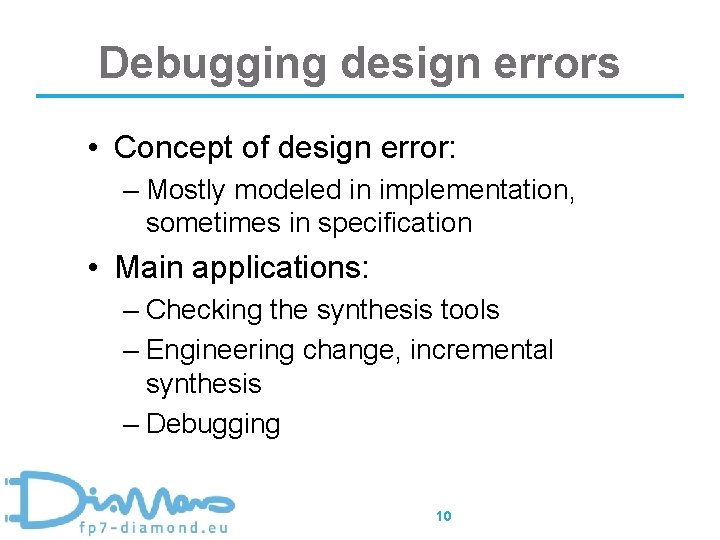

Debugging design errors • Concept of design error: – Mostly modeled in implementation, sometimes in specification • Main applications: – Checking the synthesis tools – Engineering change, incremental synthesis – Debugging 10

Debugging design errors What leads to debugging? • Design behavior doesn’t match expected behavior When does this occur? • During simulation of design • Formal tools (property/equivalence check) • Checkers identify the mismatch 11

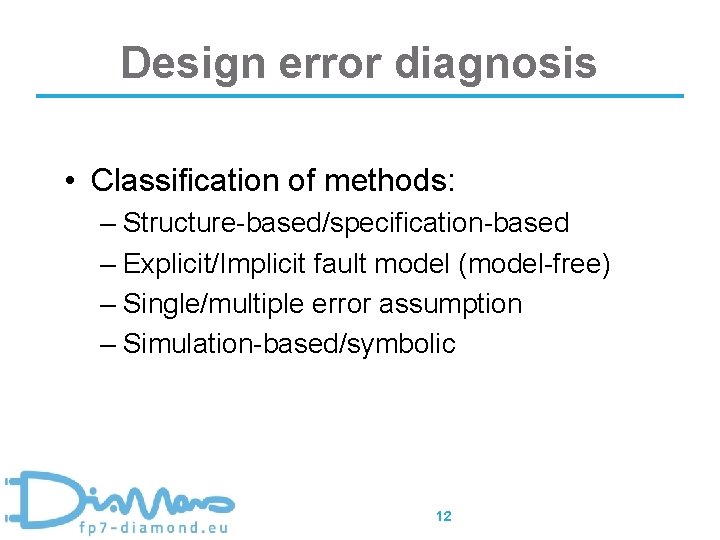

Design error diagnosis • Classification of methods: – Structure-based/specification-based – Explicit/Implicit fault model (model-free) – Single/multiple error assumption – Simulation-based/symbolic 12

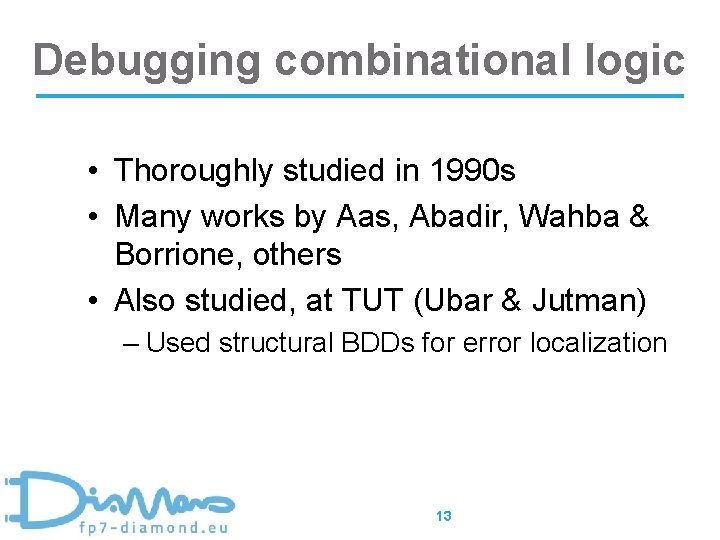

Debugging combinational logic • Thoroughly studied in 1990 s • Many works by Aas, Abadir, Wahba & Borrione, others • Also studied, at TUT (Ubar & Jutman) – Used structural BDDs for error localization 13

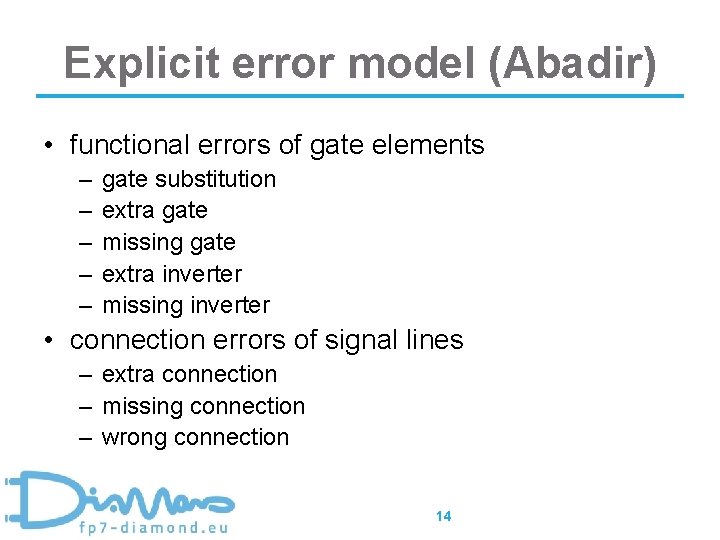

Explicit error model (Abadir) • functional errors of gate elements – – – gate substitution extra gate missing gate extra inverter missing inverter • connection errors of signal lines – extra connection – missing connection – wrong connection 14

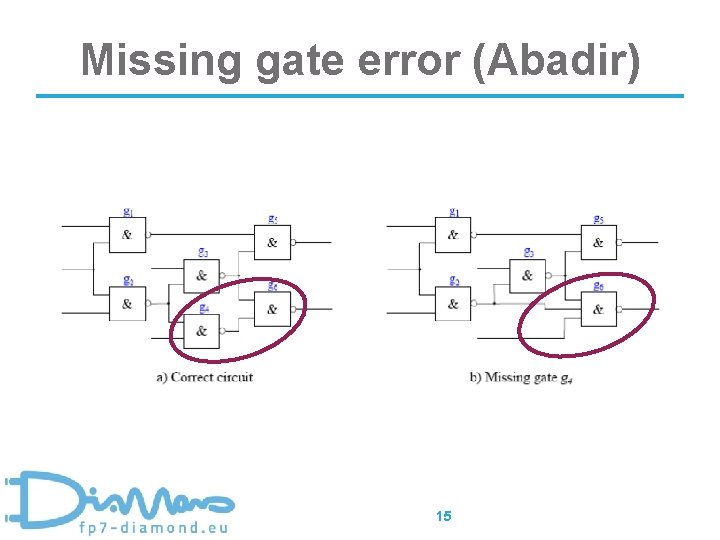

Missing gate error (Abadir) 15

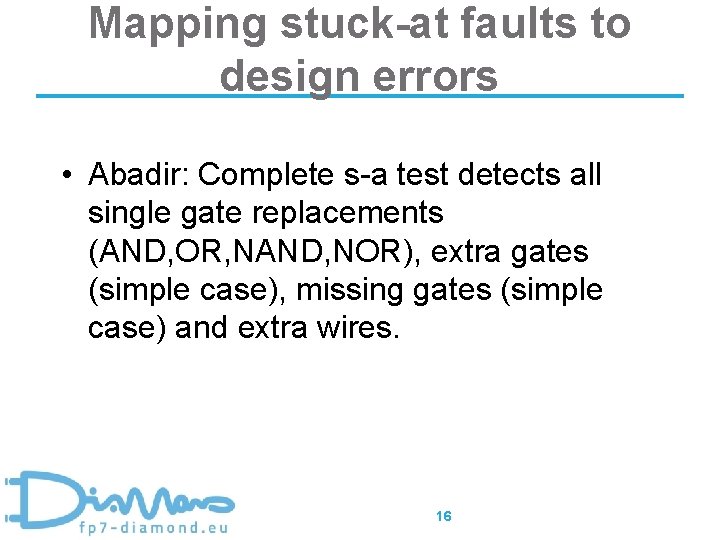

Mapping stuck-at faults to design errors • Abadir: Complete s-a test detects all single gate replacements (AND, OR, NAND, NOR), extra gates (simple case), missing gates (simple case) and extra wires. 16

Combinational fault diagnosis Fault localization by fault table T 1 T 2 T 3 T 4 T 5 T 6 F 1 0 1 1 0 0 0 F 2 1 0 1 1 0 0 F 3 1 0 0 0 1 1 F 4 0 1 1 0 0 0 F 5 0 0 0 1 1 0 F 6 0 0 1 1 Test responses: F 7 0 0 0 1 Fault F 5 located Faults F 1 and F 4 are not distinguishable No match, diagnosis not possible 17

Mapping stuck-at faults to design errors 18

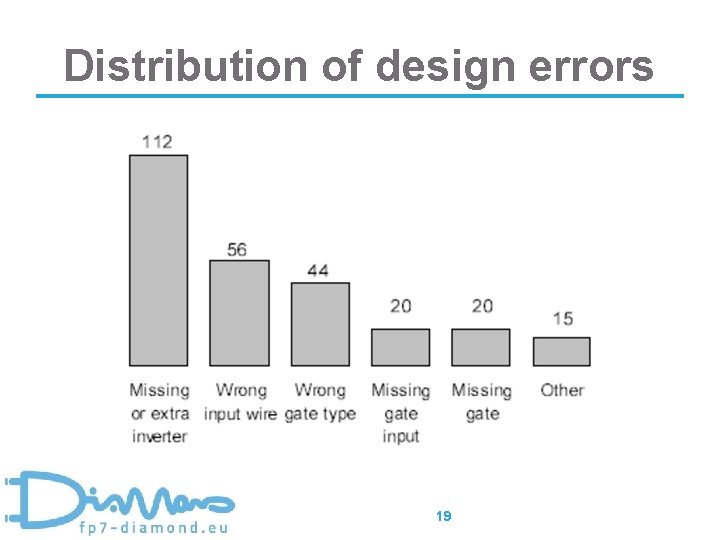

Distribution of design errors 19

Explicit model: disadvantages • High number of errors to model • Some errors still not modeled 20

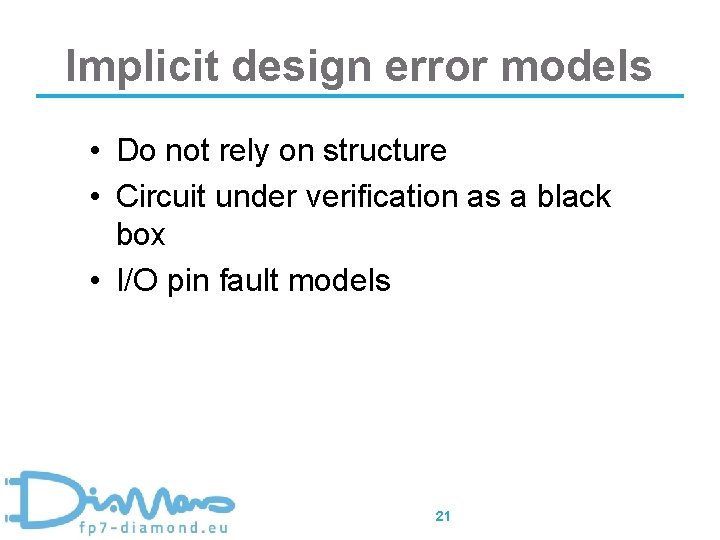

Implicit design error models • Do not rely on structure • Circuit under verification as a black box • I/O pin fault models 21

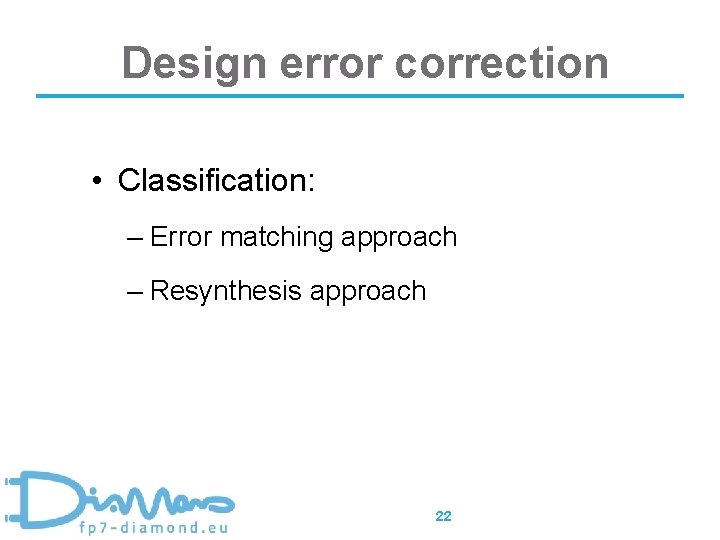

Design error correction • Classification: – Error matching approach – Resynthesis approach 22

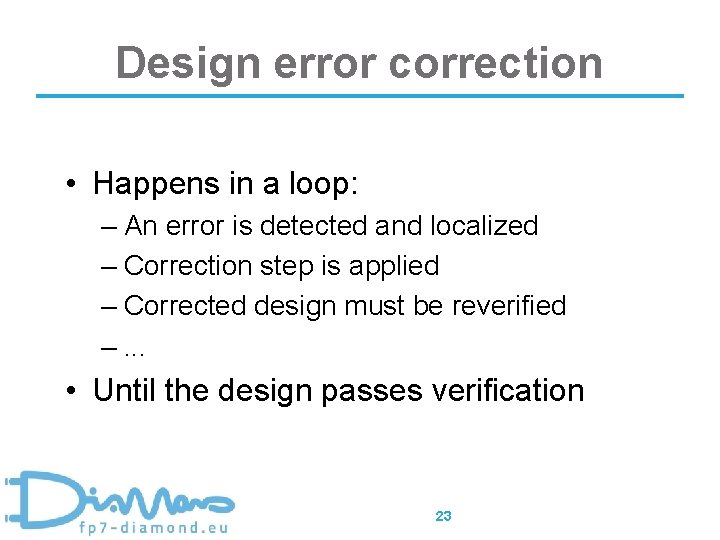

Design error correction • Happens in a loop: – An error is detected and localized – Correction step is applied – Corrected design must be reverified –. . . • Until the design passes verification 23

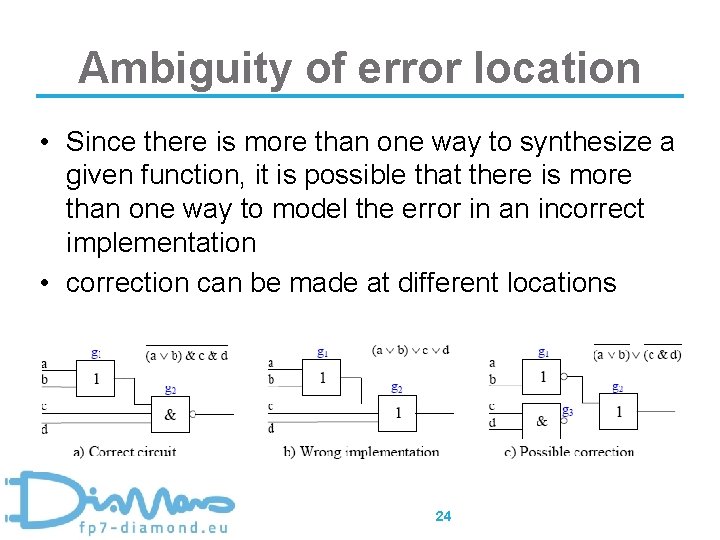

Ambiguity of error location • Since there is more than one way to synthesize a given function, it is possible that there is more than one way to model the error in an incorrect implementation • correction can be made at different locations 24

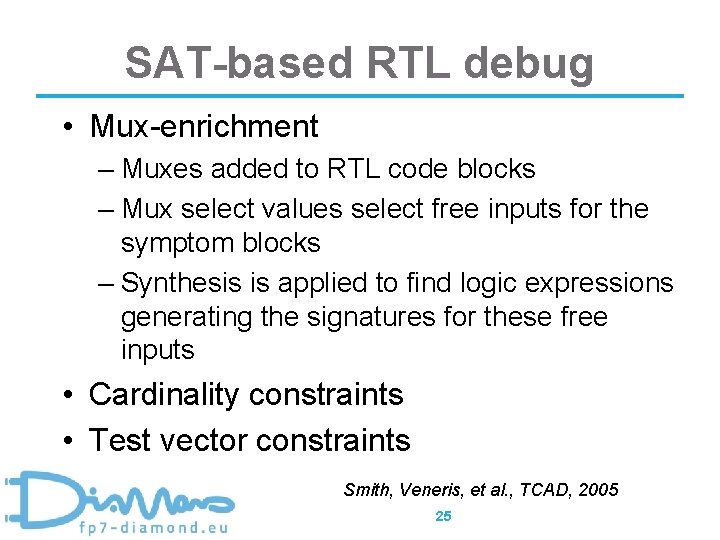

SAT-based RTL debug • Mux-enrichment – Muxes added to RTL code blocks – Mux select values select free inputs for the symptom blocks – Synthesis is applied to find logic expressions generating the signatures for these free inputs • Cardinality constraints • Test vector constraints Smith, Veneris, et al. , TCAD, 2005 25

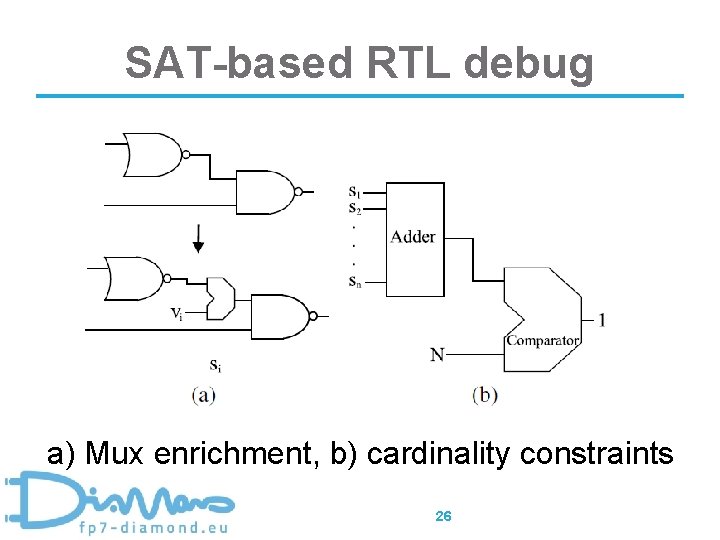

SAT-based RTL debug a) Mux enrichment, b) cardinality constraints 26

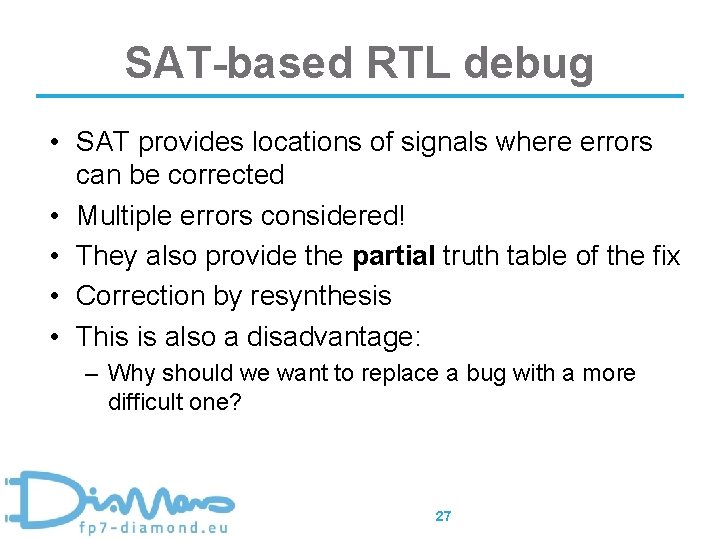

SAT-based RTL debug • SAT provides locations of signals where errors can be corrected • Multiple errors considered! • They also provide the partial truth table of the fix • Correction by resynthesis • This is also a disadvantage: – Why should we want to replace a bug with a more difficult one? 27

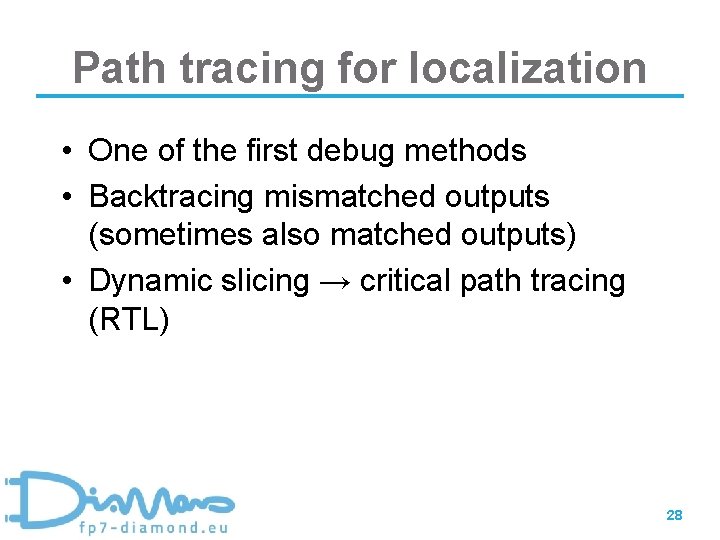

Path tracing for localization • One of the first debug methods • Backtracing mismatched outputs (sometimes also matched outputs) • Dynamic slicing → critical path tracing (RTL) 28

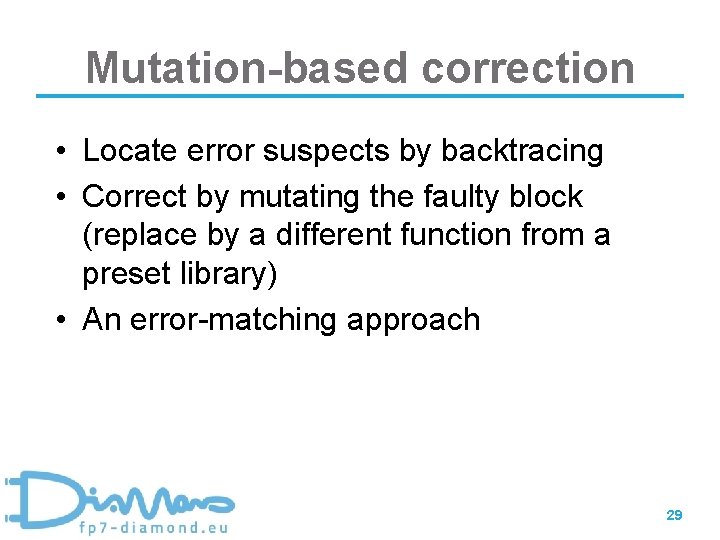

Mutation-based correction • Locate error suspects by backtracing • Correct by mutating the faulty block (replace by a different function from a preset library) • An error-matching approach 29

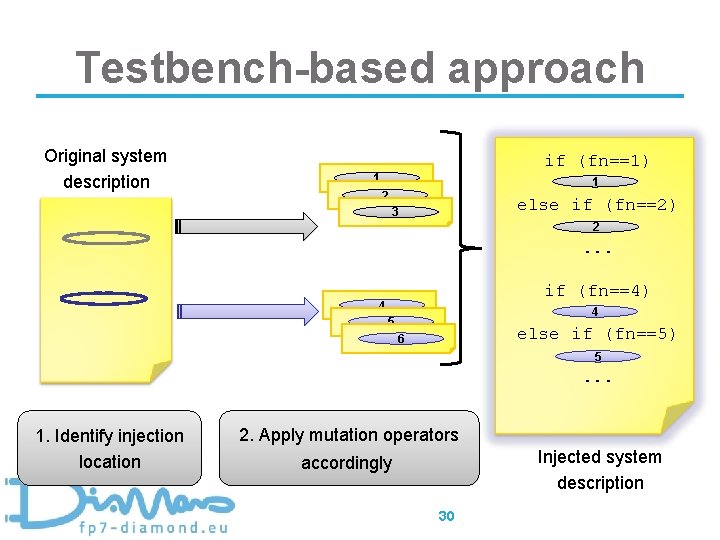

Testbench-based approach Original system description if (fn==1) 1 1 2 else if (fn==2) 3 2 . . . if (fn==4) 4 4 5 else if (fn==5) 6 5 . . . 1. Identify injection location 2. Apply mutation operators Injected system description accordingly 30

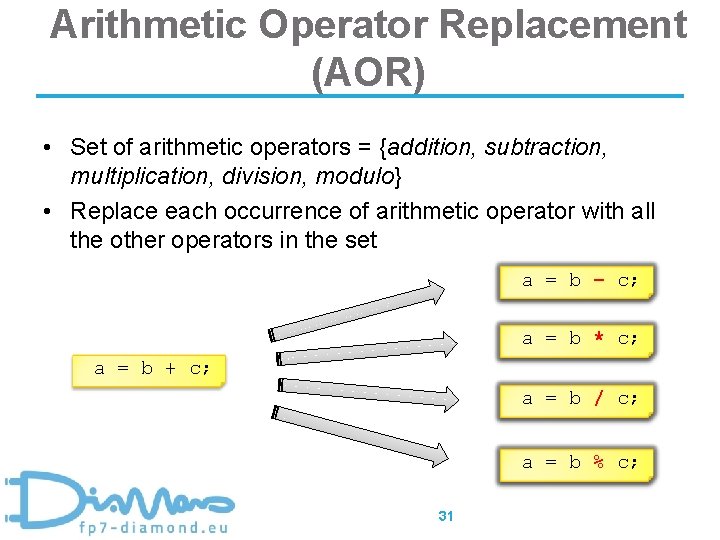

Arithmetic Operator Replacement (AOR) • Set of arithmetic operators = {addition, subtraction, multiplication, division, modulo} • Replace each occurrence of arithmetic operator with all the other operators in the set a = b – c; a = b * c; a = b + c; a = b / c; a = b % c; 31

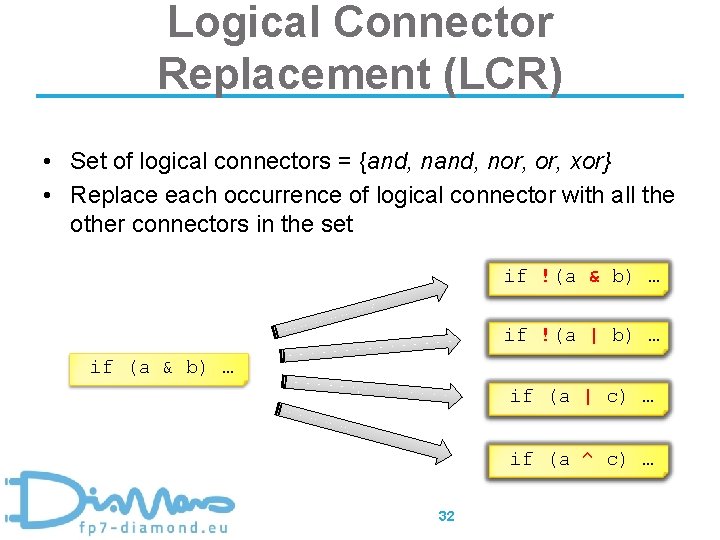

Logical Connector Replacement (LCR) • Set of logical connectors = {and, nor, xor} • Replace each occurrence of logical connector with all the other connectors in the set if !(a & b) … if !(a | b) … if (a & b) … if (a | c) … if (a ^ c) … 32

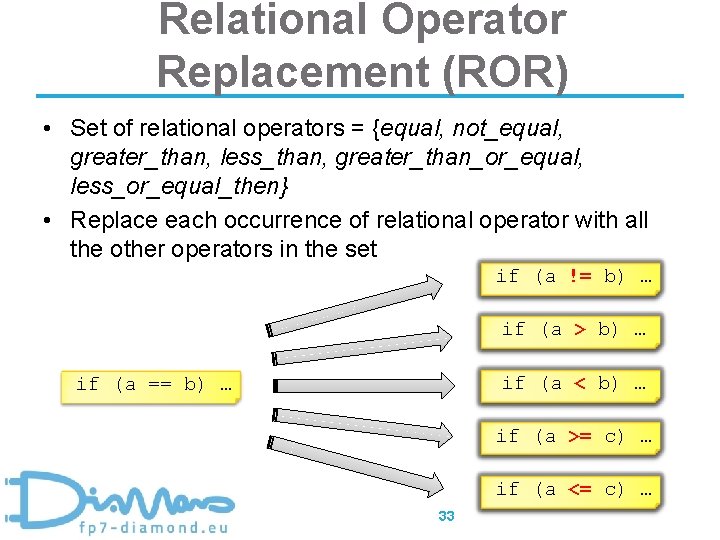

Relational Operator Replacement (ROR) • Set of relational operators = {equal, not_equal, greater_than, less_than, greater_than_or_equal, less_or_equal_then} • Replace each occurrence of relational operator with all the other operators in the set if (a != b) … if (a > b) … if (a < b) … if (a == b) … if (a >= c) … if (a <= c) … 33

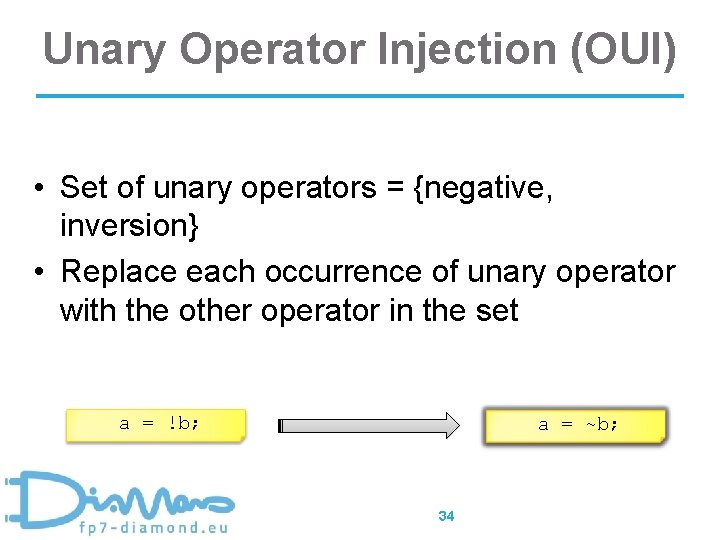

Unary Operator Injection (OUI) • Set of unary operators = {negative, inversion} • Replace each occurrence of unary operator with the other operator in the set a = !b; a = ~b; 34

More mutation examples • • Constant value mutation Replacing signals with other signals Mutating control constructs. . . CREDES Summer School, June 2 -3, 2011, Tallinn, Estonia 35

Approaches for SW & HW • Vidroha Debroy and W. Eric Wong, Using Mutation to Automatically Suggest Fixes for Faulty Programs, Software Testing, Verification and Validation Conf. , June 2010. • Raik, J. ; Repinski, U. ; et al. High-level design error diagnosis using backtrace on decision diagrams. 28 th Norchip Conference 15 -16 November 2010. 36

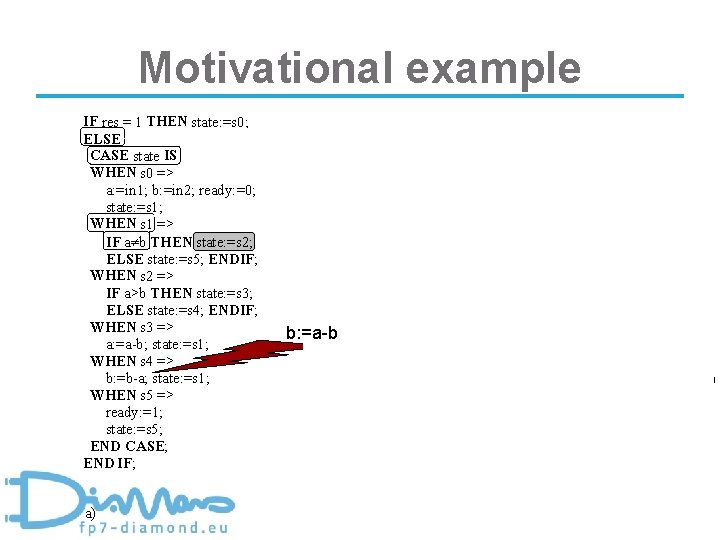

Motivational example IF res = 1 THEN state: =s 0; ELSE CASE state IS WHEN s 0 => a: =in 1; b: =in 2; ready: =0; state: =s 1; WHEN s 1 => IF a¹b THEN state: =s 2; ELSE state: =s 5; ENDIF; WHEN s 2 => IF a>b THEN state: =s 3; ELSE state: =s 4; ENDIF; WHEN s 3 => a: =a-b; state: =s 1; WHEN s 4 => b: =b-a; state: =s 1; WHEN s 5 => ready: =1; state: =s 5; END CASE; END IF; a) s 0, s 3, s 4 state res 0 s 1 state s 5 1 s 0 s 1 F a? b s 2 T T s 3 s 2 a>b s 4 F s 0 state s 5 ready 0 1 s 1, s 2, s 3, s 4 ready 4 b: =a-b a b) s 0 in 1 state s 3 a-b 5 s 1, s 2, s 4, s 5 a 4 b s 0 a-b in 2 state s 4 b-a 5 s 1, s 2, s 3, s 5 b 4 37

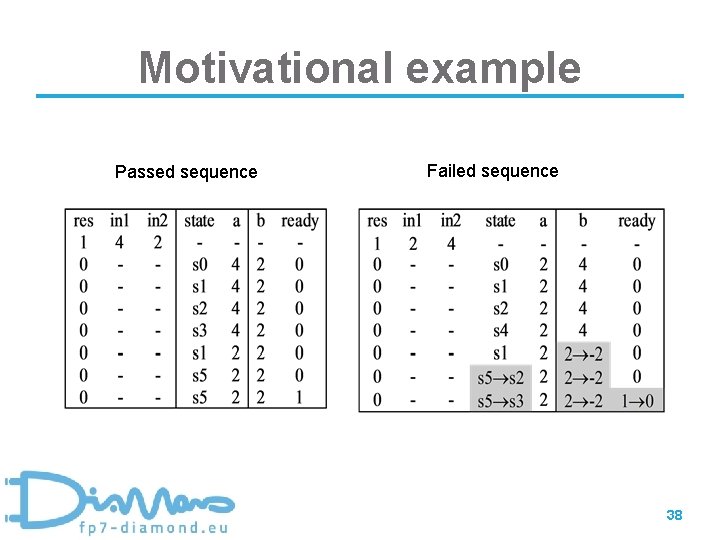

Motivational example Passed sequence Failed sequence 38

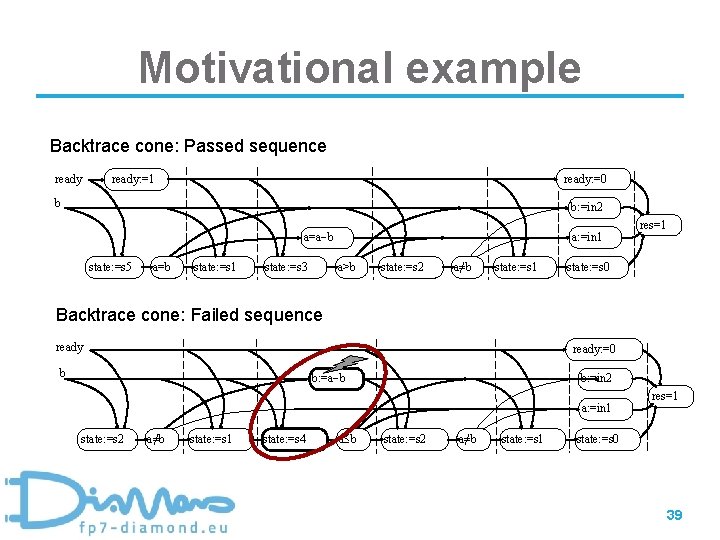

Motivational example Backtrace cone: Passed sequence ready: =0 ready: =1 b b: =in 2 a: =in 1 a=a b state: =s 5 a=b state: =s 1 state: =s 3 a>b state: =s 2 a≠b state: =s 1 res=1 state: =s 0 Backtrace cone: Failed sequence ready: =0 b b: =a b b: =in 2 a: =in 1 state: =s 2 a≠b state: =s 1 state: =s 4 a b state: =s 2 a≠b state: =s 1 res=1 state: =s 0 39

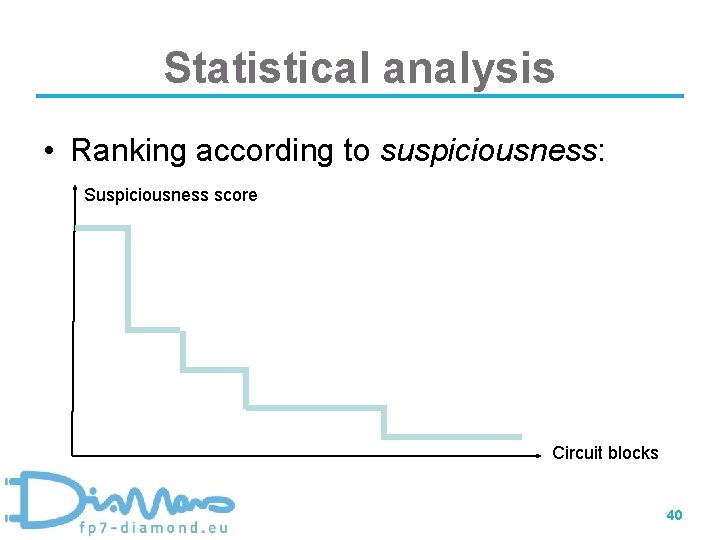

Statistical analysis • Ranking according to suspiciousness: Suspiciousness score Circuit blocks 40

Fault localization experiments Step 1: Critical path tracing of mismatched outputs (max Failed) Step 2: Max ratio (Failed/Passed+Failed) of backtrace cones 41

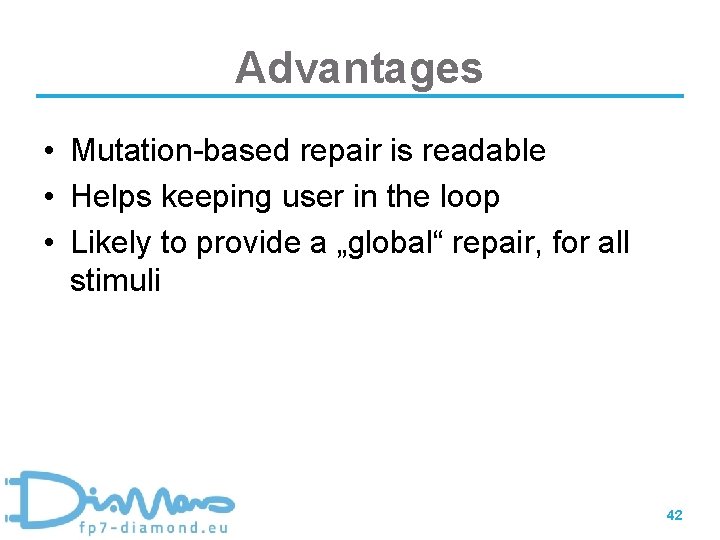

Advantages • Mutation-based repair is readable • Helps keeping user in the loop • Likely to provide a „global“ repair, for all stimuli 42

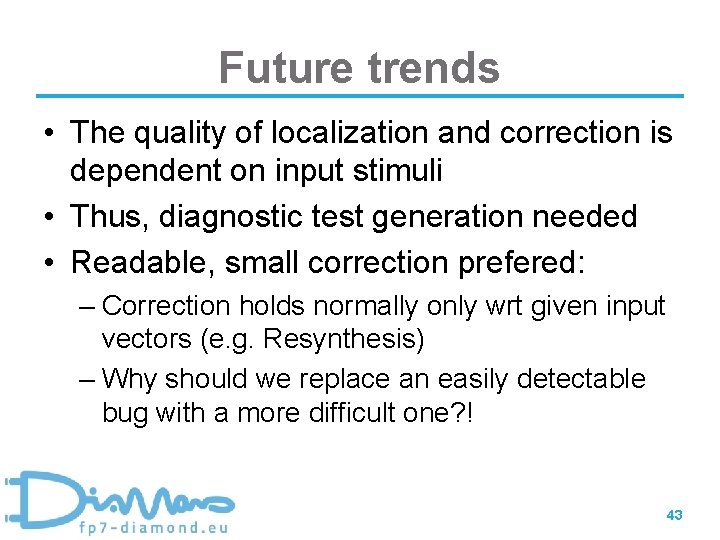

Future trends • The quality of localization and correction is dependent on input stimuli • Thus, diagnostic test generation needed • Readable, small correction prefered: – Correction holds normally only wrt given input vectors (e. g. Resynthesis) – Why should we replace an easily detectable bug with a more difficult one? ! 43

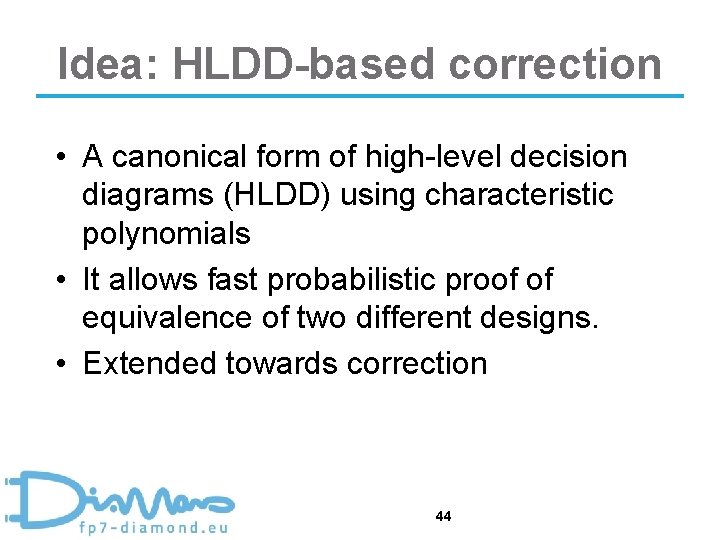

Idea: HLDD-based correction • A canonical form of high-level decision diagrams (HLDD) using characteristic polynomials • It allows fast probabilistic proof of equivalence of two different designs. • Extended towards correction 44

Prototype tools, activities CREDES Summer School, June 2 -3, 2011, Tallinn, Estonia 45

FP 7 Project DIAMOND • Start January 2010, duration 3 years • Total budget 3. 8 M € – EU contribution 2. 9 M € • Effort 462. 5 PM The IBM logo is a registered trademark of International Business Machines Corporation (IBM) in the United States and other countries. DIAMOND Kick-off, Tallinn, February 2 -3, 2010 46

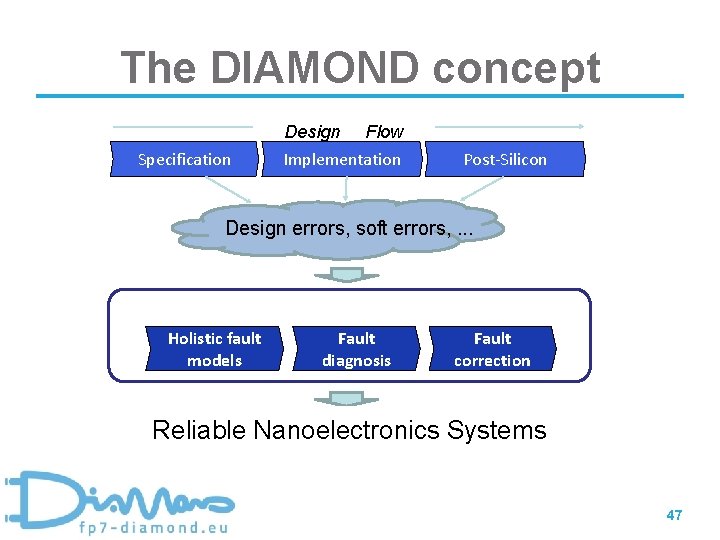

The DIAMOND concept Design Specification Flow Implementation Post-Silicon Design errors, soft errors, . . . Holistic fault models Fault diagnosis Fault correction Reliable Nanoelectronics Systems 47

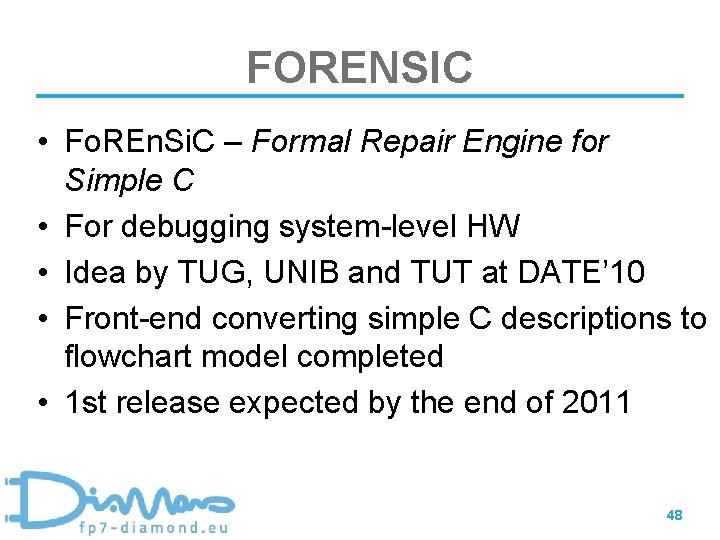

FORENSIC • Fo. REn. Si. C – Formal Repair Engine for Simple C • For debugging system-level HW • Idea by TUG, UNIB and TUT at DATE’ 10 • Front-end converting simple C descriptions to flowchart model completed • 1 st release expected by the end of 2011 48

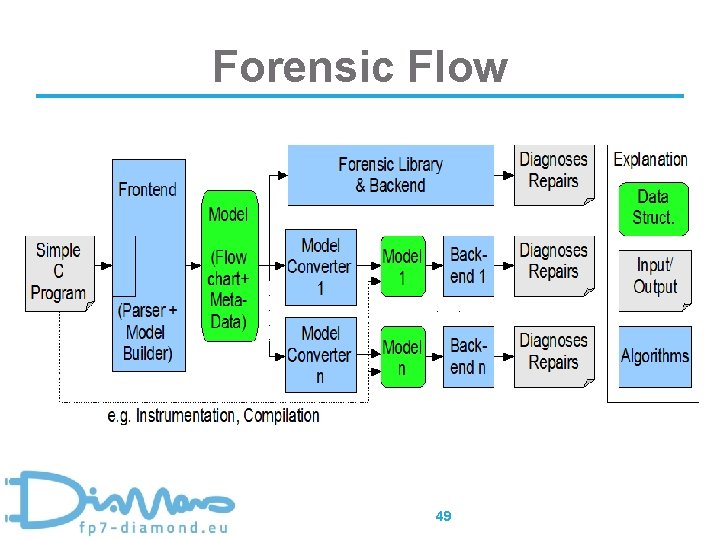

Forensic Flow 49

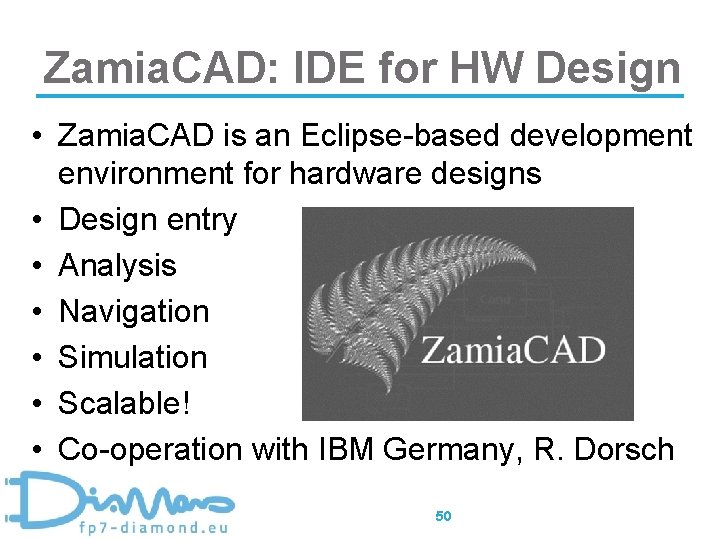

Zamia. CAD: IDE for HW Design • Zamia. CAD is an Eclipse-based development environment for hardware designs • Design entry • Analysis • Navigation • Simulation • Scalable! • Co-operation with IBM Germany, R. Dorsch 50

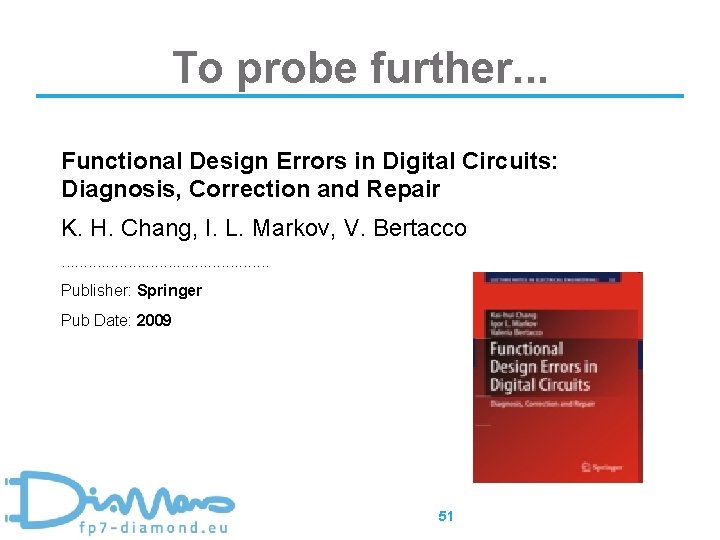

To probe further. . . Functional Design Errors in Digital Circuits: Diagnosis, Correction and Repair K. H. Chang, I. L. Markov, V. Bertacco. . . Publisher: Springer Pub Date: 2009 51
