TECHNICAL WORKING GROUP III Energy Efficiency Master Plan

TECHNICAL WORKING GROUP III : Energy Efficiency Master Plan Hotel Grand Candi, 10 -11 July 2011

Background Energy has a very important role and become a basic necessity in national sustainable development. Therefore, energy should be used sparingly, rational, and wisely so that the energy needs in the present and the future can be met.

Background If the policy to conserve energy, encourage use of renewable energy and carbon emission reduction is adopted, the energy requirement would be reduced by 12 -16 percent.

Background Presidential Instruction No. 9 of 1982. The steps of energy conservation through: a) The energy-saving campaign b) Training of conservation c) Demonstration and examples of energy-efficient appliances d) conservation technology R & D e) Development of energy audit, identify potential efficiency improvements f) Standardization

CURENT SITUATION OF ENERGY CENTRAL JAVA PROVINCE HOUSEHOLD SECTOR FOR EFFICIENCY BUSINESS INDUSTRY

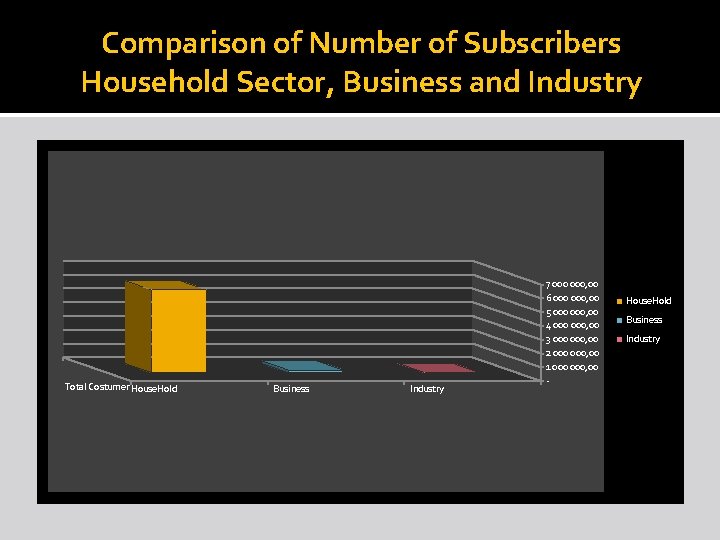

Comparison of Number of Subscribers Household Sector, Business and Industry Total Costumer House. Hold Business Industry 7 000, 00 6 000, 00 5 000, 00 4 000, 00 3 000, 00 2 000, 00 1 000, 00 - House. Hold Business Industry

Electricity price comparison of Household Electrical Sector, Business and Industry 1 000, 00 800, 00 House. Hold 600, 00 Business 400, 00 Industry 200, 00 Rp. /k. Wh House. Hold Business Industry -

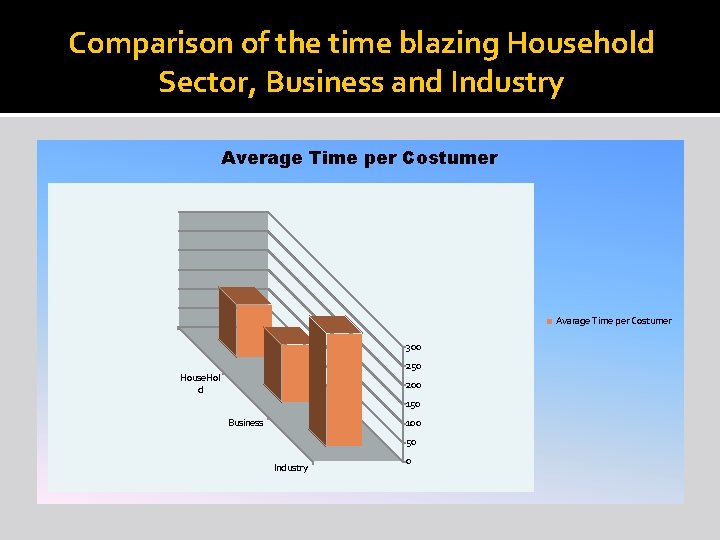

Comparison of the time blazing Household Sector, Business and Industry Average Time per Costumer Avarage Time per Costumer 300 250 House. Hol d 200 150 Business 100 50 Industry 0

PLAN TARGET OF ENERGY EFFICIENCY 1 The details and profile of energy use in the household sector, industrial, and commercial buildings in Central Java. 2 Identification of energy waste and potential savings in the household sector, industrial and commercial buildings. 3 4 5 Recommendations of energy saving measures. The priority or order of application of energy conservation based on the technical, financial and environmental. The feasibility study recommended Energy Conservation Projects which require a fee (medium / high cost).

ENERGY CONSERVATION NATIONAL POLICY 1982 Presiden Instruction No. 9 Year 1982 in Energy Conservation 1991 Presidential Decree No. 43 Year 1991 in Energy Conservation Master Plan in National Energy Conservation Year 1995 (Ministrial Decree No. 100/48/M. PE/1995) and revised in year 2005 1995 ENERGY CONSERVATION POLICY 2002 2005 2006 2007 2008 2009 Law No. 28 Year 2002 in buildings Presiden Instruction No. 10 Year 2005 in Energy Eficiency and MESDM regulation No. 0031 Year 2005 in Energy Efficiency Procedure. Presiden Regulation No. 5 Year 2006 in National Energy Policy Law No. 30 Year 2007 Energy Presiden Instruction No. 2 Year 2008 in Energy and Water Efficiency Government Regulation No. 70 Year 2009 Energy Conservation

L E G A L Regional Regulation and Policy Efficiency B A S I S Local Government / State 1 Provide energy conservation information dissemination, such as campaigns, training, seminars workshops, and pilot. 2 Make regulations requiring the implementation of energy conservation to companies or industries, such as legislation, regulations regarding licensing in all sectors. 3 Provide incentives related to energy conservation activities, such as providing investment incentives and awards for energy conservation. 4 Impose energy conservation standards, such as SNI Energy Conservation in buildings in the law and licensing. Efficient and Saving in Energy Usage 5 Develop plans based electrical energy needs of efficiency. (Distric)

Action Plan for Energy Efficiency Low cost or no cost by immediate action with a payback 1 year ACTION PLAN FOR TECHNICAL Investment plan for the medium -term measures with a payback period of 1 -5 years. Long-term strategy (eg. awareness campaign).

Step Implementation of Energy Efficiency Controlling Energy Audit Energy Management Standardization Procurement Inisiative Awareness and Education Campaign Training Education Pilot Project Dialog Forum Multi Sector Market transformation Partnership Procurement Initiative Insentif Fiscal Insentive Subsidy diversion Appreciation

HOUSEHOLD SECTOR No Cost. By turning off 2 bulbs in specific time (ex: 5 pm – 10 pm). Bulb has 60 Watts, every house can saves 600 watts.

LEVEL Price (Rp. /k. Wh) House. Hold Type - 1 (450 VA) Type - 1 (900 VA) 495, 00 790, 00 Everymonth saving Rp. 15. 435, x 6002195 795, 00 = Rp. 92. 643. 879. 830 Type - 1 (2200 VA) Type – 2 Type – 3 AVERAGE = Rp. 15. 435, - 495, 00 Type - 1 (1300 VA) in one month, every house can save : 890, 00 1. 300, 00 It saves up to 108 GW

Total energy sold 1 year(k. Wh) 6 440 000 6 420 000 6 400 000 6 380 000 6 360 000 6 340 000 6 320 000 6 300 000 6 280 000 Before Saving Energy After Saving Energy

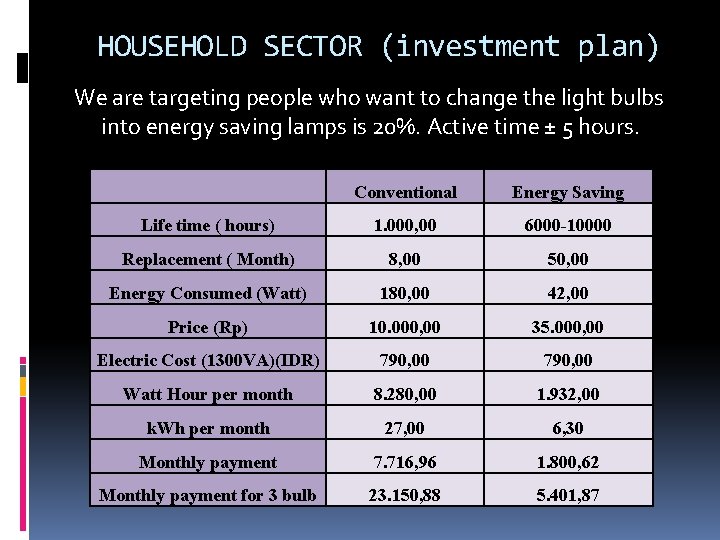

HOUSEHOLD SECTOR (investment plan) We are targeting people who want to change the light bulbs into energy saving lamps is 20%. Active time ± 5 hours. Conventional Energy Saving Life time ( hours) 1. 000, 00 6000 -10000 Replacement ( Month) 8, 00 50, 00 Energy Consumed (Watt) 180, 00 42, 00 Price (Rp) 10. 000, 00 35. 000, 00 Electric Cost (1300 VA)(IDR) 790, 00 Watt Hour per month 8. 280, 00 1. 932, 00 k. Wh per month 27, 00 6, 30 Monthly payment 7. 716, 96 1. 800, 62 Monthly payment for 3 bulb 23. 150, 88 5. 401, 87

Total Household Customer LEVEL Energy cost Total Household Per kwh (IDR) Customer Type - 1 (450 VA) 495, 00 3. 980. 991, 00 Type - 1 (900 VA) 495, 00 1. 693. 816, 00 Type - 1 (1300 VA) 790, 00 215. 524, 00 Type - 1 (2200 VA) 795, 00 85. 470, 00 Type - 1 (The Rest) 795, 00 0, 00 Type – 2 890, 00 23. 553, 00 Type – 3 1. 300, 00 2. 841, 00 Type - 4 1. 300, 00 6. 002. 195, 00

For three classes (450, 900, 1300 VA) For the one month: With the light bulb uses = 27 k. Wh With energy saver bulbs = 6, 3 k. Wh Save: 20, 7 k. Wh 450 VA = 20, 7 x 790 x 495 x 3. 980. 991 = 13. 020. 229. 164, 60 900 VA = 5. 539. 794. 609, 60 1300 VA = 704. 892. 794, 40 Total saving cost = Rp. 19. 264. 916. 568, 60

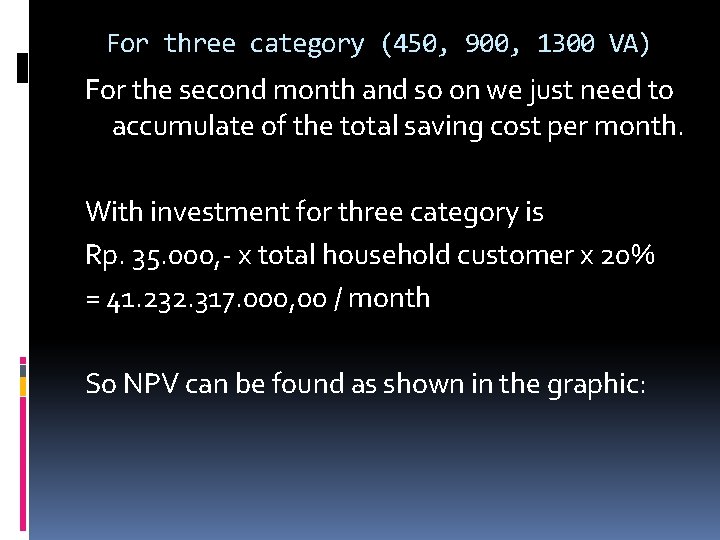

For three category (450, 900, 1300 VA) For the second month and so on we just need to accumulate of the total saving cost per month. With investment for three category is Rp. 35. 000, - x total household customer x 20% = 41. 232. 317. 000, 00 / month So NPV can be found as shown in the graphic:

For three classes (450, 900, 1300 VA) 250 000 000, 00 200 000 000, 00 150 000 000, 00 100 000 000, 00 NPV 50 000 000, 00 1 2 3 4 5 6 7 8 9 10 11 12 -50 000 000, 00 We can see that the payback will be got after almost only two-half months.

Replacement the refrigerator For general, the old refrigerator: 0, 15 k. W the new ones: 0, 07 k. W (single door) Using time is 24 hours and discount rate 12% / year. BEFORE : acc. Energy/month = 0, 15 x 24 x 30 days = 108 acc. Energy cost = 108 x Rp 495, - = Rp. 53. 460, With IRR= 0, 99 << , DR = 0, 01 Monthly cost = (IRR x DR x acc. Energy cost) = Rp. 52. 930, 69 AFTER : Rp. 22. 936, 63

Replacement the refrigerator 120, 00 COMPARISON OF COST AND ENERGY USING BEFORE AND AFTER SAVING 100, 00 80, 00 before after 60, 00 40, 00 20, 00 cost/month(thousand) energy use/month(k. W)

Replacement the refrigerator Energy cost saving = Rp. 29. 994, 06 PER MONTH With the investment to buy new refrigerator is Rp. 1. 000, 200000 NPV 0 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 51 53 55 57 59 61 63 65 67 69 71 73 75 77 79 81 83 85 -200000 -400000 NPV -600000 Poly. (NPV) -800000 -1000000 -1200000 The payback is after 60 month or five year.

PLN’s benefit Power Number of Total Subsidy Energy Savings PLN regeneration cost Connected Targeted Customers 50% (k. Wh) saving (IDR) 450 VA 796. 198 557. 338. 740. 000, 00 298. 096. 606, 08 745. 241. 515. 200, 00 900 VA 338. 763 237. 134. 240. 000, 00 126. 832. 942, 08 317. 082. 355. 200, 00 1300 VA 43. 105 30. 173. 360. 000, 00 16. 138. 437, 12 40. 346. 092. 800, 00 1. 178. 066 824. 646. 340. 000, 00 Total 441. 067. 985 1. 102. 669. 963. 200, 00

Business Sector Increasing the awareness of costumer’s electrical usage Replacing the conventional tools with the energy saving one

TIME MANAGING According to survey in a hotel in Central Java, because of time managing, this hotel can save the price up to Rp 62, 927. 44 a day. It mean, in 1 month, that hotel can save up to Rp. 188, 782. 32. If all hotel in Central Java (106 star hotels) organize a usage of its electrical tools, hotel business in Central Java can save money up to Rp 20 million/month. Just imagine, there’s 1090 not starred hotels in Central Java.

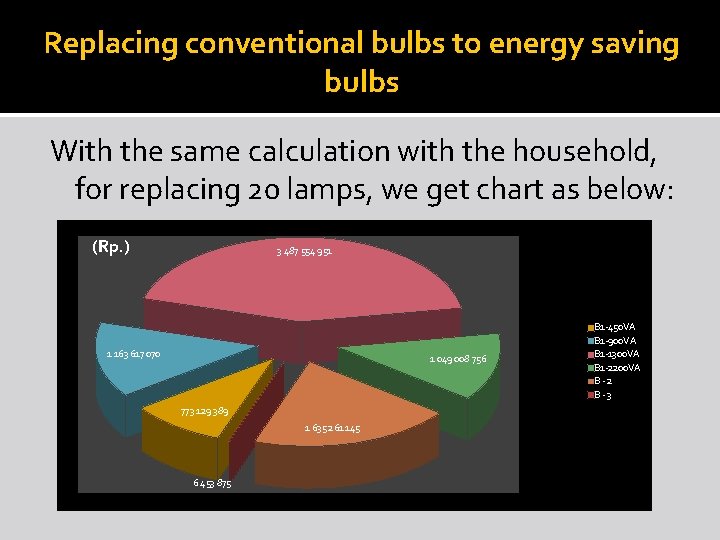

Replacing conventional bulbs to energy saving bulbs With the same calculation with the household, for replacing 20 lamps, we get chart as below: (Rp. ) 3 487 554 951 1 163 617 070 1 049 008 756 773 129 389 1 635 261 145 6 453 875 B 1 -450 VA B 1 -900 VA B 1 -1300 VA B 1 -2200 VA B-2 B-3

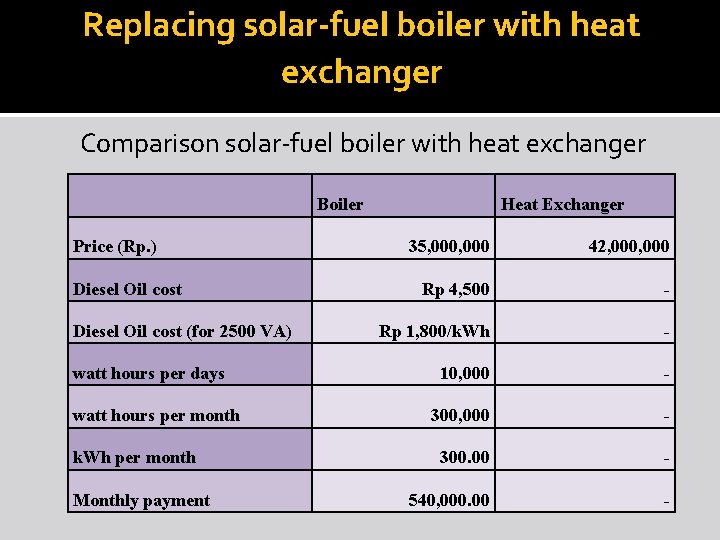

Replacing solar-fuel boiler with heat exchanger Comparison solar-fuel boiler with heat exchanger Boiler Price (Rp. ) Diesel Oil cost (for 2500 VA) watt hours per days watt hours per month k. Wh per month Monthly payment Heat Exchanger 35, 000 42, 000 Rp 4, 500 - Rp 1, 800/k. Wh - 10, 000 - 300. 00 - 540, 000. 00 -

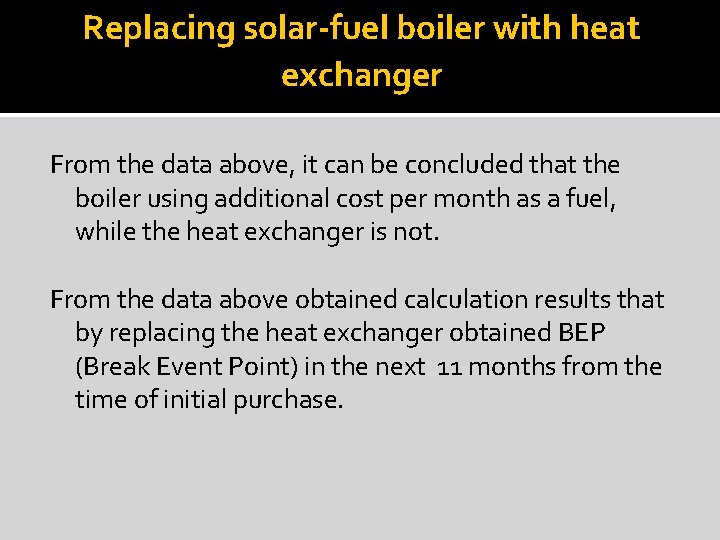

Replacing solar-fuel boiler with heat exchanger From the data above, it can be concluded that the boiler using additional cost per month as a fuel, while the heat exchanger is not. From the data above obtained calculation results that by replacing the heat exchanger obtained BEP (Break Event Point) in the next 11 months from the time of initial purchase.

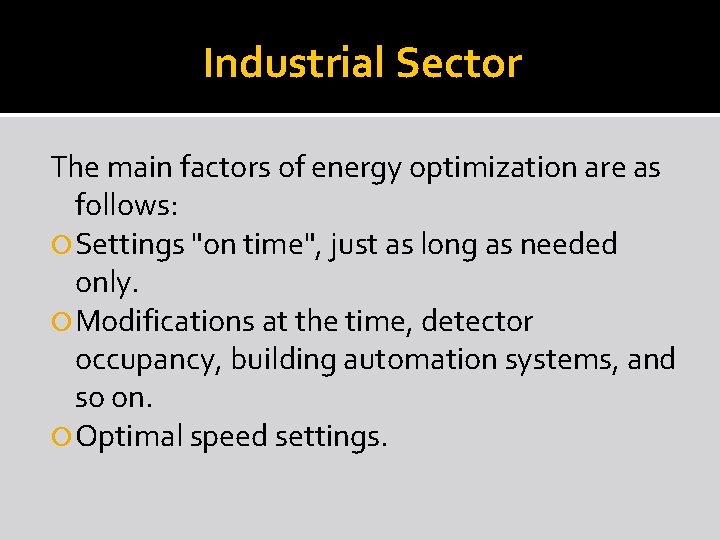

Industrial Sector The main factors of energy optimization are as follows: Settings "on time", just as long as needed only. Modifications at the time, detector occupancy, building automation systems, and so on. Optimal speed settings.

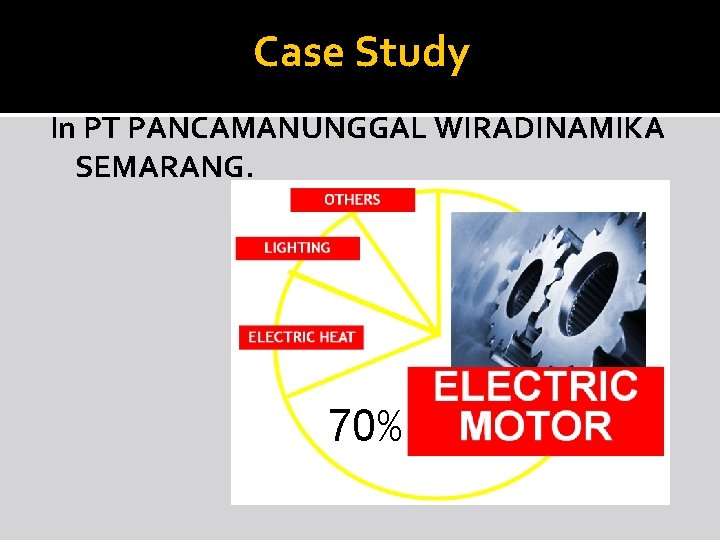

Case Study In PT PANCAMANUNGGAL WIRADINAMIKA SEMARANG. 70%

ENERGY SAVING OVER-SIZE 18, 5 k. W 11 k. W DESIGN = 12, 5 k. W ACTUAL = 12, 5 k. W x SAFETY FACTOR = 12, 5 k. W x 1, 3 = 16, 25 k. W OPTIONAL = 18, 5 k. W

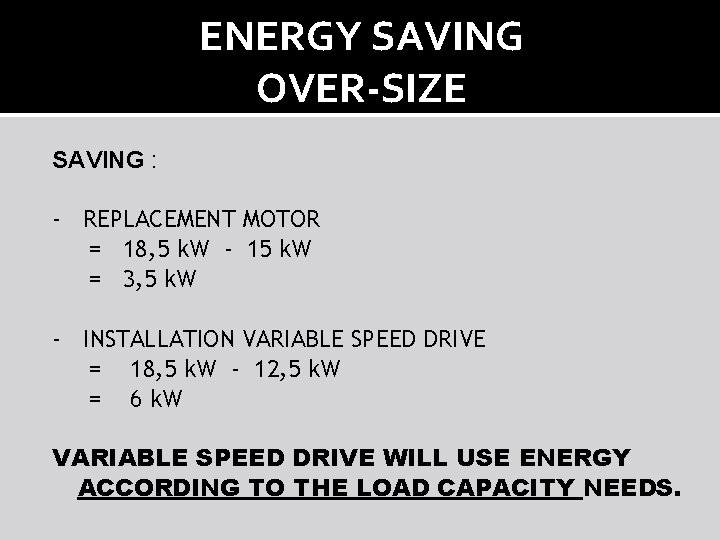

ENERGY SAVING OVER-SIZE SAVING : - REPLACEMENT MOTOR = 18, 5 k. W - 15 k. W = 3, 5 k. W - INSTALLATION VARIABLE SPEED DRIVE = 18, 5 k. W - 12, 5 k. W = 6 k. W VARIABLE SPEED DRIVE WILL USE ENERGY ACCORDING TO THE LOAD CAPACITY NEEDS.

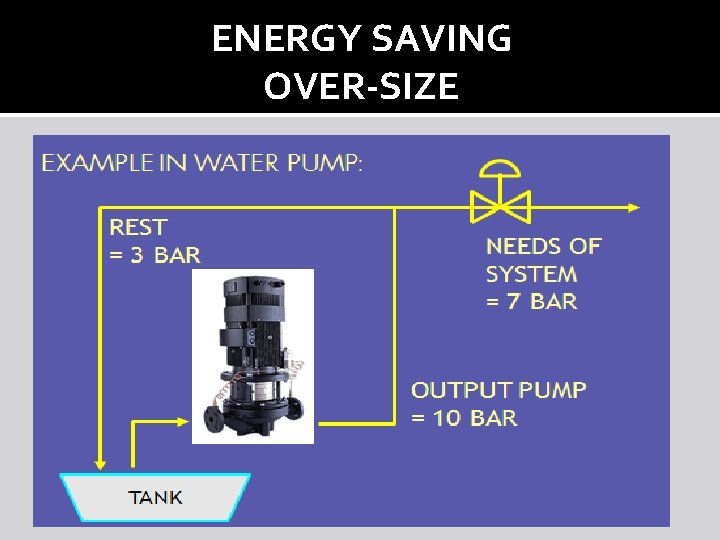

ENERGY SAVING OVER-SIZE

ENERGY SAVING OVER-SIZE

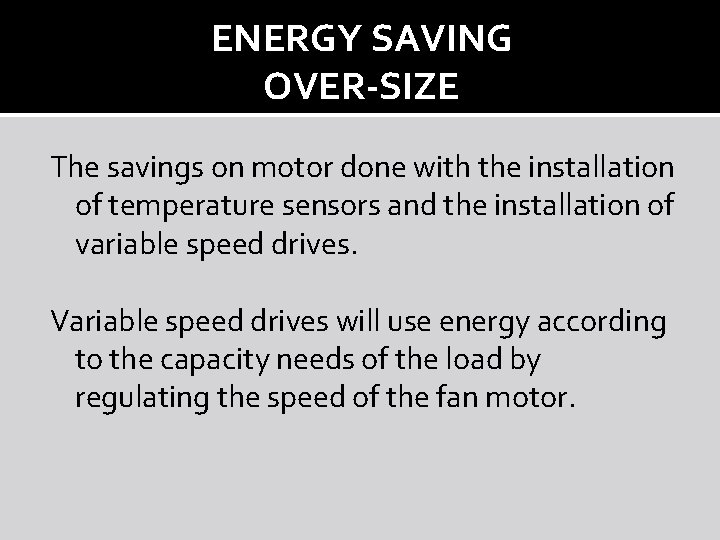

ENERGY SAVING OVER-SIZE The savings on motor done with the installation of temperature sensors and the installation of variable speed drives. Variable speed drives will use energy according to the capacity needs of the load by regulating the speed of the fan motor.

ENERGY SAVING SPEED vs ENERGY

APPLYING SPEED ≈ ≈ ≈ THE PRINCIPLES: FLOW (PRESSURE)2 (ENERGY)3 0, 9 SPEED ≈ 0, 9 FLOW ≈ (0, 9)2 ≈ 0. 81 PRESSURE ≈ (0, 9)3 ≈ 0, 729 ENERGY OF SPEED 10 % SAVE ENERGY 27, 1 % REDUCTION

ENERGY SAVING SUCCESS STORY (I) IMPLEMENTATION VSD FOR COMPRESSOR 75 k. W IN PT TOSSA SAKTI SEMARANG MEASURING RESULT FREQUENSI POSITION R(A) S(A) T(A) 50 Hz LOADING 99 50 Hz UNLOADING 63 72 50 Hz LOADING 102 15 Hz UNLOADING 15 20 18 45 Hz LOADING 75 92 90 15 Hz UNLOADING 14 19 18 89 105 93 60

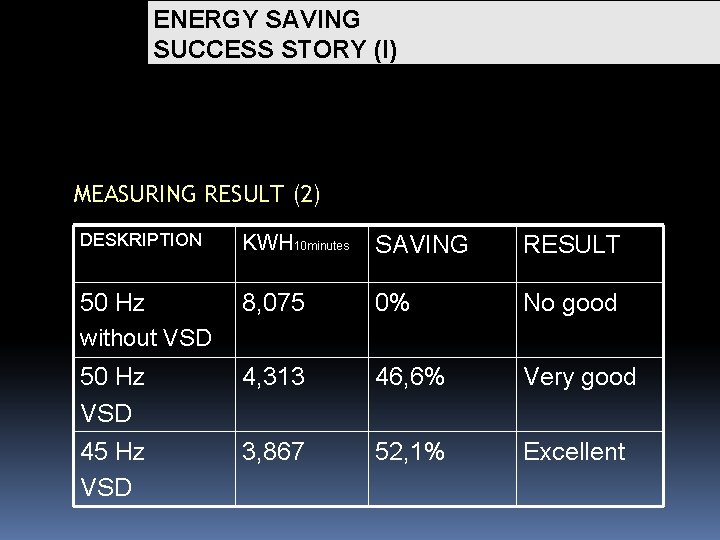

ENERGY SAVING SUCCESS STORY (I) MEASURING RESULT (2) DESKRIPTION KWH 10 minutes SAVING RESULT 50 Hz without VSD 8, 075 0% No good 50 Hz VSD 4, 313 46, 6% Very good 45 Hz VSD 3, 867 52, 1% Excellent

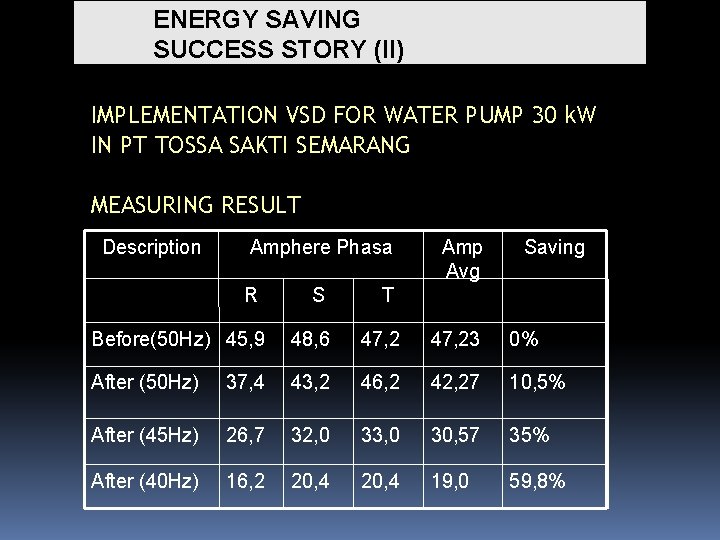

ENERGY SAVING SUCCESS STORY (II) IMPLEMENTATION VSD FOR WATER PUMP 30 k. W IN PT TOSSA SAKTI SEMARANG MEASURING RESULT Description Amphere Phasa R Amp Avg Saving S T Before(50 Hz) 45, 9 48, 6 47, 23 0% After (50 Hz) 37, 4 43, 2 46, 2 42, 27 10, 5% After (45 Hz) 26, 7 32, 0 33, 0 30, 57 35% After (40 Hz) 16, 2 20, 4 19, 0 59, 8%

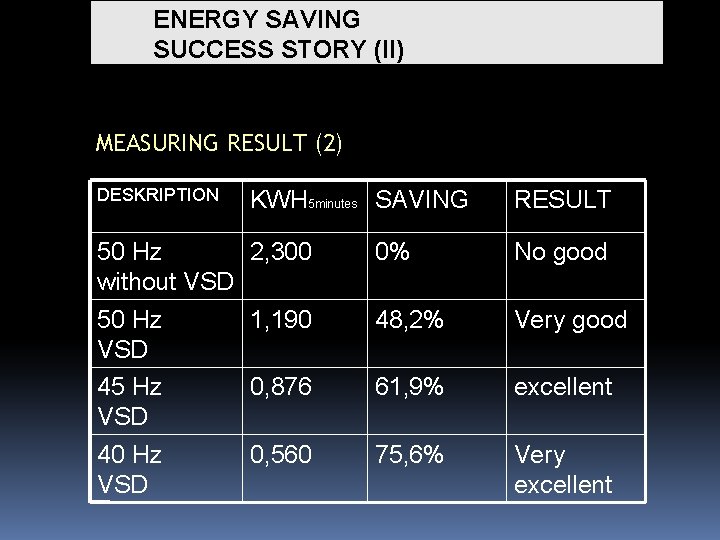

ENERGY SAVING SUCCESS STORY (II) MEASURING RESULT (2) DESKRIPTION KWH 5 minutes SAVING RESULT 50 Hz without VSD 50 Hz VSD 45 Hz VSD 40 Hz VSD 2, 300 0% No good 1, 190 48, 2% Very good 0, 876 61, 9% excellent 0, 560 75, 6% Very excellent

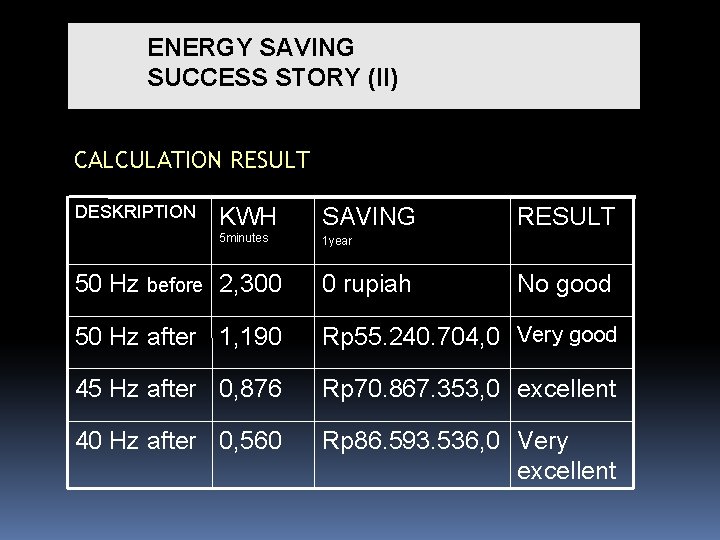

ENERGY SAVING SUCCESS STORY (II) CALCULATION RESULT DESKRIPTION KWH SAVING 5 minutes 1 year RESULT 50 Hz before 2, 300 0 rupiah No good 50 Hz after 1, 190 Rp 55. 240. 704, 0 Very good 45 Hz after 0, 876 Rp 70. 867. 353, 0 excellent 40 Hz after 0, 560 Rp 86. 593. 536, 0 Very excellent

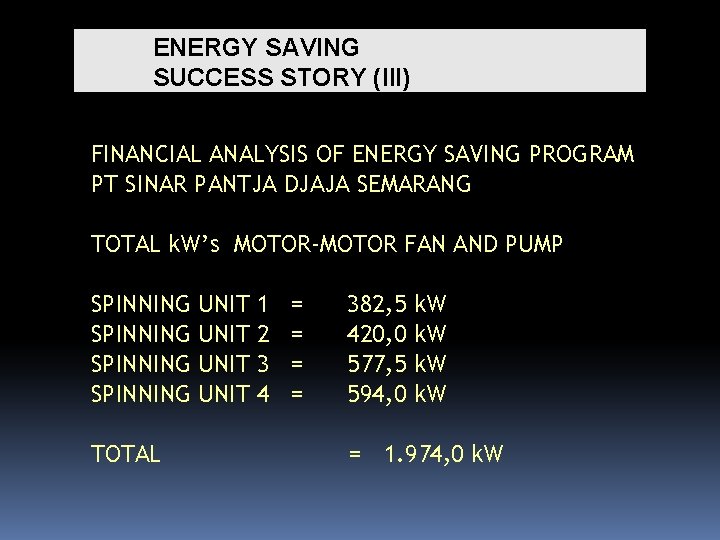

ENERGY SAVING SUCCESS STORY (III) FINANCIAL ANALYSIS OF ENERGY SAVING PROGRAM PT SINAR PANTJA DJAJA SEMARANG TOTAL k. W’s MOTOR-MOTOR FAN AND PUMP SPINNING TOTAL UNIT 1 2 3 4 = = 382, 5 420, 0 577, 5 594, 0 k. W = 1. 974, 0 k. W

ENERGY SAVING SUCCESS STORY (III) TARGET of SAVING : TOTAL = 1. 974, 0 k. W x 35 % PER HOUR = 690, 9 k. W x 24 h x 30 d PER MONTH = 497. 448 k. W x Rp. 550, = Rp. 273. 596. 400, PER MONTH

ENERGY SAVING SUCCESS STORY (III) INVESTATION VSD = Rp. 1. 000, - / k. W PAYBACK PERIOD Rp. 1, 974 M / Rp. 273. 596. 400, - PER MONTH 7, 2 MONTH

HVAC SYSTEM HVAC : Heating Ventilation Air Conditioner The HVAC Drives Specialist has specifications advantages such as: Save money Easy commissioning Application menus Quick menu Motor Rotation Check PID-auto tuning Maintenance free Save space

ENERGY SAVING VSD implementation on the water pump with 55 k. W at PDAM Kadipiro The measurement results (1) Description Amphere Phasa R S Amp Avg Saving T Before 90 94 98 94 0% After 71 84 71 76 20%

ENERGY SAVING The measurement result (2) DESKRIPSI KWH 7 Days SAVING RESULT 50 Hz tanpa VSD 45 Hz VSD 8900, 98 0% No good 6362, 9 28, 5% Good

ENERGY SAVING The Measuring result. Without Inverter: 8900, 98 / 168 hours = 52, 98 k. Wh With Inverter 6362, 9 / 168 hours = 27, 87 So, it saves energy 25, 11 k. Wh.

ENERGY SAVING With Target saving: Total = 25, 11 x 24 x 30 days per month = 18079, 2 k. W x Rp. 765, = Rp. 13. 830. 588, - per month With investment: VSD 55 k. W = Rp. 30. 000, Payback Periode: 30. 000 / 13. 830. 588 = 2, 2 months
