Technical information exchange in process industry A brief

Technical information exchange in process industry A brief review to national industry digitalization efforts 29. 10. 2018 THTH Autumn Seminar, Espoo Arto Marttinen, THTH/Collaxion THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry

DBE Core ecosystem development • Digital Supply Chain Core – process industry (altogether 26 industrial partners) 10/2016 -12/2018 • Maritime Digital Supply Space (20 industrial partner) 7/2017 -12/2019 • New Transportation and Logistics project started 9/2018 -12/2020 THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry

Open networks are based on standards Ecosystem network DBE Core open industry effort www. oasis-open. org 10% 90% Source: IBM OPEN STANDARDS DBE Core Reference APIs API External ? APIAPI External ? API External Commercial data Technical data ISO/IEC-19845 (UBL) engineering&equipment ISO-15926, IEC-61987, IEC -62890, DEXPI, CFIHOS, PSK guidelines, … ERP, CRM, … PDM, Eng. Systems, CMMS, … Operational data ISO/IEC OPC-UA/IIo. T IEC-62264/61512 IEC-62541, IEC-62453, … MES, DCS, CMS, … COMPANY’S INTERNAL INTEGRATION (API REALIZATION) THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry

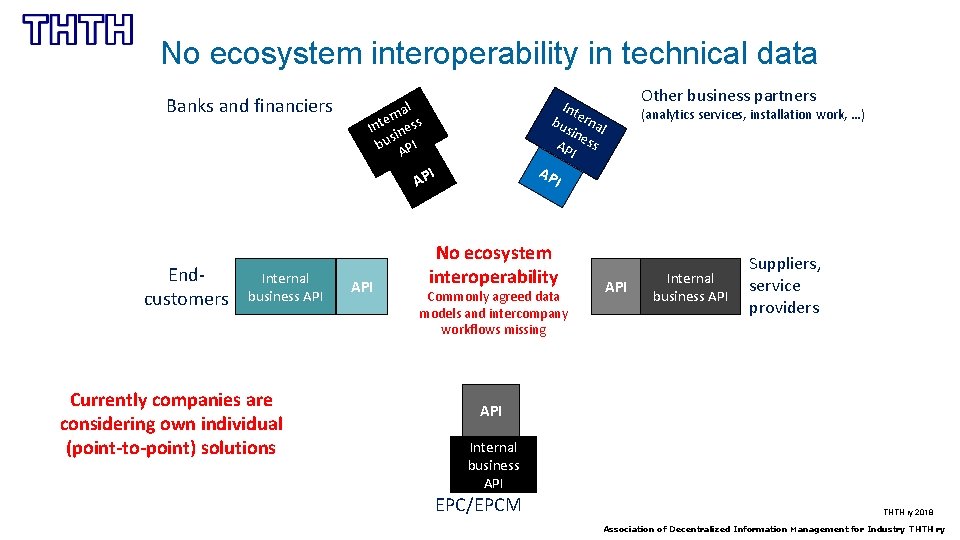

No ecosystem interoperability in technical data Banks and financiers Internal business API Currently companies are considering own individual (point-to-point) solutions API (analytics services, installation work, …) AP I AP Endcustomers Other business partners Int bu erna sin l AP ess I al n r e Int iness s bu PI A I No ecosystem interoperability Commonly agreed data models and intercompany workflows missing API Internal business API Suppliers, service providers API Internal business API EPC/EPCM THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry

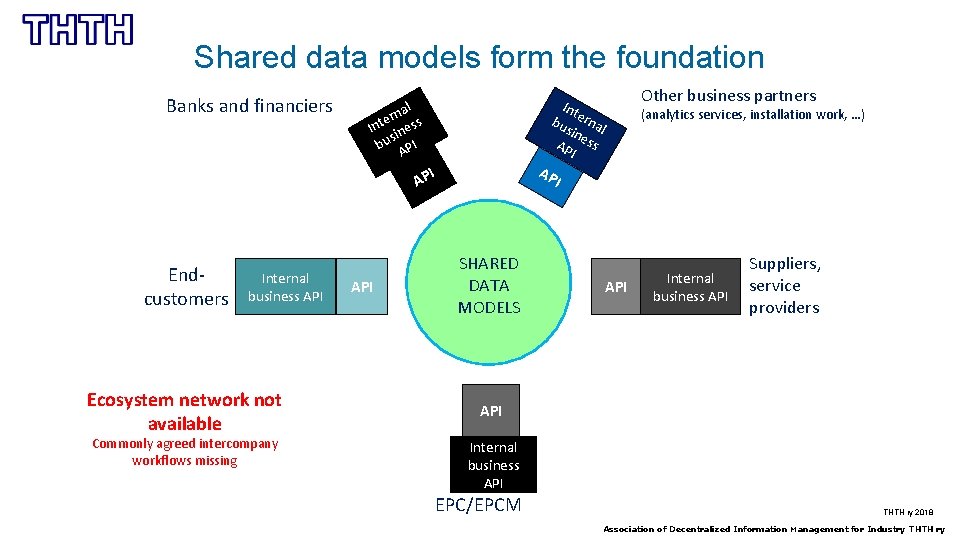

Shared data models form the foundation Banks and financiers Internal business API Ecosystem network not available Commonly agreed intercompany workflows missing API (analytics services, installation work, …) AP I AP Endcustomers Other business partners Int bu erna sin l AP ess I al n r e Int iness s bu PI A I SHARED DATA MODELS API Internal business API Suppliers, service providers API Internal business API EPC/EPCM THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry

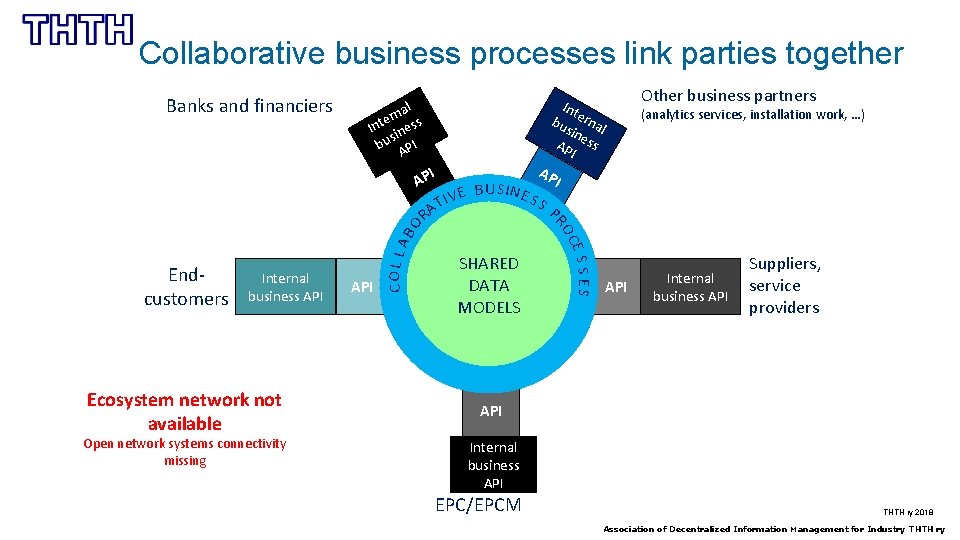

Collaborative business processes link parties together Banks and financiers I Open network systems connectivity missing CO L L A I SP SHARED DATA MODELS SSES Ecosystem network not available API AP CE Internal business API T RA B U S IN E S IV E (analytics services, installation work, …) RO BO AP Endcustomers Other business partners Int bu erna sin l AP ess I al n r e Int iness s bu PI A API Internal business API Suppliers, service providers API Internal business API EPC/EPCM THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry

Interoperability using standardized interfaces Banks and financiers I CO L L A I SP SHARED DATA MODELS SSES Suppliers, service providers E FE AP RE E NC RE NC Ecosystem interoperability guaranteed API Internal business API I AP CE Internal business API T RA B U S IN E S IV E (analytics services, installation work, …) RO BO AP Endcustomers Other business partners Int bu erna sin l AP ess I al n r e Int iness s bu PI A AP I API RE R FE E Internal business API EPC/EPCM THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry

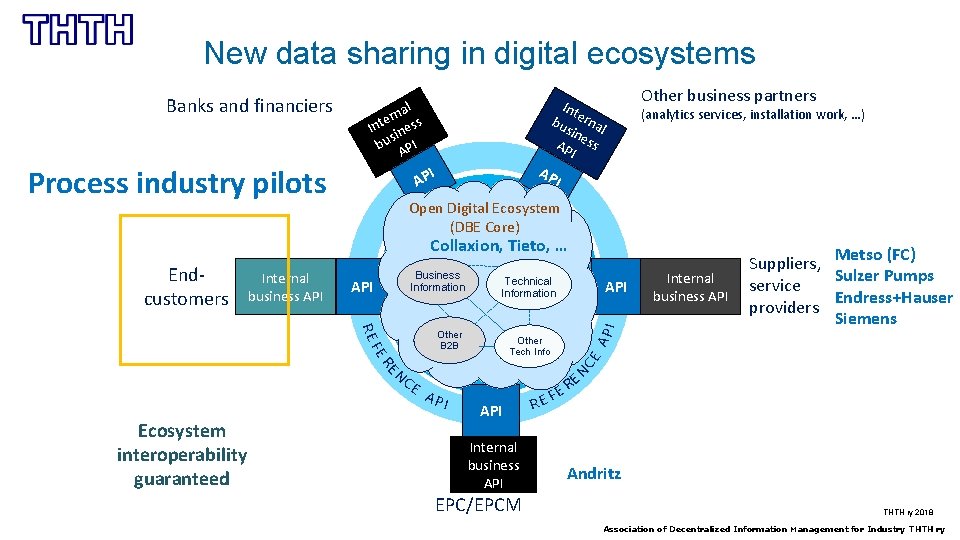

New data sharing in digital ecosystems AP I U S IN E B E V SS T IDigital Open Ecosystem A P R (DBE Core) I API FE Other Tech Info NC RE E Internal business API Metso (FC) Suppliers, Sulzer Pumps service Endress+Hauser providers Siemens AP RE Other B 2 B NC Ecosystem interoperability guaranteed SSES API Collaxion, Tieto, … SHARED Business Technical Information DATA Information MODELS CE Internal business API CO L L A BO RO Endcustomers (analytics services, installation work, …) AP I Process industry pilots Other business partners Int bu erna sin l AP ess I al n r e Int iness s bu PI A E Banks and financiers AP I API Internal business API EPC/EPCM RE R FE E Andritz THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry

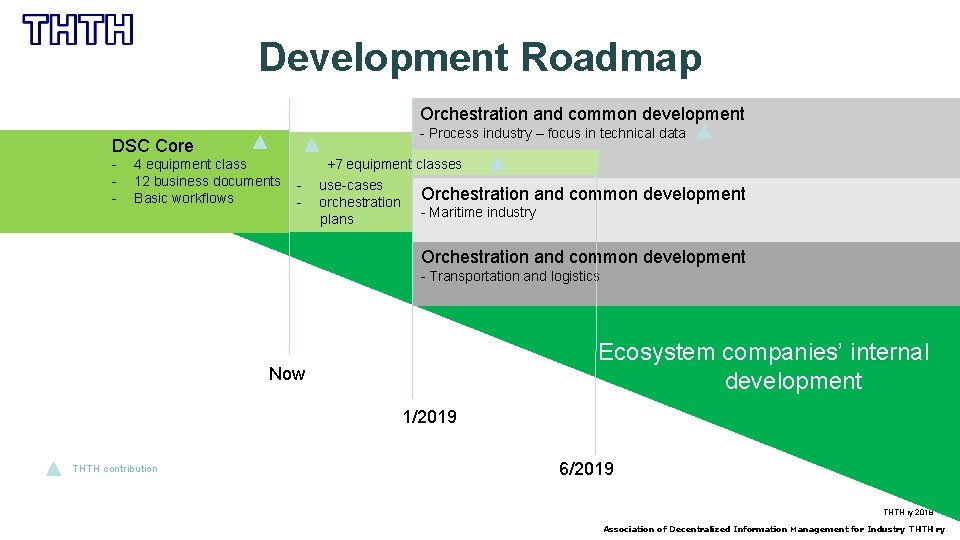

Development Roadmap Orchestration and common development - Process industry – focus in technical data DSC Core - 4 equipment class 12 business documents Basic workflows +7 equipment classes - use-cases orchestration plans Orchestration and common development - Maritime industry Orchestration and common development - Transportation and logistics Ecosystem companies’ internal development Now 1/2019 THTH contribution 6/2019 THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry

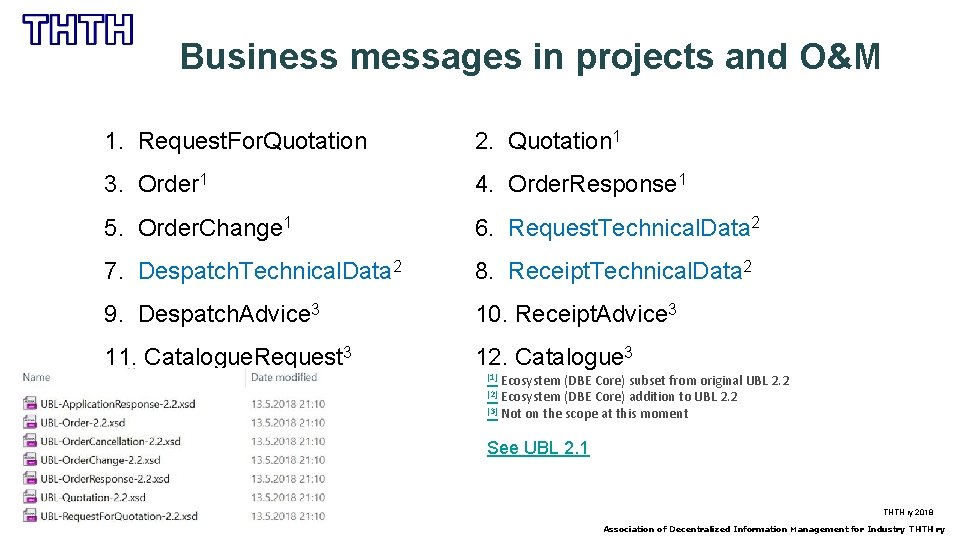

Business messages in projects and O&M 1. Request. For. Quotation 2. Quotation 1 3. Order 1 4. Order. Response 1 5. Order. Change 1 6. Request. Technical. Data 2 7. Despatch. Technical. Data 2 8. Receipt. Technical. Data 2 9. Despatch. Advice 3 10. Receipt. Advice 3 11. Catalogue. Request 3 12. Catalogue 3 Ecosystem (DBE Core) subset from original UBL 2. 2 Ecosystem (DBE Core) addition to UBL 2. 2 [3] Not on the scope at this moment [1] [2] See UBL 2. 1 THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry

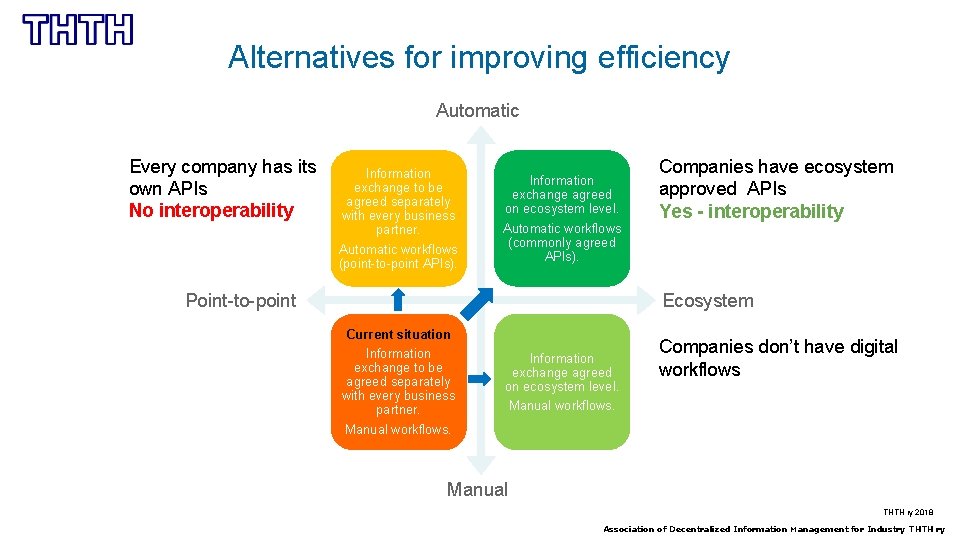

Alternatives for improving efficiency Automatic Every company has its own APIs No interoperability Information exchange to be agreed separately with every business partner. Automatic workflows (point-to-point APIs). Information exchange agreed on ecosystem level. Automatic workflows (commonly agreed APIs). Point-to-point Companies have ecosystem approved APIs Yes - interoperability Ecosystem Current situation Information exchange to be agreed separately with every business partner. Manual workflows. Information exchange agreed on ecosystem level. Manual workflows. Companies don’t have digital workflows Manual THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry

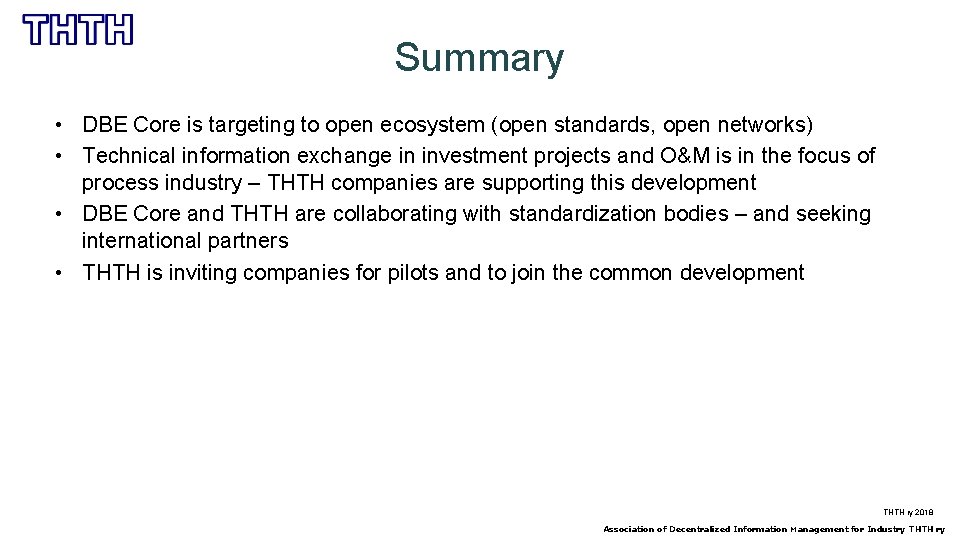

Summary • DBE Core is targeting to open ecosystem (open standards, open networks) • Technical information exchange in investment projects and O&M is in the focus of process industry – THTH companies are supporting this development • DBE Core and THTH are collaborating with standardization bodies – and seeking international partners • THTH is inviting companies for pilots and to join the common development THTH ry 2018 Association of Decentralized Information Management for Industry THTH ry
