Windows Server 2008 Active Directory 版權管理服務 蘇建榮 alan_su@uuu. com. tw 恆逸教育訓練中心(精誠資訊)

大綱 AD RMS 功能與運作 建置與管理 AD RMS 與 AD FS 整合 與 Office Share. Point Server 2007 整合

AD RMS 的新功能 Windows Server 2008 內建 使用 ASP. NET 2. 0 安裝時自動選取所需要的元件(如：IIS、WAS、MSMQ、 Windows Internal Database 等) 可整合 AD FS 進行跨企業合作 自行登記-不需連通 Microsoft MMC 中嵌入的管理單元(可遠端管理) Health Report、Troubleshooting Report

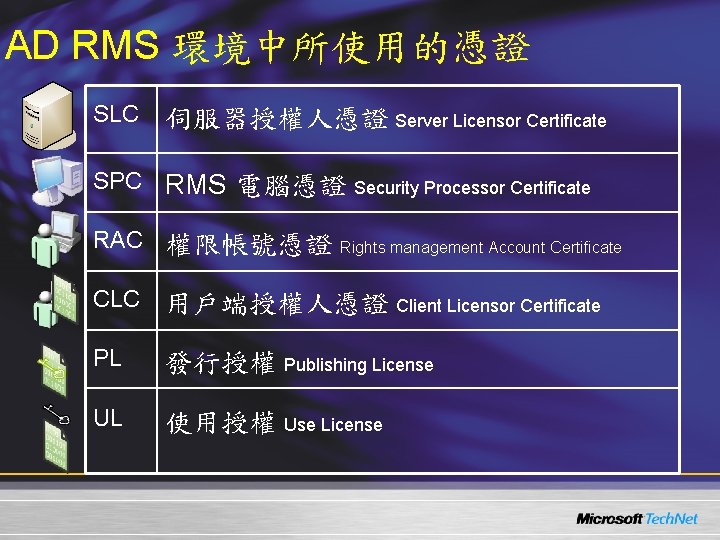

AD RMS 環境中所使用的憑證 SLC 伺服器授權人憑證 Server Licensor Certificate SPC RMS 電腦憑證 RAC 權限帳號憑證 Security Processor Certificate Rights management Account Certificate CLC 用戶端授權人憑證 Client Licensor Certificate PL 發行授權 Publishing License UL 使用授權 Use License

大綱 AD RMS 功能與運作 建置與管理 AD RMS 在 Office 2007 使用受保護文件 AD RMS 與 AD FS 整合 與 Office Share. Point Server 2007 整合

環境、伺服器軟體與用戶端需求 Active Directory Windows Server 2008、Win Srv 2003 或 Win 2000 Srv SP 3 (含以上) Database Server SQL Server 2000 SP 4 或 SQL Server 2005 AD RMS 伺服器的需求 Windows Server 2008 (Windows Web Server 2008 除外) 安裝 MSMQ、IIS 7. 0、ASP. NET 2. 0 NTFS 檔案系統(建議) 若無 SQL Server，可使用 Windows Internal Database，但不能使用 MSDE 用戶端 Windows Server 2008 與 Vista 內建 Win 2000 SP 3、Win XP Pro 與 Win 2003 需安裝RMS Client SP 2 Office Professional 2003 或 Office Enterprise 2007 等

AD RMS 帳號 AD RMS Server 安裝及管理帳號 網域的 Domain Users 與 AD RMS Enterprise Administrators 群組成員 AD RMS Server 本機的 Administrators 群組成員 在 SQL Server 為 System Administrators role AD RMS Server 服務帳號 不能與用來安裝 AD RMS 的網域帳號相同 AD RMS Service Group 及 Domain Users 群組成員 需具備登入 AD RMS Server 本機的權限 使用者及群組帳號 必需設定電子郵件屬性

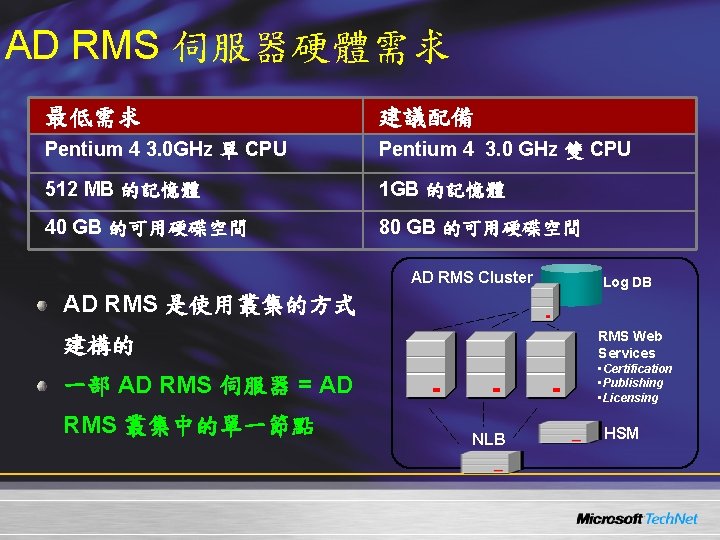

AD RMS 伺服器硬體需求 最低需求 建議配備 Pentium 4 3. 0 GHz 單 CPU Pentium 4 3. 0 GHz 雙 CPU 512 MB 的記憶體 1 GB 的記憶體 40 GB 的可用硬碟空間 80 GB 的可用硬碟空間 AD RMS Cluster Log DB AD RMS 是使用叢集的方式 建構的 RMS Web Services 一部 AD RMS 伺服器 = AD • Certification • Publishing • Licensing RMS 叢集中的單一節點 NLB HSM

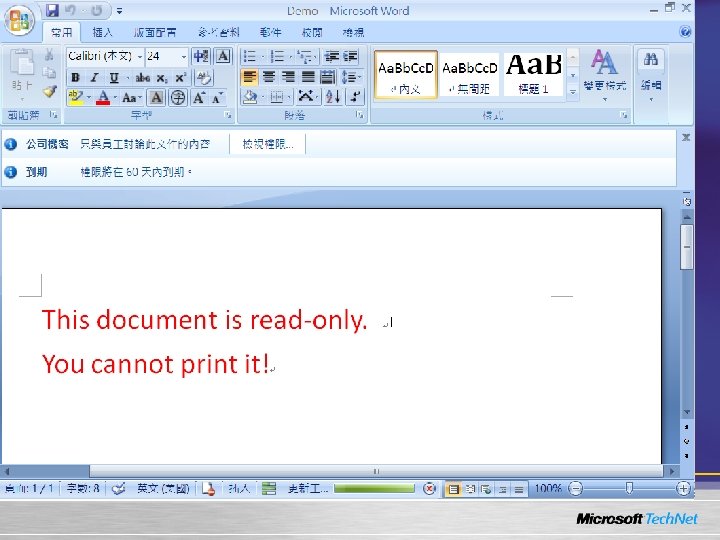

Office Enterprise 2007 Office Professional 2003 也支援的產品 Word、Excel、Power Point、Outlook Office Enterprise 2007 新支援的產品 Info. Path Outlook 更清楚得知郵件是否啟用版權管理 將 AD RMS 叢集 URL 加入近端內部網站 若使用 https，請信任根憑證授權單位

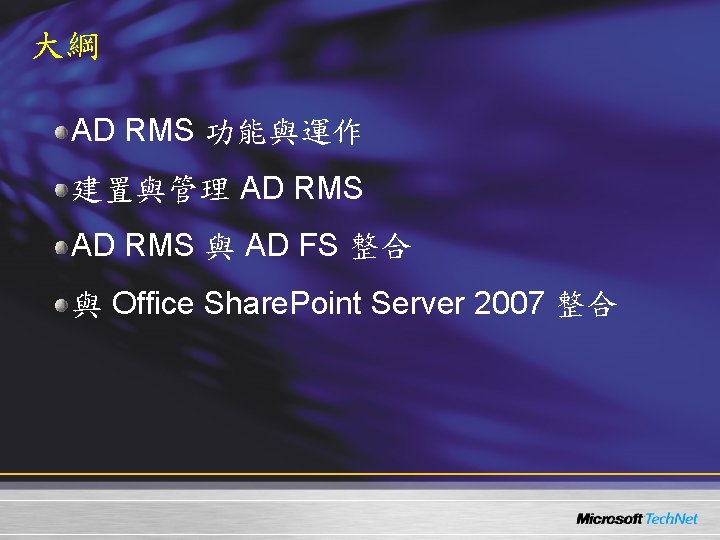

大綱 AD RMS 功能與運作 建置與管理 AD RMS 與 AD FS 整合 與 Office Share. Point Server 2007 整合

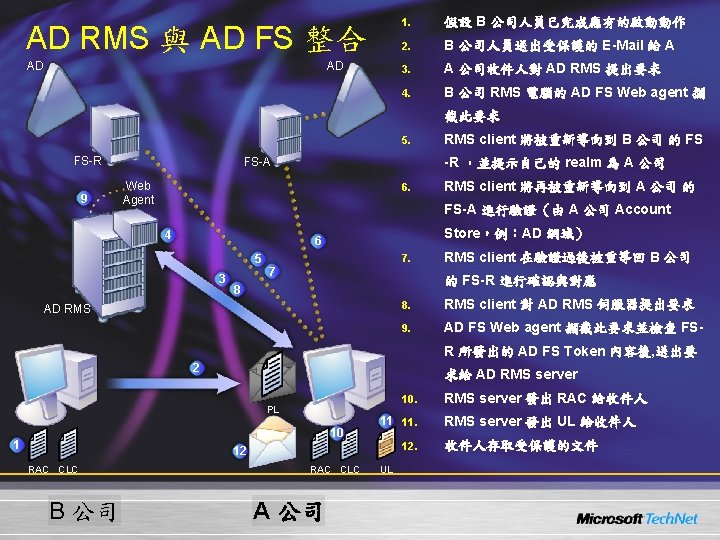

在 AD RMS 設定 Federation Identity Support 授予 AD RMS 服務帳號具有Generate Security Audits權利 在 AD RMS 設定 Externet URL 在 AD FS 為 AD RMS 建立宣告感知應用程式 • https: //ADFS站台/_wmcs/certificationexternal/ • https: //ADFS站台/_wmcs/licensingexternal/ 修改 web. config 安裝 Identity Federation Support 在 AD RMS 啟用 Federated Identity Support 修改帳戶夥伴用戶端的 registry

大綱 AD RMS 功能與運作 建置與管理 AD RMS 與 AD FS 整合 與 Office Share. Point Server 2007 整合

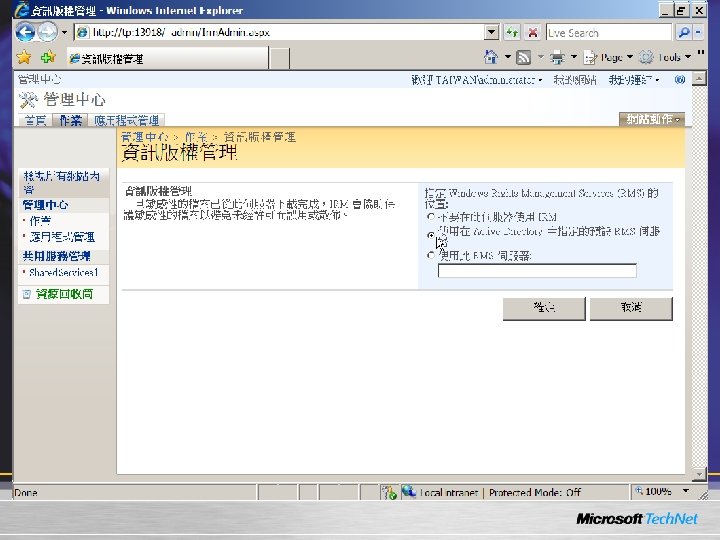

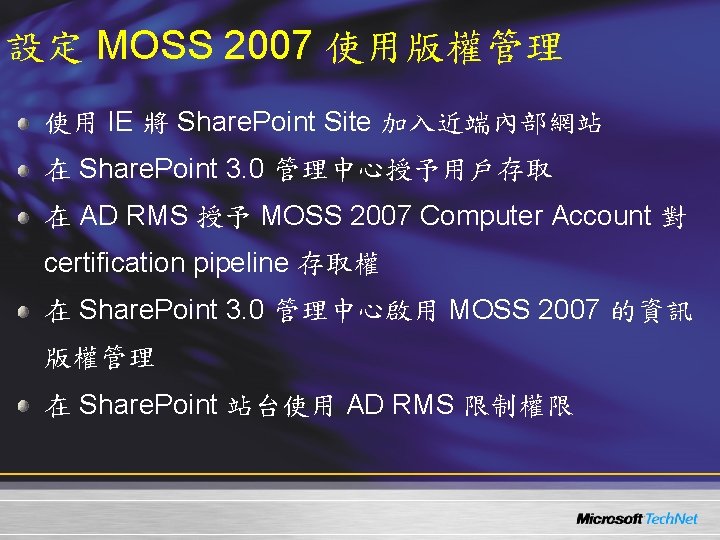

設定 MOSS 2007 使用版權管理 使用 IE 將 Share. Point Site 加入近端內部網站 在 Share. Point 3. 0 管理中心授予用戶存取 在 AD RMS 授予 MOSS 2007 Computer Account 對 certification pipeline 存取權 在 Share. Point 3. 0 管理中心啟用 MOSS 2007 的資訊 版權管理 在 Share. Point 站台使用 AD RMS 限制權限

設定 MOSS 2007 使用版權管理 使用 IE 將 Share. Point Site 加入近端內部網站 在 Share. Point 3. 0 管理中心授予用戶存取 在 AD RMS 授予 MOSS 2007 Computer Account 對 certification pipeline 存取權 在 Share. Point 3. 0 管理中心啟用 MOSS 2007 的資訊 版權管理 在 Share. Point 站台使用 AD RMS 限制權限

設定 MOSS 2007 使用版權管理 使用 IE 將 Share. Point Site 加入近端內部網站 在 Share. Point 3. 0 管理中心授予用戶存取 在 AD RMS 授予 MOSS 2007 Computer Account 對 certification pipeline 存取權 在 Share. Point 3. 0 管理中心啟用 MOSS 2007 的資訊 版權管理 在 Share. Point 站台使用 AD RMS 限制權限

設定 MOSS 2007 使用版權管理 使用 IE 將 Share. Point Site 加入近端內部網站 在 Share. Point 3. 0 管理中心授予用戶存取 在 AD RMS 授予 MOSS 2007 Computer Account 對 certification pipeline 存取權 在 Share. Point 3. 0 管理中心啟用 MOSS 2007 的資訊 版權管理 在 Share. Point 站台使用 AD RMS 限制權限

相關資源 Microsoft Windows Server 2008 Home http: //www. microsoft. com/windowsserver 2008/ Microsoft Tech. Net http: //www. microsoft. com/taiwan/technet/ Microsoft Forums http: //forums. microsoft. com/

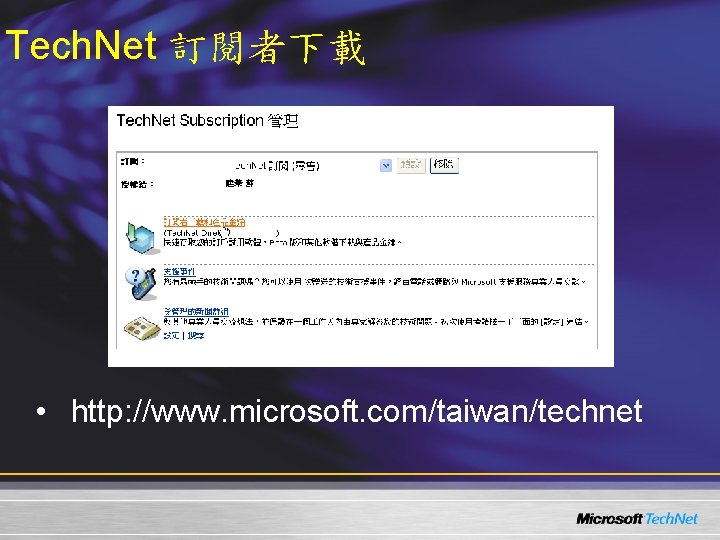

Tech. Net 訂閱者下載 • http: //www. microsoft. com/taiwan/technet

Training Resources Course ID Title 6416 A Updating Your Active Directory Technology Skills to Windows Server 2008(Beta 3) For training information and availability www. microsoft. com/learning

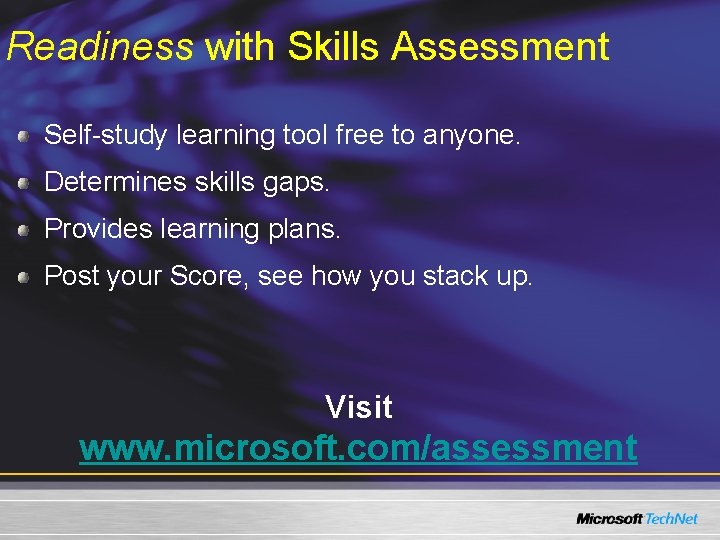

Readiness with Skills Assessment Self-study learning tool free to anyone. Determines skills gaps. Provides learning plans. Post your Score, see how you stack up. Visit www. microsoft. com/assessment
