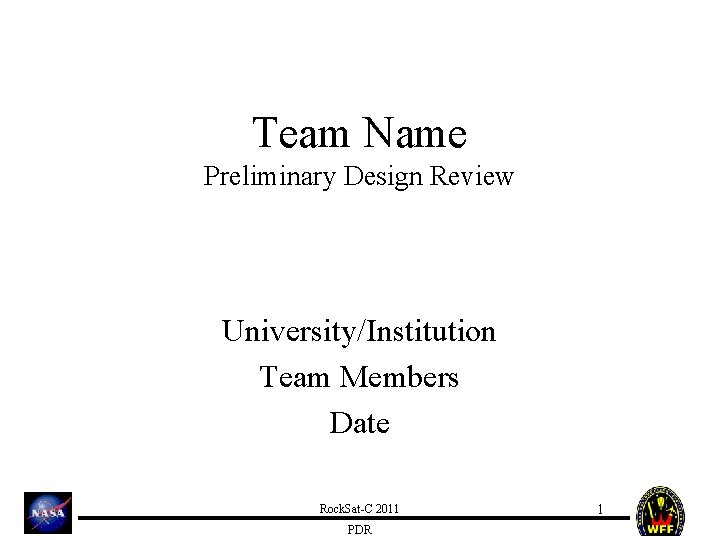

Team Name Preliminary Design Review UniversityInstitution Team Members

Team Name Preliminary Design Review University/Institution Team Members Date Rock. Sat-C 2011 PDR 1

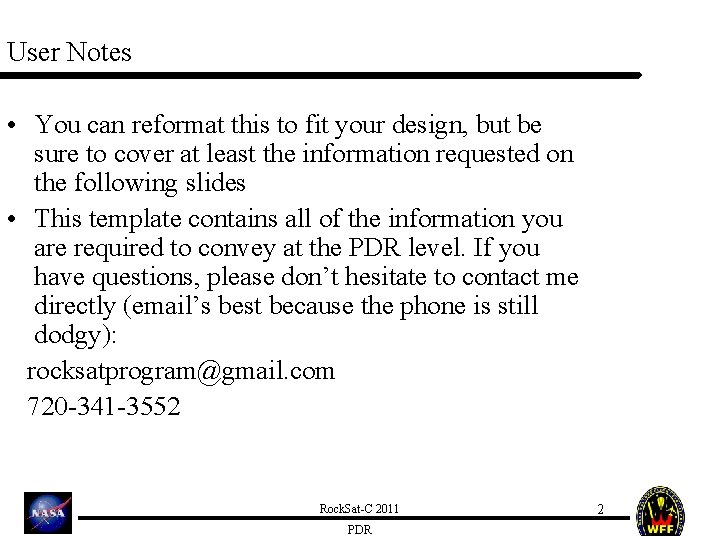

User Notes • You can reformat this to fit your design, but be sure to cover at least the information requested on the following slides • This template contains all of the information you are required to convey at the PDR level. If you have questions, please don’t hesitate to contact me directly (email’s best because the phone is still dodgy): rocksatprogram@gmail. com 720 -341 -3552 Rock. Sat-C 2011 PDR 2

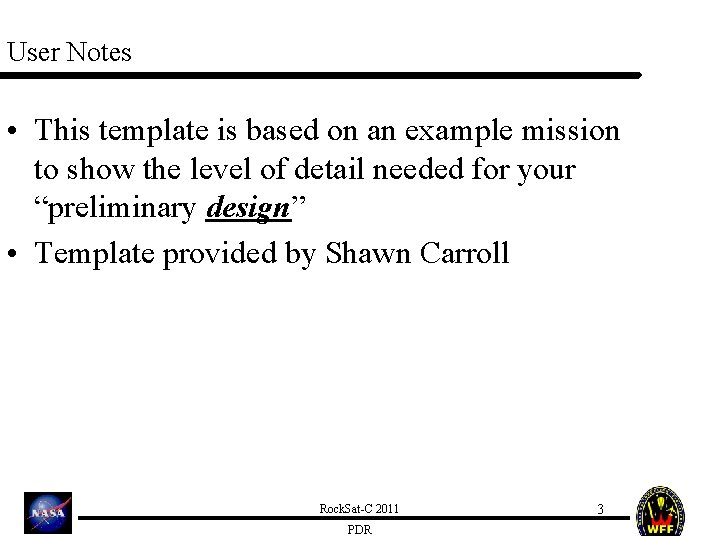

User Notes • This template is based on an example mission to show the level of detail needed for your “preliminary design” • Template provided by Shawn Carroll Rock. Sat-C 2011 PDR 3

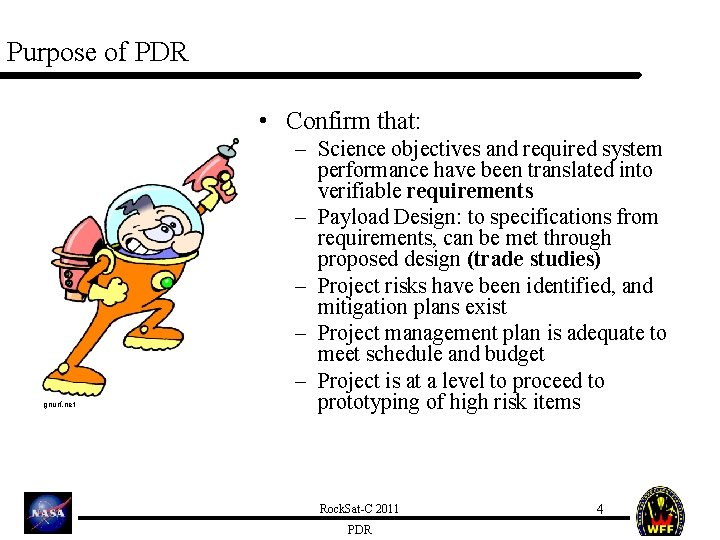

Purpose of PDR • Confirm that: gnurf. net – Science objectives and required system performance have been translated into verifiable requirements – Payload Design: to specifications from requirements, can be met through proposed design (trade studies) – Project risks have been identified, and mitigation plans exist – Project management plan is adequate to meet schedule and budget – Project is at a level to proceed to prototyping of high risk items Rock. Sat-C 2011 PDR 4

PDR Presentation Content • Section 1: Mission Overview – – – Mission Overview Organizational Chart Theory and Concepts Concept of Operations Expected Results • Section 2: System Overview – – – Subsystem Definitions Critical Interfaces (ICDs? ) System Level Block Diagram System/Project Level Requirement Verification Plan User Guide Compliance Sharing Logistics Rock. Sat-C 2011 PDR 5

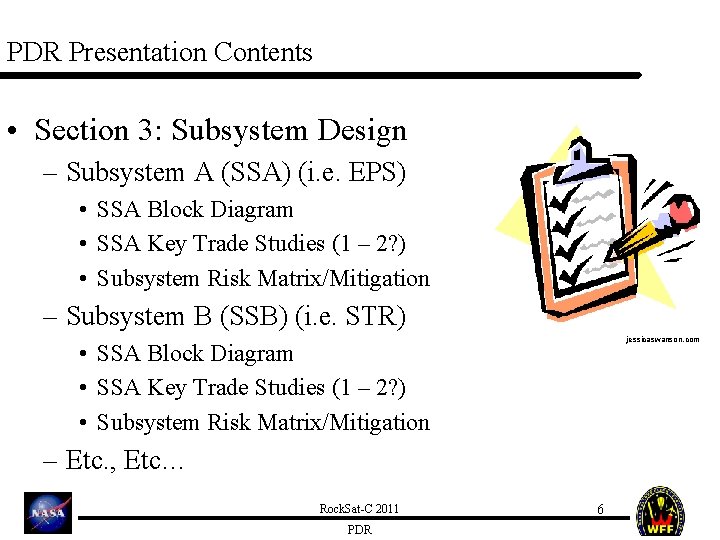

PDR Presentation Contents • Section 3: Subsystem Design – Subsystem A (SSA) (i. e. EPS) • SSA Block Diagram • SSA Key Trade Studies (1 – 2? ) • Subsystem Risk Matrix/Mitigation – Subsystem B (SSB) (i. e. STR) jessicaswanson. com • SSA Block Diagram • SSA Key Trade Studies (1 – 2? ) • Subsystem Risk Matrix/Mitigation – Etc. , Etc… Rock. Sat-C 2011 PDR 6

PDR Presentation Contents • Section 4: Prototyping Plan – Item “A” to be Prototyped – Item “B” to be Prototyped – Etc. , Etc… • Section 5: Project Management Plan – Schedule – Budget – Work Breakdown Structure Rock. Sat-C 2011 PDR 7

Mission Overview Name of Presenter Rock. Sat-C 2011 PDR 8

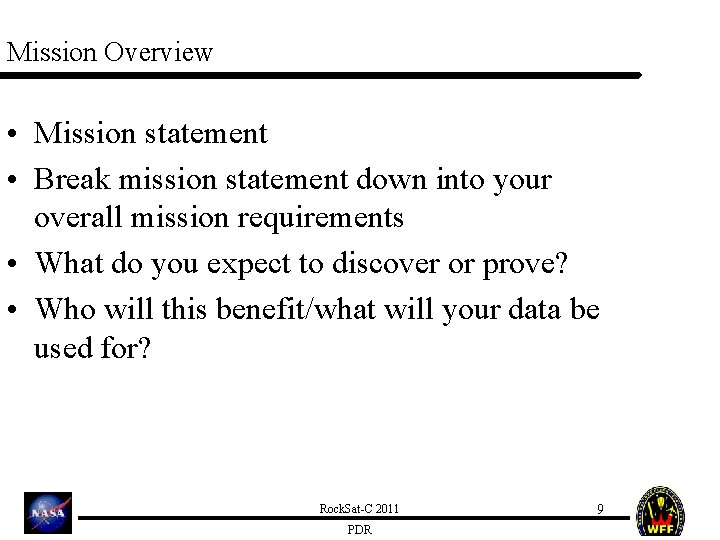

Mission Overview • Mission statement • Break mission statement down into your overall mission requirements • What do you expect to discover or prove? • Who will this benefit/what will your data be used for? Rock. Sat-C 2011 PDR 9

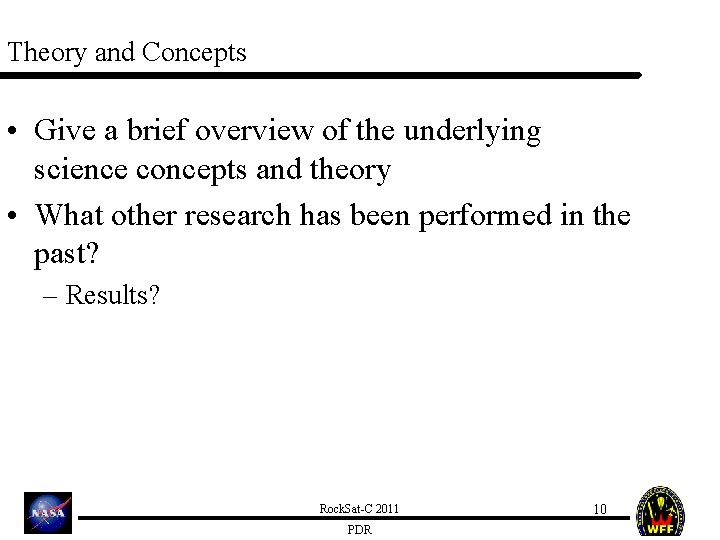

Theory and Concepts • Give a brief overview of the underlying science concepts and theory • What other research has been performed in the past? – Results? Rock. Sat-C 2011 PDR 10

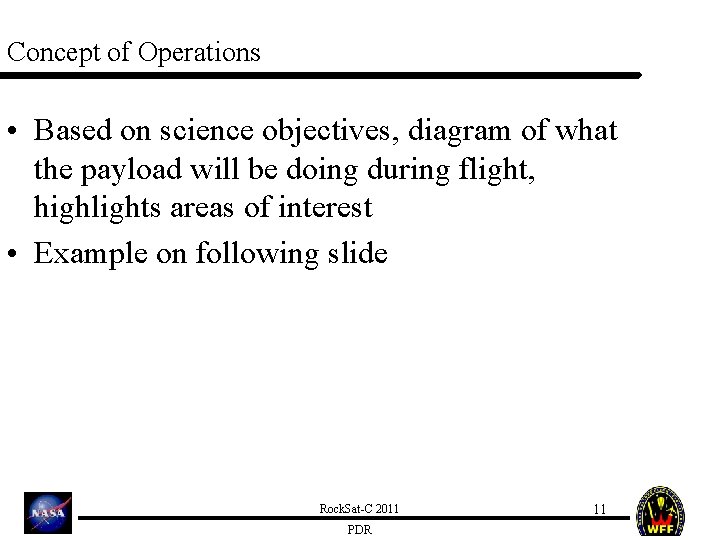

Concept of Operations • Based on science objectives, diagram of what the payload will be doing during flight, highlights areas of interest • Example on following slide Rock. Sat-C 2011 PDR 11

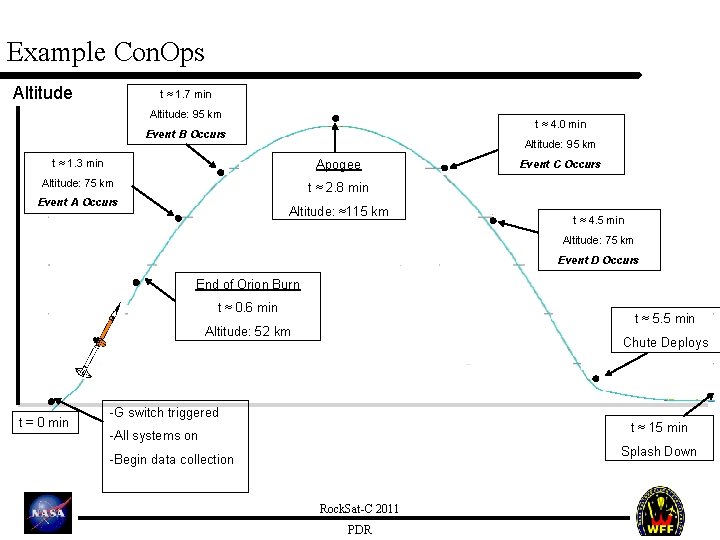

Example Con. Ops Altitude t ≈ 1. 7 min Altitude: 95 km t ≈ 4. 0 min Event B Occurs Altitude: 95 km t ≈ 1. 3 min Apogee Altitude: 75 km t ≈ 2. 8 min Event A Occurs Altitude: ≈115 km Event C Occurs t ≈ 4. 5 min Altitude: 75 km Event D Occurs End of Orion Burn t ≈ 0. 6 min t ≈ 5. 5 min Altitude: 52 km t = 0 min Chute Deploys -G switch triggered t ≈ 15 min -All systems on Splash Down -Begin data collection Rock. Sat-C 2011 PDR

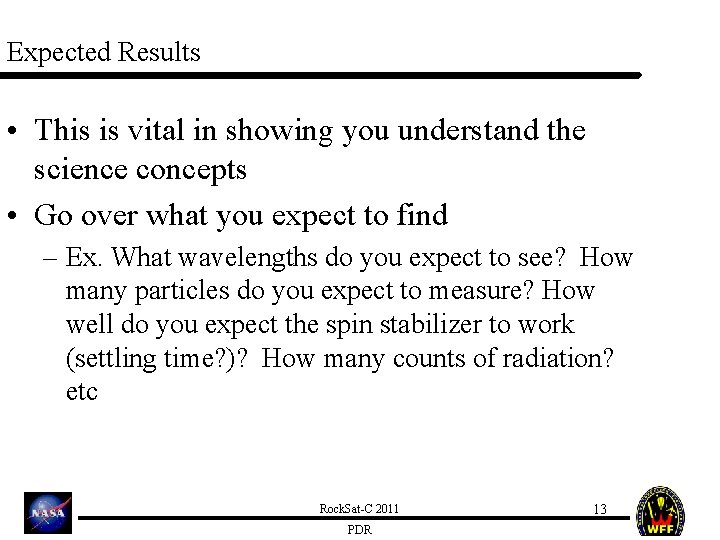

Expected Results • This is vital in showing you understand the science concepts • Go over what you expect to find – Ex. What wavelengths do you expect to see? How many particles do you expect to measure? How well do you expect the spin stabilizer to work (settling time? )? How many counts of radiation? etc Rock. Sat-C 2011 PDR 13

System Overview Name of Presenter Rock. Sat-C 2011 PDR 14

Subsystem Overview – Block Diagram STR Temp. Sensor Telem PWR Wallops Choice A Choice B MCU Arm Control Photomultiplier Choice A Choice B Choice C EPS/STR Interface Choice A Choice B 25⁰ FOV Booms Provided by: LASP Material Choice A Material Choice B Material Choice C Control Box DEP/STR Interface PM/STR Interface EPS Probe Photomultiplier PM DEP/EPS Interface 25⁰ FOV Choice A Choice B Choice C Rock. Sat-C 2011 PDR PM/EPS Interface Photomultiplier Provided by LASP 15

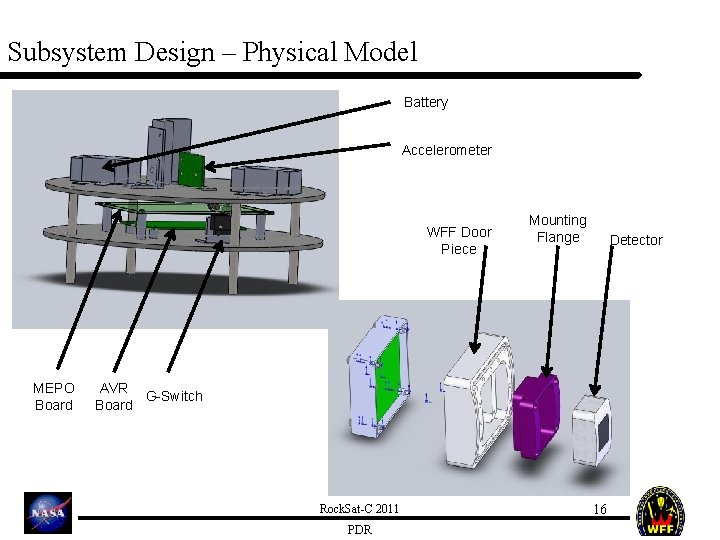

Subsystem Design – Physical Model Battery Accelerometer WFF Door Piece MEPO Board Mounting Flange Detector AVR G-Switch Board Rock. Sat-C 2011 PDR 16

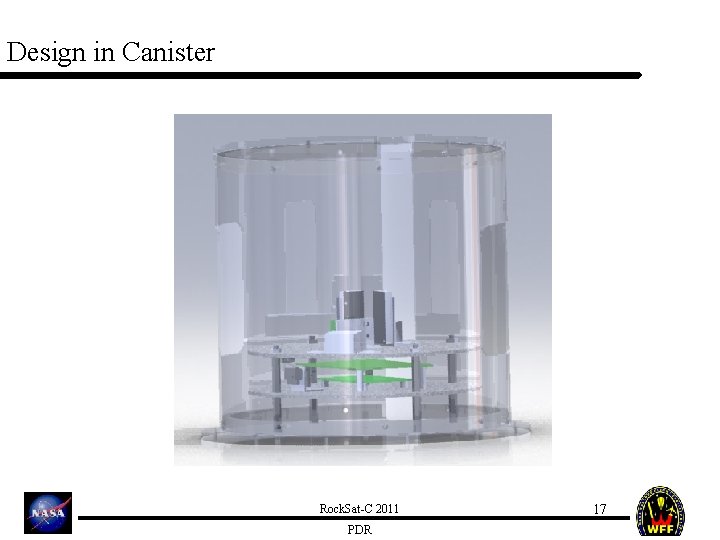

Design in Canister Rock. Sat-C 2011 PDR 17

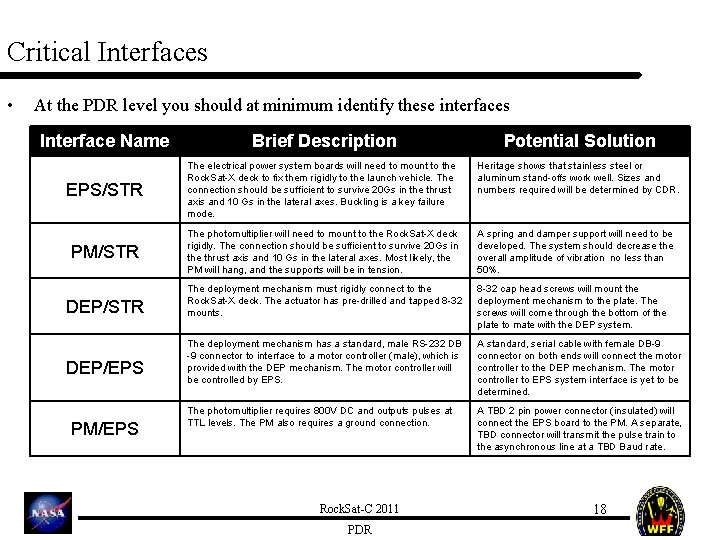

Critical Interfaces • At the PDR level you should at minimum identify these interfaces Interface Name Brief Description Potential Solution EPS/STR The electrical power system boards will need to mount to the Rock. Sat-X deck to fix them rigidly to the launch vehicle. The connection should be sufficient to survive 20 Gs in the thrust axis and 10 Gs in the lateral axes. Buckling is a key failure mode. Heritage shows that stainless steel or aluminum stand-offs work well. Sizes and numbers required will be determined by CDR. PM/STR The photomultiplier will need to mount to the Rock. Sat-X deck rigidly. The connection should be sufficient to survive 20 Gs in the thrust axis and 10 Gs in the lateral axes. Most likely, the PM will hang, and the supports will be in tension. A spring and damper support will need to be developed. The system should decrease the overall amplitude of vibration no less than 50%. The deployment mechanism must rigidly connect to the Rock. Sat-X deck. The actuator has pre-drilled and tapped 8 -32 mounts. 8 -32 cap head screws will mount the deployment mechanism to the plate. The screws will come through the bottom of the plate to mate with the DEP system. The deployment mechanism has a standard, male RS-232 DB -9 connector to interface to a motor controller (male), which is provided with the DEP mechanism. The motor controller will be controlled by EPS. A standard, serial cable with female DB-9 connector on both ends will connect the motor controller to the DEP mechanism. The motor controller to EPS system interface is yet to be determined. The photomultiplier requires 800 V DC and outputs pulses at TTL levels. The PM also requires a ground connection. A TBD 2 pin power connector (insulated) will connect the EPS board to the PM. A separate, TBD connector will transmit the pulse train to the asynchronous line at a TBD Baud rate. DEP/STR DEP/EPS PM/EPS Rock. Sat-C 2011 PDR 18

System Level Block Diagram STR EPS WFF Power Interface Buck Converter u. Controller Boost Converter Wallops PT Interfaces Motor Controller PM DEP Legend Data/ Control Photomultiplier WFF Telem. Interface High Voltage Low Voltage Rock. Sat-C 2011 PDR 19

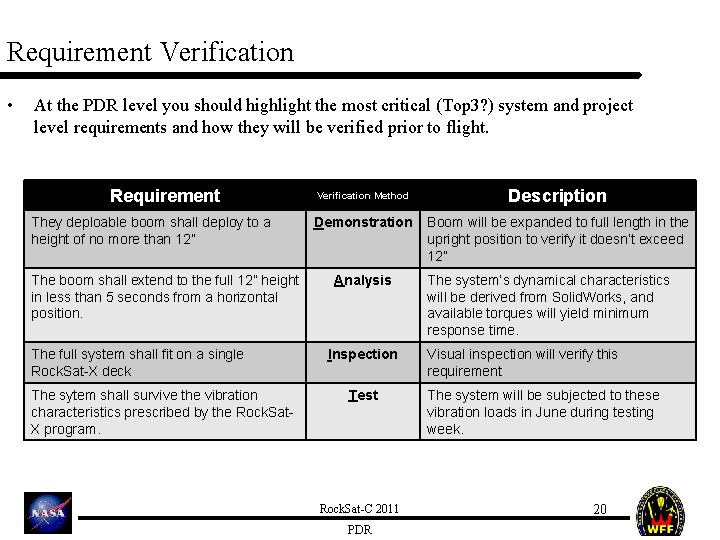

Requirement Verification • At the PDR level you should highlight the most critical (Top 3? ) system and project level requirements and how they will be verified prior to flight. Requirement They deploable boom shall deploy to a height of no more than 12” The boom shall extend to the full 12” height in less than 5 seconds from a horizontal position. The full system shall fit on a single Rock. Sat-X deck The sytem shall survive the vibration characteristics prescribed by the Rock. Sat. X program. Verification Method Description Demonstration Boom will be expanded to full length in the upright position to verify it doesn’t exceed 12” Analysis Inspection Test Rock. Sat-C 2011 PDR The system’s dynamical characteristics will be derived from Solid. Works, and available torques will yield minimum response time. Visual inspection will verify this requirement The system will be subjected to these vibration loads in June during testing week. 20

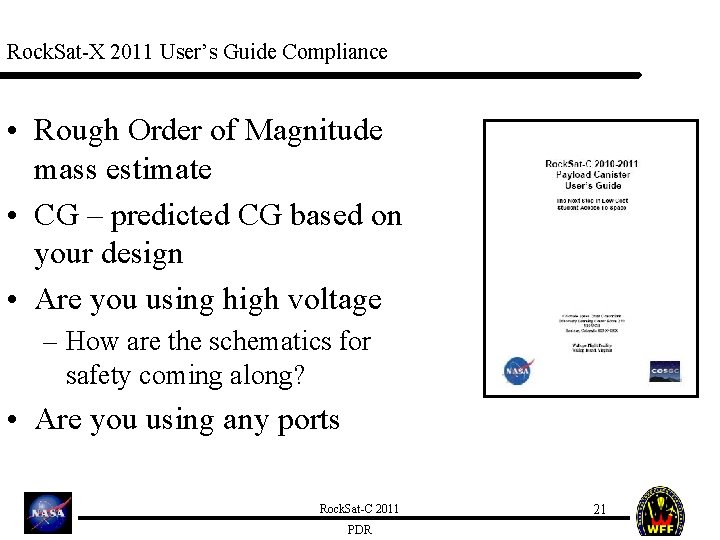

Rock. Sat-X 2011 User’s Guide Compliance • Rough Order of Magnitude mass estimate • CG – predicted CG based on your design • Are you using high voltage – How are the schematics for safety coming along? • Are you using any ports Rock. Sat-C 2011 PDR 21

Sharing Logistics • Who are you sharing with? – Summary of your partner’s mission (1 line) • Plan for collaboration – How do you communicate? – How will you share designs (solidworks, any actual fit checks before next June)? • Structural interface – will you be joining with standoffs or something else (again, be wary of clearance)? Rock. Sat-C 2011 PDR grandpmr. com 22

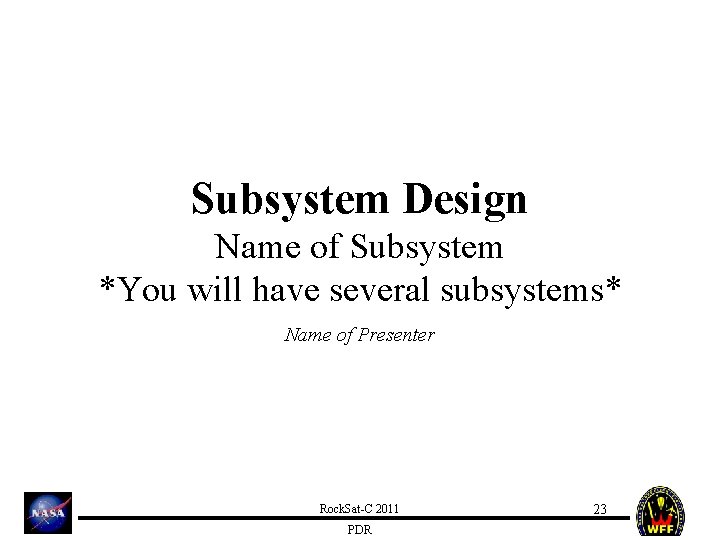

Subsystem Design Name of Subsystem *You will have several subsystems* Name of Presenter Rock. Sat-C 2011 PDR 23

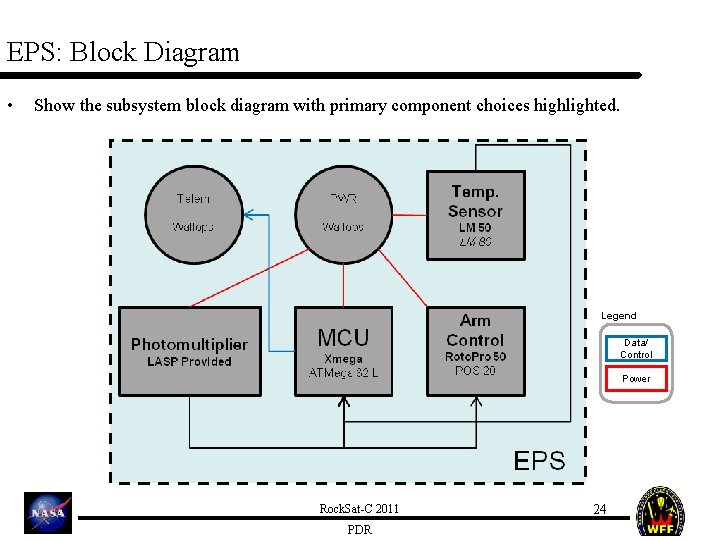

EPS: Block Diagram • Show the subsystem block diagram with primary component choices highlighted. Legend Data/ Control Power Rock. Sat-C 2011 PDR 24

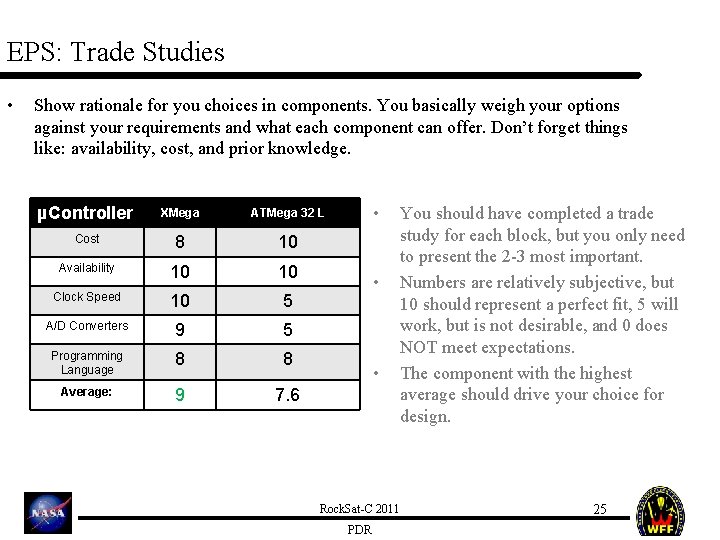

EPS: Trade Studies • Show rationale for you choices in components. You basically weigh your options against your requirements and what each component can offer. Don’t forget things like: availability, cost, and prior knowledge. µController XMega ATMega 32 L Cost 8 10 Availability 10 10 Clock Speed 10 5 A/D Converters 9 5 Programming Language 8 8 Average: 9 7. 6 • • • Rock. Sat-C 2011 PDR You should have completed a trade study for each block, but you only need to present the 2 -3 most important. Numbers are relatively subjective, but 10 should represent a perfect fit, 5 will work, but is not desirable, and 0 does NOT meet expectations. The component with the highest average should drive your choice for design. 25

EPS: Risk Matrix EPS. RSK. 1 Consequence EPS. RSK. 4 EPS. RSK. 2 EPS. RSK. 3 • • • Risks for the subsystem under discussion should be documented here. The horizontal represents the likelihood of a risk, the vertical is the corresponding consequence. Risks placement should help drive mitigation priority Possibility EPS. RSK. 1: Microcontroller fails in-flight, and the mission objects aren’t met EPS. RSK. 2: A suitable motor controller cannot be procured to meet mission objectives EPS. RSK. 3: The EPS system can’t survive launch conditions, and the mission objectives aren’t met EPS. RSK. 4: Flying monkeys delay the launch by an hour putting a strain on the power budget Rock. Sat-C 2011 PDR 26

Prototyping Plan Name of Presenter Rock. Sat-C 2011 PDR 27

Prototyping Plan • What will you build/test between now and CDR to mitigate risk? Risk/Concern STR Concern about mounting the PM to the deck has been expressed Action Prototype this interface and verify the fit with the PM PM Concerns about testing the PM on the ground have been expressed Develop a test plan and verify it with LASP mentors DEP Mounting the probe to the end of the boom will present a significant challenge Mount a test probe and verify structural rigidity EPS The functionality of the microcontoller board needs to be verified by CDR Prototype the micro board on a bread board to verify functionality Rock. Sat-C 2011 PDR 28

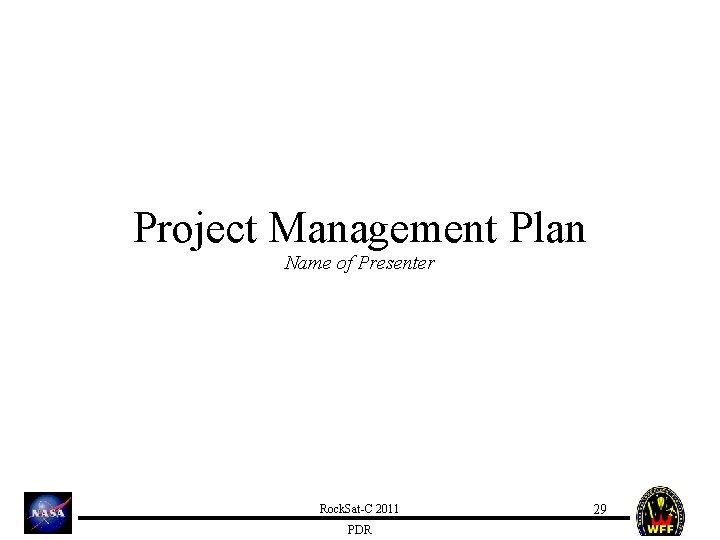

Project Management Plan Name of Presenter Rock. Sat-C 2011 PDR 29

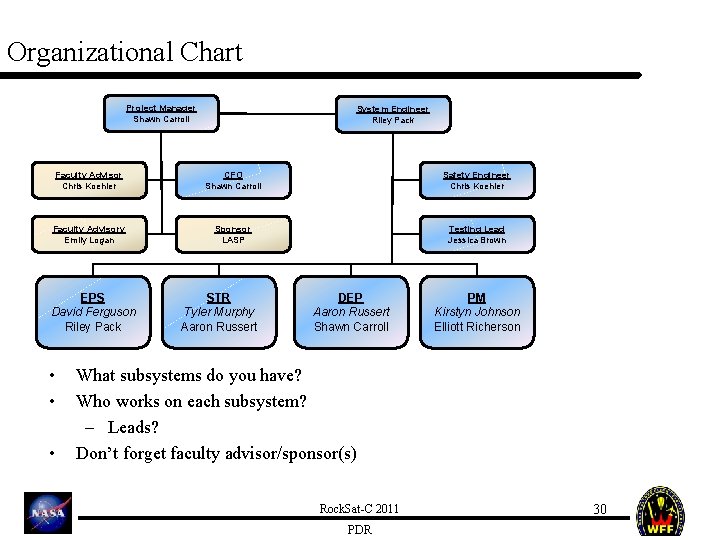

Organizational Chart Project Manager Shawn Carroll System Engineer Riley Pack Faculty Advisor Chris Koehler CFO Shawn Carroll Safety Engineer Chris Koehler Faculty Advisory Emily Logan Sponsor LASP Testing Lead Jessica Brown EPS David Ferguson Riley Pack • • • STR Tyler Murphy Aaron Russert DEP Aaron Russert Shawn Carroll PM Kirstyn Johnson Elliott Richerson What subsystems do you have? Who works on each subsystem? – Leads? Don’t forget faculty advisor/sponsor(s) Rock. Sat-C 2011 PDR 30

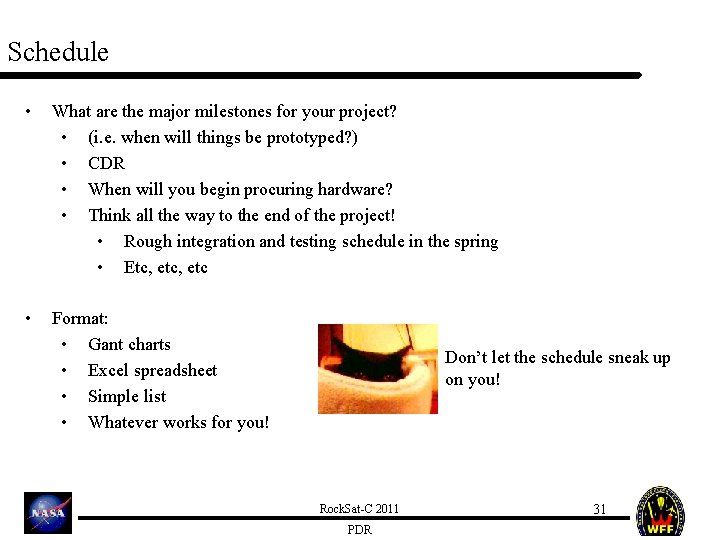

Schedule • What are the major milestones for your project? • (i. e. when will things be prototyped? ) • CDR • When will you begin procuring hardware? • Think all the way to the end of the project! • Rough integration and testing schedule in the spring • Etc, etc • Format: • Gant charts • Excel spreadsheet • Simple list • Whatever works for you! Don’t let the schedule sneak up on you! Rock. Sat-C 2011 PDR 31

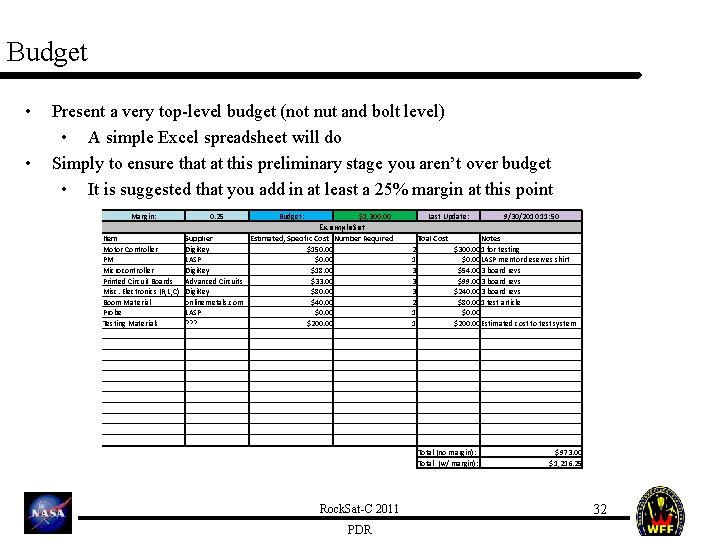

Budget • • Present a very top-level budget (not nut and bolt level) • A simple Excel spreadsheet will do Simply to ensure that at this preliminary stage you aren’t over budget • It is suggested that you add in at least a 25% margin at this point Margin: 0. 25 Budget: $1, 300. 00 Example. Sat Item Supplier Estimated, Specific Cost Number Required Motor Controller Digi. Key $150. 00 PM LASP $0. 00 Microcontroller Digi. Key $18. 00 Printed Circuit Boards Advanced Circuits $33. 00 Misc. Electronics (R, L, C) Digi. Key $80. 00 Boom Material onlinemetals. com $40. 00 Probe LASP $0. 00 Testing Materials ? ? ? $200. 00 Rock. Sat-C 2011 PDR Last Update: 9/30/2010 11: 50 Toal Cost 2 1 3 3 3 2 1 1 Notes $300. 001 for testing $0. 00 LASP mentor deserves shirt $54. 00 3 board revs $99. 00 3 board revs $240. 003 board revs $80. 00 1 test article $0. 00 $200. 00 Estimated cost to test system Total (no margin): $973. 00 Total (w/ margin): $1, 216. 25 32

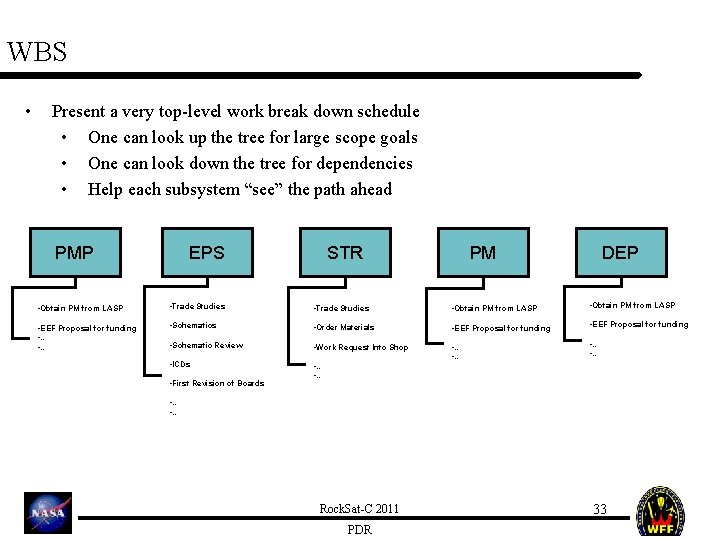

WBS • Present a very top-level work break down schedule • One can look up the tree for large scope goals • One can look down the tree for dependencies • Help each subsystem “see” the path ahead PMP EPS STR PM DEP • Obtain PM from LASP • Trade Studies • Obtain PM from LASP • EEF Proposal for funding • … • Schematics • Order Materials • EEF Proposal for funding • Schematic Review • Work Request Into Shop • … • ICDs • … • … • First Revision of Boards • … Rock. Sat-C 2011 PDR 33

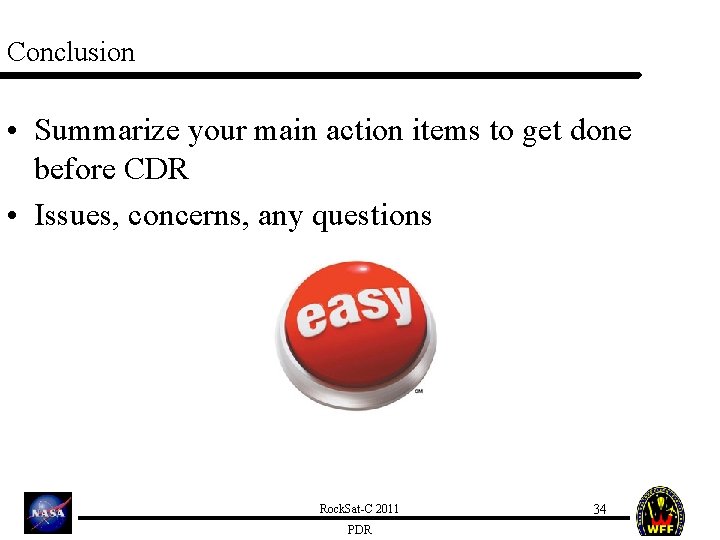

Conclusion • Summarize your main action items to get done before CDR • Issues, concerns, any questions Rock. Sat-C 2011 PDR 34
