Team Name Conceptual Design Review UniversityInstitution Team Members

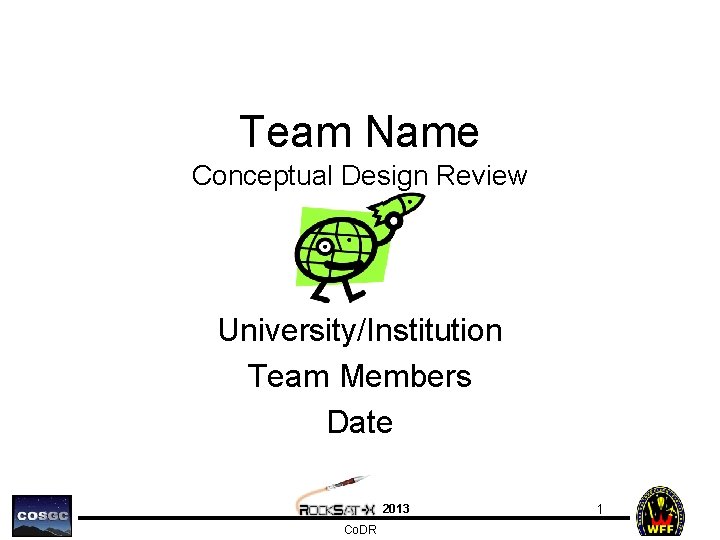

Team Name Conceptual Design Review University/Institution Team Members Date 2013 Co. DR 1

Template Notes: • You can reformat this template to fit your design, but you must cover all the information requested on the following slides • This template contains all of the information you are required to convey at the Co. DR level. If you have questions, please contact me directly: rocksatx@gmail. com 2013 Co. DR 2

Template Notes: • The Goals of the Co. DR are to Confirm that: – Science objectives are understood and well-defined – Preliminary mission requirements are defined and traceable to science objectives – Understand concept of operations – Technology dependencies and alternative strategies for achieving science objectives 2013 Co. DR 3

Co. DR Presentation Content • Section 1: Mission Overview – – – Mission Statement Theory and Concepts Mission Requirements (brief, top level) Concept of Operations Expected Results • Section 2: Design Overview – – – Design Overview Functional Block Diagrams Payload Layout Rock. Sat-X User’s Guide Compliance Shared Deck Space (if applicable) 2013 Co. DR 4

Co. DR Presentation Contents • Section 3: Management – Team Organization – Schedule – Budget – Mentors (Faculty, industry) jessicaswanson. com • Section 4: Conclusions 2013 Co. DR 5

Mission Overview: Mission Statement • Mission statement • Break mission statement down into your overall mission requirements • What do you expect to discover or prove? • Who will this benefit/what will your data be used for? 2013 Co. DR 6

Mission Overview: Theory and Concepts • Give a brief overview of the underlying science concepts and theory • What other research has been performed in the past? – Results? 2013 Co. DR 7

Mission Overview: Mission Requirements • Project requirements derived from mission statement – Break down into mission objectives, system level objectives (example on following slide) • Minimum success criteria – What is the least amount of data you can collect that will still constitute a success? crestock. com 2013 Co. DR 8

Example of Mission Requirements: • The payload shall conform to the requirements set forth in the Rock. Sat-X User Guide • The system shall measure the numerical density of charged particles in the upper atmosphere from 30± 5 km to 50± 5 km • The system should measure the numerical density of charged particles in the upper atmosphere from 30± 1 km to 50± 1 km Shall is legally binding and indicative of minimum success Should are an ideal metrics of performance that would lead to better science/performance, but are not required for minimum success. crestock. com 2013 Co. DR 9

Mission Overview: Concept of Operations • Based on science objectives, present a diagram of what the payload will be doing during flight, highlights areas of interest • Example on following 2 slides 2013 Co. DR 10

Example Con. Ops Altitude t ≈ 1. 7 min Altitude: 95 km t ≈ 4. 0 min Event B Occurs Altitude: 95 km t ≈ 1. 3 min Apogee Altitude: 75 km t ≈ 2. 8 min Event A Occurs Event C Occurs Altitude: ≈115 km t ≈ 4. 5 min Altitude: 75 km Event D Occurs End of Orion Burn t ≈ 0. 6 min t ≈ 5. 5 min Altitude: 52 km t = 0 min Chute Deploys -G switch triggered t ≈ 15 min -All systems on Splash Down -Begin data collection 2013 Co. DR

Example Con. Ops 1. Launch 3 Telemetry/GPS begins 2. Launch to Apogee Telemetry/GPS continues 4 3. Apogee Nose cone separation Skin separation De-spin to TBD rate Option to align with B Field Telemetry/GPS continues 5 2 4. Descent Telemetry/GPS continues 5. Chute Deploy Telemetry/GPS continues 6. Landing 1 Telemetry/GPS terminates Payloads recovered 6 2013 Co. DR 12

Mission Overview: Expected Results • This is vital in showing you understand the science concepts • Go over what you expect to find – Ex. What wavelengths do you expect to see? How many particles do you expect to measure? How well do you expect the spin stabilizer to work (settling time? )? How many counts of radiation? etc 2013 Co. DR 13

Design Overview • Utilization of heritage elements (designs/features used on previous flights) defined. How will you be modifying them for your specific mission? – Will you be using stacked configuration, makrolon, same type of sensor as a previous flight? • Major technology dependencies: what kind of sensors will you need? clipartguide. com – What do the capabilities of the sensors need to be? (ex. For an optical sensor, what wavelengths should it be able to detect? This is based on project requirements) 2013 Co. DR 14

Design Overview: Functional Block Diagrams • Functional block diagram – Shows how systems interact with each other – Mechanical – will show payload is configured, especially if there are sensors external to the payload – Electrical – shows how data will be recorded, stored • Example on following slide • I will spend a lot of time on this diagram with each team and it will be referred to all the way up until launch so make it good 2013 Co. DR 15

Example Functional Block Diagram 2013 Co. DR

Example FBD – mechanical/system (rough diagram) Sensor(s) Electronics storing data (mounted to plate) Electronics – controlling sensor (mounted to plate) Power Makrolon plate Rock. Sat-X Deck Mounts to Rock. Sat-X Payload Deck Hardware mounted to Rock. Sat-X Deck 2013 Co. DR 17

Design Overview: Payload Layout • Initial drawings / layout on deck • Preliminary idea of how and where things will be mounted • Show where electronics boards (~how many? ), sensors, power will be mounted – A little more organized than functional block diagram (actually shows standoffs, spacing between elements, etc) This is NOT required at the Co. DR level. If you can include this, you are ahead of the game! 2013 Co. DR 18

Design Overview: Rock. Sat-X User’s Guide Compliance • • • Rough Order of Magnitude (ROM) weight estimate Estimate on payload dimensions (will it fit in the payload space? ) Deployables/booms? How many ADC lines? – Do you understand the format? Asynchronous use? – Do you understand the format? Parallel use? – Do you understand the format? Power lines and timer use? – What do you know so far? CG requirement – Do you understand the requirement Are you utilizing high voltage? 2013 Co. DR 19

Design Overview: Shared Can Logistics • Who are you sharing with? – Summary of your partner’s mission (1 line) • Plan for collaboration – How do you communicate? – How will you share designs (solidworks, any actual fit checks before next June)? • Structural interface – will you be joining with standoffs or something else (again, be wary of clearance)? 2013 Co. DR grandpmr. com 20

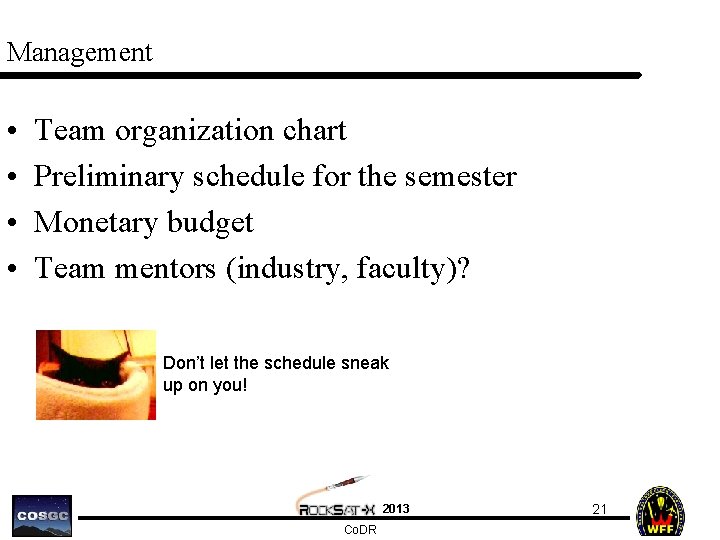

Management • • Team organization chart Preliminary schedule for the semester Monetary budget Team mentors (industry, faculty)? Don’t let the schedule sneak up on you! 2013 Co. DR 21

Conclusion • Restate mission • Issues, concerns, any questions • Plan for where you will take your design from here? – Anything you need to investigate further? – Are you ready make subsystem and lower level requirements to come up with a rough-draft design for PDR? 2013 Co. DR 22
