Team Helios

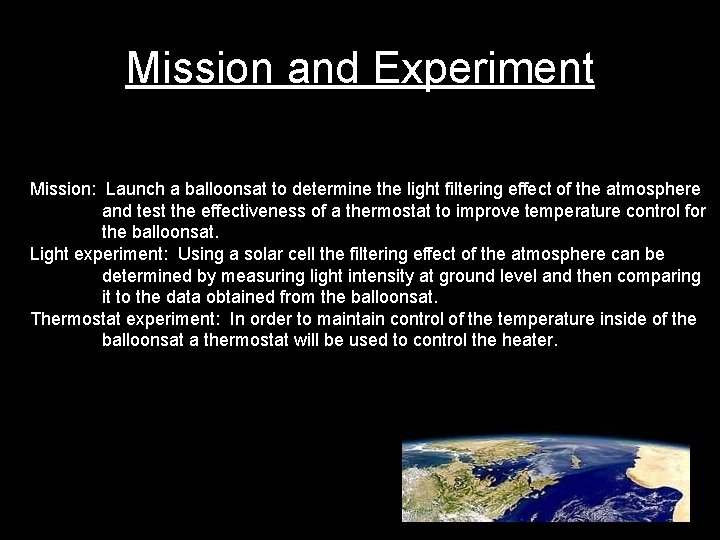

Mission and Experiment Mission: Launch a balloonsat to determine the light filtering effect of the atmosphere and test the effectiveness of a thermostat to improve temperature control for the balloonsat. Light experiment: Using a solar cell the filtering effect of the atmosphere can be determined by measuring light intensity at ground level and then comparing it to the data obtained from the balloonsat. Thermostat experiment: In order to maintain control of the temperature inside of the balloonsat a thermostat will be used to control the heater.
Mission Requirements -Our heater and thermostat will monitor the temperature inside to keep the satellite above 0 degrees Celsius. -Our mass as of now is about 444. 6 grams -The pressure sensor will help measure ascent and descent rates. -Two cameras for photographing Earth and balloon. -Our two experiments include measuring light intensity and a thermostat device. -Our estimated budget is about $70 well below the limit. -Design, building, and testing of experiments is proceeding.
Current Status of Building and Testing • • • Box: Cameras: Thermostat/heater: Solar Panel Mirror assembly Built but untested Not bought Not built • Construction is going as planned. • The testing phase has not been started.

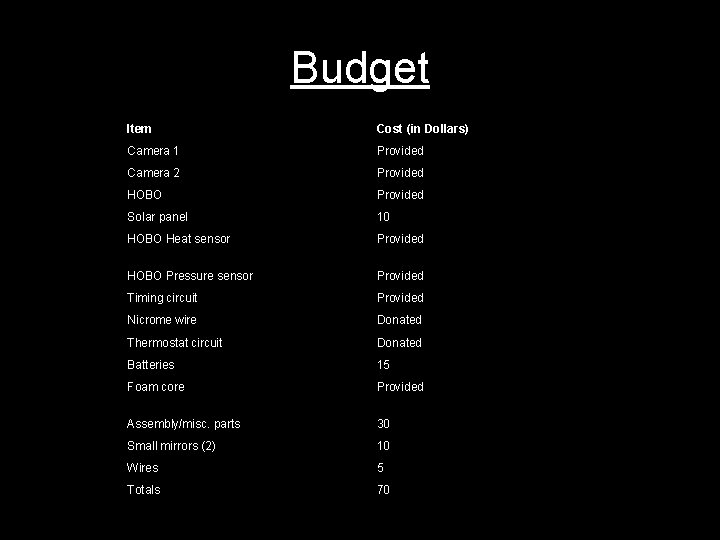

Budget Item Cost (in Dollars) Camera 1 Provided Camera 2 Provided HOBO Provided Solar panel 10 HOBO Heat sensor Provided HOBO Pressure sensor Provided Timing circuit Provided Nicrome wire Donated Thermostat circuit Donated Batteries 15 Foam core Provided Assembly/misc. parts 30 Small mirrors (2) 10 Wires 5 Totals 70

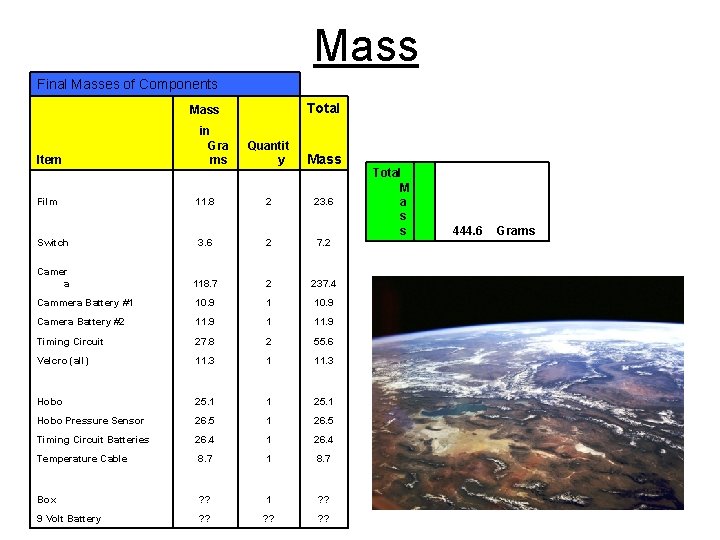

Mass Final Masses of Components Item Mass in Gra ms Total Quantit y Mass Film 11. 8 2 23. 6 Switch 3. 6 2 7. 2 Camer a 118. 7 2 237. 4 10. 9 1 10. 9 Cammera Battery #1 Camera Battery #2 11. 9 1 11. 9 Timing Circuit 27. 8 2 55. 6 Velcro (all) 11. 3 1 11. 3 Hobo 25. 1 1 25. 1 Hobo Pressure Sensor 26. 5 1 26. 5 Timing Circuit Batteries 26. 4 1 26. 4 Temperature Cable 8. 7 1 8. 7 Box ? ? 1 ? ? 9 Volt Battery ? ? Total M a s s 444. 6 Grams

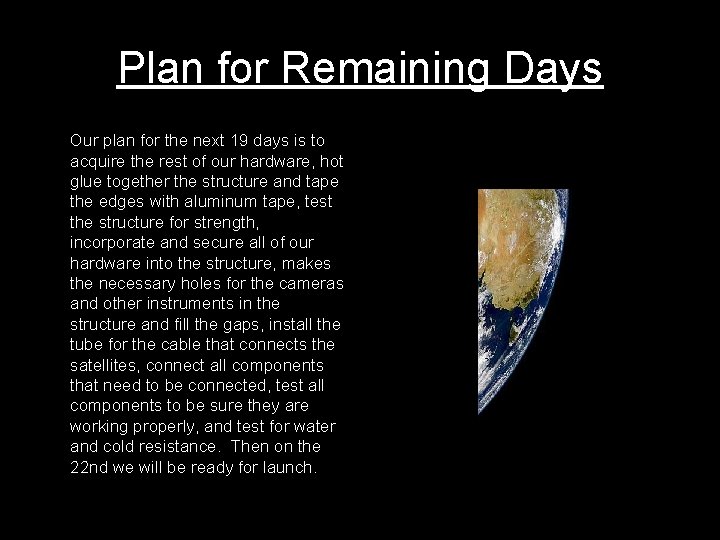

Plan for Remaining Days Our plan for the next 19 days is to acquire the rest of our hardware, hot glue together the structure and tape the edges with aluminum tape, test the structure for strength, incorporate and secure all of our hardware into the structure, makes the necessary holes for the cameras and other instruments in the structure and fill the gaps, install the tube for the cable that connects the satellites, connect all components that need to be connected, test all components to be sure they are working properly, and test for water and cold resistance. Then on the 22 nd we will be ready for launch.

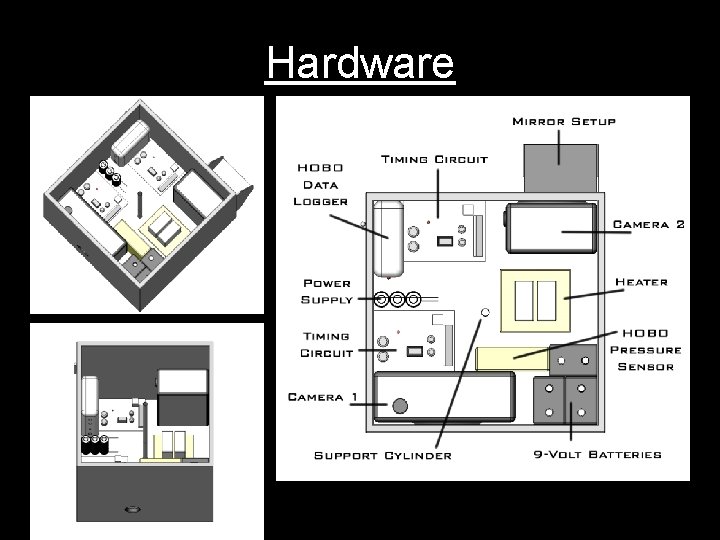

Hardware
