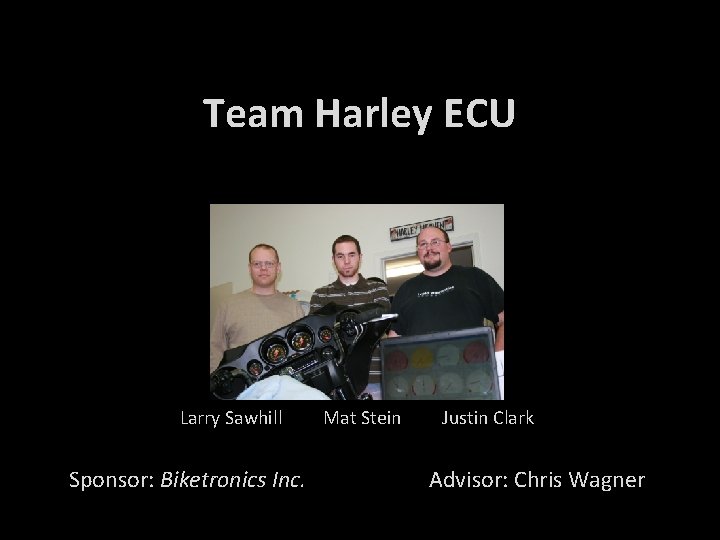

Team Harley ECU Larry Sawhill Sponsor: Biketronics Inc. Mat Stein Justin Clark Advisor: Chris Wagner
Project Definition The Problem • Customers want to customize their bikes • Doing so with the stock ECU presents risk: – – Reduced fuel efficiency Reduced engine life Micro. Squirt Stock ECU Interface Board The Solution • Use the Micro. Squirt • Connect the Micro. Squirt to the bike via a custom interface board • Use the bike’s J 1850 bus to communicate with the gauges • Use the previously-designed breakout board to switch between stock ECU and Micro. Squirt control Breakout Board - Micro. Squirt Output - Sensor Input - Stock ECU Output
Specifications • Communicate bike operation data on instrument J 1850 network • Communicate diagnostic data between Micro. Squirt and interface board • Implement interface with a processor capable of handling all ECU function • Provide protected power to interface board and Micro. Squirt module to avoid interference • All boards must fit in stock ECU container • Design must safely process high-voltage output from reluctance sensor
Milestones and Goals Semester 1 1. Get the bike running on the Micro. Squirt – – Communicate with the Micro. Squirt Run bike on stock ECU and adjust settings on Micro. Squirt to match 2. Build interface board – – – Determine appropriate micro processor to use on our interface board Determine communication IC’s needed for interface board Complete schematic of our interface board Test communication with transceivers to ensure properation with our microcontroller Capture data sent to the instrument cluster to determine what needs to be sent Pull needed data from the Micro. Squirt using CAN bus
Milestones and Goals Semester 2 3. Get gauges working – – – Connect our interface board to the J 1850 network on the motorcycle Ensure proper communication through the bus Send proper data to the instrument cluster and verify correct operation 4. Refine Micro. Squirt code for motorcycle use – – Make a flow chart of the Micro. Squirt code Determine branches that are not used that could simplify operation 5. Prepare project for future development – Start converting code used with the Micro. Squirt to code for the Atmel microcontroller.
The Micro. Squirt • EFI controller that features: – Freely available code – Support documentation – User configurability – CAN communication support – Compact size • Designed to be “plugged in” to other projects – A relatively low price • $249
Our Design Function • Receives and routes sensor input to Micro. Squirt • Communicates CAN information to the Micro. Squirt – – RPMs and other instrument data Debug information • Communicates operation data to instrument panel via J 1850 bus • Will someday replace the Micro. Squirt entirely – Will function as ECU Design • Microcontroller: – • Communication: – – • Atmel AT 90 CAN 128 Freescale MC 33390 J 1850 transceiver Microchip MCP 2551 CAN transceiver Debug: – Header pin for every I/O
Project Summary Status • We have half an engine running – – • • Our settings for the Micro. Squirt seem to be our biggest issue We can run one cylinder fine, but have trouble getting timing right while cranking We have the schematic of our interface board We’re in the process of writing code for our microcontroller to communicate with the transceivers Expenses to Date • Micro. Squirt Module: $249. 00 • Atmel CAN controller: $13. 55 • J 1850 transceiver: $1. 64 • CAN transceiver: $1. 12 • Connectors: $100. 00 • PCB breakout board: $83. 00 • Total: $448. 31 (All product prices retail)
Issues Encountered • Timing appears to be in the ballpark but…. • We hope to have this resolved and have a running bike before Expo
Continuing Work • Finish setting up the Micro. Squirt and ensure properation running the engine • Finish and test code for communication between CAN and J 1850 networks – Verify using logic analyzer message capture • Finish board layout • Print the first version of our PCB and test for properation • Attach interface board to Micro. Squirt and J 1850 bus and test
Questions?
