TEACHING MULTIOBJECTIVE MULTI STAKEHOLDER DECISION MODELING WITH CASES

TEACHING MULTI-OBJECTIVE MULTI -STAKEHOLDER DECISION MODELING WITH CASES L. Robin Keller*, Jay Simon** * University of California, Irvine, USA President, INFORMS (INFORMS. org) ** Defense Resources Management Institute, USA 11 TH International Workshop on Operations Research OR & Human Welfare: Health, Environment, and Education Havana, Cuba, March 10 -13, 2015 1

Decision Analyst Ralph Keeney advises us to practice Value-Focused Thinking about what we value as expressed in our objectives Keeney, R. L. 1992. Value-Focused Thinking—A Path to Creative Decision Making. Harvard University Press, Cambridge, MA. Hammond, J. S. , R. L. Keeney, H. Raiffa. 1999. Smart Choices: A Practical Guide to Making Better Decisions. Harvard Business School Press. 2

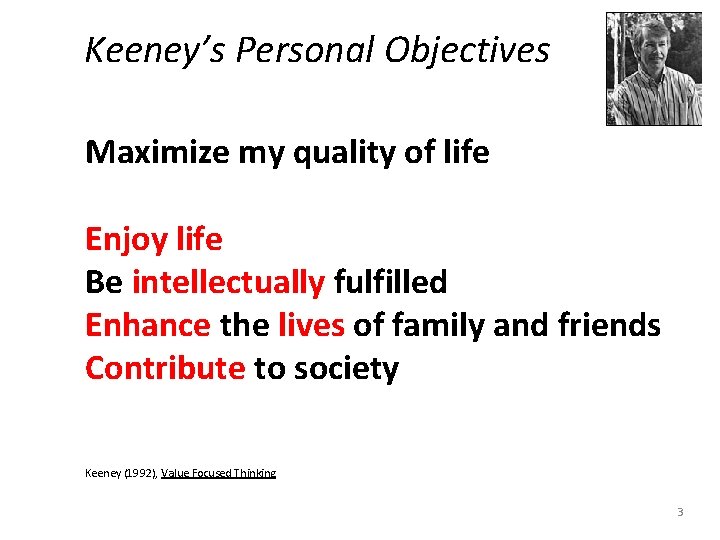

Keeney’s Personal Objectives Maximize my quality of life Enjoy life Be intellectually fulfilled Enhance the lives of family and friends Contribute to society Keeney (1992), Value Focused Thinking 3

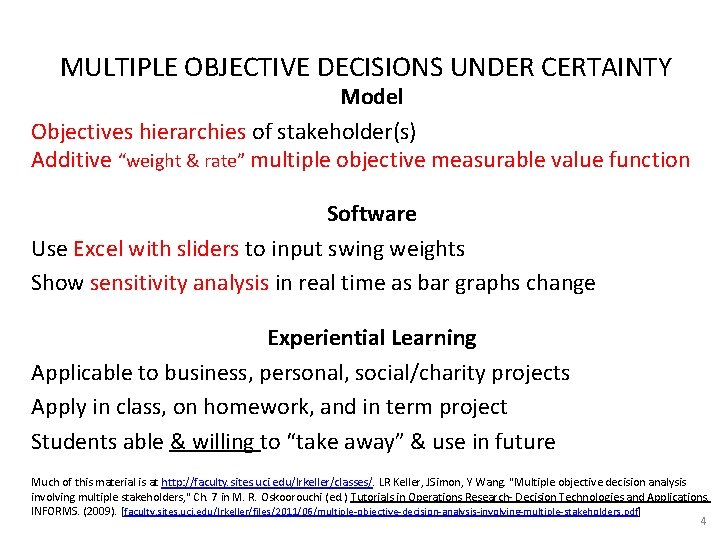

MULTIPLE OBJECTIVE DECISIONS UNDER CERTAINTY Model Objectives hierarchies of stakeholder(s) Additive “weight & rate” multiple objective measurable value function Software Use Excel with sliders to input swing weights Show sensitivity analysis in real time as bar graphs change Experiential Learning Applicable to business, personal, social/charity projects Apply in class, on homework, and in term project Students able & willing to “take away” & use in future Much of this material is at http: //faculty. sites. uci. edu/lrkeller/classes/. LR Keller, JSimon, Y Wang. "Multiple objective decision analysis involving multiple stakeholders, " Ch. 7 in M. R. Oskoorouchi (ed. ) Tutorials in Operations Research- Decision Technologies and Applications. INFORMS. (2009). [faculty. sites. uci. edu/lrkeller/files/2011/06/multiple-objective-decision-analysis-involving-multiple-stakeholders. pdf] 4

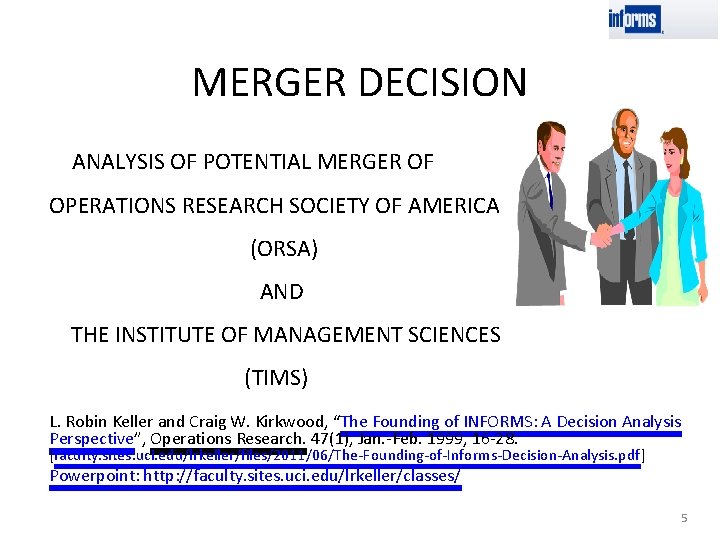

MERGER DECISION ANALYSIS OF POTENTIAL MERGER OF OPERATIONS RESEARCH SOCIETY OF AMERICA (ORSA) AND THE INSTITUTE OF MANAGEMENT SCIENCES (TIMS) L. Robin Keller and Craig W. Kirkwood, “The Founding of INFORMS: A Decision Analysis Perspective”, Operations Research. 47(1), Jan. -Feb. 1999, 16 -28. [faculty. sites. uci. edu/lrkeller/files/2011/06/The-Founding-of-Informs-Decision-Analysis. pdf] Powerpoint: http: //faculty. sites. uci. edu/lrkeller/classes/ 5

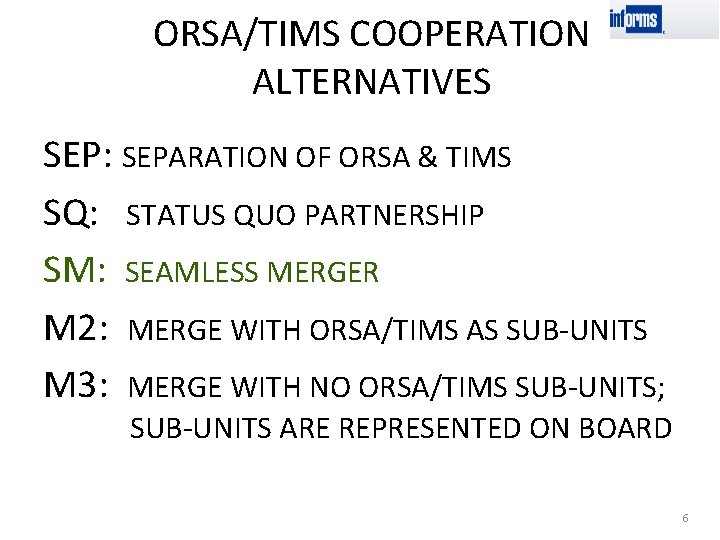

ORSA/TIMS COOPERATION ALTERNATIVES SEP: SEPARATION OF ORSA & TIMS SQ: STATUS QUO PARTNERSHIP SM: SEAMLESS MERGER M 2: MERGE WITH ORSA/TIMS AS SUB-UNITS M 3: MERGE WITH NO ORSA/TIMS SUB-UNITS; SUB-UNITS ARE REPRESENTED ON BOARD 6

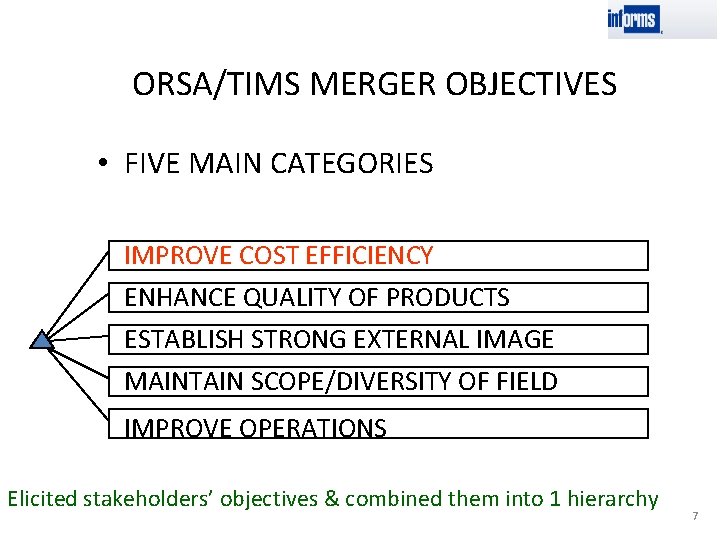

ORSA/TIMS MERGER OBJECTIVES • FIVE MAIN CATEGORIES IMPROVE COST EFFICIENCY ENHANCE QUALITY OF PRODUCTS ESTABLISH STRONG EXTERNAL IMAGE MAINTAIN SCOPE/DIVERSITY OF FIELD IMPROVE OPERATIONS Elicited stakeholders’ objectives & combined them into 1 hierarchy 7

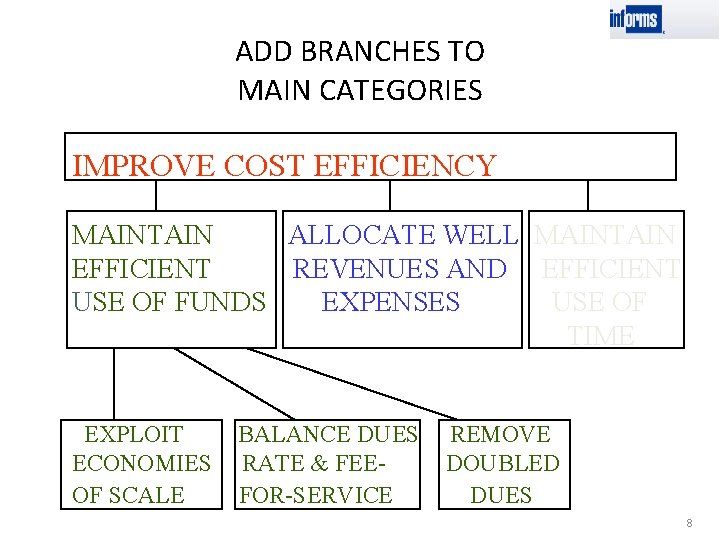

ADD BRANCHES TO MAIN CATEGORIES IMPROVE COST EFFICIENCY MAINTAIN ALLOCATE WELL MAINTAIN EFFICIENT REVENUES AND EFFICIENT USE OF FUNDS EXPENSES USE OF TIME EXPLOIT ECONOMIES OF SCALE BALANCE DUES RATE & FEEFOR-SERVICE REMOVE DOUBLED DUES 8

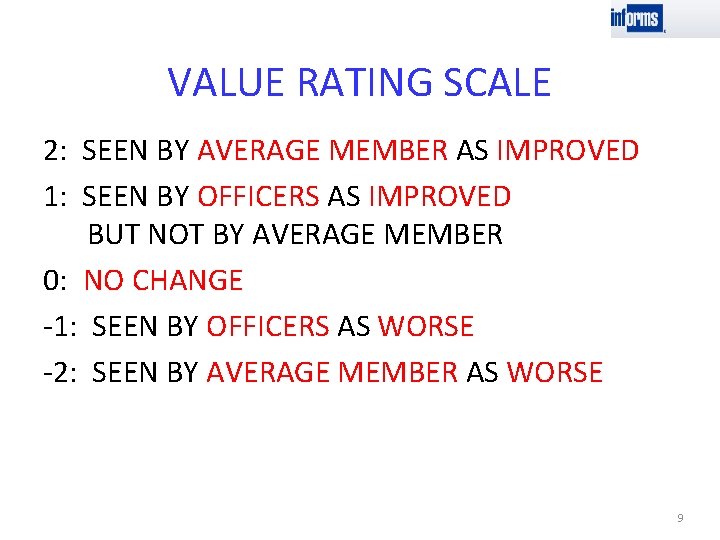

VALUE RATING SCALE 2: SEEN BY AVERAGE MEMBER AS IMPROVED 1: SEEN BY OFFICERS AS IMPROVED BUT NOT BY AVERAGE MEMBER 0: NO CHANGE -1: SEEN BY OFFICERS AS WORSE -2: SEEN BY AVERAGE MEMBER AS WORSE 9

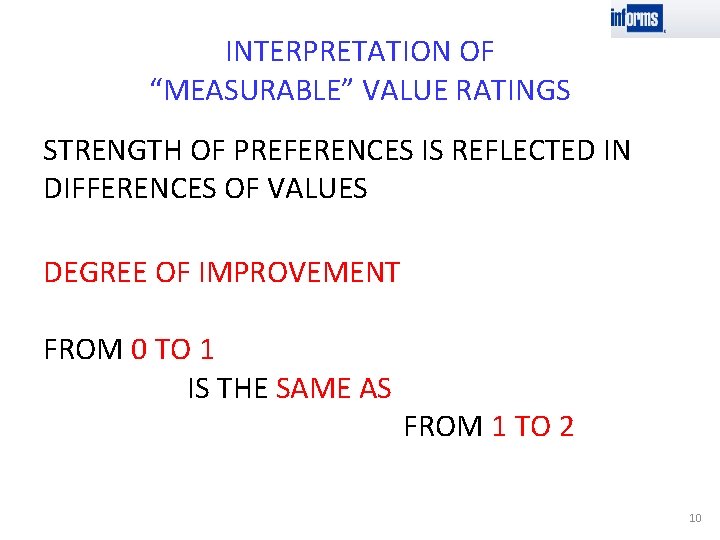

INTERPRETATION OF “MEASURABLE” VALUE RATINGS STRENGTH OF PREFERENCES IS REFLECTED IN DIFFERENCES OF VALUES DEGREE OF IMPROVEMENT FROM 0 TO 1 IS THE SAME AS FROM 1 TO 2 10

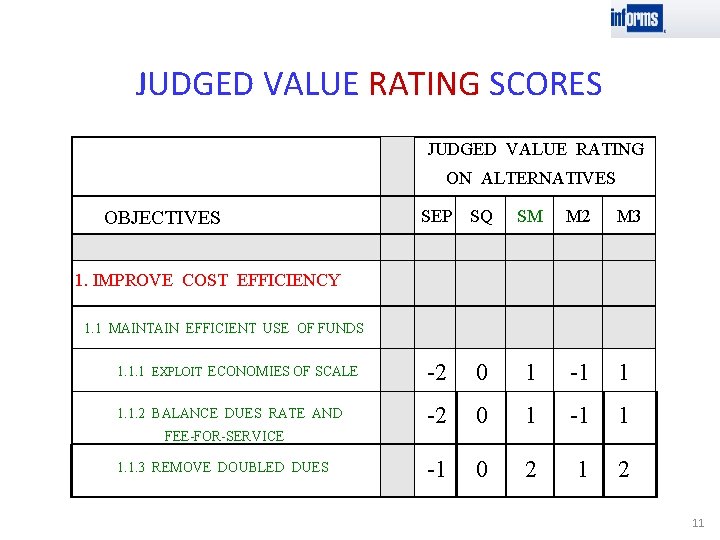

JUDGED VALUE RATING SCORES JUDGED VALUE RATING ON ALTERNATIVES OBJECTIVES SEP SQ SM M 2 M 3 1. IMPROVE COST EFFICIENCY 1. 1 MAINTAIN EFFICIENT USE OF FUNDS 1. 1. 1 EXPLOIT ECONOMIES OF SCALE -2 0 1 -1 1 1. 1. 2 BALANCE DUES RATE AND -2 0 1 -1 0 2 1 2 FEE-FOR-SERVICE 1. 1. 3 REMOVE DOUBLED DUES 11

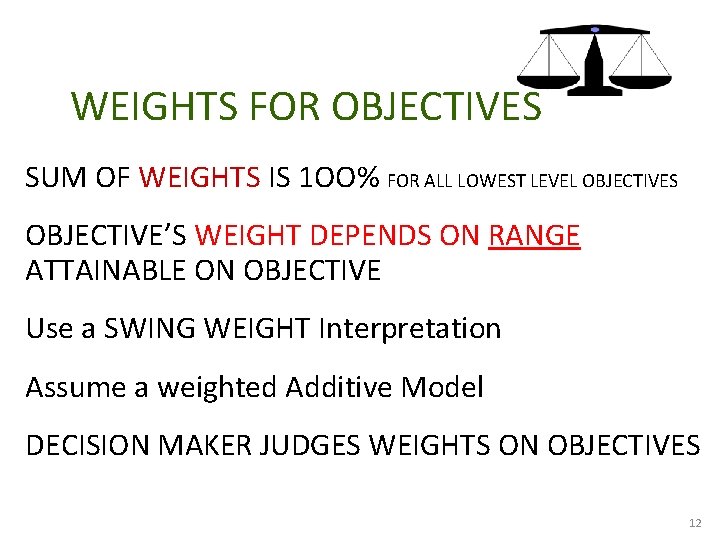

WEIGHTS FOR OBJECTIVES SUM OF WEIGHTS IS 1 OO% FOR ALL LOWEST LEVEL OBJECTIVES OBJECTIVE’S WEIGHT DEPENDS ON RANGE ATTAINABLE ON OBJECTIVE Use a SWING WEIGHT Interpretation Assume a weighted Additive Model DECISION MAKER JUDGES WEIGHTS ON OBJECTIVES 12

13

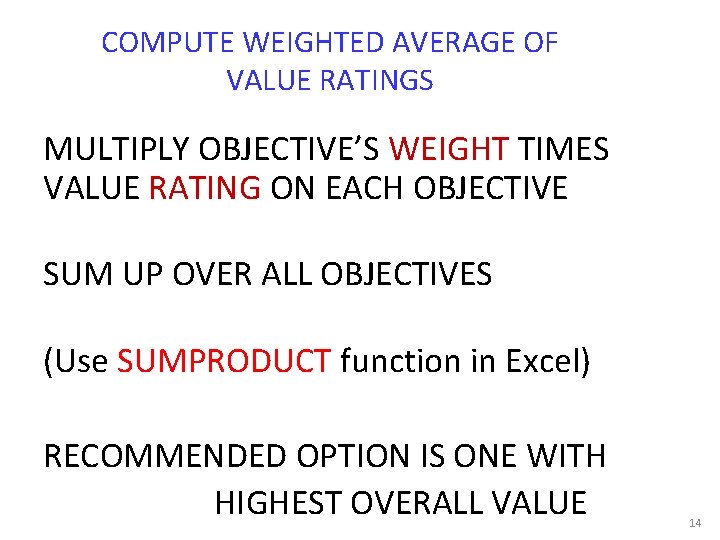

COMPUTE WEIGHTED AVERAGE OF VALUE RATINGS MULTIPLY OBJECTIVE’S WEIGHT TIMES VALUE RATING ON EACH OBJECTIVE SUM UP OVER ALL OBJECTIVES (Use SUMPRODUCT function in Excel) RECOMMENDED OPTION IS ONE WITH HIGHEST OVERALL VALUE 14

15

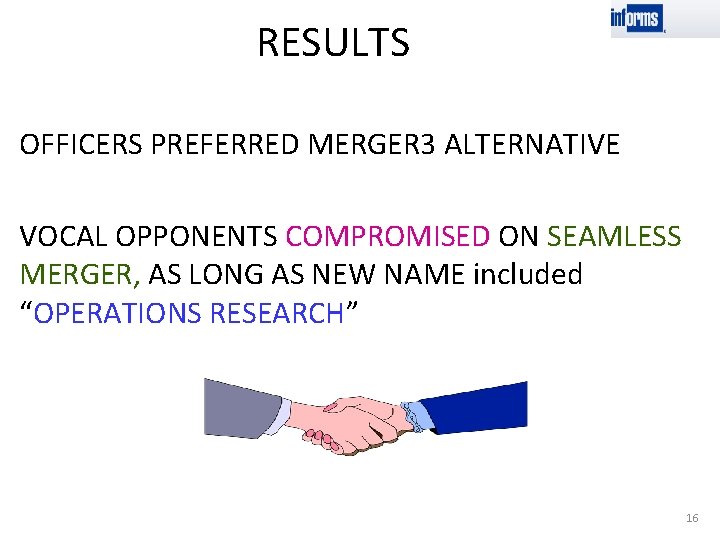

RESULTS OFFICERS PREFERRED MERGER 3 ALTERNATIVE VOCAL OPPONENTS COMPROMISED ON SEAMLESS MERGER, AS LONG AS NEW NAME included “OPERATIONS RESEARCH” 16

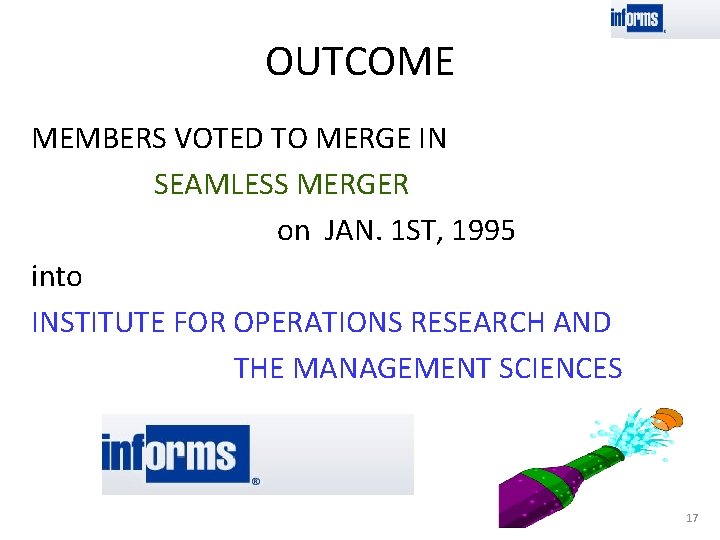

OUTCOME MEMBERS VOTED TO MERGE IN SEAMLESS MERGER on JAN. 1 ST, 1995 into INSTITUTE FOR OPERATIONS RESEARCH AND THE MANAGEMENT SCIENCES 17

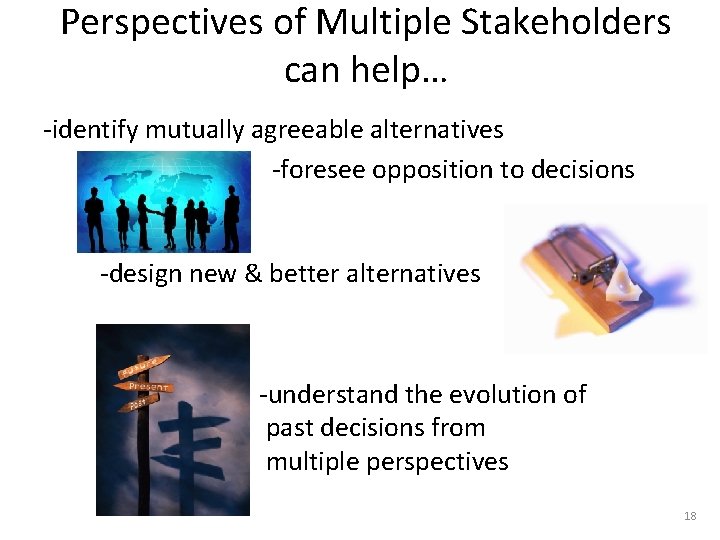

Perspectives of Multiple Stakeholders can help… -identify mutually agreeable alternatives -foresee opposition to decisions -design new & better alternatives -understand the evolution of past decisions from multiple perspectives 18

Multiple-Stakeholder Decision Making The Star. Kist Tuna Fishing Decision Stakeholders San Diego, CA USA Tuna Fishing Fleet http: //www. sandiegohistory. org/journal/81 fall/images/piva. jpg http: //www. earthisland. org/index. php/donate / Monika I. Winn and L. Robin Keller, “A Modeling Methodology for Multi-Objective Multi-Stakeholder Decisions: Implications for Research ”, Journal of Management Inquiry. 10(2), June 2001, 166 -181. [faculty. sites. uci. edu/lrkeller/files/2011/06/A-Modeling-Methodology-for. -Multiobjective-Multistakeholder-Decisions. -Implications-for-Research. pdf ] Much of this material is at http: //faculty. sites. uci. edu/lrkeller/classes/ 19

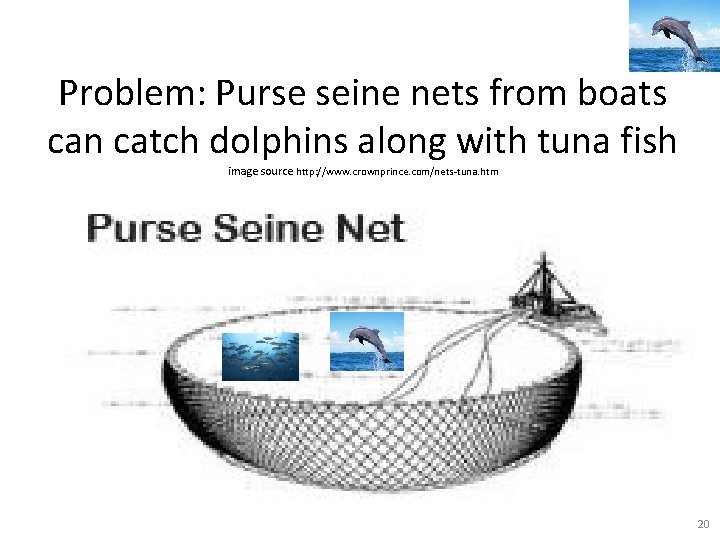

Problem: Purse seine nets from boats can catch dolphins along with tuna fish image source http: //www. crownprince. com/nets-tuna. htm 20

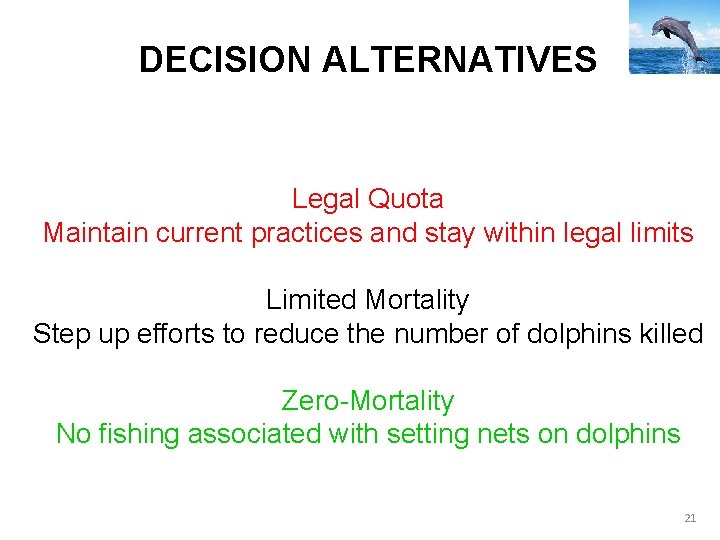

DECISION ALTERNATIVES Legal Quota Maintain current practices and stay within legal limits Limited Mortality Step up efforts to reduce the number of dolphins killed Zero-Mortality No fishing associated with setting nets on dolphins 21

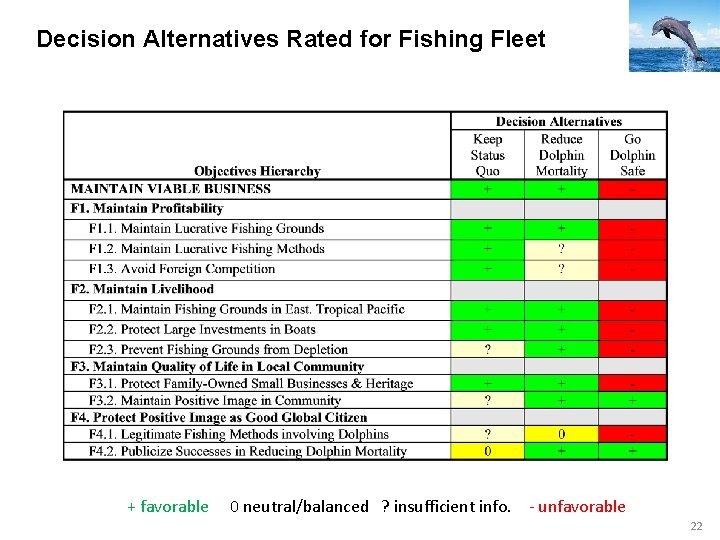

Decision Alternatives Rated for Fishing Fleet + favorable 0 neutral/balanced ? insufficient info. - unfavorable 22

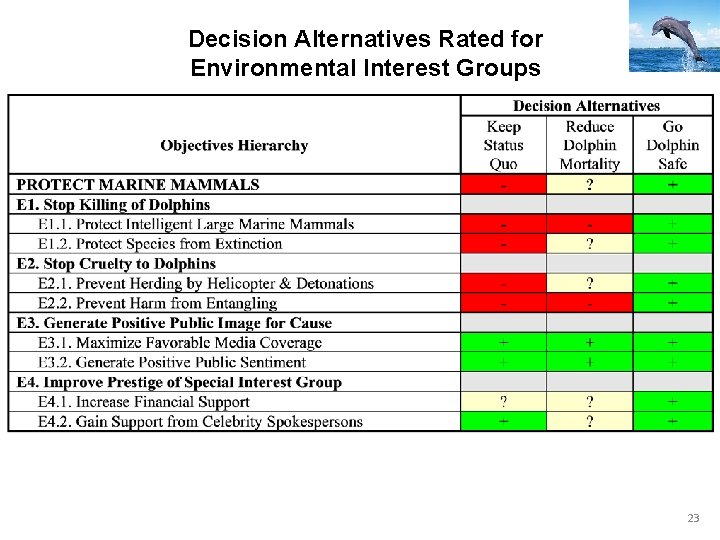

Decision Alternatives Rated for Environmental Interest Groups 23

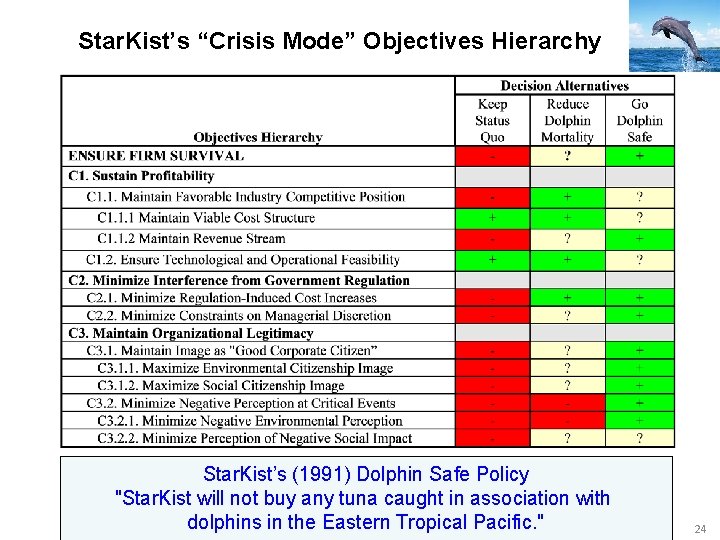

Star. Kist’s “Crisis Mode” Objectives Hierarchy Star. Kist’s (1991) Dolphin Safe Policy "Star. Kist will not buy any tuna caught in association with dolphins in the Eastern Tropical Pacific. " 24

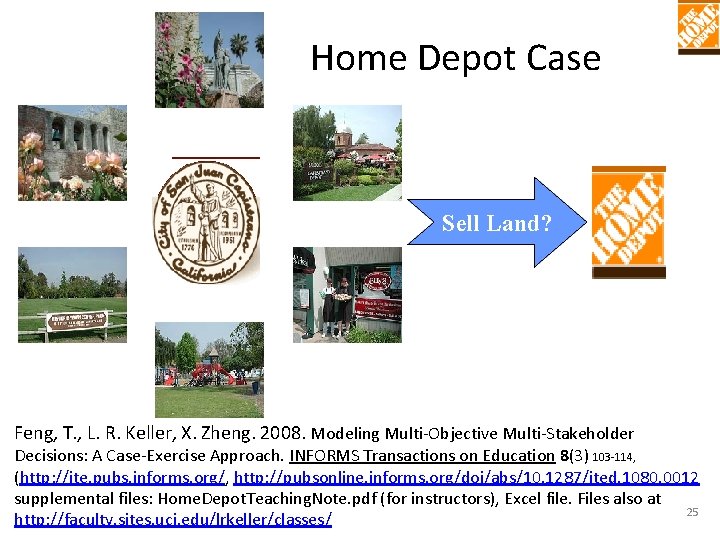

Home Depot Case Sell Land? Feng, T. , L. R. Keller, X. Zheng. 2008. Modeling Multi-Objective Multi-Stakeholder Decisions: A Case-Exercise Approach. INFORMS Transactions on Education 8(3) 103 -114, (http: //ite. pubs. informs. org/, http: //pubsonline. informs. org/doi/abs/10. 1287/ited. 1080. 0012 supplemental files: Home. Depot. Teaching. Note. pdf (for instructors), Excel file. Files also at 25 http: //faculty. sites. uci. edu/lrkeller/classes/

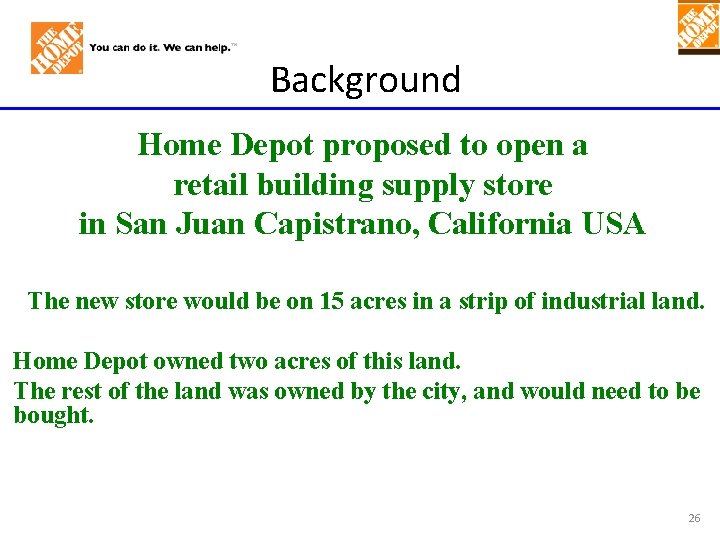

Background Home Depot proposed to open a retail building supply store in San Juan Capistrano, California USA The new store would be on 15 acres in a strip of industrial land. Home Depot owned two acres of this land. The rest of the land was owned by the city, and would need to be bought. 26

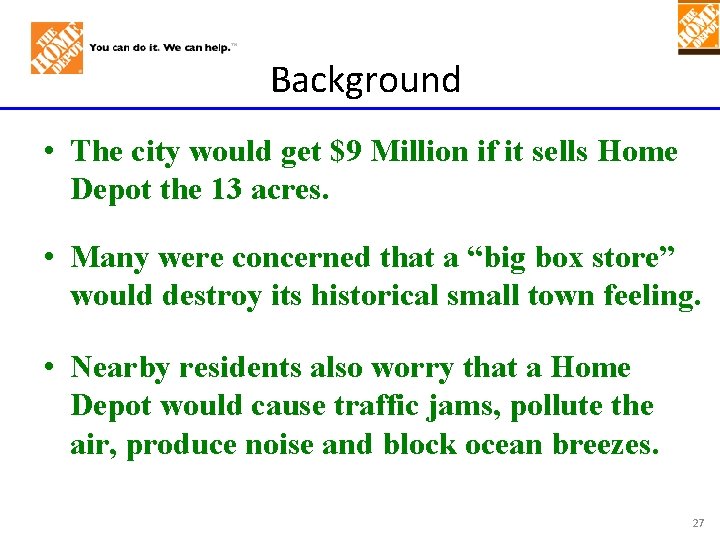

Background • The city would get $9 Million if it sells Home Depot the 13 acres. • Many were concerned that a “big box store” would destroy its historical small town feeling. • Nearby residents also worry that a Home Depot would cause traffic jams, pollute the air, produce noise and block ocean breezes. 27

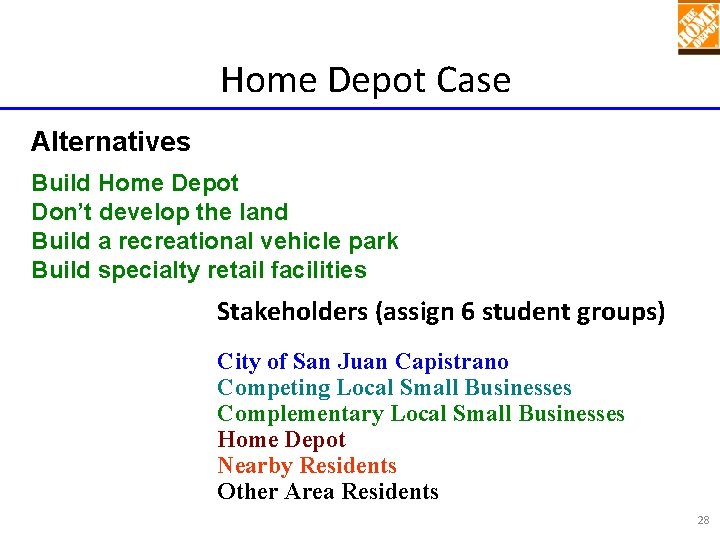

Home Depot Case Alternatives Build Home Depot Don’t develop the land Build a recreational vehicle park Build specialty retail facilities Stakeholders (assign 6 student groups) City of San Juan Capistrano Competing Local Small Businesses Complementary Local Small Businesses Home Depot Nearby Residents Other Area Residents 28

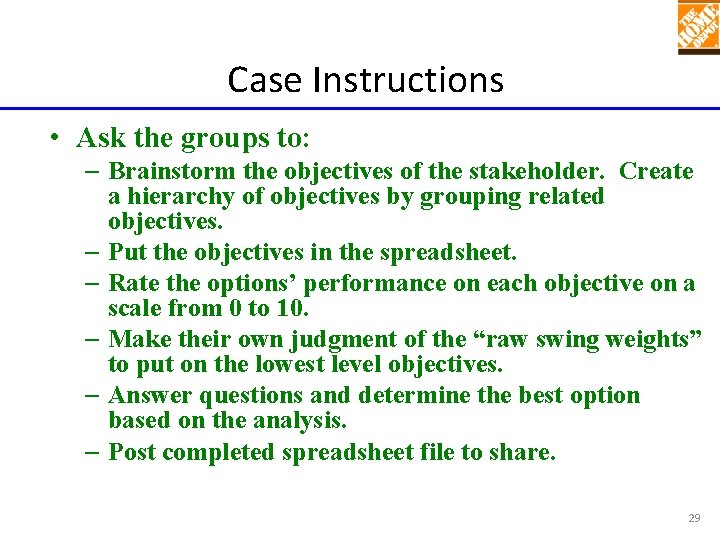

Case Instructions • Ask the groups to: – Brainstorm the objectives of the stakeholder. Create a hierarchy of objectives by grouping related objectives. – Put the objectives in the spreadsheet. – Rate the options’ performance on each objective on a scale from 0 to 10. – Make their own judgment of the “raw swing weights” to put on the lowest level objectives. – Answer questions and determine the best option based on the analysis. – Post completed spreadsheet file to share. 29

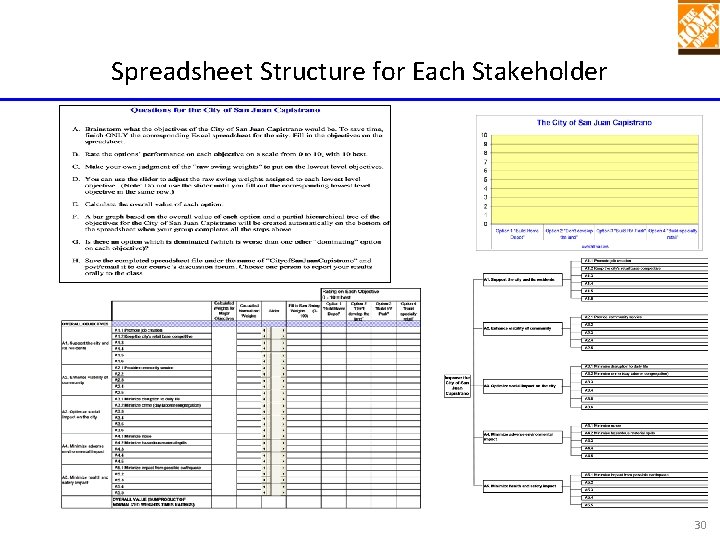

Spreadsheet Structure for Each Stakeholder 30

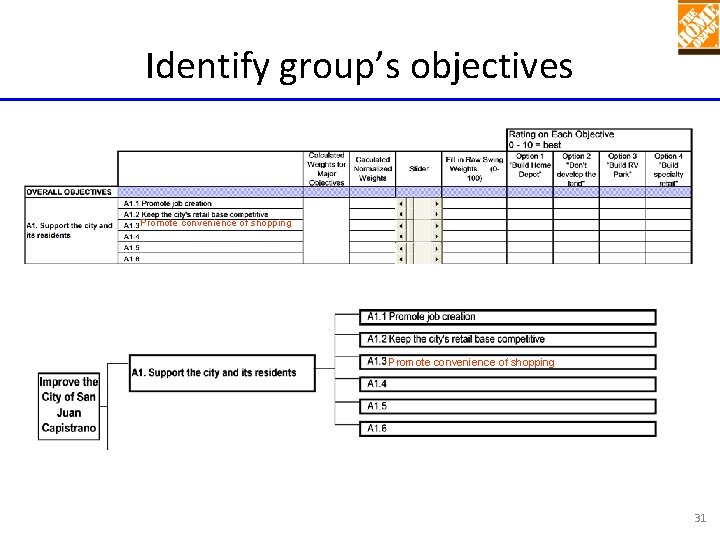

Identify group’s objectives Promote convenience of shopping 31

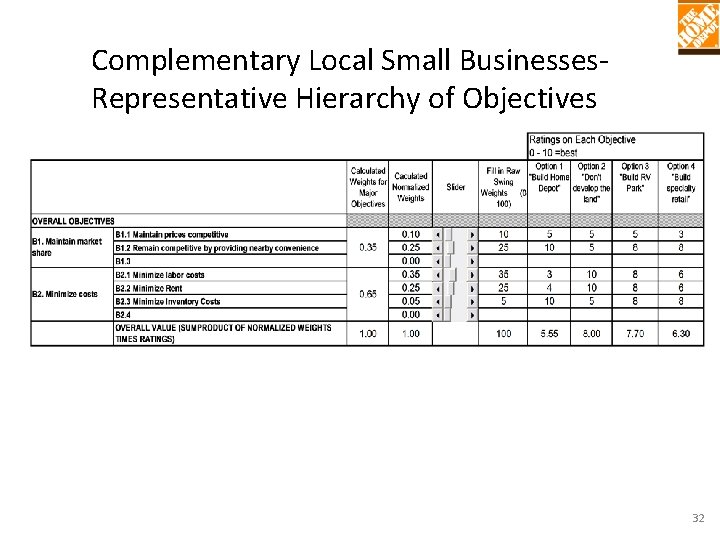

Complementary Local Small Businesses. Representative Hierarchy of Objectives 32

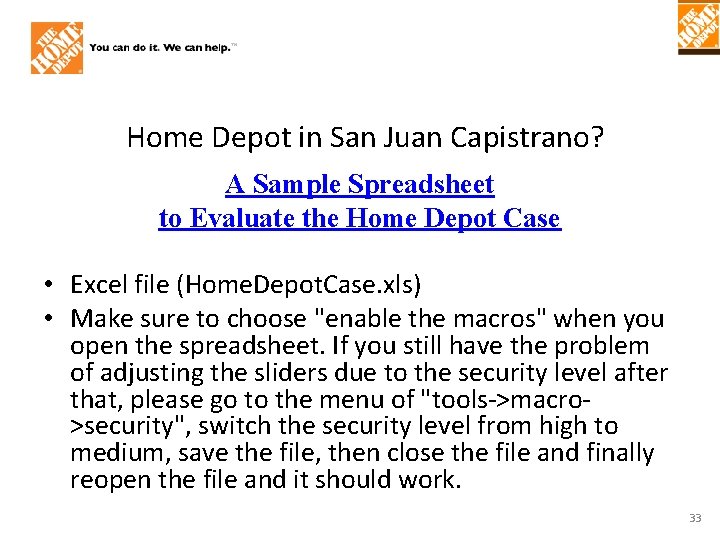

Home Depot in San Juan Capistrano? A Sample Spreadsheet to Evaluate the Home Depot Case • Excel file (Home. Depot. Case. xls) • Make sure to choose "enable the macros" when you open the spreadsheet. If you still have the problem of adjusting the sliders due to the security level after that, please go to the menu of "tools->macro>security", switch the security level from high to medium, save the file, then close the file and finally reopen the file and it should work. 33

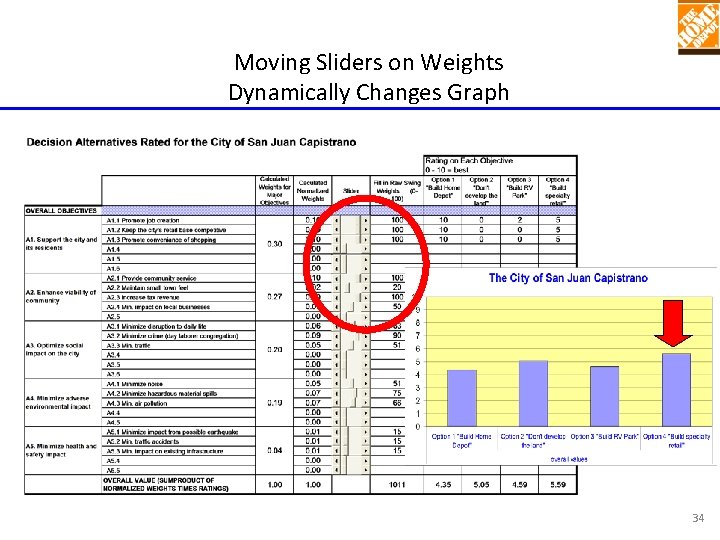

Moving Sliders on Weights Dynamically Changes Graph 34

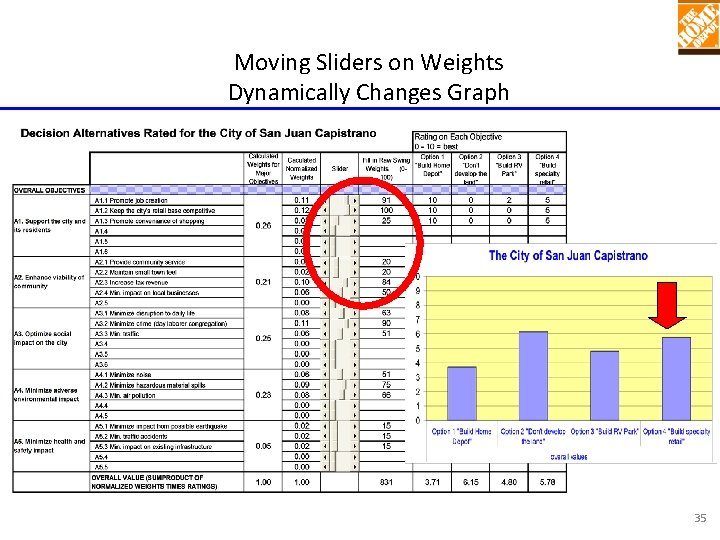

Moving Sliders on Weights Dynamically Changes Graph 35

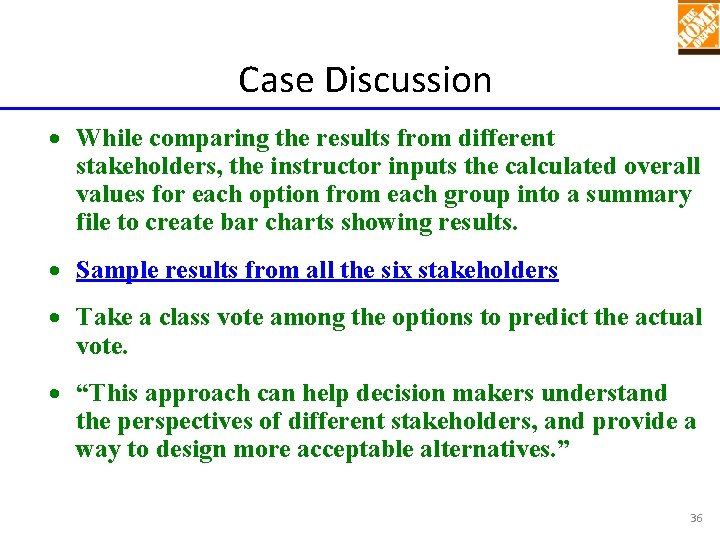

Case Discussion While comparing the results from different stakeholders, the instructor inputs the calculated overall values for each option from each group into a summary file to create bar charts showing results. Sample results from all the six stakeholders Take a class vote among the options to predict the actual vote. “This approach can help decision makers understand the perspectives of different stakeholders, and provide a way to design more acceptable alternatives. ” 36

What do you think: Yes or No? Sell Land? (City voters voted on this issue in November 2002. ) 37

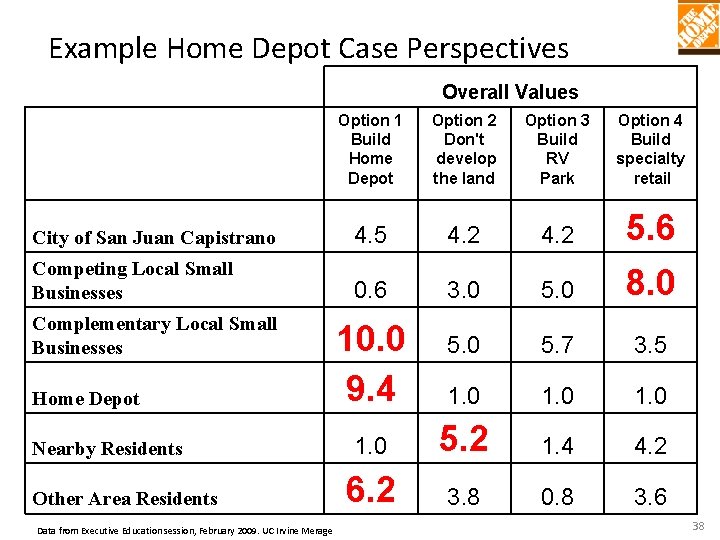

Example Home Depot Case Perspectives Overall Values Option 1 Build Home Depot Option 2 Don't develop the land Option 3 Build RV Park Option 4 Build specialty retail City of San Juan Capistrano 4. 5 4. 2 5. 6 Competing Local Small Businesses 0. 6 3. 0 5. 0 8. 0 5. 7 3. 5 1. 0 5. 2 1. 4 4. 2 6. 2 3. 8 0. 8 3. 6 Complementary Local Small Businesses Home Depot Nearby Residents Other Area Residents Data from Executive Education session, February 2009. UC Irvine Merage 10. 0 9. 4 38

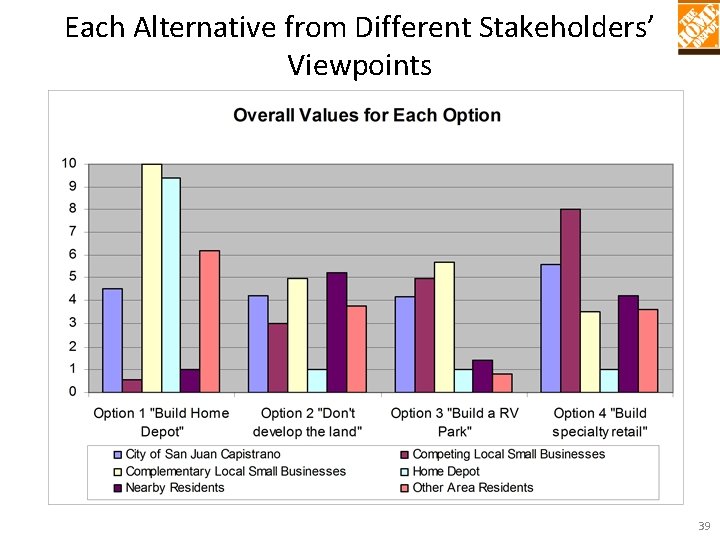

Each Alternative from Different Stakeholders’ Viewpoints 39

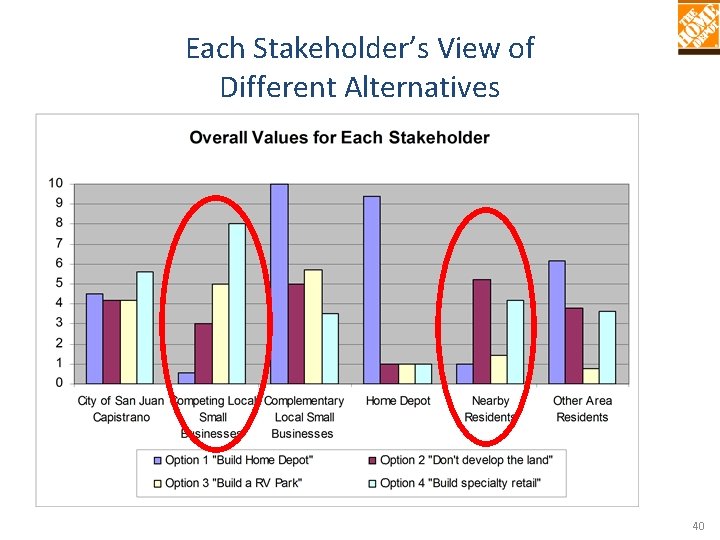

Each Stakeholder’s View of Different Alternatives 40

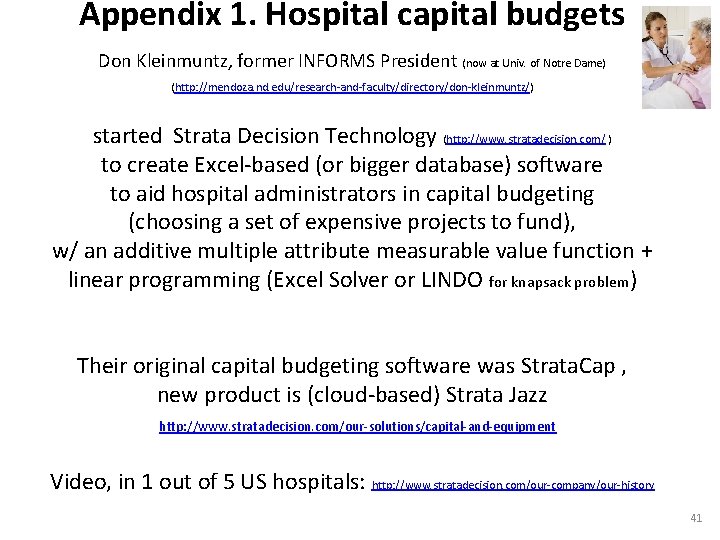

Appendix 1. Hospital capital budgets Don Kleinmuntz, former INFORMS President (now at Univ. of Notre Dame) (http: //mendoza. nd. edu/research-and-faculty/directory/don-kleinmuntz/) started Strata Decision Technology (http: //www. stratadecision. com/ ) to create Excel-based (or bigger database) software to aid hospital administrators in capital budgeting (choosing a set of expensive projects to fund), w/ an additive multiple attribute measurable value function + linear programming (Excel Solver or LINDO for knapsack problem) Their original capital budgeting software was Strata. Cap , new product is (cloud-based) Strata Jazz http: //www. stratadecision. com/our-solutions/capital-and-equipment Video, in 1 out of 5 US hospitals: http: //www. stratadecision. com/our-company/our-history 41

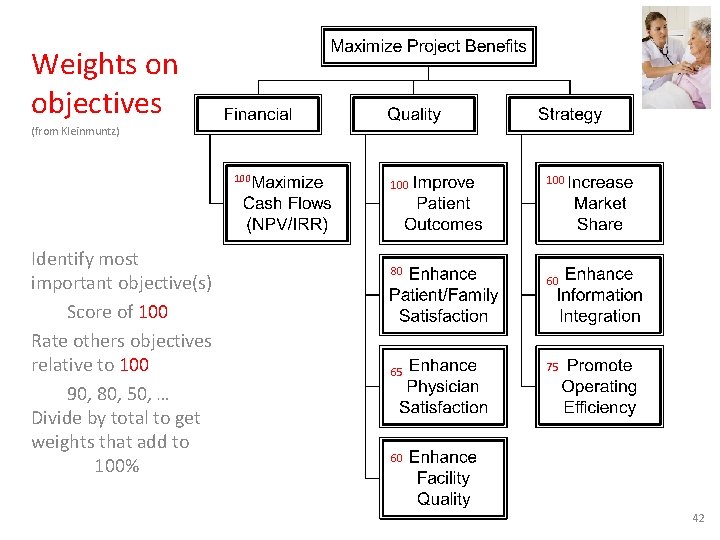

Weights on objectives (from Kleinmuntz) 100 Identify most important objective(s) Score of 100 Rate others objectives relative to 100 90, 80, 50, … Divide by total to get weights that add to 100% 100 80 65 100 60 75 60 42

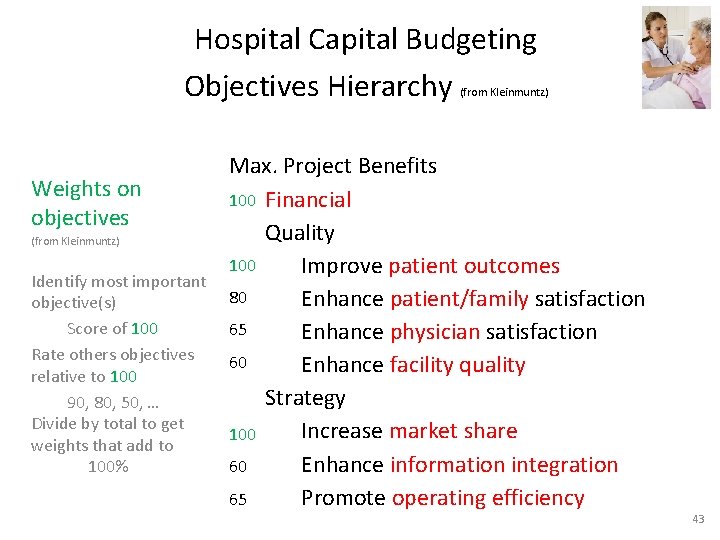

Hospital Capital Budgeting Objectives Hierarchy (from Kleinmuntz) Weights on objectives (from Kleinmuntz) Identify most important objective(s) Score of 100 Rate others objectives relative to 100 90, 80, 50, … Divide by total to get weights that add to 100% Max. Project Benefits 100 Financial Quality 100 Improve patient outcomes 80 Enhance patient/family satisfaction 65 Enhance physician satisfaction 60 Enhance facility quality Strategy Increase market share 100 Enhance information integration 60 65 Promote operating efficiency 43

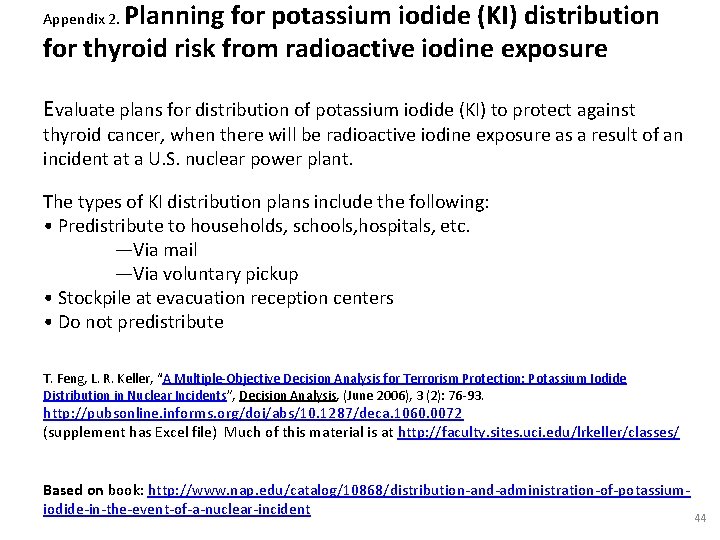

Planning for potassium iodide (KI) distribution for thyroid risk from radioactive iodine exposure Appendix 2. Evaluate plans for distribution of potassium iodide (KI) to protect against thyroid cancer, when there will be radioactive iodine exposure as a result of an incident at a U. S. nuclear power plant. The types of KI distribution plans include the following: • Predistribute to households, schools, hospitals, etc. —Via mail —Via voluntary pickup • Stockpile at evacuation reception centers • Do not predistribute T. Feng, L. R. Keller, “A Multiple-Objective Decision Analysis for Terrorism Protection: Potassium Iodide Distribution in Nuclear Incidents”, Decision Analysis, (June 2006), 3 (2): 76 -93. http: //pubsonline. informs. org/doi/abs/10. 1287/deca. 1060. 0072 (supplement has Excel file) Much of this material is at http: //faculty. sites. uci. edu/lrkeller/classes/ Based on book: http: //www. nap. edu/catalog/10868/distribution-and-administration-of-potassiumiodide-in-the-event-of-a-nuclear-incident 44

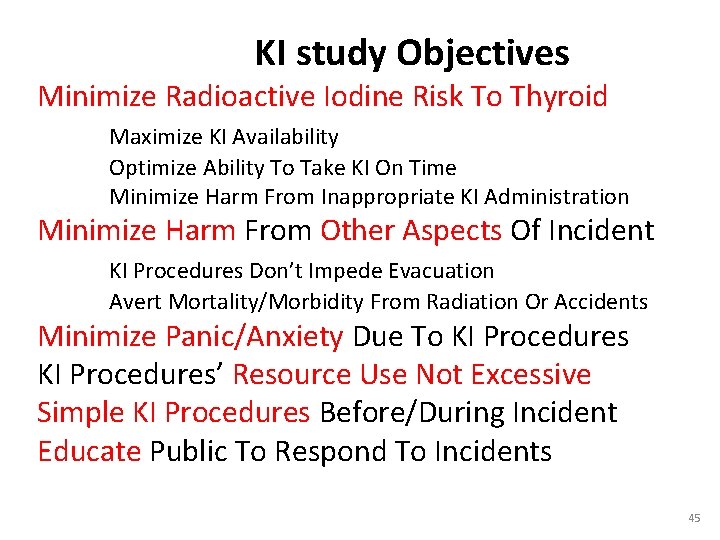

KI study Objectives Minimize Radioactive Iodine Risk To Thyroid Maximize KI Availability Optimize Ability To Take KI On Time Minimize Harm From Inappropriate KI Administration Minimize Harm From Other Aspects Of Incident KI Procedures Don’t Impede Evacuation Avert Mortality/Morbidity From Radiation Or Accidents Minimize Panic/Anxiety Due To KI Procedures’ Resource Use Not Excessive Simple KI Procedures Before/During Incident Educate Public To Respond To Incidents 45

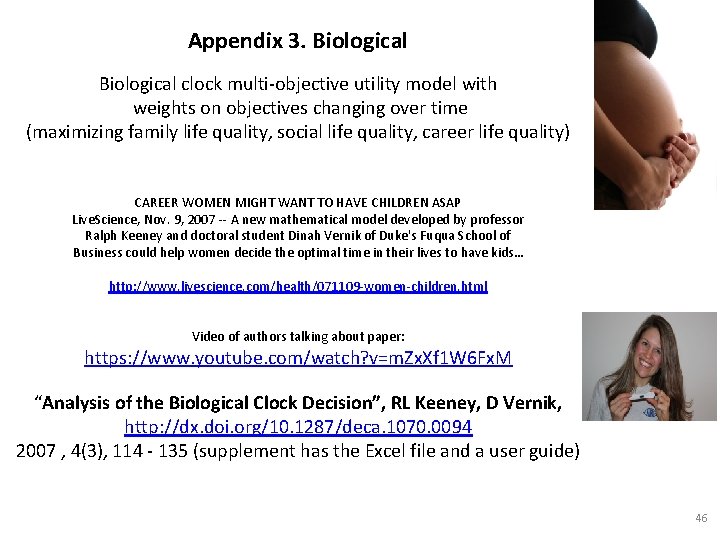

Appendix 3. Biological clock multi-objective utility model with weights on objectives changing over time (maximizing family life quality, social life quality, career life quality) CAREER WOMEN MIGHT WANT TO HAVE CHILDREN ASAP Live. Science, Nov. 9, 2007 -- A new mathematical model developed by professor Ralph Keeney and doctoral student Dinah Vernik of Duke's Fuqua School of Business could help women decide the optimal time in their lives to have kids… http: //www. livescience. com/health/071109 -women-children. html Video of authors talking about paper: https: //www. youtube. com/watch? v=m. Zx. Xf 1 W 6 Fx. M “Analysis of the Biological Clock Decision”, RL Keeney, D Vernik, http: //dx. doi. org/10. 1287/deca. 1070. 0094 2007 , 4(3), 114 - 135 (supplement has the Excel file and a user guide) 46

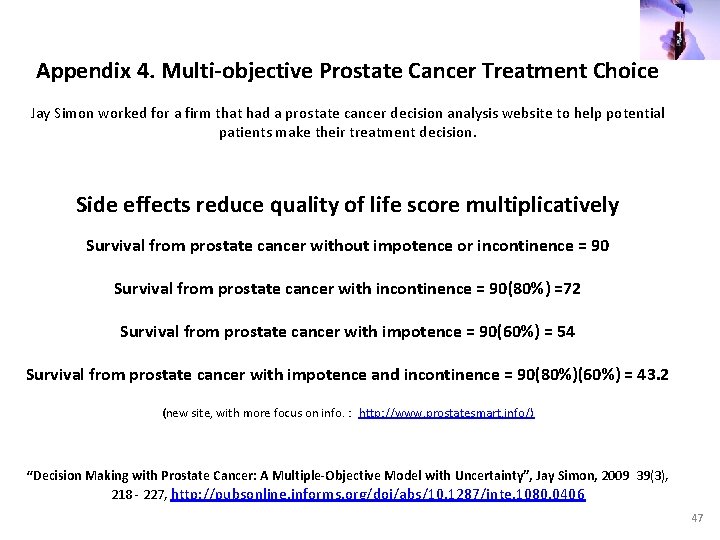

Appendix 4. Multi-objective Prostate Cancer Treatment Choice Jay Simon worked for a firm that had a prostate cancer decision analysis website to help potential patients make their treatment decision. Side effects reduce quality of life score multiplicatively Survival from prostate cancer without impotence or incontinence = 90 Survival from prostate cancer with incontinence = 90(80%) =72 Survival from prostate cancer with impotence = 90(60%) = 54 Survival from prostate cancer with impotence and incontinence = 90(80%)(60%) = 43. 2 (new site, with more focus on info. : http: //www. prostatesmart. info/) “Decision Making with Prostate Cancer: A Multiple-Objective Model with Uncertainty”, Jay Simon, 2009 39(3), 218 - 227, http: //pubsonline. informs. org/doi/abs/10. 1287/inte. 1080. 0406 47

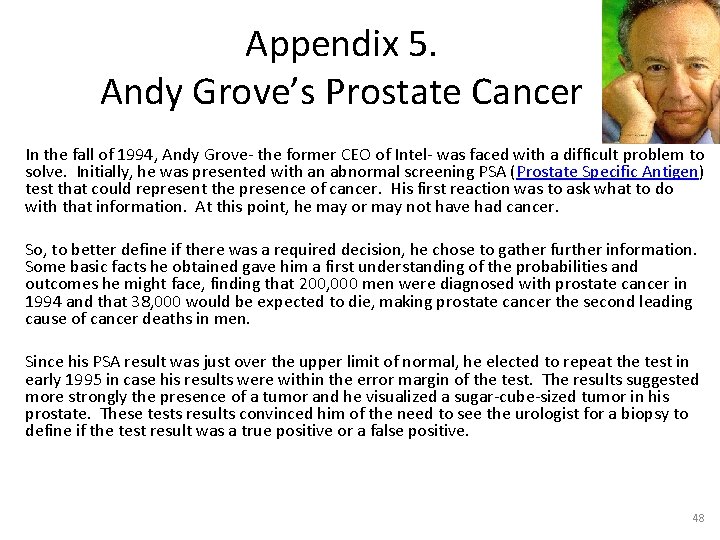

Appendix 5. Andy Grove’s Prostate Cancer In the fall of 1994, Andy Grove- the former CEO of Intel- was faced with a difficult problem to solve. Initially, he was presented with an abnormal screening PSA (Prostate Specific Antigen) test that could represent the presence of cancer. His first reaction was to ask what to do with that information. At this point, he may or may not have had cancer. So, to better define if there was a required decision, he chose to gather further information. Some basic facts he obtained gave him a first understanding of the probabilities and outcomes he might face, finding that 200, 000 men were diagnosed with prostate cancer in 1994 and that 38, 000 would be expected to die, making prostate cancer the second leading cause of cancer deaths in men. Since his PSA result was just over the upper limit of normal, he elected to repeat the test in early 1995 in case his results were within the error margin of the test. The results suggested more strongly the presence of a tumor and he visualized a sugar-cube-sized tumor in his prostate. These tests results convinced him of the need to see the urologist for a biopsy to define if the test result was a true positive or a false positive. 48

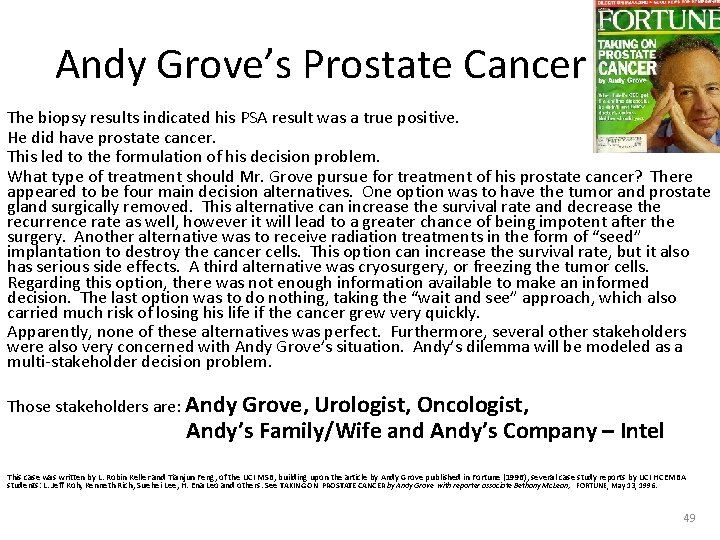

Andy Grove’s Prostate Cancer The biopsy results indicated his PSA result was a true positive. He did have prostate cancer. This led to the formulation of his decision problem. What type of treatment should Mr. Grove pursue for treatment of his prostate cancer? There appeared to be four main decision alternatives. One option was to have the tumor and prostate gland surgically removed. This alternative can increase the survival rate and decrease the recurrence rate as well, however it will lead to a greater chance of being impotent after the surgery. Another alternative was to receive radiation treatments in the form of “seed” implantation to destroy the cancer cells. This option can increase the survival rate, but it also has serious side effects. A third alternative was cryosurgery, or freezing the tumor cells. Regarding this option, there was not enough information available to make an informed decision. The last option was to do nothing, taking the “wait and see” approach, which also carried much risk of losing his life if the cancer grew very quickly. Apparently, none of these alternatives was perfect. Furthermore, several other stakeholders were also very concerned with Andy Grove’s situation. Andy’s dilemma will be modeled as a multi-stakeholder decision problem. Those stakeholders are: Andy Grove, Urologist, Oncologist, Andy’s Family/Wife and Andy’s Company – Intel This case was written by L. Robin Keller and Tianjun Feng, of the UCI MSB, building upon the article by Andy Grove published in Fortune (1996), several case study reports by UCI HCEMBA students: L. Jeff Koh, Kenneth Rich, Suehei Lee, H. Ena Leo and others. See TAKING ON PROSTATE CANCER by Andy Grove with reporter associate Bethany Mc. Lean, FORTUNE, May 13, 1996. 49

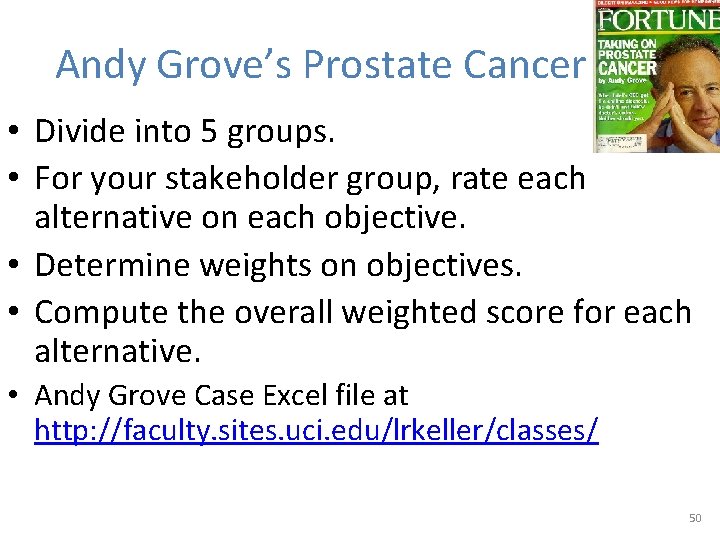

Andy Grove’s Prostate Cancer • Divide into 5 groups. • For your stakeholder group, rate each alternative on each objective. • Determine weights on objectives. • Compute the overall weighted score for each alternative. • Andy Grove Case Excel file at http: //faculty. sites. uci. edu/lrkeller/classes/ 50

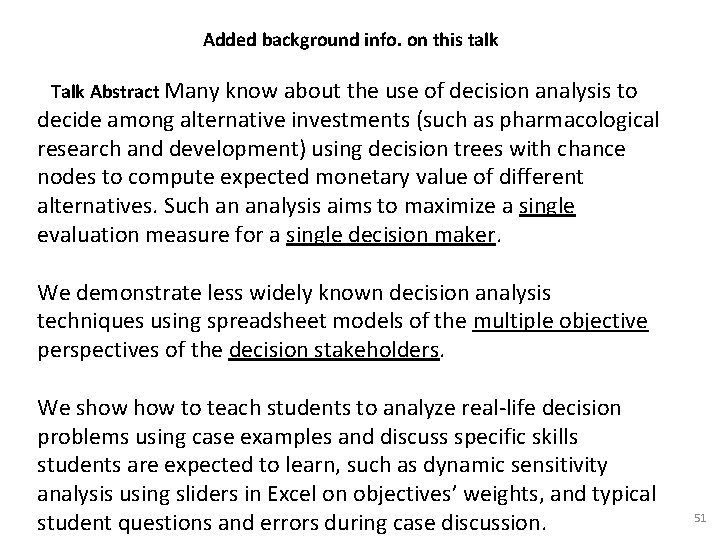

Added background info. on this talk Talk Abstract Many know about the use of decision analysis to decide among alternative investments (such as pharmacological research and development) using decision trees with chance nodes to compute expected monetary value of different alternatives. Such an analysis aims to maximize a single evaluation measure for a single decision maker. We demonstrate less widely known decision analysis techniques using spreadsheet models of the multiple objective perspectives of the decision stakeholders. We show to teach students to analyze real-life decision problems using case examples and discuss specific skills students are expected to learn, such as dynamic sensitivity analysis using sliders in Excel on objectives’ weights, and typical student questions and errors during case discussion. 51

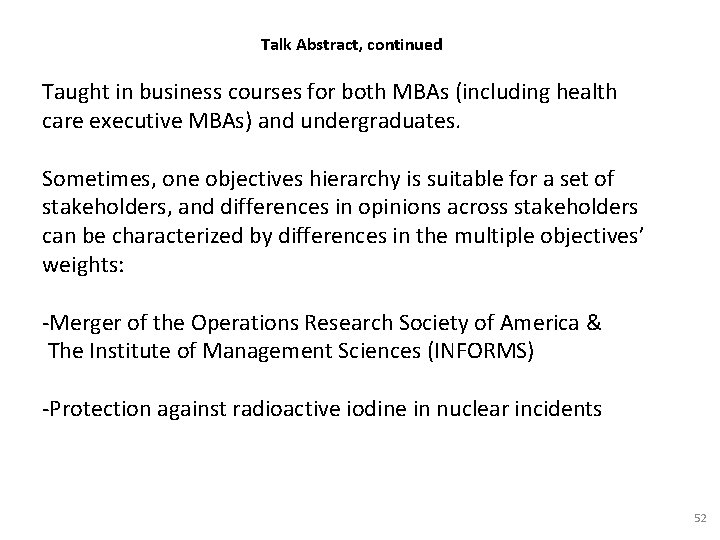

Talk Abstract, continued Taught in business courses for both MBAs (including health care executive MBAs) and undergraduates. Sometimes, one objectives hierarchy is suitable for a set of stakeholders, and differences in opinions across stakeholders can be characterized by differences in the multiple objectives’ weights: -Merger of the Operations Research Society of America & The Institute of Management Sciences (INFORMS) -Protection against radioactive iodine in nuclear incidents 52

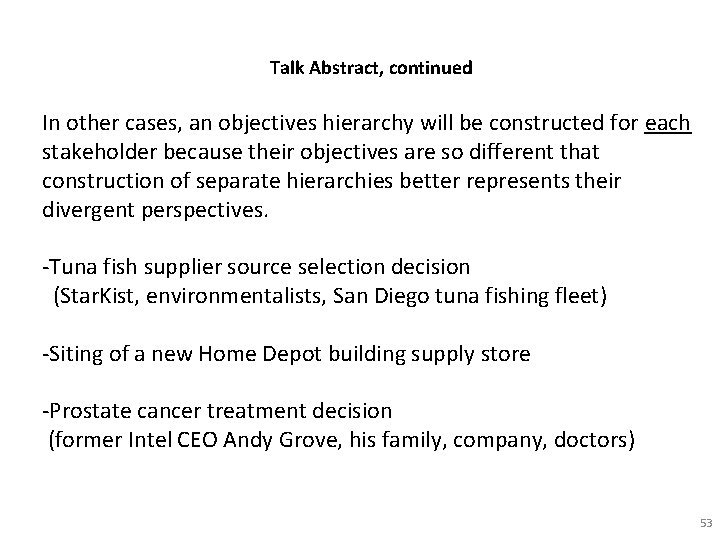

Talk Abstract, continued In other cases, an objectives hierarchy will be constructed for each stakeholder because their objectives are so different that construction of separate hierarchies better represents their divergent perspectives. -Tuna fish supplier source selection decision (Star. Kist, environmentalists, San Diego tuna fishing fleet) -Siting of a new Home Depot building supply store -Prostate cancer treatment decision (former Intel CEO Andy Grove, his family, company, doctors) 53

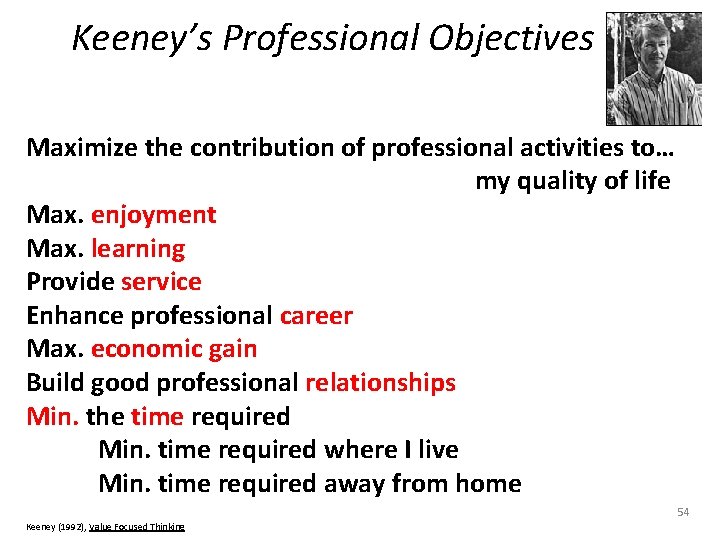

Keeney’s Professional Objectives Maximize the contribution of professional activities to… my quality of life Max. enjoyment Max. learning Provide service Enhance professional career Max. economic gain Build good professional relationships Min. the time required Min. time required where I live Min. time required away from home 54 Keeney (1992), Value Focused Thinking

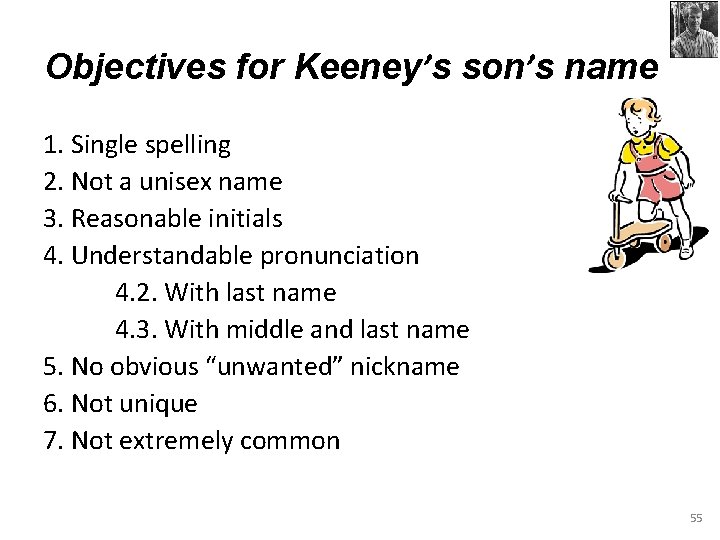

Objectives for Keeney’s son’s name 1. Single spelling 2. Not a unisex name 3. Reasonable initials 4. Understandable pronunciation 4. 2. With last name 4. 3. With middle and last name 5. No obvious “unwanted” nickname 6. Not unique 7. Not extremely common 55

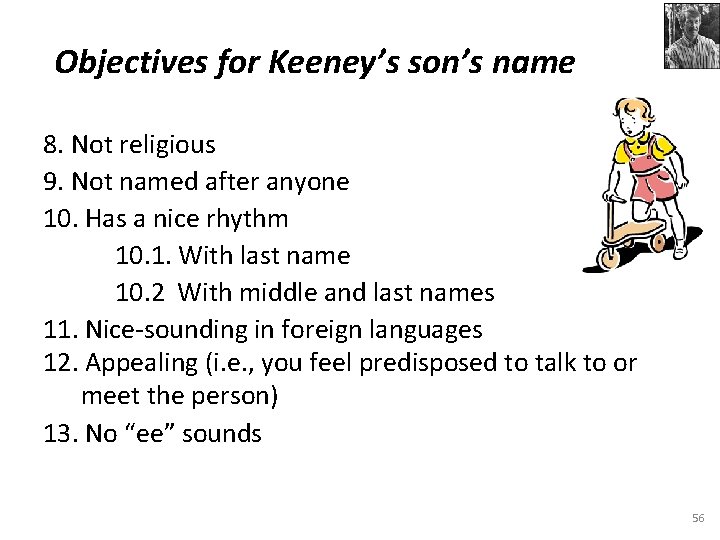

Objectives for Keeney’s son’s name 8. Not religious 9. Not named after anyone 10. Has a nice rhythm 10. 1. With last name 10. 2 With middle and last names 11. Nice-sounding in foreign languages 12. Appealing (i. e. , you feel predisposed to talk to or meet the person) 13. No “ee” sounds 56

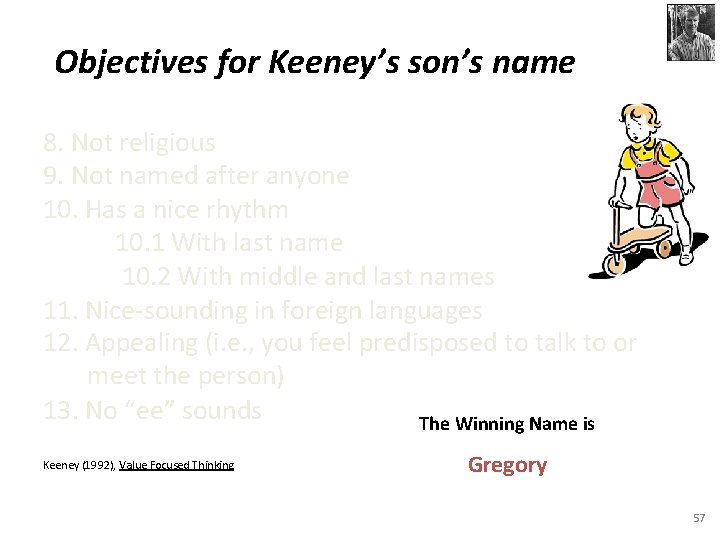

Objectives for Keeney’s son’s name 8. Not religious 9. Not named after anyone 10. Has a nice rhythm 10. 1 With last name 10. 2 With middle and last names 11. Nice-sounding in foreign languages 12. Appealing (i. e. , you feel predisposed to talk to or meet the person) 13. No “ee” sounds The Winning Name is Keeney (1992), Value Focused Thinking Gregory 57

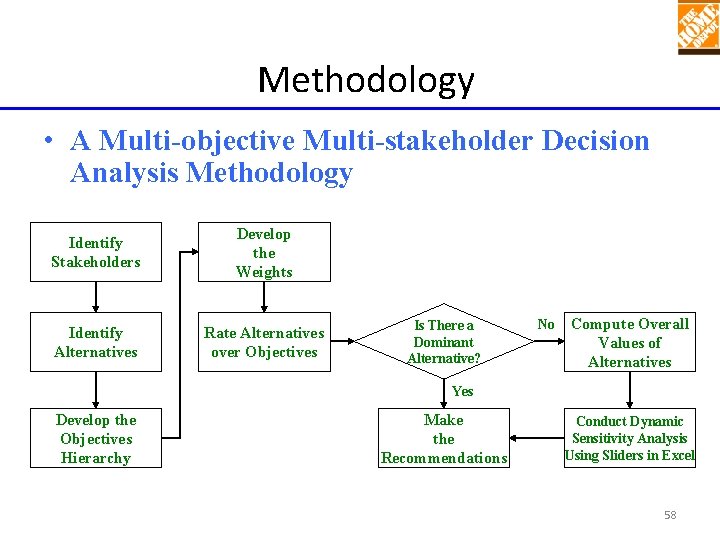

Methodology • A Multi-objective Multi-stakeholder Decision Analysis Methodology Identify Stakeholders Develop the Weights Identify Alternatives Rate Alternatives over Objectives Is There a Dominant Alternative? No Compute Overall Values of Alternatives Yes Develop the Objectives Hierarchy Make the Recommendations Conduct Dynamic Sensitivity Analysis Using Sliders in Excel 58

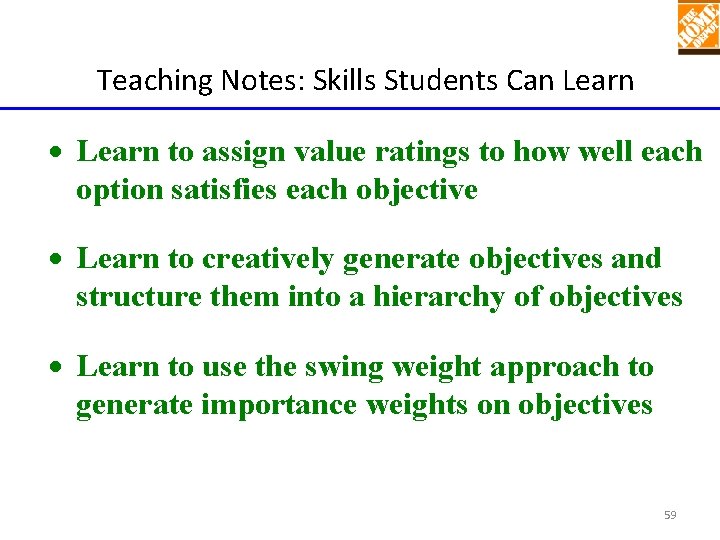

Teaching Notes: Skills Students Can Learn to assign value ratings to how well each option satisfies each objective Learn to creatively generate objectives and structure them into a hierarchy of objectives Learn to use the swing weight approach to generate importance weights on objectives 59

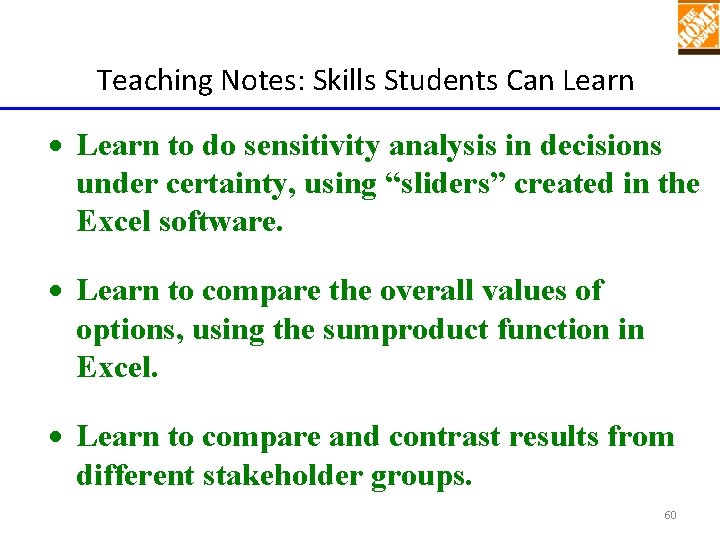

Teaching Notes: Skills Students Can Learn to do sensitivity analysis in decisions under certainty, using “sliders” created in the Excel software. Learn to compare the overall values of options, using the sumproduct function in Excel. Learn to compare and contrast results from different stakeholder groups. 60

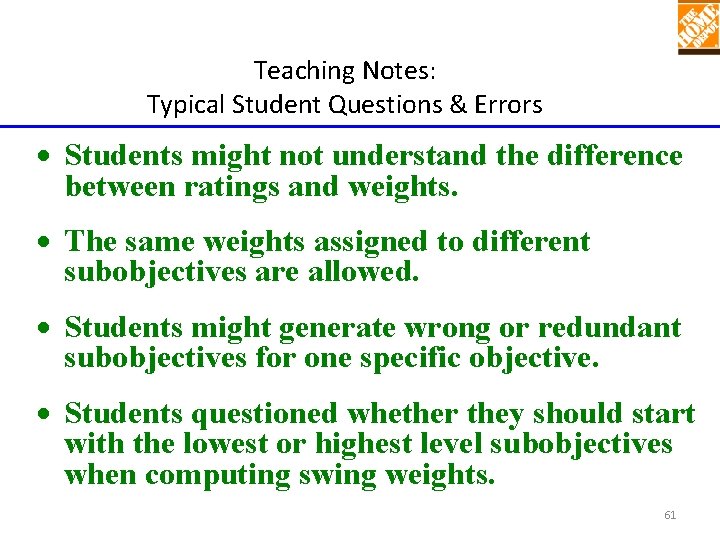

Teaching Notes: Typical Student Questions & Errors Students might not understand the difference between ratings and weights. The same weights assigned to different subobjectives are allowed. Students might generate wrong or redundant subobjectives for one specific objective. Students questioned whether they should start with the lowest or highest level subobjectives when computing swing weights. 61

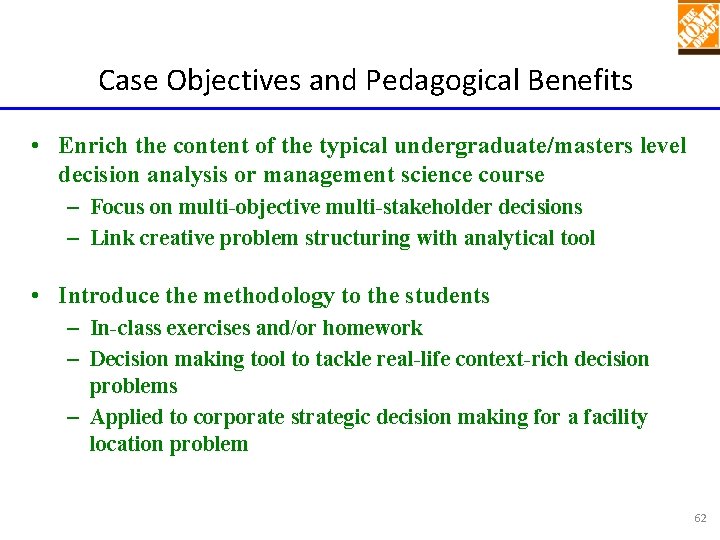

Case Objectives and Pedagogical Benefits • Enrich the content of the typical undergraduate/masters level decision analysis or management science course – Focus on multi-objective multi-stakeholder decisions – Link creative problem structuring with analytical tool • Introduce the methodology to the students – In-class exercises and/or homework – Decision making tool to tackle real-life context-rich decision problems – Applied to corporate strategic decision making for a facility location problem 62

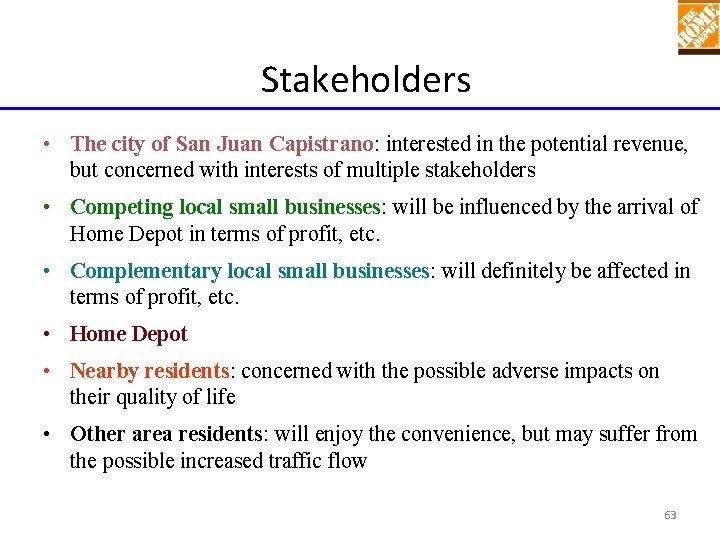

Stakeholders • The city of San Juan Capistrano: interested in the potential revenue, but concerned with interests of multiple stakeholders • Competing local small businesses: will be influenced by the arrival of Home Depot in terms of profit, etc. • Complementary local small businesses: will definitely be affected in terms of profit, etc. • Home Depot • Nearby residents: concerned with the possible adverse impacts on their quality of life • Other area residents: will enjoy the convenience, but may suffer from the possible increased traffic flow 63

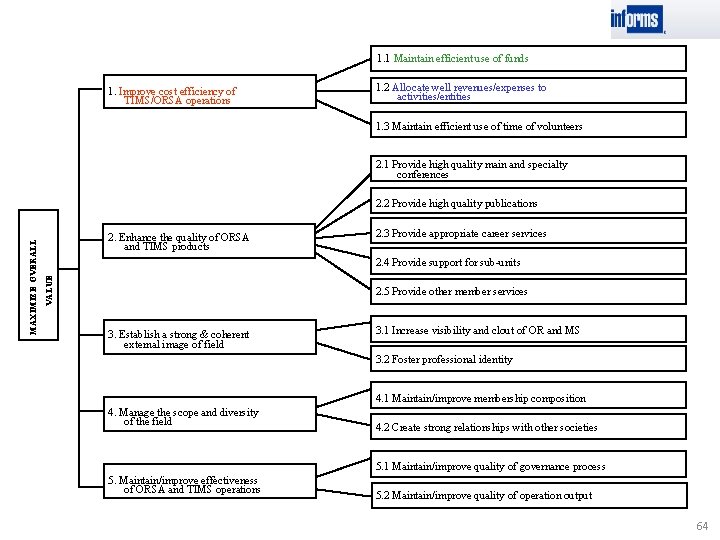

1. 1 Maintain efficient use of funds 1. Improve cost efficiency of TIMS/ORSA operations 1. 2 Allocate well revenues/expenses to activities/entities 1. 3 Maintain efficient use of time of volunteers 2. 1 Provide high quality main and specialty conferences 2. Enhance the quality of ORSA and TIMS products 2. 3 Provide appropriate career services 2. 4 Provide support for sub-units VALUE MAXIMIZE OVERALL 2. 2 Provide high quality publications 2. 5 Provide other member services 3. Establish a strong & coherent external image of field 3. 1 Increase visibility and clout of OR and MS 3. 2 Foster professional identity 4. 1 Maintain/improve membership composition 4. Manage the scope and diversity of the field 4. 2 Create strong relationships with other societies 5. 1 Maintain/improve quality of governance process 5. Maintain/improve effectiveness of ORSA and TIMS operations 5. 2 Maintain/improve quality of operation output 64

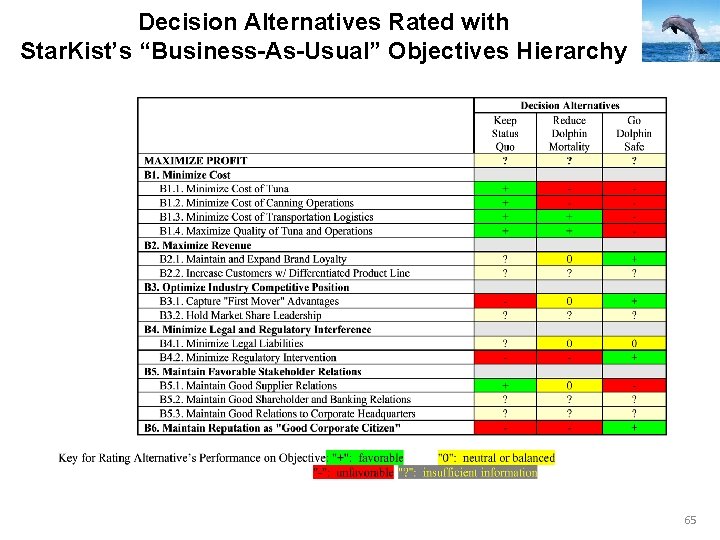

Decision Alternatives Rated with Star. Kist’s “Business-As-Usual” Objectives Hierarchy 65

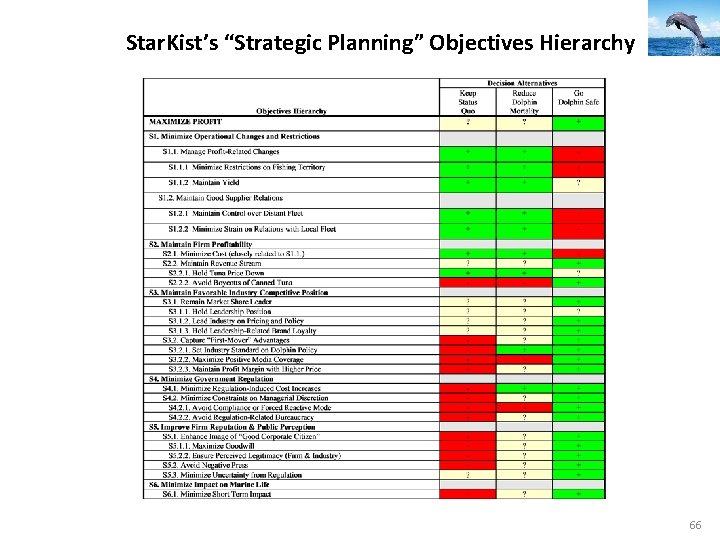

Star. Kist’s “Strategic Planning” Objectives Hierarchy 66
