Teachers Notes Digital Image Sources Digital images from

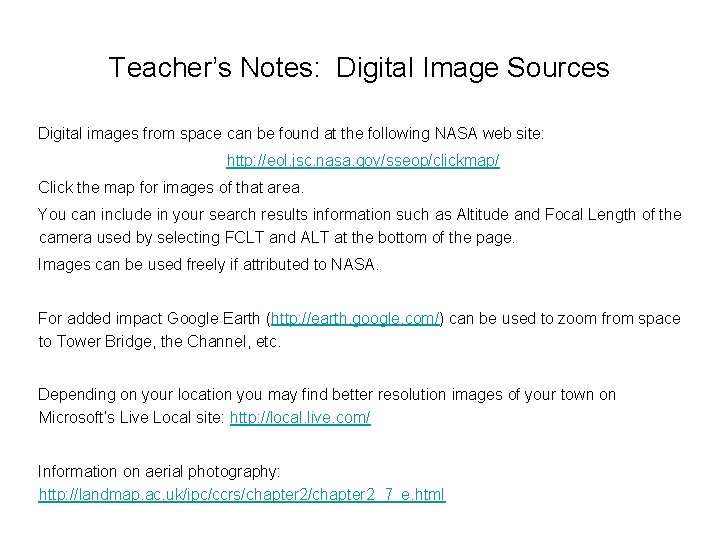

Teacher’s Notes: Digital Image Sources Digital images from space can be found at the following NASA web site: http: //eol. jsc. nasa. gov/sseop/clickmap/ Click the map for images of that area. You can include in your search results information such as Altitude and Focal Length of the camera used by selecting FCLT and ALT at the bottom of the page. Images can be used freely if attributed to NASA. For added impact Google Earth (http: //earth. google. com/) can be used to zoom from space to Tower Bridge, the Channel, etc. Depending on your location you may find better resolution images of your town on Microsoft’s Live Local site: http: //local. live. com/ Information on aerial photography: http: //landmap. ac. uk/ipc/ccrs/chapter 2_7_e. html

Starter How many, a. mm in 20 cm? b. cm in 3. 75 m? c. m in 2. 5 km? d. cm in 6 km? e. mm in 8 km?

Similar Triangles & Photography

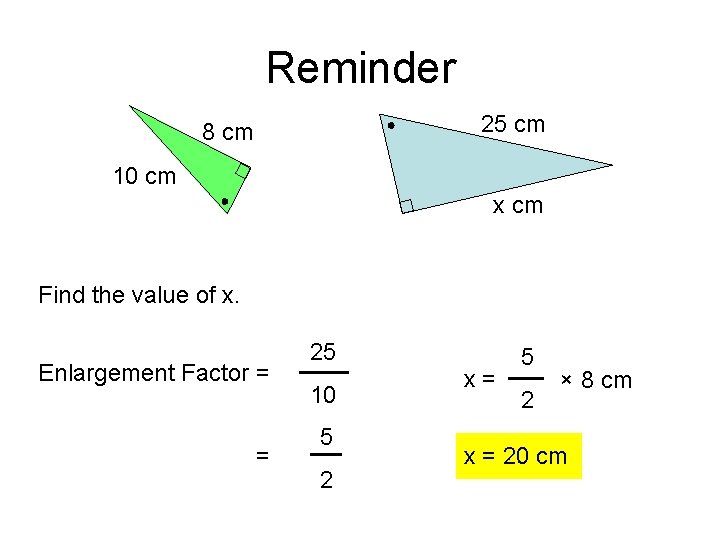

Reminder 25 cm 8 cm 10 cm x cm Find the value of x. Enlargement Factor = = 25 10 5 2 x= 5 2 × 8 cm x = 20 cm

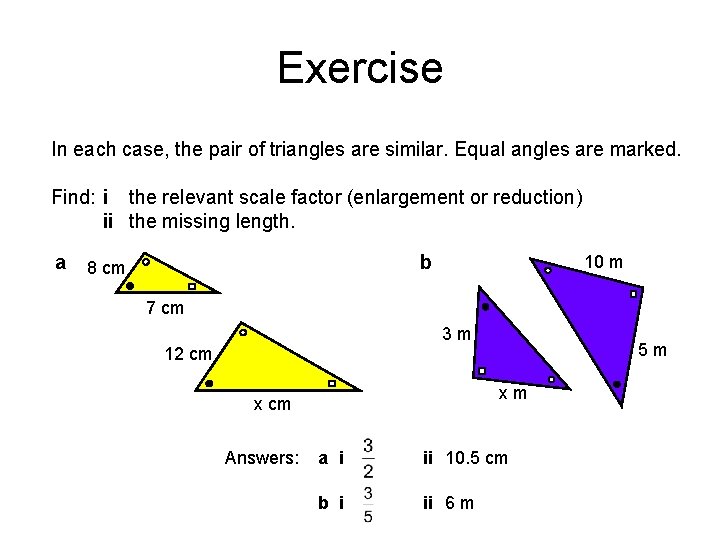

Exercise In each case, the pair of triangles are similar. Equal angles are marked. Find: i the relevant scale factor (enlargement or reduction) ii the missing length. a b 8 cm 10 m 7 cm 3 m 5 m 12 cm xm x cm Answers: a i ii 10. 5 cm b i ii 6 m

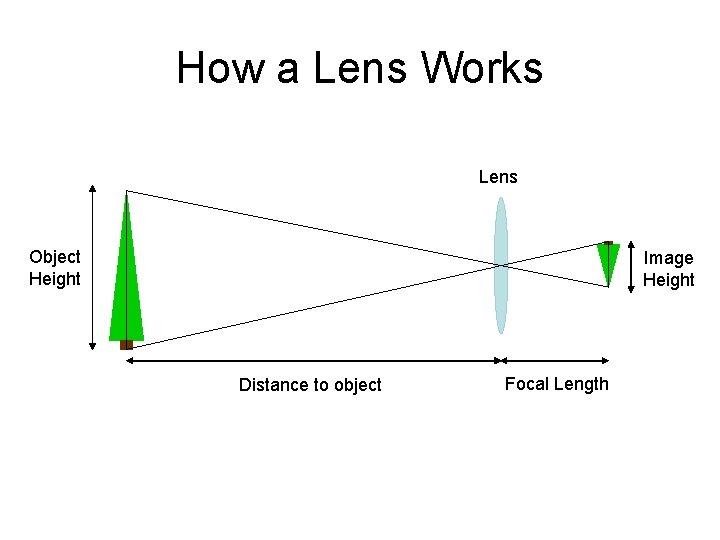

How a Lens Works Lens Object Height Image Height Distance to object Focal Length

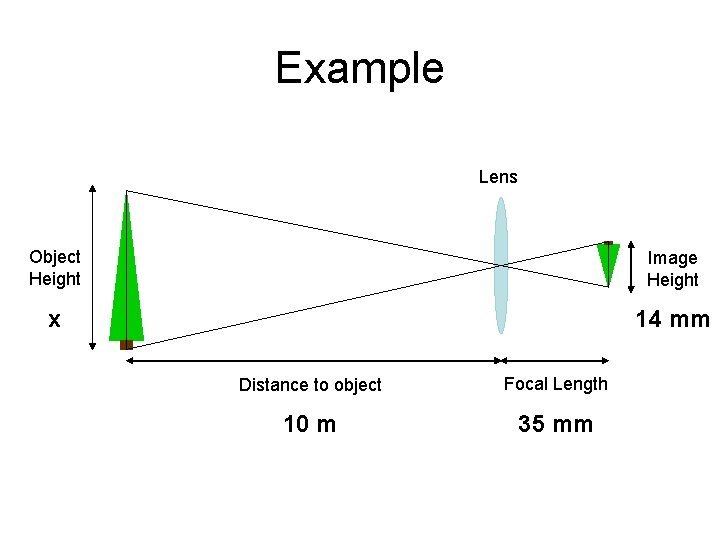

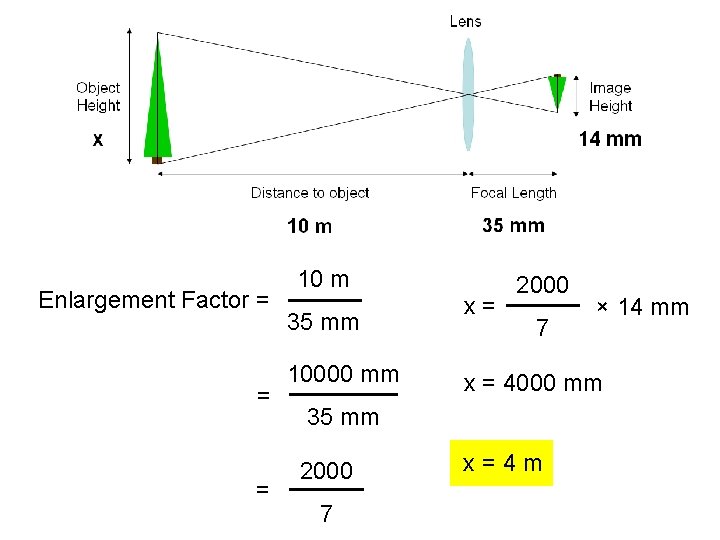

Example Lens Object Height Image Height x 14 mm Distance to object Focal Length 10 m 35 mm

Enlargement Factor = = = 10 m 35 mm 10000 mm x= 2000 7 x = 4000 mm 35 mm 2000 7 × 14 mm x=4 m

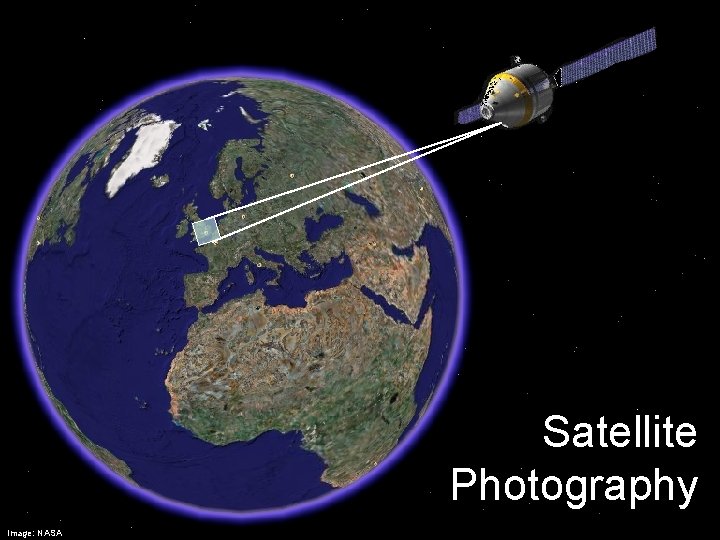

Satellite Photography Image: NASA

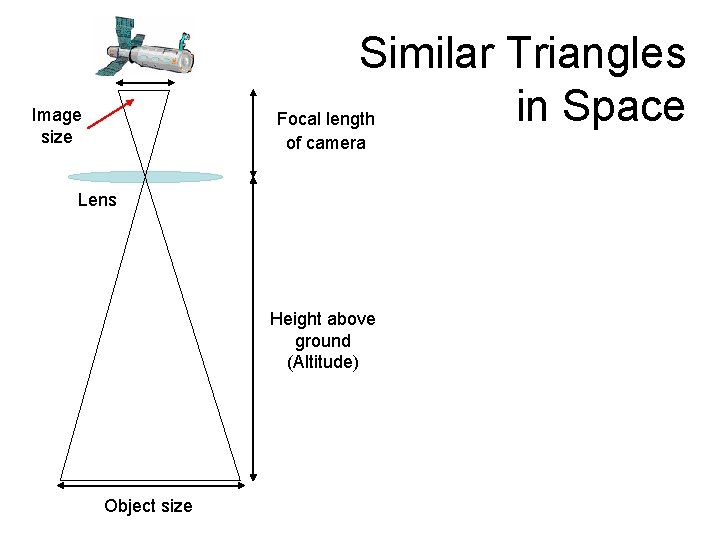

Similar Triangles in Space Focal length Image size of camera Lens Height above ground (Altitude) Object size

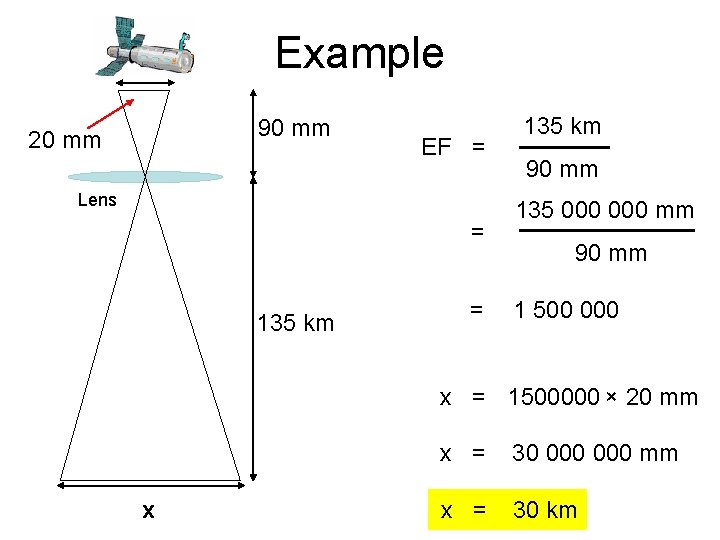

Example 90 mm 20 mm EF = Lens = 135 km 90 mm 135 000 mm 90 mm 1 500 000 x = 1500000 × 20 mm x x = 30 000 mm x = 30 km

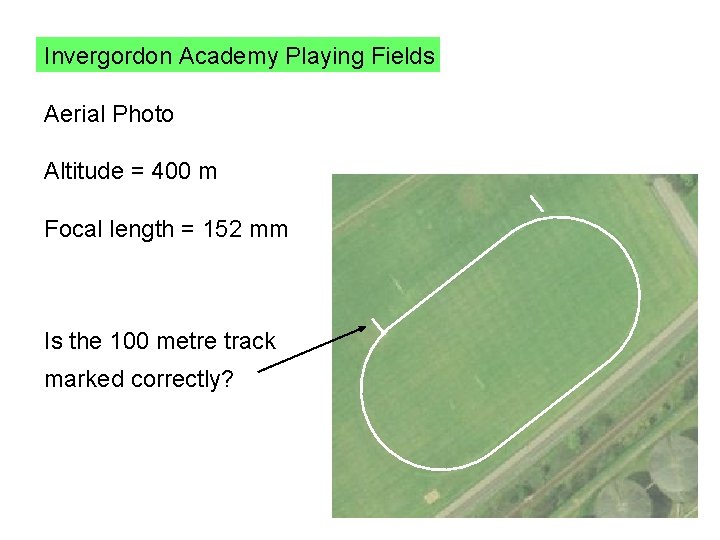

Invergordon Academy Playing Fields Aerial Photo Altitude = 400 m Focal length = 152 mm Is the 100 metre track marked correctly?

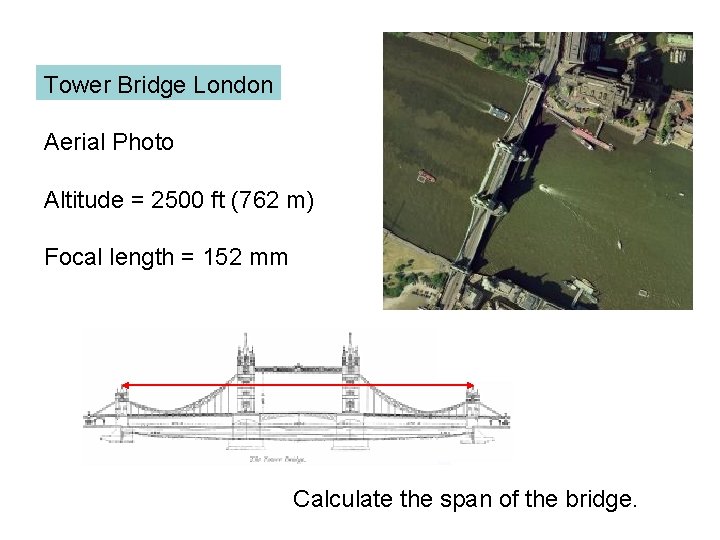

Tower Bridge London Aerial Photo Altitude = 2500 ft (762 m) Focal length = 152 mm Calculate the span of the bridge.

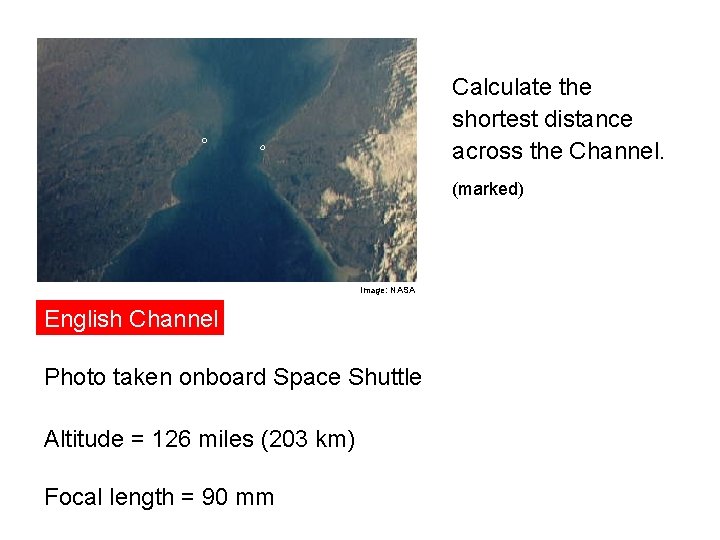

Calculate the shortest distance across the Channel. (marked) Image: NASA English Channel Photo taken onboard Space Shuttle Altitude = 126 miles (203 km) Focal length = 90 mm

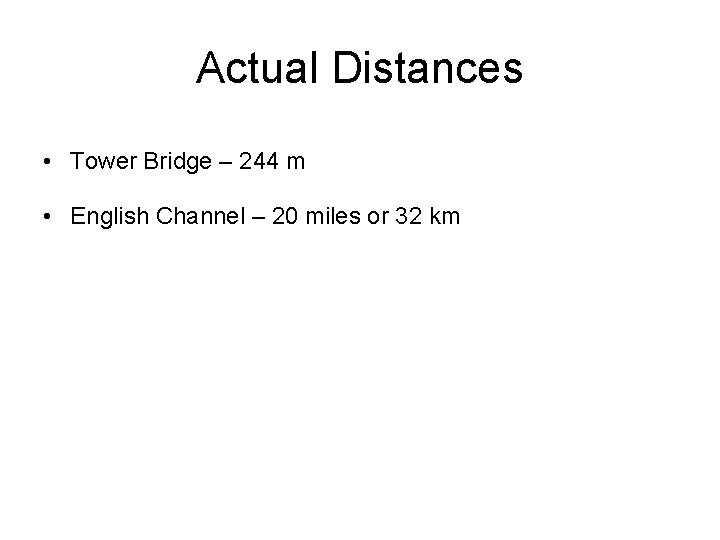

Actual Distances • Tower Bridge – 244 m • English Channel – 20 miles or 32 km
