Tcp Tunnel CAD Tunnel Data Processing Software Requirements
- Slides: 20
Tcp. Tunnel CAD Tunnel Data Processing

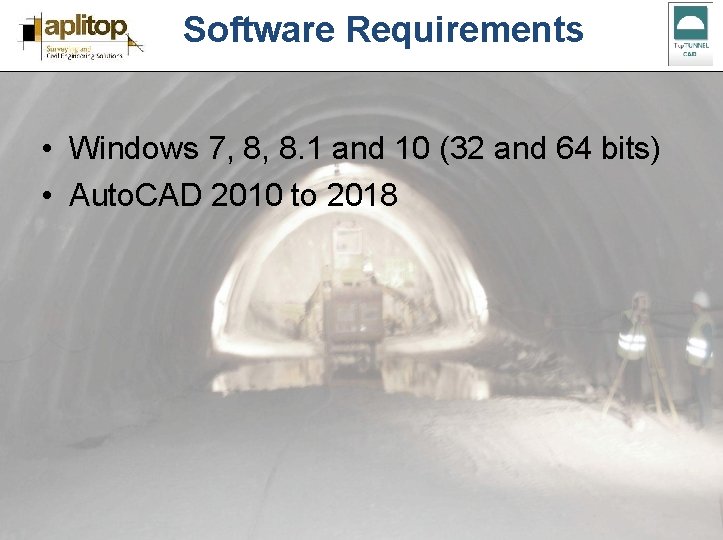

Software Requirements • Windows 7, 8, 8. 1 and 10 (32 and 64 bits) • Auto. CAD 2010 to 2018

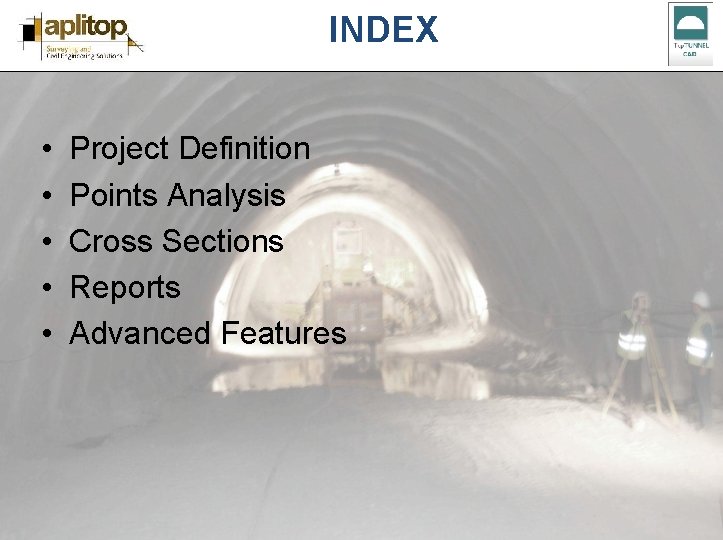

INDEX • • • Project Definition Points Analysis Cross Sections Reports Advanced Features
Project Components • Horizontal and vertical alignment • Tunnel template • Point file • Optional components: – Superelevation file – Template control points
Project Definition Project Editing

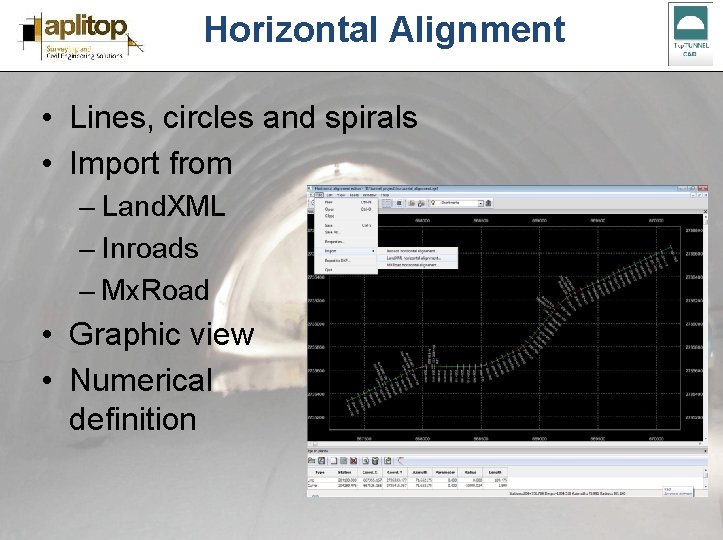

Horizontal Alignment • Lines, circles and spirals • Import from – Land. XML – Inroads – Mx. Road • Graphic view • Numerical definition
Vertical Alignment • Vertical and parabolic curves • Definition by parameter, tangent or vertical distance • Import from – Land. XML – Inroads – Mx. Road • Graphic view • Numerical definition

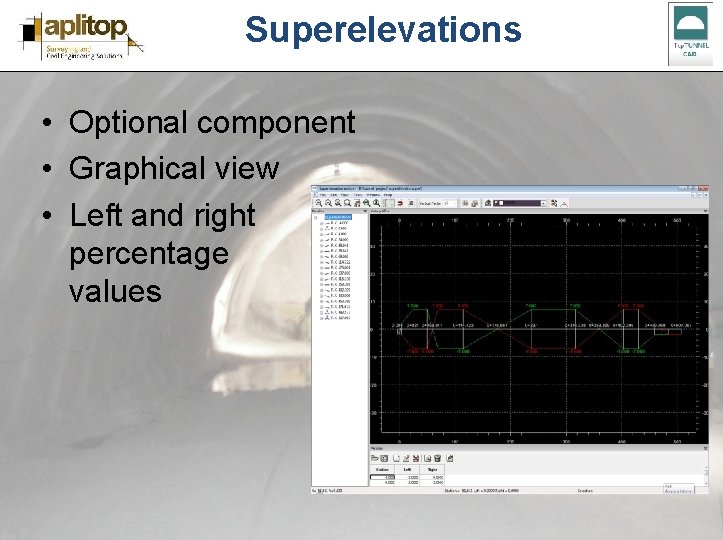

Superelevations • Optional component • Graphical view • Left and right percentage values
Template Definition • Definition from closed polyline • Alignment insertion point – Distance from alignment to center – Distance from keystone to alignment • Superelevation behaviour

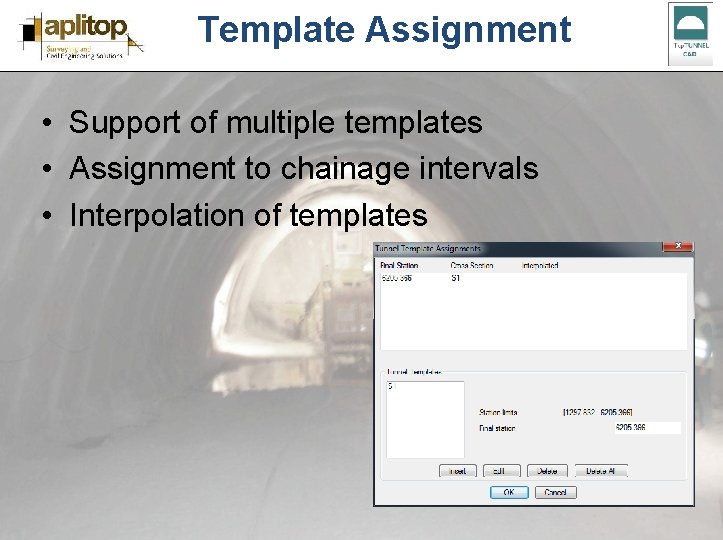

Template Assignment • Support of multiple templates • Assignment to chainage intervals • Interpolation of templates

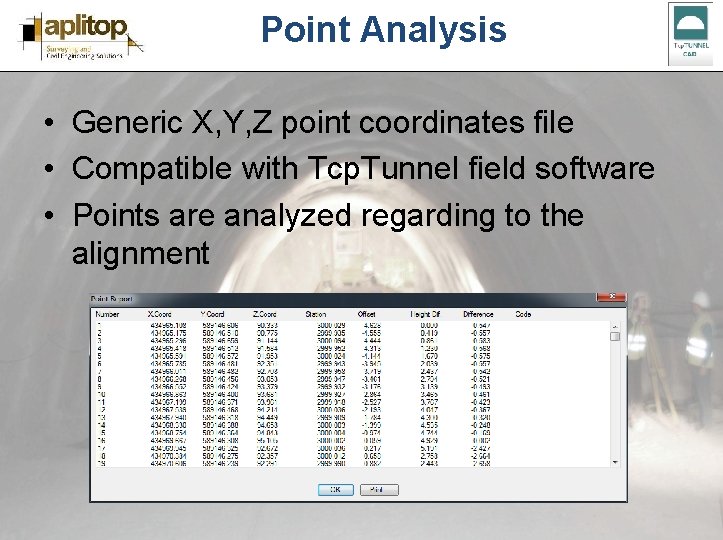

Point Analysis • Generic X, Y, Z point coordinates file • Compatible with Tcp. Tunnel field software • Points are analyzed regarding to the alignment
Cross Sections Calculation • • • Chainage range and interval Tolerance and rounding Minimum points Opened and closed profiles Automatic or manual center
Cross Sections Editing • • • Delete, move and add vertices Offset alignment Change height Extend Draw polyline

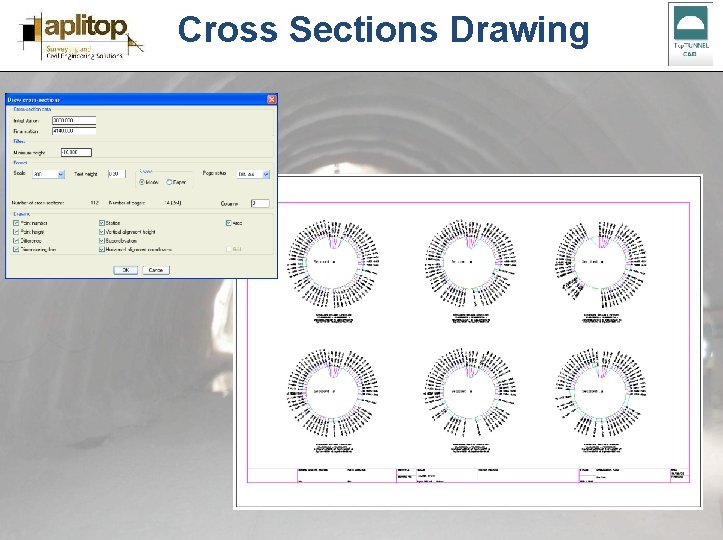

Cross Sections Drawing
3 D Tunnel Drawing

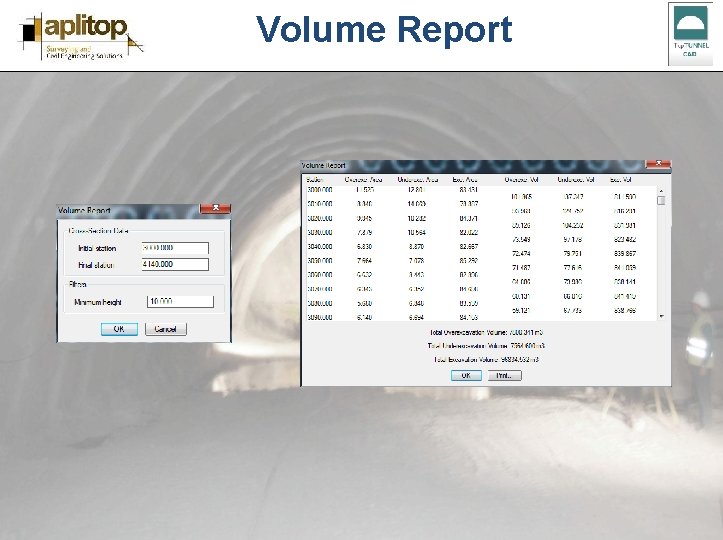

Volume Report

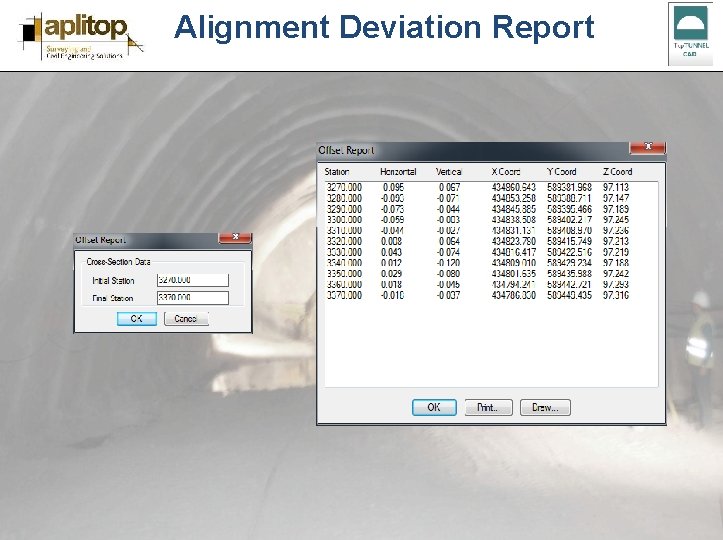

Alignment Deviation Report

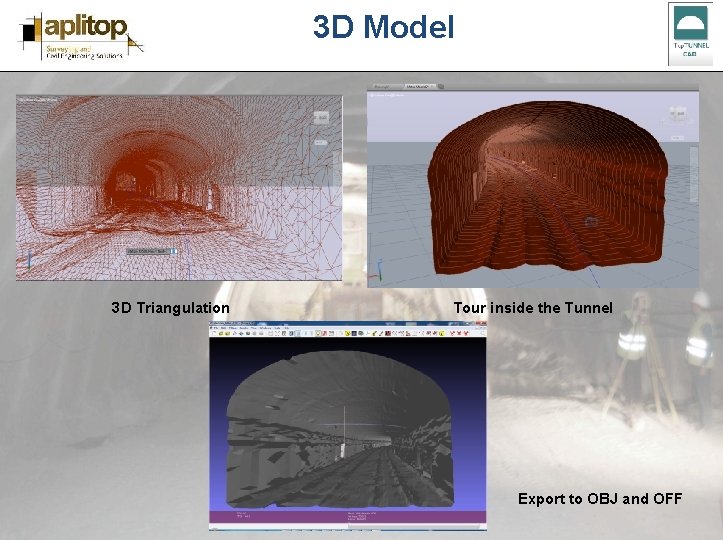

3 D Model 3 D Triangulation Tour inside the Tunnel Export to OBJ and OFF
Advanced Features
Tcp. Tunnel CAD Tunnel Data Processing info@aplitop. com www. aplitop. com
