Tcp Tunnel CAD Software Requirements Windows 7 8
- Slides: 20
Tcp. Tunnel CAD
Software Requirements • Windows 7, 8, 8. 1 and 10 (32 and 64 bits) • CAD • Auto. CAD 2010 to 2020 • ZWCAD 2018 to 2020

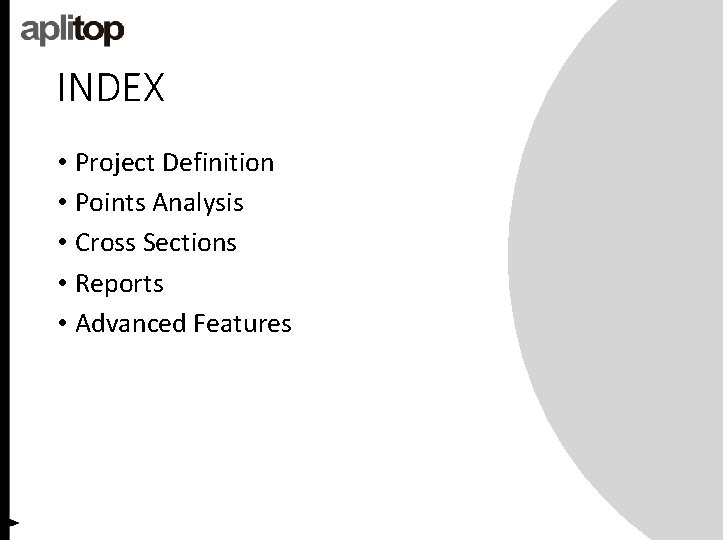

INDEX • Project Definition • Points Analysis • Cross Sections • Reports • Advanced Features

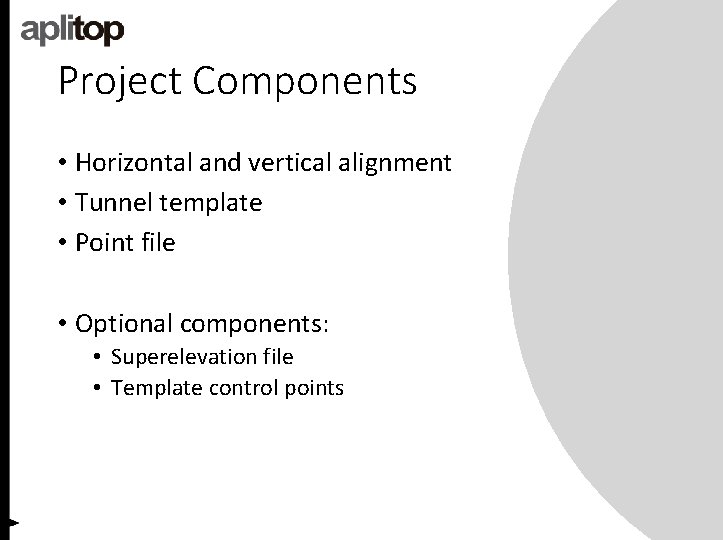

Project Components • Horizontal and vertical alignment • Tunnel template • Point file • Optional components: • Superelevation file • Template control points
Project Definition Project Editing

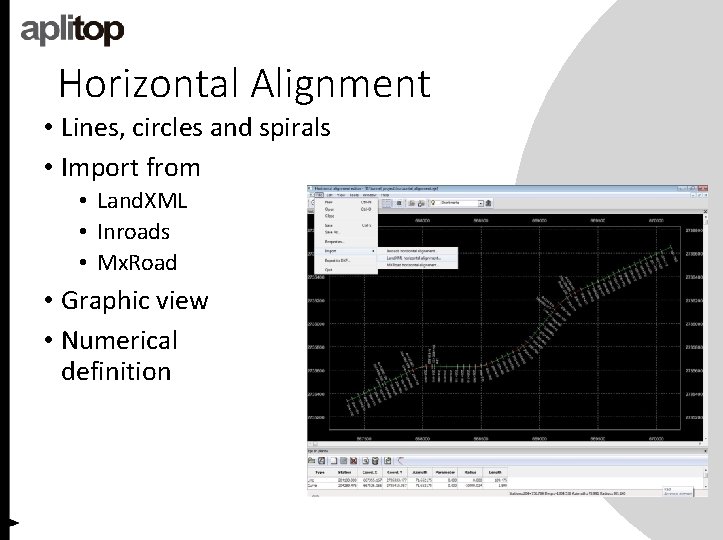

Horizontal Alignment • Lines, circles and spirals • Import from • Land. XML • Inroads • Mx. Road • Graphic view • Numerical definition

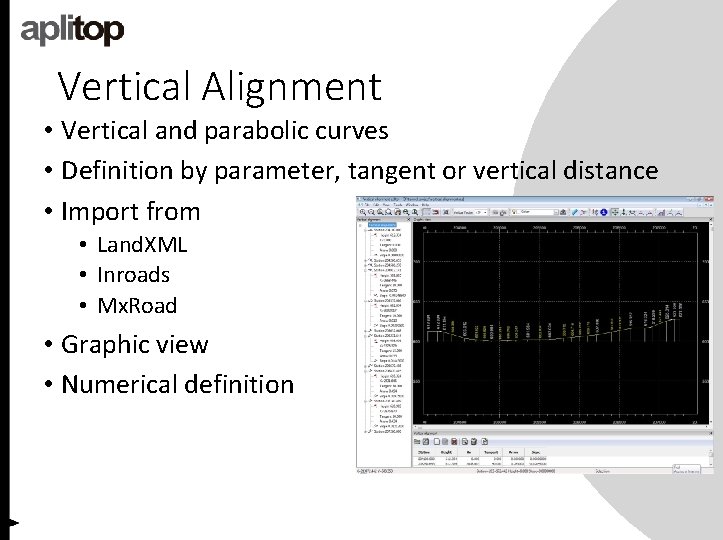

Vertical Alignment • Vertical and parabolic curves • Definition by parameter, tangent or vertical distance • Import from • Land. XML • Inroads • Mx. Road • Graphic view • Numerical definition

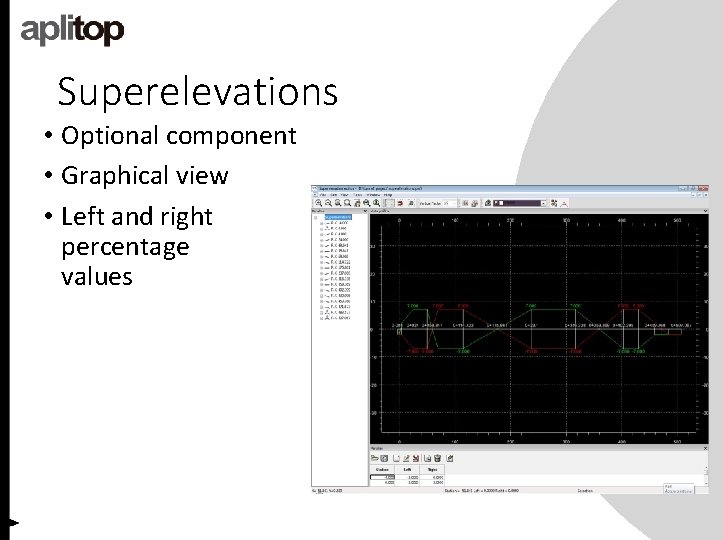

Superelevations • Optional component • Graphical view • Left and right percentage values

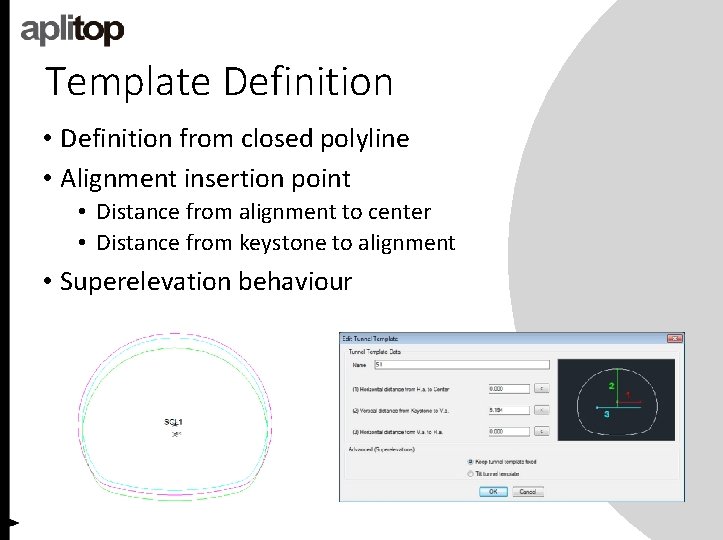

Template Definition • Definition from closed polyline • Alignment insertion point • Distance from alignment to center • Distance from keystone to alignment • Superelevation behaviour
Template Assignment • Support of multiple templates • Assignment to chainage intervals • Interpolation of templates

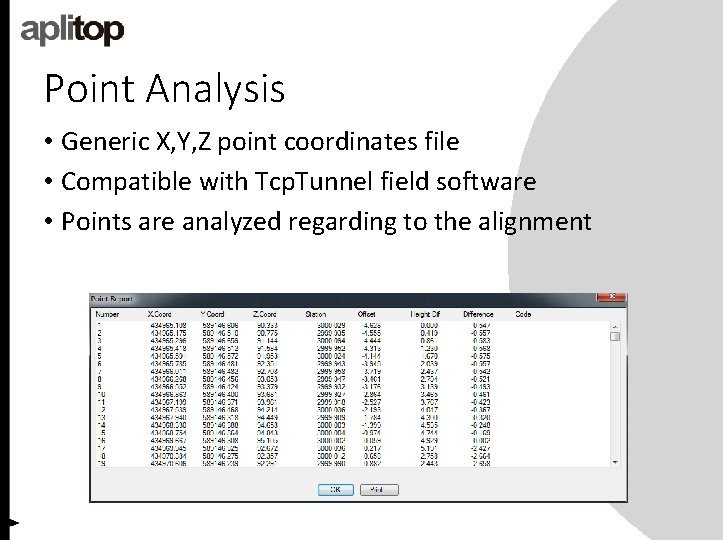

Point Analysis • Generic X, Y, Z point coordinates file • Compatible with Tcp. Tunnel field software • Points are analyzed regarding to the alignment

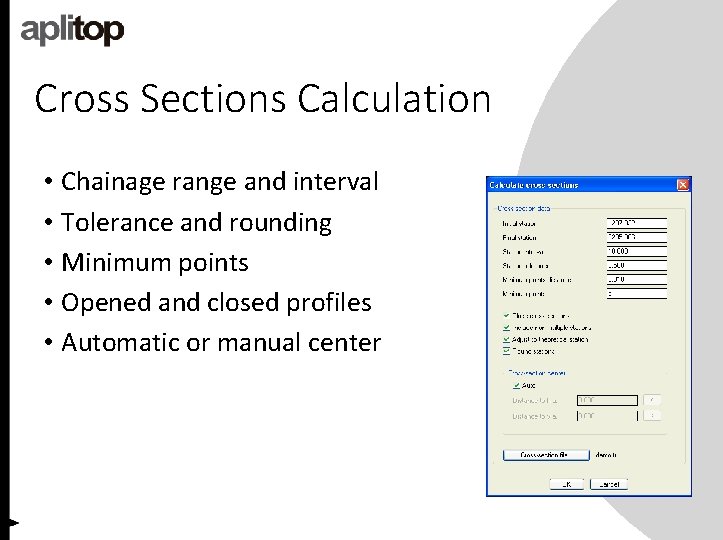

Cross Sections Calculation • Chainage range and interval • Tolerance and rounding • Minimum points • Opened and closed profiles • Automatic or manual center
Cross Sections Editing • Delete, move and add vertices • Offset alignment • Change height • Extend • Draw polyline

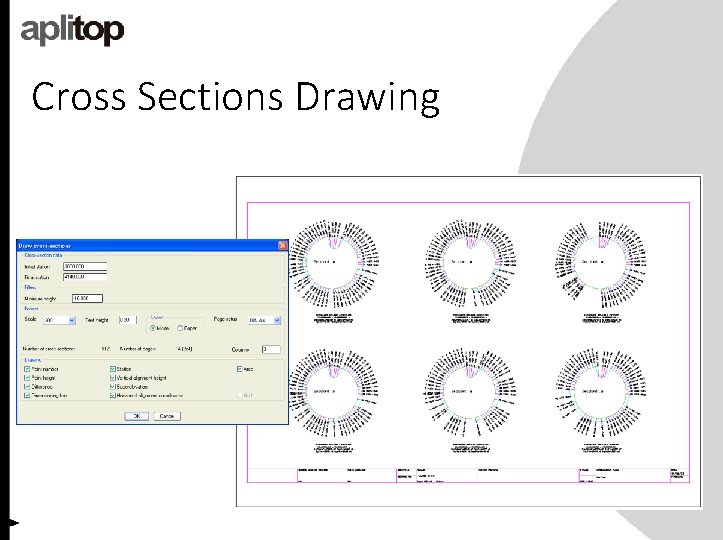

Cross Sections Drawing
3 D Tunnel Drawing
Volume Report

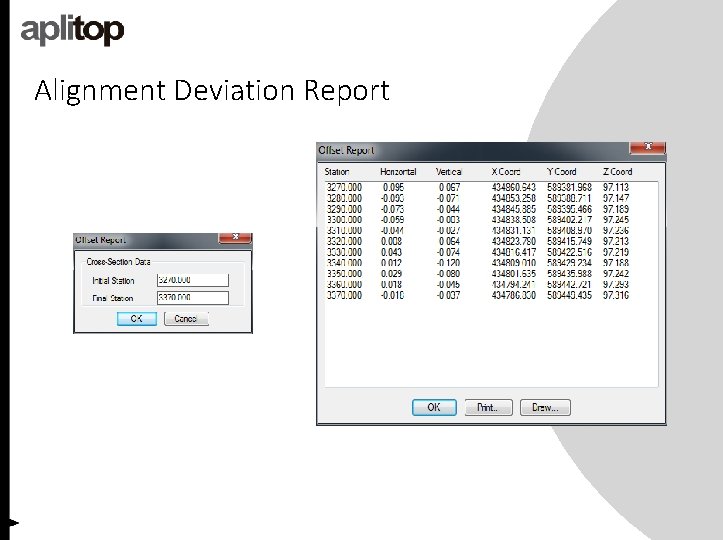

Alignment Deviation Report

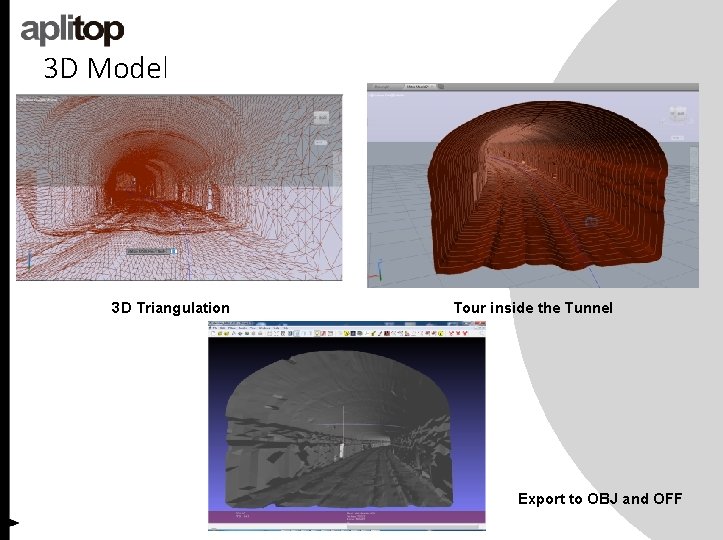

3 D Model 3 D Triangulation Tour inside the Tunnel Export to OBJ and OFF
Advanced Features
Tcp. Tunnel CAD Tunnel Data Processing info@aplitop. com www. aplitop. com
