Introduction • Purpose-built TCP timers, not necessarily suitable for other usecases • Two-level wheel algorithm • Design / scale parameters • • • Timer granularity 100 ms. Easy enough to change to 50 or 200 ms Required max period: 2. 5 hours => 150 minutes => 90, 000 ticks Rounding up to 256 K ticks yields a two-level, 512 slot-per-level wheel ~7 hr max timer duration Tested to 20 e 6 concurrent timers, 28 million “operations” per second 2
Timer wheels • An odometer algorithm, vaguely related to WW 2 Enigma machines • When the “fast” wheel finishes a complete revolution, we advance the slow ring one slot • Fast wheel slots correspond to one timer tick (100 ms) • Slow wheel slots correspond to 512 timer ticks (51. 2 s) • At each slow wheel tick, we redistribute timers from the slow wheel into the fast wheel 3
APIs • Start timer • Stop timer • Process expired timers • Initialize a timer wheel object • Destroy a timer wheel object 4

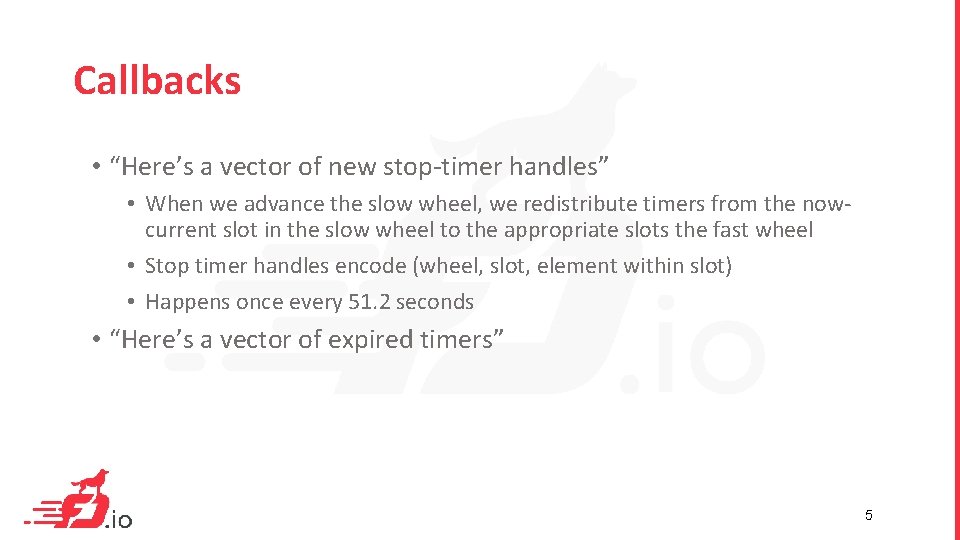

Callbacks • “Here’s a vector of new stop-timer handles” • When we advance the slow wheel, we redistribute timers from the nowcurrent slot in the slow wheel to the appropriate slots the fast wheel • Stop timer handles encode (wheel, slot, element within slot) • Happens once every 51. 2 seconds • “Here’s a vector of expired timers” 5

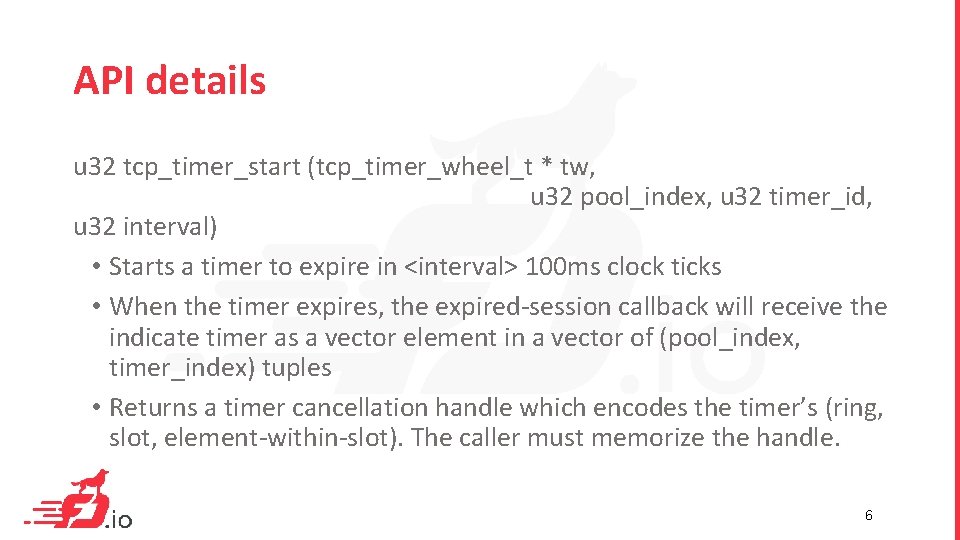

API details u 32 tcp_timer_start (tcp_timer_wheel_t * tw, u 32 pool_index, u 32 timer_id, u 32 interval) • Starts a timer to expire in <interval> 100 ms clock ticks • When the timer expires, the expired-session callback will receive the indicate timer as a vector element in a vector of (pool_index, timer_index) tuples • Returns a timer cancellation handle which encodes the timer’s (ring, slot, element-within-slot). The caller must memorize the handle. 6

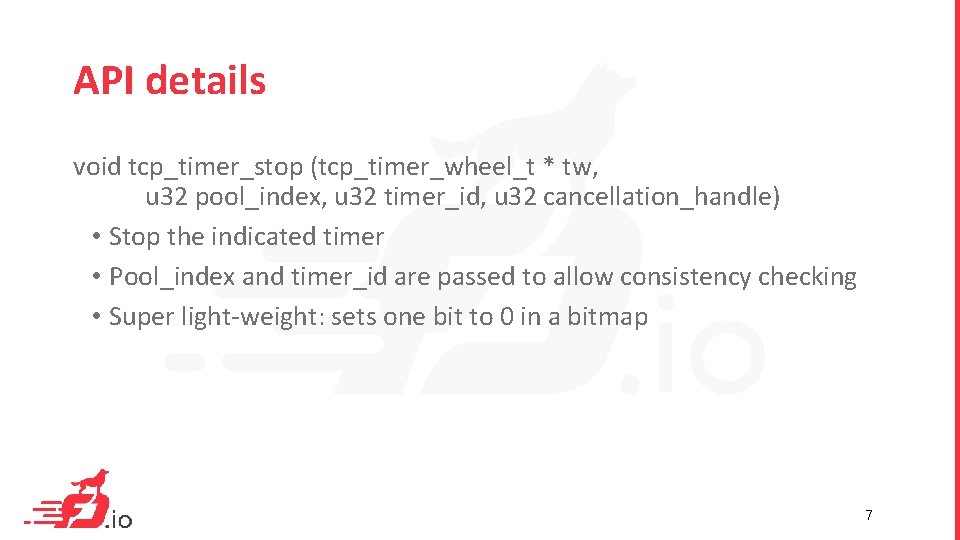

API details void tcp_timer_stop (tcp_timer_wheel_t * tw, u 32 pool_index, u 32 timer_id, u 32 cancellation_handle) • Stop the indicated timer • Pool_index and timer_id are passed to allow consistency checking • Super light-weight: sets one bit to 0 in a bitmap 7
API details void tcp_timer_expire_timers (tcp_timer_wheel_t * tw, f 64 now) • Expires timers • “now” is expected to be in (double) seconds 8

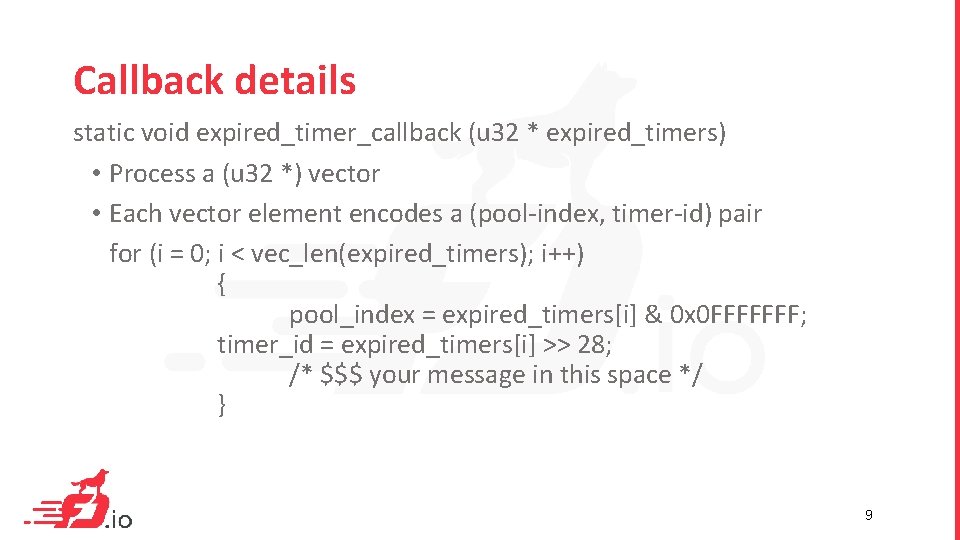

Callback details static void expired_timer_callback (u 32 * expired_timers) • Process a (u 32 *) vector • Each vector element encodes a (pool-index, timer-id) pair for (i = 0; i < vec_len(expired_timers); i++) { pool_index = expired_timers[i] & 0 x 0 FFFFFFF; timer_id = expired_timers[i] >> 28; /* $$$ your message in this space */ } 9
Callback details static void new_stop_timer_handle_callback (new_stop_timer_callback_args_t * a_vec) • Each vector element contains a (pool-index, timer-id, new-handle) tuple: for (i = 0; i < vec_len(a_vec); i++) { a = a_vec + i; session = pool_elt_at_index (xxx->sessions, a>pool_index); session->timers[a->timer_id]. stop_timer_handle = a->new_stop_timer_handle; } 10
Recitations, where to find the code • https: //gerrit. fd. io/r/#/c/3838 • . . . /vnet/tcp_timer. [ch] 11
