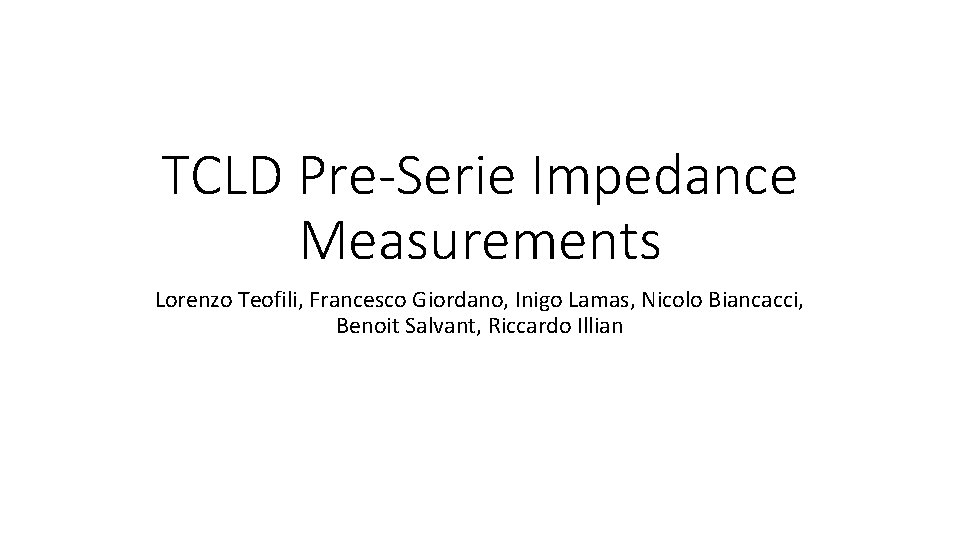

TCLD Pre-Serie Impedance Measurements Lorenzo Teofili, Francesco Giordano, Inigo Lamas, Nicolo Biancacci, Benoit Salvant, Riccardo Illian
Previous Measurements On TCLD Prototype Wire Measurements Revealed modes around 1 GHz (predicted by Simulations).
Previous Measurements On TCLD Prototype Wire Measurements Revealed modes around 1 GHz (predicted by Simulations).
Previous Measurements On TCLD Prototype Wire Measurements Revealed modes around 1. 6 GHz (predicted by Simulations).
Previous Measurements On TCLD Prototype and new measurements on the Pre-serie • The TCLD Prototype was considered impedance compliant in the 31 st IWG (https: //indico. cern. ch/event/820005/contributions/3427078/attach ments/1844090/3024834/31 th_IWG_Meeting_Minutes_ILG_OB_BS_ CV. pdf) • Wire and probe measurements were performed on the prototype • Only probe and BPM impedance measurements could be performed on the Pre-serie. The insertion of the wire in the device was considered to risky from a vacuum cleanness perspective.
Measurements On TCLD Pre-Serie at low frequencies
BPM Measurements On TCLD Pre-Serie
BPM Measurements On TCLD Pre-Serie
Conclusion • The measurements performed on the TCLD pre-serie have not revealed any strong discrepancy with the ones performed on the TCLD prototype.
