TCCC Change 16 02 Pelvic Binders 1 Remove

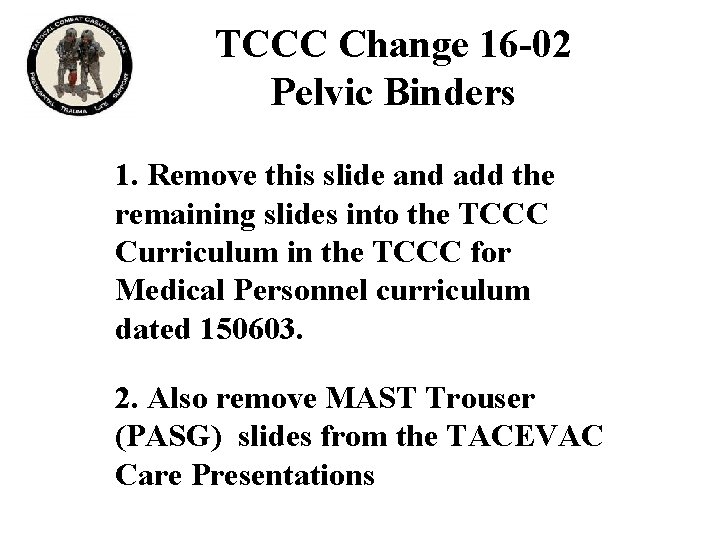

TCCC Change 16 -02 Pelvic Binders 1. Remove this slide and add the remaining slides into the TCCC Curriculum in the TCCC for Medical Personnel curriculum dated 150603. 2. Also remove MAST Trouser (PASG) slides from the TACEVAC Care Presentations

Treatment of Suspected Pelvic Fractures in TCCC

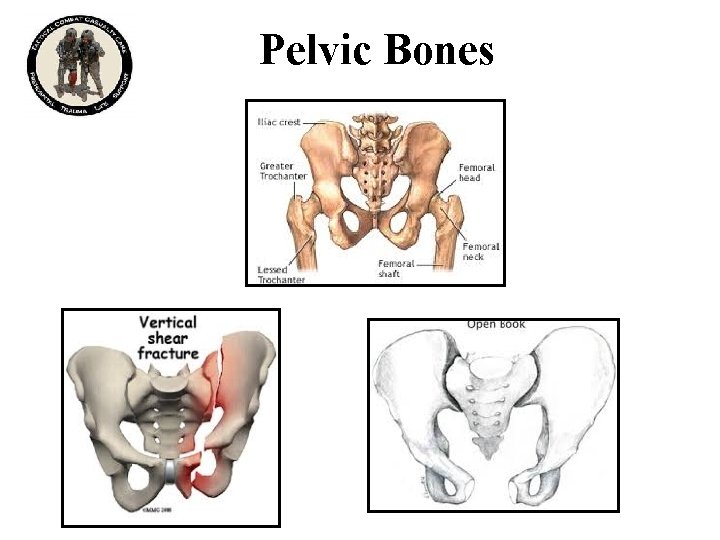

Pelvic Bones

Tactical Field Care and TACEVAC Care 4. Bleeding c. A pelvic binder should be applied for cases of suspected pelvic fracture - Severe blunt force or blast injury with one or more of the following indications: - Pelvic pain - Any major lower limb amputation or near amputation - Physical exam findings suggestive of a pelvic fracture - Unconsciousness - Shock

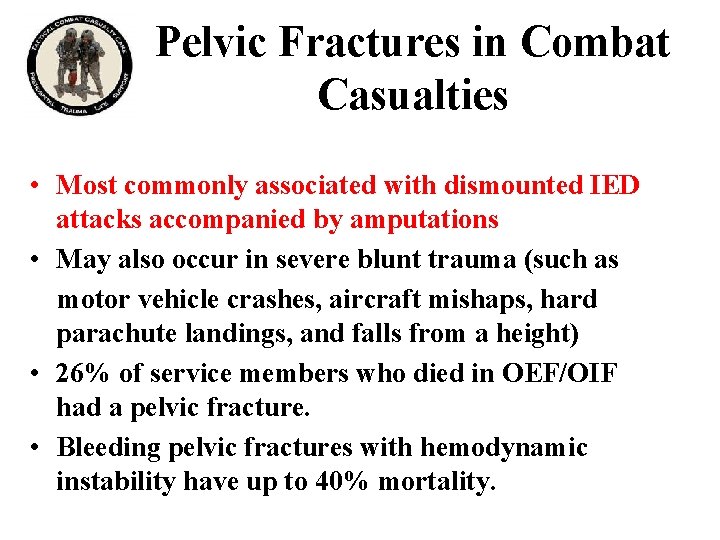

Pelvic Fractures in Combat Casualties • Most commonly associated with dismounted IED attacks accompanied by amputations • May also occur in severe blunt trauma (such as motor vehicle crashes, aircraft mishaps, hard parachute landings, and falls from a height) • 26% of service members who died in OEF/OIF had a pelvic fracture. • Bleeding pelvic fractures with hemodynamic instability have up to 40% mortality.

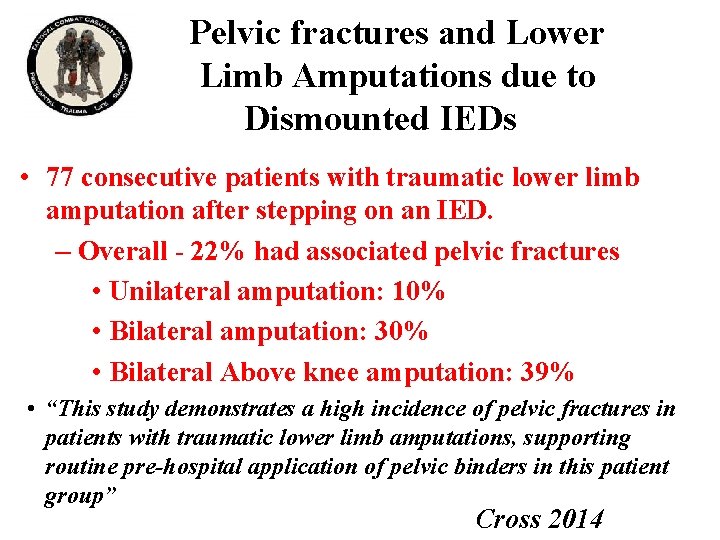

Pelvic fractures and Lower Limb Amputations due to Dismounted IEDs • 77 consecutive patients with traumatic lower limb amputation after stepping on an IED. – Overall - 22% had associated pelvic fractures • Unilateral amputation: 10% • Bilateral amputation: 30% • Bilateral Above knee amputation: 39% • “This study demonstrates a high incidence of pelvic fractures in patients with traumatic lower limb amputations, supporting routine pre-hospital application of pelvic binders in this patient group” Cross 2014

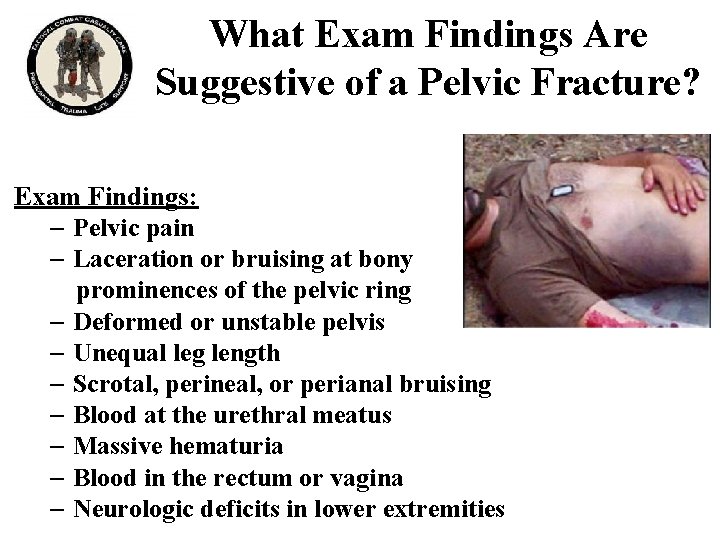

What Exam Findings Are Suggestive of a Pelvic Fracture? Exam Findings: – Pelvic pain – Laceration or bruising at bony prominences of the pelvic ring – Deformed or unstable pelvis – Unequal leg length – Scrotal, perineal, or perianal bruising – Blood at the urethral meatus – Massive hematuria – Blood in the rectum or vagina – Neurologic deficits in lower extremities

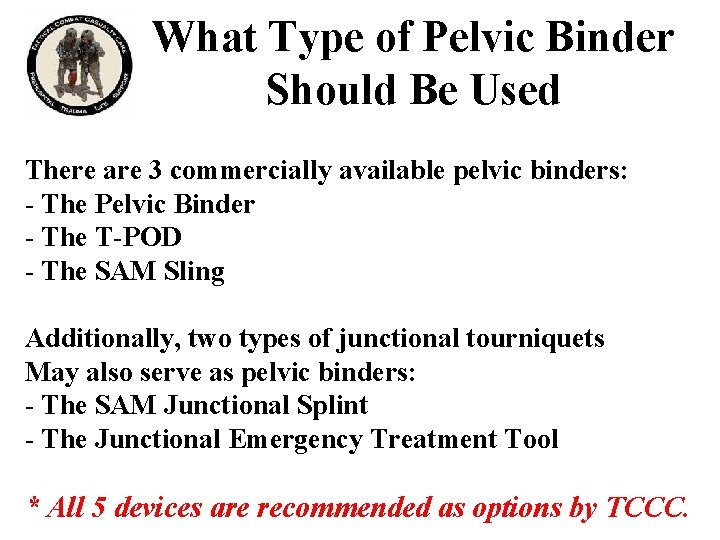

What Type of Pelvic Binder Should Be Used There are 3 commercially available pelvic binders: - The Pelvic Binder - The T-POD - The SAM Sling Additionally, two types of junctional tourniquets May also serve as pelvic binders: - The SAM Junctional Splint - The Junctional Emergency Treatment Tool * All 5 devices are recommended as options by TCCC.

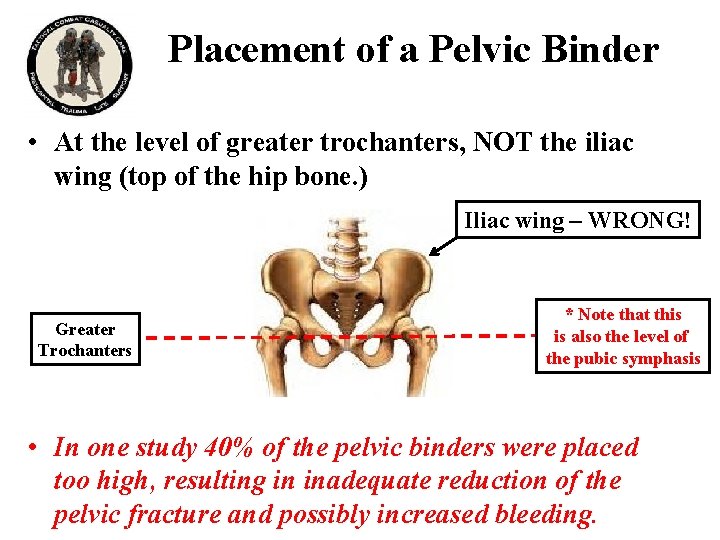

Placement of a Pelvic Binder • At the level of greater trochanters, NOT the iliac wing (top of the hip bone. ) Iliac wing – WRONG! Greater Trochanters * Note that this is also the level of the pubic symphasis • In one study 40% of the pelvic binders were placed too high, resulting in inadequate reduction of the pelvic fracture and possibly increased bleeding.

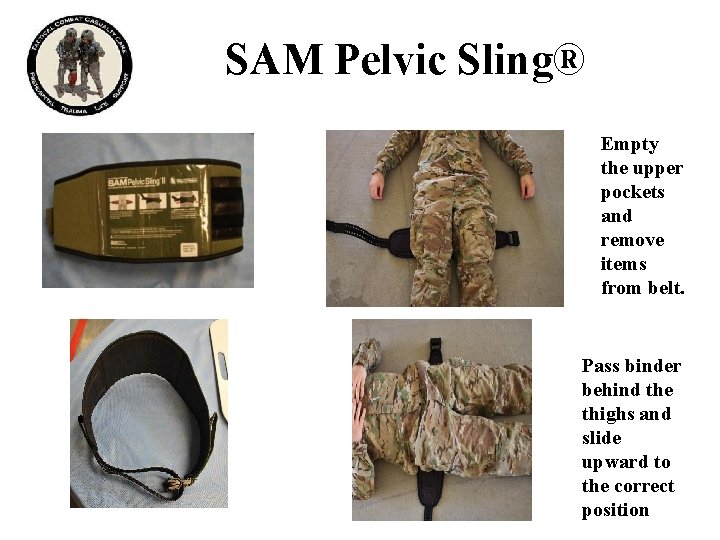

SAM Pelvic Sling® Empty the upper pockets and remove items from belt. Pass binder behind the thighs and slide upward to the correct position

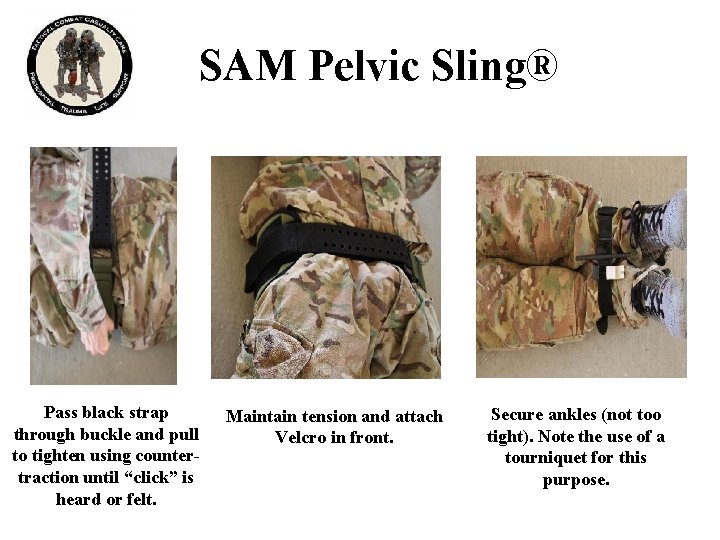

SAM Pelvic Sling® Pass black strap through buckle and pull to tighten using countertraction until “click” is heard or felt. Maintain tension and attach Velcro in front. Secure ankles (not too tight). Note the use of a tourniquet for this purpose.

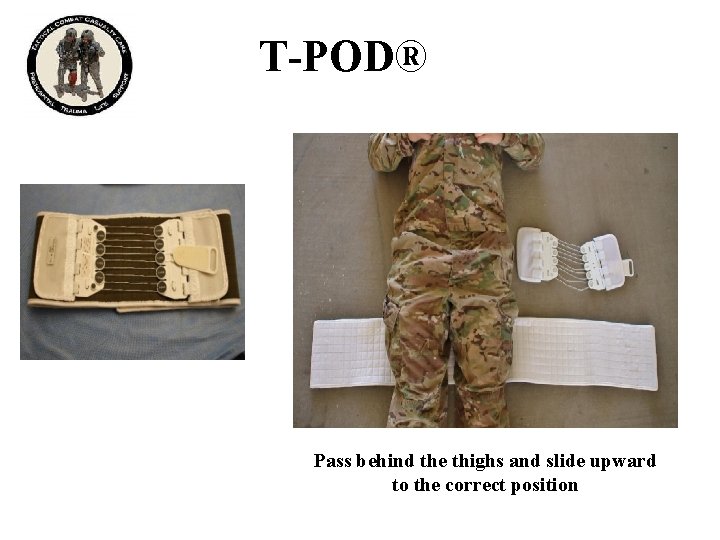

T-POD® Pass behind the thighs and slide upward to the correct position

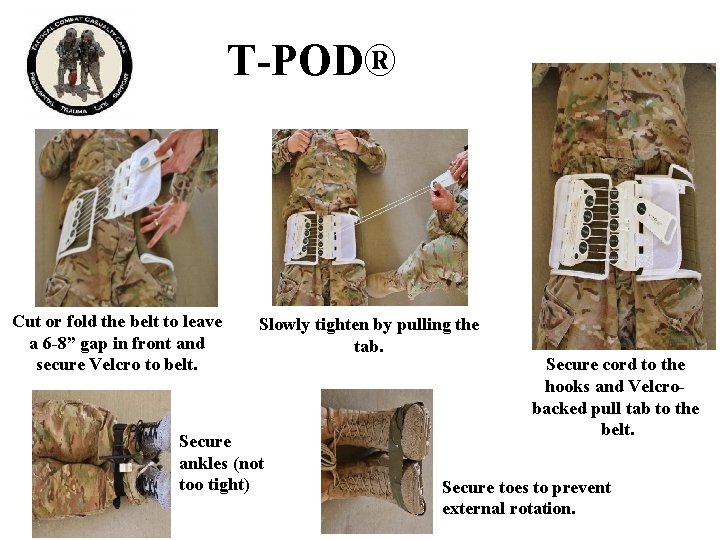

T-POD® Cut or fold the belt to leave a 6 -8” gap in front and secure Velcro to belt. Slowly tighten by pulling the tab. Secure ankles (not too tight) Secure cord to the hooks and Velcrobacked pull tab to the belt. Secure toes to prevent external rotation.

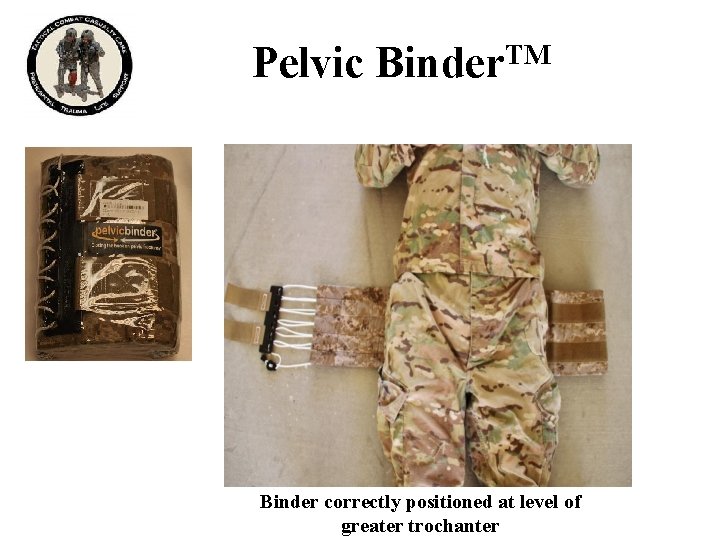

TM Pelvic Binder correctly positioned at level of greater trochanter

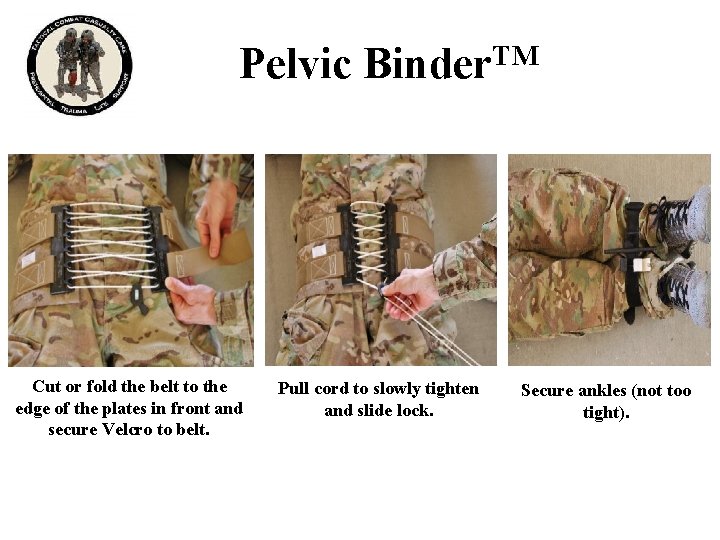

Pelvic Binder. TM Cut or fold the belt to the edge of the plates in front and secure Velcro to belt. Pull cord to slowly tighten and slide lock. Secure ankles (not too tight).

Improvised Pelvic Binders • A pelvic binder can be improvised with a sheet at the level of the greater trochanters. With one rescuer, tie sheet and tighten with a windlass. With two rescuers, pull to tighten the sheet and then secure with zip ties or clamps. This method of circumferential pelvic compression has been found in studies to be effective. • A pelvic binder can also be improvised by cutting trouser legs up to the level of the greater trochanter, then securing the cut trouser legs in front of the casualty, but this method has not been proven effective. It may also increase the potential for hypothermia.

Improvised Pelvic Binders • Improvised techniques must be carefully trained or they may not be effective. Commercial devices are preferred.

Don’t Forget! • External rotation of the lower extremities is commonly seen in persons with displaced pelvic fractures. • This may make the pelvic fracture more pronounced. • This can be prevented by taping the knees or feet together, and thus improve the effect achieved by the pelvic binder. • Don’t logroll casualties with suspected pelvic fractures – may increase internal bleeding.

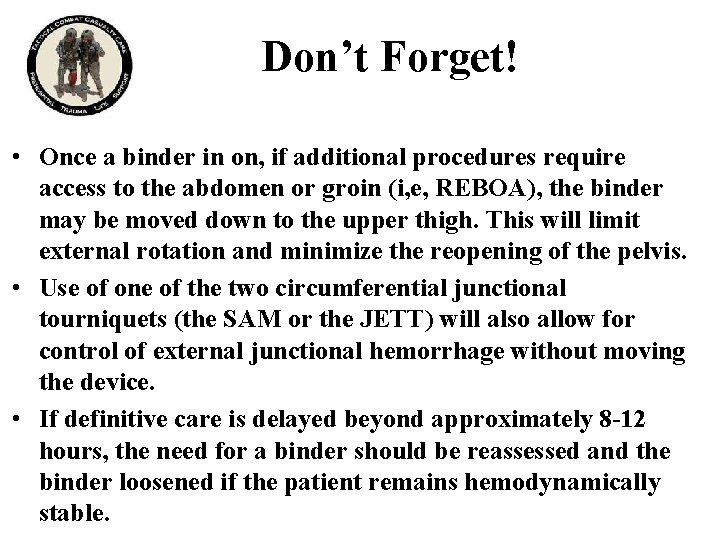

Don’t Forget! • Once a binder in on, if additional procedures require access to the abdomen or groin (i, e, REBOA), the binder may be moved down to the upper thigh. This will limit external rotation and minimize the reopening of the pelvis. • Use of one of the two circumferential junctional tourniquets (the SAM or the JETT) will also allow for control of external junctional hemorrhage without moving the device. • If definitive care is delayed beyond approximately 8 -12 hours, the need for a binder should be reassessed and the binder loosened if the patient remains hemodynamically stable.

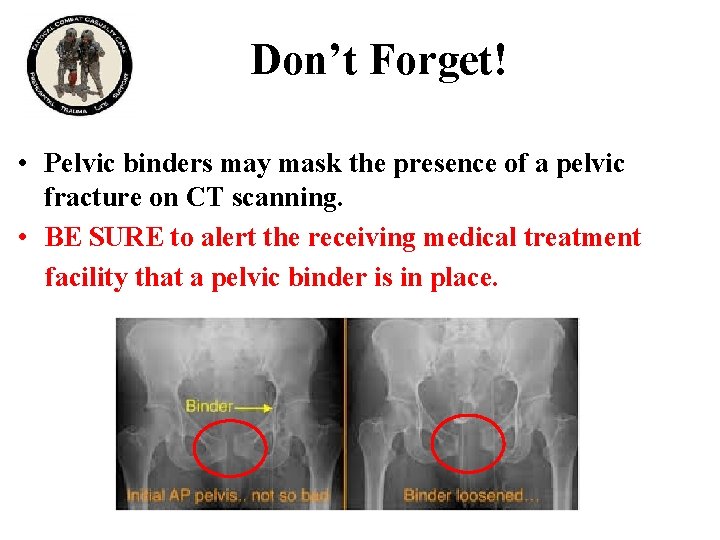

Don’t Forget! • Pelvic binders may mask the presence of a pelvic fracture on CT scanning. • BE SURE to alert the receiving medical treatment facility that a pelvic binder is in place.

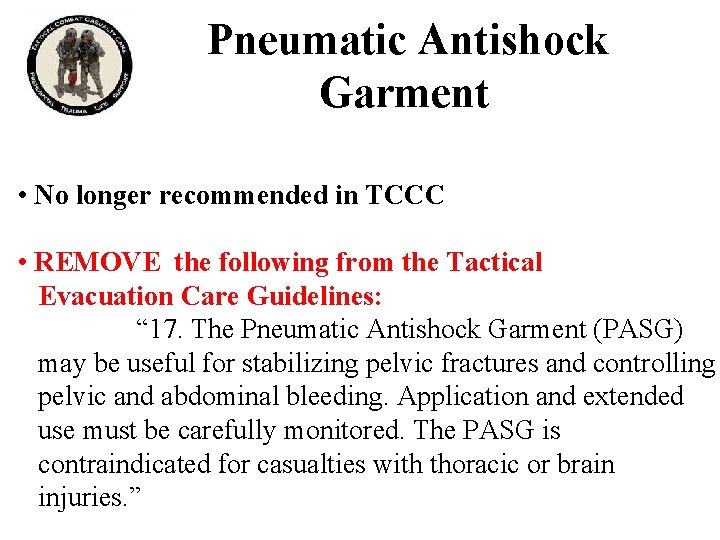

Pneumatic Antishock Garment • No longer recommended in TCCC • REMOVE the following from the Tactical Evacuation Care Guidelines: “ 17. The Pneumatic Antishock Garment (PASG) may be useful for stabilizing pelvic fractures and controlling pelvic and abdominal bleeding. Application and extended use must be carefully monitored. The PASG is contraindicated for casualties with thoracic or brain injuries. ”

Questions?
