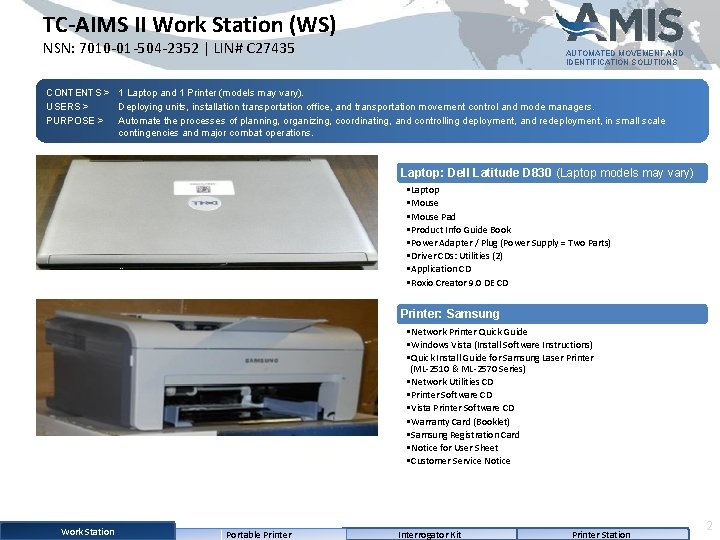

TC-AIMS II Work Station (WS) NSN: 7010 -01 -504 -2352 | LIN# C 27435 AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS CONTENTS > 1 Laptop and 1 Printer (models may vary). USERS > Deploying units, installation transportation office, and transportation movement control and mode managers. PURPOSE > Automate the processes of planning, organizing, coordinating, and controlling deployment, and redeployment, in small scale contingencies and major combat operations. Laptop: Dell Latitude D 830 (Laptop models may vary) • Laptop • Mouse Pad • Product Info Guide Book • Power Adapter / Plug (Power Supply = Two Parts) • Driver CDs: Utilities (2) • Application CD • Roxio Creator 9. 0 DE CD Printer: Samsung • Network Printer Quick Guide • Windows Vista (Install Software Instructions) • Quick Install Guide for Samsung Laser Printer (ML-2510 & ML-2570 Series) • Network Utilities CD • Printer Software CD • Vista Printer Software CD • Warranty Card (Booklet) • Samsung Registration Card • Notice for User Sheet • Customer Service Notice Work Station Portable Printer Interrogator Kit Printer Station 2

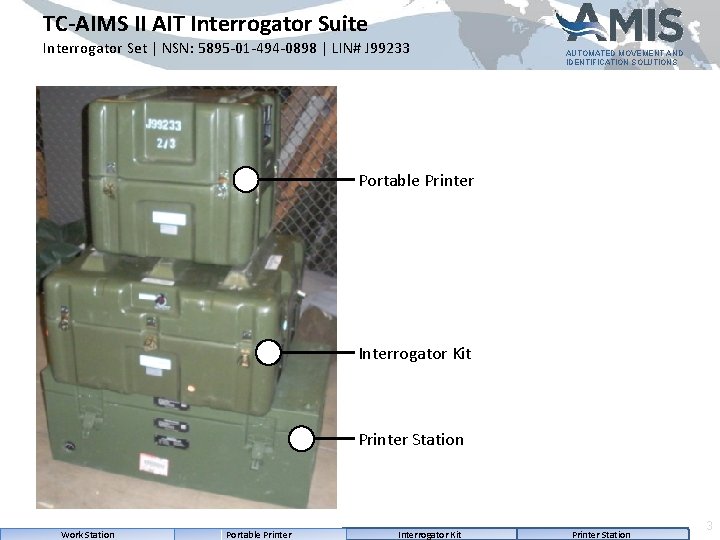

TC-AIMS II AIT Interrogator Suite Interrogator Set | NSN: 5895 -01 -494 -0898 | LIN# J 99233 AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS Portable Printer Interrogator Kit Printer Station Work Station Portable Printer Interrogator Kit Printer Station 3

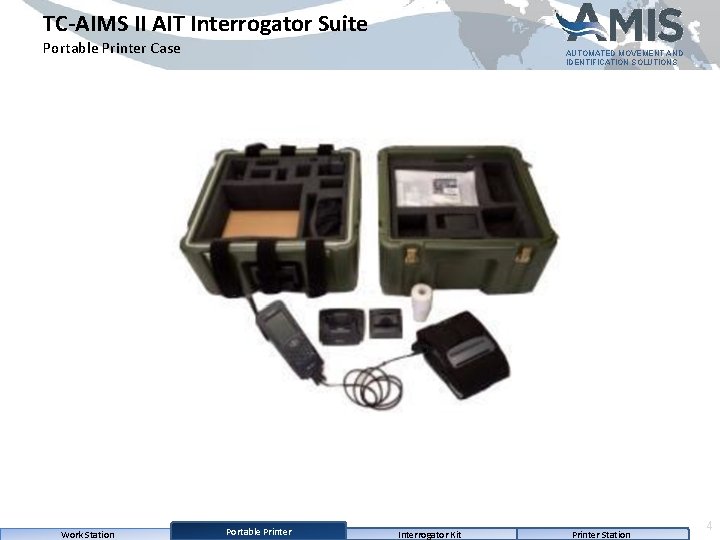

TC-AIMS II AIT Interrogator Suite Portable Printer Case Work Station AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS Portable Printer Interrogator Kit Printer Station 4

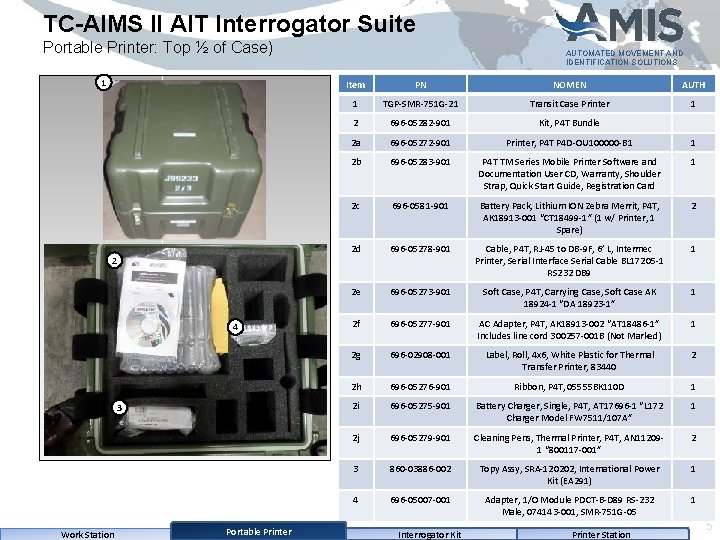

TC-AIMS II AIT Interrogator Suite Portable Printer: Top ½ of Case) 1 2 4 3 Work Station Portable Printer AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS Item PN NOMEN AUTH 1 TGP-SMR-751 G-21 Transit Case Printer 1 2 696 -05282 -901 Kit, P 4 T Bundle 2 a 696 -05272 -901 Printer, P 4 T P 4 D-OU 100000 -B 1 1 2 b 696 -05283 -901 P 4 T TM Series Mobile Printer Software and Documentation User CD, Warranty, Shoulder Strap, Quick Start Guide, Registration Card 1 2 c 696 -0581 -901 Battery Pack, Lithium ION Zebra Merrit, P 4 T, AK 18913 -001 “CT 18499 -1” (1 w/ Printer, 1 Spare) 2 2 d 696 -05278 -901 Cable, P 4 T, RJ-45 to DB-9 F, 6’ L, Intermec Printer, Serial Interface Serial Cable BL 17205 -1 RS 232 DB 9 1 2 e 696 -05273 -901 Soft Case, P 4 T, Carrying Case, Soft Case AK 18924 -1 “DA 18923 -1” 1 2 f 696 -05277 -901 AC Adapter, P 4 T, AK 18913 -002 “AT 18486 -1” Includes line cord 300257 -001 B (Not Marked) 1 2 g 696 -02908 -001 Label, Roll, 4 x 6, White Plastic for Thermal Transfer Printer, 83440 2 2 h 696 -05276 -901 Ribbon, P 4 T, 05555 BK 110 D 1 2 i 696 -05275 -901 Battery Charger, Single, P 4 T, AT 17696 -1 “L 172 Charger Model FW 7511/107 A” 1 2 j 696 -05279 -901 Cleaning Pens, Thermal Printer, P 4 T, AN 112091 “ 800117 -001” 2 3 860 -03886 -002 Topy Assy, SRA-120202, International Power Kit (EA 291) 1 4 696 -05007 -001 Adapter, 1/O Module PDCT-B-D 89 RS-232 Male, 074143 -001, SMR-751 G-05 1 Interrogator Kit Printer Station 5

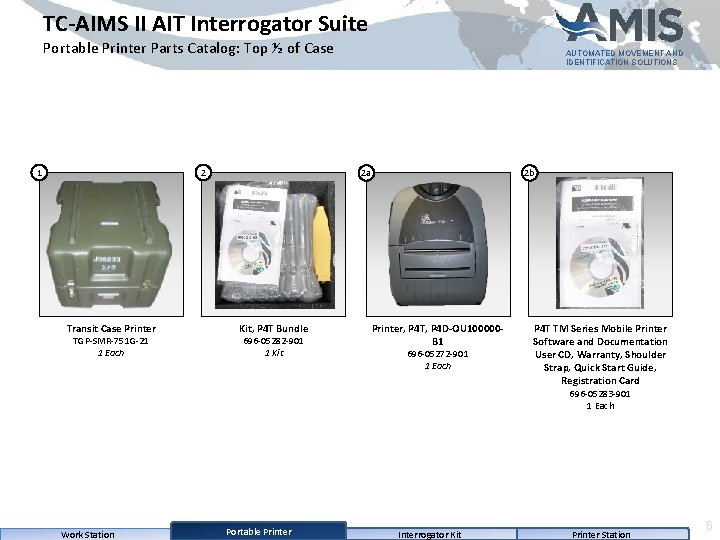

TC-AIMS II AIT Interrogator Suite Portable Printer Parts Catalog: Top ½ of Case 1 2 Transit Case Printer TGP-SMR-751 G-21 1 Each AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS 2 a Kit, P 4 T Bundle 696 -05282 -901 1 Kit 2 b Printer, P 4 T, P 4 D-OU 100000 B 1 696 -05272 -901 1 Each P 4 T TM Series Mobile Printer Software and Documentation User CD, Warranty, Shoulder Strap, Quick Start Guide, Registration Card 696 -05283 -901 1 Each Work Station Portable Printer Interrogator Kit Printer Station 6

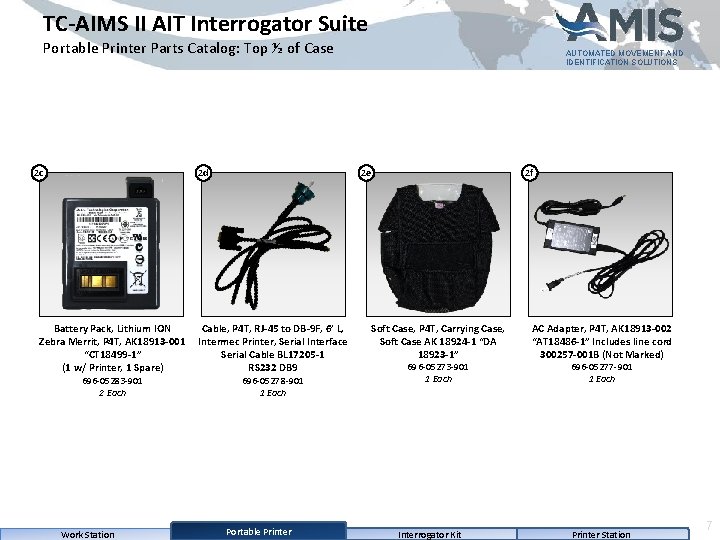

TC-AIMS II AIT Interrogator Suite Portable Printer Parts Catalog: Top ½ of Case 2 c 2 d Battery Pack, Lithium ION Zebra Merrit, P 4 T, AK 18913 -001 “CT 18499 -1” (1 w/ Printer, 1 Spare) 696 -05283 -901 2 Each Work Station AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS 2 e Cable, P 4 T, RJ-45 to DB-9 F, 6’ L, Intermec Printer, Serial Interface Serial Cable BL 17205 -1 RS 232 DB 9 696 -05278 -901 1 Each Portable Printer 2 f Soft Case, P 4 T, Carrying Case, Soft Case AK 18924 -1 “DA 18923 -1” 696 -05273 -901 1 Each Interrogator Kit AC Adapter, P 4 T, AK 18913 -002 “AT 18486 -1” Includes line cord 300257 -001 B (Not Marked) 696 -05277 -901 1 Each Printer Station 7

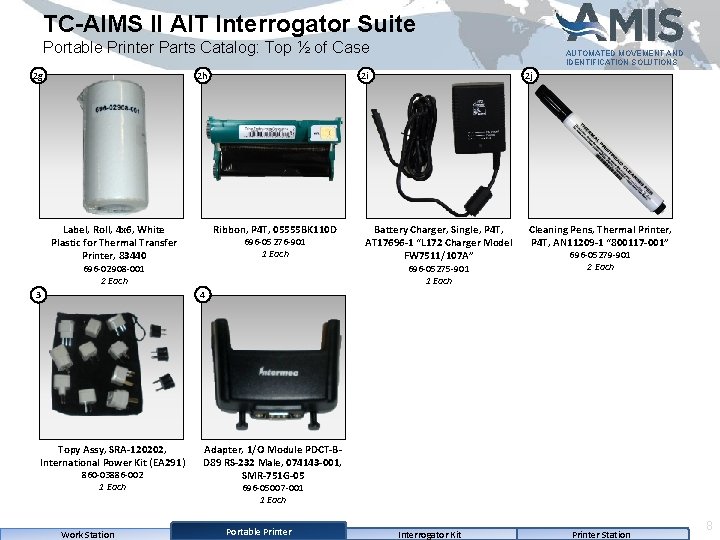

TC-AIMS II AIT Interrogator Suite Portable Printer Parts Catalog: Top ½ of Case 2 h 2 g Label, Roll, 4 x 6, White Plastic for Thermal Transfer Printer, 83440 AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS 2 i Ribbon, P 4 T, 05555 BK 110 D 696 -05276 -901 1 Each 696 -02908 -001 2 Each 2 j Battery Charger, Single, P 4 T, AT 17696 -1 “L 172 Charger Model FW 7511/107 A” 696 -05275 -901 1 Each Cleaning Pens, Thermal Printer, P 4 T, AN 11209 -1 “ 800117 -001” 696 -05279 -901 2 Each 4 3 Topy Assy, SRA-120202, International Power Kit (EA 291) 860 -03886 -002 1 Each Work Station Adapter, 1/O Module PDCT-BD 89 RS-232 Male, 074143 -001, SMR-751 G-05 696 -05007 -001 1 Each Portable Printer Interrogator Kit Printer Station 8

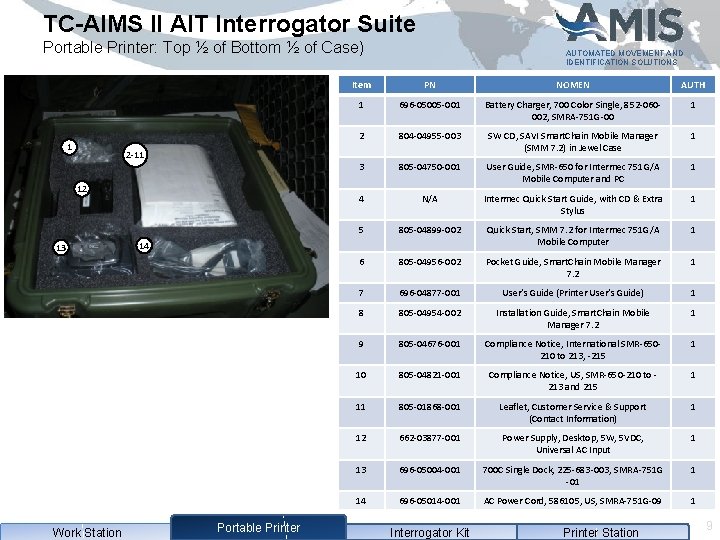

TC-AIMS II AIT Interrogator Suite Portable Printer: Top ½ of Bottom ½ of Case) 2 -11 1 12 12 13 13 Work Station 14 AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS Item PN NOMEN AUTH 1 696 -05005 -001 Battery Charger, 700 Color Single, 852 -060002, SMRA-751 G-00 1 2 804 -04955 -003 SW CD, SAVI Smart. Chain Mobile Manager (SMM 7. 2) in Jewel Case 1 3 805 -04750 -001 User Guide, SMR-650 for Intermec 751 G/A Mobile Computer and PC 1 4 N/A Intermec Quick Start Guide, with CD & Extra Stylus 1 5 805 -04899 -002 Quick Start, SMM 7. 2 for Intermec 751 G/A Mobile Computer 1 6 805 -04956 -002 Pocket Guide, Smart. Chain Mobile Manager 7. 2 1 7 696 -04877 -001 User’s Guide (Printer User’s Guide) 1 8 805 -04954 -002 Installation Guide, Smart. Chain Mobile Manager 7. 2 1 9 805 -04676 -001 Compliance Notice, International SMR-650210 to 213, -215 1 10 805 -04821 -001 Compliance Notice, US, SMR-650 -210 to 213 and 215 1 11 805 -01868 -001 Leaflet, Customer Service & Support (Contact Information) 1 12 662 -03877 -001 Power Supply, Desktop, 5 W, 5 VDC, Universal AC Input 1 13 696 -05004 -001 700 C Single Dock, 225 -683 -003, SMRA-751 G -01 1 14 696 -05014 -001 AC Power Cord, 586105, US, SMRA-751 G-09 1 14 Portable Printer Interrogator Kit Printer Station 9

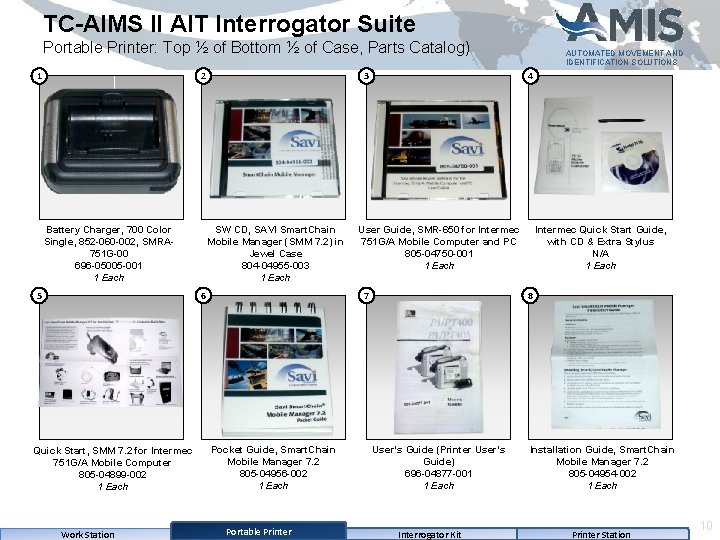

TC-AIMS II AIT Interrogator Suite Portable Printer: Top ½ of Bottom ½ of Case, Parts Catalog) 1 2 Battery Charger, 700 Color Single, 852 -060 -002, SMRA 751 G-00 696 -05005 -001 1 Each 5 3 SW CD, SAVI Smart. Chain Mobile Manager (SMM 7. 2) in Jewel Case 804 -04955 -003 1 Each 6 Quick Start, SMM 7. 2 for Intermec 751 G/A Mobile Computer 805 -04899 -002 1 Each Work Station 4 User Guide, SMR-650 for Intermec 751 G/A Mobile Computer and PC 805 -04750 -001 1 Each Portable Printer Intermec Quick Start Guide, with CD & Extra Stylus N/A 1 Each 8 7 Pocket Guide, Smart. Chain Mobile Manager 7. 2 805 -04956 -002 1 Each AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS User’s Guide (Printer User’s Guide) 696 -04877 -001 1 Each Interrogator Kit Installation Guide, Smart. Chain Mobile Manager 7. 2 805 -04954 -002 1 Each Printer Station 10

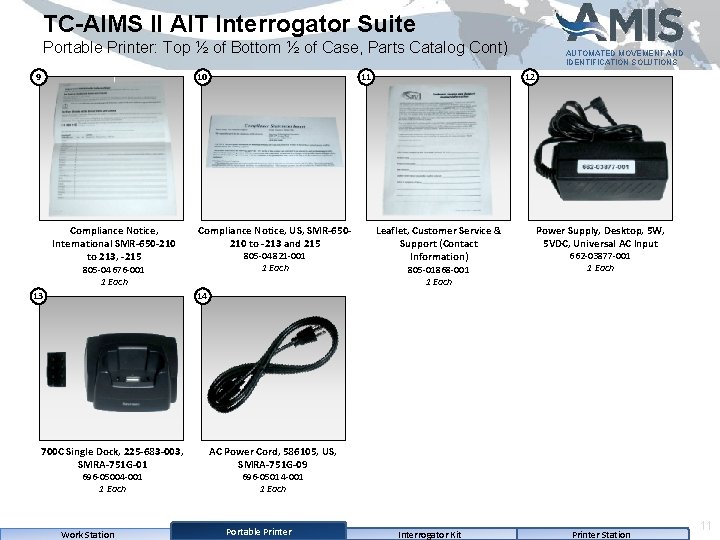

TC-AIMS II AIT Interrogator Suite Portable Printer: Top ½ of Bottom ½ of Case, Parts Catalog Cont) 10 9 Compliance Notice, International SMR-650 -210 to 213, -215 Compliance Notice, US, SMR-650210 to -213 and 215 805 -04821 -001 1 Each 805 -04676 -001 1 Each 13 11 AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS 12 Leaflet, Customer Service & Support (Contact Information) 805 -01868 -001 1 Each Power Supply, Desktop, 5 W, 5 VDC, Universal AC Input 662 -03877 -001 1 Each 14 700 C Single Dock, 225 -683 -003, SMRA-751 G-01 696 -05004 -001 1 Each Work Station AC Power Cord, 586105, US, SMRA-751 G-09 696 -05014 -001 1 Each Portable Printer Interrogator Kit Printer Station 11

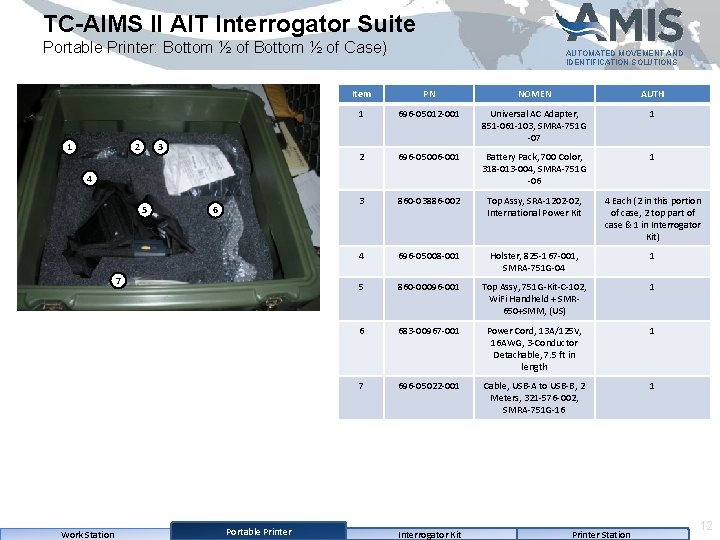

TC-AIMS II AIT Interrogator Suite Portable Printer: Bottom ½ of Case) 1 2 3 AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS Item PN NOMEN AUTH 1 696 -05012 -001 Universal AC Adapter, 851 -061 -103, SMRA-751 G -07 1 2 696 -05006 -001 Battery Pack, 700 Color, 318 -013 -004, SMRA-751 G -06 1 3 860 -03886 -002 Top Assy, SRA-1202 -02, International Power Kit 4 Each (2 in this portion of case, 2 top part of case & 1 in Interrogator Kit) 4 696 -05008 -001 Holster, 825 -167 -001, SMRA-751 G-04 1 5 860 -00096 -001 Top Assy, 751 G-Kit-C-102, Wi. Fi Handheld + SMR 650+SMM, (US) 1 6 683 -00967 -001 Power Cord, 13 A/125 V, 16 AWG, 3 -Conductor Detachable, 7. 5 ft in length 1 7 696 -05022 -001 Cable, USB-A to USB-B, 2 Meters, 321 -576 -002, SMRA-751 G-16 1 4 5 6 7 Work Station Portable Printer Interrogator Kit Printer Station 12

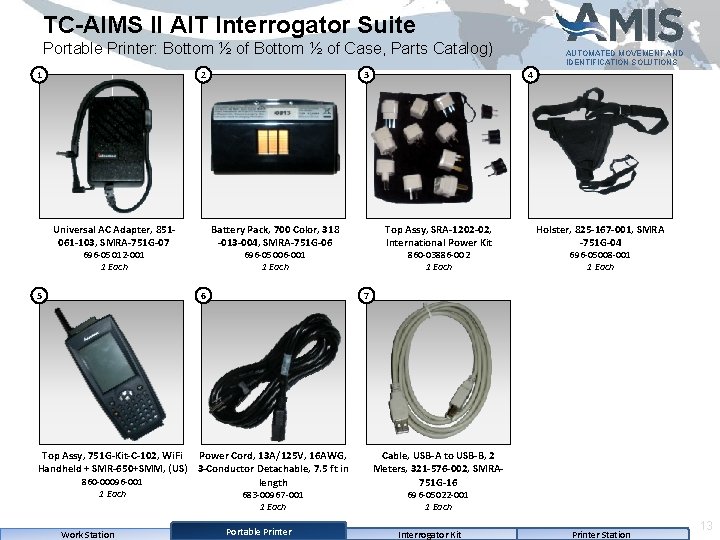

TC-AIMS II AIT Interrogator Suite Portable Printer: Bottom ½ of Case, Parts Catalog) 1 2 Universal AC Adapter, 851061 -103, SMRA-751 G-07 Work Station Holster, 825 -167 -001, SMRA -751 G-04 696 -05008 -001 1 Each 7 Top Assy, 751 G-Kit-C-102, Wi. Fi Power Cord, 13 A/125 V, 16 AWG, Handheld + SMR-650+SMM, (US) 3 -Conductor Detachable, 7. 5 ft in 860 -00096 -001 length 1 Each 860 -03886 -002 1 Each 696 -05006 -001 1 Each 6 4 Top Assy, SRA-1202 -02, International Power Kit Battery Pack, 700 Color, 318 -013 -004, SMRA-751 G-06 696 -05012 -001 1 Each 5 3 AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS 683 -00967 -001 1 Each Portable Printer Cable, USB-A to USB-B, 2 Meters, 321 -576 -002, SMRA 751 G-16 696 -05022 -001 1 Each Interrogator Kit Printer Station 13

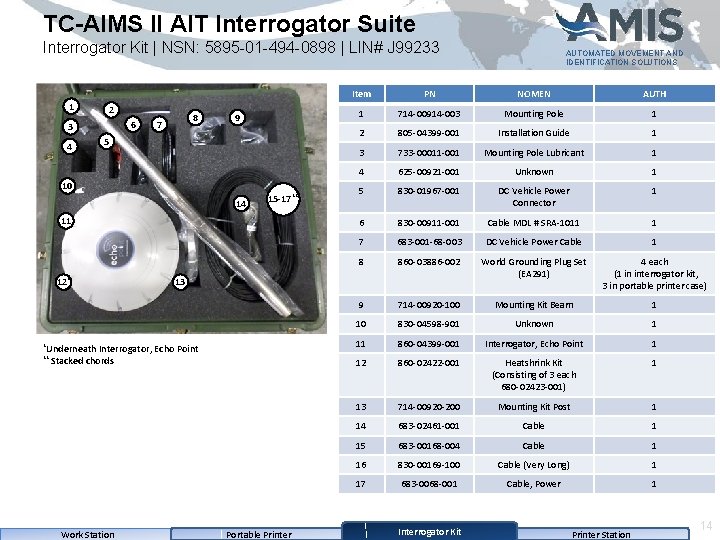

TC-AIMS II AIT Interrogator Suite Interrogator Kit | NSN: 5895 -01 -494 -0898 | LIN# J 99233 1 2 6 3 4 8 7 9 5 10 14 15 -17** 11 12* Interrogator, Echo Point ** Stacked chords Work Station Item PN NOMEN AUTH 1 714 -00914 -003 Mounting Pole 1 2 805 -04399 -001 Installation Guide 1 3 733 -00011 -001 Mounting Pole Lubricant 1 4 625 -00921 -001 Unknown 1 5 830 -01967 -001 DC Vehicle Power Connector 1 6 830 -00911 -001 Cable MDL # SRA-1011 1 7 683 -001 -68 -003 DC Vehicle Power Cable 1 8 860 -03886 -002 World Grounding Plug Set (EA 291) 4 each (1 in interrogator kit, 3 in portable printer case) 9 714 -00920 -100 Mounting Kit Beam 1 10 830 -04598 -901 Unknown 1 11 860 -04399 -001 Interrogator, Echo Point 1 12 860 -02422 -001 Heatshrink Kit (Consisting of 3 each 680 -02423 -001) 1 13 714 -00920 -200 Mounting Kit Post 1 14 683 -02461 -001 Cable 1 15 683 -00168 -004 Cable 1 16 830 -00169 -100 Cable (Very Long) 1 17 683 -0068 -001 Cable, Power 1 13 *Underneath Portable Printer AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS Interrogator Kit Printer Station 14

TC-AIMS II AIT Interrogator Suite Interrogator Parts Catalog | NSN: 5895 -01 -494 -0898 | LIN# J 99233 1 2 Mounting Pole Installation Guide 714 -00914 -003 1 Each 5 3 DC Vehicle Power Connector 830 -01967 -001 1 Each Work Station 4 Mounting Pole Lubricant 805 -04399 -001 1 Each 6 830 -00911 -001 1 Each Portable Printer Unknown 733 -00011 -001 1 Each 625 -00921 -001 1 Each 8 7 Cable MDL # SRA-1011 AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS DC Vehicle Power Cable 683 -001 -68 -003 1 Each Interrogator Kit World Grounding Plug Set (EA 291) 860 -03886 -002 1 Each Printer Station 15

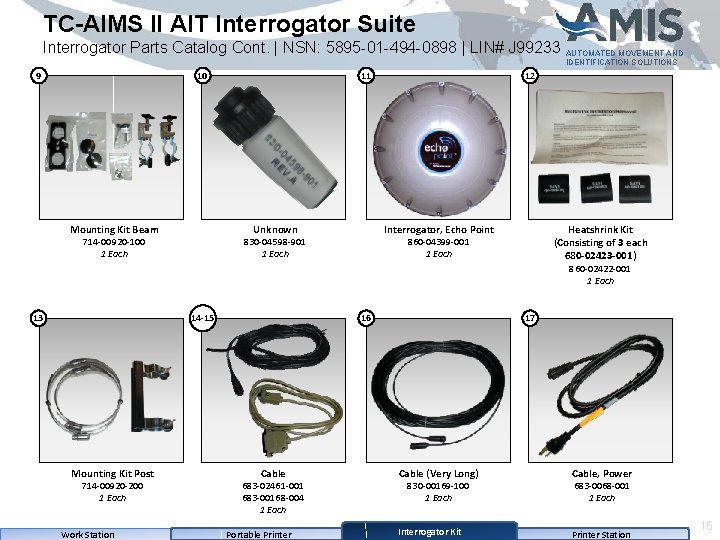

TC-AIMS II AIT Interrogator Suite Interrogator Parts Catalog Cont. | NSN: 5895 -01 -494 -0898 | LIN# J 99233 AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS 10 9 Mounting Kit Beam 11 Heatshrink Kit (Consisting of 3 each 680 -02423 -001) Interrogator, Echo Point Unknown 714 -00920 -100 1 Each 12 860 -04399 -001 1 Each 830 -04598 -901 1 Each 860 -02422 -001 1 Each 14 -15 13 Mounting Kit Post 714 -00920 -200 1 Each Work Station 16 Cable 683 -02461 -001 683 -00168 -004 1 Each Portable Printer 17 Cable (Very Long) Cable, Power Interrogator Kit Printer Station 830 -00169 -100 1 Each 683 -0068 -001 1 Each 16

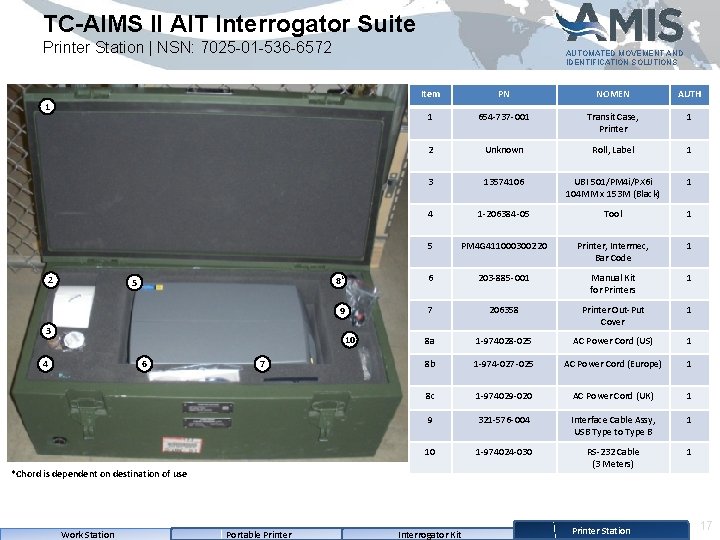

TC-AIMS II AIT Interrogator Suite Printer Station | NSN: 7025 -01 -536 -6572 AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS Item PN NOMEN AUTH 1 654 -737 -001 Transit Case, Printer 1 2 Unknown Roll, Label 1 3 13574106 UBI 501/PM 4 i/PX 6 i 104 MM x 153 M (Black) 1 4 1 -206384 -05 Tool 1 5 PM 4 G 411000300220 Printer, Intermec, Bar Code 1 8* 6 203 -885 -001 Manual Kit for Printers 1 9 7 206358 Printer Out-Put Cover 1 8 a 1 -974028 -025 AC Power Cord (US) 1 8 b 1 -974 -027 -025 AC Power Cord (Europe) 1 8 c 1 -974029 -020 AC Power Cord (UK) 1 9 321 -576 -004 Interface Cable Assy, USB Type to Type B 1 10 1 -974024 -030 RS-232 Cable (3 Meters) 1 1 2 5 3 10 4 6 7 *Chord is dependent on destination of use Work Station Portable Printer Interrogator Kit Printer Station 17

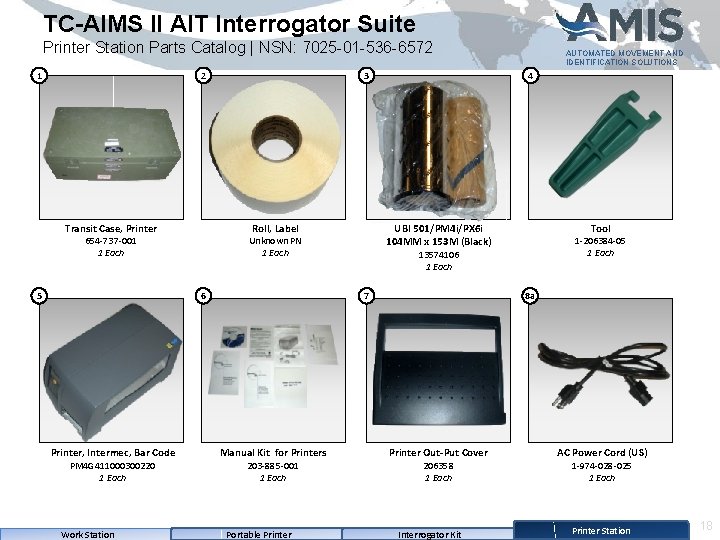

TC-AIMS II AIT Interrogator Suite Printer Station Parts Catalog | NSN: 7025 -01 -536 -6572 1 2 Transit Case, Printer Unknown PN 1 Each 6 Printer, Intermec, Bar Code PM 4 G 411000300220 1 Each Work Station 4 UBI 501/PM 4 i/PX 6 i 104 MM x 153 M (Black) Roll, Label 654 -737 -001 1 Each 5 3 203 -885 -001 1 Each Portable Printer Tool 1 -206384 -05 1 Each 13574106 1 Each 8 a 7 Manual Kit for Printers AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS Printer Out-Put Cover 206358 1 Each Interrogator Kit AC Power Cord (US) 1 -974 -028 -025 1 Each Printer Station 18

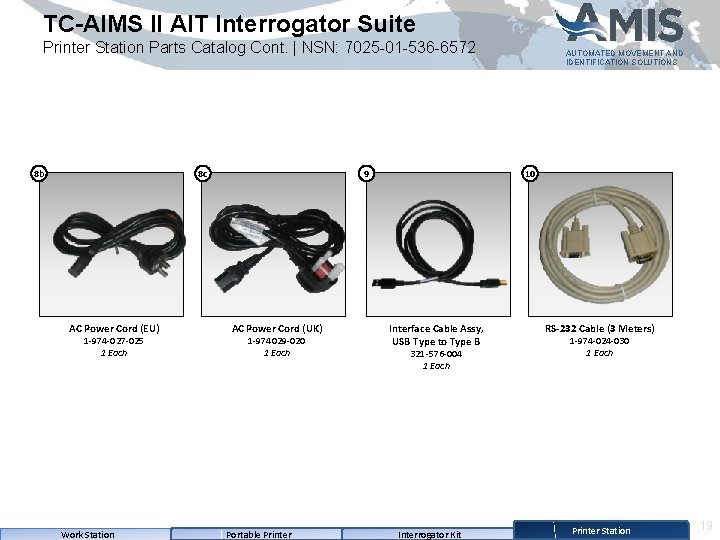

TC-AIMS II AIT Interrogator Suite Printer Station Parts Catalog Cont. | NSN: 7025 -01 -536 -6572 8 b 8 c AC Power Cord (EU) 1 -974 -027 -025 1 Each Work Station 10 9 AC Power Cord (UK) 1 -974029 -020 1 Each Portable Printer AUTOMATED MOVEMENT AND IDENTIFICATION SOLUTIONS Interface Cable Assy, USB Type to Type B 321 -576 -004 1 Each Interrogator Kit RS-232 Cable (3 Meters) 1 -974 -024 -030 1 Each Printer Station 19
