Tasks Breakdown Giovanna Lehmann Miotto 2 Introduction n
+ Tasks Breakdown Giovanna Lehmann Miotto
+ 2 Introduction n Draft subdivision into functional blocks n Development needs n Hardware n Emulators n Data samples n Many tasks can be worked on in parallel an independently n Regular integration steps should be planned early on, to allow experts getting together and making fast progress FELIX for Proto. DUNE, G. Lehmann Miotto 17/05/16

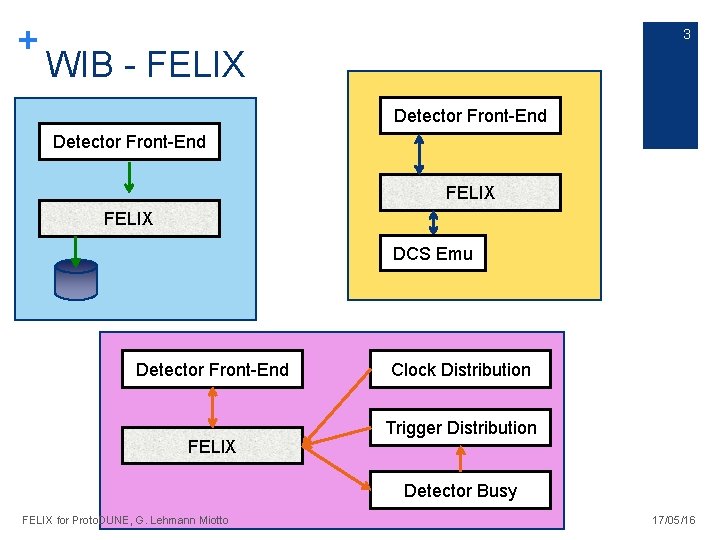

+ 3 WIB - FELIX Detector Front-End FELIX DCS Emu Detector Front-End FELIX Clock Distribution Trigger Distribution Detector Busy FELIX for Proto. DUNE, G. Lehmann Miotto 17/05/16
+ 4 FELIX – Data Handler FELIX Switched Network DAQ Event Builder Data Handler n Implement Data Handler receiver and building into art. DAQ super-fragment n Evaluate data compression algorithms in Data Handler n Evaluate possibility of doing data selection in Data Handler n Fully debug FELIX output path Can start NOW FELIX for Proto. DUNE, G. Lehmann Miotto 17/05/16
+ 5 FELIX – Data Handler (2) FELIX Data Handler Requires careful thinking! FELIX for Proto. DUNE, G. Lehmann Miotto n Implement Data Handler receiver and building into art. DAQ superfragment n Evaluate data compression algorithms in FELIX FPGA n Requires discussion with FELIX FPGA developers n Evaluate possibility integrating Data Handler functionality into the FELIX server n May require modification of the routing FELIX application n Assess whether this scenario is compatible with the other functions of FELIX 17/05/16
+ 6 FELIX – Event Builder FELIX FELIX Switched Network DAQ Event Builder Data Handler DAQEvent. Builder Data Handler Builder Working prototype summer 2016 FELIX for Proto. DUNE, G. Lehmann Miotto 17/05/16
+ 7 DAQ Detector Front-End FELIX DAQ Data Handler Switched Network DAQ Event Builder Online Processing DAQ Storage System Depends on overall DAQ status; proof of principle may be done based other systems. FELIX for Proto. DUNE, G. Lehmann Miotto 17/05/16

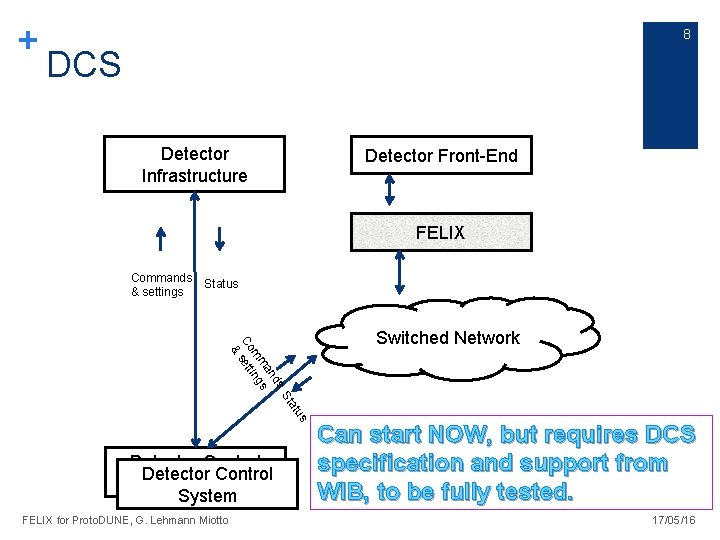

+ 8 DCS Detector Infrastructure Detector Front-End FELIX Commands & settings Status ds an m s m ing Co sett & Switched Network St s u at Detector Control System FELIX for Proto. DUNE, G. Lehmann Miotto Can start NOW, but requires DCS specification and support from WIB, to be fully tested. 17/05/16
+ 9 Complete System Detector Infrastructure Detector Control System DAQ Data Handler Detector Front-End FELIX Trigger Distribution Detector Busy Switched Network DAQ Event Builder FELIX for Proto. DUNE, G. Lehmann Miotto Clock Distribution Online Processing DAQ Storage System 17/05/16
+ 10 Summary n Ready to start development effort now n Good communication with the DAQ community needed in order to agree on data formats, protocols, etc. n Collaboration with WIB developers essential n Establish which functions may be tested when n FELIX development boards can be purchased (one already available at CERN for us) n This is the right time to build a developers team with all interested parties and split the work among ourselves FELIX for Proto. DUNE, G. Lehmann Miotto 17/05/16
