Target systems integrated testing phase C Integrated system

Target systems integrated testing (phase C) Integrated system tests PRESENTED BY <JAIME ARRIAGADA & NILS JÖNSSON> 2020 -12 -09

Agenda 1. Context 2. Wo. W testing phase for target systems 3. Gate 2 Integrated systems TRR 4. Organization 5. Preparation 6. Integrated systems testing 7 Critical connection between sub-elements 8 Testing sequence - time schedule 9. Risks for the testing phases 2020 -12 -09 TARGET SYSTEMS INTEGRATED TESTING 3

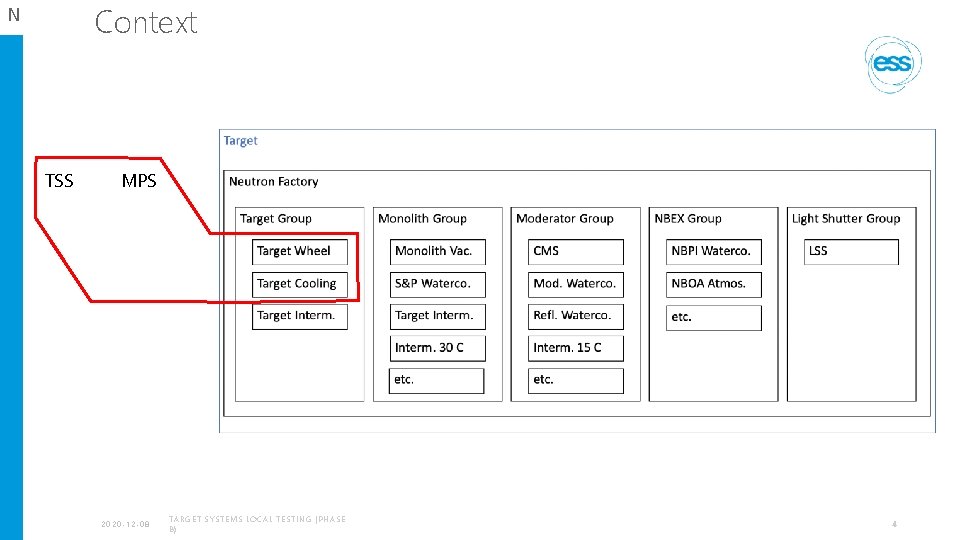

Context N TSS MPS 2020 -12 -08 TARGET SYSTEMS LOCAL TESTING (PHASE B) 4

N Wo. W testing phase for target systems Detailed Design Input: Func. Spec. Preparing for Test and Commissioning Activities Create Test Doc Integrate d Testing Phase (C) Local Testing Phase (B) Installatio n Phase (A) Test Binders Gate 1 TOM Template Perform Target/ICS f Integrated Systems Test Cold Perform Target/ICS System Test Perform Target/ Single Test Prepare Commissioning Phase (D) ESS Operation Perform Target/ICS Integrated Systems Test Hot Gate 2 Finalize Installation Activities TRR Test Readiness Review Test Binder delivered for review 6 weeks before TRR 2020 -11 -25 WOW TESTING AND COMMISSIONING TRR SAR SRR ORR System Acceptance Review Safety Readiness Review “Target Wheel systems” “Helium Cooling systems” Operational Readiness Review Integrated tests 5

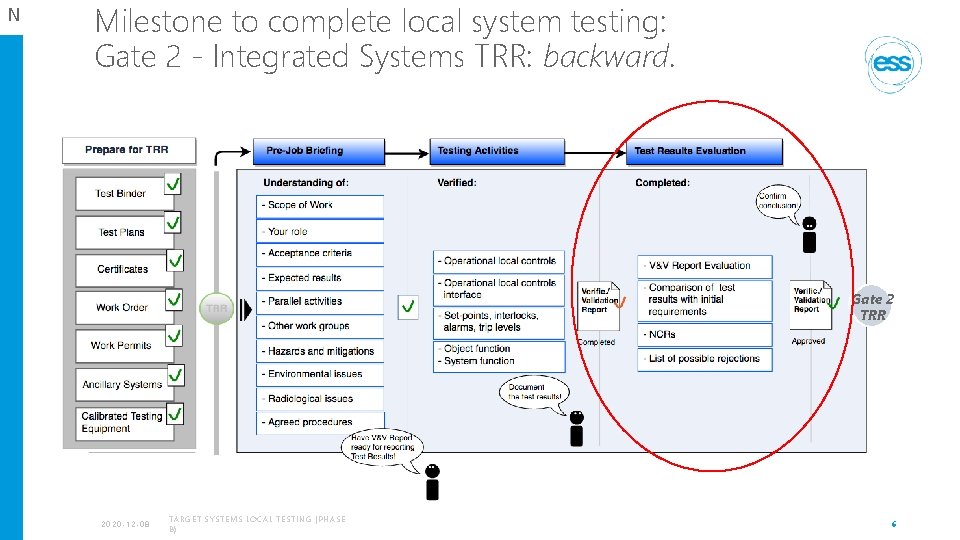

N Milestone to complete local system testing: Gate 2 - Integrated Systems TRR: backward. Gate 2 TRR 2020 -12 -08 TARGET SYSTEMS LOCAL TESTING (PHASE B) 6

N Milestone to complete local system testing: Gate 2 - Integrated Systems TRR: forward. Gate 2 TRR 2020 -12 -08 TARGET SYSTEMS LOCAL TESTING (PHASE B) 7

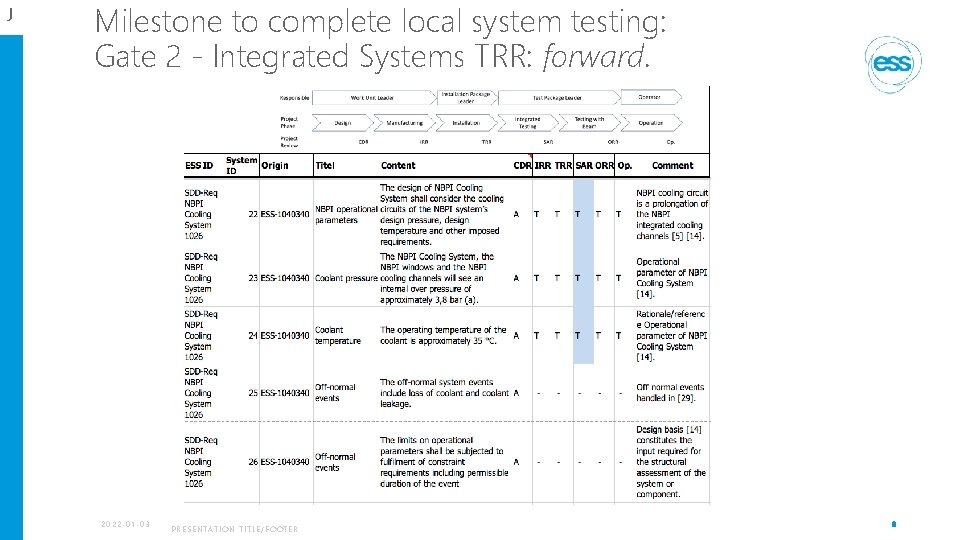

J Milestone to complete local system testing: Gate 2 - Integrated Systems TRR: forward. 2022 -01 -03 PRESENTATION TITLE/FOOTER 8

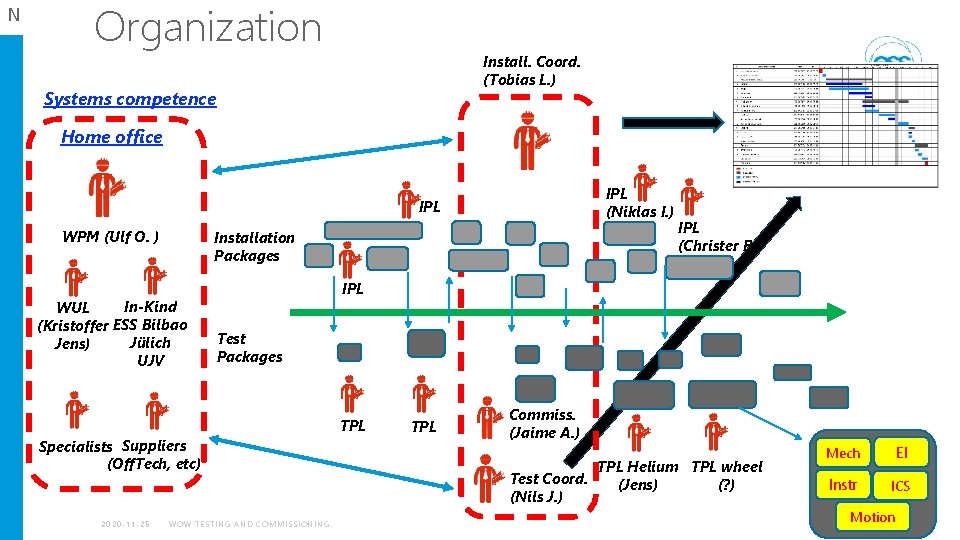

N Organization Install. Coord. (Tobias L. ) Systems competence Home office IPL (Niklas I. ) IPL WPM (Ulf O. ) Installation Packages In-Kind WUL (Kristoffer ESS Bilbao Jülich Jens) UJV IPL Test Packages TPL Specialists Suppliers (Off. Tech, etc) 2020 -11 -25 IPL (Christer B. ) WOW TESTING AND COMMISSIONING. TPL Commiss. (Jaime A. ) TPL Helium TPL wheel Test Coord. (? ) (Jens) (Nils J. ) Mech El Instr ICS Motion 9

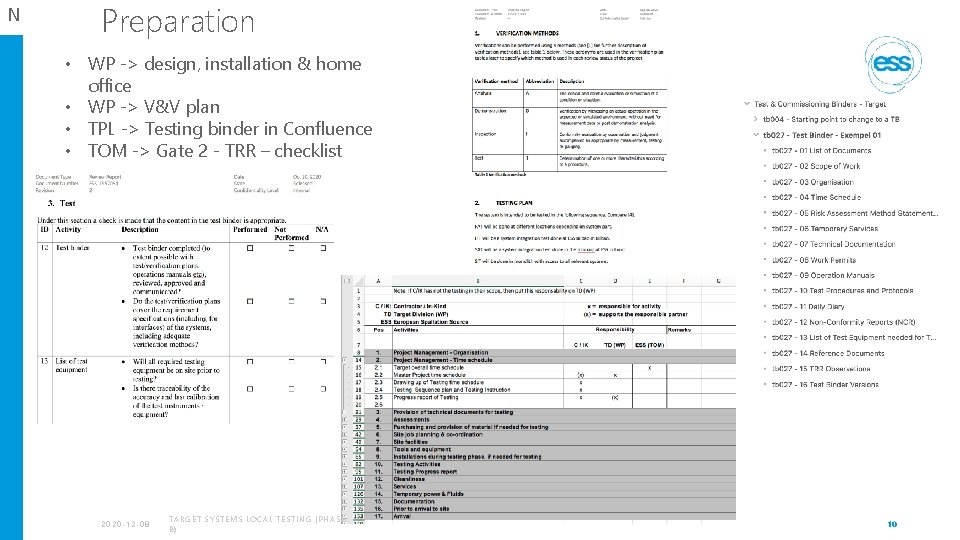

N Preparation • WP -> design, installation & home office • WP -> V&V plan • TPL -> Testing binder in Confluence • TOM -> Gate 2 - TRR – checklist 2020 -12 -08 TARGET SYSTEMS LOCAL TESTING (PHASE B) 10

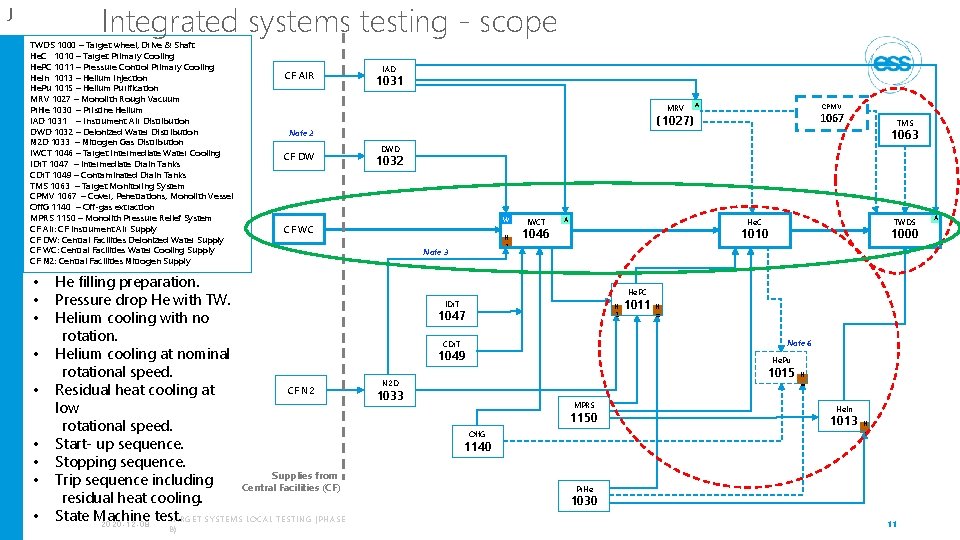

Integrated systems testing - scope J TWDS 1000 – Target wheel, Drive & Shaft He. C 1010 – Target Primary Cooling He. PC 1011 – Pressure Control Primary Cooling He. In 1013 – Helium Injection He. Pu 1015 – Helium Purification MRV 1027 – Monolith Rough Vacuum Pr. He 1030 – Pristine Helium IAD 1031 – Instrument Air Distribution DWD 1032 – Deionized Water Distribution N 2 D 1033 – Nitrogen Gas Distribution IWCT 1046 – Target Intermediate Water Cooling IDr. T 1047 – Intermediate Drain Tanks CDr. T 1049 – Contaminated Drain Tanks TMS 1063 – Target Monitoring System CPMV 1067 – Cover, Penetrations, Monolith Vessel Off. G 1140 – Off-gas extraction MPRS 1150 – Monolith Pressure Relief System CF Air: CF Instrument Air Supply CF DW: Central Facilities Deionized Water Supply CF WC: Central Facilities Water Cooling Supply CF N 2: Central Facilities Nitrogen Supply • • • CF AIR 1031 MRV CF DW A CPMV 1067 (1027) Note 2 TMS 1063 DWD 1032 W CF WC He filling preparation. Pressure drop He with TW. Helium cooling with no rotation. Helium cooling at nominal rotational speed. CF N 2 Residual heat cooling at low rotational speed. Start- up sequence. Stopping sequence. Supplies from Trip sequence including Central Facilities (CF) residual heat cooling. State Machine test. TARGET SYSTEMS LOCAL TESTING (PHASE 2020 -12 -08 B) IAD N 2 Note 3 IWCT A He. C TWDS 1010 1046 1000 He. PC IDr. T N 2 1047 1011 H e Note 6 CDr. T 1049 He. Pu 1015 N 2 D 1033 MPRS 1150 Off. G H e He. In 1013 H e 1140 Pr. He 1030 11 A

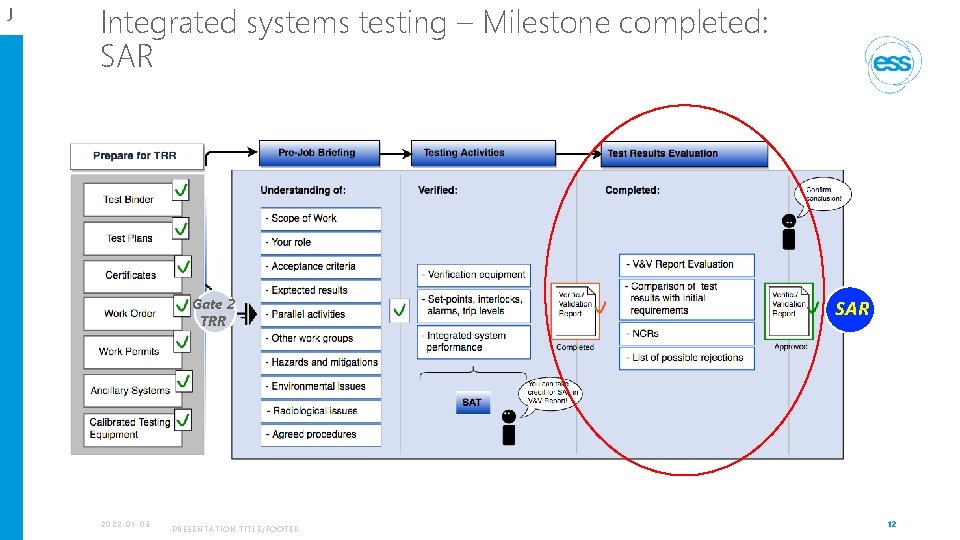

J Integrated systems testing – Milestone completed: SAR Gate 2 TRR 2022 -01 -03 PRESENTATION TITLE/FOOTER SAR 12

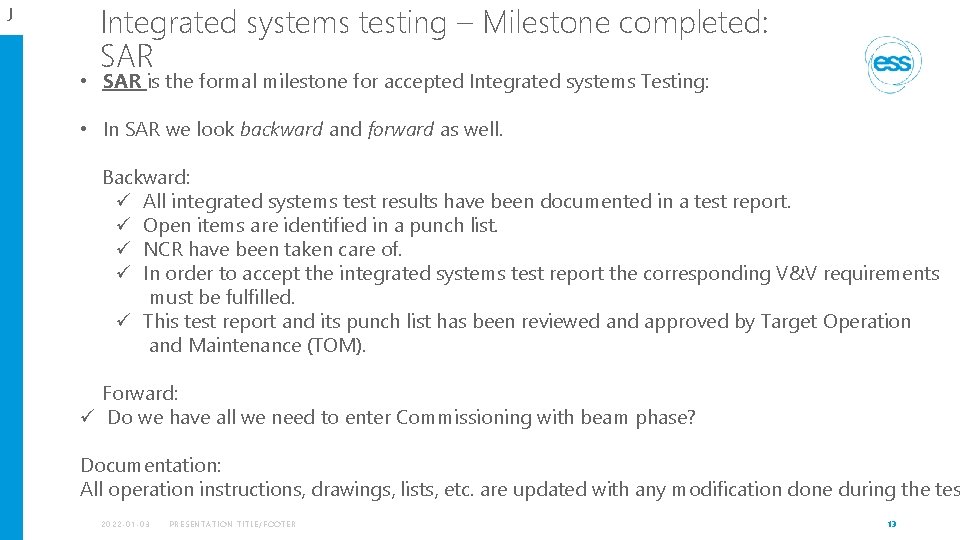

J Integrated systems testing – Milestone completed: SAR • SAR is the formal milestone for accepted Integrated systems Testing: • In SAR we look backward and forward as well. Backward: ü All integrated systems test results have been documented in a test report. ü Open items are identified in a punch list. ü NCR have been taken care of. ü In order to accept the integrated systems test report the corresponding V&V requirements must be fulfilled. ü This test report and its punch list has been reviewed and approved by Target Operation and Maintenance (TOM). Forward: ü Do we have all we need to enter Commissioning with beam phase? Documentation: All operation instructions, drawings, lists, etc. are updated with any modification done during the tes 2022 -01 -03 PRESENTATION TITLE/FOOTER 13

Critical connections between sub-elements N Electr, (5) TSS MPS (1) (2) (3) (4) Rough vacuum MCR (1) Should be tested together with MPS due to impact on Operational Limits and Conditions (OLC). (2) TSS has physical elements installed in the target systems, but shouldn’t impact on our testing period as they will test at the end. Coordination challenges. (3) Rough vacuum should be operational and available for Integrated system tests. Coordination challenges. (4) Main Control Room (MCR) functionalities should be available for integrated system tests. (5) Electr. , UPS & diesel back-up generator (e. g. circulators) 2020 -11 -25 PRESENTATION TITLE/FOOTER 14

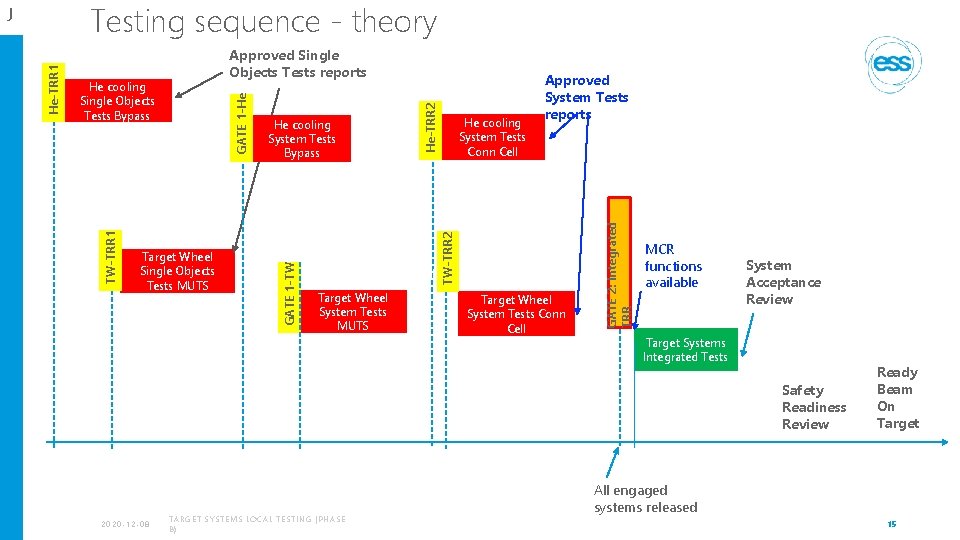

Testing sequence - theory Target Wheel System Tests MUTS Target Wheel System Tests Conn Cell GATE 2: Integrated TRR He cooling System Tests Conn Cell Approved System Tests reports TW-TRR 2 GATE 1 -TW GATE 1 -He Target Wheel Single Objects Tests MUTS He cooling System Tests Bypass He-TRR 2 Approved Single Objects Tests reports He cooling Single Objects Tests Bypass TW-TRR 1 He-TRR 1 J MCR functions available System Acceptance Review Target Systems Integrated Tests Safety Readiness Review 2020 -12 -08 TARGET SYSTEMS LOCAL TESTING (PHASE B) Ready Beam On Target All engaged systems released 15

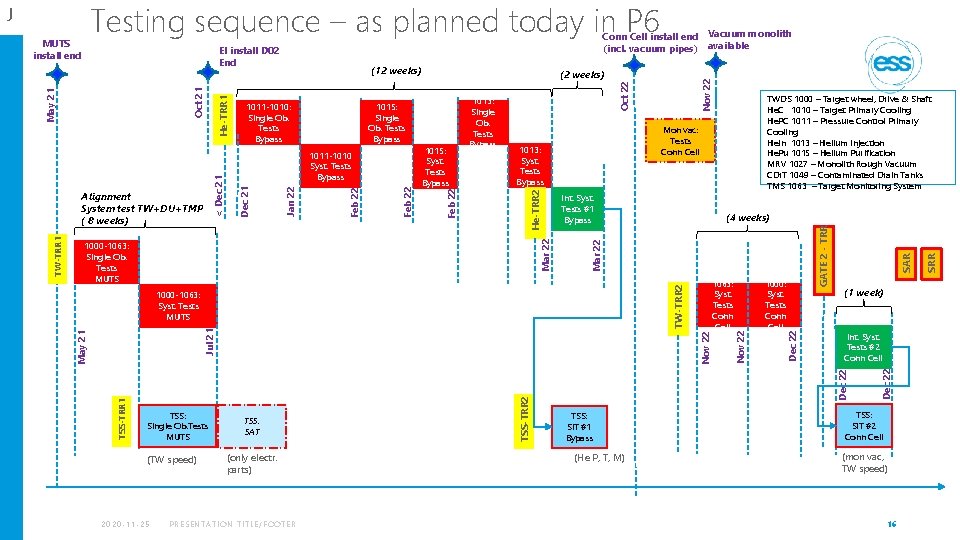

Testing sequence – as planned today in P 6 Int. Syst. Tests #1 Bypass (TW speed) 2020 -11 -25 PRESENTATION TITLE/FOOTER Int. Syst. Tests #2 Conn Cell TSS: SIT #1 Bypass (He P, T, M) TSS: SIT #2 Conn Cell (mon vac, TW speed) 16 SRR SAR (1 week) Dec 22 1000: Syst. Tests Conn Cell Dec 22 Nov 22 (only electr. parts) 1063: Syst. Tests Conn Cell GATE 2 - TRR (4 weeks) TW-TRR 2 TSS: SAT TSS-TRR 2 TSS-TRR 1 May 21 Jul 21 1000 -1063: Syst. Tests MUTS TSS: Single Ob. Tests MUTS Nov 22 Mon vac: Tests Conn Cell 1013: Syst. Tests Bypass 1000 -1063: Single Ob. Tests MUTS TWDS 1000 – Target wheel, Drive & Shaft He. C 1010 – Target Primary Cooling He. PC 1011 – Pressure Control Primary Cooling He. In 1013 – Helium Injection He. Pu 1015 – Helium Purification MRV 1027 – Monolith Rough Vacuum CDr. T 1049 – Contaminated Drain Tanks TMS 1063 – Target Monitoring System Dec 22 1015: Syst. Tests Bypass Mar 22 Feb 22 Jan 22 Dec 21 1011 -1010 Syst. Tests Bypass 1013: Single Ob. Tests Bypass Oct 22 1015: Single Ob. Tests Bypass Mar 22 1011 -1010: Single Ob. Tests Bypass (2 weeks) Nov 22 (12 weeks) He-TRR 2 He-TRR 1 < Dec 21 May 21 Oct 21 El install D 02 End Alignment System test TW+DU+TMP ( 8 weeks) TW-TRR 1 Conn Cell install end Vacuum monolith (incl. vacuum pipes) available Feb 22 MUTS install end Feb 22 J

Testing sequence – as planned today in P 6 Conn Cell install end Vacuum monolith (TW speed) 2020 -11 -25 TSS: SAT (only electr. parts) PRESENTATION TITLE/FOOTER Nov 22 1063: Syst. Tests Conn Cell 1000: Syst. Tests Conn Cell Dec 22 TW-TRR 2 (1 week) TSS: SIT #1 Bypass (He P, T, M) These activities could be done a little earlier as no need for water cooling or helium cooling SRR SAR Change position GATE 2 - TRR (4 weeks) When MPS available? Should be a milestone in P 6. Ambition to have it before Int. Syst. Tests #2 Tests protoc. not defined yet, duration probably longer Int. Syst. Tests #2 Conn Cell Dec 22 Nov 22 TWDS 1000 – Target wheel, Drive & Shaft He. C 1010 – Target Primary Cooling He. PC 1011 – Pressure Control Primary Cooling He. In 1013 – Helium Injection He. Pu 1015 – Helium Purification MRV 1027 – Monolith Rough Vacuum CDr. T 1049 – Contaminated Drain Tanks TMS 1063 – Target Monitoring System Dec 22 TSS-TRR 1 TSS: Single Ob. Tests MUTS Float in MUTS to end of 2021 TSS-TRR 2 Jul 21 1000 -1063: Syst. Tests MUTS Int. Syst. Tests #1 Bypass Nov 22 1015: Syst. Tests Bypass Mar 22 Jan 22 Dec 21 1011 -1010 Syst. Tests Bypass 1000 -1063: Single Ob. Tests MUTS May 21 TW-TRR 1 Alignment System test TW+DU+TMP ( 8 weeks) < Dec 21 TRR not in P 6 yet. 6 weeks before tests start 1015: Single Ob. Tests Bypass Mar 22 1011 -1010: Single Ob. Tests Bypass Oct 22 (12 weeks) He-TRR 2 He-TRR 1 May 21 Oct 21 El install D 02 End When MPS available? (incl. vacuum pipes) available Should be a milestone in P 6. (2 weeks) Ambition to have its signals before Int. Syst. Tests 1013: #1 Single Ob. Mon vac: Tests Bypass 1013: Conn Cell Syst. Tests Bypass Feb 22 This milestone is our best estimation today. Feb 22 MUTS install end Feb 22 J TSS: SIT #2 Conn Cell (mon vac, TW speed) 17

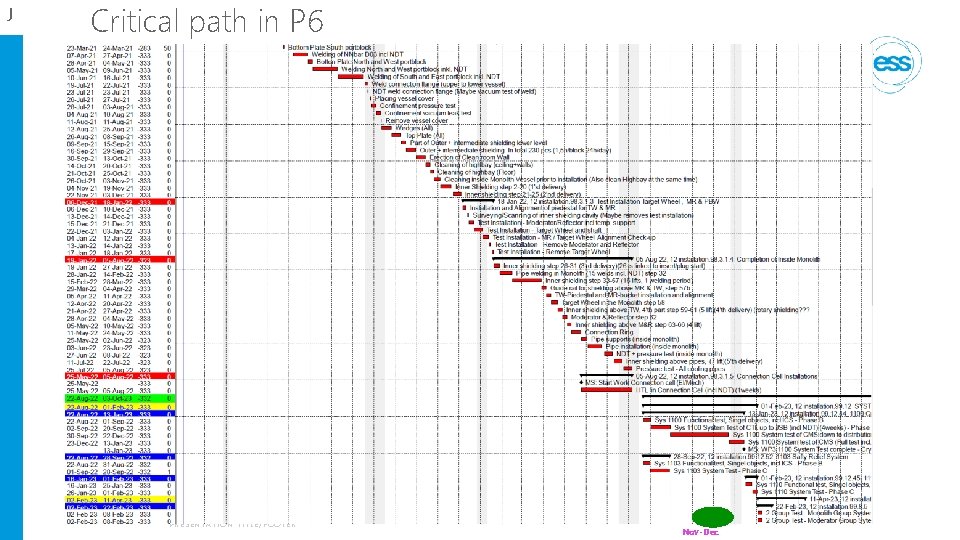

J Critical path in P 6 PRESENTATION TITLE/FOOTER Nov-Dec

N Risks for the testing phases • Design not finalized and late design changes. Electrical LVPd in MUTS on hold, state machine Target wheel, etc. • Tight time schedule. Delay on design, manufacturing and installation will give limited time to prepare and plan tests due to personnel in parallel roles. • Young organization. Some routines and way of working must be adjusted during the test phase. • Operators and technicians for Target systems not on-board yet. • Lack of resources. Many test activities in parallel. Different systems ready for test at the same time. At the moment we are considering work time during the test phase is 8 h per day, 5 days a week; There is a risk this has to be increased. • Several one-in-a-kind components risk of unexpected test results or out of acceptance criteria. • Availability concerns during testing if severe fault on equipment as there are limited amount of spare parts available. • Project Coordination during testing phase between different projects is not in place yet (TSS, MPS). • Local Coordination during testing phase for activities in the same rooms between installation and test teams is not in place yet. • Clean zones both in the MUTS area and the connection cell as there could be other works in the surroundings. 2020 -11 -25 PRESENTATION TITLE/FOOTER 19
