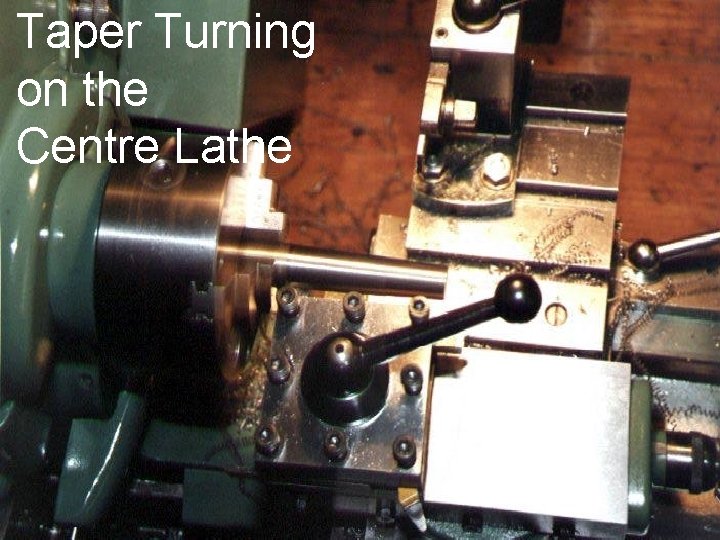

Taper Turning on the Centre Lathe

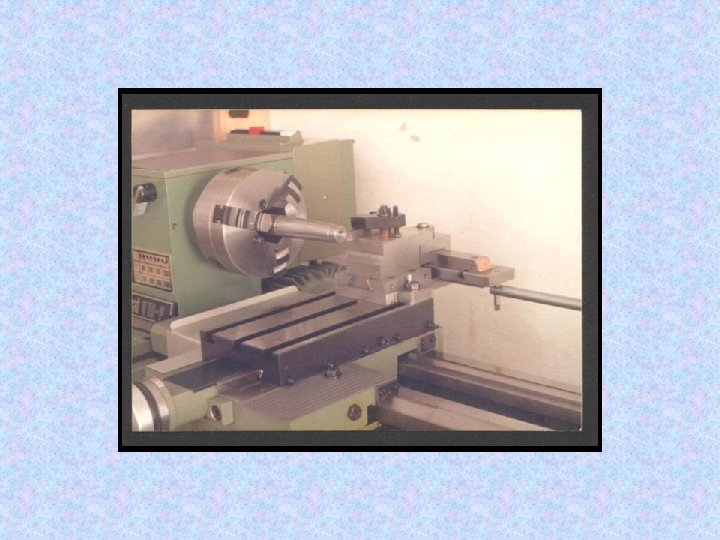

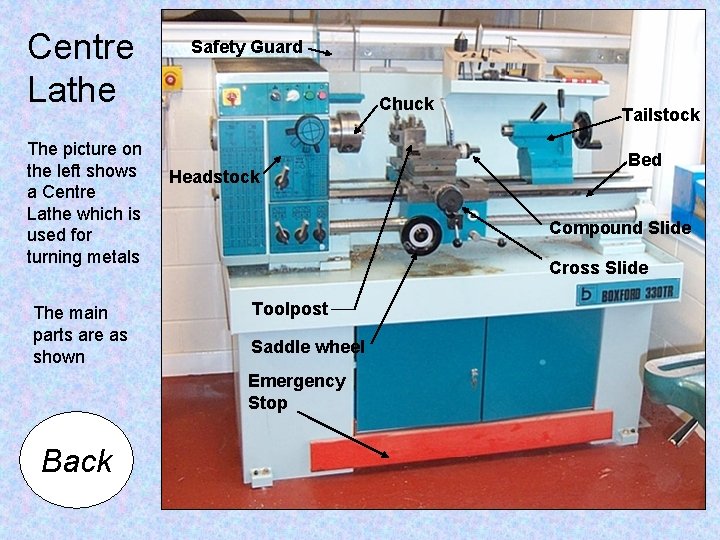

Centre Lathe The picture on the left shows a Centre Lathe which is used for turning metals Safety Guard Chuck Headstock Bed Compound Slide Cross Slide Toolpost The main parts are as shown Tailstock Saddle wheel Emergency Stop

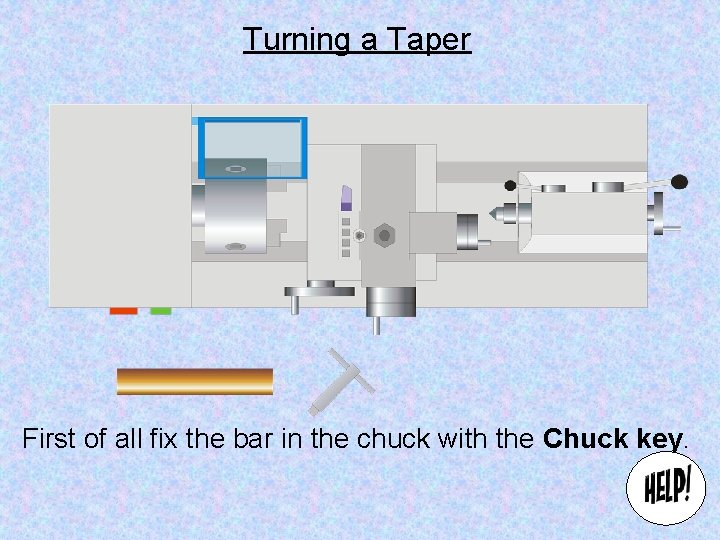

Turning a Taper First of all fix the bar in the chuck with the Chuck key.

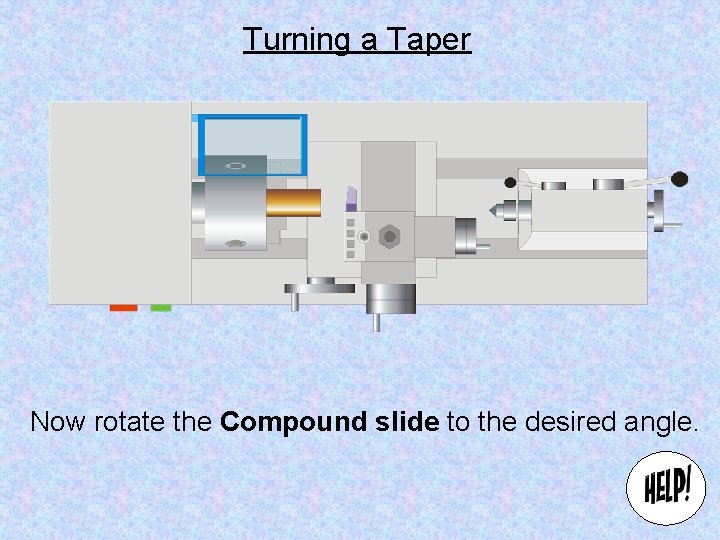

Turning a Taper Now rotate the Compound slide to the desired angle.

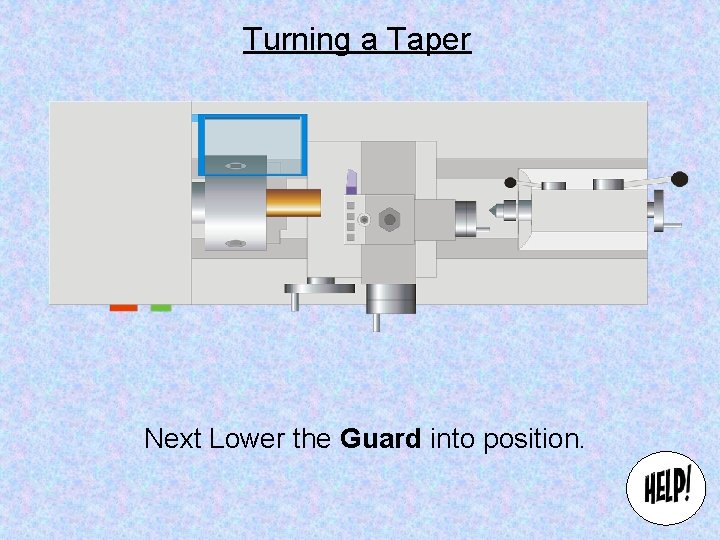

Turning a Taper Next Lower the Guard into position.

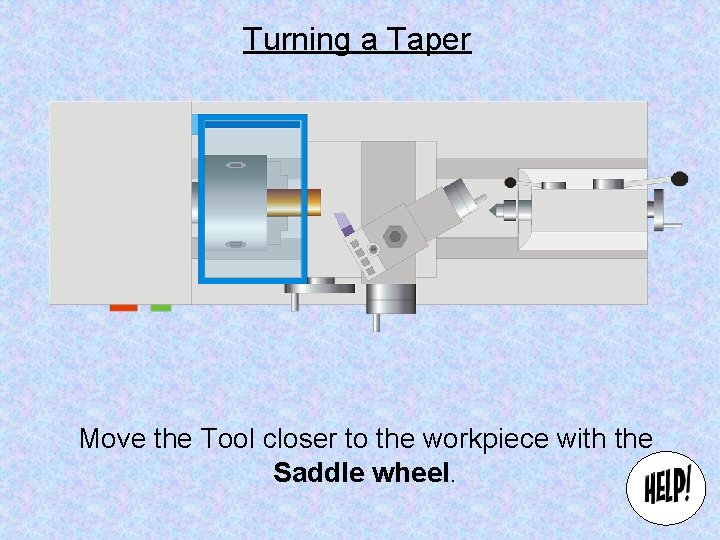

Turning a Taper Move the Tool closer to the workpiece with the Saddle wheel.

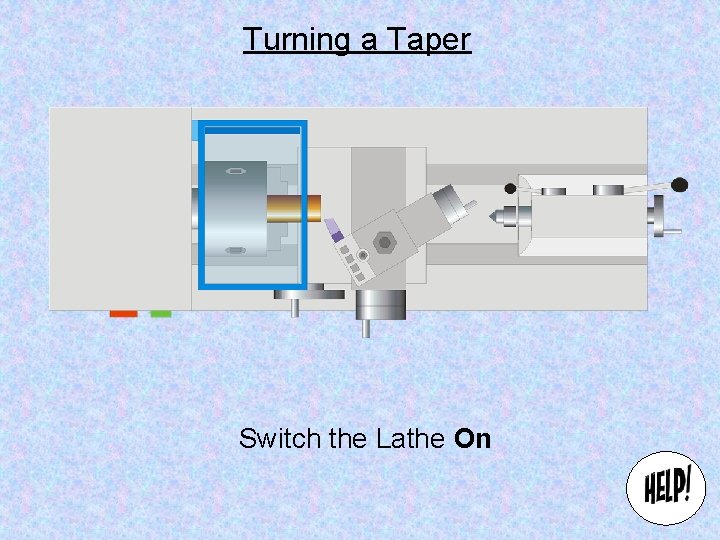

Turning a Taper Switch the Lathe On

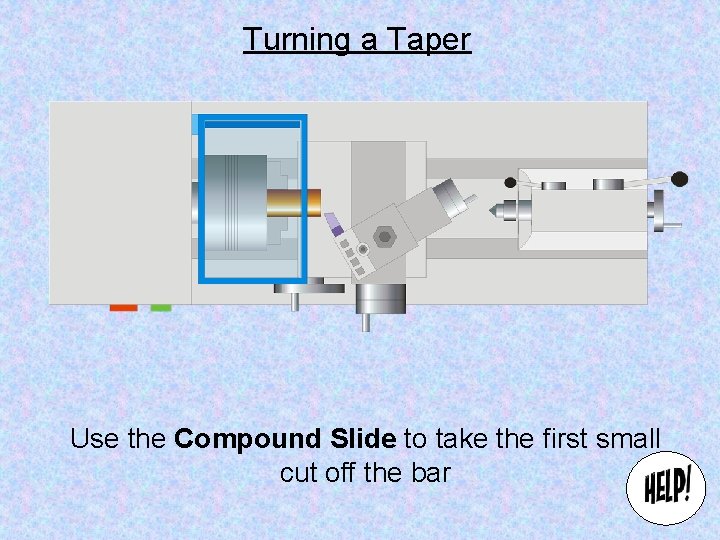

Turning a Taper Use the Compound Slide to take the first small cut off the bar

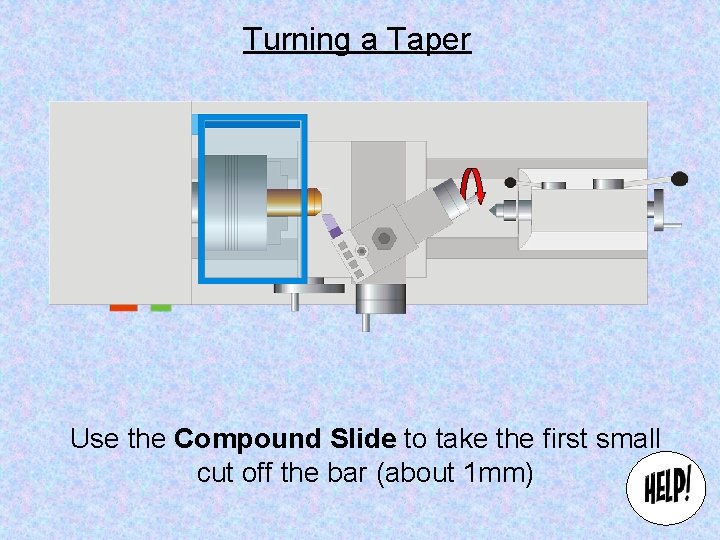

Turning a Taper Use the Compound Slide to take the first small cut off the bar (about 1 mm)

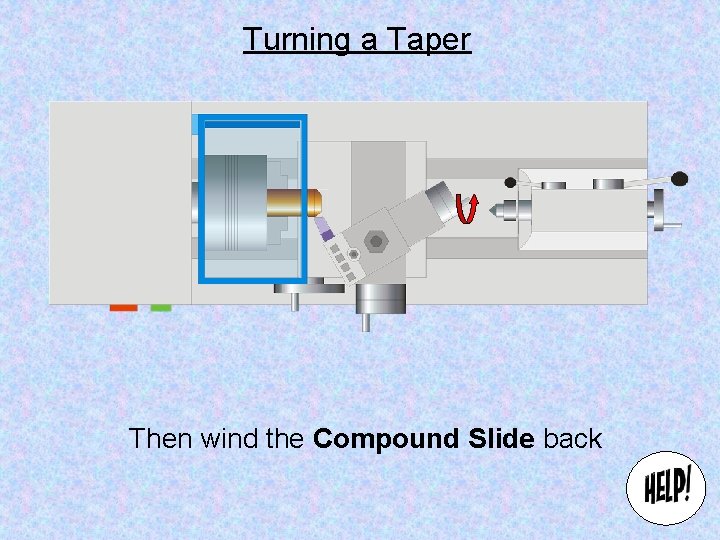

Turning a Taper Then wind the Compound Slide back

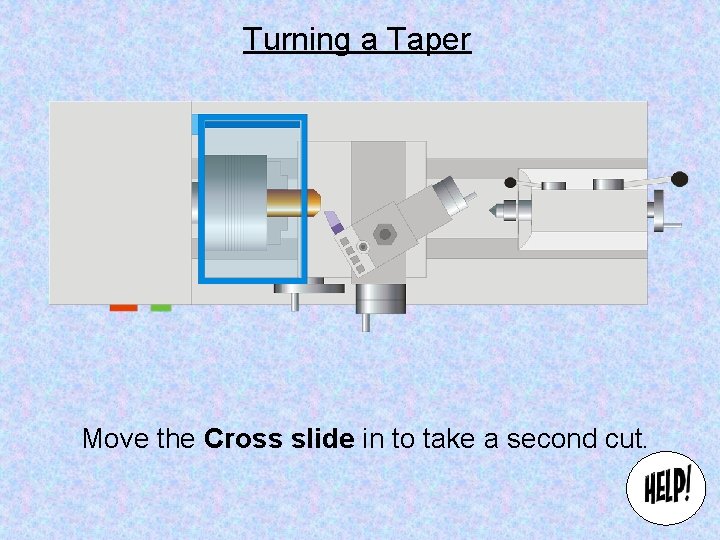

Turning a Taper Move the Cross slide in to take a second cut.

Turning a Taper Use the Compound slide to take a second cut.

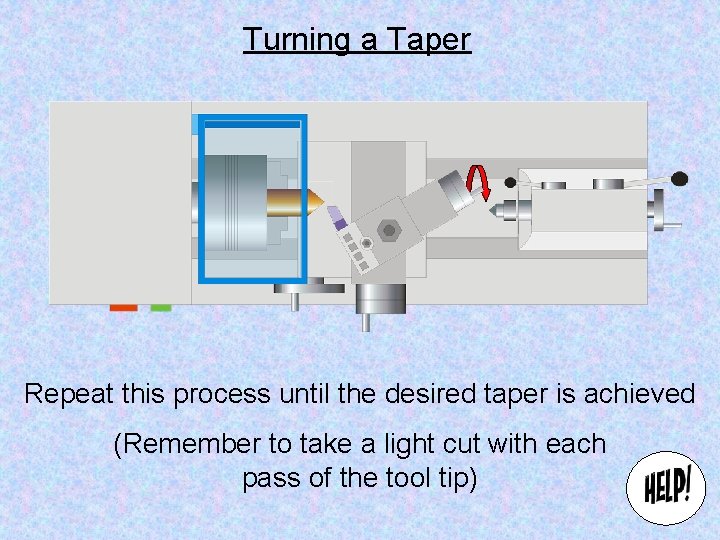

Turning a Taper Repeat this process until the desired taper is achieved (Remember to take a light cut with each pass of the tool tip)

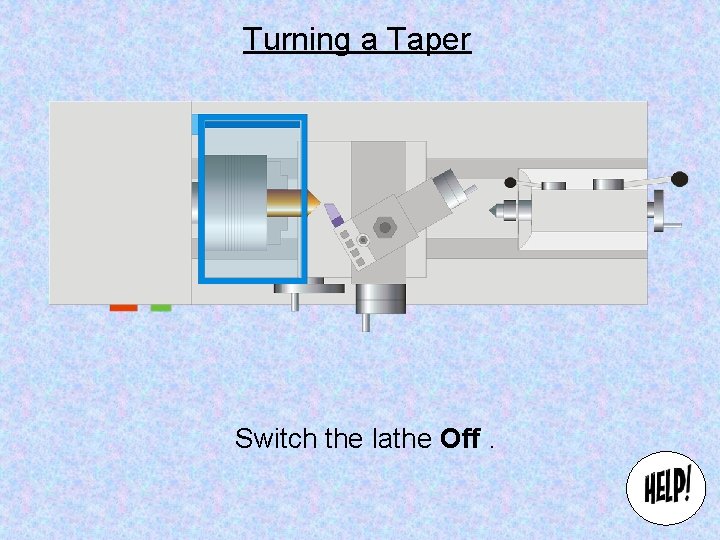

Turning a Taper Switch the lathe Off.

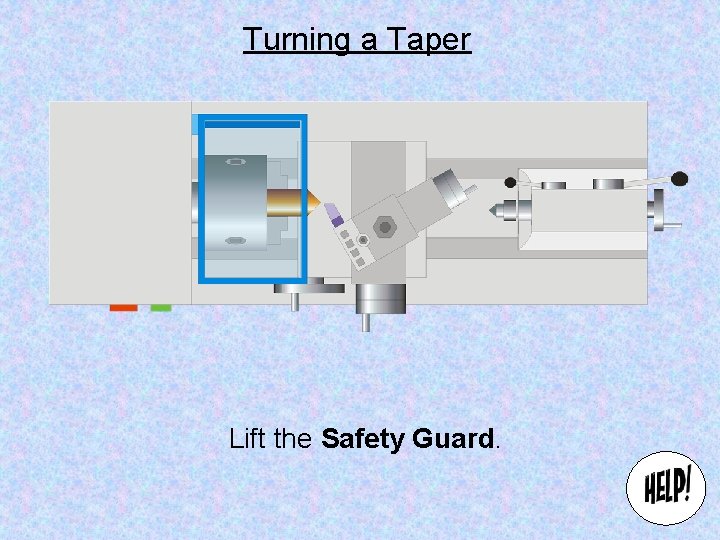

Turning a Taper Lift the Safety Guard.

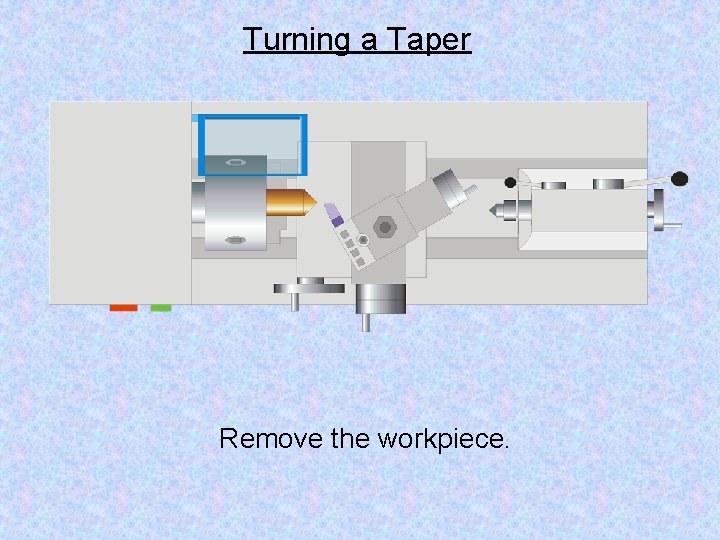

Turning a Taper Remove the workpiece.

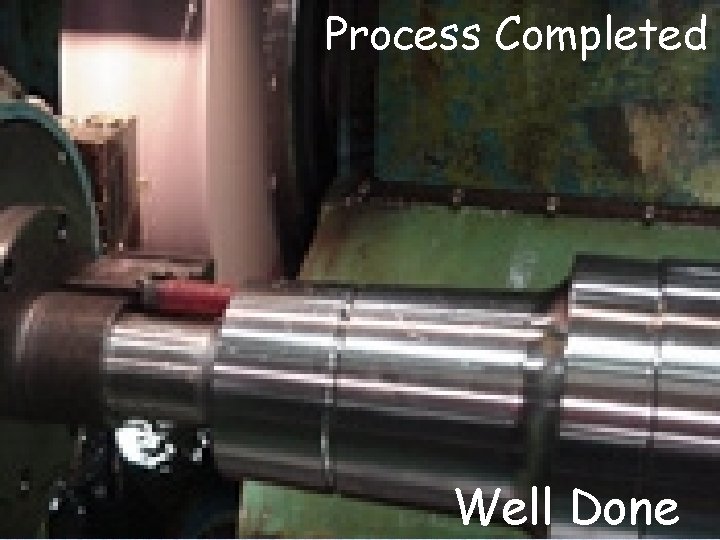

Process Completed Well Done
