Tangible User Interfaces TUIs What are Tangible User

Tangible User Interfaces (TUI’s)

What are Tangible User Interfaces? Physical World TUI’s Digital world 2

GUI vs TUI (Ishii 2008) 3

Precursors • E. g. Marble answering machine, Durrell Bishop, Royal College of Art, Interaction Design, 1992. http: //vimeo. com/19930744 4

Early Work • Fitzmaurice et al. 1995 – Graspable user interfaces http: //www. youtube. com/watch? v=V-TGEe. Imro • Ishii et al. 1997 - Tangible bits 5

Recent work • E. g. Lumino, Baudish et al, 2010 http: //www. youtube. co m/watch? v=ty. Bb. Lq. Vi. X 7 g • E. g. Portico, Avrahami et al, 2011 http: //vimeo. com/29359 319 6

Benefits of TUI’s (Ishii 2008) 1. Double interaction loop immediate tactile feedback 2. Persistency of tangibles 3. Coupled input/output space 4. Special vs generic purpose 5. Space-multiplexed vs timemultiplexed input Also fun + engaging! 7

Can we connect these physical drawing tools to the digital space? • Sense position & orientation on touch technology • Add intelligent drawing support • How can they be best combined with multi-touch surfaces for enjoyable and productive interaction? 8

Our Approach Capacitive Touch (Cap. TUI) Infrared Touch (Tan. Geo) – Ryan Tan & Bryan Chen – Rachel Blagojevic – Jacky Zhen • Design – Tangible hardware • Implementation – Recognizer – Drawing application • Usability evaluation 9

Cap. TUI Technology – Capacitive • Small touch screens e. g. i. Pad, smart phones etc… • Touch detection via electrical pulse from fingers/conductive material 10

Design: Tangible Hardware 11

Final Design 12

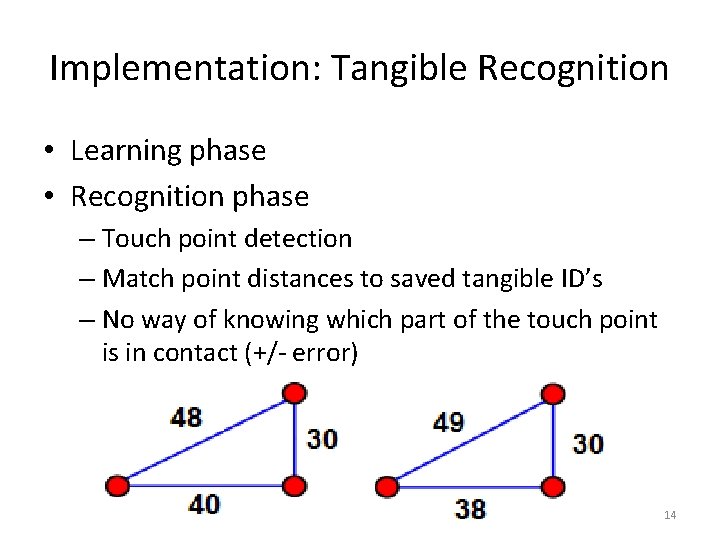

Implementation: Tangible Recognition • Tangible ID – 3 point (min) unique patterns Valid patterns Invalid patterns 13

Implementation: Tangible Recognition • Learning phase • Recognition phase – Touch point detection – Match point distances to saved tangible ID’s – No way of knowing which part of the touch point is in contact (+/- error) 14

Implementation: Drawing Application • Beautification Ink-to-edge snapping & Length visualization Corner snapping 15

Implementation: Drawing Application • Visual drawing guides Tangible outline Angle visualization 16

• First iteration: Video • Second iteration: Demo 17

Evaluation • First iteration: usability – Simple drawing tasks • Second iteration: comparative study – Recognizable vs non recognizable drawing tools on screen 18

Usability Evaluation • Can users construct simple drawings using the tangibles? Is the system usable? • 10 participants • 5 simple drawing tasks 19

Usability Evaluation: Results • First exploration – Technology works – Is usable for simple drawings • Tangible detection problems – Stability – Consistent circuit – Finger to tangible contact – Friction with screen – Comfortable drawing • Tangible outline helpful – recognition indicator • Drawing guides needed 20

Comparative Study • Does Cap. TUI assist users to easily draw precise geometric drawings • Recognizable vs non recognizable drawing tools on screen • 12 Participants 21

Comparative Study: Results • Cap. TUI rated significantly higher than Paint overall • Visual guides helpful for precise drawing – significantly lower average angle error. • Participants enjoyed using Cap. TUI significantly more • Participants believed that Cap. TUI produces significantly more tidy drawings than Paint. • Making fine grained movements with the tangibles difficult • Tangible design still needs work – consistent detection – accurate positioning 22

Tangeo Technology – Infrared • Table tops e. g. Microsoft Surface 2. 0 • Pixel. Sense - Touch detection via infrared reflection for each pixel • Image processing on detected pixels • Identifies finger/blobs/tags 23

Design: Tangible Hardware 24

Final Design 25

Implementation: Tangible Recognition • Learning phase • Recognition phase – Detection via custom tags – Use tag location to get tangible outline – Use thresholds for blob sizes 26

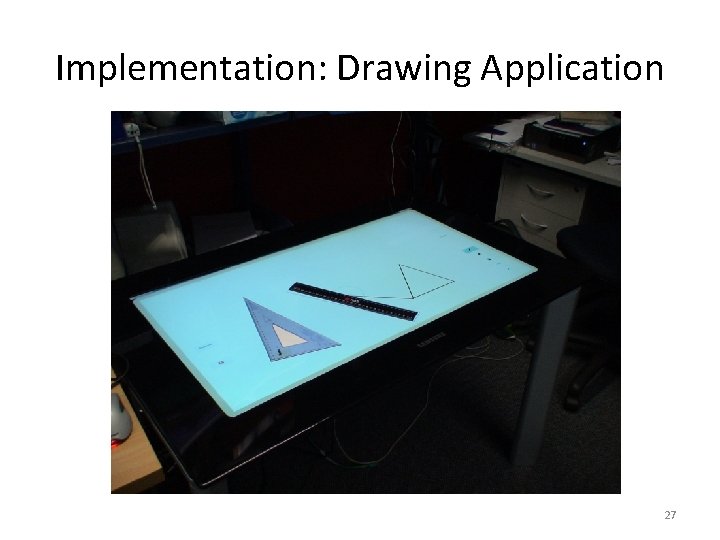

Implementation: Drawing Application 27

Implementation: Drawing Application • Visual Guides – Tangible outline – Angle visualisation – Length visualisation – Ink beautification • corner snapping • ink-to-edge snapping 28

Usability Evaluation • Can users construct simple geometric drawings using Tangeo? Is the system usable? • 2 phase cycle • 8 participants • 4 drawing tasks 29

Usability Evaluation: Results • • • Enjoyable / easy to use the tangibles Good recognition Visual guides helpful and easy to understand Drawing accuracy – less positive perception Add stylus for drawing 30
