Tangents Use properties of tangents Solve problems involving
Tangents • Use properties of tangents. • Solve problems involving circumscribed polygons.
TANGENTS I A tangent to circle B radius C point of tangency AC is tangent to circle I because the line containing AC intersects the circle at exactly one point. This point is called the point of tangency.

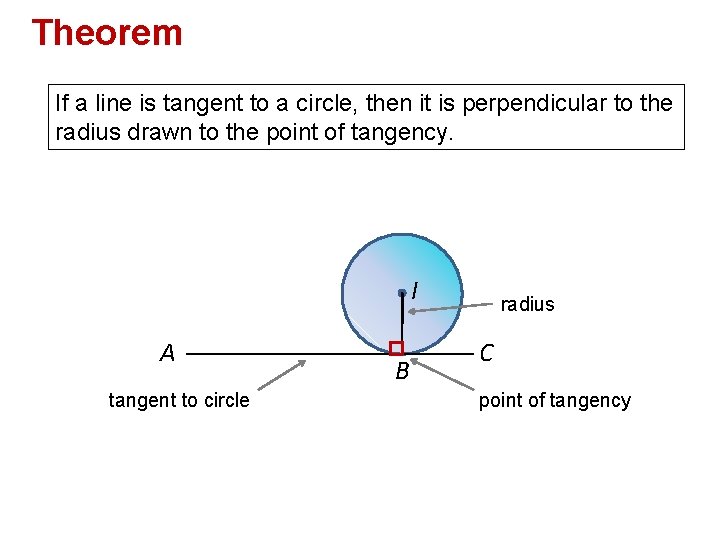

Theorem If a line is tangent to a circle, then it is perpendicular to the radius drawn to the point of tangency. I A tangent to circle B radius C point of tangency
Example 1 Find Lengths ED is tangent to circle F at point E. Find x. 4 x 3
Theorem If a line is perpendicular to the radius of a circle at its endpoint on the circle, then it is tangent to the circle. I A tangent to circle B radius C point of tangency
Example 2 Identify Tangents Determine whether MN is tangent to circle L. L O 3 M 4 2 N
Example 3 Identify Tangents Determine whether PQ is tangent to circle R. 4 R P S 5 4 Q
MORE THAN ONE TANGENT More than one line can be tangent to the same circle. A B D C
Theorem If two segments from the same exterior point are tangent to a circle, then they are congruent. A B C
Example 4 Solve a Problem Involving Tangents Find x A 6 x + 5 -2 x + 37 B C Q R

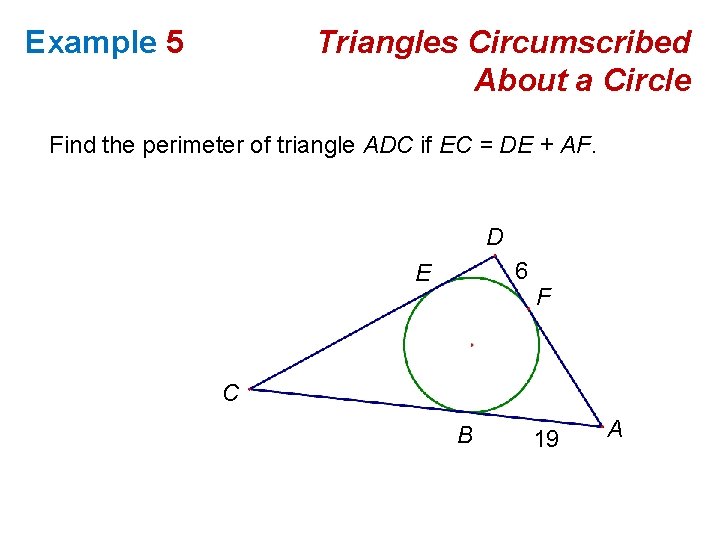

Example 5 Triangles Circumscribed About a Circle Find the perimeter of triangle ADC if EC = DE + AF. D 6 E F C B 19 A
