Tandem Bike Storage Proposal Original Concept Development Team

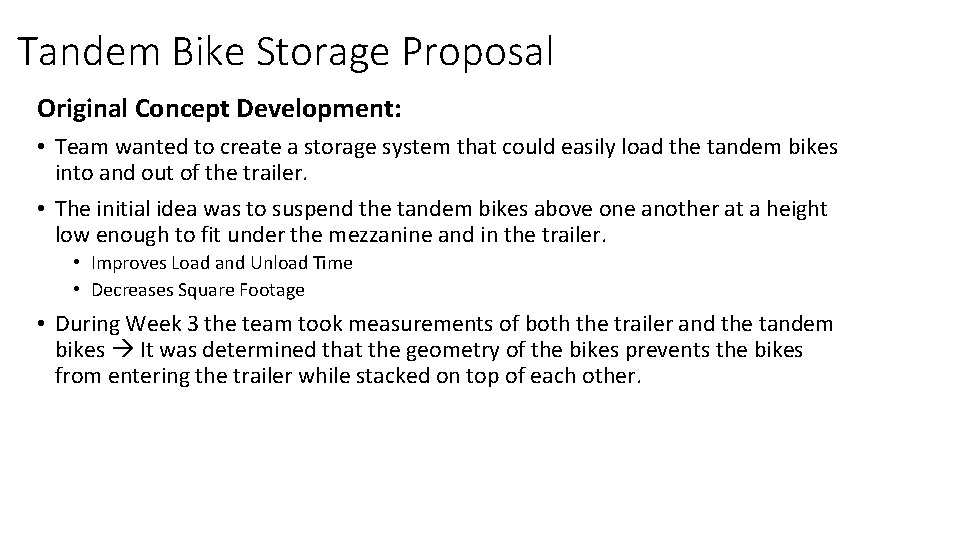

Tandem Bike Storage Proposal Original Concept Development: • Team wanted to create a storage system that could easily load the tandem bikes into and out of the trailer. • The initial idea was to suspend the tandem bikes above one another at a height low enough to fit under the mezzanine and in the trailer. • Improves Load and Unload Time • Decreases Square Footage • During Week 3 the team took measurements of both the trailer and the tandem bikes It was determined that the geometry of the bikes prevents the bikes from entering the trailer while stacked on top of each other.

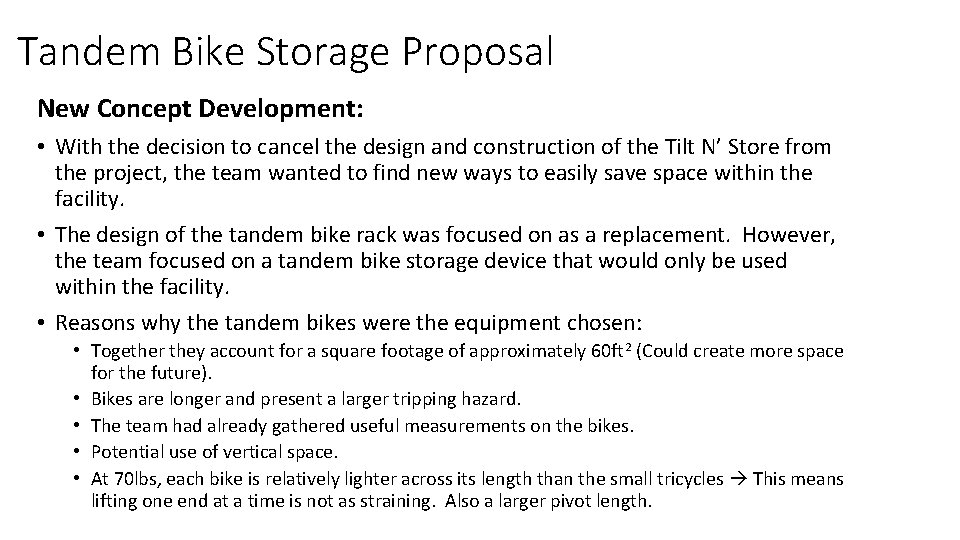

Tandem Bike Storage Proposal New Concept Development: • With the decision to cancel the design and construction of the Tilt N’ Store from the project, the team wanted to find new ways to easily save space within the facility. • The design of the tandem bike rack was focused on as a replacement. However, the team focused on a tandem bike storage device that would only be used within the facility. • Reasons why the tandem bikes were the equipment chosen: • Together they account for a square footage of approximately 60 ft 2 (Could create more space for the future). • Bikes are longer and present a larger tripping hazard. • The team had already gathered useful measurements on the bikes. • Potential use of vertical space. • At 70 lbs, each bike is relatively lighter across its length than the small tricycles This means lifting one end at a time is not as straining. Also a larger pivot length.

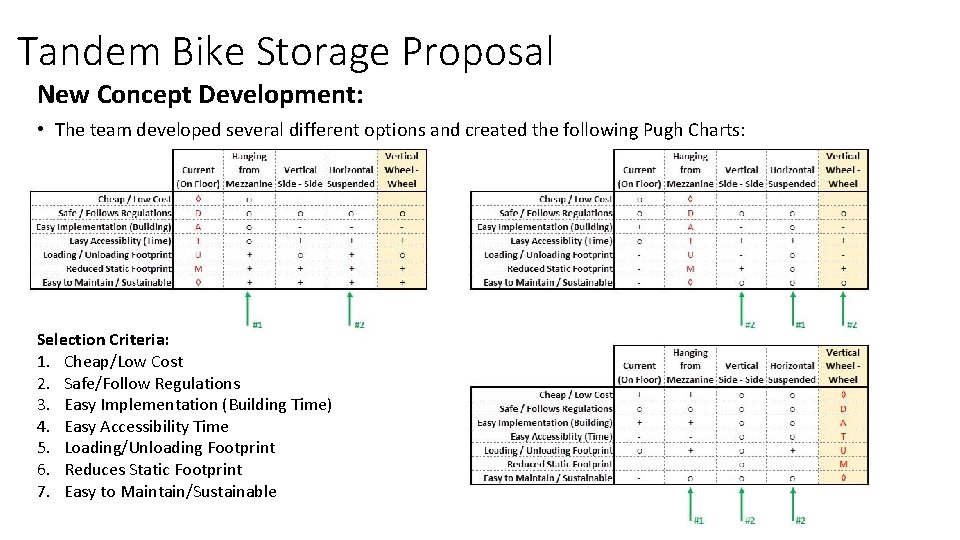

Tandem Bike Storage Proposal New Concept Development: • The team developed several different options and created the following Pugh Charts: Selection Criteria: 1. Cheap/Low Cost 2. Safe/Follow Regulations 3. Easy Implementation (Building Time) 4. Easy Accessibility Time 5. Loading/Unloading Footprint 6. Reduces Static Footprint 7. Easy to Maintain/Sustainable

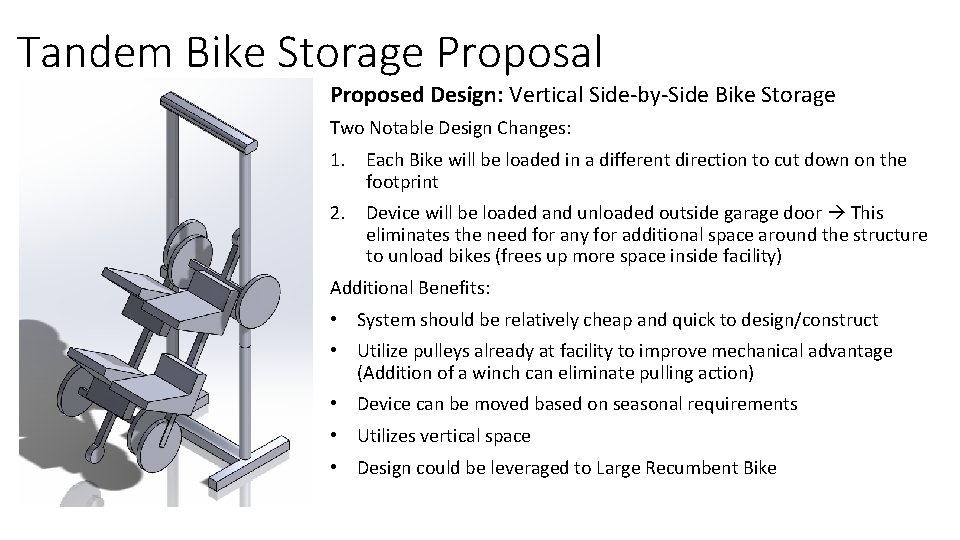

Tandem Bike Storage Proposal Proposed Design: Vertical Side-by-Side Bike Storage Two Notable Design Changes: 1. Each Bike will be loaded in a different direction to cut down on the footprint 2. Device will be loaded and unloaded outside garage door This eliminates the need for any for additional space around the structure to unload bikes (frees up more space inside facility) Additional Benefits: • System should be relatively cheap and quick to design/construct • Utilize pulleys already at facility to improve mechanical advantage (Addition of a winch can eliminate pulling action) • Device can be moved based on seasonal requirements • Utilizes vertical space • Design could be leveraged to Large Recumbent Bike

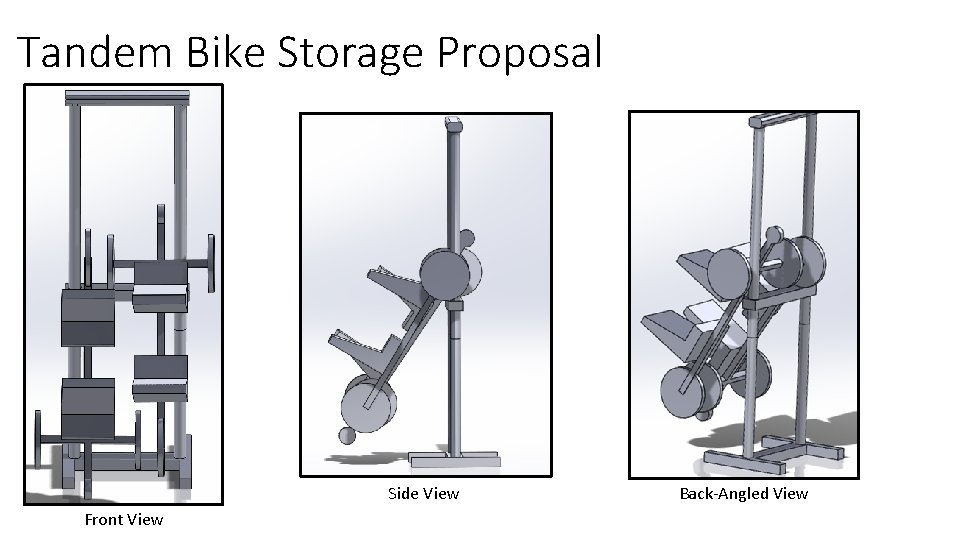

Tandem Bike Storage Proposal Side View Front View Back-Angled View

Tandem Bike Storage Proposal Feasibility Analysis: Pulley Analysis – Same as was preformed prior to Tilt N’ Store Design Potential Costs • Framing – Steel Tubing ~$100 or Wood ~$30 • Pulleys – No Costs • Rope – $0 to $30 • Wheels ~$30 • Miscellaneous Costs ~$50
