TAML Degradation of Food Dye BY MASSIMO ADAMS

TAML Degradation of Food Dye BY: MASSIMO ADAMS GRADE 9 PITTSBURGH CENTRAL CATHOLIC

Problem Water systems are polluted with: Antibiotics Pharmaceuticals (Estrogen, etc. ) Mercury Sulfur Sewage Fertilizers Organics Cleaning projects Dyes and other colored agents

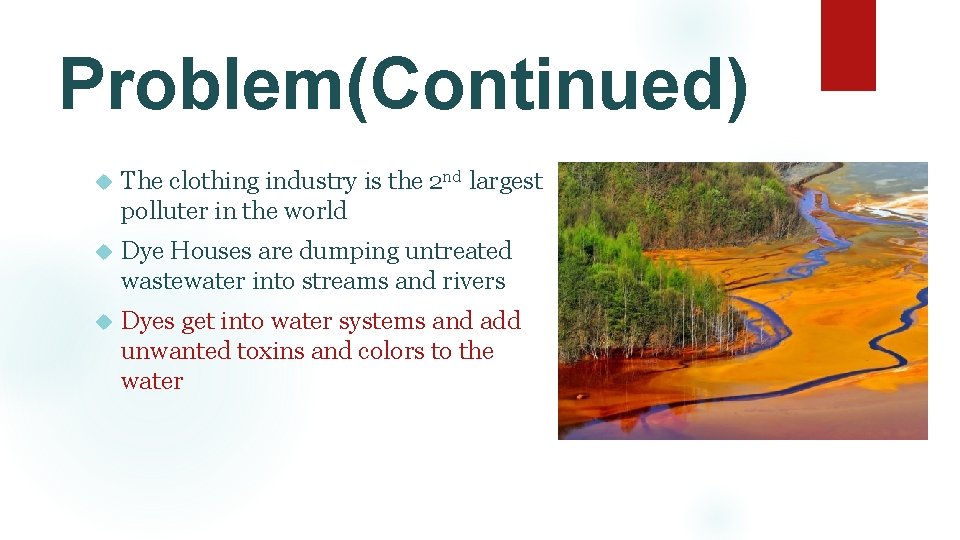

Problem(Continued) The clothing industry is the 2 nd largest polluter in the world Dye Houses are dumping untreated wastewater into streams and rivers Dyes get into water systems and add unwanted toxins and colors to the water

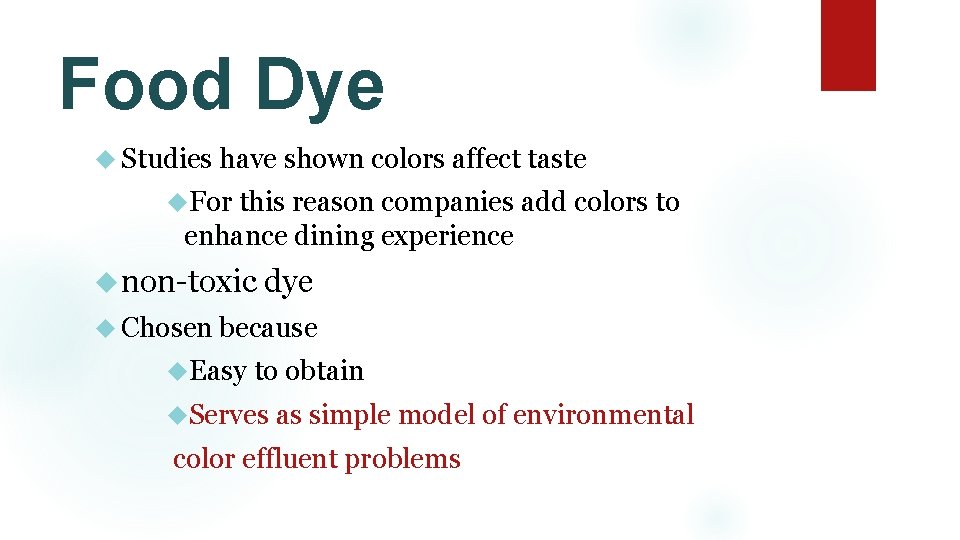

Food Dye Studies have shown colors affect taste For this reason companies add colors to enhance dining experience non-toxic dye Chosen because Easy to obtain Serves as simple model of environmental color effluent problems

Green Chemistry designed to perform the same jobs as regular chemistry without the environmental hazards. Prevents pollution at the molecular level Reduces the negative impacts of chemical projects Lessons and sometimes eliminates hazard from existing products and processes

TAML GREEN catalyst engineered by Dr. Terry Collins at CMU Accelerates H 2 O 2 oxidation reaction Highly selective Made of common elements (C, H, O, N, Fe) Economical Easy to synthesize

TAML(Continued) Low working concentrations Degrades quickly Produces non-toxic byproducts Practical uses include: Textile dye bleaching Pulp and paper bleaching Water cleaning Laundry stain remover Petroleum refining Rapid destruction of bio-chem warfare

Hydrogen Peroxide Pale blue liquid Used as disinfectant, antiseptic, and oxidizer Works with TAML in oxidation chemistry processes Weak acid Is the ideal green reagent: Nontoxic Inexpensive Disposable

TAML and Hydrogen Peroxide Work together to clean water TAML catalyzes peroxide reaction Has been extensively tested and has effectively degraded numerous chemical pollutants Fast Acting

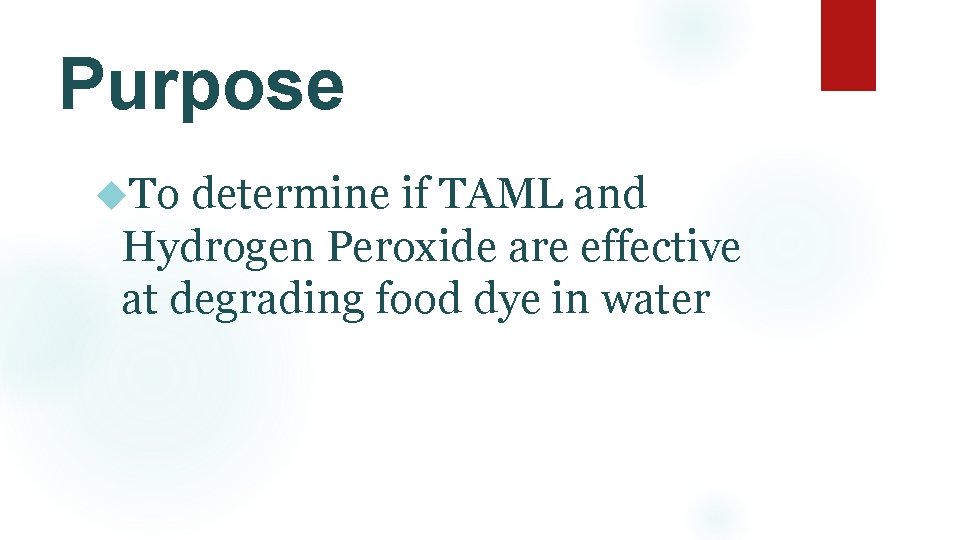

Purpose To determine if TAML and Hydrogen Peroxide are effective at degrading food dye in water

Hypotheses Null- The TAML and Hydrogen Peroxide will not significantly degrade the food dye Alternative - The TAML and Hydrogen Peroxide will significantly degrade the food dye

Materials Science Kit Educator Spectrophotometer TAML – Older Version(2007) Super Active TAML (2017) Hydrogen Peroxide 60 13 x 100 mm borosilicate culture test tubes Blue food coloring Red food coloring Macropipette Micropipette Tap Water Test tube rack Pipette tips 15 m. L conical tubes

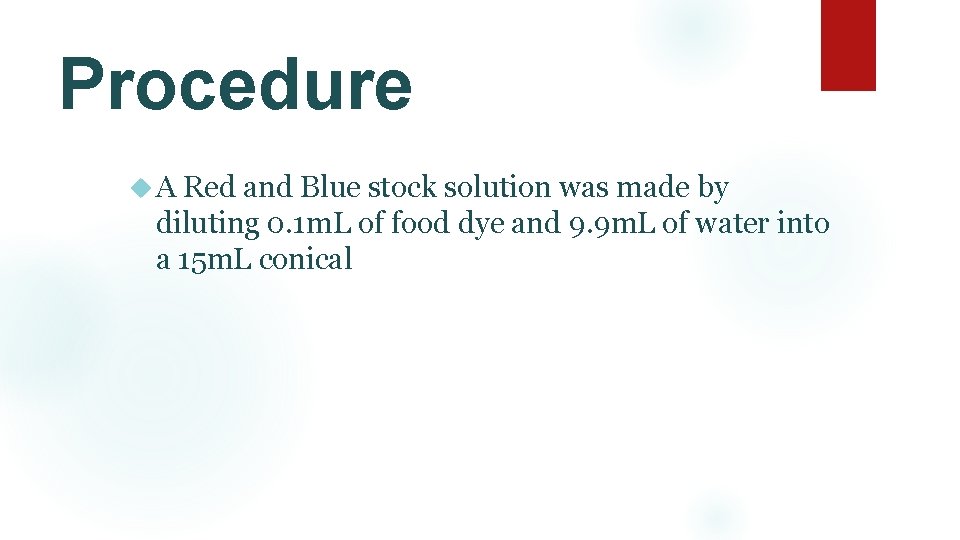

Procedure A Red and Blue stock solution was made by diluting 0. 1 m. L of food dye and 9. 9 m. L of water into a 15 m. L conical

Procedure(Continued) The following ingredients were added to 13 x 100 mm borosilicate culture test tubes Control H 2 O 2 Only Super Active TAML and H 2 O 2 Food Coloring Stock Solution 5 m. L H 2 O 2 10 m. M 0 m. L 0. 1 m. L TAML 20 m. M 0 m. L 0. 2 m. L Water 0. 3 m. L 0. 2 m. L 0 m. L

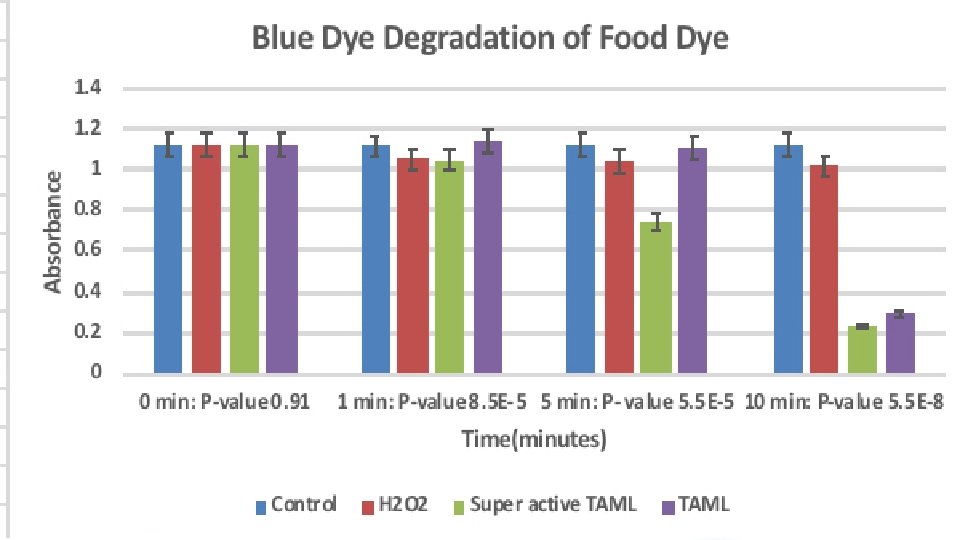

Procedure(Continued) A reading of the absorbance at 600 nanometers was take for the blue dye at 0 min, 1 min, 5 min, and 10 min A reading of the absorbance at 500 nanometers was take for the red dye at 0 min, 1 min, 5 min, and 10 min

Dunnett Test (Red) Groups Compared 0 min 1 min 5 min 10 min 1 -2 Hydrogen peroxide Not significant Significant Not significant 1 -3 Super Active TAML 1 -4 TAML Not significant Significant Not significant Not Significant

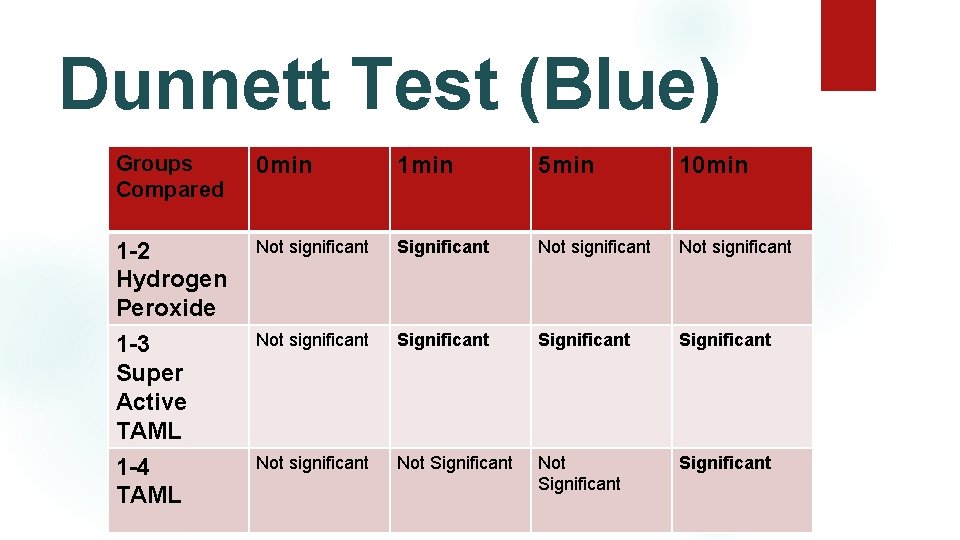

Dunnett Test (Blue) Groups Compared 0 min 1 min 5 min 10 min 1 -2 Hydrogen Peroxide Not significant Significant Not significant 1 -3 Super Active TAML 1 -4 TAML Not significant Significant Not significant Not Significant

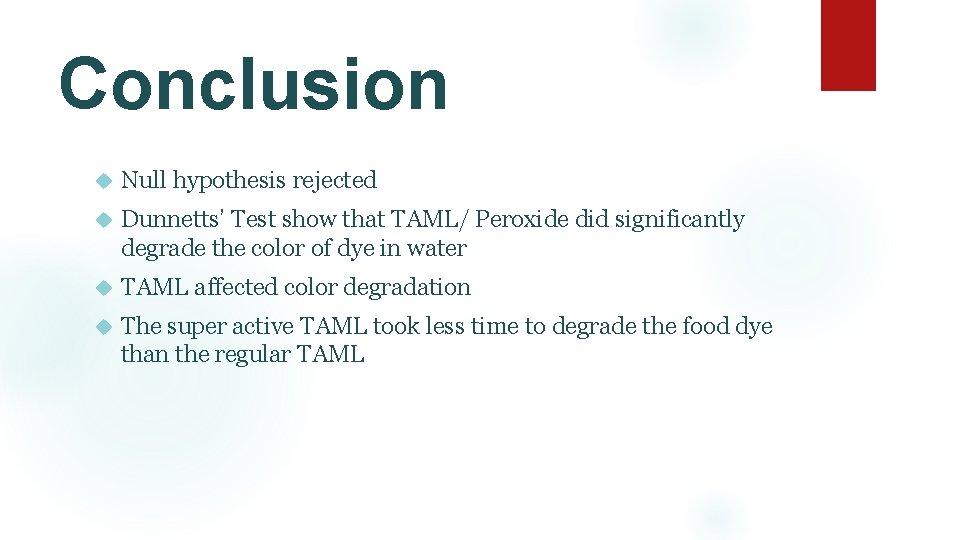

Conclusion Null hypothesis rejected Dunnetts’ Test show that TAML/ Peroxide did significantly degrade the color of dye in water TAML affected color degradation The super active TAML took less time to degrade the food dye than the regular TAML

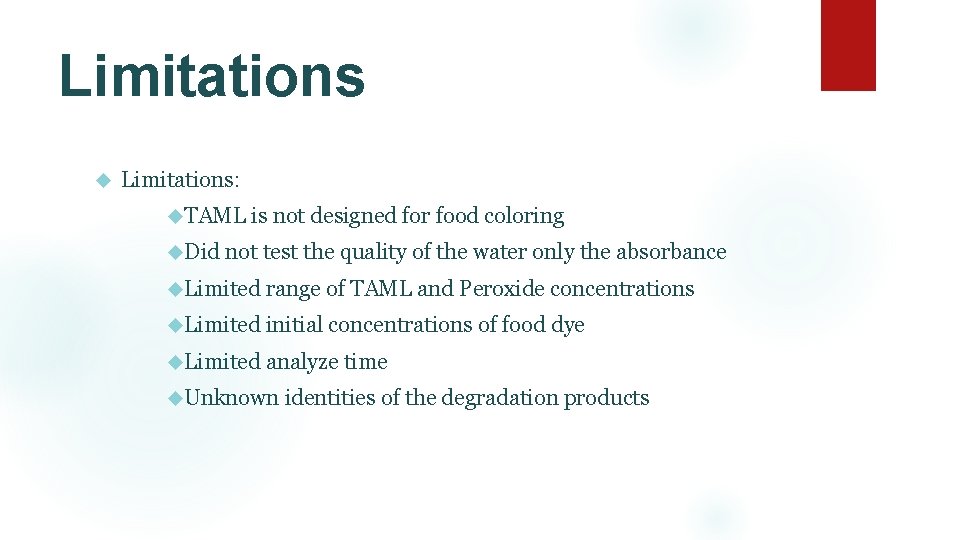

Limitations Limitations: TAML is not designed for food coloring Did not test the quality of the water only the absorbance Limited range of TAML and Peroxide concentrations Limited initial concentrations of food dye Limited analyze time Unknown identities of the degradation products

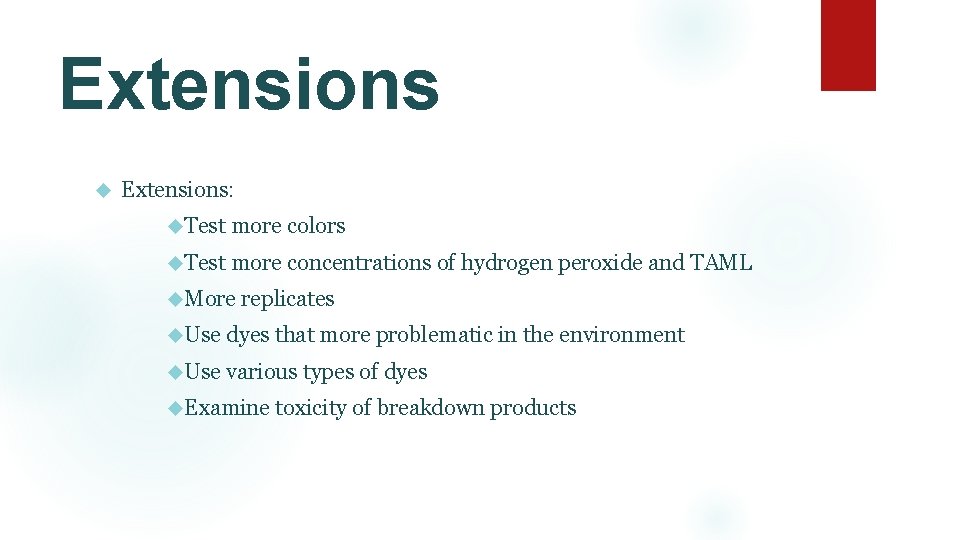

Extensions Extensions: Test more colors Test more concentrations of hydrogen peroxide and TAML More replicates Use dyes that more problematic in the environment Use various types of dyes Examine toxicity of breakdown products

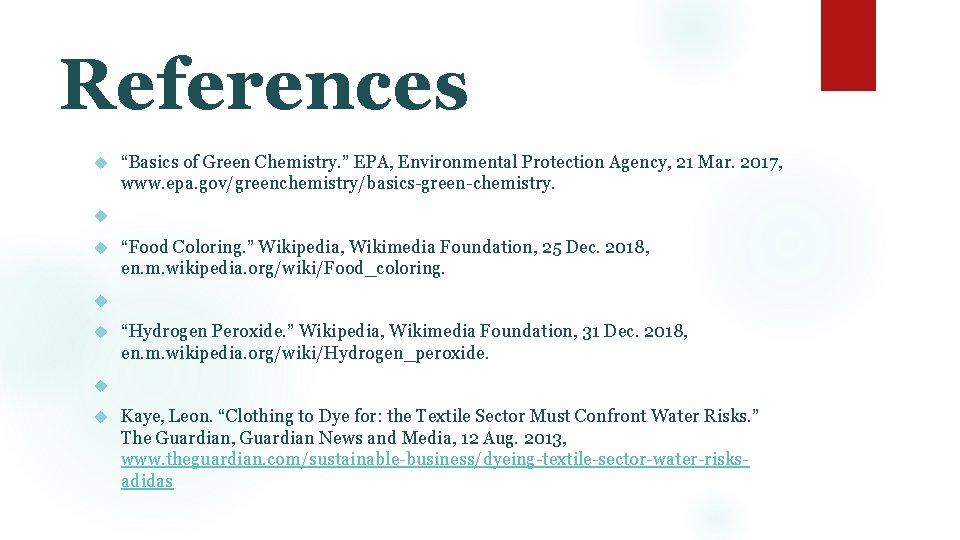

References “Basics of Green Chemistry. ” EPA, Environmental Protection Agency, 21 Mar. 2017, www. epa. gov/greenchemistry/basics-green-chemistry. “Food Coloring. ” Wikipedia, Wikimedia Foundation, 25 Dec. 2018, en. m. wikipedia. org/wiki/Food_coloring. “Hydrogen Peroxide. ” Wikipedia, Wikimedia Foundation, 31 Dec. 2018, en. m. wikipedia. org/wiki/Hydrogen_peroxide. Kaye, Leon. “Clothing to Dye for: the Textile Sector Must Confront Water Risks. ” The Guardian, Guardian News and Media, 12 Aug. 2013, www. theguardian. com/sustainable-business/dyeing-textile-sector-water-risksadidas

References(Continued) Kundu, Soumen, et al. “TAML Activator/Peroxide-Catalyzed Facile Oxidative Degradation of the Persistent Explosives Trinitrotoluene and Trinitrobenzene in Micellar Solutions. ” ACS Publications, 15 Apr. 2013, pubs. acs. org/doi/abs/10. 1021/es 4000627#/doi/abs/10. 1021/es 4000627. Laird , Amy P. “Catalysts Developed at CMU Remove Toxic Chemical from Water. ” Formative vs Summative Assessment - Eberly Center - Carnegie Mellon University, 9 Aug. 2017, www. cmu. edu/news/stories/archives/2017/august/bpa-catalysts. html. Shen, Longzhu Q. “Experimental and Theoretical Studies of TAML® Activators : Pharmaceuticals Degradation, Nuclear Tunneling and Electronic Structure Analysis. ” Figshare, 1 July 2018, figshare. com/articles/Experimental_and_Theoretical_Studies_of_TAML_Activators_Pharm aceuticals_Degradation_Nuclear_Tunneling_and_Electronic_Structure_Analysis/6716543. Sweeny, Glynis. “It's the Second Dirtiest Thing in the World - And You're Wearing It. ” Alternet, 20 Aug. 2015, www. alternet. org/2015/08/its-second-dirtiest-thing-world-and-youre -wearing-it/.

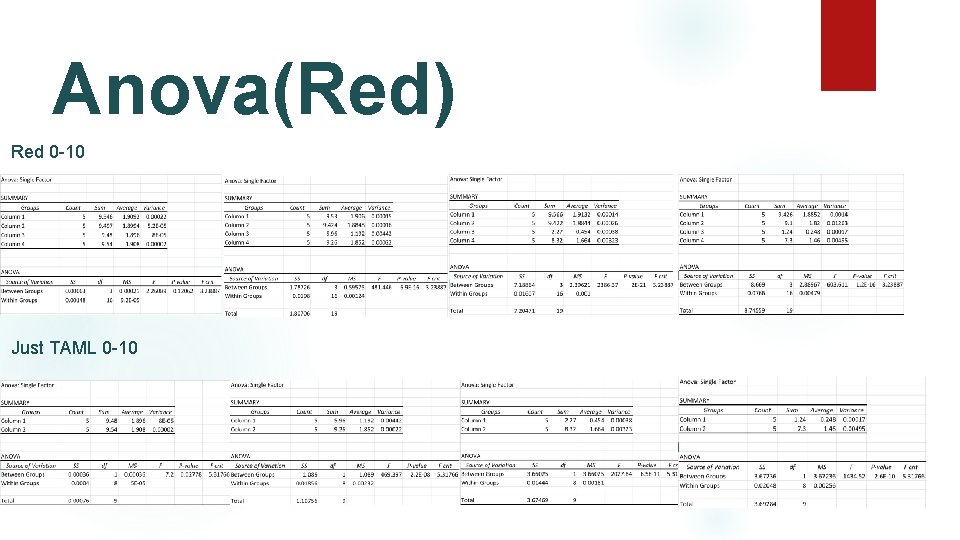

Anova(Red) Red 0 -10 Just TAML 0 -10

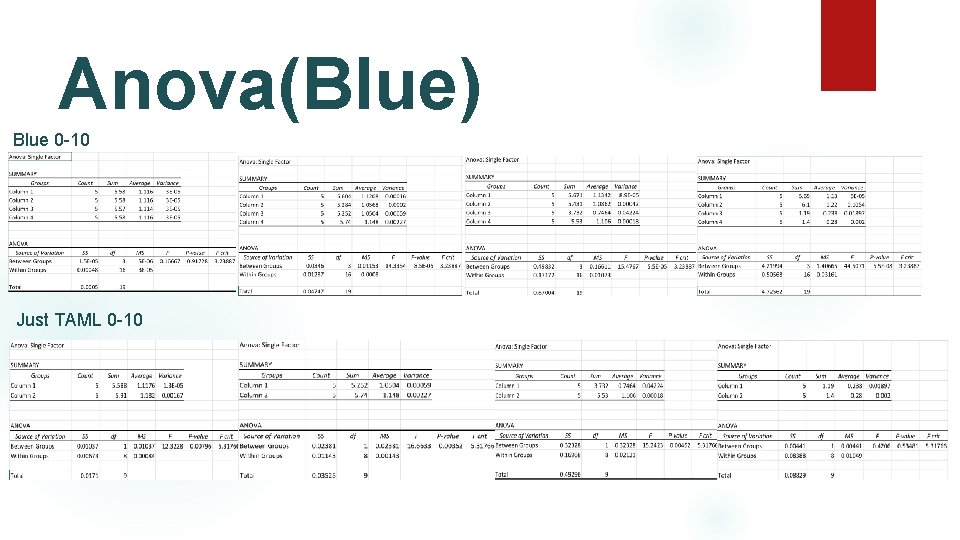

Anova(Blue) Blue 0 -10 Just TAML 0 -10
