TAMING THE LEARNING ZOO SUPERVISED LEARNING ZOO Bayesian

TAMING THE LEARNING ZOO

SUPERVISED LEARNING ZOO Bayesian learning � Maximum likelihood � Maximum a posteriori Decision trees Support vector machines Neural nets k-Nearest-Neighbors 2

VERY APPROXIMATE “CHEAT-SHEET” FOR TECHNIQUES DISCUSSED IN CLASS Attributes N scalability D scalability Capacity Bayes nets D Good Naïve Bayes D Excellent Low Decision trees D, C Excellent Fair Neural nets C Poor Good SVMs C Good Nearest neighbors D, C Learn: E, Eval: P Poor Excellent

WHAT HAVEN’T WE COVERED? Boosting � Way of turning several “weak learners” into a “strong learner” � E. g. used in popular random forests algorithm Regression: predicting continuous outputs y=f(x) � Neural nets, nearest neighbors work directly as described � Least squares, locally weighted averaging Unsupervised learning � Clustering � Density estimation � Dimensionality reduction � [Harder to quantify performance]

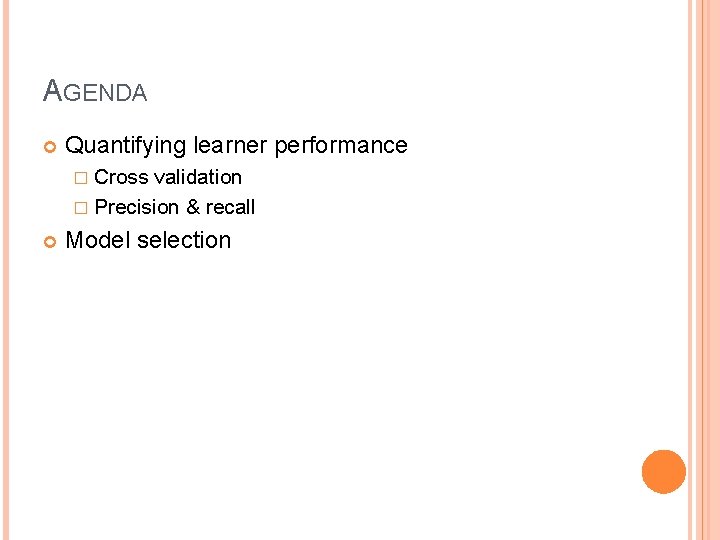

AGENDA Quantifying learner performance � Cross validation � Precision & recall Model selection

CROSS-VALIDATION

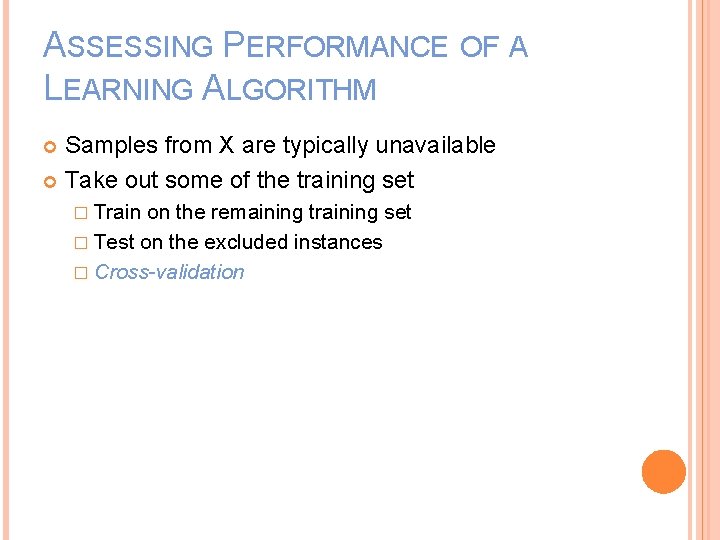

ASSESSING PERFORMANCE OF A LEARNING ALGORITHM Samples from X are typically unavailable Take out some of the training set � Train on the remaining training set � Test on the excluded instances � Cross-validation

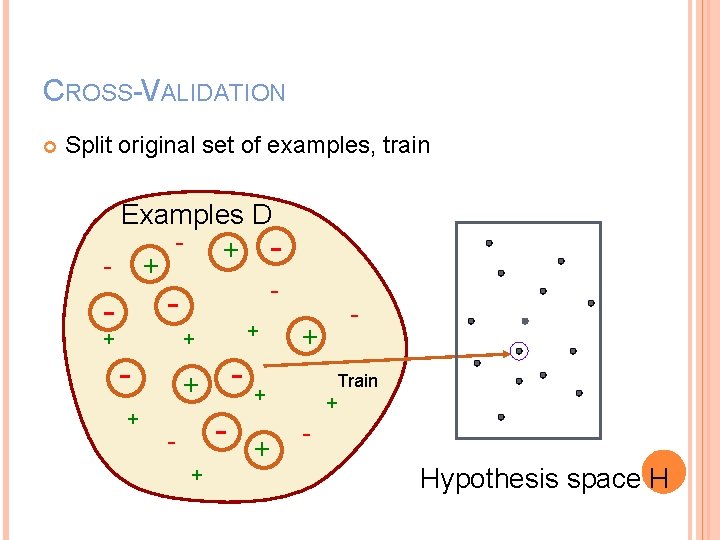

CROSS-VALIDATION Split original set of examples, train Examples D - + - - - + + Train + + + Hypothesis space H

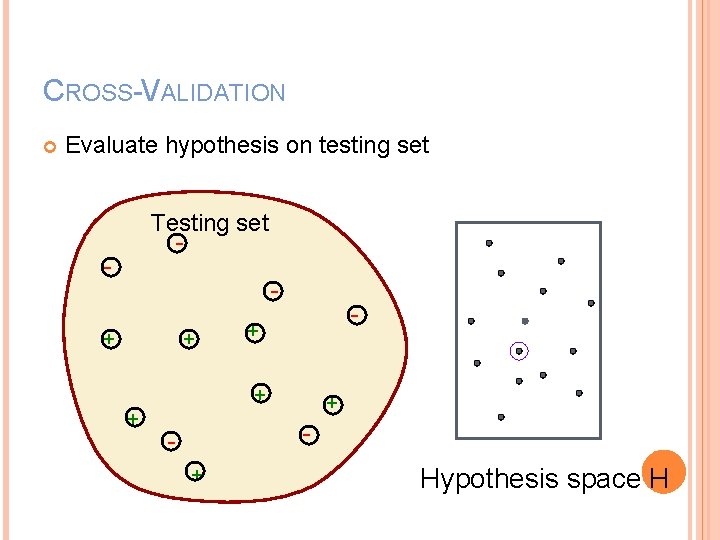

CROSS-VALIDATION Evaluate hypothesis on testing set Testing set - - - + + + + - + Hypothesis space H

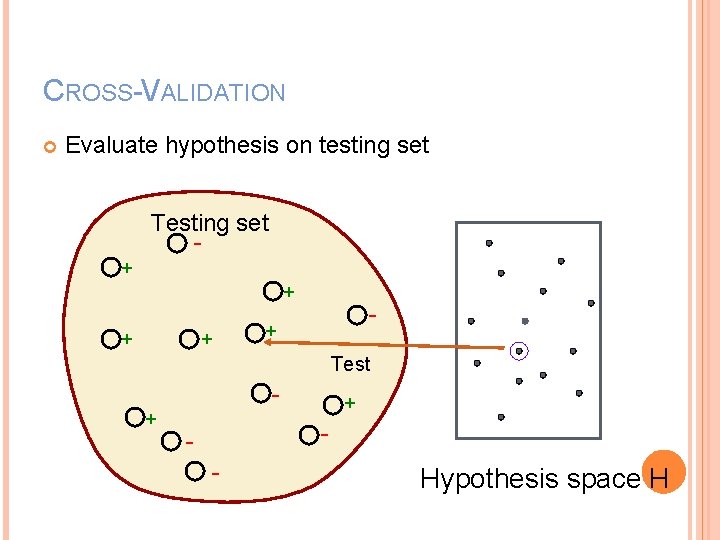

CROSS-VALIDATION Evaluate hypothesis on testing set Testing set - + + - + Test + - Hypothesis space H

CROSS-VALIDATION Compare true concept against prediction 9/13 correct Testing set - -- + ++ ++ -+ ++ ++ +- -+ -++ -- Hypothesis space H

COMMON SPLITTING STRATEGIES k-fold cross-validation Dataset Train Test

COMMON SPLITTING STRATEGIES k-fold cross-validation Dataset Train Leave-one-out (n-fold cross validation) Test

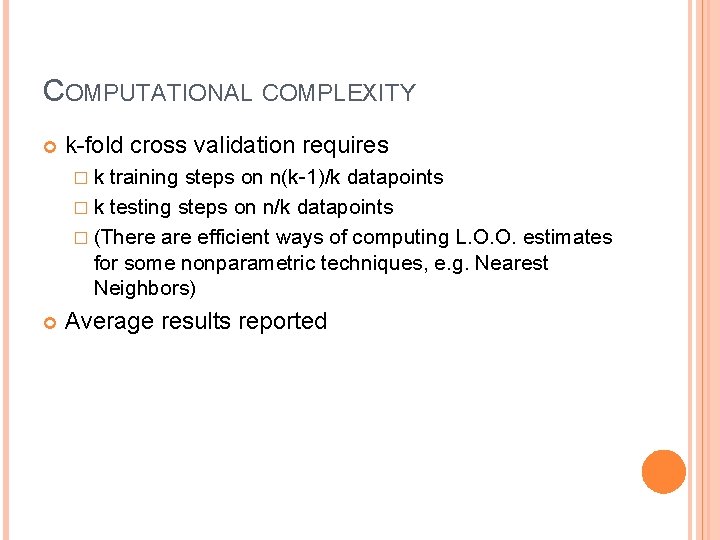

COMPUTATIONAL COMPLEXITY k-fold cross validation requires �k training steps on n(k-1)/k datapoints � k testing steps on n/k datapoints � (There are efficient ways of computing L. O. O. estimates for some nonparametric techniques, e. g. Nearest Neighbors) Average results reported

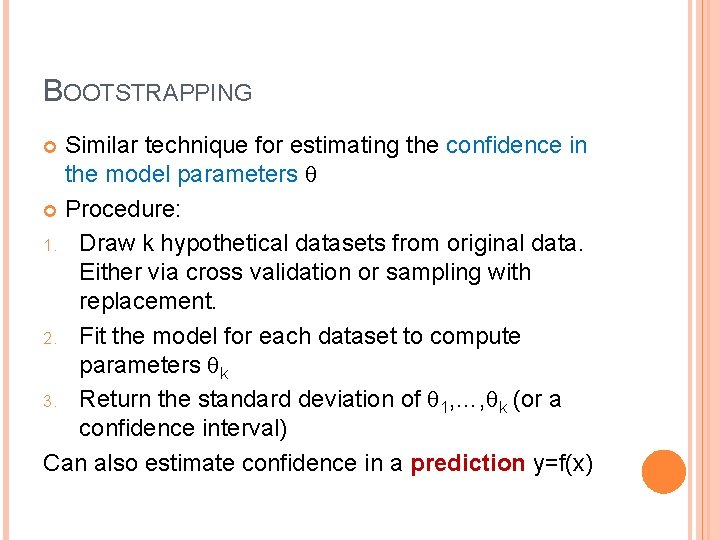

BOOTSTRAPPING Similar technique for estimating the confidence in the model parameters Procedure: 1. Draw k hypothetical datasets from original data. Either via cross validation or sampling with replacement. 2. Fit the model for each dataset to compute parameters k 3. Return the standard deviation of 1, …, k (or a confidence interval) Can also estimate confidence in a prediction y=f(x)

SIMPLE EXAMPLE: AVERAGE OF N NUMBERS Data D={x(1), …, x(N)}, model is constant Learning: minimize E( ) = i(x(i)- )2 => compute average Repeat for j=1, …, k : � Randomly sample subset x(1)’, …, x(N)’ from D � Learn j = 1/N i x(i)’ Return histogram of 1, …, j 0. 57 0. 55 0. 53 0. 51 Average 0. 49 Lower range 0. 47 Upper range 0. 45 0. 43 10 1000 |Data set| 10000

PRECISION RECALL CURVES 17

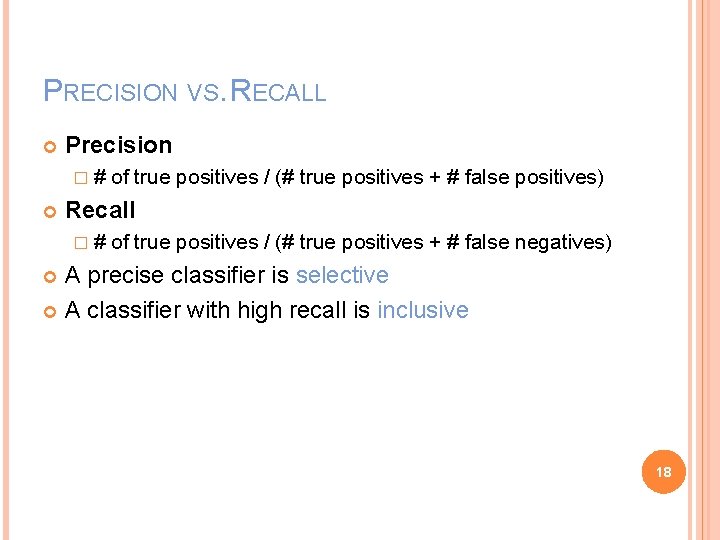

PRECISION VS. RECALL Precision �# of true positives / (# true positives + # false positives) Recall �# of true positives / (# true positives + # false negatives) A precise classifier is selective A classifier with high recall is inclusive 18

PRECISION-RECALL CURVES Measure Precision vs Recall as the classification boundary is tuned Recall Better learning performance 19 Precision

PRECISION-RECALL CURVES Measure Precision vs Recall as the classification boundary is tuned Which learner is better? Recall Learner B Learner A 20 Precision

AREA UNDER CURVE AUC-PR: measure the area under the precisionrecall curve Recall AUC=0. 68 21 Precision

AUC METRICS A single number that measures “overall” performance across multiple thresholds � Useful for comparing many learners � “Smears out” PR curve Note training / testing set dependence

MODEL SELECTION AND REGULARIZATION

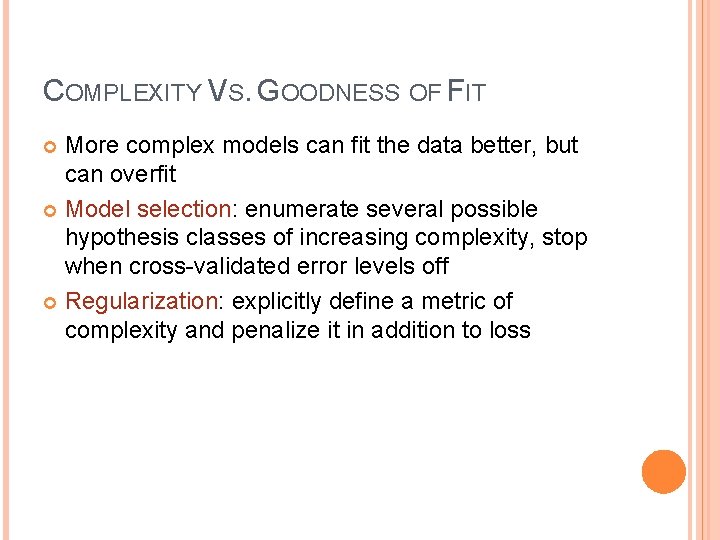

COMPLEXITY VS. GOODNESS OF FIT More complex models can fit the data better, but can overfit Model selection: enumerate several possible hypothesis classes of increasing complexity, stop when cross-validated error levels off Regularization: explicitly define a metric of complexity and penalize it in addition to loss

MODEL SELECTION WITH K-FOLD CROSSVALIDATION Parameterize learner by a complexity level C Model selection pseudocode: � For increasing levels of complexity C: err. T[C], err. V[C] = Cross-Validate(Learner, C, examples) [average k-fold CV training error, testing error] If err. T has converged, Needed capacity reached Find value Cbest that minimizes err. V[C] Return Learner(Cbest, examples)

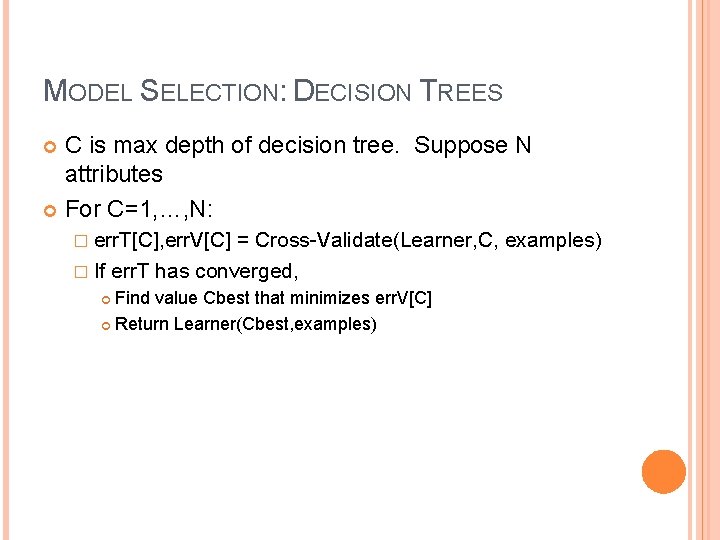

MODEL SELECTION: DECISION TREES C is max depth of decision tree. Suppose N attributes For C=1, …, N: � err. T[C], err. V[C] = Cross-Validate(Learner, C, examples) � If err. T has converged, Find value Cbest that minimizes err. V[C] Return Learner(Cbest, examples)

MODEL SELECTION: FEATURE SELECTION EXAMPLE Have many potential features f 1, …, f. N Complexity level C indicates number of features allowed for learning For C = 1, …, N � err. T[C], err. V[C] = Cross-Validate(Learner, examples[f 1, . . , f. C]) � If err. T has converged, Find value Cbest that minimizes err. V[C] Return Learner(Cbest, examples)

BENEFITS / DRAWBACKS Automatically chooses complexity level to perform well on hold-out sets Expensive: many training / testing iterations [But wait, if we fit complexity level to the testing set, aren’t we “peeking? ”]

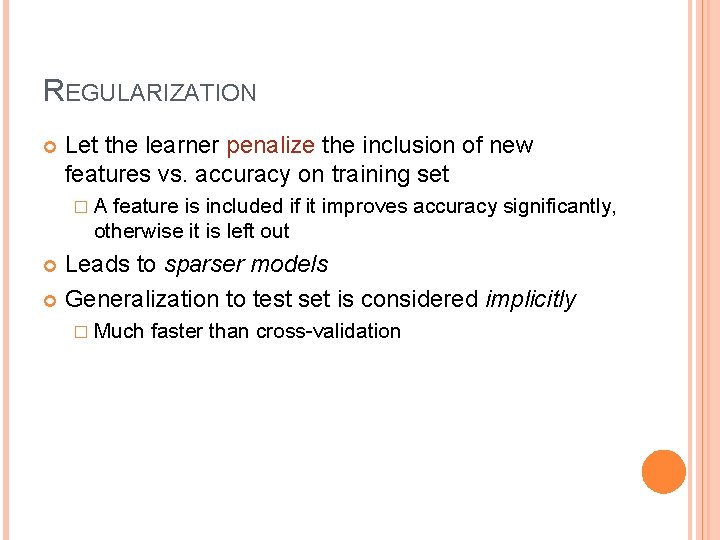

REGULARIZATION Let the learner penalize the inclusion of new features vs. accuracy on training set �A feature is included if it improves accuracy significantly, otherwise it is left out Leads to sparser models Generalization to test set is considered implicitly � Much faster than cross-validation

REGULARIZATION Minimize: � Cost(h) = Loss(h) + Complexity(h) Example with linear models y = Tx: error: Loss( ) = i (y(i)- Tx(i))2 � Lq regularization: Complexity( ): j | j|q � L 2 and L 1 are most popular in linear regularization � L 2 regularization leads to simple computation of optimal L 1 is more complex to optimize, but produces sparse models in which many coefficients are 0!

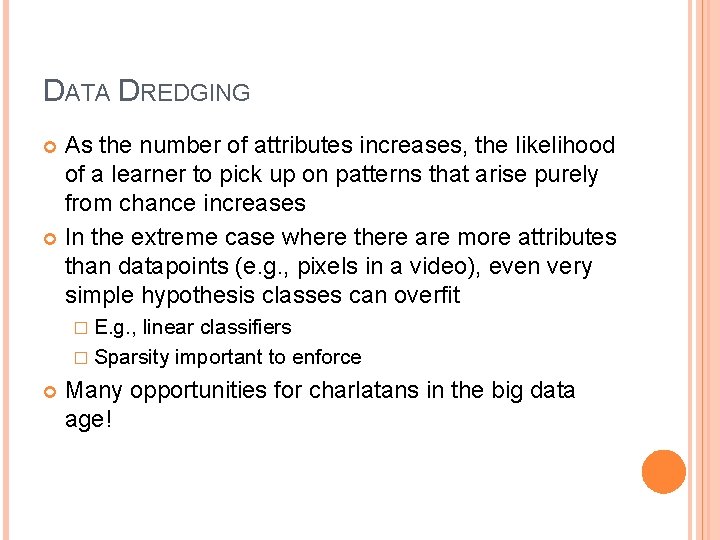

DATA DREDGING As the number of attributes increases, the likelihood of a learner to pick up on patterns that arise purely from chance increases In the extreme case where there are more attributes than datapoints (e. g. , pixels in a video), even very simple hypothesis classes can overfit � E. g. , linear classifiers � Sparsity important to enforce Many opportunities for charlatans in the big data age!

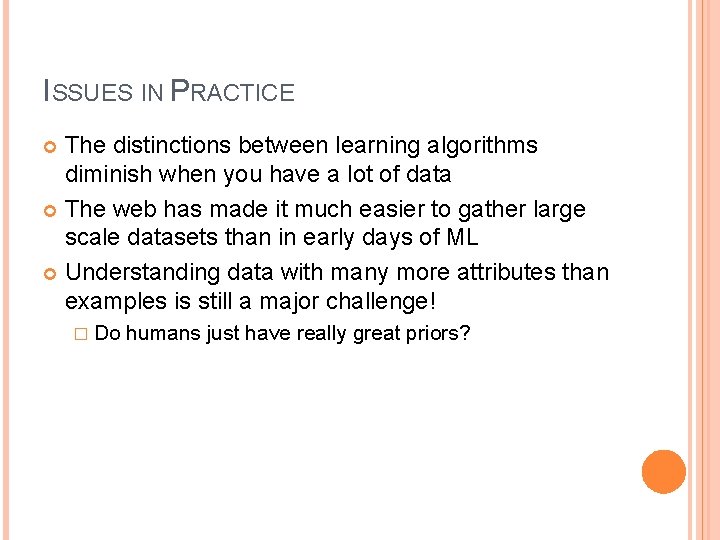

ISSUES IN PRACTICE The distinctions between learning algorithms diminish when you have a lot of data The web has made it much easier to gather large scale datasets than in early days of ML Understanding data with many more attributes than examples is still a major challenge! � Do humans just have really great priors?

NEXT LECTURES Intelligent agents (R&N Ch 2) Markov Decision Processes Reinforcement learning Applications of AI: computer vision, robotics
