TAM TRANSATLANTIC MODEL Designer Maynard Hill 11 lbs

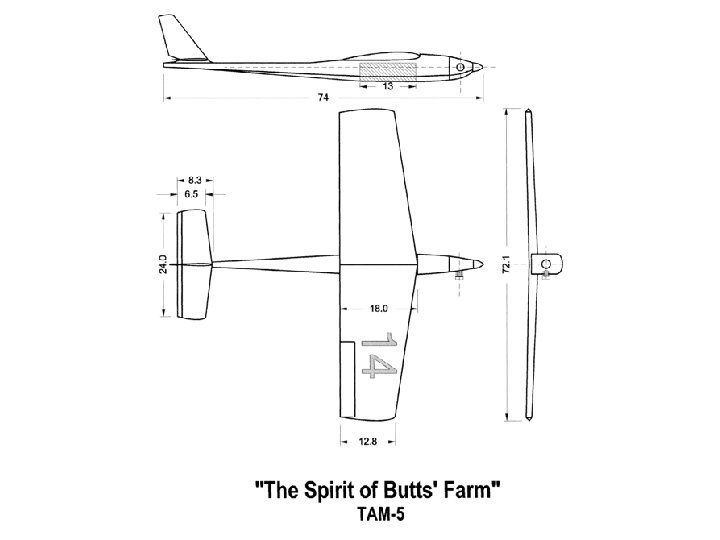

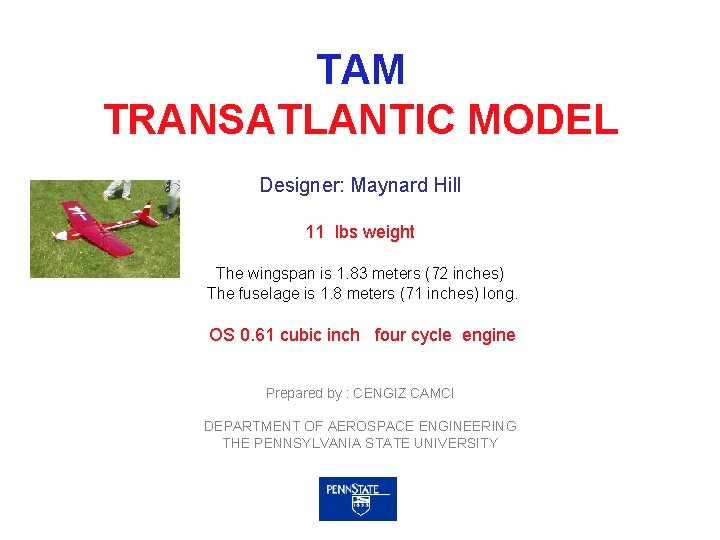

TAM TRANSATLANTIC MODEL Designer: Maynard Hill 11 lbs weight The wingspan is 1. 83 meters (72 inches) The fuselage is 1. 8 meters (71 inches) long. OS 0. 61 cubic inch four cycle engine Prepared by : CENGIZ CAMCI DEPARTMENT OF AEROSPACE ENGINEERING THE PENNSYLVANIA STATE UNIVERSITY

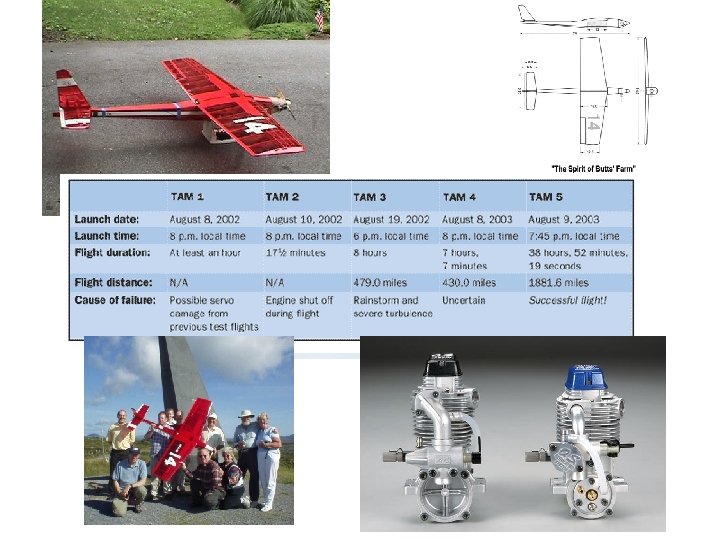

Spirit of Butts Farm

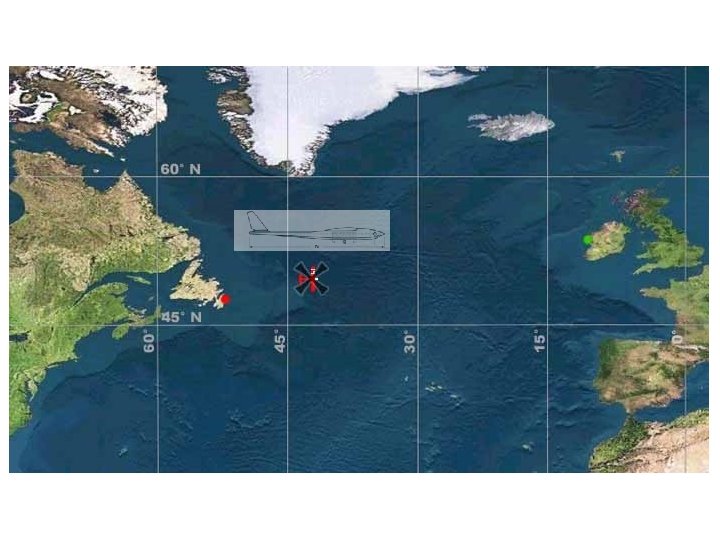

The flight route is about 1, 900 miles (3, 057 kilometers) 36 hours of flight, but much depends on head winds and tailwinds. The plane generally cruises at 42 miles per hour, but tailwinds could boost its speed to 60 mph or more. It can fly in head winds of up to 30 mph, but would burn fuel too fast to make it to the Irish coast.
After guiding the craft—named for Beecher Butts, an 88 year-old aviation enthusiast—to its cruising altitude, Maynard Hill will put the plane on autopilot and, from his safe seat in Newfoundland, anxiously await its arrival in Ireland. Pilot Paul Howey and others will be in Ireland waiting for the plane to appear on the horizon. They will head out to the bog and, if the plane comes in, take over manual control and land it. FAI officials there will be able to certify the record achievement as well.

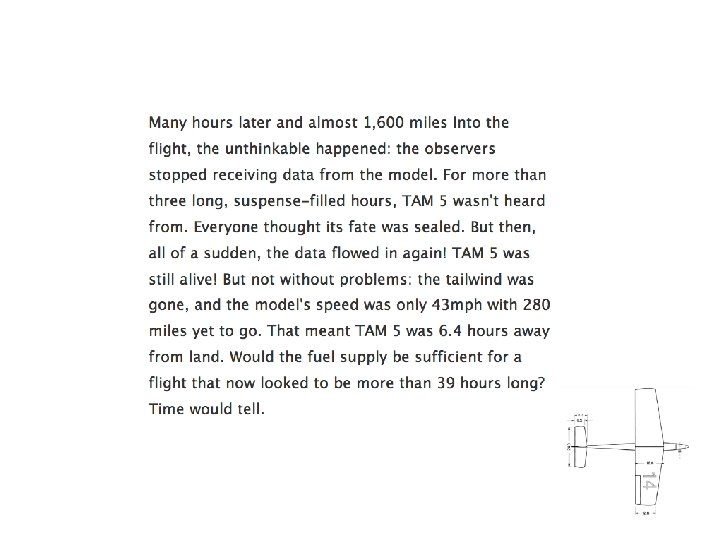

August 9, 2003 2215 UTC - LAUNCH August 10 TIME DISTANCE, MI 0140 UTC - 153 MILES 0206 UTC - 178 MILES 0343 UTC - 252 MILES 0530 UTC - 327 MILES 0703 UTC - 387 MILES 0843 UTC - 454 MILES 1050 UTC - 563 MILES 1228 UTC - 647 MILES 1339 UTC - 710 MILES 1410 UTC - 747 MILES 1444 UTC - 771 MILES 1508 UTC - 903 MILES 1839 UTC - 988 MILES 2016 UTC - 1081 MILES! 2355 UTC - 1282 MILES! Monday, August 11 0138 UTC - 1373 MILES! 0337 UTC - 1465 MILES! 0702 UTC - 1612 MILES!!!! 1030 UTC - 1763 MILES! 1142 UTC - 1821 MILES 1308 UTC - 1883 MILES Landed

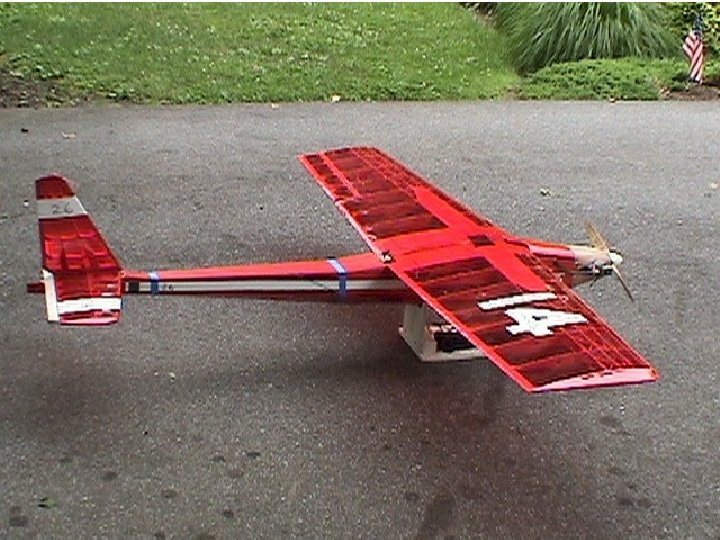

What is the plane made of? Balsa wood and mylar film (Monocote©) are the principal materials, with cyanoacrylate glue used to harden and connect much of the structure. Carbon fiber, fiberglass, and epoxy are used in areas requiring extra strength. Careful attention to design allows the components to be very light with adequate strength.

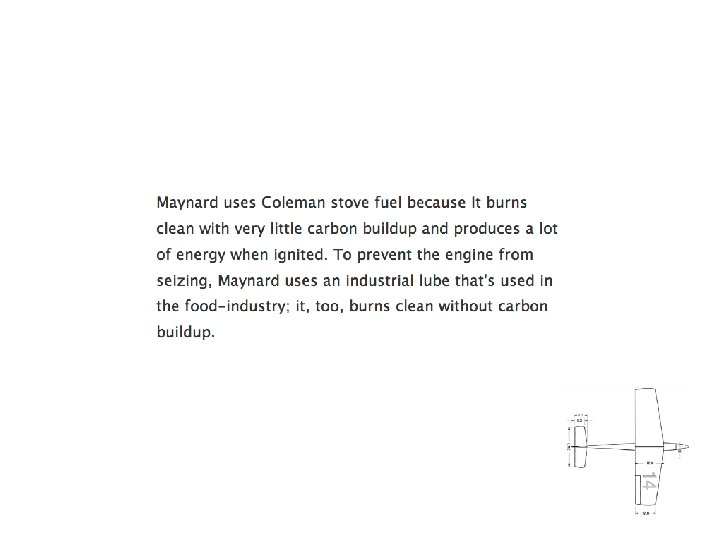

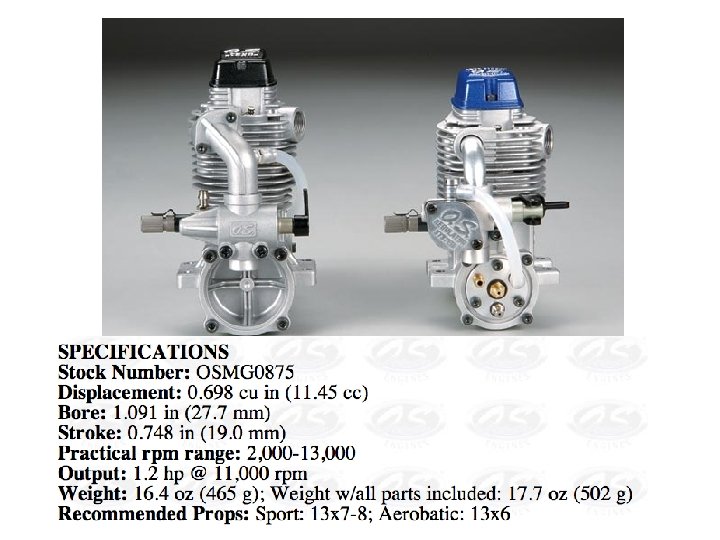

What powers the airplane? The airplanes are powered by O. S. FS-61 four-stroke engines. The engines have been modified and are equipped with electronic ignition and a spark plug to enable them to run on gasoline. What is the fuel? The fuel is Coleman stove/lantern fuel, with a special additive for lubrication. This fuel has a high energy content, is very volatile.

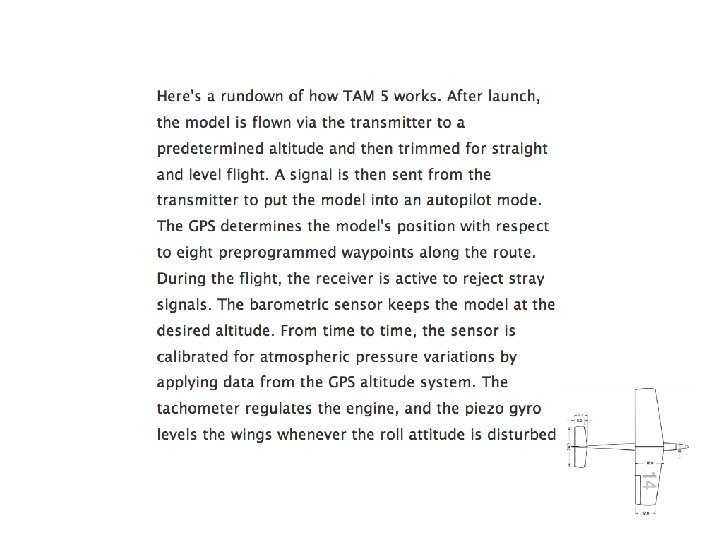

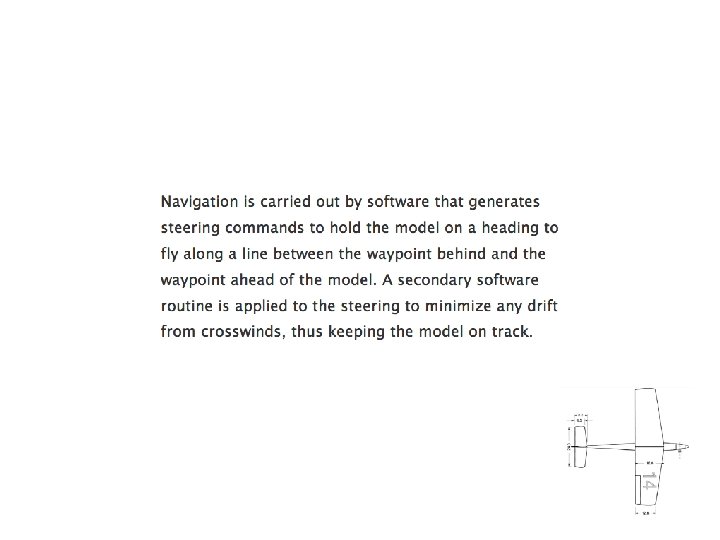

How is the airplane guided? The autopilot uses a microcomputer to process data from the GPS, receiver, pressure sensor and gyro to adjust the signals to three control servos. Steering, altitude hold, and engine speed are separate servo loops. Prior to launch, a memory chip is programmed with waypoints for steering. The chip also is programmed with desired altitude and engine RPM between waypoints. The complete algorithms are proprietary.
What electronics are on board? A Futaba receiver, Futaba servos, and a piezoelectric rate gyro are combined with a commercial Global Positioning System (GPS) receiver. The autopilot is a custom design by Joe Foster who wrote all the software. A pressure sensor provides altitude information. This altitude system is calibrated periodically by data from the GPS. There are two miniature telemetry transmitters.
IRELAND AUGUST 2003
