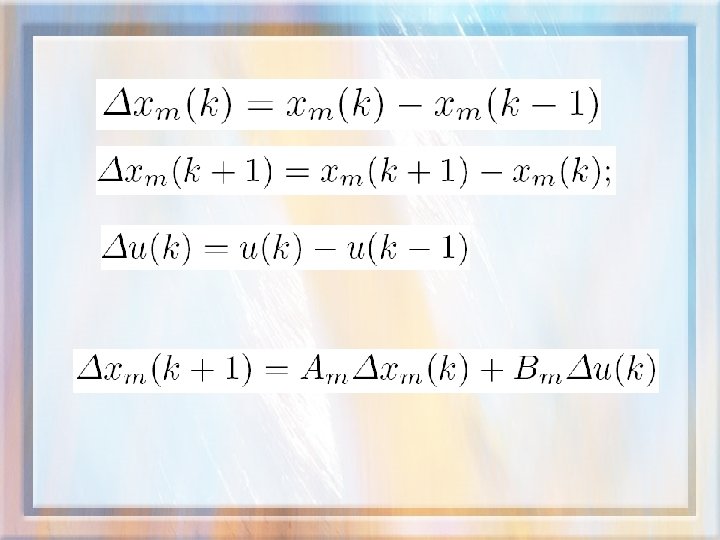

Taking a difference operation on both sides New
Taking a difference operation on both sides:

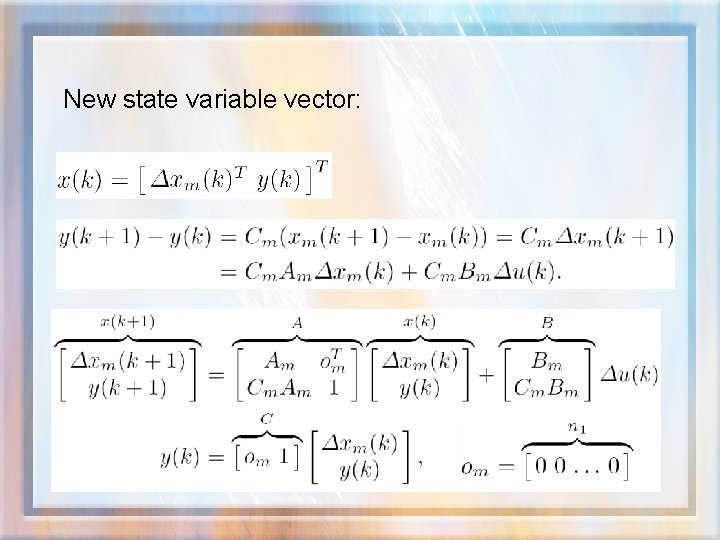

New state variable vector:

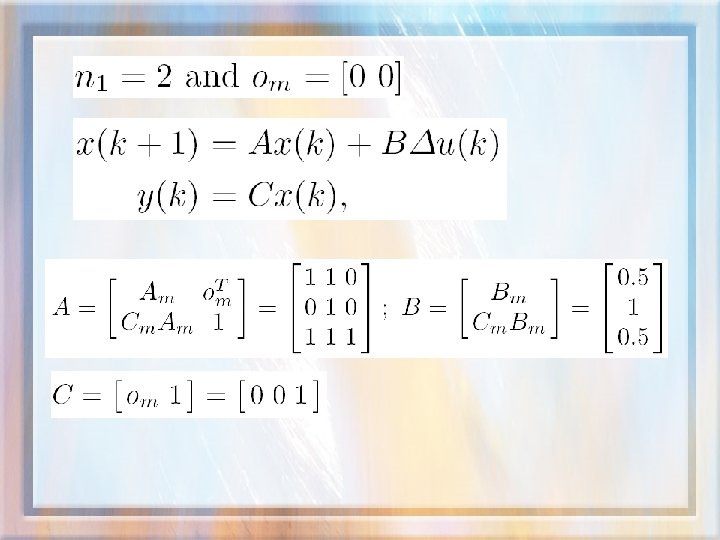

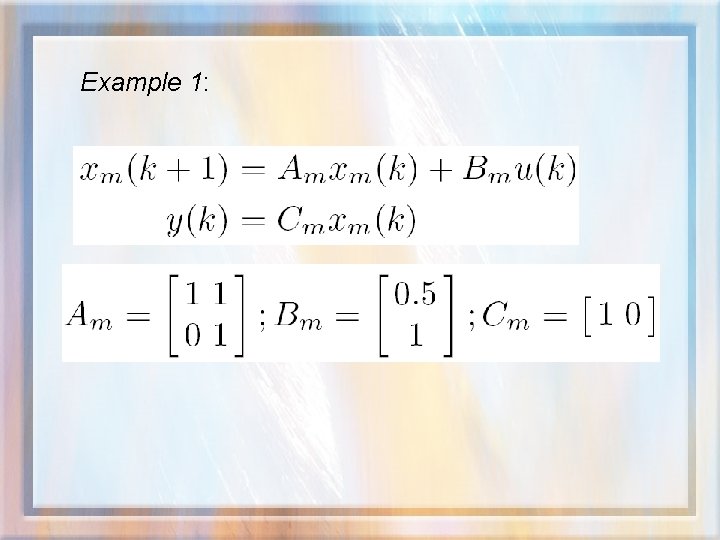

Example 1:

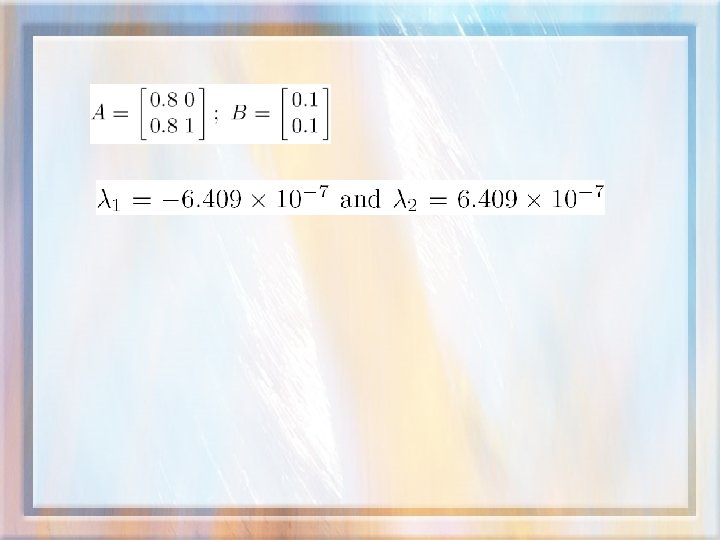

Characteristic equation:

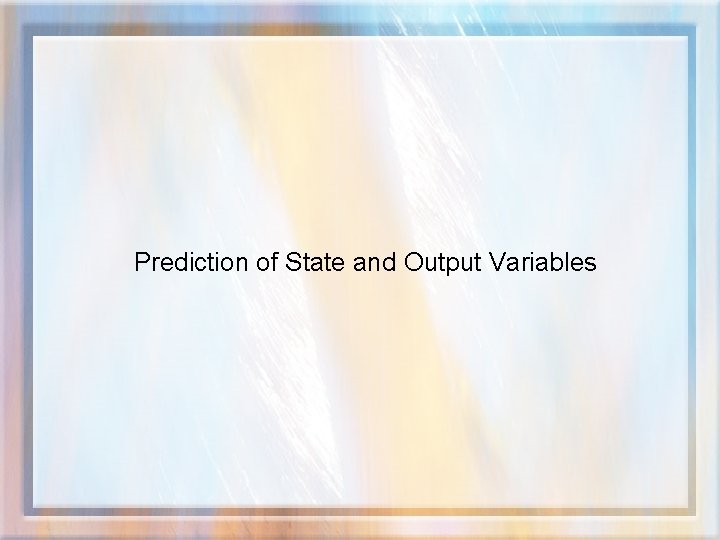

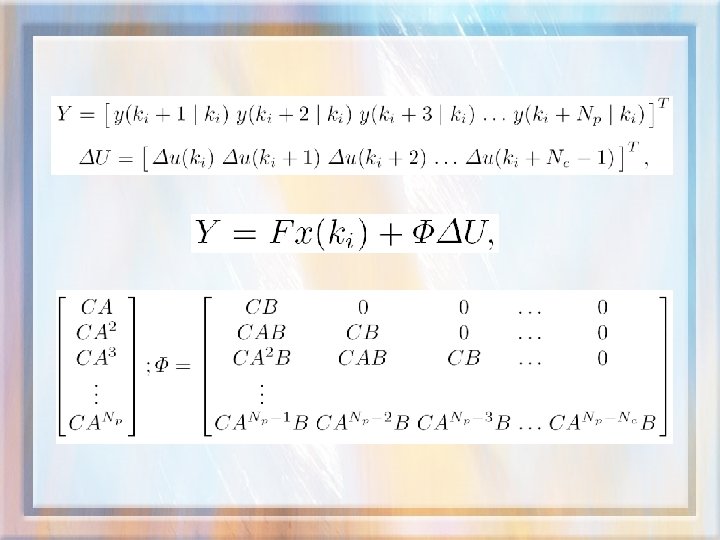

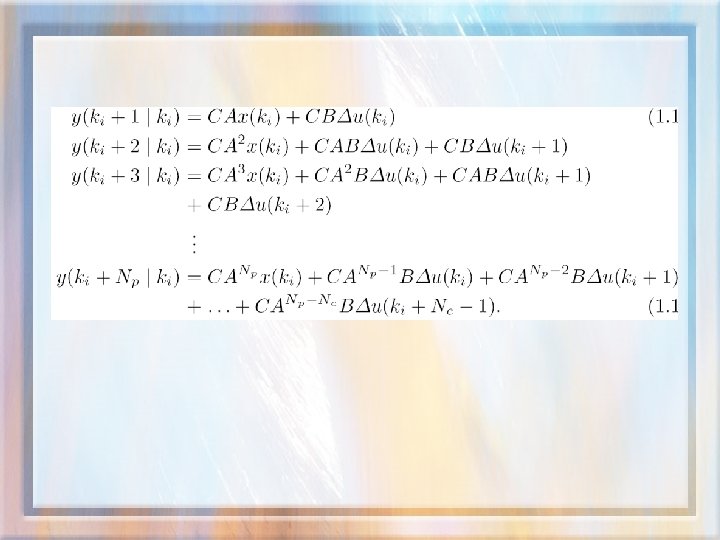

Prediction of State and Output Variables

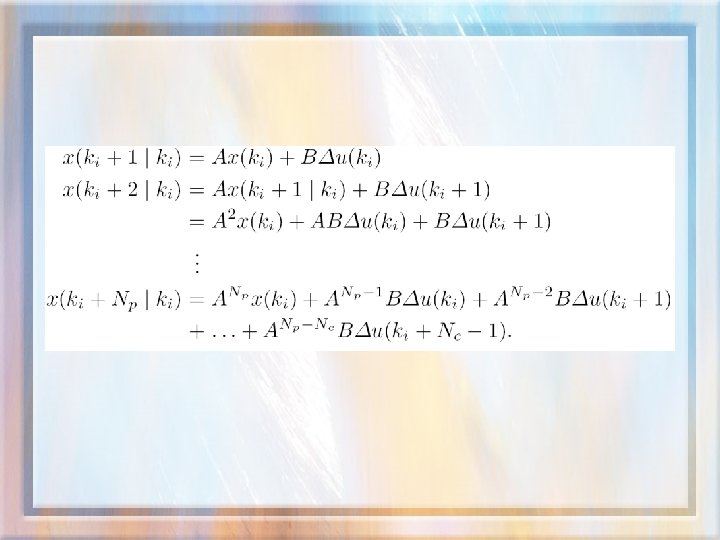

The future control trajectory: Future state variables:

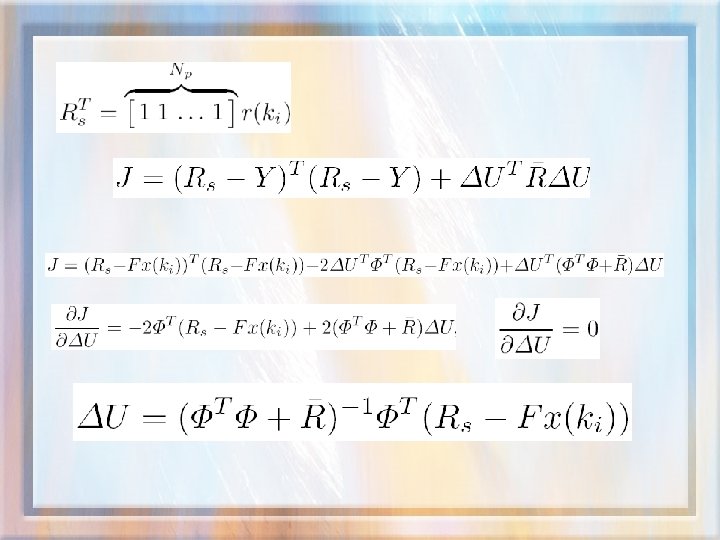

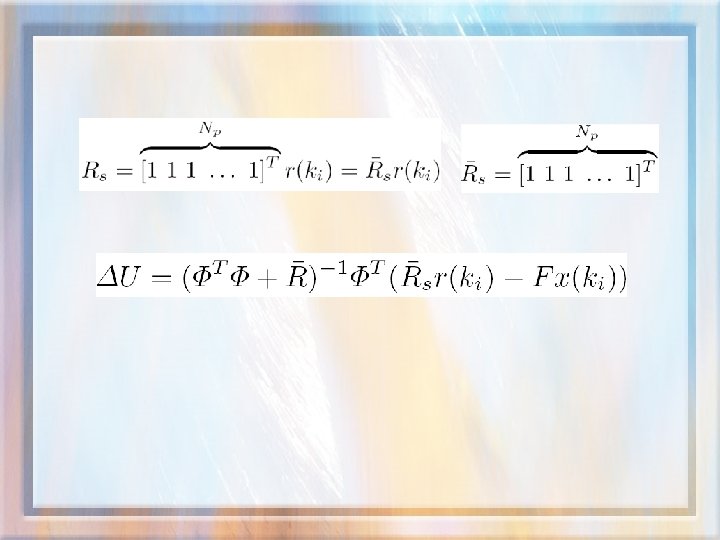

Optimization

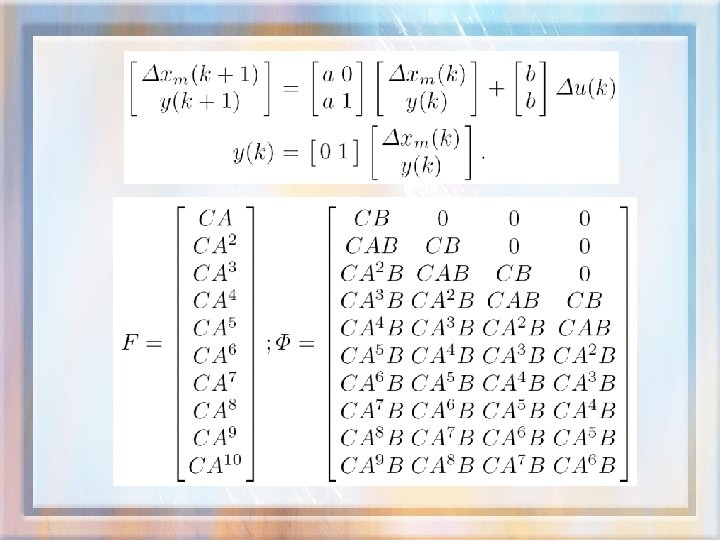

Example 2:

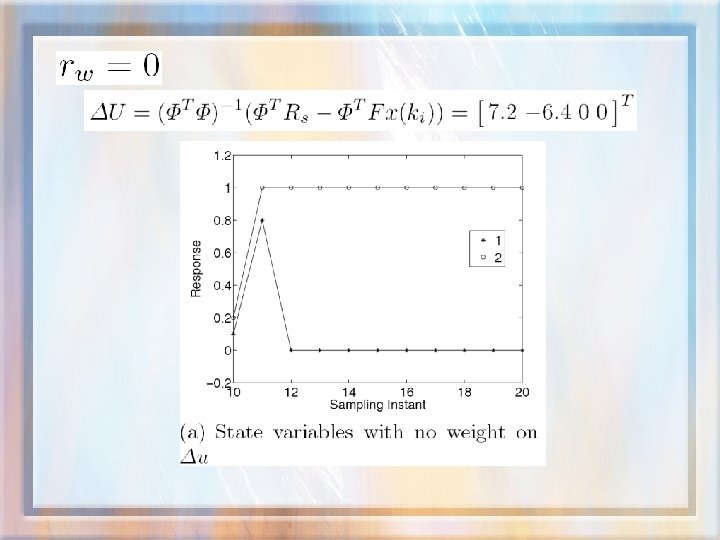

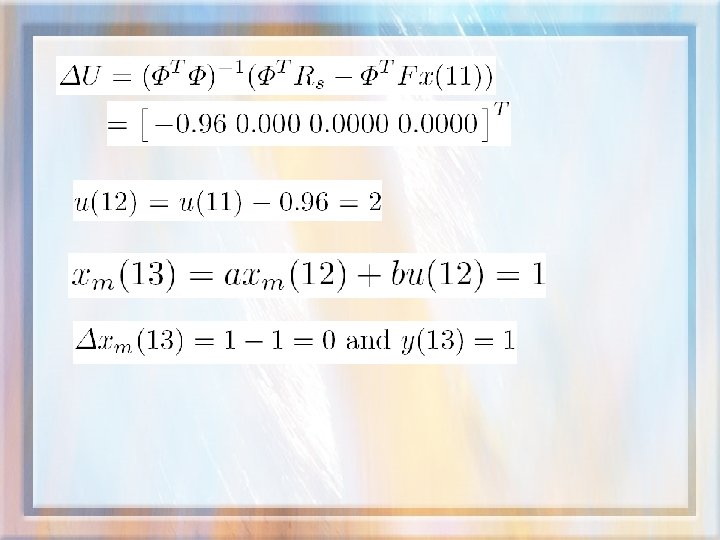

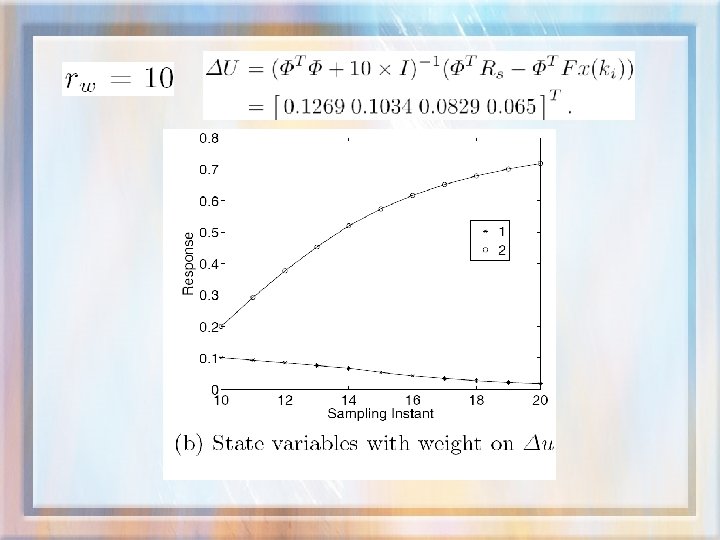

We can verify this by increasing Nc to 9, while maintaining rω = 10 First four parameters in U are slightly different from the previous case
Receding Horizon Control

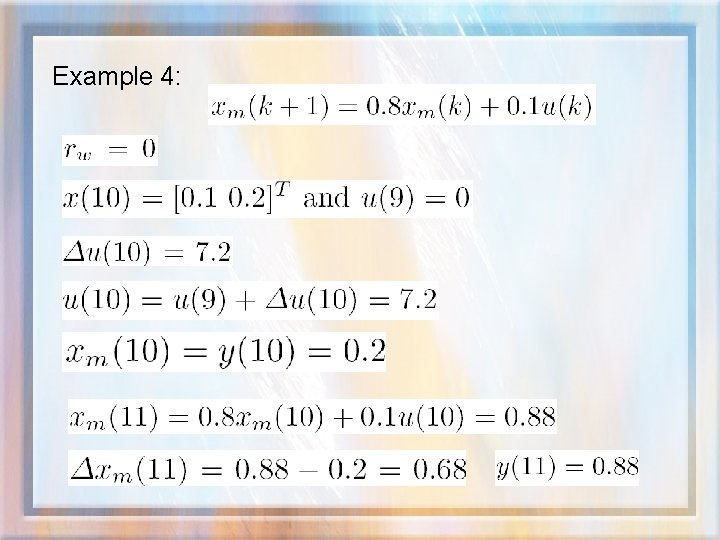

Example 4:

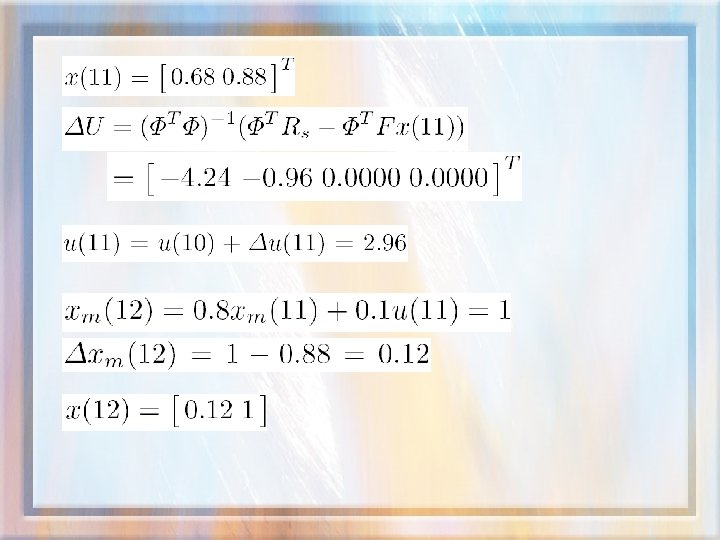

Receding horizon control

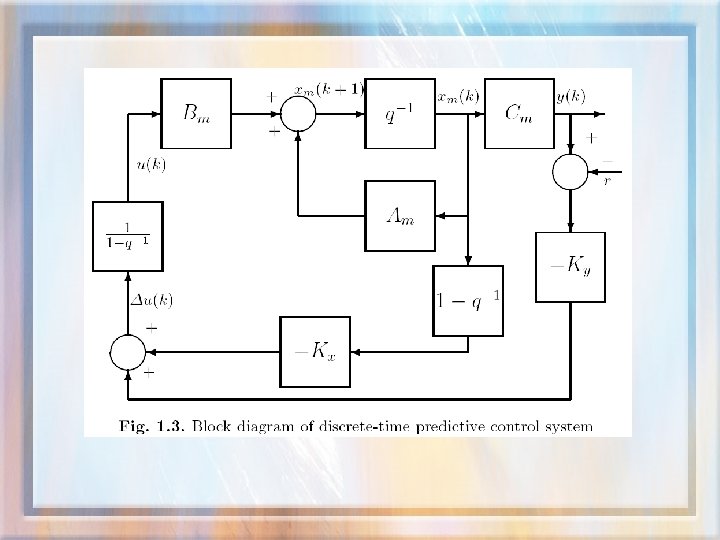

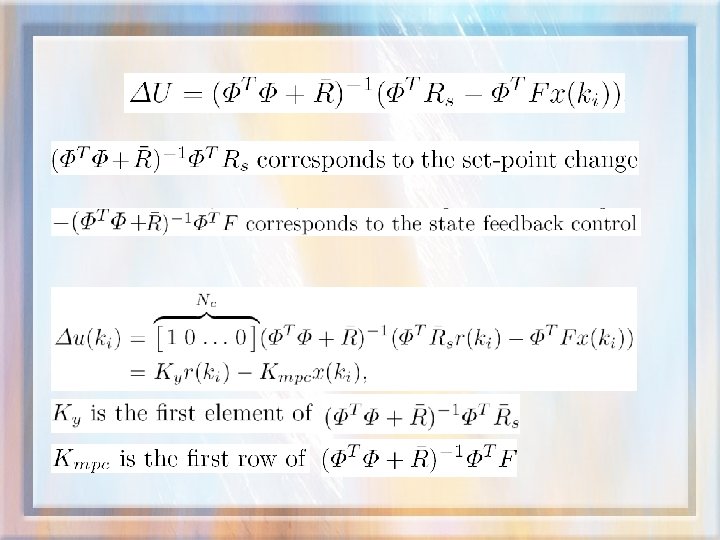

Closed-loop Control System
Standard form of linear time-invariant state feedback

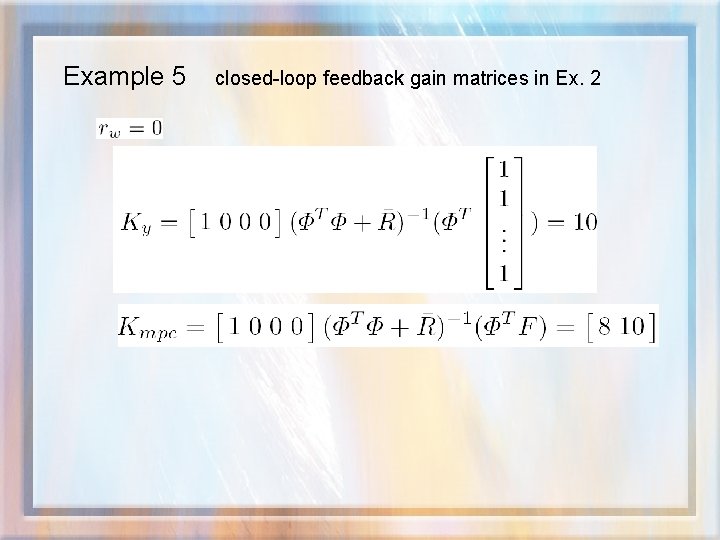

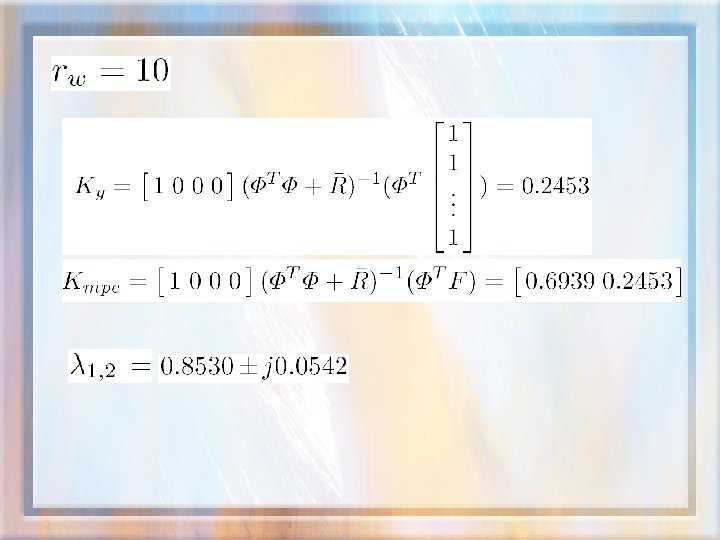

Example 5 closed-loop feedback gain matrices in Ex. 2
State Estimation

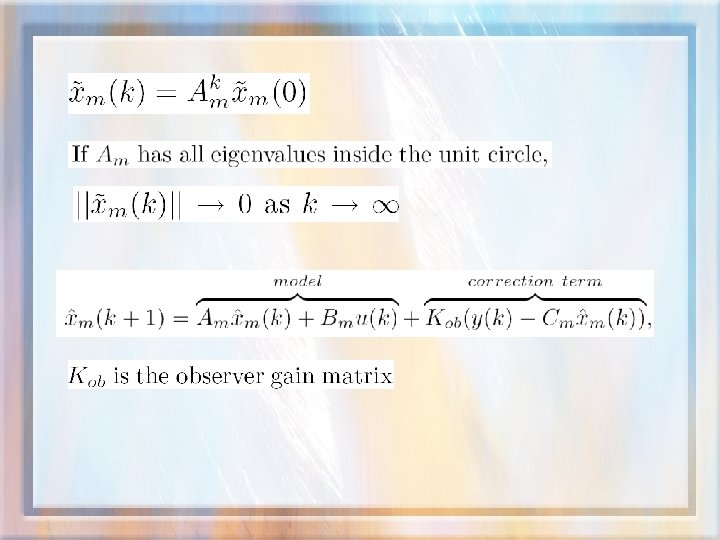

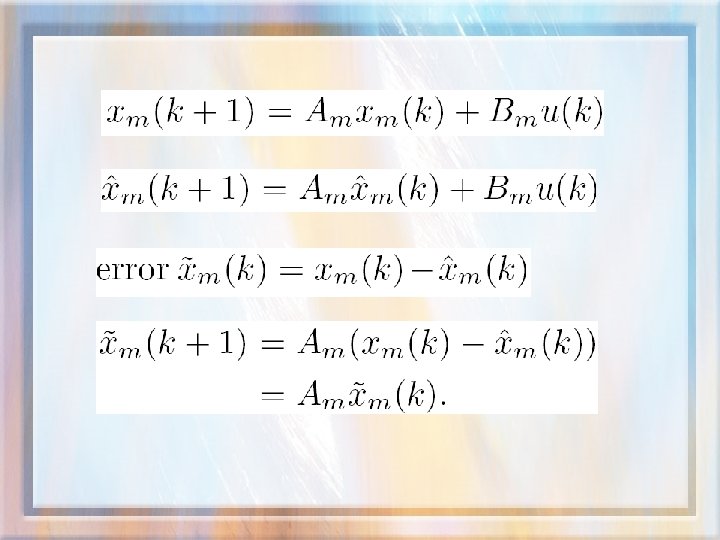

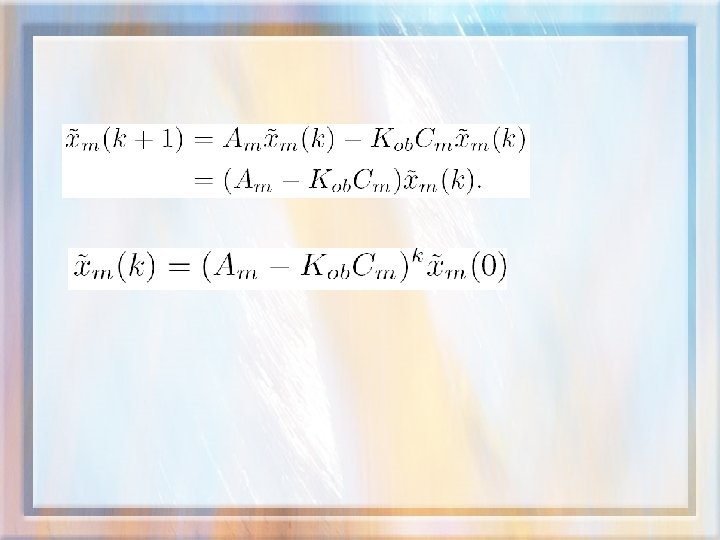

Basic Ideas About an Observer

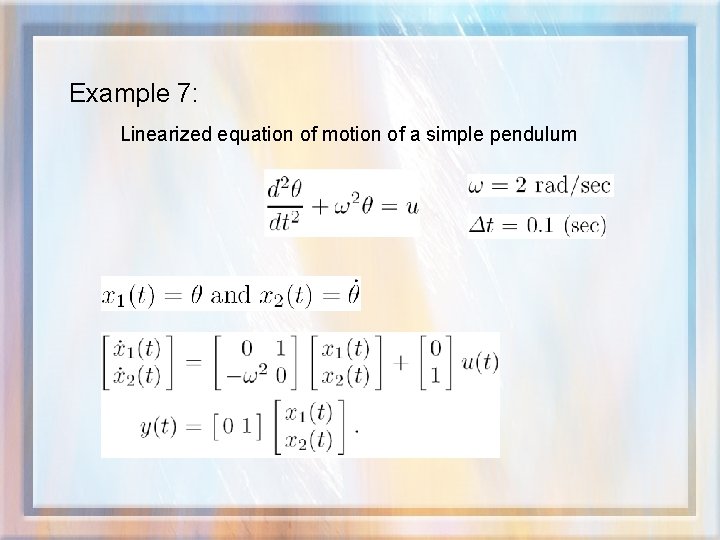

Example 7: Linearized equation of motion of a simple pendulum

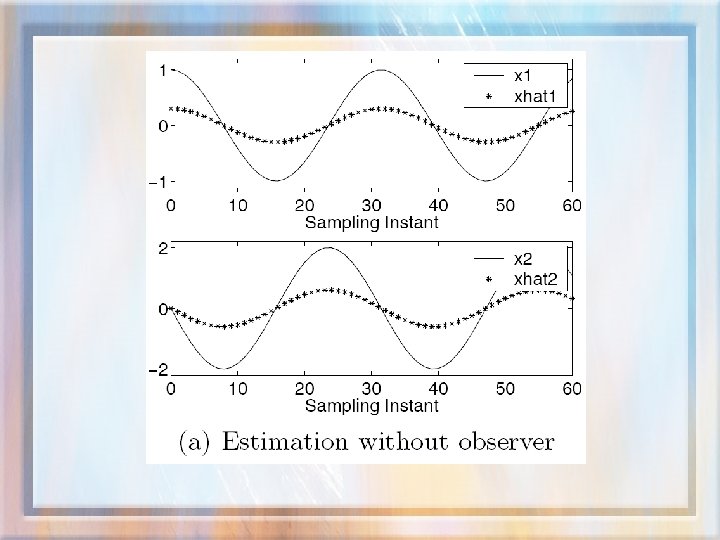

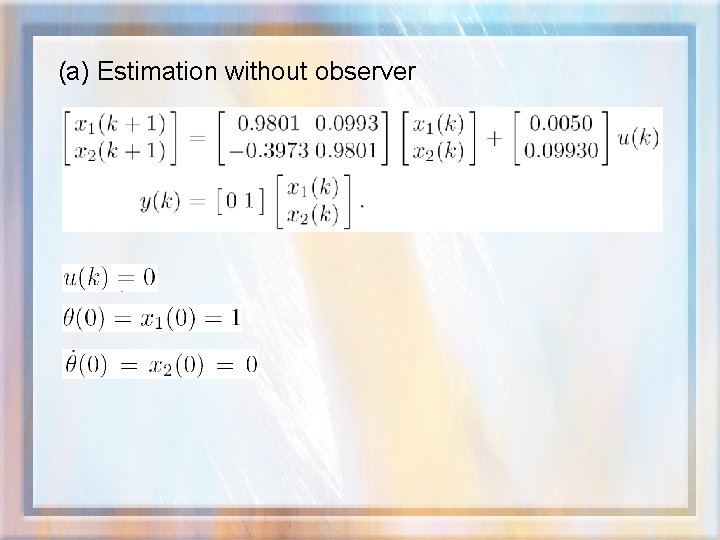

(a) Estimation without observer
Model alone is not sufficient to predict the angle of the pendulum

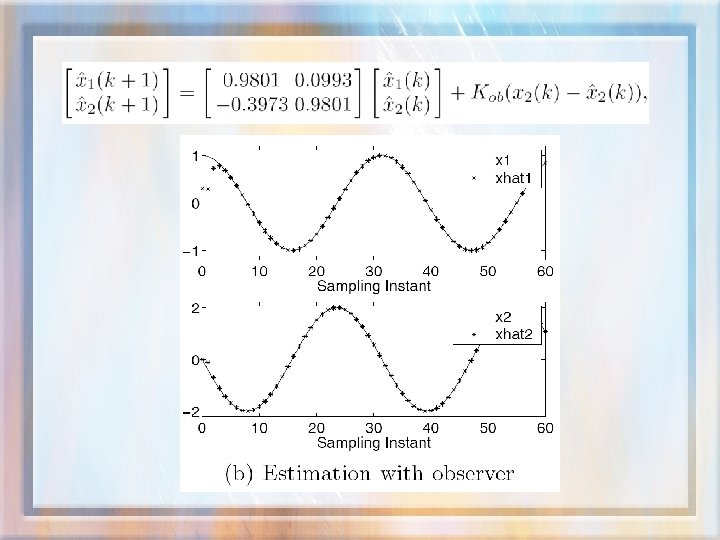

(b) Estimation with observer

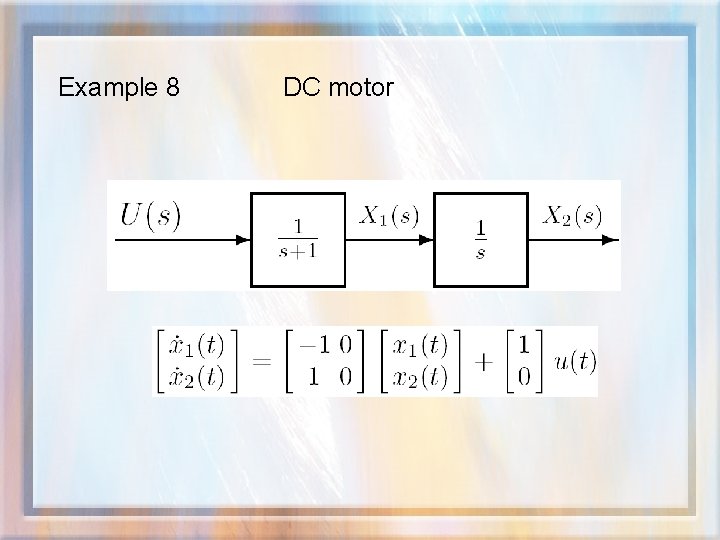

Example 8 DC motor

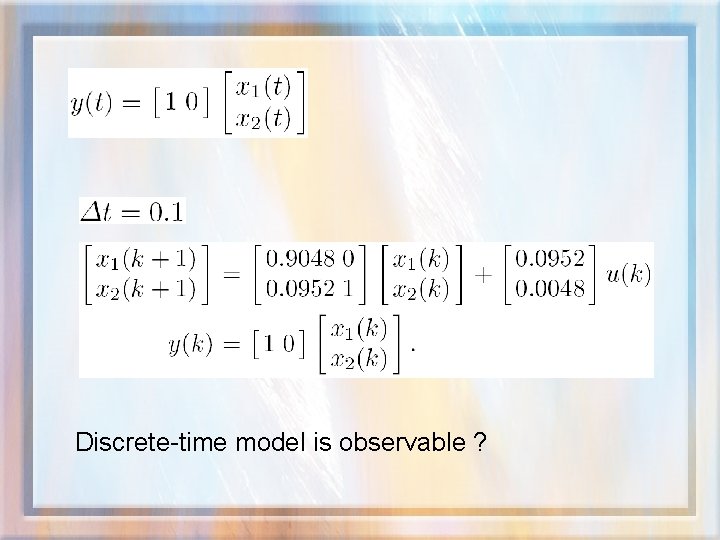

Discrete-time model is observable ?
Second pole at λ = 1 cannot be moved no matter what choice we make for j 2

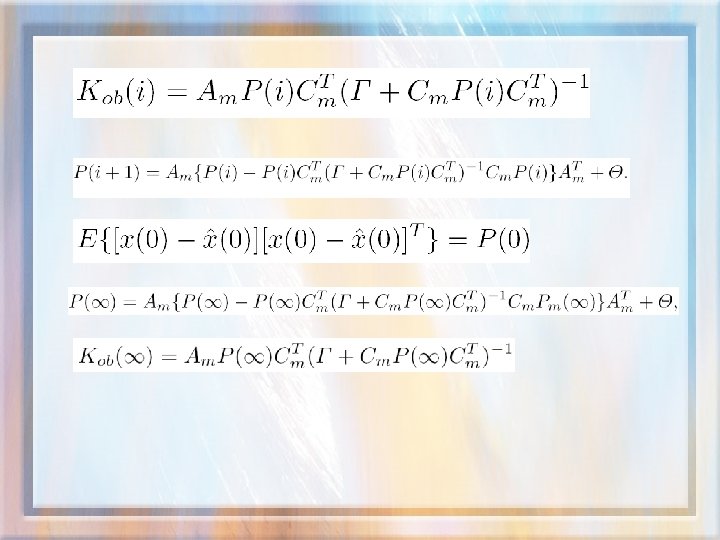

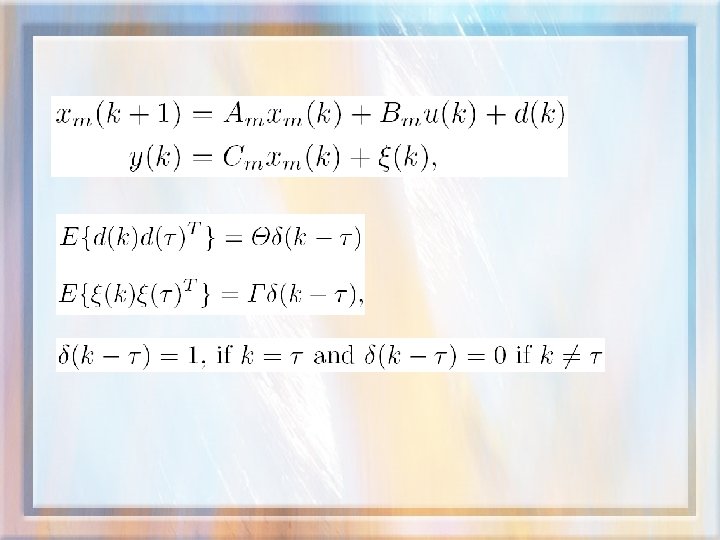

Kalman Filter

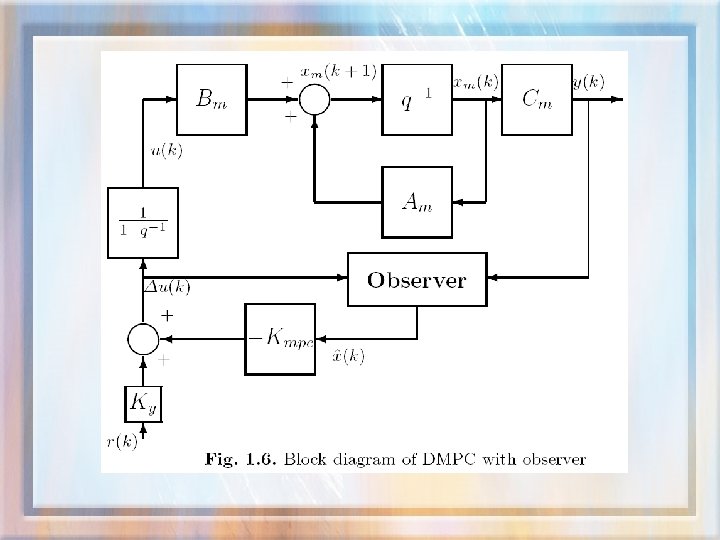

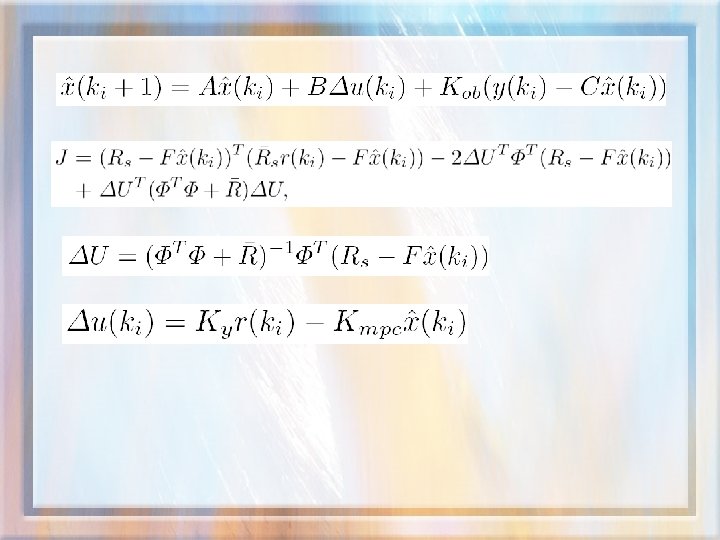

State Estimate Predictive Control

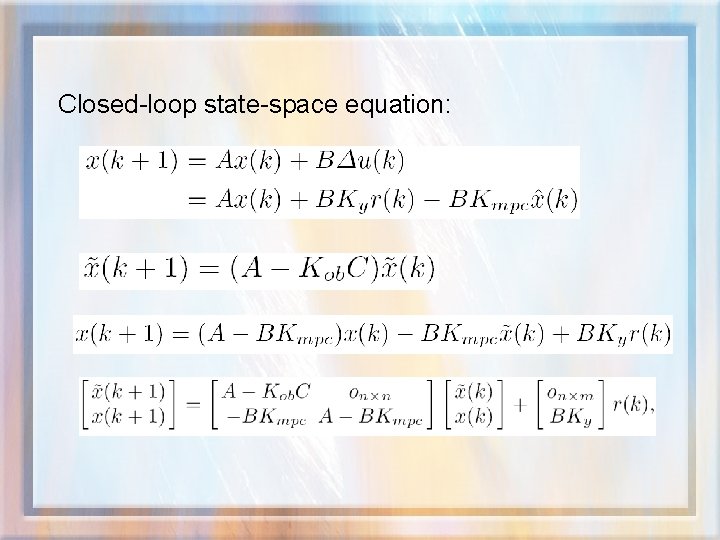

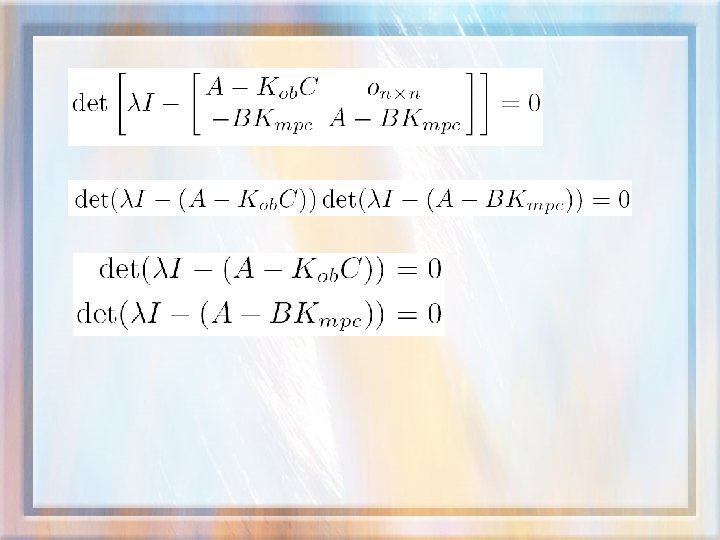

Closed-loop state-space equation:

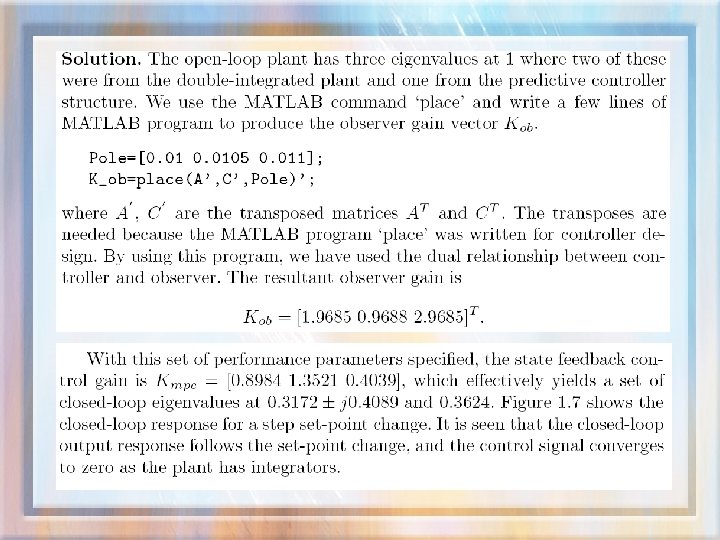

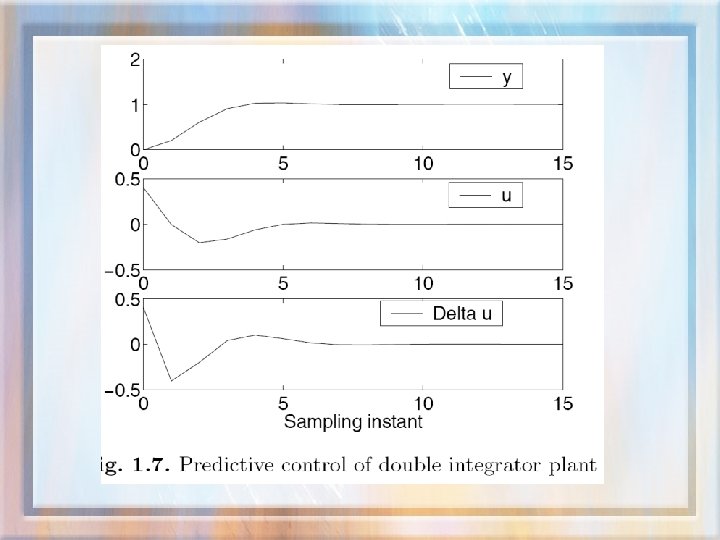

Example 9. The augmented model for a double integrated plant (see Example 1) is given by
- Slides: 65
