Tables Using Report Writer and CSV Steve Wisniewski
Tables Using Report Writer and CSV Steve Wisniewski – SDS/2 Matt Bailey – Connected Structural Group
TABLES • Member, Submaterial and Erection View details • Sheets and Sheet Outlines

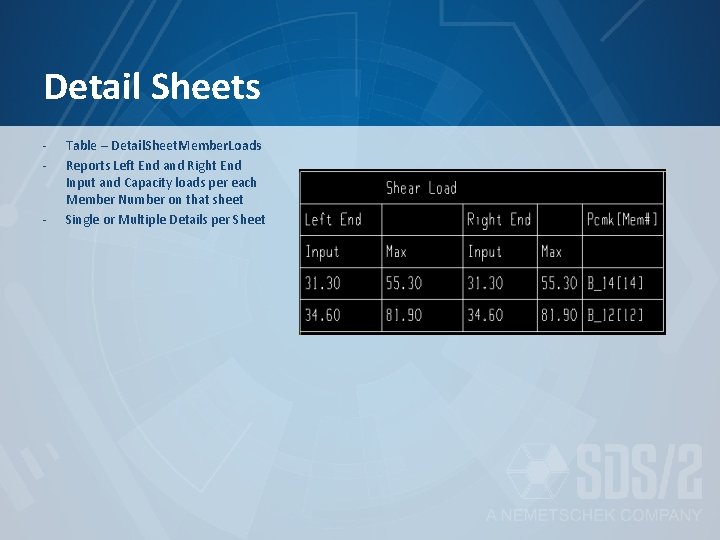

Detail Sheets - Table – Detail. Sheet. Member. Loads Reports Left End and Right End Input and Capacity loads per each Member Number on that sheet Single or Multiple Details per Sheet
Gather Sheets - Table-Gather. Sheet. Report. Multiple & Table. Gather. Sheet. Report. Multiple 2 Multiple materials on a Sheet Reports Minor Mark, Member Marks material is on, Quantity per Member, & Sequence
Gather Sheets - Table. Gather. Sheet. Report. One. Per. Sheet Single detail on a sheet Reports Members materials are on, Quantity per member, and Sequence of member
Gather Sheets - Table. Gather. Sheet. Report. One. Per. Sheet 2 Single detail on a sheet Reports Members materials are on, Quantity per member
Gather Sheets - Table. Gather. Sheet. Report. Qty. And. Seq Reports Material Quantity per Sequence
Erection Sheets - Table. Erection. View. Members. Field. Weld Reports members on Erection Views that have field welds and the member quantity
Title Blocks & Custom Properties - - Job Custom Properties used to Populate Architect, Contractor, & Engineer Member Custom Properties used for Detailed By and Checked By Conditional statements allow the Report to decide where the data is pulled from, Job or Member Properties If the Member Custom Property is not filled out use the Job Property Else use the Member Property
Updating Tables • Saving the sheet or detail • Printing the sheet • Editing the table and selecting ‘Refresh’
Locking Tables - Prevents table from being updated Useful when Plotting Sheets so report doesn’t have to run for every sheet Manually edited tables will Lock automatically Change Options – Unlock/Lock Sheet Tables
Erection Sheets Field Bolt Summary - Customized Reports can be used to accurately show data
Details Shape Info - Tables can be added to Details Are part of sheet item when placing on a sheet

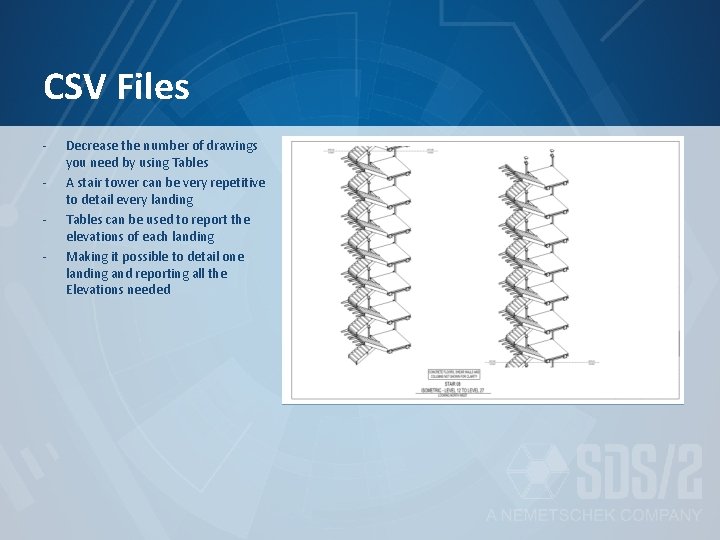

CSV Files - Decrease the number of drawings you need by using Tables A stair tower can be very repetitive to detail every landing Tables can be used to report the elevations of each landing Making it possible to detail one landing and reporting all the Elevations needed

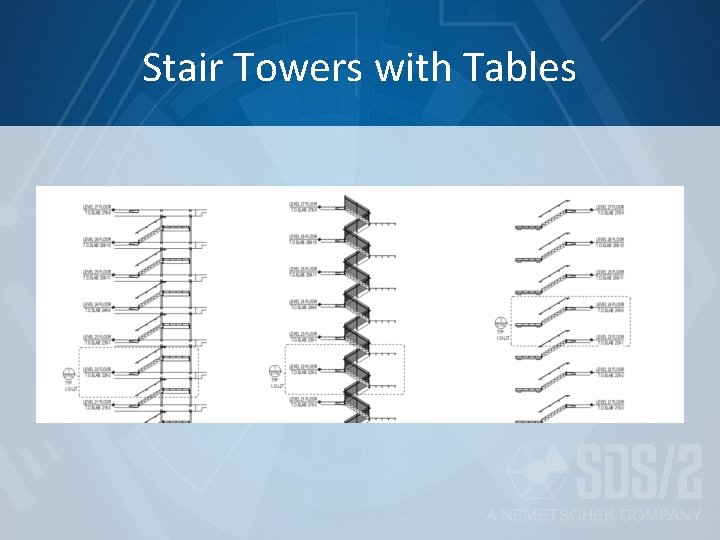

Stair Towers with Tables
Stair Towers with Tables
Stair Towers with Tables
Stair Towers with Tables
Stair Towers with Tables
Stair Towers with Tables
