Table of Contents Project Overview brief explanation of

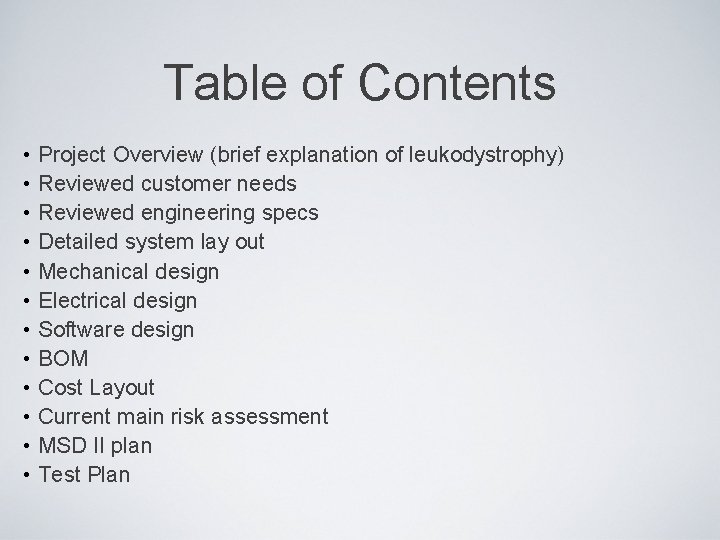

Table of Contents • • • Project Overview (brief explanation of leukodystrophy) Reviewed customer needs Reviewed engineering specs Detailed system lay out Mechanical design Electrical design Software design BOM Cost Layout Current main risk assessment MSD II plan Test Plan

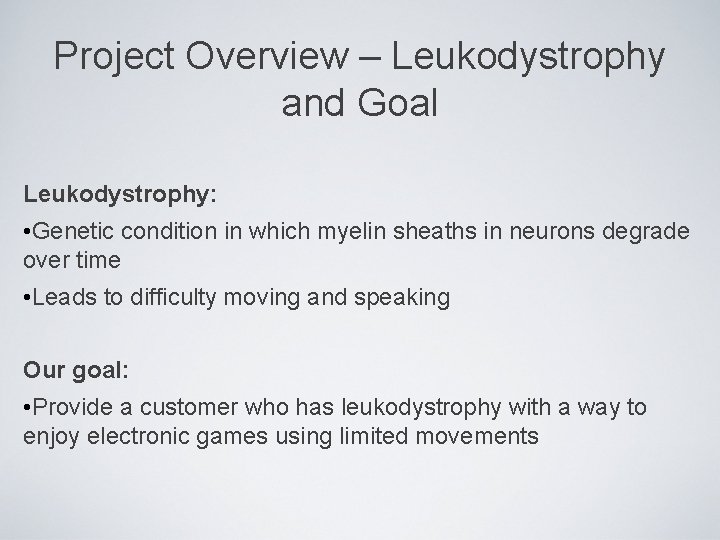

Project Overview – Leukodystrophy and Goal Leukodystrophy: • Genetic condition in which myelin sheaths in neurons degrade over time • Leads to difficulty moving and speaking Our goal: • Provide a customer who has leukodystrophy with a way to enjoy electronic games using limited movements

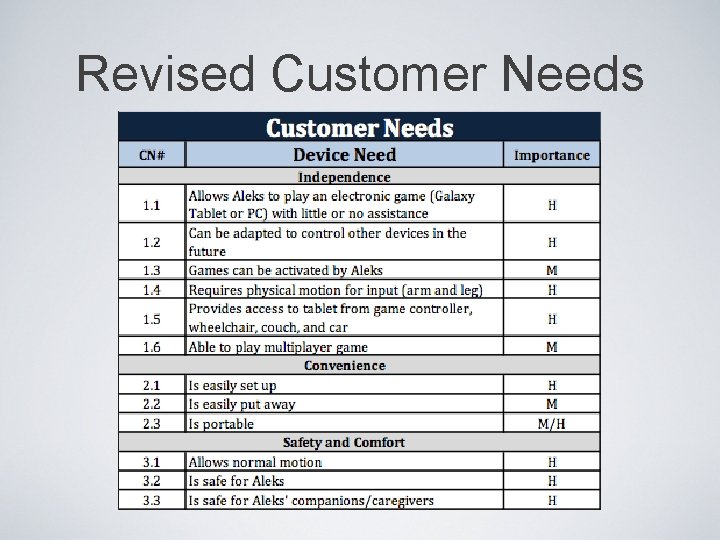

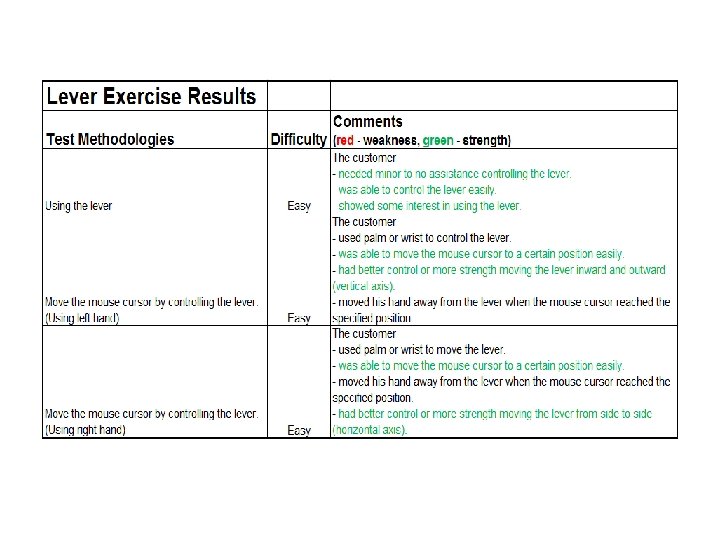

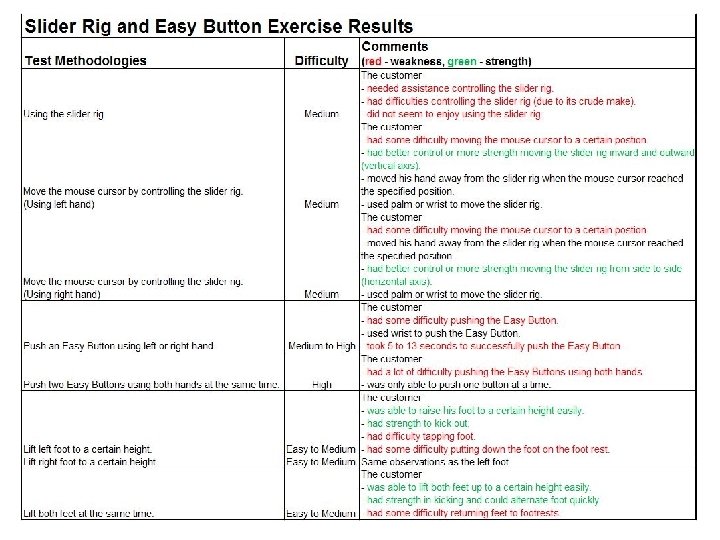

Revised Customer Needs

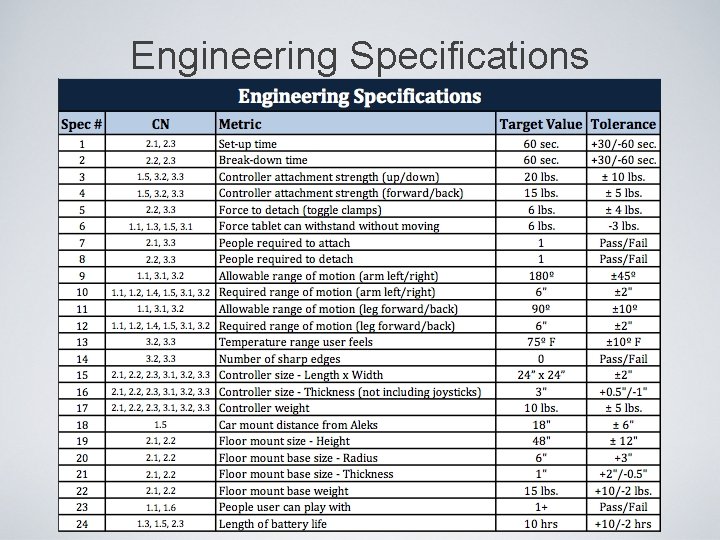

Engineering Specifications

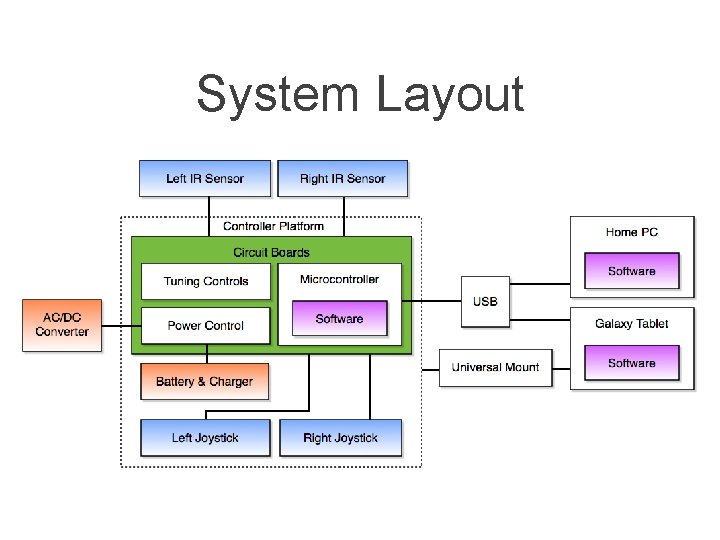

System Layout

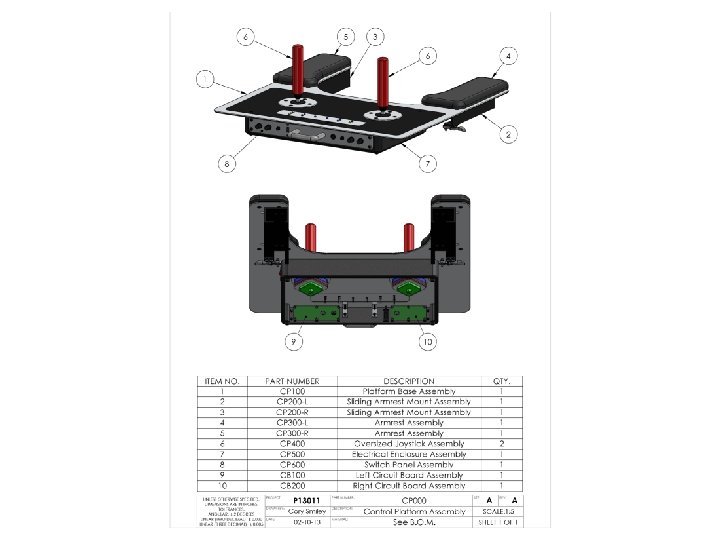

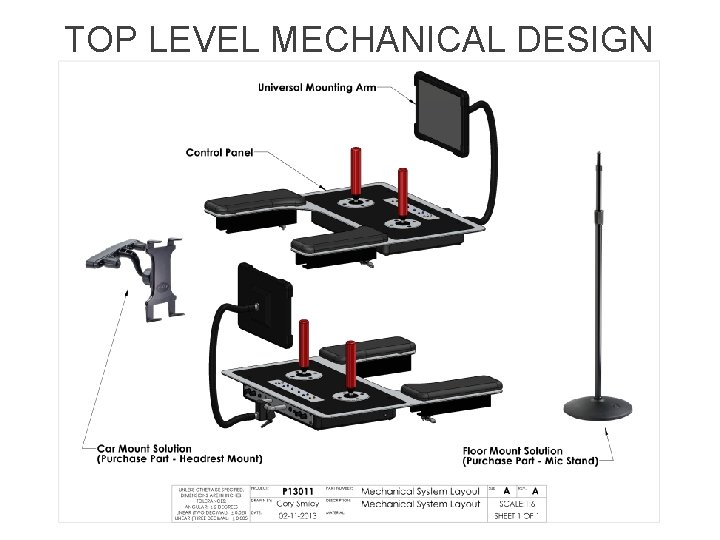

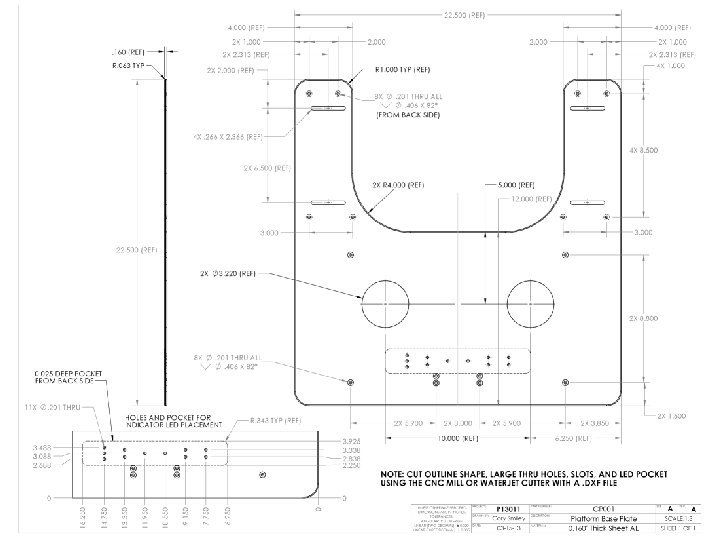

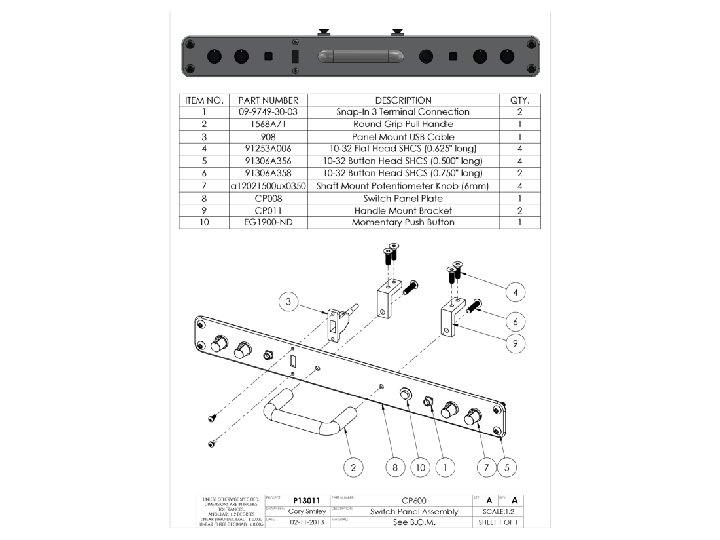

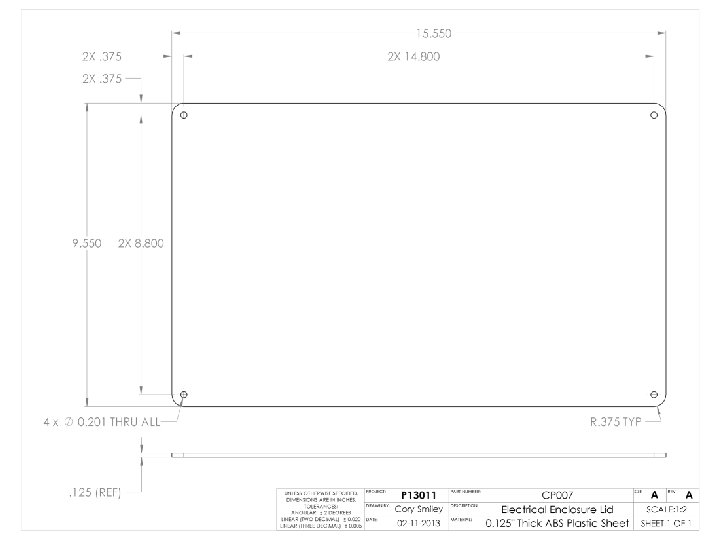

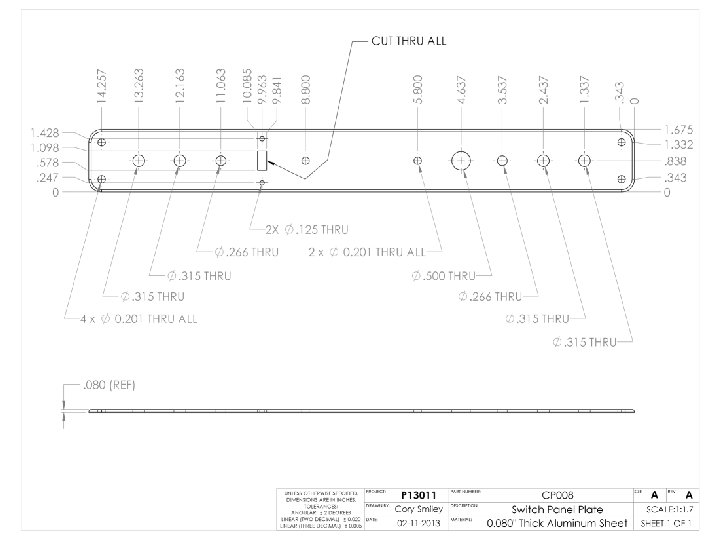

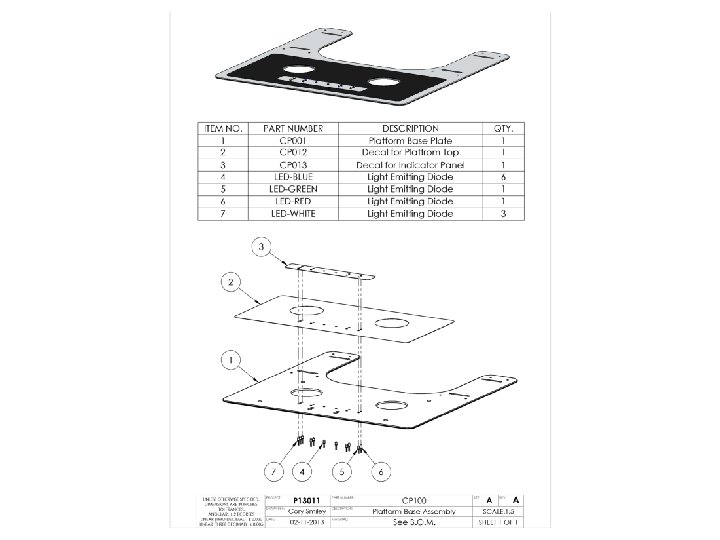

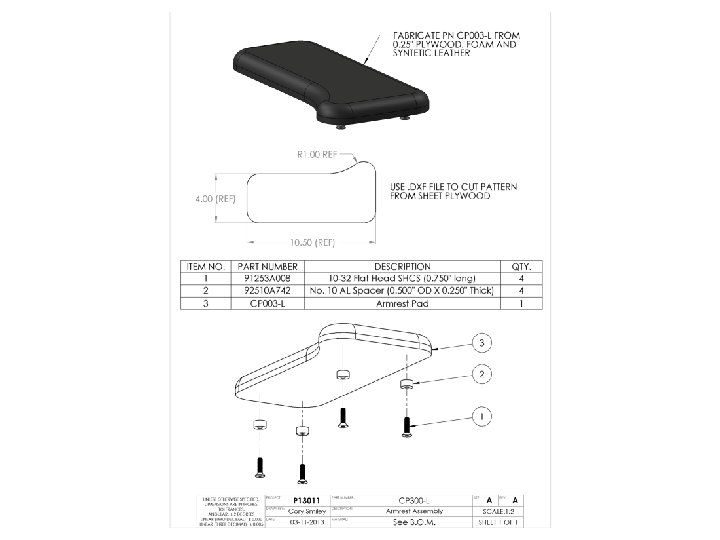

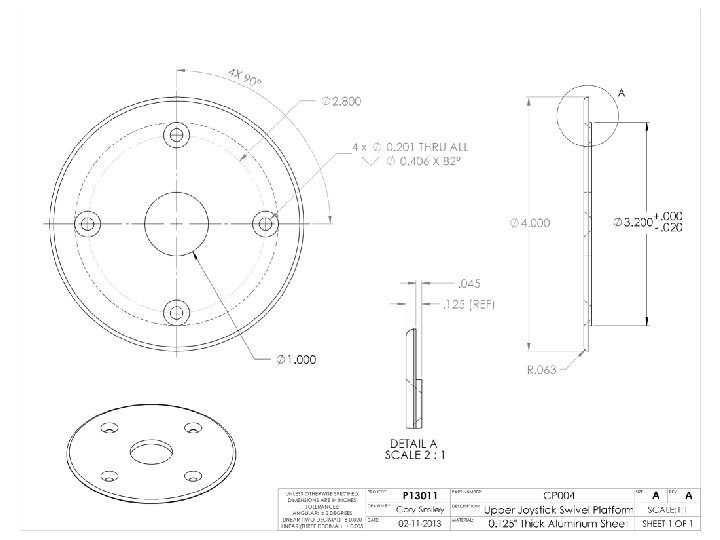

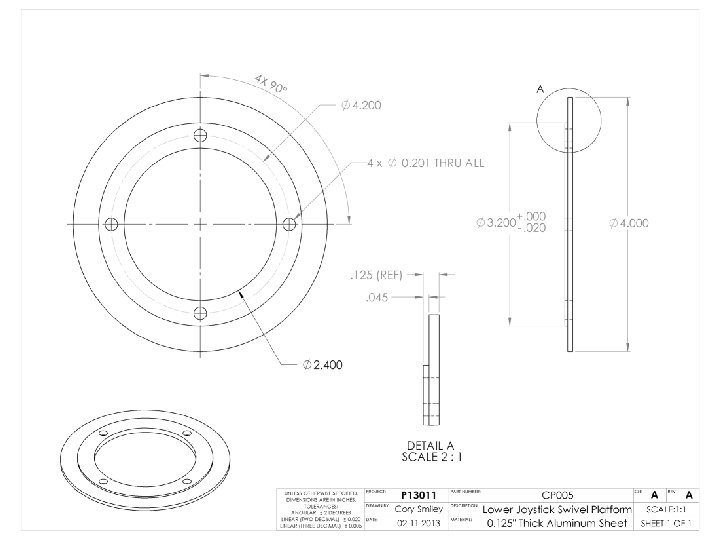

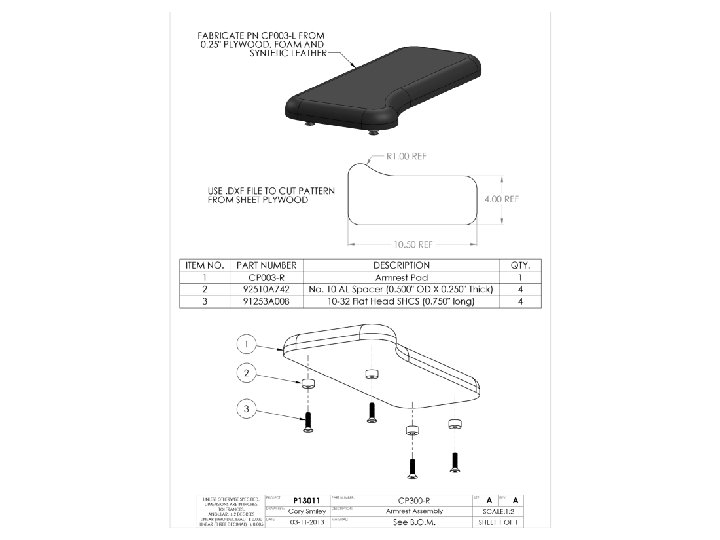

TOP LEVEL MECHANICAL DESIGN

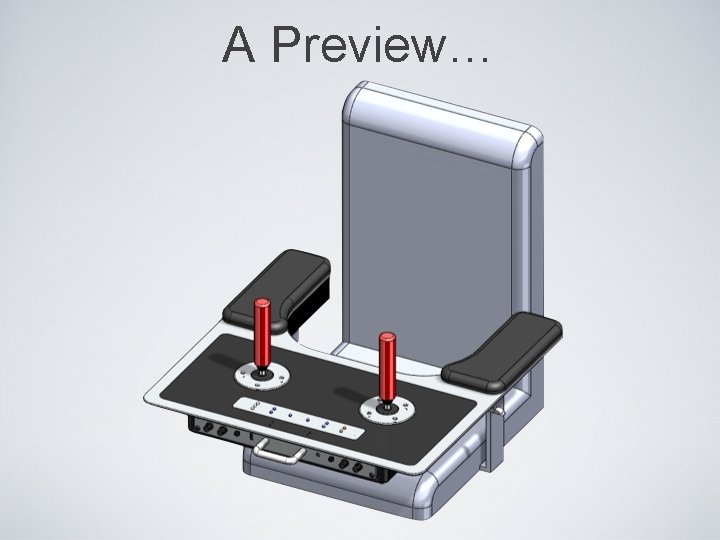

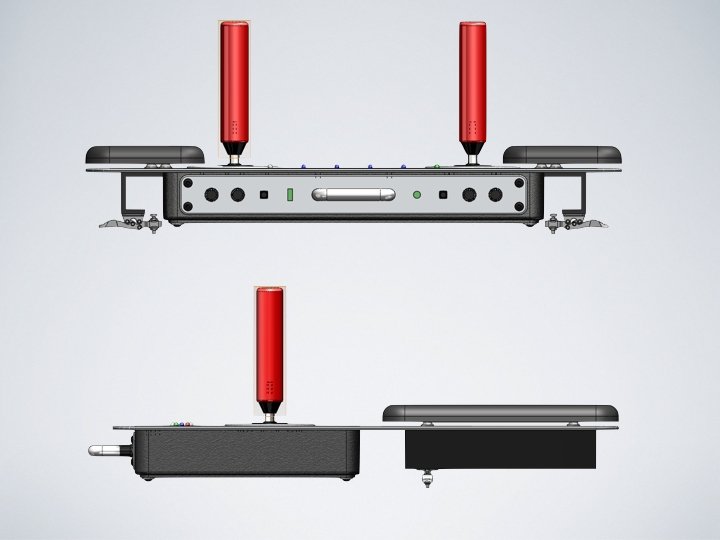

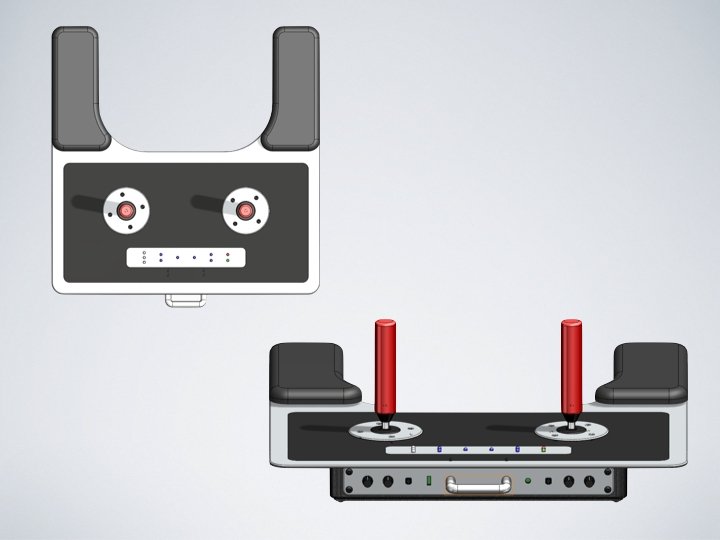

A Preview…

Underside w/ Bottom panel removed

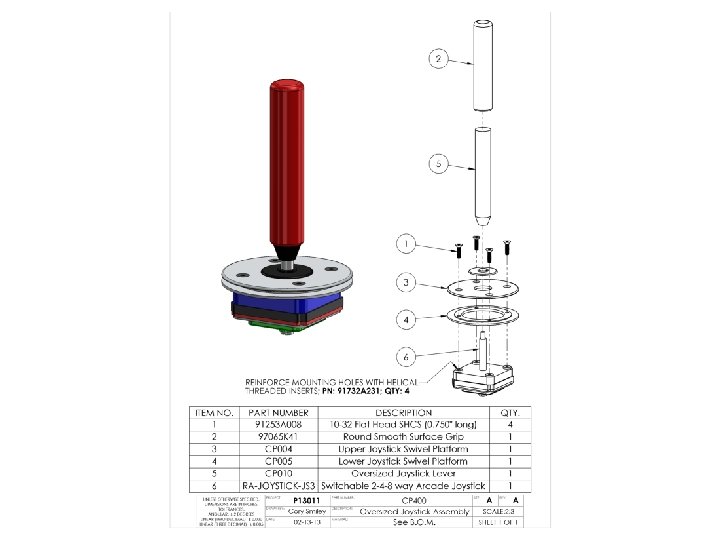

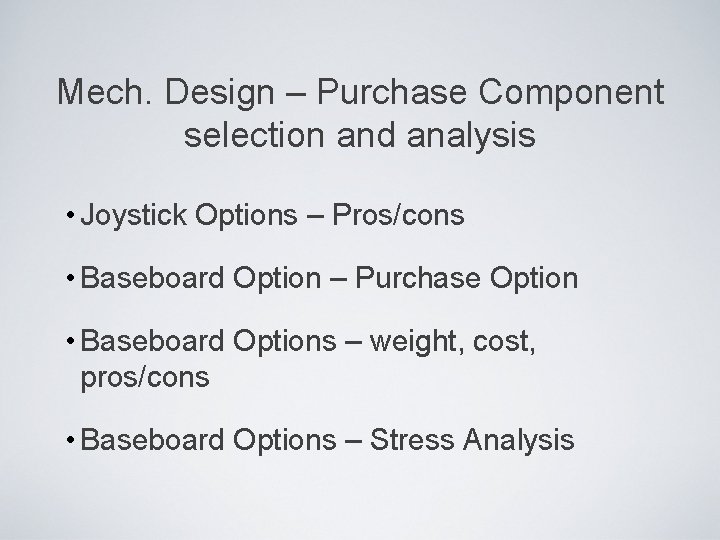

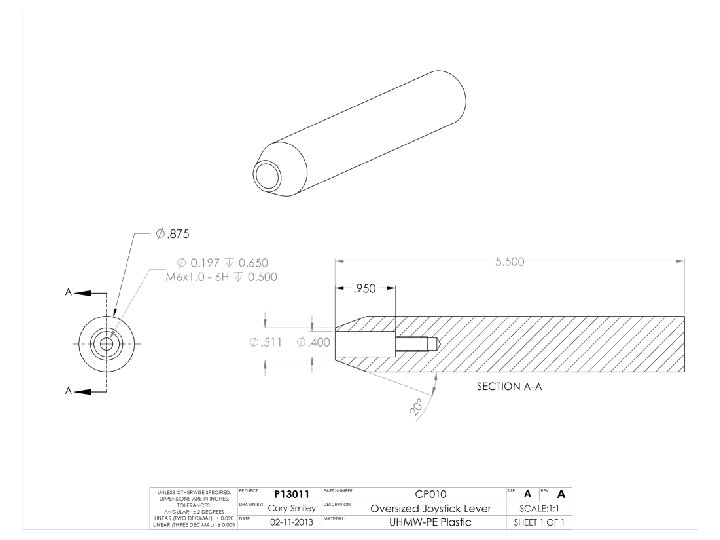

Mech. Design – Purchase Component selection and analysis • Joystick Options – Pros/cons • Baseboard Option – Purchase Option • Baseboard Options – weight, cost, pros/cons • Baseboard Options – Stress Analysis

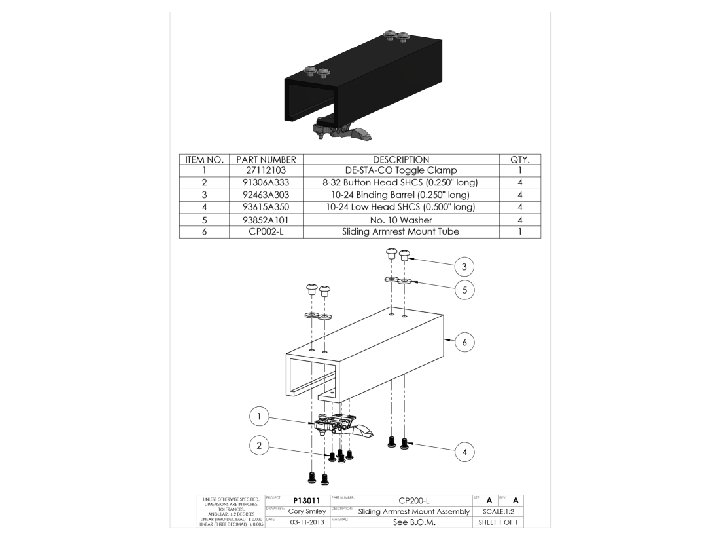

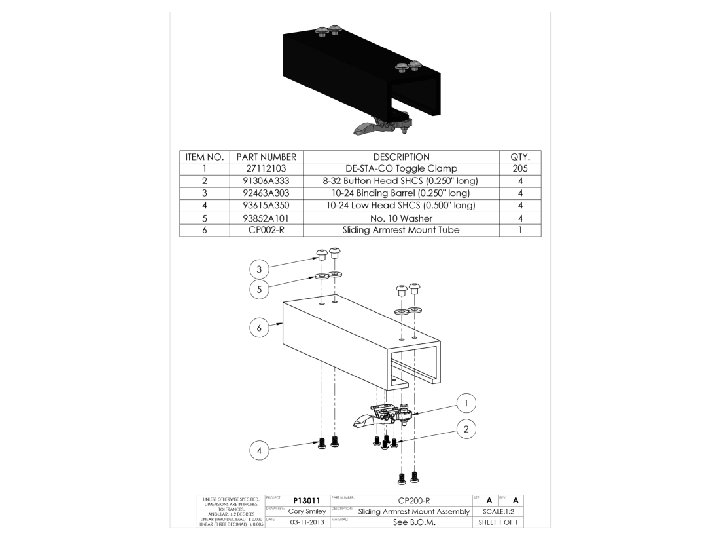

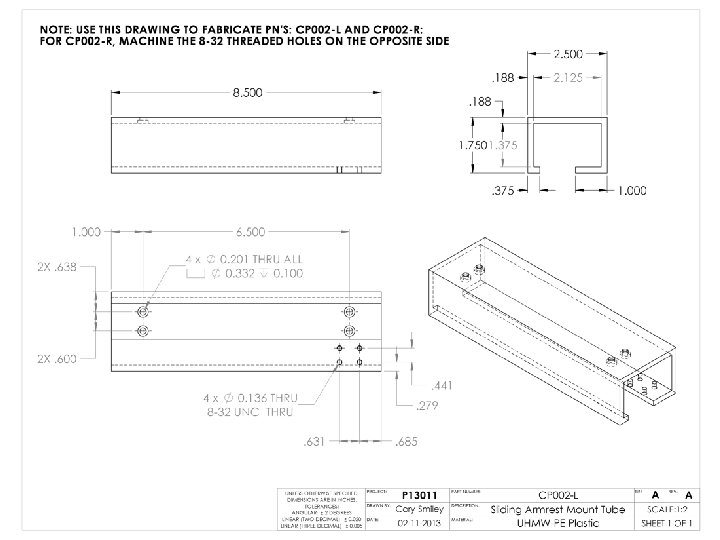

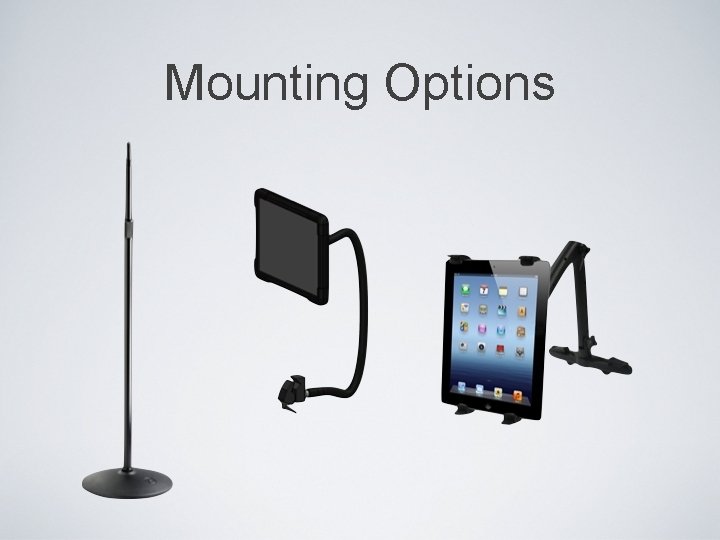

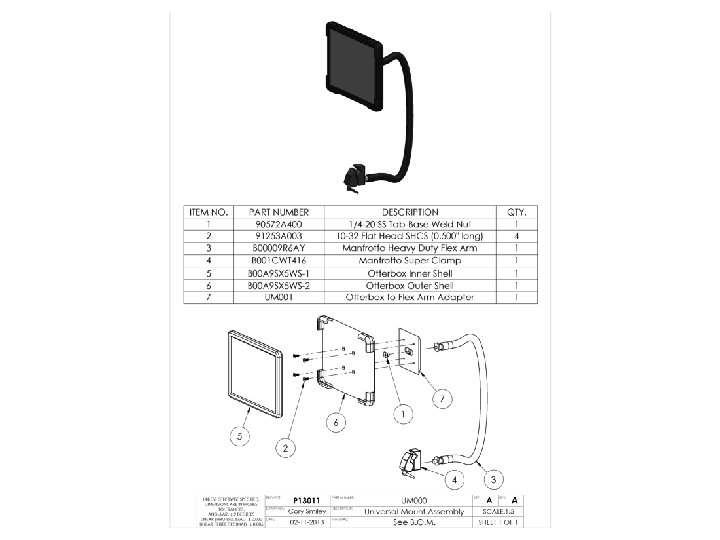

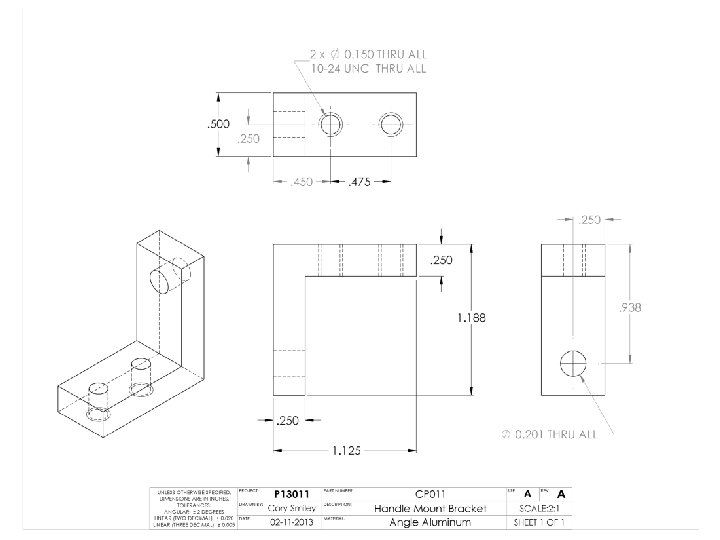

Mounting Options

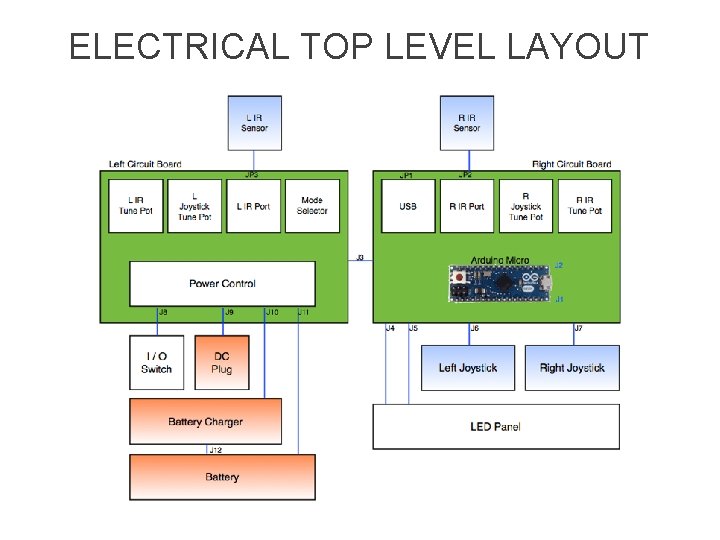

ELECTRICAL TOP LEVEL LAYOUT

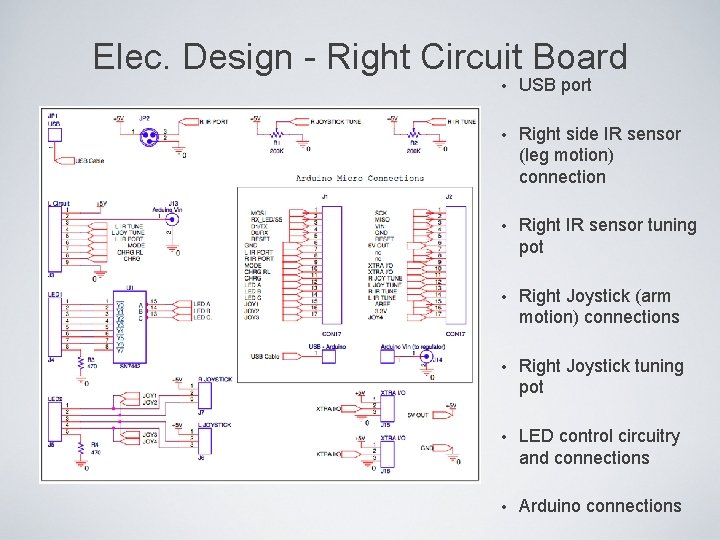

Elec. Design - Right Circuit Board • USB port • Right side IR sensor (leg motion) connection • Right IR sensor tuning pot • Right Joystick (arm motion) connections • Right Joystick tuning pot • LED control circuitry and connections • Arduino connections

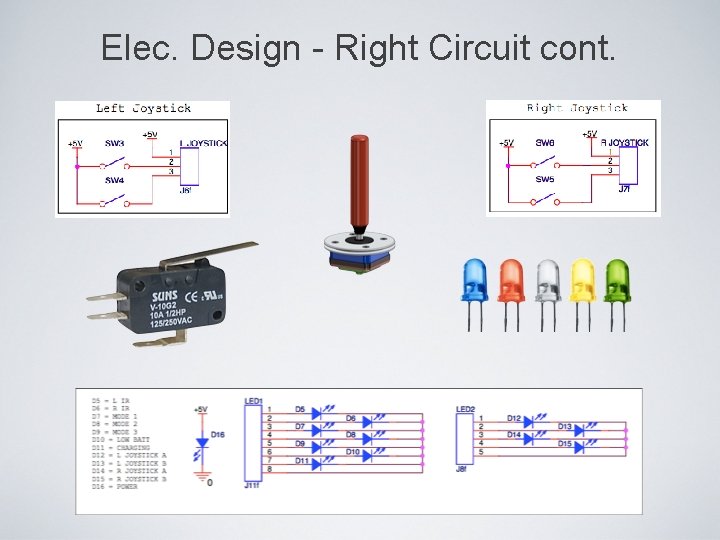

Elec. Design - Right Circuit cont.

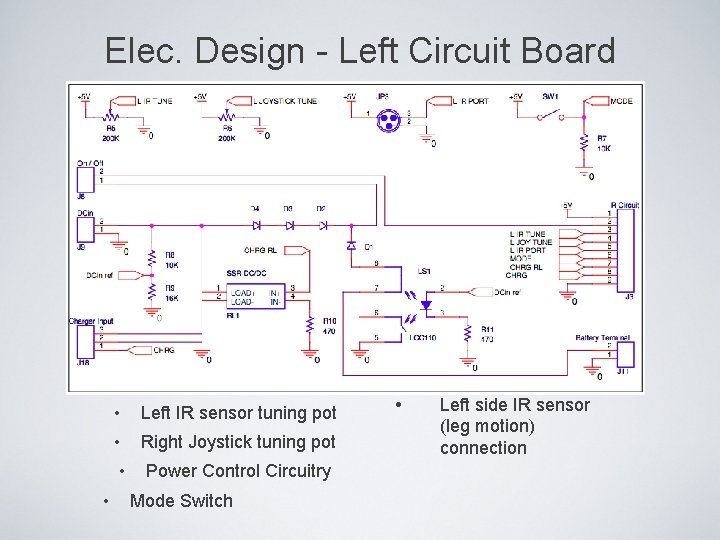

Elec. Design - Left Circuit Board • • Left IR sensor tuning pot • Right Joystick tuning pot • Power Control Circuitry Mode Switch • Left side IR sensor (leg motion) connection

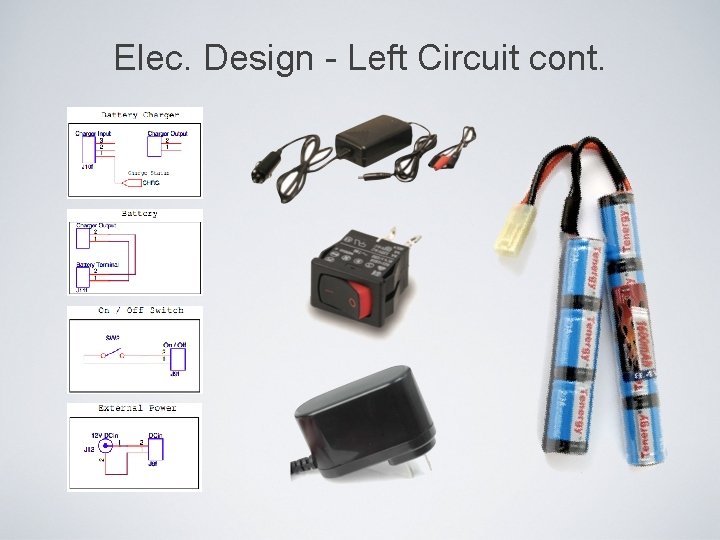

Elec. Design - Left Circuit cont.

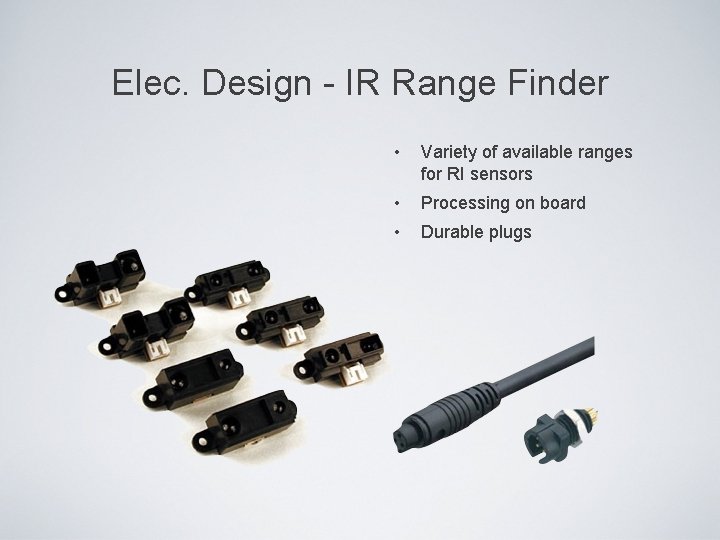

Elec. Design - IR Range Finder • Variety of available ranges for RI sensors • Processing on board • Durable plugs

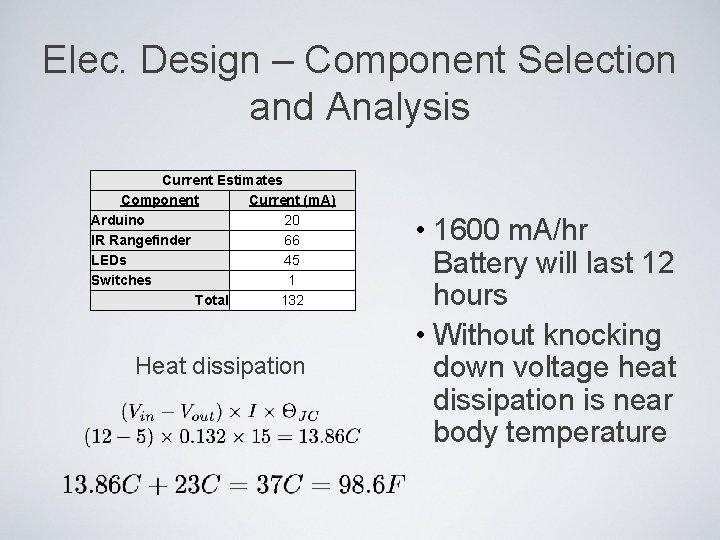

Elec. Design – Component Selection and Analysis Current Estimates Component Current (m. A) Arduino 20 IR Rangefinder 66 LEDs 45 Switches 1 Total 132 Heat dissipation • 1600 m. A/hr Battery will last 12 hours • Without knocking down voltage heat dissipation is near body temperature

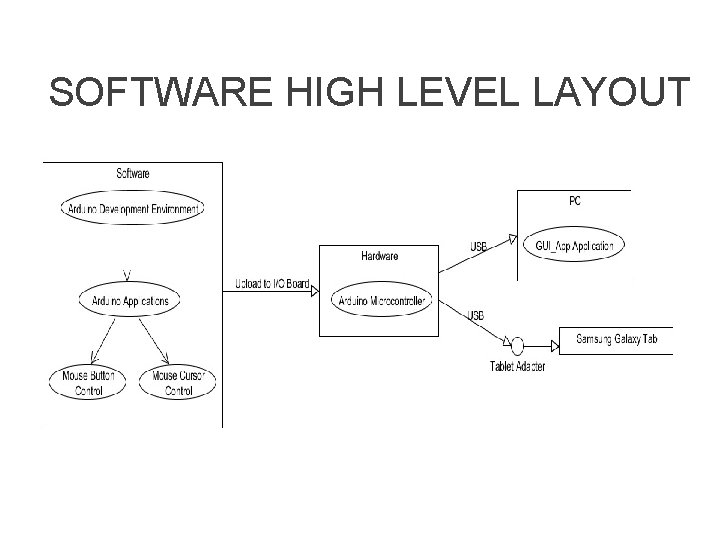

SOFTWARE HIGH LEVEL LAYOUT

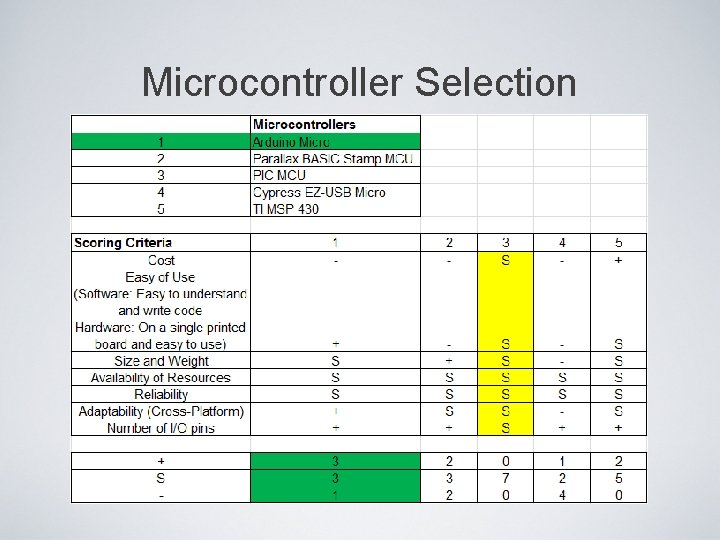

Microcontroller Selection

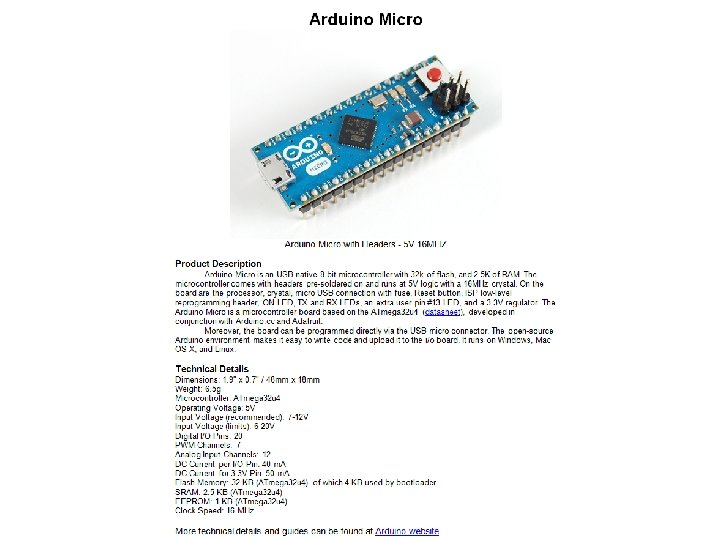

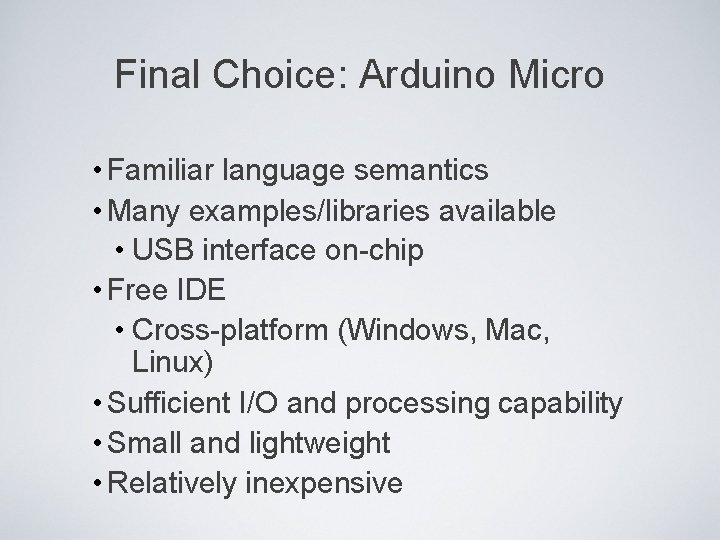

Final Choice: Arduino Micro • Familiar language semantics • Many examples/libraries available • USB interface on-chip • Free IDE • Cross-platform (Windows, Mac, Linux) • Sufficient I/O and processing capability • Small and lightweight • Relatively inexpensive

ARDUINO SOFTWARE FLOW CHART

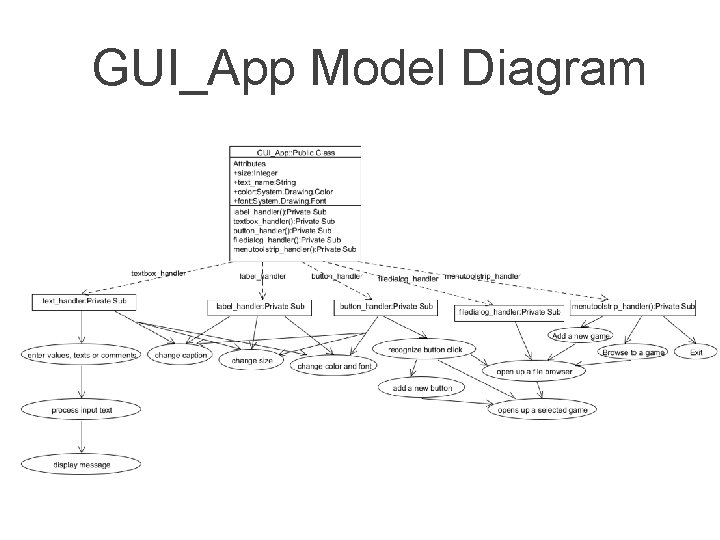

GUI_App Model Diagram

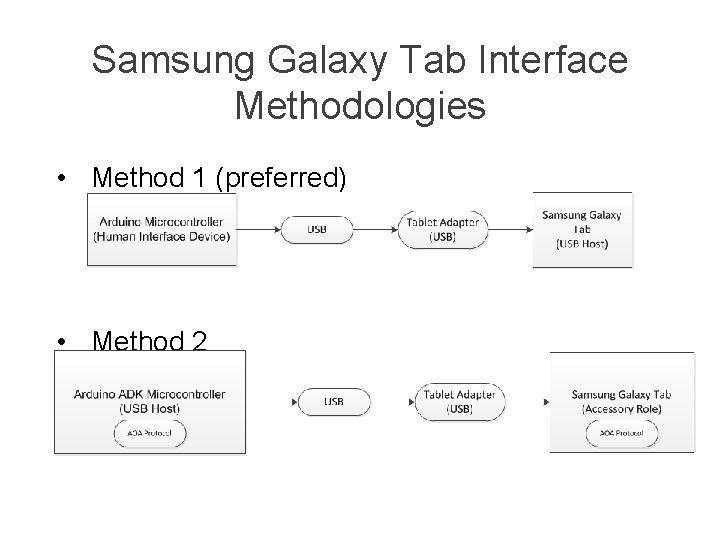

Samsung Galaxy Tab Interface Methodologies • Method 1 (preferred) • Method 2

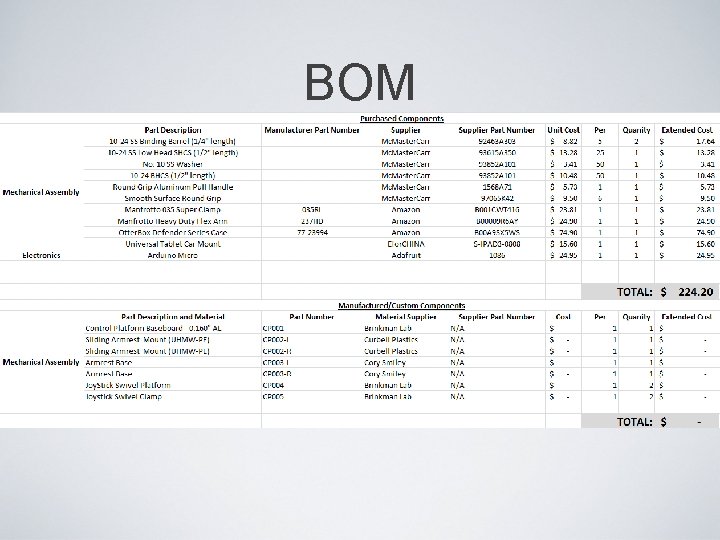

BOM

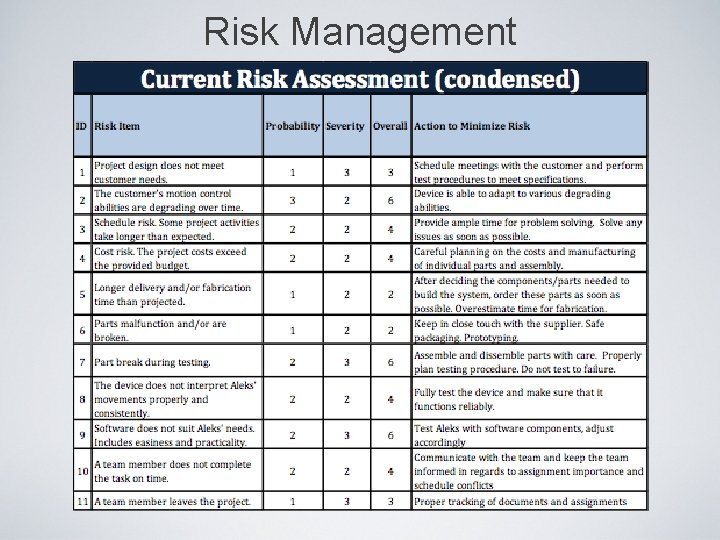

Risk Management

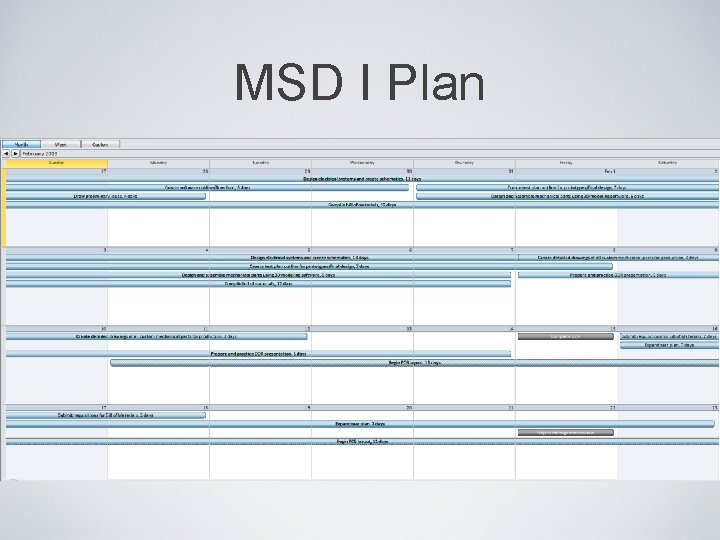

MSD I Plan

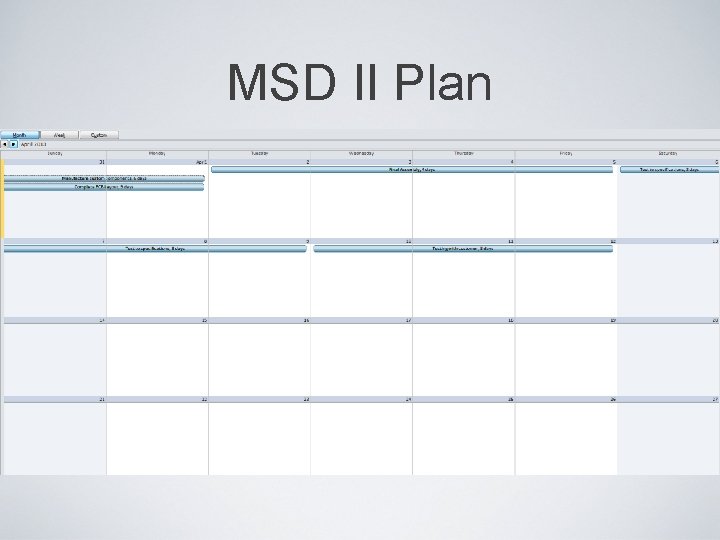

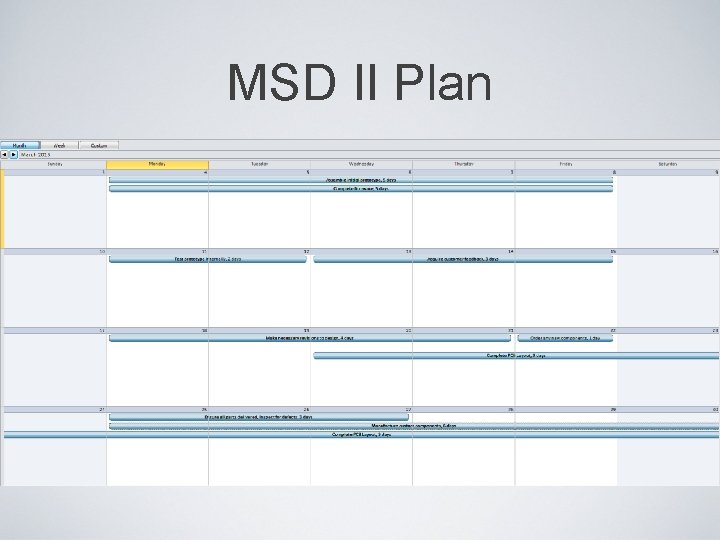

MSD II Plan

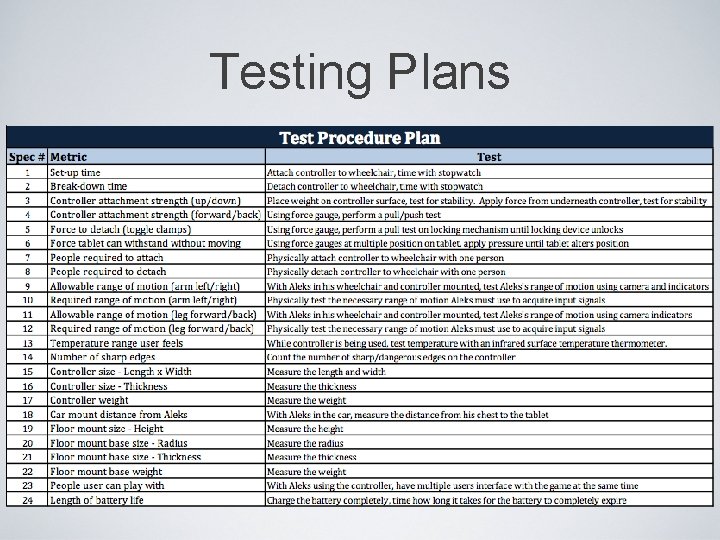

Testing Plans

Questions
