Table of Contents Chapter Earths Changing Surface Section
Table of Contents Chapter: Earth’s Changing Surface Section 1: Weathering and Soil Section 2: Shaping the Landscape Section 3: Groundwater Section 4: Geologic Time
Weathering and Soil 1 Weathering • Weathering is an example of physical and chemical processes that involve the interaction of air, water, and rock over time. • Weathering is the process of physical or chemical breakdown of a material at or near Earth’s surface. • Factors that influence weathering include the agent, such as water or air, the nature of the material being weathered, climate, and time.

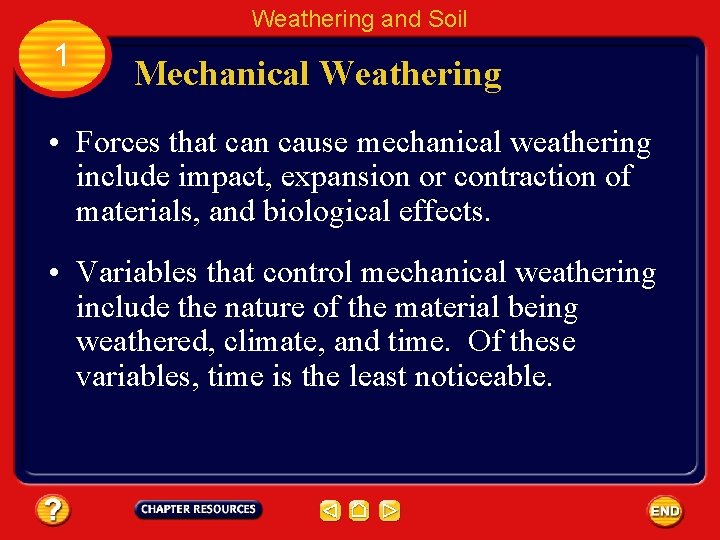

Weathering and Soil 1 Mechanical Weathering • Forces that can cause mechanical weathering include impact, expansion or contraction of materials, and biological effects. • Variables that control mechanical weathering include the nature of the material being weathered, climate, and time. Of these variables, time is the least noticeable.
Weathering and Soil 1 Prying Rock Apart • When water freezes, it expands. This forces the cracks apart and ultimately forces the rock apart. • This type of weathering is called frost wedging.
Weathering and Soil 1 Prying Rock Apart • Rocks can also act as impact agents. • The figure illustrates what happens when a large object breaks apart.
Weathering and Soil 1 Prying Rock Apart • As a large particle breaks into smaller particles, the amount of surface area increases. More surface area compared to volume increases the likelihood that a material will be attacked by chemical agents.
Weathering and Soil 1 Chemical Weathering • The process of chemical weathering forms new compounds and releases elements into the environment. • Water and oxygen are the key agents of chemical weathering, along with naturally occurring acids.
Weathering and Soil 1 Soil • Soil is a mixture of weathered rock, organic matter, water, and air that is capable of supporting plant life. • Soil originates from weathering of the bedrock beneath it or from materials transported from another location.

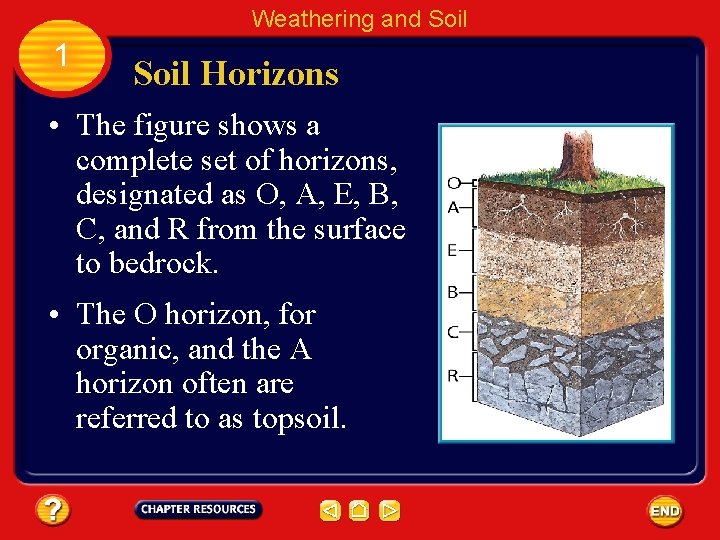

Weathering and Soil 1 Soil Horizons • The figure shows a complete set of horizons, designated as O, A, E, B, C, and R from the surface to bedrock. • The O horizon, for organic, and the A horizon often are referred to as topsoil.
Weathering and Soil 1 Soil Horizons • The E horizon is a zone in which finer sediments and soluble materials are transported downward. • The B horizon collects the materials from above and is usually darker than the E horizon.
Weathering and Soil 1 Soil Horizons • The C horizon is partially crumbled and weathered bedrock. The R horizon is unweathered bedrock.
Weathering and Soil 1 Soil Types • Climate often is used as a basis to characterize many different types of soil.
Weathering and Soil 1 Soil Types • They are separated according to composition and physical properties. • The amount of precipitation and the temperature range of a region, together with the type of parent material, affect the soil that forms.

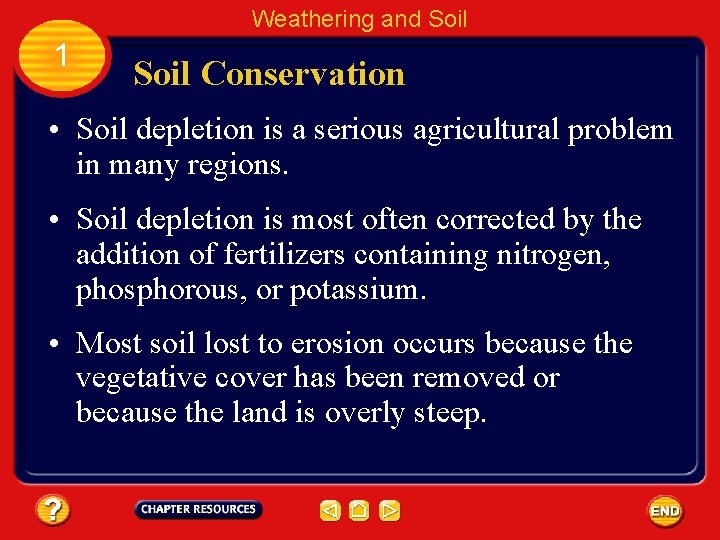

Weathering and Soil 1 Soil Conservation • Soil depletion is a serious agricultural problem in many regions. • Soil depletion is most often corrected by the addition of fertilizers containing nitrogen, phosphorous, or potassium. • Most soil lost to erosion occurs because the vegetative cover has been removed or because the land is overly steep.
Section Check 1 Question 1 Which is NOT an agent of mechanical weathering? A. contraction B. expansion C. impact D. oxygen FL: SC. D. 1. 4
Section Check 1 Answer The answer is D. Oxygen is an agent of chemical weathering. FL: SC. D. 1. 4
Section Check 1 Question 2 Which mineral, present in rocks, turns a brownish-red color? A. calcite B. feldspar C. hematite D. silicon FL: SC. D. 1. 4
Section Check 1 Answer The answer is C. Hematite is often mined to obtain iron for steel production. FL: SC. D. 1. 4
Section Check 1 Question 3 Which horizons combine to form topsoil? A. A and O B. E and H C. B and C D. C and R FL: SC. D. 1. 4
Section Check 1 Answer The answer is A. Plants get most of their nutrients from topsoil. FL: SC. D. 1. 4
Shaping the Landscape 2 Erosion, Transport, and Deposition • Erosion is the removal of surface material through the process of weathering. • Sediment transport is the movement of eroded materials from one place to another by water, wind, and/or glaciers. • When a transporting agent drops its load of eroded material, deposition occurs.
Shaping the Landscape 2 Running Water • An important agent of erosion that exerts a downward force on slopes is running water. Drainage Basins • In most river systems, small streams called tributaries flow into larger streams, which in turn flow into even larger streams. • All of the land area that gathers water for a major river is the river’s drainage basin.
Shaping the Landscape 2 Channel Development • As surface water flows downhill under the influence of gravity, water erodes the surface, creating its own path or following existing paths called channels. Stream Deposits • When running water slows down, it drops part of the sediment load it is carrying, largest particles first.
Shaping the Landscape 2 Floodplains • Floodplains are part of a river, but they are only submerged during floods. Deltas • As the mouth of a stream that empties into a body of water, a fan-shaped sediment deposit called a delta will form.
Shaping the Landscape 2 Glaciers • Valley glaciers form at the top, or head, of river valleys in mountainous regions. They move down slope, usually following the path of the preexisting valleys. • Continental glaciers, which occupy huge land areas, cover all but the highest peaks. Ice moves away in all directions from where it accumulates.
Shaping the Landscape 2 Glaciers • Glaciers become effective agents of erosion as they move either down slope as in valley glaciers or under their own weight as in continental glaciers.
Shaping the Landscape 2 Erosional Features • Valley and continental glaciers leave behind deep grooves or striations, which give clues about the direction the ice was moving. • Glacial ice exerts pressure to the sides as well creating the distinct and easily recognized U-shaped valley.
Shaping the Landscape 2 Glacier Deposits • Till is composed of random sediment sizes ranging from tiny clay particles to house-sized boulders. • The large ridges of till that accumulate at the edge of a glacier are called moraines.
Shaping the Landscape 2 Wind Erosion by Wind • The removal of small particles by wind, leaving heavier particles behind is called deflation. Wind Deposits • As wind velocity decreases, the load of sediment is dropped. • The shapes and sizes of landforms that form depend on how constant the wind velocity is and on the supply of sediment.
Shaping the Landscape 2 Wave Action • Longshore current occurs when waves approach a shoreline at an angle and are refracted. • The backwash returns to the sea perpendicular to the shoreline.
Shaping the Landscape 2 Deposition by Wave Action • Longshore currents move sediment along the shore. • Where this current slows, sediments are deposited as offshore sand ridges or bars. • Sandbars run parallel to the shore. • Spits are sand bars that project into the water from land curve back toward land in a hook shape.
Shaping the Landscape 2 Mass Wasting • Mass wasting occurs when erosion occurs primarily as a result of gravity, whether triggered by an influx of water, by earthquakes, or by human activity. • Wasting erosion caused by mass wasting is dependent upon the type of event and the type of materials involved: slumps, landslides, rockslides, or mudflows. • Mass wasting events tend to dump their material in disorganized masses.
Section Check 2 Question 1 _______ is the removal of surface material through the process of weathering. A. Deposition B. Erosion C. Sediment D. Transport FL: SC. D. 1. 4
Section Check 2 Answer The answer is B, erosion. FL: SC. D. 1. 4
Section Check 2 Question 2 _______ form when wind moves sandsized particles into distinct forms. A. Cirques B. Dunes C. Glaciers D. Waves FL: SC. D. 1. 4

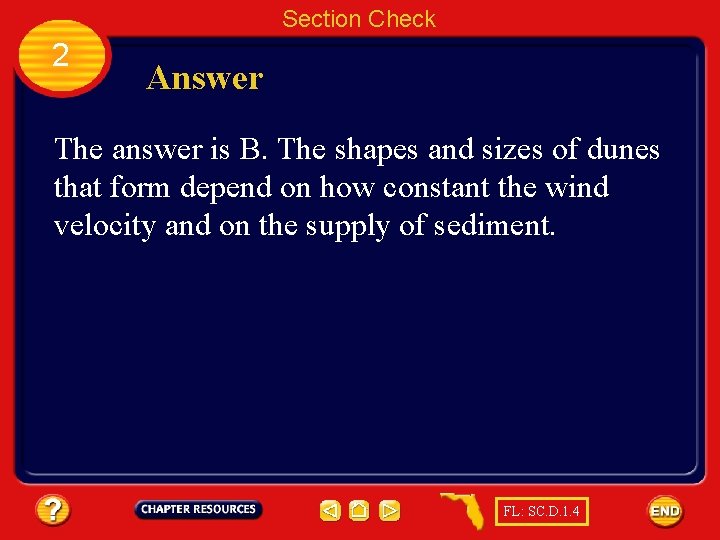

Section Check 2 Answer The answer is B. The shapes and sizes of dunes that form depend on how constant the wind velocity and on the supply of sediment. FL: SC. D. 1. 4
Section Check 2 Question 3 Bowl-shaped basins called _______ form by erosion at the start of a valley glacier. A. arêtes B. bowls C. cirques D. horns FL: SC. D. 1. 4
Section Check 2 Answer The answer is C. Valley glaciers form at the head of a river valley in mountainous regions. FL: SC. D. 1. 4
Groundwater 3 The Water Cycle • Freshwater supplies are constantly being replenished through the water cycle. • A lesser amount enters the cycle through transpiration. • The energy to power both evaporation and transpiration comes from the Sun.
Groundwater 3 The Water Cycle • Infiltration is the process by which water enters Earth to become groundwater below the surface.
Groundwater 3 Groundwater • The region near the surface where water can infiltrate freely is the unsaturated zone. • The region below that is the saturated zone. • The water table is the boundary separating these two zones.
Groundwater 3 Groundwater Storage • A rock unit that can transmit water through its pore space is called an aquifer. • A rock that slows or stops infiltration is an aquitard.
Groundwater 3 Porosity and Permeability • The combined volume of these shapes defines the material’s porosity. • Permeability is a measure of how well a fluid can pass through a material.
Groundwater 3 Water Resources Obtaining Groundwater • Wells are holes dug or drilled into Earth. • Much like surface water, groundwater flows downhill.
Groundwater 3 Pollution and Groundwater Resources • Pollutants that are spilled or dumped on the ground enter groundwater through infiltration, as shown.
Section Check 3 Question 1 What is illustrated in this figure? A. carbon cycle B. nitrogen cycle C. oxygen cycle D. water cycle FL: SC. D. 2. 4. 1
Section Check 3 Answer The answer is D. The water cycle continually redistributes Earth’s water. FL: SC. D. 2. 4. 1
Section Check 3 Question 2 What is an artesian well? Answer Wells drilled into aquifers that are under sufficient natural pressure to force water up into a well are called artesian wells.
Section Check 3 Question 3 Which is not formed as a result of groundwater? A. caves B. sinkholes C. springs D. wells FL: SC. D. 1. 4
Section Check 3 Answer The answer is D. Wells contain groundwater but they are man-made structures. FL: SC. D. 1. 4
Geologic Time 4 Time Absolute and Relative Dating • Absolute dating is the process of assigning a precise numerical age to an organism, object, or event. • Relative dating is the process of placing objects or events in their proper sequence in time.
Geologic Time 4 Uniformitarianism • Uniformitarianism states that the laws of nature operate today as they have in the past. • The only changes might be in their rate or scale.
Geologic Time 4 Principles of Relative Dating • Principle of superposition states that the oldest rocks in an undisturbed sequence of rock layers will be at the bottom of the sequence. Original Horizontality • Sedimentary layers always start off as horizontal layers.

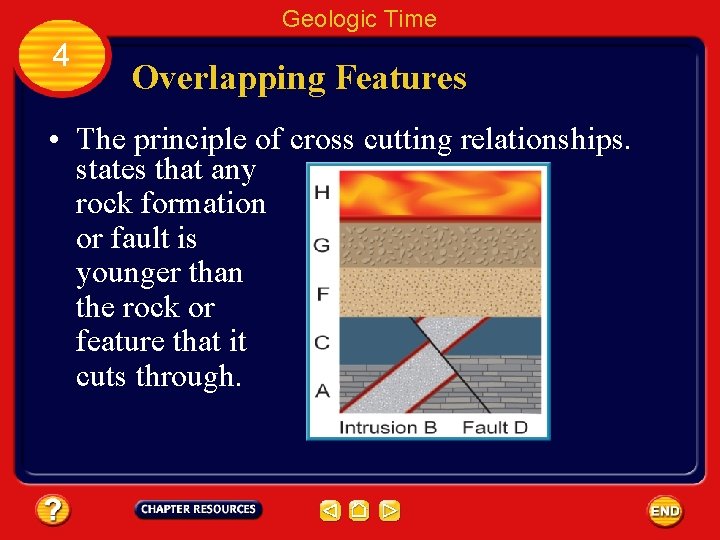

Geologic Time 4 Overlapping Features • The principle of cross cutting relationships. states that any rock formation or fault is younger than the rock or feature that it cuts through.
Geologic Time 4 Unconformities • Unconformities represent gaps in the rock record during which erosion occurred or deposition was absent. • A disconformity is an erosional surface between horizontal rock layers.
Geologic Time 4 Unconformities • An angular unconformity is an erosional surface between rock layer segments that intercept at an angle. • A nonconformity is an erosional surface between sedimentary rock and igneous or metamorphic rock.
Geologic Time 4 Fossils • The remains or traces of organisms found in the geologic rock record are called fossils. Correlation • The process of matching distinctive rock units from different regions is called correlation.
Geologic Time 4 Geologic Time Scale • Paleontologists observe changes in the fossil record and associate them with boundaries of time units. • At these boundaries, fossils of certain life forms are no longer present and new life forms begin to appear.
Geologic Time 4 Absolute Dating Radioactive Decay • Some types of atoms are unstable and decay by casting off, or emitting, parts of their nuclei. • The half-life is the time it takes for one -half of a radioactive parent sample to decay to its stable daughter.
Geologic Time 4 Geologic Maps • Geologic cross-sections represent a vertical slice taken through Earth. • Geologic maps show the horizontal surface distribution of various rock formations.

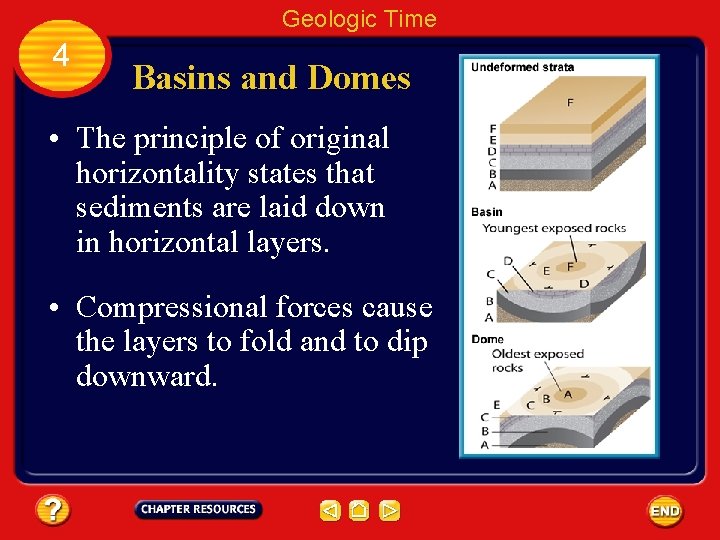

Geologic Time 4 Basins and Domes • The principle of original horizontality states that sediments are laid down in horizontal layers. • Compressional forces cause the layers to fold and to dip downward.
Geologic Time 4 Basins and Domes • In basins, the youngest rocks are exposed in the center and tilt or dip inward. • Domes are essentially the opposite of basins.
Geologic Time 4 Folds • Folding of the crust can also be recognized on geologic maps. • Rocks subjected to the compression might wrinkle up or fold. • An upward wrinkle of rock formations is an anticline and a downward wrinkle is a syncline.
Geologic Time 4 Plunging Folds • If the forces are applied unevenly the axis of the fold might plunge back into the Earth, producing a surface pattern of rock like the one shown in the figure.
Section Check 4 Question 1 _______ is the process of placing objects or events in their proper sequence in time. A. Relative dating B. Absolute dating C. Carbon dating D. Fossil dating FL: SC. D. 1. 4. 3
Section Check 4 Answer The answer is A. When you date events relatively, you know which came first, second, and so on. FL: SC. D. 1. 4. 3
Section Check 4 Question 2 Why is Fossil C considered to be between 2. 1 and 2. 4 million years old? FL: SC. D. 1. 4. 3
Section Check 4 Answer You could conclude from the rock layers at Location A that Fossil C is between 2. 1 and 2. 4 million years old, Fossil A is older than 2. 4 million years, and Fossil E is younger than 2. 1 million years. FL: SC. D. 1. 4. 3
Section Check 4 Question 3 Which time unit of the geological time scale is the shortest? A. eon B. epoch C. period D. era FL: SC. D. 1. 4. 4
Section Check 4 Answer The answer is B. An epoch is the shortest time unit of the geological time scale. FL: SC. D. 1. 4. 4
Help To advance to the next item or next page click on any of the following keys: mouse, space bar, enter, down or forward arrow. Click on this icon to return to the table of contents. Click on this icon to return to the previous slide. Click on this icon to move to the next slide. Click on this icon to open the resources file. Click on this icon to go to the end of the presentation.
End of Chapter Summary File
