T61 181 Biomedical Signal Processing ECG Signal Delineation

T-61. 181 Biomedical Signal Processing ECG Signal Delineation And Compression Chapters 6. 2. 6 – 6. 3 18 th November

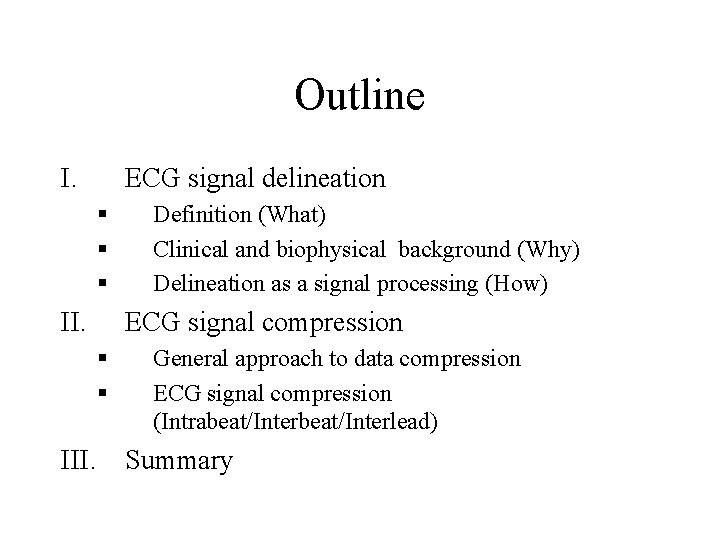

Outline I. ECG signal delineation § § § II. Definition (What) Clinical and biophysical background (Why) Delineation as a signal processing (How) ECG signal compression § § General approach to data compression ECG signal compression (Intrabeat/Interlead) III. Summary

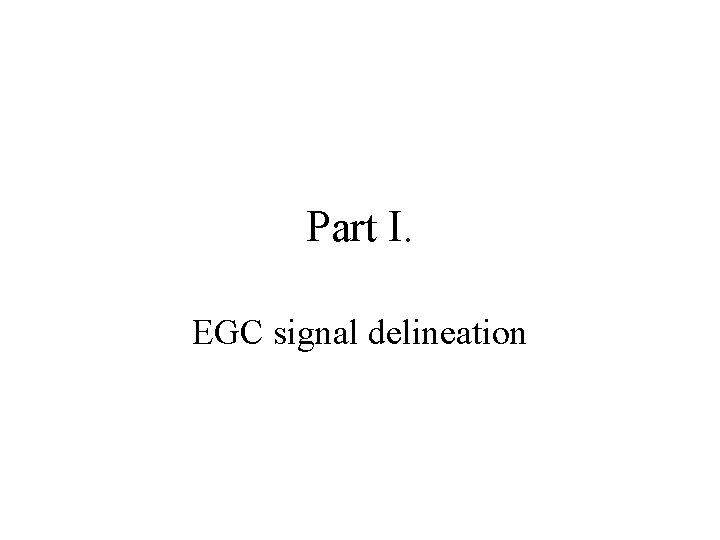

Part I. EGC signal delineation

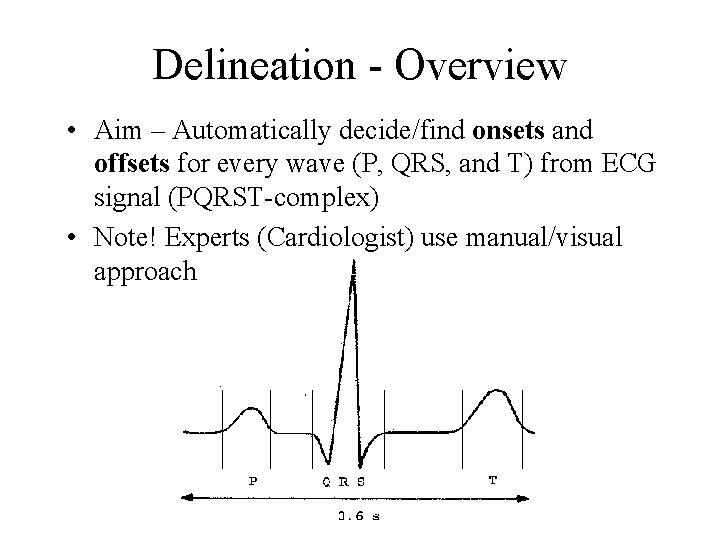

Delineation - Overview • Aim – Automatically decide/find onsets and offsets for every wave (P, QRS, and T) from ECG signal (PQRST-complex) • Note! Experts (Cardiologist) use manual/visual approach

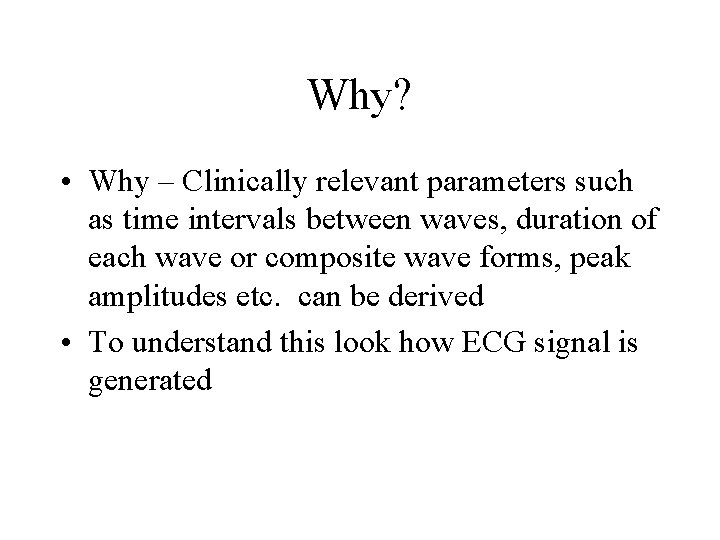

Why? • Why – Clinically relevant parameters such as time intervals between waves, duration of each wave or composite wave forms, peak amplitudes etc. can be derived • To understand this look how ECG signal is generated

ECG Signal Generation

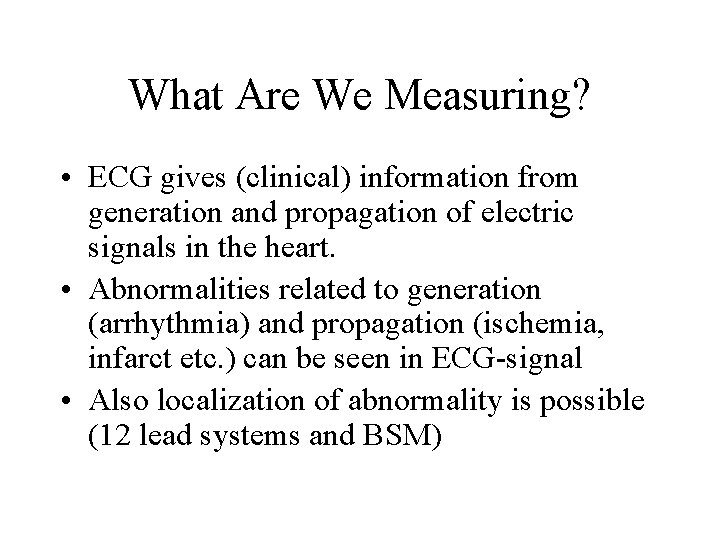

What Are We Measuring? • ECG gives (clinical) information from generation and propagation of electric signals in the heart. • Abnormalities related to generation (arrhythmia) and propagation (ischemia, infarct etc. ) can be seen in ECG-signal • Also localization of abnormality is possible (12 lead systems and BSM)

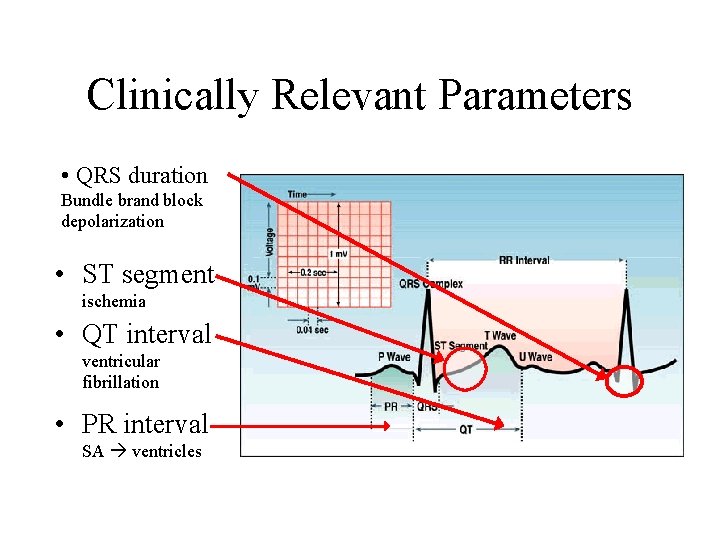

Clinically Relevant Parameters • QRS duration Bundle brand block depolarization • ST segment ischemia • QT interval ventricular fibrillation • PR interval SA ventricles

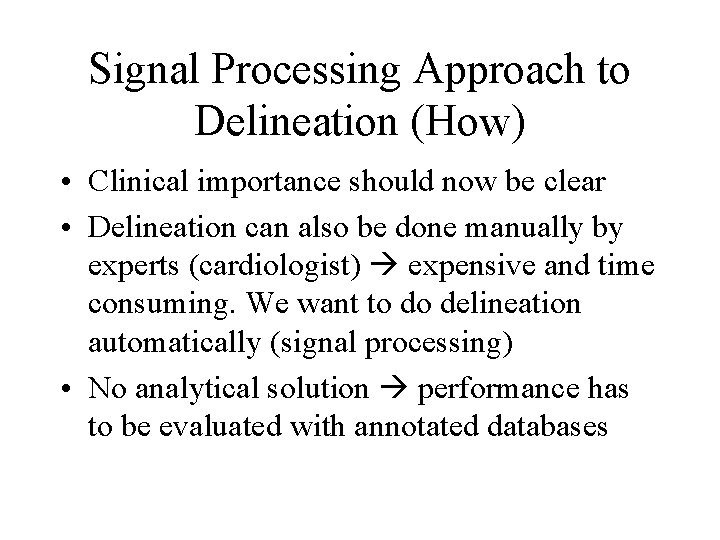

Signal Processing Approach to Delineation (How) • Clinical importance should now be clear • Delineation can also be done manually by experts (cardiologist) expensive and time consuming. We want to do delineation automatically (signal processing) • No analytical solution performance has to be evaluated with annotated databases

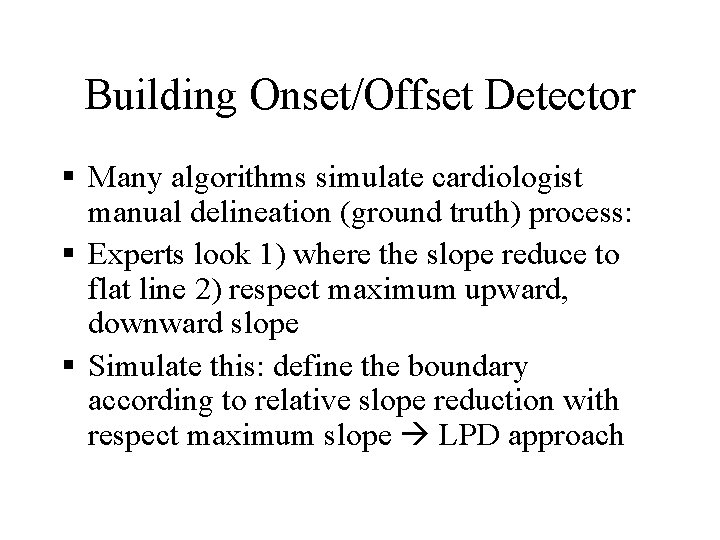

Building Onset/Offset Detector § Many algorithms simulate cardiologist manual delineation (ground truth) process: § Experts look 1) where the slope reduce to flat line 2) respect maximum upward, downward slope § Simulate this: define the boundary according to relative slope reduction with respect maximum slope LPD approach

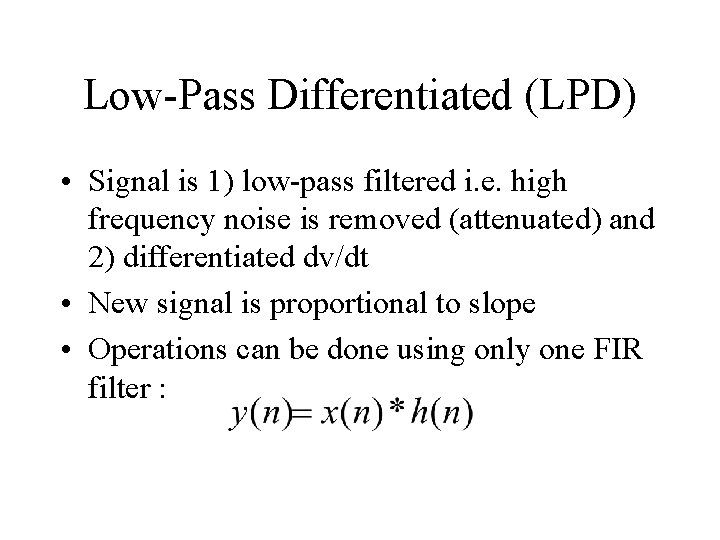

Low-Pass Differentiated (LPD) • Signal is 1) low-pass filtered i. e. high frequency noise is removed (attenuated) and 2) differentiated dv/dt • New signal is proportional to slope • Operations can be done using only one FIR filter :

LPD cont. • Each wave has a unique frequency band thus different low-pass (LP) filtering (impulse) responses are needed for each wave (P, QRS, and T) • Design cut-off frequencies using Power Spectral Density (PSD) • Differentiation amplifies (high freq. ) noise and thus LP filtering is required

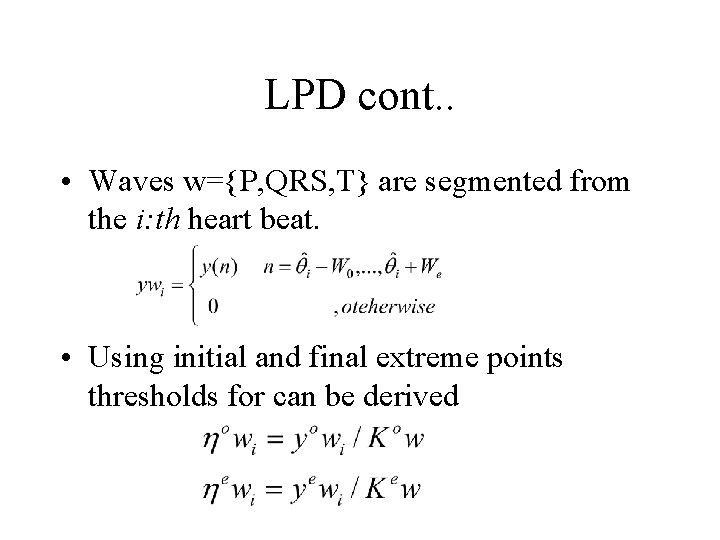

LPD cont. . • Waves w={P, QRS, T} are segmented from the i: th heart beat. • Using initial and final extreme points thresholds for can be derived

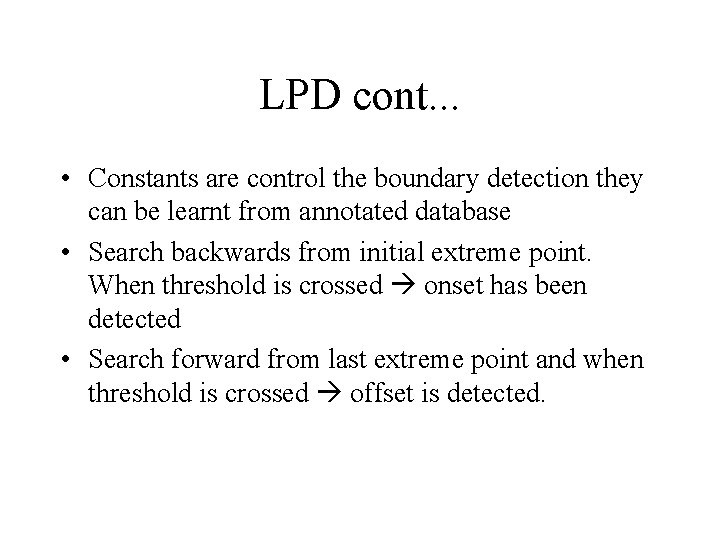

LPD cont. . . • Constants are control the boundary detection they can be learnt from annotated database • Search backwards from initial extreme point. When threshold is crossed onset has been detected • Search forward from last extreme point and when threshold is crossed offset is detected.

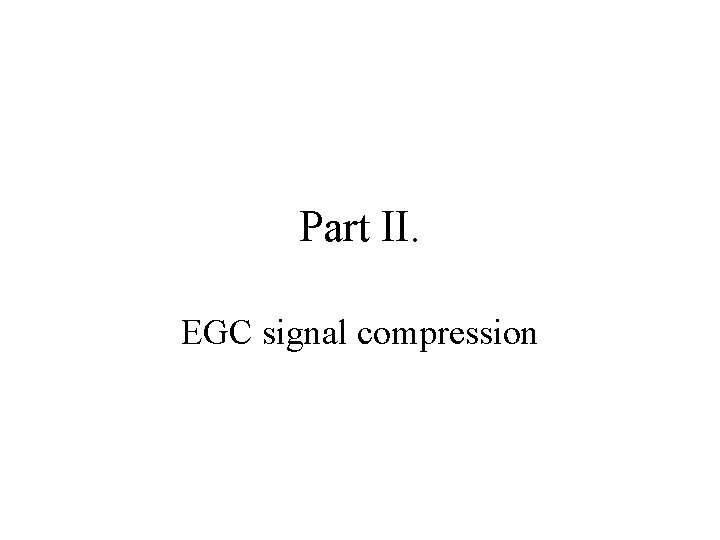

Part II. EGC signal compression

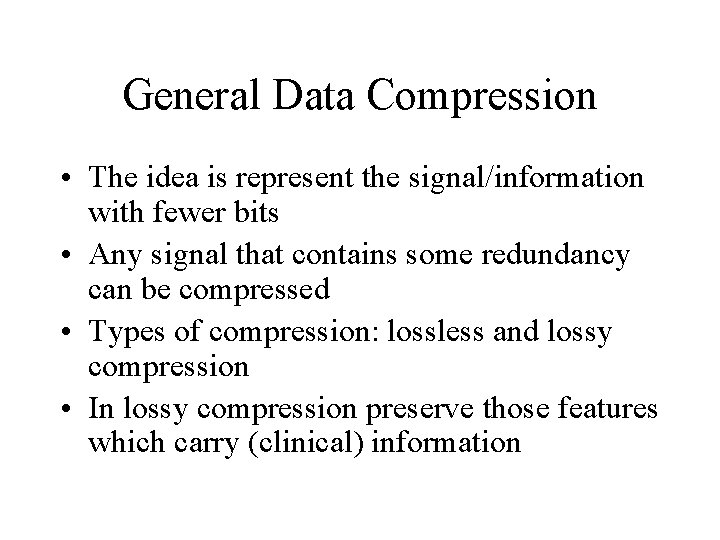

General Data Compression • The idea is represent the signal/information with fewer bits • Any signal that contains some redundancy can be compressed • Types of compression: lossless and lossy compression • In lossy compression preserve those features which carry (clinical) information

ECG Data Compression 1) Amount of data is increasing: databases, number of ECG leads, sampling rate, amplitude resolution etc. 2) ECG signal transmission 3) Telemetry

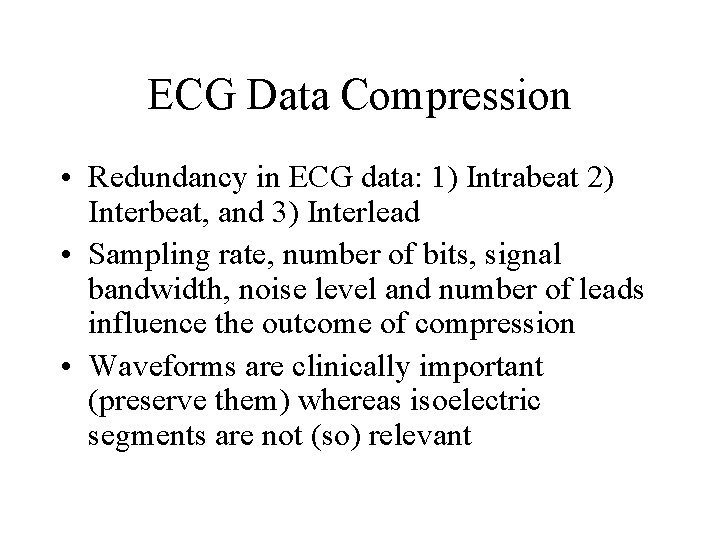

ECG Data Compression • Redundancy in ECG data: 1) Intrabeat 2) Interbeat, and 3) Interlead • Sampling rate, number of bits, signal bandwidth, noise level and number of leads influence the outcome of compression • Waveforms are clinically important (preserve them) whereas isoelectric segments are not (so) relevant

Intrabeat Lossless Compression • Not efficient – has mainly historical value • Sample is predicted as a linear combination of past samples and only prediction error is stored (smaller magnitude):

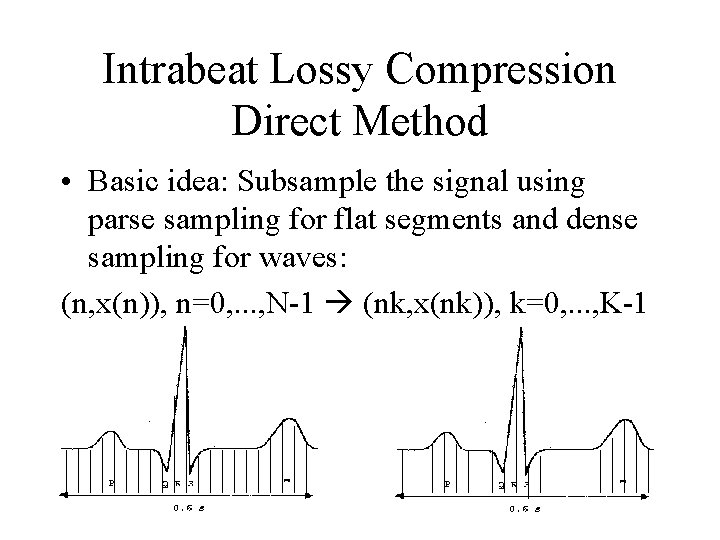

Intrabeat Lossy Compression Direct Method • Basic idea: Subsample the signal using parse sampling for flat segments and dense sampling for waves: (n, x(n)), n=0, . . . , N-1 (nk, x(nk)), k=0, . . . , K-1

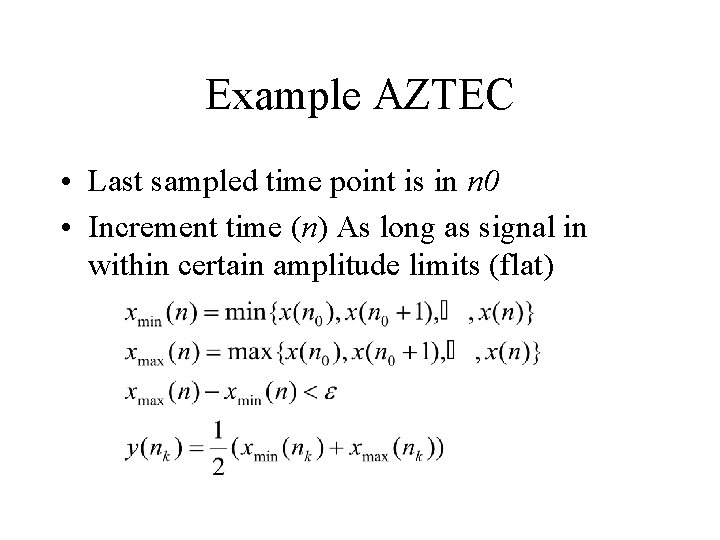

Example AZTEC • Last sampled time point is in n 0 • Increment time (n) As long as signal in within certain amplitude limits (flat)

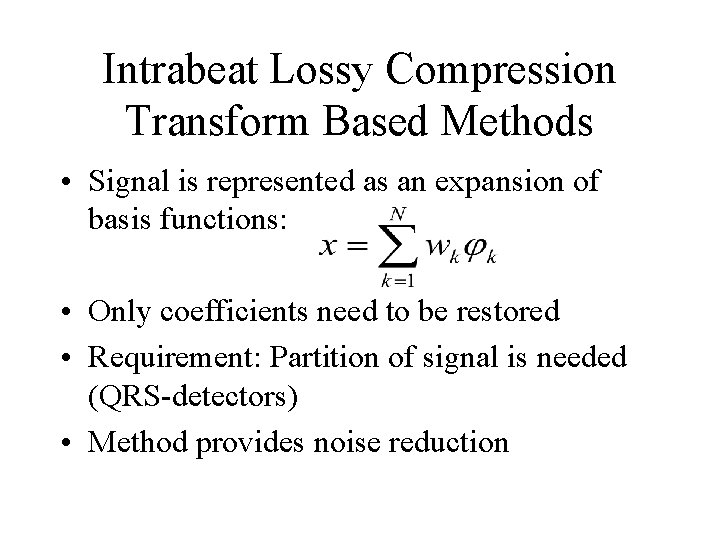

Intrabeat Lossy Compression Transform Based Methods • Signal is represented as an expansion of basis functions: • Only coefficients need to be restored • Requirement: Partition of signal is needed (QRS-detectors) • Method provides noise reduction

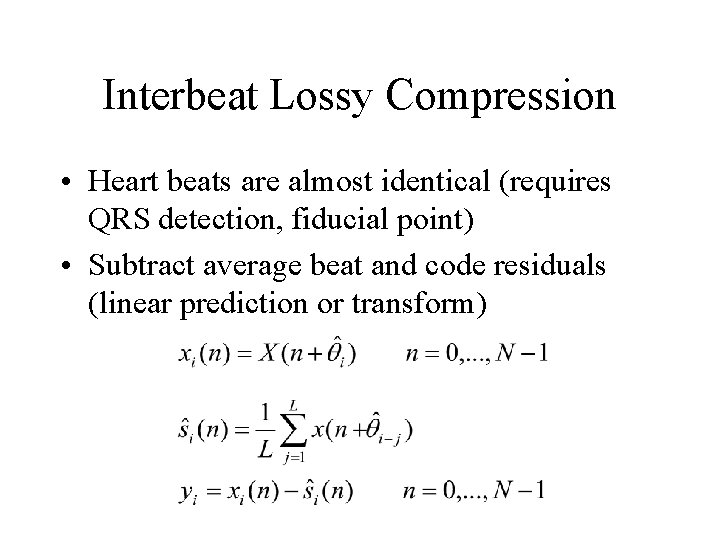

Interbeat Lossy Compression • Heart beats are almost identical (requires QRS detection, fiducial point) • Subtract average beat and code residuals (linear prediction or transform)

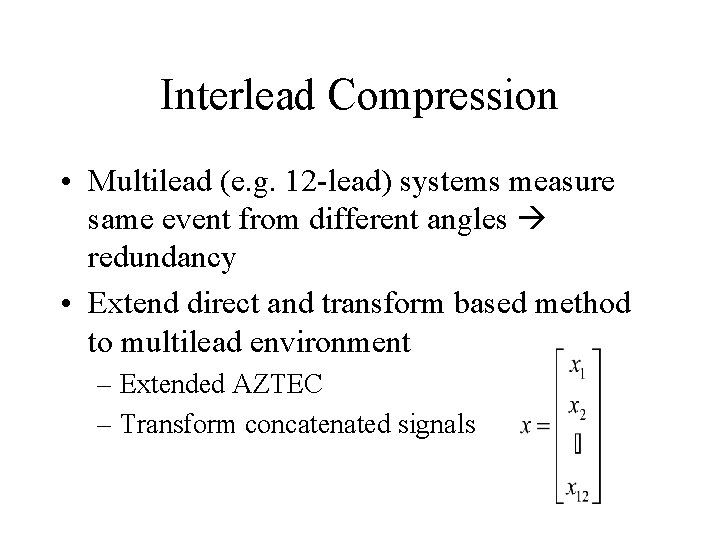

Interlead Compression • Multilead (e. g. 12 -lead) systems measure same event from different angles redundancy • Extend direct and transform based method to multilead environment – Extended AZTEC – Transform concatenated signals

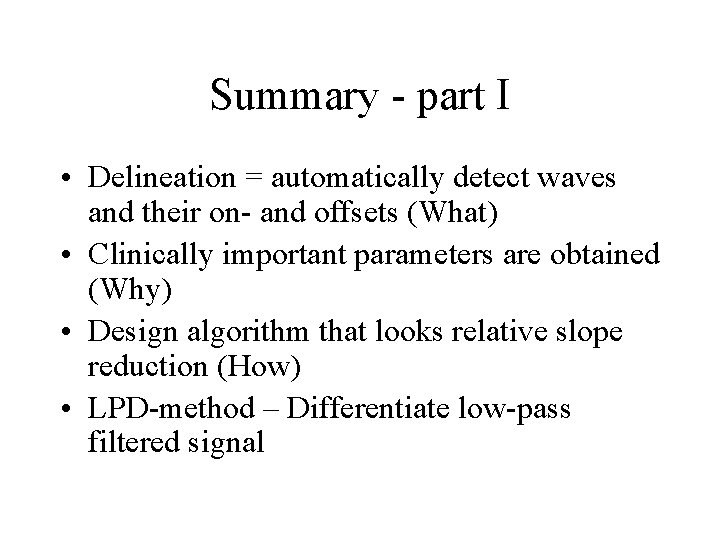

Summary - part I • Delineation = automatically detect waves and their on- and offsets (What) • Clinically important parameters are obtained (Why) • Design algorithm that looks relative slope reduction (How) • LPD-method – Differentiate low-pass filtered signal

Summary - part II • Compression = remove redundancy: intrabeat, interbeat, and interlead • Why – Large amount of data, transmission and telemetry • Lossless (historical) and lossy compression • Notice which features are lost (isoelectric segments don’t carry any clinical information)

Summary - part II cont. • Intrabeat 1) direct and 2) transform based methods – 1) Subsample signal with non-uniform way – 2) Use basis function (save only weights) • Interbeat subtract average beat and code residuals (linear prediction or transform-coding) • Interlead extend intrabeat methods to multilead environment

Thank you!
