T 1 electronics status Saverio MINUTOLI TOTEM Electronics

T 1 electronics status Saverio MINUTOLI TOTEM Electronics W. G. , 9 December 2008 1

T 1 functional electronics system architecture Detector VFAT AFECs CFECs Local Detector region S-bit Data. Out Clk 40 Fast. Cmd I 2 C 40÷ 100 cm 4 x 15 A 4 x 40 C Saverio MINUTOLI TDAV MUX LVDS CMOS DDAV MUX GOHs GOH Trigger Info OPTORx Trigger bits TOTFED OPTORx Data bits OPTORx SPY Mezz VFAT Trg. Mez DCU QPLL 25 CMOS LVDS 4 x 9 R TTCRx ROC CCUM CLK 40 Tree VFAT 4 x 15 D LVDS CMOS Counting Room region T 1 Tree Readout Path Data to DAQ (S-Link; VME; or USB) 4 x 1 DH TOTEM Electronics W. G. , 9 December 2008 Control Path m. FEC DOHs DOHM On Detector region T o k e n R i n g FEC TTCRx 2 T+2 D+4 m. FEC TOTEM Slow Control 4 x T 1 ¼ 2

VFAT strip hybrids ‣ Request 550 pcs. ‣ Delivered 193 pcs. ‣ 129 pcs good. ‣ 64 pcs bad. Trigger VFAT mezzanine ‣ Request 40 pcs. ‣ Delivered 1 pc, good (by Cern) ‣ Remainder 39 pcs (by Cern) ‣ Remainder 357 pcs: ‣ ( Pcb + passive components + connectors ) (by Cern) ‣ Chip gluing (@ Cern by Genoa tech. ) Need 2÷ 3 months ‣ ( Chip bonding + hybrid tests ) (by Genoa) Saverio MINUTOLI TOTEM Electronics W. G. , 9 December 2008 3

On detector region : AFEC Ø Ten types, 1 for each CSC Ø Need 70 pcs (including spares) Ø Produced 25 pcs – 15 soldered on CSC and installed on T 1 ¼. – 10 = 1 spare for each type. Ø Remainder 45 pcs. – Need two months (pcb + components) Ø Set-up @ bld. 188 measured a huge amount of noise – New AFEC worse than the old one tested at H 8. – Long investigation reason was the wrong AFEC input filter capacitor value. Mounted 2. 7 n. F while 2. 7 p. F was required. – Capacitors replacement in progress (~4000). • Now the T 1 anodes noise value is ~10 VFAT thr. Ø Tests in progress (now @ Genoa lab. ) Saverio MINUTOLI TOTEM Electronics W. G. , 9 December 2008 4

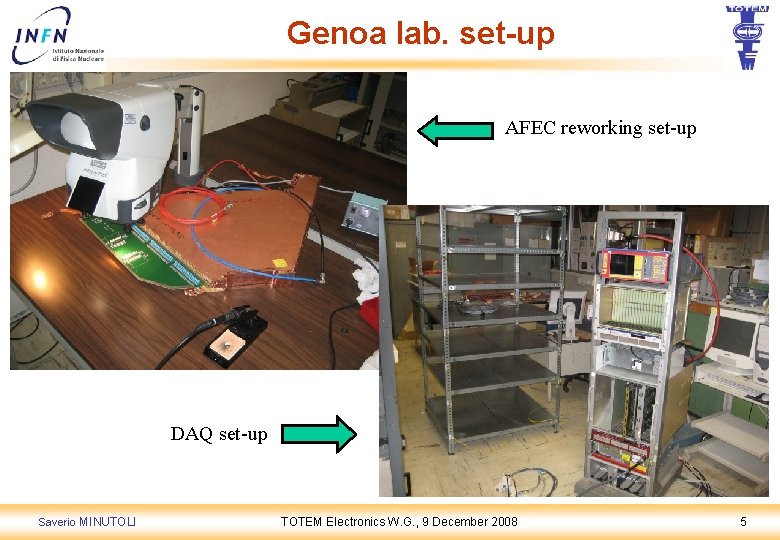

Genoa lab. set-up AFEC reworking set-up DAQ set-up Saverio MINUTOLI TOTEM Electronics W. G. , 9 December 2008 5

On detector region : CFEC Ø Need 180 pcs (including spares) Ø Produced 45 pcs – 39 installed on T 1 ¼. – 6 spares. Ø Remainder 135 pcs. – Need two months (pcb + components) Ø Noise investigation has emphasized that the VFAT is sensitive to the position of the pcb hybrid ground connection. Few centimeters are enough to measure differences (Blue is better than red connection). • Now the T 1 cathodes noise value is ~17 VFAT thr. Ø Tests in progress (now @ Genoa lab. ) Saverio MINUTOLI TOTEM Electronics W. G. , 9 December 2008 6

Local detector region : ROC Ø Need 40 pcs (including spares) Ø ROC v 1. functionalities tested. – All major blocks OK Ø Produced 12 pcs – BC 0 transmission line new layout v. 2 – 2 ROC v. 1 Ø ROC v 2. Tests in progress (now @ – 10 ROC v. 2 Genoa lab. ) Ø Remainder 30 pcs. – Need two months (pcb + components) Saverio MINUTOLI TOTEM Electronics W. G. , 9 December 2008 7

T 1 TRIgger MEzzanine ~6 k wires VFAT 8 bit 1 8 (16) x 8 VFAT 2 x 2 T 1 TRIME: • 32 trigger bits • 12 bunch counter bits • 40 Mhz clock CAVERN 1 x 2 x 15 30 CSC 8 (16) 1 3 3 30 x 2 x 15 12 CSC 12 LONEG T 1 TRG_TOTFED 32 Saverio MINUTOLI ~6 k wires T 1 ARM T 1 TRIME Trigger Bits 2 x 480 = 960 VFAT 2 x 2 T 1 ARM 12 x 8 VFAT 1 8 bit Y LV 1 3 3 12 T 1 TRIME T 1 TRG_TOTFED 32 TOTEM Electronics W. G. , 9 December 2008 COUNTING ROOM 8

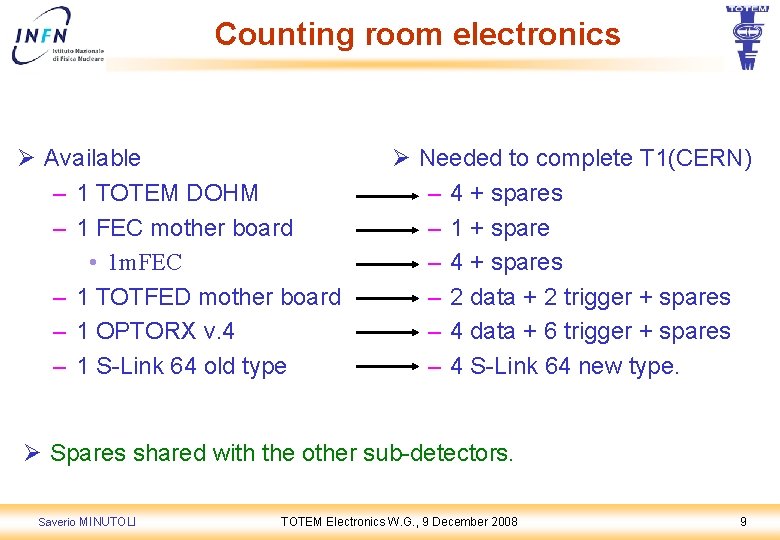

Counting room electronics Ø Available – 1 TOTEM DOHM – 1 FEC mother board • 1 m. FEC – 1 TOTFED mother board – 1 OPTORX v. 4 – 1 S-Link 64 old type Ø Needed to complete T 1(CERN) – 4 + spares – 1 + spare – 4 + spares – 2 data + 2 trigger + spares – 4 data + 6 trigger + spares – 4 S-Link 64 new type. Ø Spares shared with the other sub-detectors. Saverio MINUTOLI TOTEM Electronics W. G. , 9 December 2008 9

Cabling on YE 3 - Position and B-field sensors cables ‣ Cables from detector (6 th frame) to mini-rack on platform: - intermediate patch panel not required any more; - will need to add cables for position and B-field sensors (Dmitry). Saverio MINUTOLI TOTEM Electronics W. G. , 9 December 2008 10

T 1 optic fibers distribution. NEED SOON Fan-out Box on T 1 6 th frame Platform Side GOL/DOHM SMU in line adapter 12 MPO in line adapter GOL/DOHM L 4=3 m T 2 Rack L 6=2 m #1 L 5=2 m L 3=2. 3 m T 1 internal distribution 8 L 1=50 cm #3 Optic Fibers Patch Panel 8 MPO Multi ribbon cable (8 x 12) #2 #4 T 1 ¼ Optic Distribution Scheme L 2=12 m Ribbon fiber cable (12 x 1) Single fiber Saverio MINUTOLI Cable Tray side TOTEM Electronics W. G. , 9 December 2008 T 1 quarter side 11

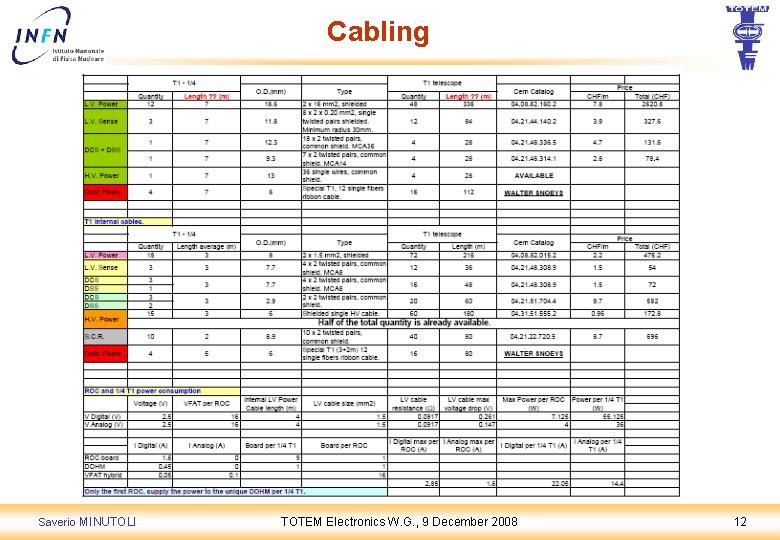

Cabling Saverio MINUTOLI TOTEM Electronics W. G. , 9 December 2008 12

Half-arm mounting test Ø Complete assembly of one half-arm at bldg. 188: – Very useful to check everything fits and solve all small problems. Gas lines AFEC ROC Saverio MINUTOLI CFEC cooling lines TOTEM Electronics W. G. , 9 December 2008 13

Conclusions Ø To obtain from CERN: – 357 Hybrids (slide #3) • They need chip gluing, bonding and testing (by Genoa) – 39 Trigger VFAT Mezzanine – All the Counting room electronics (slide #9) – 16 Short ribbon fiber cable for T 1 internal cabling (slide #11). Ø Cables: – External services from platform to T 1 6 th frame. Need cables procurement. (? ? ? ) – Internal Need cables procurement (Genoa) Ø Fibers: – External from T 2 Rack to T 1 6 th frame (CERN) – Internal short fan-out, see slide #11 (CERN). Ø On detector and local detector cards: – AFEC: lab. final test, cosmics tests, end production (Genoa) (slide #4). – CFEC: lab. final test, cosmics tests, end production (Genoa) (slide #6). – ROC: lab. final test, DAQ tests, end production (Genoa) (slide #7). Saverio MINUTOLI TOTEM Electronics W. G. , 9 December 2008 14
