Introduction • I am Michael Elleby III (Mike Elleby 3. 0 – Linked. In, Twitter – Mike. Elleby 3) – Senior Tivoli Enterprise Monitoring Engineer - Subject Matter Expert (SME) have worked on various U. S. Federal Government Projects – Deploy and oversee the management of multiple IBM Tivoli Netcool Tools – Currently working through the upgrades to all IBM Tivoli Netcool tools – Current Leader of the US Army/Do. D TUG FOR OFFICIAL USE ONLY

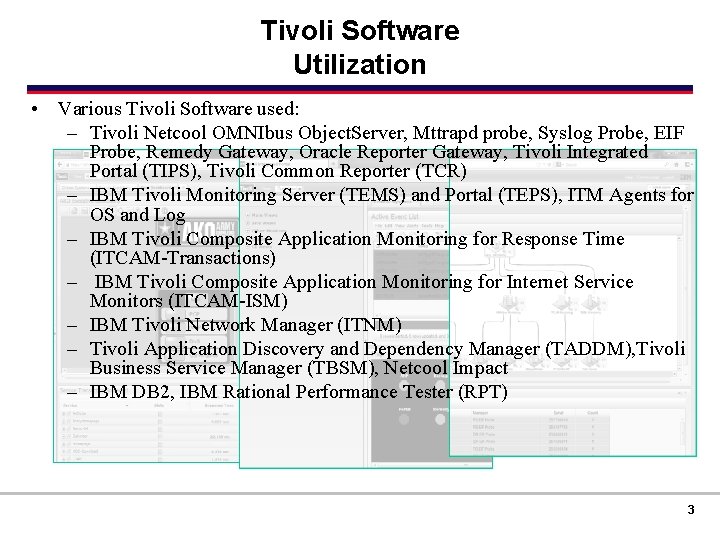

Tivoli Software Utilization • Various Tivoli Software used: – Tivoli Netcool OMNIbus Object. Server, Mttrapd probe, Syslog Probe, EIF Probe, Remedy Gateway, Oracle Reporter Gateway, Tivoli Integrated Portal (TIPS), Tivoli Common Reporter (TCR) – IBM Tivoli Monitoring Server (TEMS) and Portal (TEPS), ITM Agents for OS and Log – IBM Tivoli Composite Application Monitoring for Response Time (ITCAM-Transactions) – IBM Tivoli Composite Application Monitoring for Internet Service Monitors (ITCAM-ISM) – IBM Tivoli Network Manager (ITNM) – Tivoli Application Discovery and Dependency Manager (TADDM), Tivoli Business Service Manager (TBSM), Netcool Impact – IBM DB 2, IBM Rational Performance Tester (RPT) 3 FOR OFFICIAL USE ONLY

Tivoli Software Utilization • “Day in the Life”: – ITCAM-Transactions reports are reviewed in morning meetings – Synthetic Transaction Issues – ITM, TIP related UI’s are used by Operations areas to monitor critical services actively – Tivoli tools are actively used to monitor the health of their servers, processes and applications – SNMP traps and Syslog messages are used by the network team extensively to monitor the health of the network – All production servers are instrumented with ITM agent to monitor defined thresholds. Alarms are processed and displaced from all network and system devices 4 FOR OFFICIAL USE ONLY

Tivoli Provided Services • Purpose: – Monitoring Functions provide: § Network, system and process availability and performance monitoring to various O&M teams 5 FOR OFFICIAL USE ONLY

Tivoli Provided Services • Purpose: – Monitoring also provides views into different parts of the network infrastructure: 6 FOR OFFICIAL USE ONLY

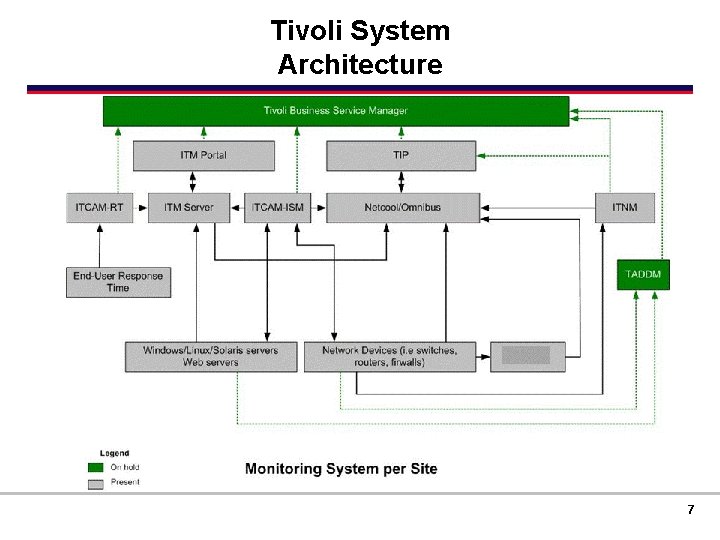

Tivoli System Architecture 7 FOR OFFICIAL USE ONLY

Event Collection and Management 8 FOR OFFICIAL USE ONLY

Major Developments • Recent Accomplishments – Certify functionality and applications on top of that functionality – SLA Measurement – IBM License Metric Tool in use – Costs associated with Tivoli agents – Streamlining – Configured ITM agents for fail-over between sites – Supported monitoring of ‘External’ applications – – Performed TADDM levels 1, 2 and 3 scans – Configuration Management and Service Modelling Initiatives - Assist in the Asset Management Lifecycle – Executive Dashboards/Service Transaction Scorecards for critical applications 9 FOR OFFICIAL USE ONLY

Major Developments • Future Developments – Upgrade of all Tivoli software that supports separate Missions – Management of soft certificates into RPT/ITCAM-Transactions tests – Evaluation of all monitoring tools to determine full capabilities, tool capability overlap, existing report and reporting mechanisms – Consolidate all monitoring metrics to a common reporting facility (TIP and TCR) – Install ITCAM for Web Response Time (WRT) on web servers – Continue with TADDM L 2/L 3 scans – Continue to build the Executive Dashboard page and Service Transaction Scorecards 10 FOR OFFICIAL USE ONLY
