Systems for Safety and Dependability David Evans http: //www. cs. virginia. edu/~evans/ University of Virginia Department of Computer Science 14 December 1999 Safety and Dependability

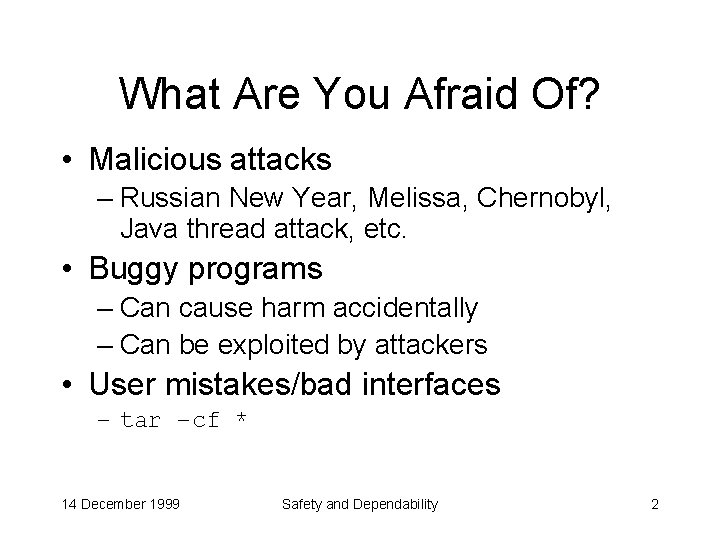

What Are You Afraid Of? • Malicious attacks – Russian New Year, Melissa, Chernobyl, Java thread attack, etc. • Buggy programs – Can cause harm accidentally – Can be exploited by attackers • User mistakes/bad interfaces – tar –cf * 14 December 1999 Safety and Dependability 2

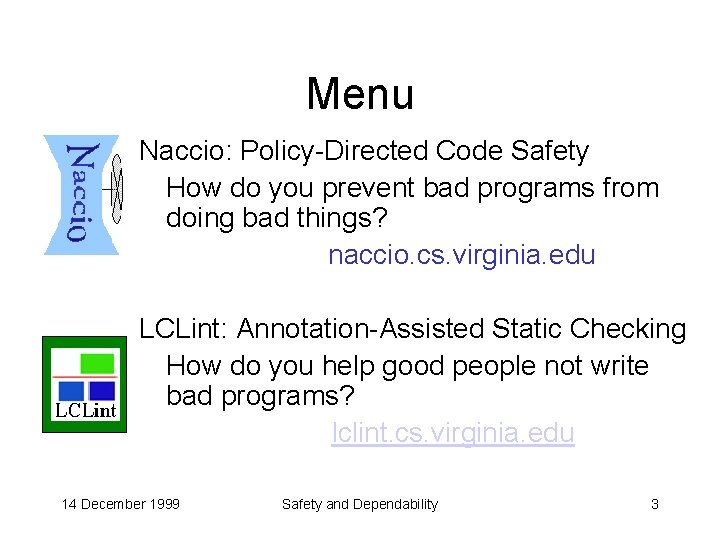

Menu Naccio: Policy-Directed Code Safety How do you prevent bad programs from doing bad things? naccio. cs. virginia. edu LCLint: Annotation-Assisted Static Checking How do you help good people not write bad programs? lclint. cs. virginia. edu 14 December 1999 Safety and Dependability 3

Naccio Motivation • Weaknesses in existing code safety systems: – Limited range of policies – Policy definition is ad hoc and platform dependent • Enforcement is tied to a particular architecture • Can we solve them without sacrificing efficiency or convenience? Yes! 14 December 1999 Safety and Dependability 4

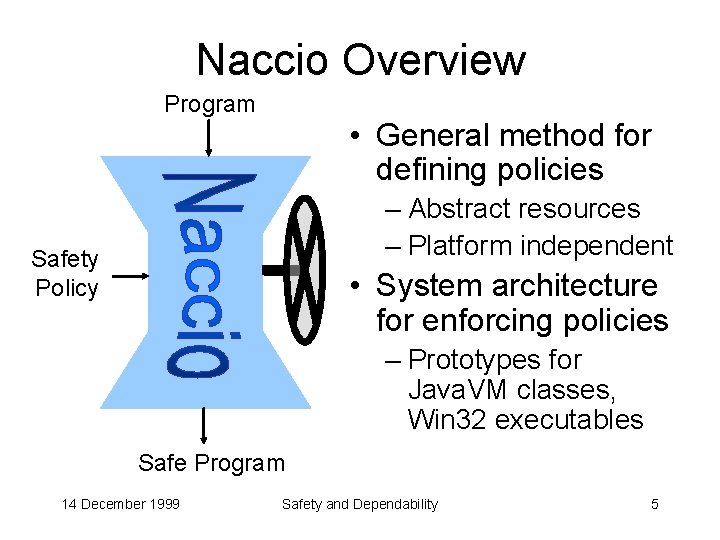

Naccio Overview Program • General method for defining policies – Abstract resources – Platform independent Safety Policy • System architecture for enforcing policies – Prototypes for Java. VM classes, Win 32 executables Safe Program 14 December 1999 Safety and Dependability 5

Problem User’s View System View Program Write. File (f. Handle, …) Platform Interface tar cf * Policy System Library OS Kernel Resources Files 14 December 1999 Safety and Dependability Disk 6

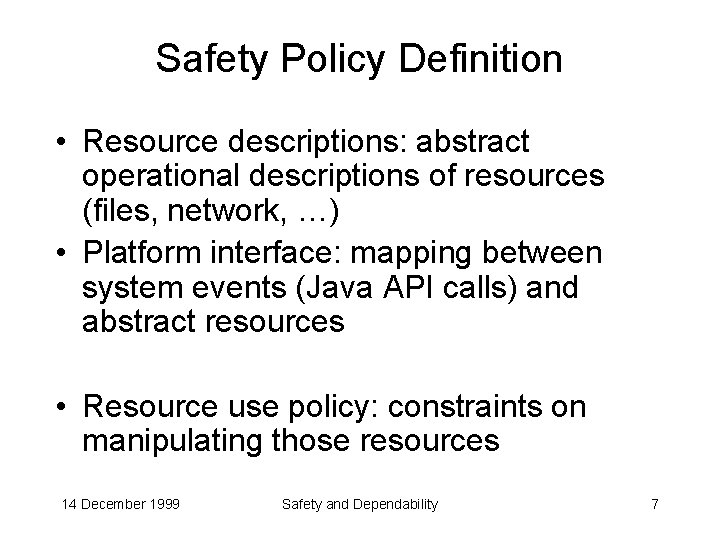

Safety Policy Definition • Resource descriptions: abstract operational descriptions of resources (files, network, …) • Platform interface: mapping between system events (Java API calls) and abstract resources • Resource use policy: constraints on manipulating those resources 14 December 1999 Safety and Dependability 7

Resource Description global resource RFile. System open. Read (file: RFile) Called before file is opened for reading open. Write (file: RFile) Called before existing file is opened for writing write (file: RFile, nbytes: int) Called before nbytes are written to file … // other operations for observing properties of files, deleting, etc. resource RFile (pathname: String) Constructs object corresponding to pathname 14 December 1999 Safety and Dependability 8

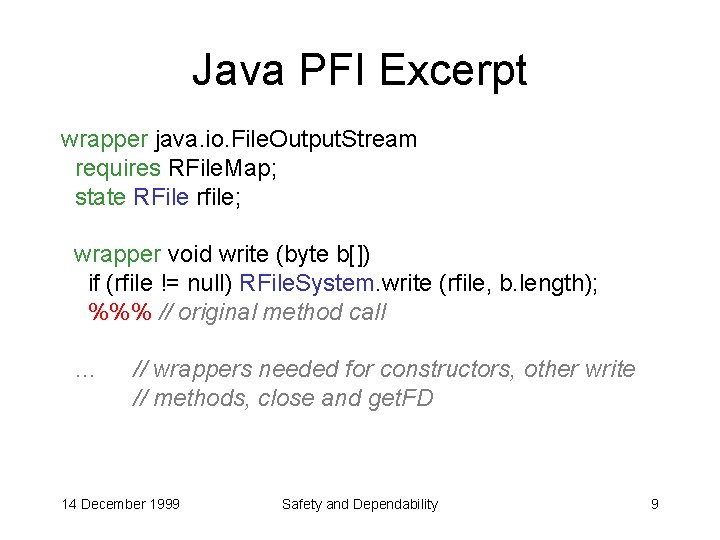

Java PFI Excerpt wrapper java. io. File. Output. Stream requires RFile. Map; state RFile rfile; wrapper void write (byte b[]) if (rfile != null) RFile. System. write (rfile, b. length); %%% // original method call … // wrappers needed for constructors, other write // methods, close and get. FD 14 December 1999 Safety and Dependability 9

Resource Use Policy policy Limit. Write Limit. Bytes. Written (1000000), No. Overwrite property Limit. Bytes. Written (n: int) requires Track. Bytes. Written; check RFile. System. write (file: RFile, nbytes: int) if (bytes_written > n) violation (“Writing more than …”); stateblock Track. Bytes. Written addfield RFile. System. bytes_written: int = 0; precode RFile. System. write (file: RFile, nbytes: int) bytes_written += nbytes; 14 December 1999 Safety and Dependability 10

Enforceable Policies • Can enforce any policy that can be defined • What can be defined depends on resource operations • Resource operations depend on platform interface – Any manipulation done through API calls – Cannot constrain CPU usage • Solutions possible: insert calls • Portable policies use standard resources 14 December 1999 Safety and Dependability 11

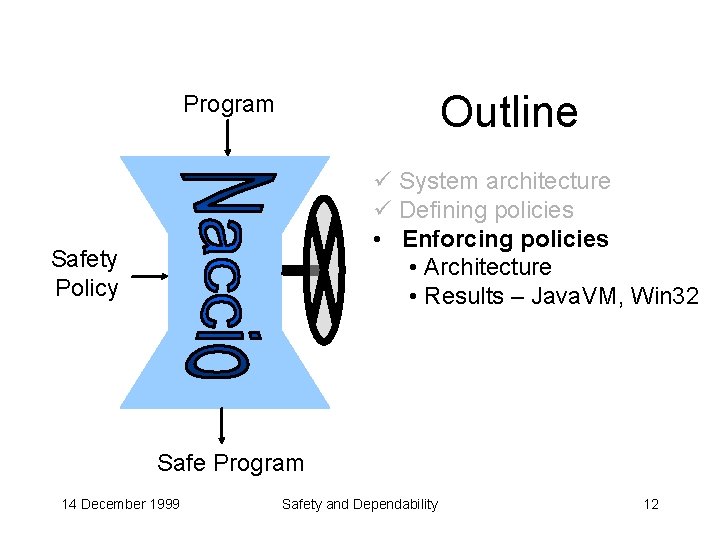

Outline Program ü System architecture ü Defining policies • Enforcing policies • Architecture • Results – Java. VM, Win 32 Safety Policy Safe Program 14 December 1999 Safety and Dependability 12

Naccio Architecture Per policy Per application Safety policy definition Policy compiler Policy-enforcing system library Program Policy description file Application transformer Version of program that: • Uses policy-enforcing system library • Satisfies low-level code safety Platforms in development: Java. VM – program is collection of Java classes Win 32 – program is Win 32 executable and DLLs 14 December 1999 Safety and Dependability 13

Policy Compiler Resource use policy Resource descriptions Platform independent analyses Platform interface Describes Java API System library Java library classes Platform dependent analyses and code generation Policy description file Policy-enforcing system library • Implementations of resource operations – Perform checking described by resource use policy • Modifies Java byte codes – Call abstract resource operations as directed by platform interface 14 December 1999 Safety and Dependability 14

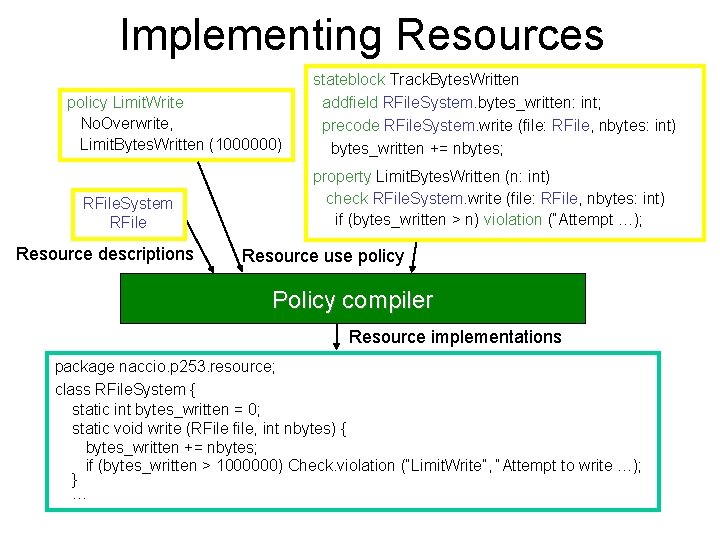

Implementing Resources policy Limit. Write No. Overwrite, Limit. Bytes. Written (1000000) RFile. System RFile Resource descriptions stateblock Track. Bytes. Written addfield RFile. System. bytes_written: int; precode RFile. System. write (file: RFile, nbytes: int) bytes_written += nbytes; property Limit. Bytes. Written (n: int) check RFile. System. write (file: RFile, nbytes: int) if (bytes_written > n) violation (“Attempt …); Resource use policy Policy compiler Resource implementations package naccio. p 253. resource; class RFile. System { static int bytes_written = 0; static void write (RFile file, int nbytes) { bytes_written += nbytes; if (bytes_written > 1000000) Check. violation (“Limit. Write”, “Attempt to write …); } …

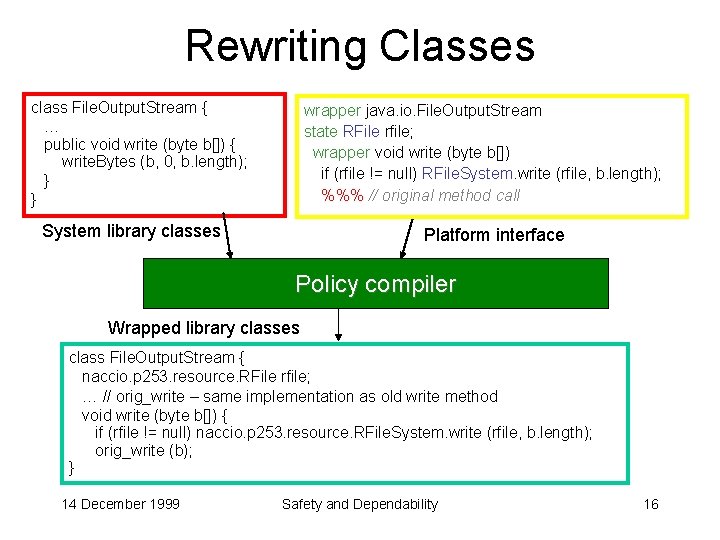

Rewriting Classes class File. Output. Stream { … public void write (byte b[]) { write. Bytes (b, 0, b. length); } } wrapper java. io. File. Output. Stream state RFile rfile; wrapper void write (byte b[]) if (rfile != null) RFile. System. write (rfile, b. length); %%% // original method call System library classes Platform interface Policy compiler Wrapped library classes class File. Output. Stream { naccio. p 253. resource. RFile rfile; … // orig_write – same implementation as old write method void write (byte b[]) { if (rfile != null) naccio. p 253. resource. RFile. System. write (rfile, b. length); orig_write (b); } 14 December 1999 Safety and Dependability 16

Optimizations • Only implement resource operation if it: – May produce a violation – Modifies state used elsewhere • Only wrap library method if it: – Calls implemented resource operation – Modifies state used meaningfully – Alters behavior • Simple dataflow dependency analysis • Not done yet: inline methods and state to remove resource overhead 14 December 1999 Safety and Dependability 17

Program Collection of Java classes Policy description file Program Transformer Version of program that: 1. Uses policy-enforcing library • Replace class names in constant pool • Wrappers for dynamic class loading methods 2. Satisfies low-level code safety • Use Java byte code verifier • Wrappers on reflection methods 14 December 1999 Safety and Dependability 18

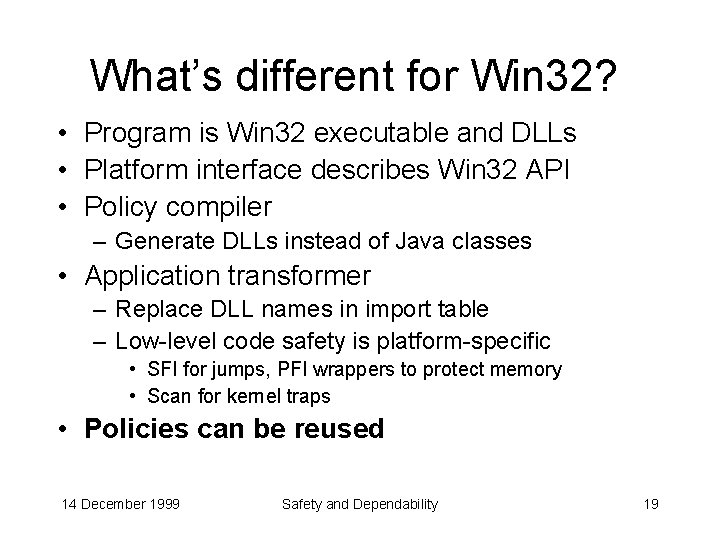

What’s different for Win 32? • Program is Win 32 executable and DLLs • Platform interface describes Win 32 API • Policy compiler – Generate DLLs instead of Java classes • Application transformer – Replace DLL names in import table – Low-level code safety is platform-specific • SFI for jumps, PFI wrappers to protect memory • Scan for kernel traps • Policies can be reused 14 December 1999 Safety and Dependability 19

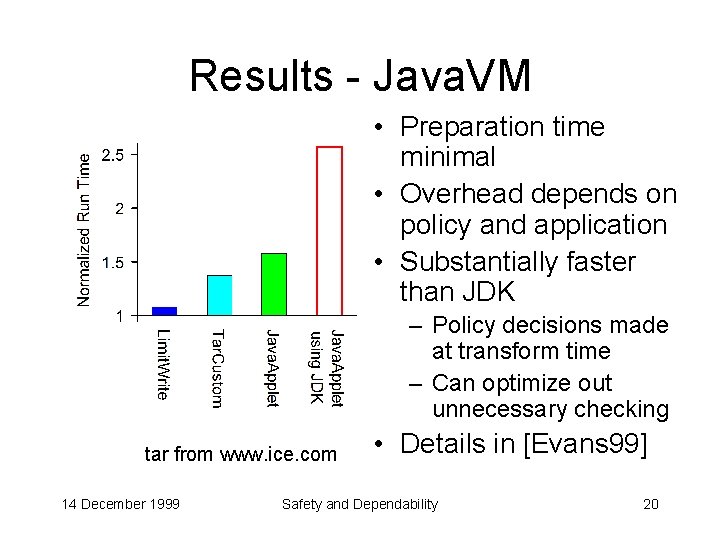

Results - Java. VM • Preparation time minimal • Overhead depends on policy and application • Substantially faster than JDK Naccio – Policy decisions made at transform time – Can optimize out unnecessary checking tar from www. ice. com 14 December 1999 • Details in [Evans 99] Safety and Dependability 20

Results – Win 32 • Can enforce policies on Microsoft Word • Caveats: – Subset of Win 32 API – Doesn’t deal with lowlevel code safety yet (need to implement SFI) • Details in [Twyman 99] pkzip 14 December 1999 Safety and Dependability 21

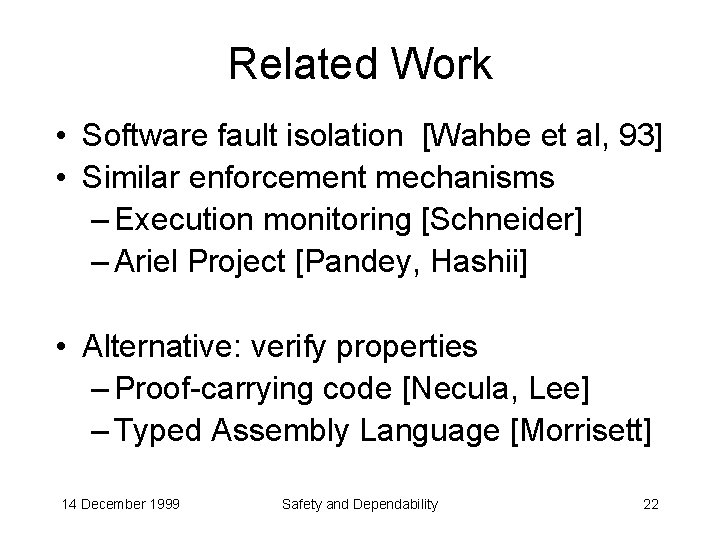

Related Work • Software fault isolation [Wahbe et al, 93] • Similar enforcement mechanisms – Execution monitoring [Schneider] – Ariel Project [Pandey, Hashii] • Alternative: verify properties – Proof-carrying code [Necula, Lee] – Typed Assembly Language [Morrisett] 14 December 1999 Safety and Dependability 22

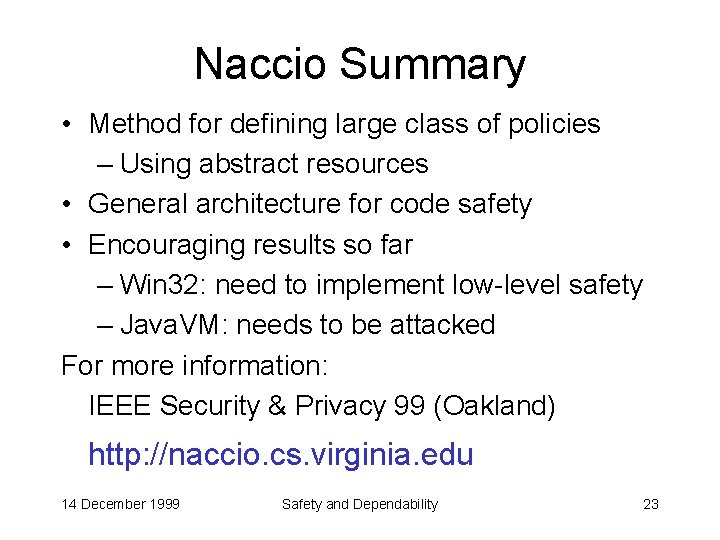

Naccio Summary • Method for defining large class of policies – Using abstract resources • General architecture for code safety • Encouraging results so far – Win 32: need to implement low-level safety – Java. VM: needs to be attacked For more information: IEEE Security & Privacy 99 (Oakland) http: //naccio. cs. virginia. edu 14 December 1999 Safety and Dependability 23

Annotation-Assisted Static Checking all Bugs Detected Formal Verifiers t n i L Compilers none Low 14 December 1999 Effort Required Safety and Dependability Unfathomable 24

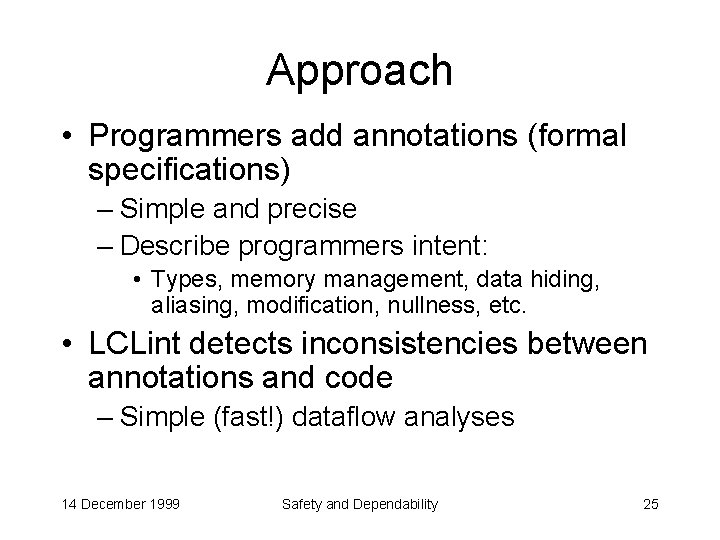

Approach • Programmers add annotations (formal specifications) – Simple and precise – Describe programmers intent: • Types, memory management, data hiding, aliasing, modification, nullness, etc. • LCLint detects inconsistencies between annotations and code – Simple (fast!) dataflow analyses 14 December 1999 Safety and Dependability 25

Sample Annotation: only extern only char *gptr; extern only out null void *malloc (int); • • Reference (return value) owns storage No other persistent (non-local) references to it Implies obligation to transfer ownership Transfer ownership by: – Assigning it to an external only reference – Return it as an only result – Pass it as an only parameter: e. g. , extern void free (only void *); 14 December 1999 Safety and Dependability 26

Example extern only null void *malloc (int); in library 1 int dummy (void) { 2 int *ip= (int *) malloc (sizeof (int)); 3 *ip = 3; 4 return *ip; 5 } LCLint output: dummy. c: 3: 4: Dereference of possibly null pointer ip: *ip dummy. c: 2: 13: Storage ip may become null dummy. c: 4: 14: Fresh storage ip not released before return dummy. c: 2: 43: Fresh storage ip allocated 14 December 1999 Safety and Dependability 27

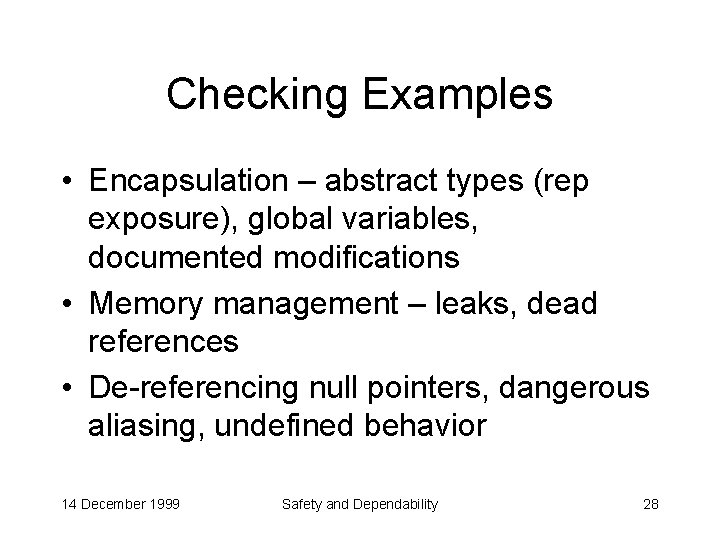

Checking Examples • Encapsulation – abstract types (rep exposure), global variables, documented modifications • Memory management – leaks, dead references • De-referencing null pointers, dangerous aliasing, undefined behavior 14 December 1999 Safety and Dependability 28

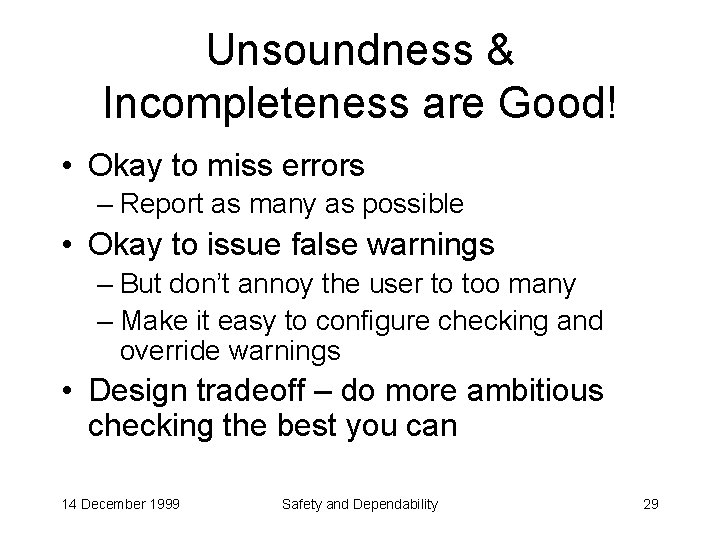

Unsoundness & Incompleteness are Good! • Okay to miss errors – Report as many as possible • Okay to issue false warnings – But don’t annoy the user to too many – Make it easy to configure checking and override warnings • Design tradeoff – do more ambitious checking the best you can 14 December 1999 Safety and Dependability 29

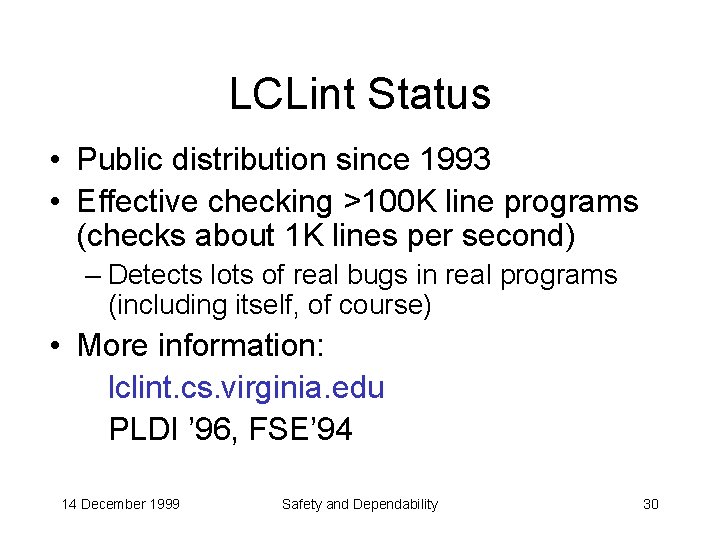

LCLint Status • Public distribution since 1993 • Effective checking >100 K line programs (checks about 1 K lines per second) – Detects lots of real bugs in real programs (including itself, of course) • More information: lclint. cs. virginia. edu PLDI ’ 96, FSE’ 94 14 December 1999 Safety and Dependability 30

Where do we go from here? • Motivating Example: Take an e-commerce site and prove that credit card information is never stored or transmitted unencrypted • Meta-annotations [David La. Rochelle] – Allow users to define new annotations and associated checking • Generalize framework – Support static checking for multiple source languages in a principled way – Integrate static and run-time checking to enable completeness guarantees 14 December 1999 Safety and Dependability 31

Summary • A little redundancy goes a long way • Naccio: – Describe high-level behavioral constraints in an abstract way – Check them automatically at run-time • LCLint: – Describe programmer intent in a precise way – Check them statically at compile-time 14 December 1999 Safety and Dependability 32

Credits • Naccio Win 32 Implementation: Andrew Twyman • LCLint LCL: Yang Meng Tan, John Guttag, Jim Horning • Funding DARPA, NSF, ONR 14 December 1999 Safety and Dependability 33
