Systems Architecture Lecture 9 Assemblers Linkers and Loaders

Systems Architecture Lecture 9: Assemblers, Linkers, and Loaders Jeremy R. Johnson Anatole D. Ruslanov William M. Mongan Some or all figures from Computer Organization and Design: The Hardware/Software Approach, Third Edition, by David Patterson and John Hennessy, are copyrighted material (COPYRIGHT 2004 MORGAN KAUFMANN PUBLISHERS, INC. ALL RIGHTS RESERVED). Lec 9 Systems Architecture 1

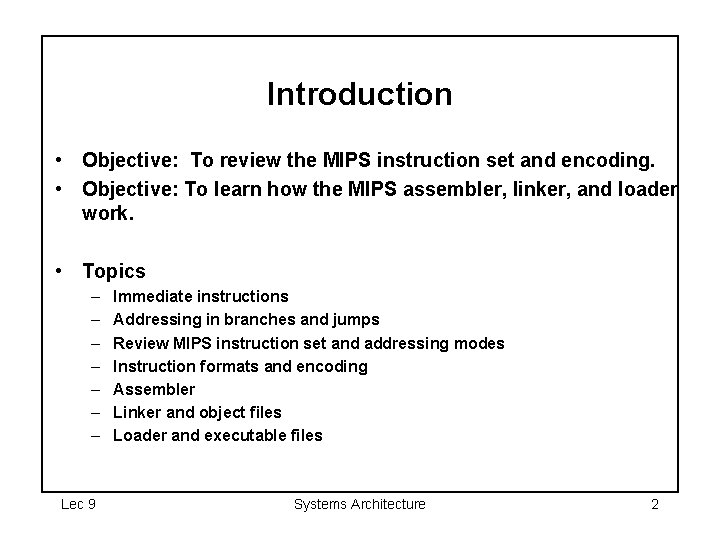

Introduction • Objective: To review the MIPS instruction set and encoding. • Objective: To learn how the MIPS assembler, linker, and loader work. • Topics – – – – Lec 9 Immediate instructions Addressing in branches and jumps Review MIPS instruction set and addressing modes Instruction formats and encoding Assembler Linker and object files Loader and executable files Systems Architecture 2

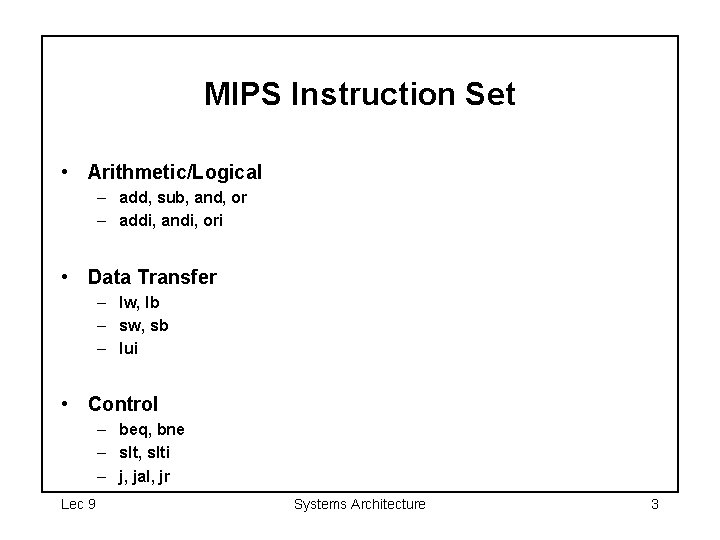

MIPS Instruction Set • Arithmetic/Logical – add, sub, and, or – addi, andi, ori • Data Transfer – lw, lb – sw, sb – lui • Control – beq, bne – slt, slti – j, jal, jr Lec 9 Systems Architecture 3

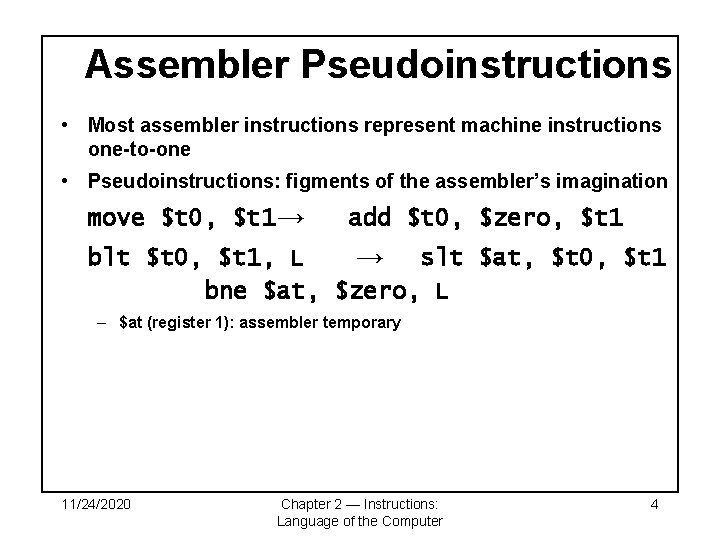

Assembler Pseudoinstructions • Most assembler instructions represent machine instructions one-to-one • Pseudoinstructions: figments of the assembler’s imagination move $t 0, $t 1 → add $t 0, $zero, $t 1 blt $t 0, $t 1, L → slt $at, $t 0, $t 1 bne $at, $zero, L – $at (register 1): assembler temporary 11/24/2020 Chapter 2 — Instructions: Language of the Computer 4

Immediate Addressing – Why? • Small constants are used frequently (~50% of operands) e. g. , A = A + 5; B = B + 1; C = C - 18; • Solution: use immediate format and hardwired registers – store / imbed constants in the low order 16 -bits. – create hard-wired registers (like $zero) for constants. • Design Principle: Make the common case fast. – Memory access can be 20 -100 x slower than accessing registers – Remove memory load delay / overhead – Store the constant in the instruction itself Lec 9 Systems Architecture 5

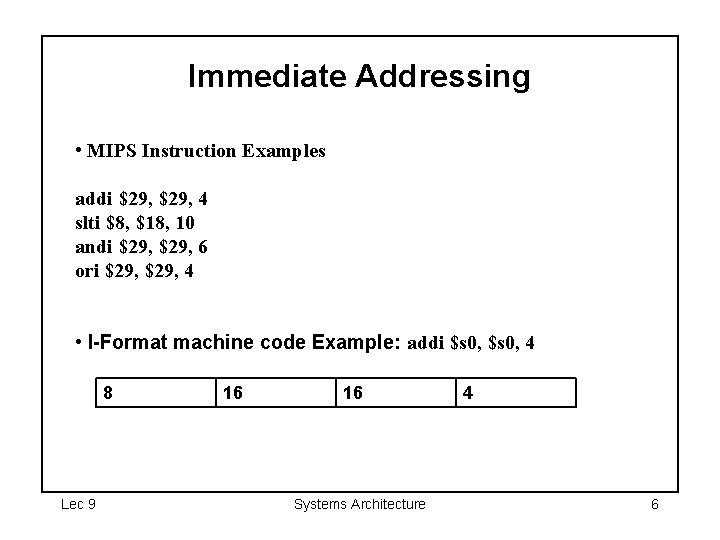

Immediate Addressing • MIPS Instruction Examples addi $29, 4 slti $8, $18, 10 andi $29, 6 ori $29, 4 • I-Format machine code Example: addi $s 0, 4 8 Lec 9 16 16 Systems Architecture 4 6

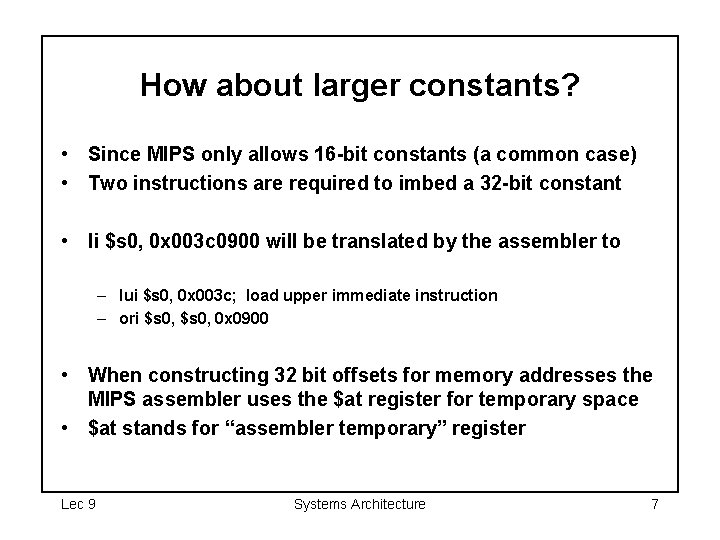

How about larger constants? • Since MIPS only allows 16 -bit constants (a common case) • Two instructions are required to imbed a 32 -bit constant • li $s 0, 0 x 003 c 0900 will be translated by the assembler to – lui $s 0, 0 x 003 c; load upper immediate instruction – ori $s 0, 0 x 0900 • When constructing 32 bit offsets for memory addresses the MIPS assembler uses the $at register for temporary space • $at stands for “assembler temporary” register Lec 9 Systems Architecture 7

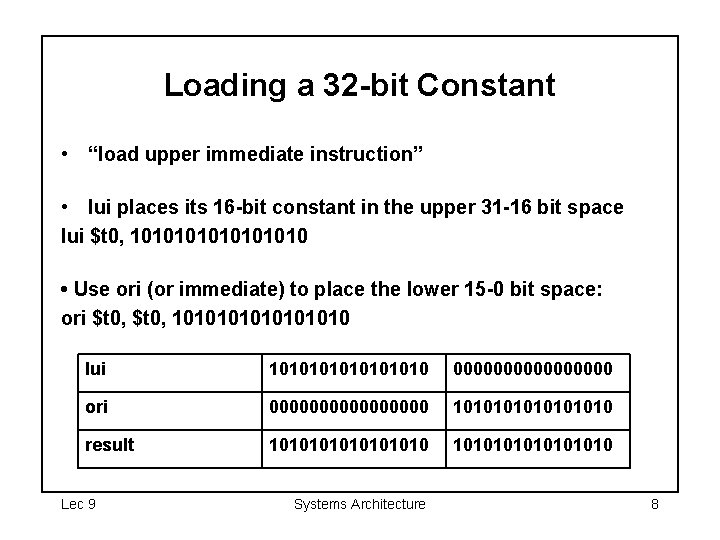

Loading a 32 -bit Constant • “load upper immediate instruction” • lui places its 16 -bit constant in the upper 31 -16 bit space lui $t 0, 10101010 • Use ori (or immediate) to place the lower 15 -0 bit space: ori $t 0, 10101010 lui 10101010 00000000 ori 00000000 10101010 result 1010101010101010 Lec 9 Systems Architecture 8

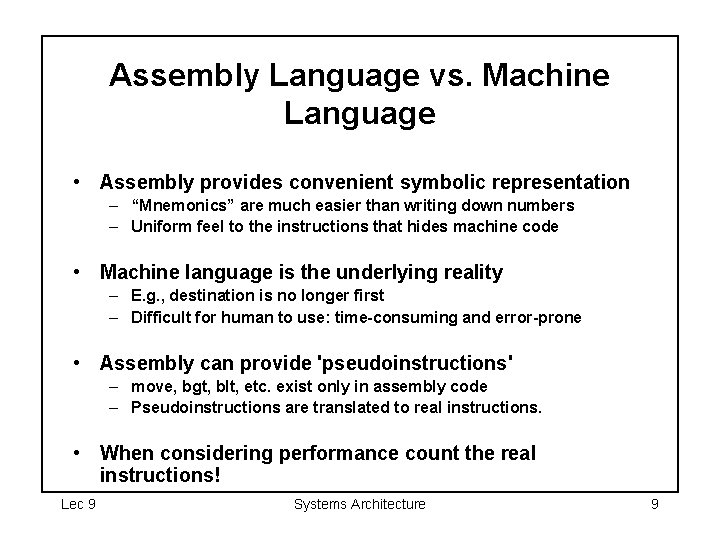

Assembly Language vs. Machine Language • Assembly provides convenient symbolic representation – “Mnemonics” are much easier than writing down numbers – Uniform feel to the instructions that hides machine code • Machine language is the underlying reality – E. g. , destination is no longer first – Difficult for human to use: time-consuming and error-prone • Assembly can provide 'pseudoinstructions' – move, bgt, blt, etc. exist only in assembly code – Pseudoinstructions are translated to real instructions. • When considering performance count the real instructions! Lec 9 Systems Architecture 9

Overview of MIPS • Simple instructions all 32 bits wide • Well-organized and structured, no unnecessary baggage • Only three instruction formats Lec 9 Systems Architecture 10

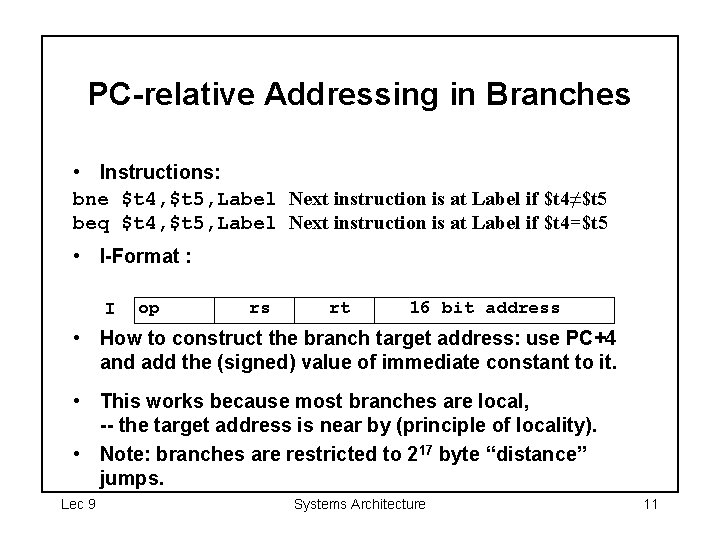

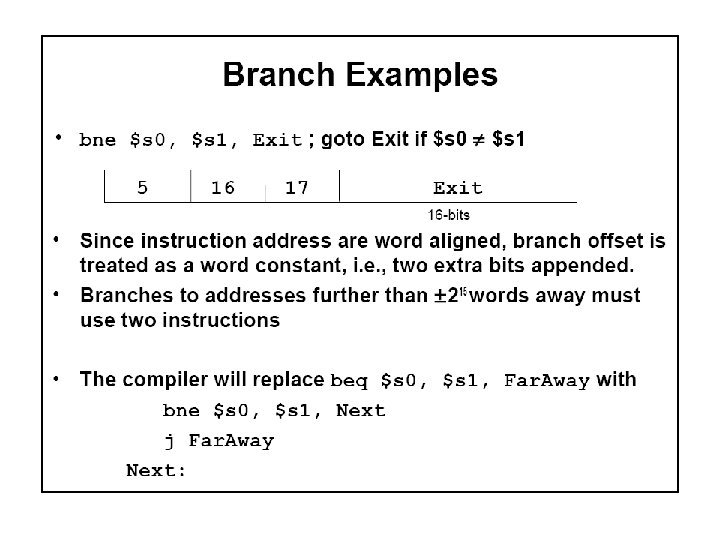

PC-relative Addressing in Branches • Instructions: bne $t 4, $t 5, Label Next instruction is at Label if $t 4≠$t 5 beq $t 4, $t 5, Label Next instruction is at Label if $t 4=$t 5 • I-Format : I op rs rt 16 bit address • How to construct the branch target address: use PC+4 and add the (signed) value of immediate constant to it. • This works because most branches are local, -- the target address is near by (principle of locality). • Note: branches are restricted to 217 byte “distance” jumps. Lec 9 Systems Architecture 11

Pseudodirect Addressing in Jumps • J-Format: 6 -bits 26 -bit constant • Jump instructions use 28 high order bits of PC – Jumps are restricted to 228 byte jumps (256 MB) • 32 -bit address construction: – Take bits 31 -28 of PC+4 – Concatenate them to 26 -bit constant (forms bits 27 -2) – Append “ 00” to the “end” (bits 1 -0) to reconstruct the byte address PC+4[31 -28] 31 Lec 9 26 -bit constant from j instruction 28 27 00 2 Systems Architecture 0 13

MIPS Encoding • • All instructions are 32 -bits long Opcode is always in the high-order 6 bits Only three instruction formats 32 registers implies 5 bit register addresses: – – – Lec 9 $zero $at $v 0 - $v 1 $a 0 - $a 3 $t 0 - $t 7 $s 0 - $s 7 $t 8 - $t 9 $k 0 - $k 1 $gp $sp $fp $ra R 0 R 1 R 2 -R 3 R 4 -R 7 R 8 -R 15 R 16 -R 23 R 24 -R 25 R 26 -R 27 R 28 R 29 R 30 R 31 ; zero register always equal to 0 ; temporary register (assembler temporary) ; return registers ; argument registers ; temporary - not preserved across calls ; saved registers - preserved across calls ; temporary not preserved across calls ; reserved by OS kernel ; global pointer ; stack pointer ; frame pointer ; return address Systems Architecture 14

MIPS Addressing Modes • Immediate Addressing – 16 bit constant from low order bits of instruction – addi $t 0, $s 0, 4 • Register Addressing – add $t 0, $s 1 • Base Addressing (displacement addressing) – 16 -bit constant from low order bits of instruction plus base register – lw $t 0, 16($sp) • PC-Relative Addressing – (PC+4) + 16 -bit address (word) from instruction – bne $s 0, $s 1, Target • Pseudodirect Addressing – high order 4 bits of PC+4 concatenated with 26 bit word address - low order 26 bits from instruction shifted 2 bits to the left – j Address Lec 9 Systems Architecture 15

Decoding Machine Code • Example: 0000 1010 1111 1000 0010 0000 Lec 9 Systems Architecture 16

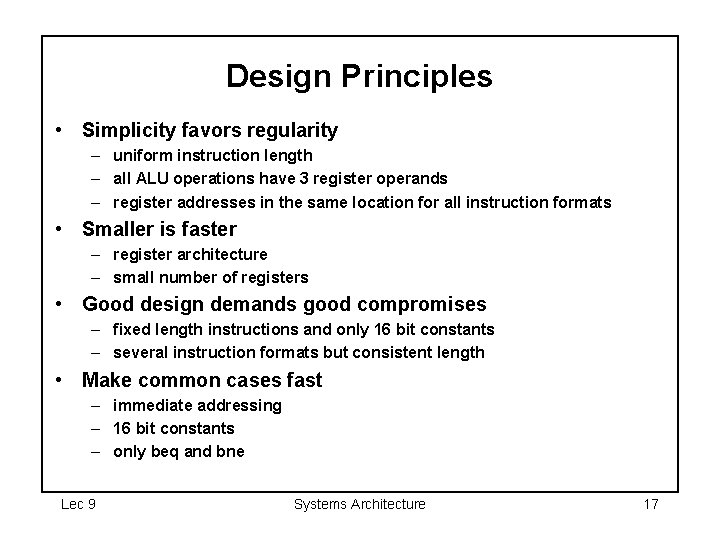

Design Principles • Simplicity favors regularity – uniform instruction length – all ALU operations have 3 register operands – register addresses in the same location for all instruction formats • Smaller is faster – register architecture – small number of registers • Good design demands good compromises – fixed length instructions and only 16 bit constants – several instruction formats but consistent length • Make common cases fast – immediate addressing – 16 bit constants – only beq and bne Lec 9 Systems Architecture 17

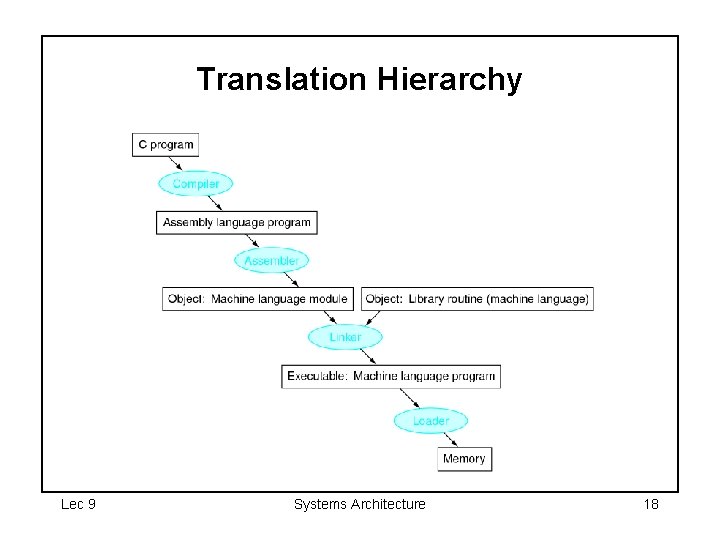

Translation Hierarchy Lec 9 Systems Architecture 18

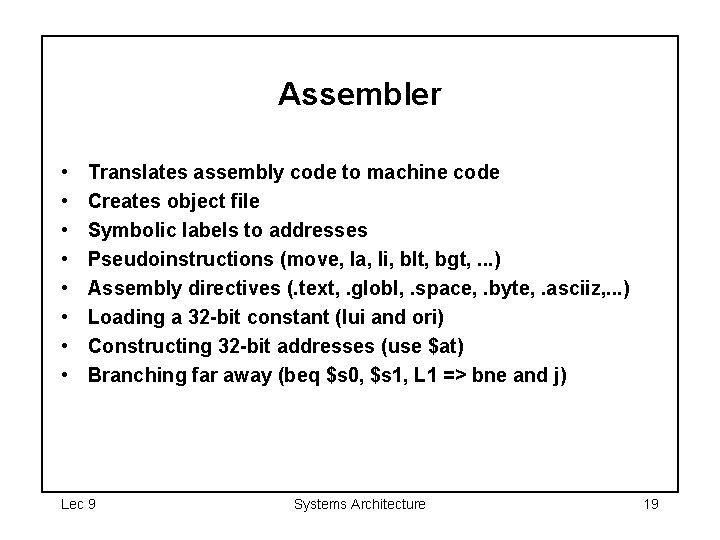

Assembler • • Translates assembly code to machine code Creates object file Symbolic labels to addresses Pseudoinstructions (move, la, li, blt, bgt, . . . ) Assembly directives (. text, . globl, . space, . byte, . asciiz, . . . ) Loading a 32 -bit constant (lui and ori) Constructing 32 -bit addresses (use $at) Branching far away (beq $s 0, $s 1, L 1 => bne and j) Lec 9 Systems Architecture 19

Producing an Object Module • Assembler (or compiler) translates program into machine instructions • Provides information for building a complete program from the pieces – Header: described contents of object module – Text segment: translated instructions – Static data segment: data allocated for the life of the program – Relocation info: for contents that depend on absolute location of loaded program – Symbol table: global definitions and external refs – Debug info: for associating with source code 11/24/2020 Chapter 2 — Instructions: Language of the Computer 20

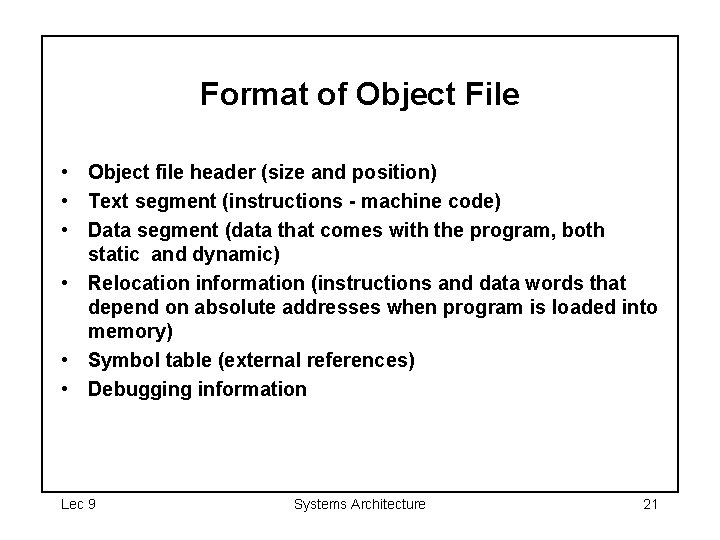

Format of Object File • Object file header (size and position) • Text segment (instructions - machine code) • Data segment (data that comes with the program, both static and dynamic) • Relocation information (instructions and data words that depend on absolute addresses when program is loaded into memory) • Symbol table (external references) • Debugging information Lec 9 Systems Architecture 21

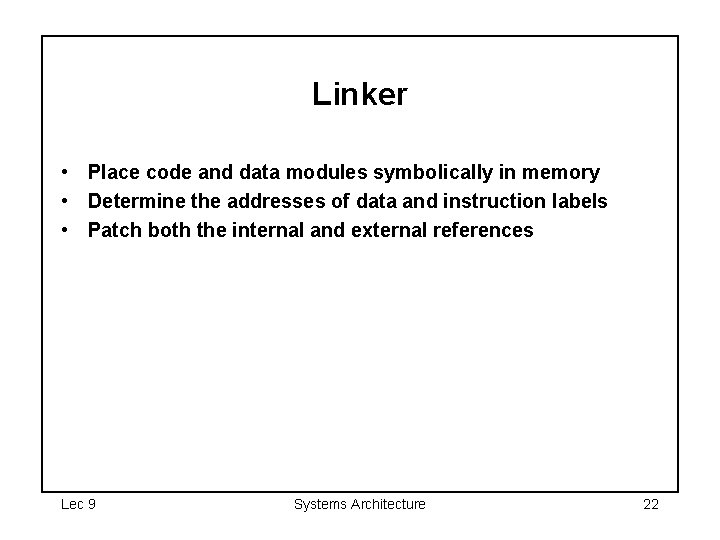

Linker • Place code and data modules symbolically in memory • Determine the addresses of data and instruction labels • Patch both the internal and external references Lec 9 Systems Architecture 22

Linking Object Modules • Produces an executable image 1. Merges segments 2. Resolve labels (determine their addresses) 3. Patch location-dependent and external refs • Could leave location dependencies for fixing by a relocating loader – But with virtual memory, no need to do this – Program can be loaded into absolute location in virtual memory space 11/24/2020 Chapter 2 — Instructions: Language of the Computer 23

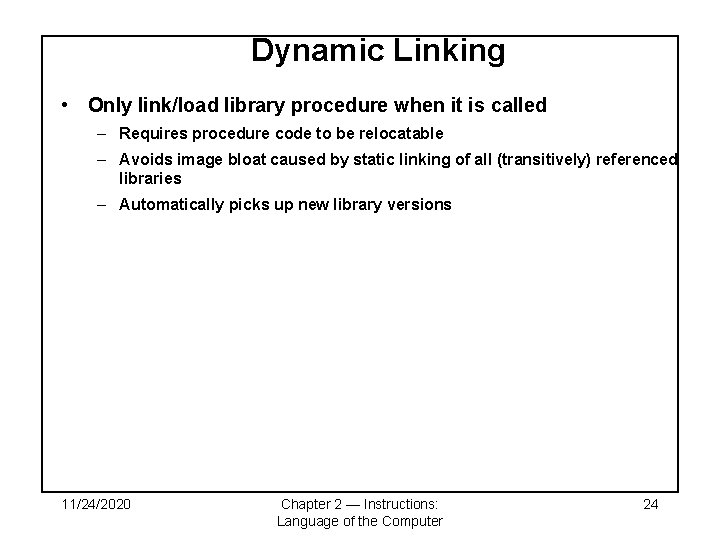

Dynamic Linking • Only link/load library procedure when it is called – Requires procedure code to be relocatable – Avoids image bloat caused by static linking of all (transitively) referenced libraries – Automatically picks up new library versions 11/24/2020 Chapter 2 — Instructions: Language of the Computer 24

Lazy Linkage Indirection table Stub: Loads routine ID, Jump to linker/loader Linker/loader code Dynamically mapped code 11/24/2020 Chapter 2 — Instructions: Language of the Computer 25

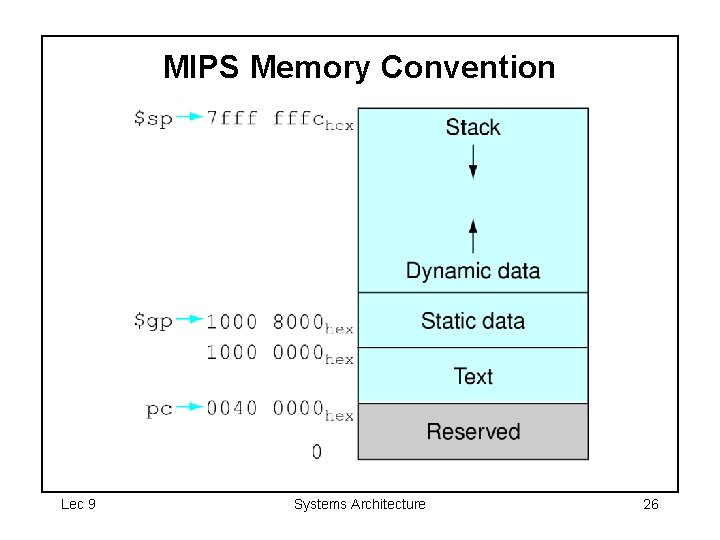

MIPS Memory Convention Lec 9 Systems Architecture 26

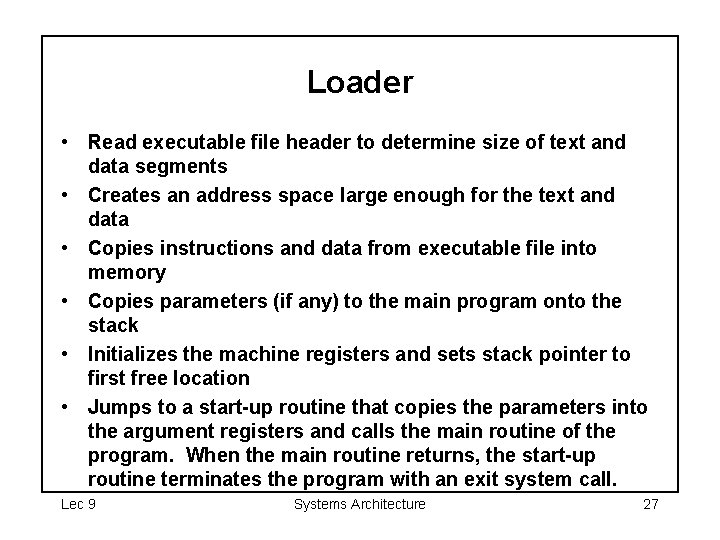

Loader • Read executable file header to determine size of text and data segments • Creates an address space large enough for the text and data • Copies instructions and data from executable file into memory • Copies parameters (if any) to the main program onto the stack • Initializes the machine registers and sets stack pointer to first free location • Jumps to a start-up routine that copies the parameters into the argument registers and calls the main routine of the program. When the main routine returns, the start-up routine terminates the program with an exit system call. Lec 9 Systems Architecture 27

Loading a Program • Load from image file on disk into memory 1. Read header to determine segment sizes 2. Create virtual address space 3. Copy text and initialized data into memory • Or set page table entries so they can be faulted in 4. Set up arguments on stack 5. Initialize registers (including $sp, $fp, $gp) 6. Jump to startup routine • Copies arguments to $a 0, … and calls main • When main returns, do exit syscall 11/24/2020 Chapter 2 — Instructions: Language of the Computer 28

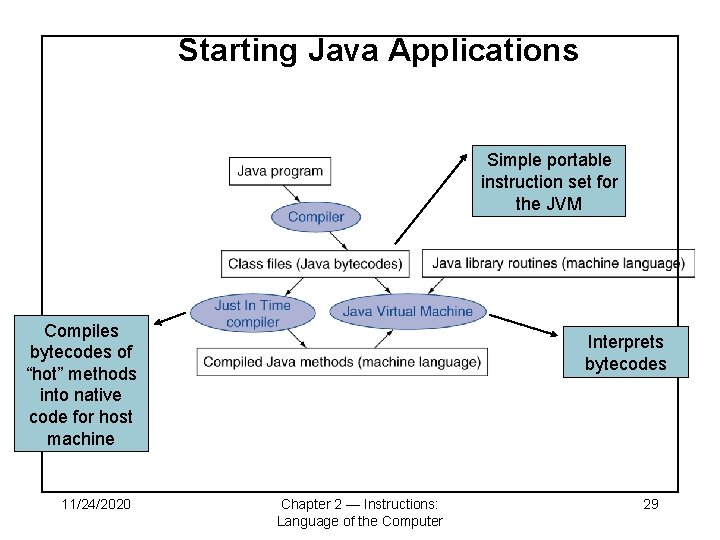

Starting Java Applications Simple portable instruction set for the JVM Compiles bytecodes of “hot” methods into native code for host machine 11/24/2020 Interprets bytecodes Chapter 2 — Instructions: Language of the Computer 29

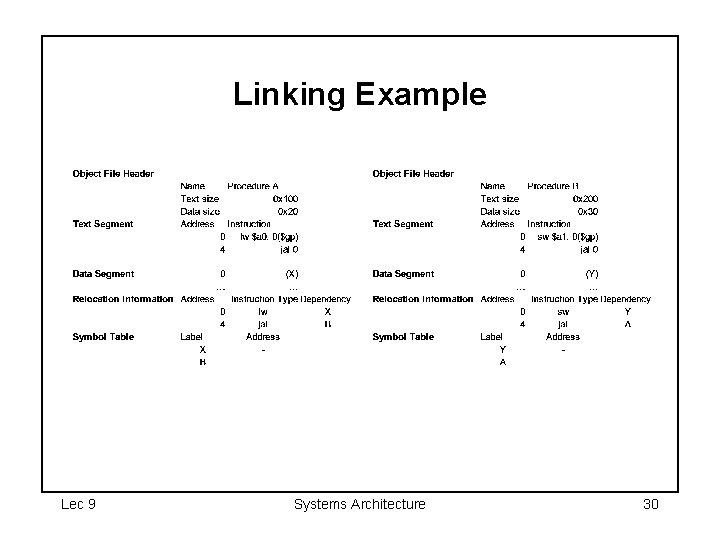

Linking Example Lec 9 Systems Architecture 30

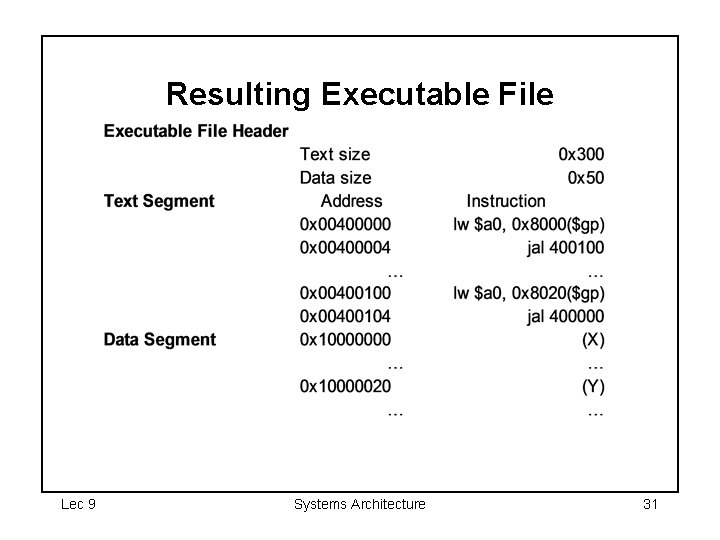

Resulting Executable File Lec 9 Systems Architecture 31
