System Storage TM IBM System Storage TM DS
® System Storage. TM ® IBM System Storage TM DS 4700 Express Model © 2006 IBM Corporation
® Agenda § DS 4000 Series § Introduce DS 4700 Express § DS 4700 Express features § Controller architecture § Specification and performance overview § DS 4700 Express 특장점 2 IBM System Storage. TM DS 4700

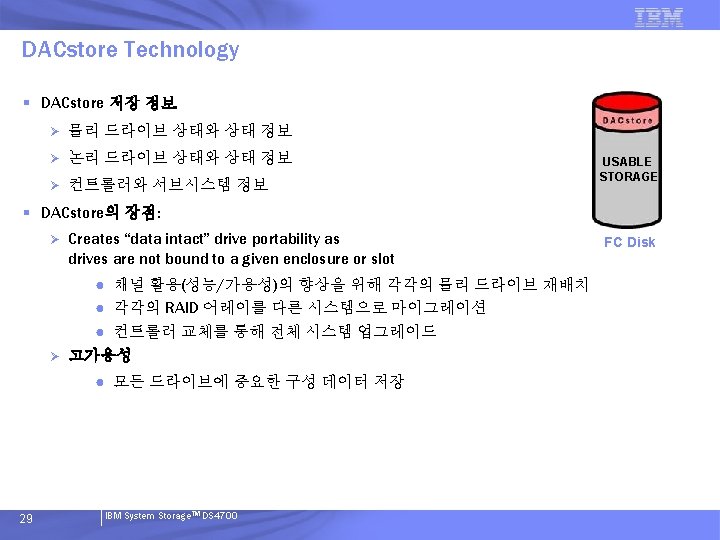

DS 4000 Series § Fully-featured series of solutions designed to address a wide range of storage needs Ø 엔트리 레벨 ~ 엔터프라이즈 레벨 Ø 성능 지향과 용량 지향 Ø 직접 연결과 SAN 연결 § True series of solutions 3 Ø 모든 제품과 플랫폼에 공통 관리 인터페이스, 기능 적용 Ø 유연한 업그레이드 제공 (DACstore technology) Ø 공통 구성 요소 IBM System Storage. TM DS 4700
Introducing the DS 4700 Express Model Feature Code Part Number Description 1814 -72 A (AAS) 181472 H (HVEC) DS 4700 Express Model 72 (AAS & HVEC) 1814 -70 A (AAS) 181470 H (HVEC) DS 4700 Express Model 70 (AAS & HVEC) § DS 4000 Series의 최신 모델인 IBM System Storage DS 4700 Express가 4 Gbps 기술 을 지원합니다. § 8개의 4 Gbps 호스트, SAN 인터페이스, 기존 인프라(1/2 Gbps) 지원을 통한 기존 투 자 보호 § 개방형 시스템을 위한 고성능 설계 § 112개의 Fibre Channel 디스크 드라이브 지원 § Two Controller support 4 Gbps FC 지원 (E-DDM) : End-to-end 4 Gb technology modules Two Controllers § 직관적인 GUI를 통해 강력한 기능을 제공하는 DS 4000 Storage Manager 5 IBM System Storage. TM DS 4700
DS 4700 Express Specification - Quick Overview Two Models Model 72 Model 70 § 8개의 4 Gb/s FC 호스트 포트 § 4개의 4 Gb/s FC 드라이브 포트 § 6개의 EXP 810 확장 유닛으로 최대 112개의 드라이브 지원 Ø 16 disk drives inside controller ØFC 6 112개의 드라이브 지원 Ø 16 disk drives inside controller ØFC § 4 GB의 캐시 메모리 § 2 GB의 캐시 메모리 § 통합 XOR 엔진 § Storage Manager 소프트웨어 ØPartitions ØFlash. Copy® ØVolume. Copy ØEnhanced Remote Mirroring IBM System Storage. TM DS 4700 Remote Mirroring

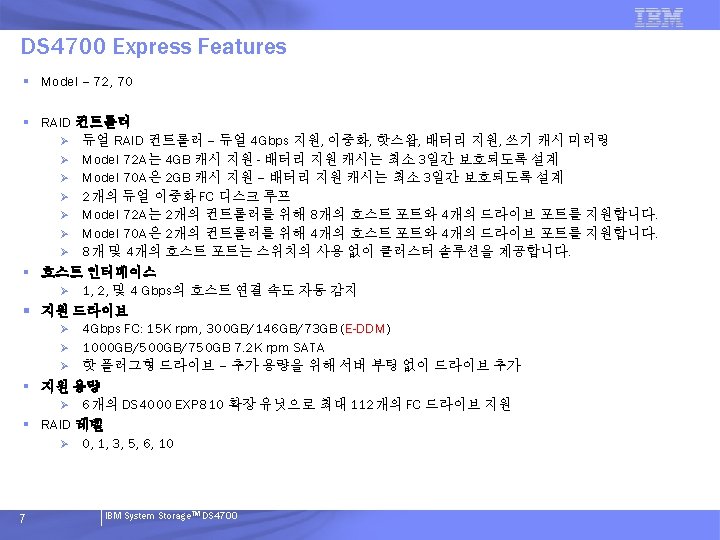

DS 4700 Express Features § 스토리지 분할 Ø Model 72 H ships with 8 partitions: Upgrade: 8 – 16, 8 – 64, 16 – 64 Ø Model 72 A offers a choice of 8, 16 or 64 partitions: Upgrade: 8 – 16, 8 – 64, 16 – 64 Ø Model 70 H ships with 2 partitions: Upgrade: 2 – 4, 4 – 8, 8 – 16, 16 – 64 Ø Model 70 A offers a choice 2, 4, 8. , 16 or 64 partitions: Upgrade: 2 – 4, 4 – 8, 8 – 16, 16 - 64 § 글로벌 핫 스페어 지원 § 스위치 지원 § DS 4000 Storage Manager Ø SM version 9. 16 (최신 버전) Ø Firmware version 6. 16 § 복제 서비스 Ø Flash. Copy®, Enhanced Remote Mirroring, Volume. Copy § 전원 공급과 팬 Ø 전원 공급과 팬 – 이중화, 핫스왑, 듀얼 AC 전원 선 코드 § 확장 유닛 연결 (최대 112개의 디스크 드라이브) Ø DS 4000 EXP 810 확장 유닛 연결 – 최대 6개 지원 (112개 디스크 드라이브) Ø DS 4000 EXP 810 FC 확장 유닛 연결 – 16개 디스크 드라이브 베이 § 총소유비용 절감 Ø 통합 스토리지로 스토리지 관리 비용 절감 Ø 3 년, 9 x 5 익일 응답, 24 x 7 4시간 후 응답으로 업그레이드 가능 8 IBM System Storage. TM DS 4700
DS 4000 Family Performance DS 4800 DS 4700 Model 72 Maximum Burst I/O rate – cache reads 575, 000 IOPS 120, 000 IOPS Maximum Sustained I/O rate – disk reads 85, 000 IOPS 44, 000 IOPS Maximum Sustained I/O rate – disk writes 22, 000 IOPS 9, 000 IOPS Maximum Sustained throughput – disk read 1, 600 MB/s 990 MB/s Maximum Sustained throughput – disk write 1, 300 MB/s 850 MB/s * Results obtained in Laboratory testing, actual results may vary. 9 IBM System Storage. TM DS 4700
DS 4700 Enclosure Exploded View Power & Cooling Controllers or ESM 16 bay Drive Cage 10 IBM System Storage. TM DS 4700
Controller / Expansion Module § DS 4300에 비해 스토리지 밀도 14% 향상 Ø 적은 랙 공간에 더 큰 용량 § 스위치 아키텍쳐 Ø Drive isolation, high diagnostic capability Ø High per, low latency § NEBS level 3 인증 12 IBM System Storage. TM DS 4700
DS 4700 (Model 72) Controller Module Drive interfaces Ethernet Power/cooling 13 IBM System Storage. TM DS 4700 Host interfaces Controller Battery
DS 4700 Cabling (Full Configuration) 14 IBM System Storage. TM DS 4700
DS 4700 Controller Architecture 16 IBM System Storage. TM DS 4700
DS 4700 Drive Midplane Interconnect. Disk Drive Types 2 Gbps FC • 15 K rpm • 146/73/36 GB 2 Gbps FC • 10 K rpm • 300/146/73 GB 4 Gbps FC • 15 K rpm • 146/73/36 GB 17 IBM System Storage. TM DS 4700
DS 4700 Enclosure with controllers (Rear view) Power/Fan CRU 18 IBM System Storage. TM DS 4700 RAID Controller
DS 4700 Controller - Model 72 shown (one of two) Latching Handle LEDS, Tray Identifier Battery CRU 4 host ports on Model 72 2 host ports on Model 70 2 Drive Ports Dual Ethernet Ports Serial Port 19 IBM System Storage. TM DS 4700
DS 4700 Express 운영 시스템 지원 환경 § 지원 Ø Windows ® Server 2003 w/SP 1 Ø Windows ® 2000 Server & Adv. Server w/SP 4 Ø Netware 6. 5 w/SP 2, 6. 0 w/SP 4 Ø AIX ® 5. 1, 5. 2, 5. 3 Ø Linux ®/Intel ® Ø Red. Hat Enterprise Linux 3. 0 Ø Red. Hat Enterprise Linux 4. 0 U 1 Ø VMWare ESX 2. 5. 1 Ø Solaris 7, 8, 9 w/Veritas Cluster Svs와 Veritas VM/DMP Ø HP-UX 11 i & 11. 0 Ø Linux/IBM System p™ Ø Su. SE Linux Enterprise Svr (SLES) 8. 0, 9. 0 참고: http: //www. ibm. com/storage 에서 상호 호환 매트릭스의 지원내용을 확인하시기 바 랍니다. 20 IBM System Storage. TM DS 4700
DS 4000 Code Levels - DS 4000 SM v 9. 16 지원되는 모든 호스트 코드는 SMv 9. 16입니다. DS 4000 호스트 킷을 위해 특정 DS 4000 모델이 필요하 고, 호스트 킷이 구매된 상태라면, 고객은 지원 가능한 운영 체제상에서 DS 4000을 사용할 수 있습니다 , 또한, 웹에서 무료로 Stroage Manager v 9. 16 호스트 버전을 다운로드 받을 수 있습니다. 지원 운영체 제와 구성에 대해서는 DS 4000 상호 호환 매트릭스를 참고하십시오. 컨트롤러 코드는 DS 4000 모델에 따라 달라집니다. DS 4000 컨트롤러 모델에 따른 최근의 펌웨어 버 전: Latest DS 4000 Firmware level DS 4100 - single controller 05. 42 DS 4100 - w/EXP 100 06. 12 DS 4300 - single controller 05. 34 DS 4300 - dual cntlr w/EXP 710 06. 12 DS 4300 - dual cntlr w/EXP 100 06. 12 DS 4300, DS 4300 w/Turbo - w/EXP 710 및 EXP 100 06. 12 DS 4500 - w/EXP 710 및 EXP 100 06. 12 DS 4700 – w/EXP 810/EXP 710 06. 16 DS 4800 – w/EXP 810/EXP 710 및 EXP 100 06. 16 모든 DS 4000은 웹 무료 다운로드를 통해 위 버전의 펌웨어로 업그레이드가 가능합니다. 21 IBM System Storage. TM DS 4700
DS 4700 Dimensions 2005 2006 J. Murtagh 22 IBM System Storage. TM DS 4700
DS 4700 Express 물리적 사양, 환경 정보 23 IBM System Storage. TM DS 4700
DS 4700 Express 물리적 사양, 환경정보 § Standard AC Voltage and Frequency Ranges The DS 4700 Storage Server - 16 Drive disk storage, it uses a line-to-neutral or line-to-line power connection. The unit will support the standard voltages at 50 Hz or 60 Hz. The frequency ranges include: • 50 Hz. Nominal 50 Hz, minimum 47 Hz, and maximum 50. 5 Hz. • 60 Hz. Nominal 60 Hz, minimum 59 Hz, and maximum 63 Hz. Note: An optional DC input version of the power supply will meet the needs of TELCO customers. The voltage range for the DC supply is – 36 V to – 72 V with – 48 V being nominal. The DS 4700 Express storage server will meet NEBS level 3 certification requirements § Noise level (normal operation): 6. 5 to 6. 8 bels 24 IBM System Storage. TM DS 4700
DS 4700 사양 요약 § 3 U, 16개 드라이브, 3 ½인치 디스크 드라이브 SBOD 엔클로져 § 듀얼 RAID 컨트롤러 내장 - 4 Gbps FC / 4 Gbps FC § DS 4000 Storage Manager v 9. 16, 컨트롤러 펌웨어: 06. 16 § 2 Gbps (10 K/15 K)와 4 Gbps (15 K) Fibre Channel drives 지원 § 그 외 다수의 핫 플러그형 이중화 컴포넌트 § Field replaceable midplane/front cage § 하나의 CRU에 전원, 쿨링 통합 § 듀얼 이더넷 포트의 아웃 바운드 관리, RS 232 진단 § 이중화 배터리 시스템 (BBU 제외 옵션) Ø 배터리 팩 교체 용이 Ø 수명이 긴 리듐 이온 배터리 사용 § For Telco industry (옵션) Ø DC (-35 ~ -72 v. DC) 전원 공급 Ø Air filter option in optional front bezel Ø 600 mm total length, including FC cable bends Ø NEBS Level 3 인증 25 IBM System Storage. TM DS 4700
Unique High Availability Solutions Using DS 4700 Express Metro Mirror with End-to-end 4 Gbit Fibre Tier 6 § Metro Mirror를 이용해 원격 지점으로 현재 의 원본 데이터 저장 및 보호 ► 최대 거리 10 km * ► 어플리케이션과 서버 중단 방지 IBM DS 4700 primary site § DS 4700 Express와 IBM SAN 32 B 스위치의 SAN 엔드 투 엔드 4 Gbit 원격 미러링 솔루션 ► ► 미러링과 응답 시간의 향상 연결 감소로 전체 비용 절감 4 GBit IBM SAN 32 B 4 GBit IBM DS 4700 *) with 2 x 2 Gbit LWL GBIC till 4 Gbit LWL GBIC get available 26 IBM System Storage. TM DS 4700 Secondary site
Long distance HA Solutions Using DS 4700 Express Global Mirror and IBM Multi-protocol Router Tier 6 § 10 km 이상의 거리에 필요 ► 거리가 훨씬 먼 2차 데이터 센터 중요한 데이터를 다른 지역에 저장 해야 할 때 § FC보다 훨씬 효율적인 IP 비용 § Fibre right-of-way is not available § DS 4700 Express Global Mirror의 IP연 결 비동기식 데이터 복제 IP Intra. Net IP WAN ATM ► ► ► Server Multi protocol Router IBM System Storage. TM DS 4700 SAN IBM SAN 16 B-R IBM SAN 32 B SAN IBM DS 4700 Express 27 Server Multi protocol Router IP Router 데이터베이스의 데이터 무결성과 업데이트 순서를 지원하는 Consistency group 통신 연결 끊김으로부터 신속한 복 구를 지원하는 Delta 재동기화 IP Router IBM DS 4700 Express Up to 5000 km
DS 4000 Storage Partitioning Specifications Machine Type and Model Storage Partitioning Enabled by Default Maximum Storage Partitions Storage Partition Purchase Options DS 4800 (1815 - 80 H, 82 H, 84 H, 88 H) Yes (8 partitions standard) 64 8 - 16, 8 - 64, 16 – 64 DS 4800 (1815 - 80 A, 82 A, 84 A, 88 A) Choice of 8, 16 or 64 64 8 - 16, 8 - 64, 16 - 64 DS 4700 (1814 -72 H) DS 4700 (1814 -72 A) Yes (8 partitions standard) Choice of 8, 16, or 64 64 64 8 - 16, 8 - 64, 16 – 64 DS 4700 (1814 -70 H) DS 4700 (1814 -70 A) Yes (2 partitions standard) Choice of 2, 4, 8, 16, or 64 64 64 2 - 4, 2 - 8, 4 -16, 8 - 64, 16 - 64 Note: This information is deemed accurate but subject to change without notice 30 IBM System Storage. TM DS 4700 8 - 16, 8 - 64, 16 - 64 2
