System Storage TM IBM System Storage DS 3400Express

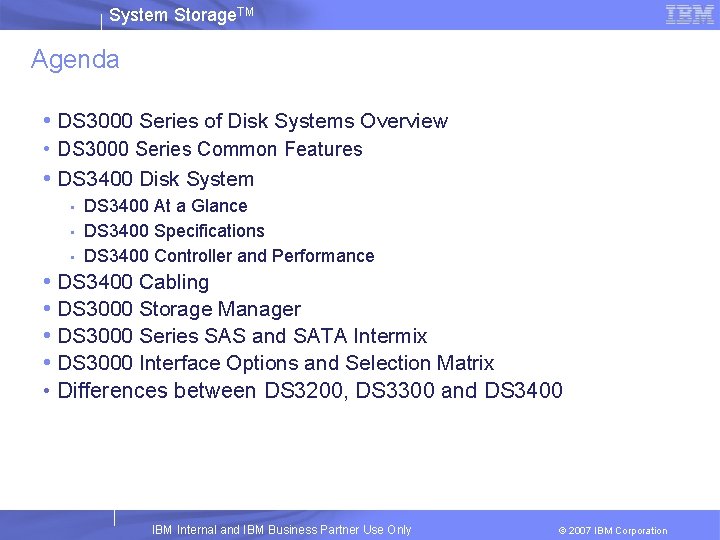

System Storage. TM Agenda • DS 3000 Series of Disk Systems Overview • DS 3000 Series Common Features • DS 3400 Disk System • • • DS 3400 At a Glance DS 3400 Specifications DS 3400 Controller and Performance • DS 3400 Cabling • DS 3000 Storage Manager • DS 3000 Series SAS and SATA Intermix • DS 3000 Interface Options and Selection Matrix • Differences between DS 3200, DS 3300 and DS 3400 IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

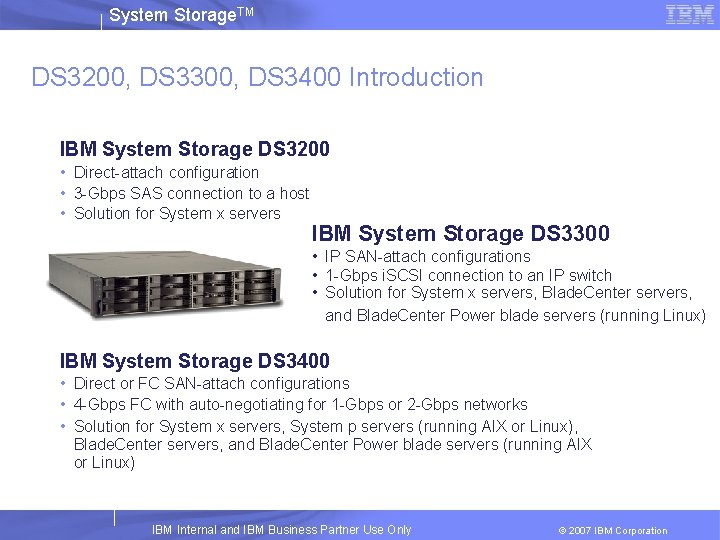

System Storage. TM DS 3200, DS 3300, DS 3400 Introduction IBM System Storage DS 3200 • Direct-attach configuration • 3 -Gbps SAS connection to a host • Solution for System x servers IBM System Storage DS 3300 • IP SAN-attach configurations • 1 -Gbps i. SCSI connection to an IP switch • Solution for System x servers, Blade. Center servers, and Blade. Center Power blade servers (running Linux) IBM System Storage DS 3400 • Direct or FC SAN-attach configurations • 4 -Gbps FC with auto-negotiating for 1 -Gbps or 2 -Gbps networks • Solution for System x servers, System p servers (running AIX or Linux), Blade. Center servers, and Blade. Center Power blade servers (running AIX or Linux) IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM Agenda • DS 3000 Series of Disk Systems Overview • DS 3000 Series Common Features • DS 3400 Disk System • • • DS 3400 At a Glance DS 3400 Specifications DS 3400 Controller and Performance • DS 3400 Cabling • DS 3000 Storage Manager • DS 3000 Series SAS and SATA Intermix • DS 3000 Interface Options and Selection Matrix • Differences between DS 3200, DS 3300 and DS 3400 IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM DS 3000 Series - Common Features 2 U enclosure supporting up to 12 SAS and/or SATA drives Online capacity expansion up to 48 drives with EXP 3000 s Dual-active RAID controllers with mirrored, battery-backed cache Redundant, hot-swappable components Telco model supports -48 v DC power supplies Supports tiered storage with SAS and SATA intermix support Intuitive DS 3000 Storage Manager software Support for up to 16 Storage Partitions IBM Internal and IBM Business Partner Use Only Support for Flash. Copy and Volume. Copy © 2007 IBM Corporation

System Storage. TM Agenda • DS 3000 Series of Disk Systems Overview • DS 3000 Series Common Features • DS 3400 Disk System • • • DS 3400 At a Glance DS 3400 Specifications DS 3400 Controller and Performance • DS 3400 Cabling • DS 3000 Storage Manager • DS 3000 Series SAS and SATA Intermix • DS 3000 Interface Options and Selection Matrix • Differences between DS 3200, DS 3300 and DS 3400 IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

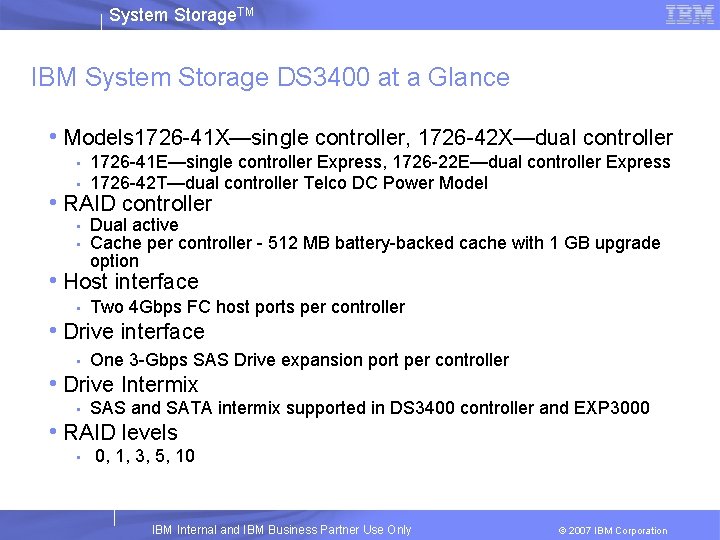

System Storage. TM IBM System Storage DS 3400 at a Glance • Models 1726 -41 X—single controller, 1726 -42 X—dual controller • • 1726 -41 E—single controller Express, 1726 -22 E—dual controller Express 1726 -42 T—dual controller Telco DC Power Model • RAID controller • • Dual active Cache per controller - 512 MB battery-backed cache with 1 GB upgrade option • Host interface • Two 4 Gbps FC host ports per controller • Drive interface • One 3 -Gbps SAS Drive expansion port per controller • Drive Intermix • SAS and SATA intermix supported in DS 3400 controller and EXP 3000 • RAID levels • 0, 1, 3, 5, 10 IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM IBM System Storage DS 3400 at a Glance (cont’d) • Maximum drives supported • 48 SAS or SATA drives (using three EXP 3000 expansion units) • 2, 16 • 19" industry-standard rack • IBM System Storage DS 3000 Storage Manager • Three-year limited warranty on parts and labor • Height: 8. 7 cm (3. 4 in. ) Depth: 55. 0 cm (21. 6 in. ) Width: 44. 7 cm (17. 6 in. ) Weight: approximately 17. 2 kg (38. 0 lb) for a standard unit; when fully configured, 29. 2 kg (64. 5 lb) • Storage partitions • Rack support • Management software • Warranty • Dimensions • • • IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM DS 3400 Specifications • Two 4 -Gbps. FC host ports per controller • 2 U Enclosure • Daisy-Chain up to 3 additional EXP 3000 enclosures (48 drives total) per subsystem • Integrated Power Supply / Fan Module • 3 Gb/s SAS Mid-plane • 12 internal SAS HDD Connectors • Activity LEDs for each Slot • Bi-color Status LEDs for each Slot IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM Tiered Storage Solution of Choice • The DS 3000 series can cost effectively support an organization’s entire range of data capacity requirements in a single disk system Drive type Throughput RPM Capacity SAS 3 Gbps 15, 000 73 GB 146 GB 300 GB SATA 3 Gbps 7, 200 500 GB 750 GB 1. 0 TB* * Excludes Blade. Center Boot Disk System IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM DS 3400 Controller • The DS 3400 controller has: • • • IBM Internal and IBM Business Partner Use Only 1 Gbps bus (64 bit, 133 MHz PCIX) between the core processor and I/O chips • The “width” to handle largeblock I/O and “speed’ to process small-block I/O A single memory that is partitioned between processor and data cache memory. The I/O system core integrates the XOR engine and processor. • Processor focuses on data movement control • High-speed XOR engine generates RAID parity © 2007 IBM Corporation

System Storage. TM DS 3400 Controller – A Closer Look • The controllers, which insert from the rear of the module, support all external connections. Each controller module houses a 515 -watt power supply, dual-active fans, and a battery charger. FC host ports SAS expansion port Power Supply / Cooling Disabled SAS port Ethernet management port Diagnostics port for servicing 3 SAS host port per controller model IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM DS 3400 Host Cabling – Direct-attach Two node direct-attach cluster IBM

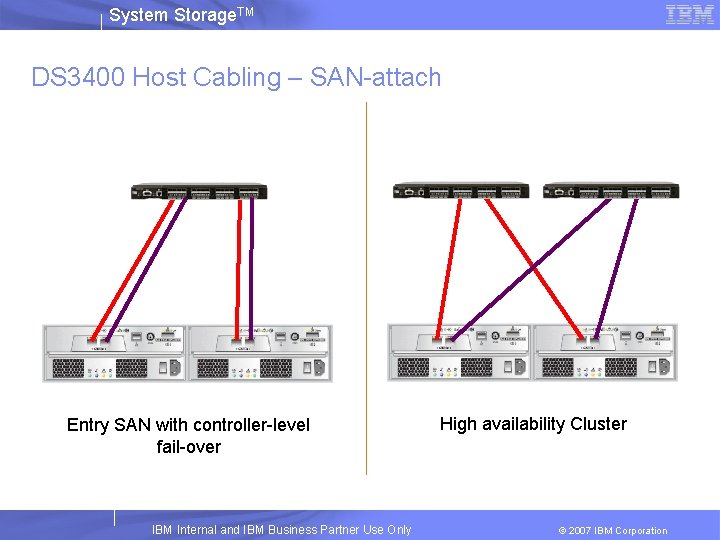

System Storage. TM DS 3400 Host Cabling – SAN-attach Entry SAN with controller-level fail-over

System Storage. TM Performance Drive Type DS 3400 (FC) SAS 1, 600 MB/sec SATA 1, 600 MB/sec SAS 970 MB/sec SATA 890 MB/sec SAS 740 MB/sec SATA 630 MB/sec SAS 110, 000 IOPS SATA 110, 000 IOPS SAS 21, 500 IOPS SATA 4, 600 IOPS SAS 4, 700 IOPS SATA 1, 000 IOPS SAS 48 3 Gb drives - 6. 70 code SATA 48 3 Gb drives - 6. 70 code Burst throughput cache read (512 k) Sustained throughput disk write (512 k) CMD Burst I/O rate cache reads (512 byte) Sustained I/O rate disk reads (4 k – R 5) Sustained I/O rate disk writes (4 k- R 5) CMD Number of drives used for benchmark test and code thread Notes: 1. Drives were benchmarked with dual controllers 2. Performance results achieved under ideal circumstances in a benchmark test environment. Actual customer results will vary based on configuration and infrastructure components. 3. The number of drives used does not reflect an optimized test config. The number of drives required could be lower/higher. Updated 12/10/2007 IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM Agenda • DS 3000 Series of Disk Systems Overview • DS 3000 Series Common Features • DS 3400 Disk System • • • DS 3400 At a Glance DS 3400 Specifications DS 3400 Controller and Performance • DS 3400 Cabling • DS 3000 Storage Manager • DS 3000 Series SAS and SATA Intermix • DS 3000 Interface Options and Selection Matrix • Differences between DS 3200, DS 3300 and DS 3400 IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

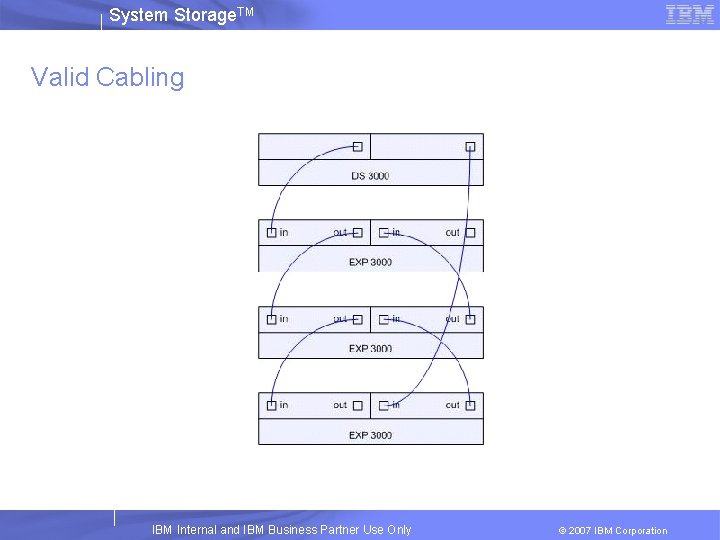

System Storage. TM Valid Cabling Figure 1 IBM Internal and IBM Business Partner Use

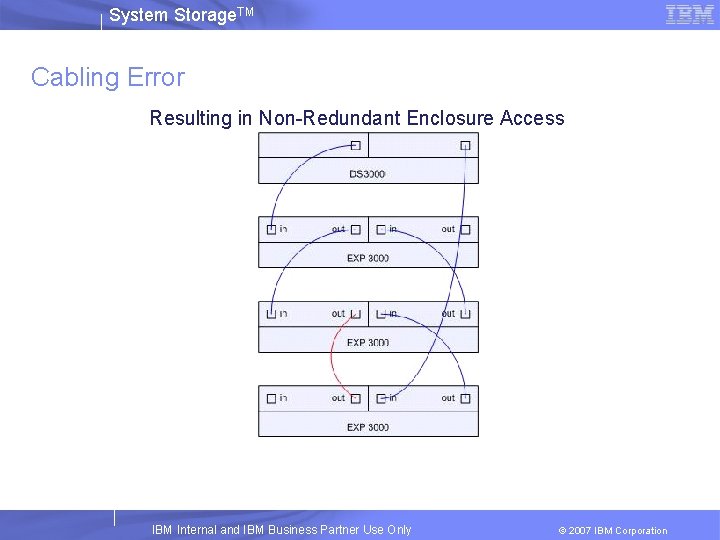

System Storage. TM Cabling Error Figure 2 Resulting in Non-Redundant Enclosure Access IBM Internal

System Storage. TM Cabling Error Figure 3 Resulting in Non-Redundant Enclosure Access IBM Internal

System Storage. TM Mis-wire Reporting • When a Mis-wire condition is detected the RAID controller firmware will report the following: • • • A “Needs Attention” condition A critical MEL event indicating the presence of the Mis-wire Condition A Recovery Action (Recovery Guru) indicating the Mis-wire IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM “Needs-Attention” Condition • The presence of a SAS Mis-wire condition is graphically reported to the user in the form of a “Needs Attention” condition • When the Mis-wire condition is corrected, the “Needs Attention” condition will be removed. IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM Agenda • DS 3000 Series of Disk Systems Overview • DS 3000 Series Common Features • DS 3400 Disk System • • • DS 3400 At a Glance DS 3400 Specifications DS 3400 Controller and Performance • DS 3400 Cabling • DS 3000 Storage Manager • DS 3000 Series SAS and SATA Intermix • DS 3000 Interface Options and Selection Matrix • Differences between DS 3200, DS 3300 and DS 3400 IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

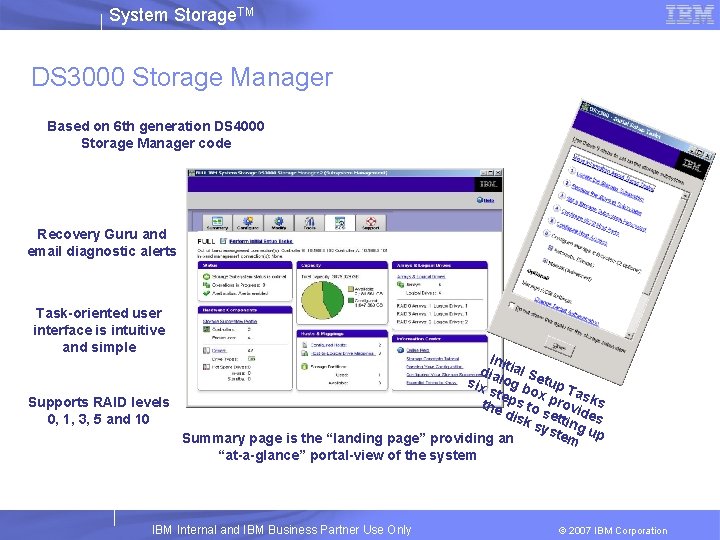

System Storage. TM DS 3000 Storage Manager Based on 6 th generation DS 4000 Storage Manager code Recovery Guru and email diagnostic alerts Task-oriented user interface is intuitive and simple Ini dia tial Se six log b tup Tas ste ox p p k s r Supports RAID levels the to s ovid s dis 0, 1, 3, 5 and 10 k s etting es yst em up Summary page is the “landing page” providing an “at-a-glance” portal-view of the system IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM Benefits of Premium Features Storage Partitioning • • Allows the sharing of capacity across multiple servers User can define which server(s) can have access to specific data Flash. Copy • • • Supports utilization of separate data copies, for a variety of uses such as hot backups or application testing No affect to production data – remains online accessible Instantaneous Volume. Copy • • • Allows for redistribution of data from older, slower disk drives to faster and/or higher capacity drives Optimizes application performance and/or capacity Complete separate physical copy of data that can be used for analysis or testing with no effect on production data IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

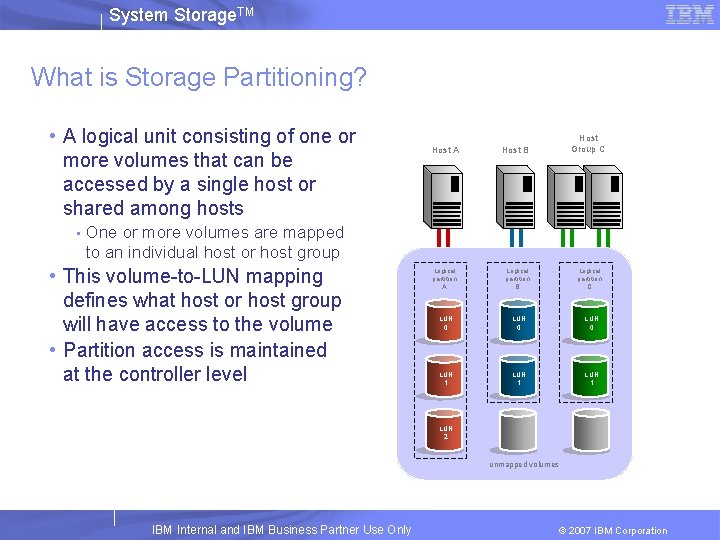

System Storage. TM What is Storage Partitioning? • A logical unit consisting of one or more volumes that can be accessed by a single host or shared among hosts • Host A Host B Host Group C One or more volumes are mapped to an individual host or host group • This volume-to-LUN mapping defines what host or host group will have access to the volume • Partition access is maintained at the controller level Logical partition A Logical partition B Logical partition C LUN 0 LUN 1 LUN 2 unmapped volumes IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

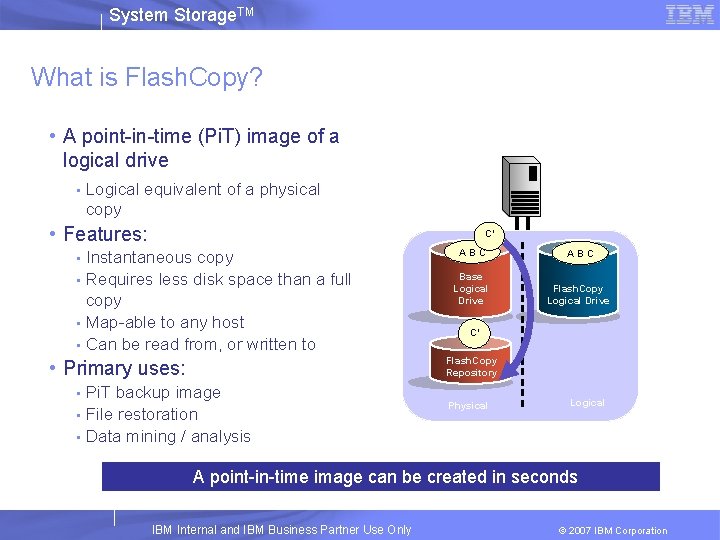

System Storage. TM What is Flash. Copy? • A point-in-time (Pi. T) image of a logical drive • Logical equivalent of a physical copy • Features: C’ Instantaneous copy • Requires less disk space than a full copy • Map-able to any host • Can be read from, or written to • • Primary uses: ABC Base Logical Drive Flash. Copy Logical Drive C’ Flash. Copy Repository Pi. T backup image • File restoration • Data mining / analysis • Physical Logical A point-in-time image can be created in seconds IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

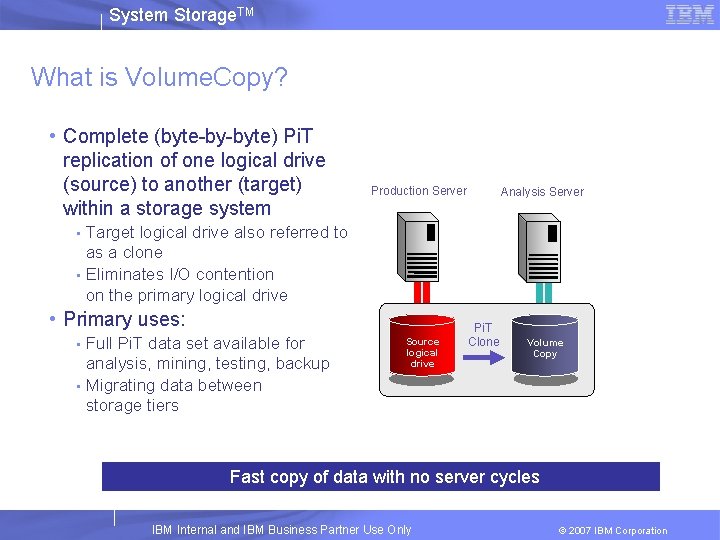

System Storage. TM What is Volume. Copy? • Complete (byte-by-byte) Pi. T replication of one logical drive (source) to another (target) within a storage system Production Server Analysis Server Target logical drive also referred to as a clone • Eliminates I/O contention on the primary logical drive • • Primary uses: Full Pi. T data set available for analysis, mining, testing, backup • Migrating data between storage tiers • Source logical drive Pi. T Clone Volume Copy Fast copy of data with no server cycles IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

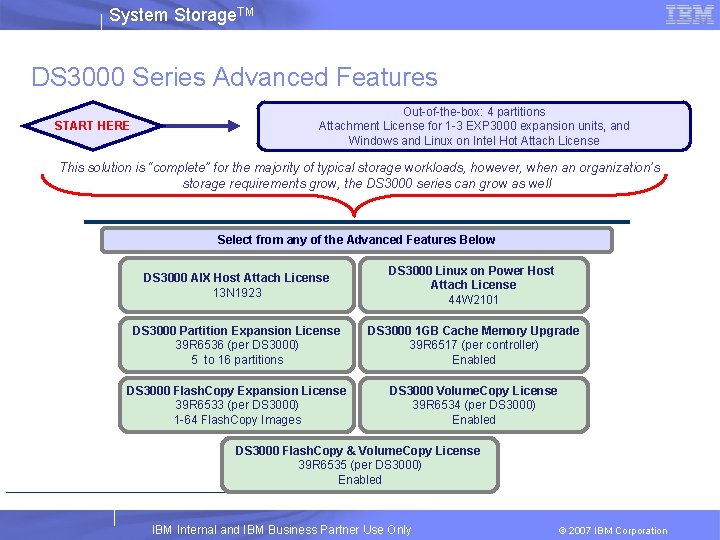

System Storage. TM DS 3000 Series Advanced Features START HERE Out-of-the-box: 4 partitions Attachment License for 1 -3 EXP 3000 expansion units, and Windows and Linux on Intel Hot Attach License This solution is “complete” for the majority of typical storage workloads, however, when an organization’s storage requirements grow, the DS 3000 series can grow as well Select from any of the Advanced Features Below DS 3000 AIX Host Attach License 13 N 1923 DS 3000 Linux on Power Host Attach License 44 W 2101 DS 3000 Partition Expansion License 39 R 6536 (per DS 3000) 5 to 16 partitions DS 3000 1 GB Cache Memory Upgrade 39 R 6517 (per controller) Enabled DS 3000 Flash. Copy Expansion License 39 R 6533 (per DS 3000) 1 -64 Flash. Copy Images DS 3000 Volume. Copy License 39 R 6534 (per DS 3000) Enabled DS 3000 Flash. Copy & Volume. Copy License 39 R 6535 (per DS 3000) Enabled IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM Agenda • DS 3000 Series of Disk Systems Overview • DS 3000 Series Common Features • DS 3400 Disk System • • • DS 3400 At a Glance DS 3400 Specifications DS 3400 Controller and Performance • DS 3400 Cabling • DS 3000 Storage Manager • DS 3000 Series SAS and SATA Intermix • DS 3000 Interface Options and Selection Matrix • Differences between DS 3200, DS 3300 and DS 3400 IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM DS 3000 Series SAS and SATA Intermix Support • Integration of SAS and SATA technologies within the same DS 3000 series disk system • • SAS drives • High performance • Typically utilized for business critical and transaction-based applications SATA drives • Great cost/GB ratio • Generally deployed for near-line and secondary data where cost presides over performance • Purchasing and storage deployment is simplified!! • Organizations can purchase and deploy a single system for all levels of their data IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM DS 3000 Series SAS and SATA Intermix Support • Integration of SAS and SATA technologies within the same DS 3000 series disk system • SAS drives • High performance • Typically utilized for business critical and transaction-based applications • SATA drives • Great cost/GB ratio • Generally deployed for near-line and secondary data where cost presides over performance Summary page identifies drive type and number of drives installed IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM Intermix Environments • Multiple drive offerings to satisfy different requirements • Important to note: Arrays can only created with the same type of drives although drive types can be mixed within an enclosure • Hot spares can only be a spare for like drives • Therefore, both SAS and SATA hot spares are needed in a mixed drive environment Controllers SAS SAS SAS • SAS SAS SAS SAS SASSATA SATASATA SATA IBM Internal and IBM Business Partner Use Only SATA SATA © 2007 IBM Corporation

System Storage. TM Agenda • DS 3000 Series of Disk Systems Overview • DS 3000 Series Common Features • DS 3400 Disk System • • • DS 3400 At a Glance DS 3400 Specifications DS 3400 Controller and Performance • DS 3400 Cabling • DS 3000 Storage Manager • DS 3000 Series SAS and SATA Intermix • DS 3000 Interface Options and Selection Matrix • Differences between DS 3200, DS 3300 and DS 3400 IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

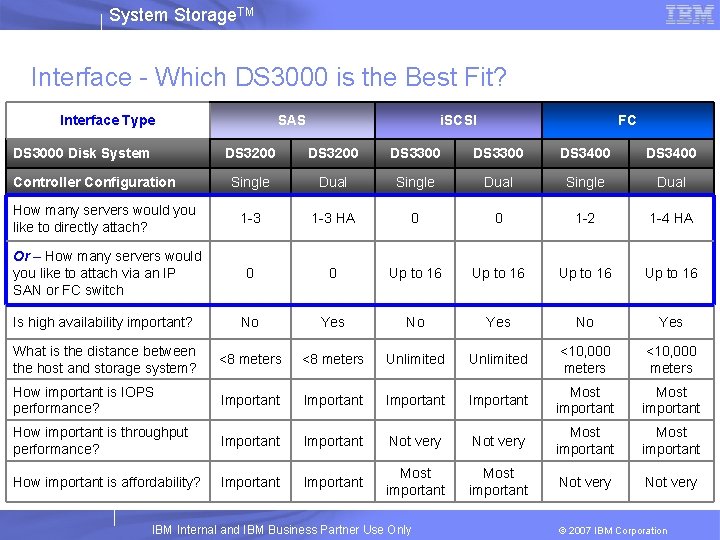

System Storage. TM Interface - Which DS 3000 is the Best Fit? Interface Type DS 3000 Disk System SAS i. SCSI FC DS 3200 DS 3300 DS 3400 Single Dual How many servers would you like to directly attach? 1 -3 HA 0 0 1 -2 1 -4 HA Or – How many servers would you like to attach via an IP SAN or FC switch 0 0 Up to 16 Is high availability important? No Yes What is the distance between the host and storage system? <8 meters Unlimited <10, 000 meters How important is IOPS performance? Important Most important How important is throughput performance? Important Not very Most important How important is affordability? Important Most important Not very Controller Configuration IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM Quick Reference – Interface Options Interface Type SAS i. SCSI FC Performance Better Good IT Expertise Server experience Network Experience Storage Experience Distance Limited – Infinite • 8 meters Best Adequate – • 10, 000 meters Cost $ $ $$$ Server attach Three or less Unlimited Availability Better Good Best IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM DS 3000 Selection Matrix DS 3400, DS 3300 OR DS 3400? Analyze your customer’s requirement to decide which DS 3000 offering meets their needs START Does your business require connecting your storage to over three servers within the next several years? NO YES Do you need Disk for your blade centre? NO YES Do you currently have a FC SAN you would like to additional storage to? NO YES Which is more important to you… Affordability or performance? AFFORDABILITY PERFORMANCE IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM Agenda • DS 3000 Series of Disk Systems Overview • DS 3000 Series Common Features • DS 3400 Disk System • • • DS 3400 At a Glance DS 3400 Specifications DS 3400 Controller and Performance • DS 3400 Cabling • DS 3000 Storage Manager • DS 3000 Series SAS and SATA Intermix • DS 3000 Interface Options and Selection Matrix • Differences between DS 3200, DS 3300 and DS 3400 IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM DS 3000 Series Comparison DS 3200 DS 3300 DS 3400 Three x 4 SAS connectors per controller (host IO interface) Two RJ 45 Ethernet data connectors per controller (host IO interface) Two 4 Gbps FC connectors per controller (host IO interface) Intel X-Scale 80331 (667 MHz) processor Same SAS back-end interfaces using the LSI 1068 SAS IOC Same 512 MB or 1 GB DDR II (per controller) Same Clustering Same Up to 255 volumes Same Supports Storage Manager and SMcli Same Media Scan with or without consistency check Same Major Event Log (MEL) for error logging Same IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

System Storage. TM DS 3000 Series Comparison (cont’d) DS 3200 Hot. Add and Dynamic logical drive Expansion RAID Level Migration using SMcli DS 3300 DS 3400 Same Physical disk state indications Same IAF (immediate available feature) Same Cache Battery Backup: 3 Cell (18650) Li-ion Battery Pack Same Up to three additional EXP 3000 enclosures for a total of 48 physical disks Same RAID controller FW: 06. 70. xx Same Not: When updating firmware, the Storage Manager software may also require an update. Consult the compatibility matrix and if an update is required, always update the Storage Manager software first. IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation

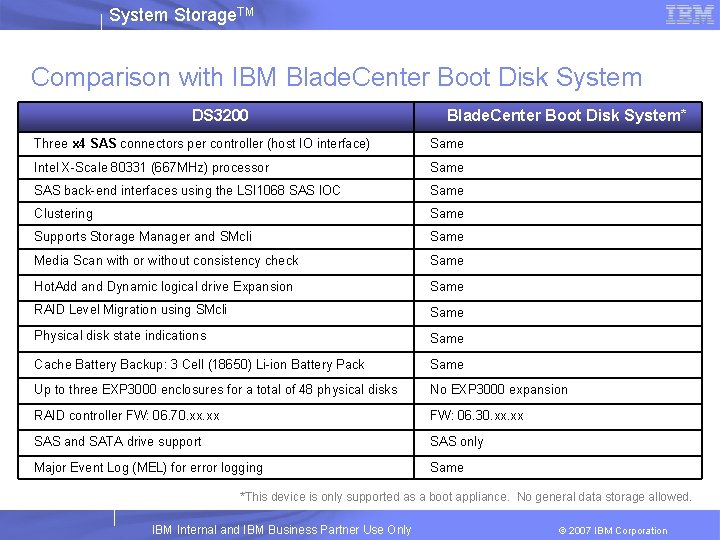

System Storage. TM Comparison with IBM Blade. Center Boot Disk System DS 3200 Blade. Center Boot Disk System* Three x 4 SAS connectors per controller (host IO interface) Same Intel X-Scale 80331 (667 MHz) processor Same SAS back-end interfaces using the LSI 1068 SAS IOC Same Clustering Same Supports Storage Manager and SMcli Same Media Scan with or without consistency check Same Hot. Add and Dynamic logical drive Expansion Same RAID Level Migration using SMcli Same Physical disk state indications Same Cache Battery Backup: 3 Cell (18650) Li-ion Battery Pack Same Up to three EXP 3000 enclosures for a total of 48 physical disks No EXP 3000 expansion RAID controller FW: 06. 70. xx FW: 06. 30. xx SAS and SATA drive support SAS only Major Event Log (MEL) for error logging Same *This device is only supported as a boot appliance. No general data storage allowed. IBM Internal and IBM Business Partner Use Only © 2007 IBM Corporation
