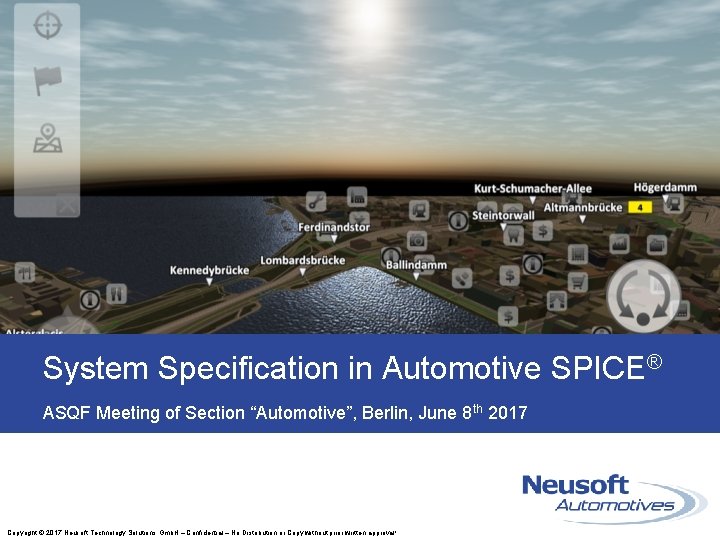

System Specification in Automotive SPICE® ASQF Meeting of Section “Automotive”, Berlin, June 8 th 2017 Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

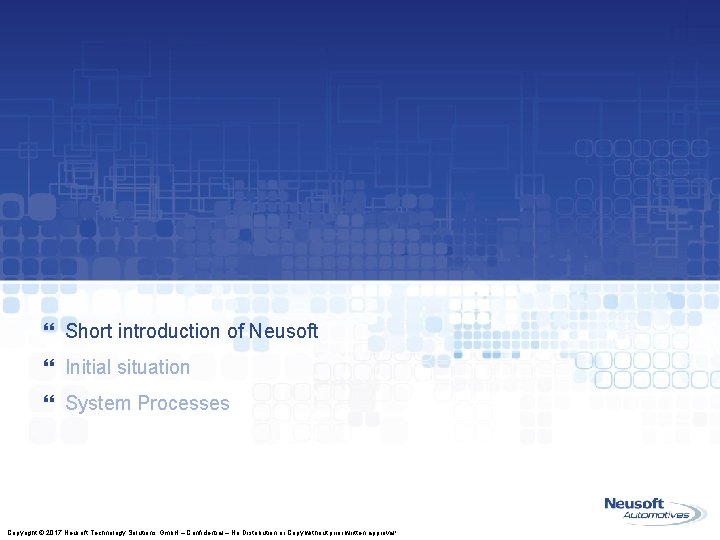

} Short introduction of Neusoft } Initial situation } System Processes Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

Profile Volker Lehmann Company & Role } Head of Quality at Neusoft Technology Solutions Gmb. H Key Experience Certifications } Member of intacs™ Advisory Board } intacs™ certified Principal Assessor } Leading intacs™ working groups } intacs™ certified Instructor for Provisional and Competent Level } Coaching for project and process managers } Trainings and workshops for SPICE assessor} IPMA Level C (project manager) certifications and introductions } IREB® Certified Professional for Requirements Engineering } Software-/System Process Improvement } Quality Assurance & Management } Requirements Engineering & Management Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval! } ITIL® Foundation Level

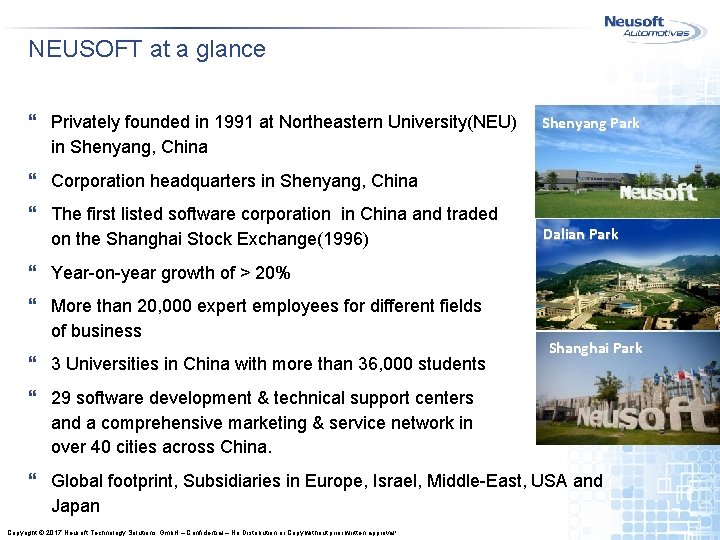

NEUSOFT at a glance } Privately founded in 1991 at Northeastern University(NEU) in Shenyang, China Shenyang Park } Corporation headquarters in Shenyang, China } The first listed software corporation in China and traded on the Shanghai Stock Exchange(1996) Dalian Park } Year-on-year growth of > 20% } More than 20, 000 expert employees for different fields of business } 3 Universities in China with more than 36, 000 students Shanghai Park } 29 software development & technical support centers and a comprehensive marketing & service network in over 40 cities across China. } Global footprint, Subsidiaries in Europe, Israel, Middle-East, USA and Japan Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

Neusoft Automotives - Hamburg NTS (Neusoft Technology Solutions Gmb. H) } Location: Hamburg, Germany } Employees (2016): ~210 } Established June, 2010 } Global technology solution & service provider } Provides navigational competence (internal and customer) } Off-shore development bridge Research & Development: § Navigation & Location Based Services § Generation and processing of digital road maps & geographic information § 3 D city models Hamburg Headquarter Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

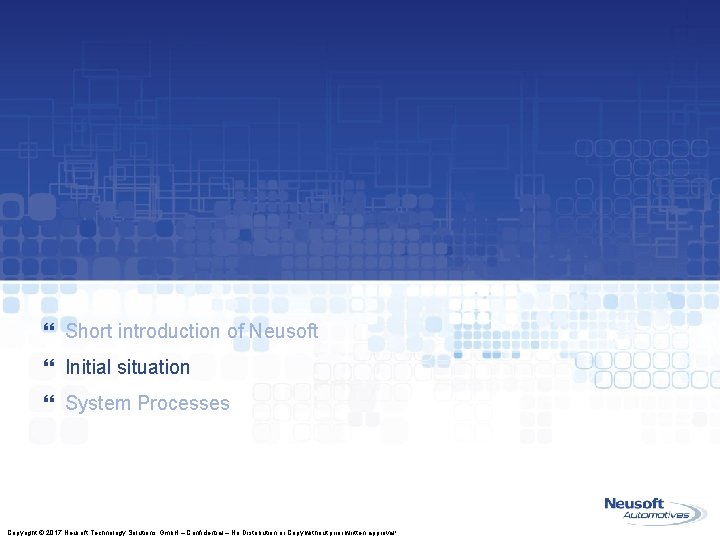

} Short introduction of Neusoft } Initial situation } System Processes Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

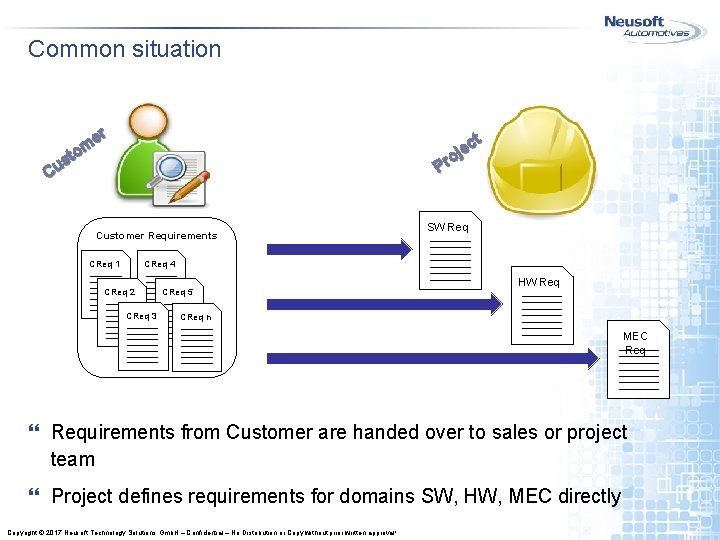

Common situation er m to s Cu t ec j o Pr Customer Requirements CReq 1 SW Req CReq 4 CReq 2 CReq 3 CReq 5 HW Req CReq n MEC Req } Requirements from Customer are handed over to sales or project team } Project defines requirements for domains SW, HW, MEC directly Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

Most important problems er m to s Cu t ec j o Pr Customer Requirements CReq 1 SW Req CReq 4 CReq 2 CReq 3 CReq 5 HW Req CReq n MEC Req } Separate specifications are not synchronized } Requirements got lost on system level } Architecture on system level is not taken into account Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

A recommended approach SYS. 1 Requirements Elicitation SYS. 2 System Requirements Analysis SYS. 3 System Architectural Design } Establish a system level in projects for system requirements and system architectural design } Establish the role of system engineer with system responsibility for the whole development lifecycle Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

} Short introduction of Neusoft } Initial situation } System Processes Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

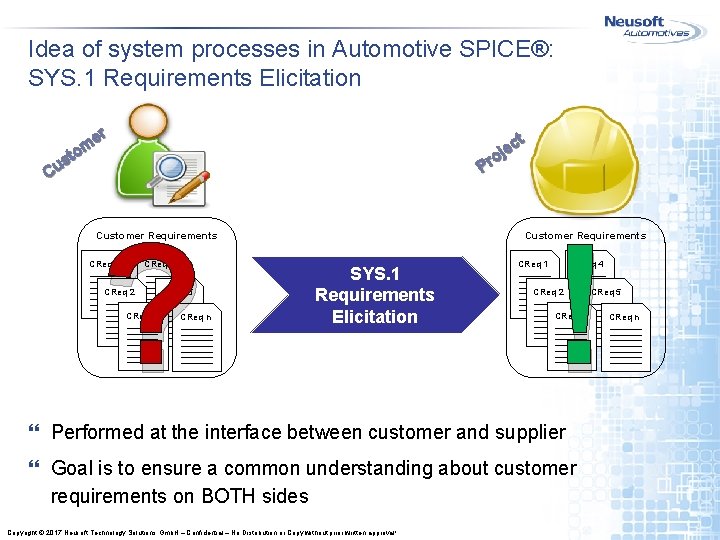

Idea of system processes in Automotive SPICE®: SYS. 1 Requirements Elicitation er m to s Cu t ec j o Pr ? Customer Requirements CReq 1 CReq 4 CReq 2 CReq 3 CReq 5 CReq n ! Customer Requirements SYS. 1 Requirements Elicitation CReq 1 CReq 4 CReq 2 CReq 3 } Performed at the interface between customer and supplier } Goal is to ensure a common understanding about customer requirements on BOTH sides Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval! CReq 5 CReq n

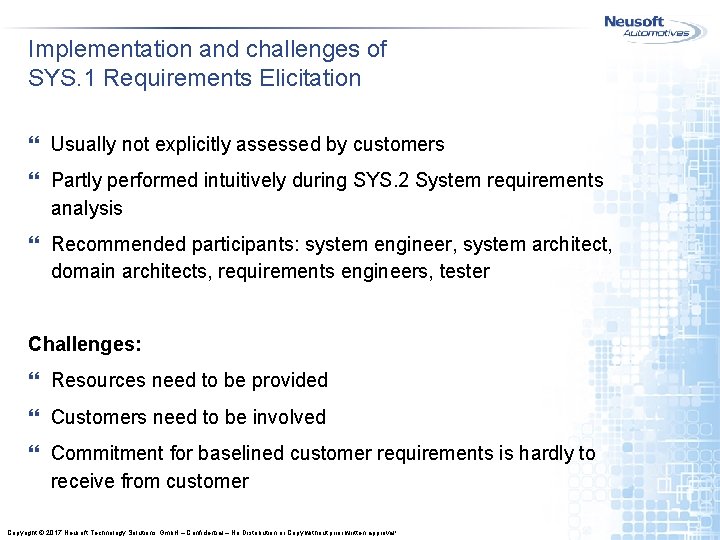

Implementation and challenges of SYS. 1 Requirements Elicitation } Usually not explicitly assessed by customers } Partly performed intuitively during SYS. 2 System requirements analysis } Recommended participants: system engineer, system architect, domain architects, requirements engineers, tester Challenges: } Resources need to be provided } Customers need to be involved } Commitment for baselined customer requirements is hardly to receive from customer Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

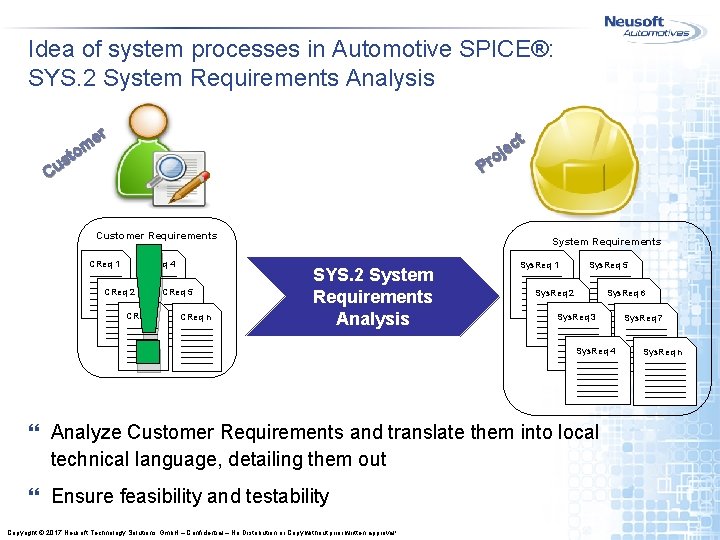

Idea of system processes in Automotive SPICE®: SYS. 2 System Requirements Analysis er m to s Cu t ec j o Pr ! Customer Requirements CReq 1 CReq 4 CReq 2 CReq 3 CReq 5 CReq n System Requirements SYS. 2 System Requirements Analysis Sys. Req 1 Sys. Req 5 Sys. Req 6 Sys. Req 2 Sys. Req 3 Sys. Req 4 } Analyze Customer Requirements and translate them into local technical language, detailing them out } Ensure feasibility and testability Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval! Sys. Req 7 Sys. Req n

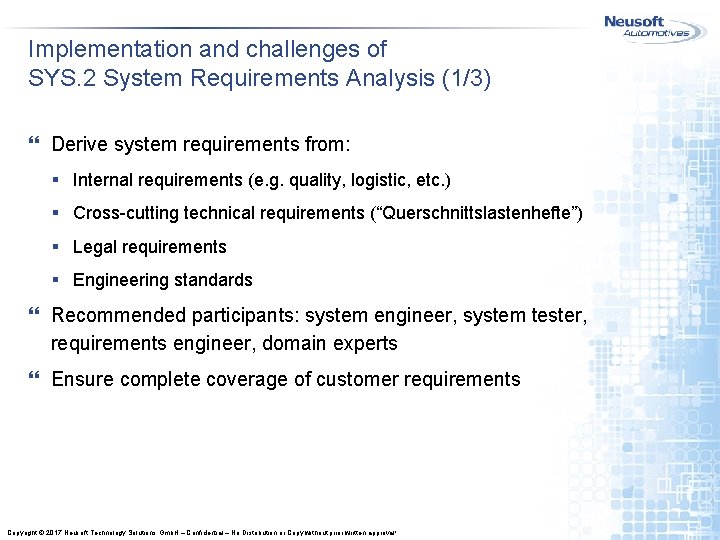

Implementation and challenges of SYS. 2 System Requirements Analysis (1/3) } Derive system requirements from: § Internal requirements (e. g. quality, logistic, etc. ) § Cross-cutting technical requirements (“Querschnittslastenhefte”) § Legal requirements § Engineering standards } Recommended participants: system engineer, system tester, requirements engineer, domain experts } Ensure complete coverage of customer requirements Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

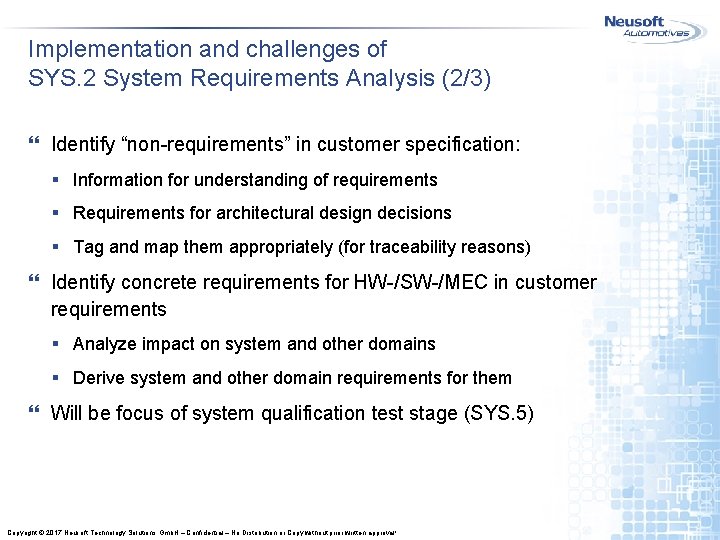

Implementation and challenges of SYS. 2 System Requirements Analysis (2/3) } Identify “non-requirements” in customer specification: § Information for understanding of requirements § Requirements for architectural design decisions § Tag and map them appropriately (for traceability reasons) } Identify concrete requirements for HW-/SW-/MEC in customer requirements § Analyze impact on system and other domains § Derive system and other domain requirements for them } Will be focus of system qualification test stage (SYS. 5) Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

Implementation and challenges of SYS. 2 System Requirements Analysis (3/3) Challenges: } System engineers with experience and overview on system level are often not available } Customer requirements often are not stable while change request management is not implemented yet } Internal requirements are not taken into account for system requirements analysis } Traceability is implemented but consistency is not ensured } Domain specific requirements on system level need to be managed in an appropriate way (see above) } System requirements specification is not updated after changes in later project phases Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

Idea of system processes in Automotive SPICE®: SYS. 3 System Architectural Design t ec j o Pr System Requirements Sys. Req 1 Sys. Req 5 Sys. Req 6 Sys. Req 2 Sys. Req 3 Sys. Req 4 Sys. Req 7 Sys. Req n SYS. 3 System Architectural Design } Transform system requirements into architectural solution } Make decisions about distribution of architecture elements and requirements Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

Implementation and challenges of SYS. 3 System Architectural Design (1/3) } Map system requirements to architecture elements } Identify decisions for architectural design in customer requirements and map them to system architecture § These decisions will not be part of system requirements } Define interfaces of the system (internal as well as external) } Define dynamic behavior } Ensure complete coverage of system requirements Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

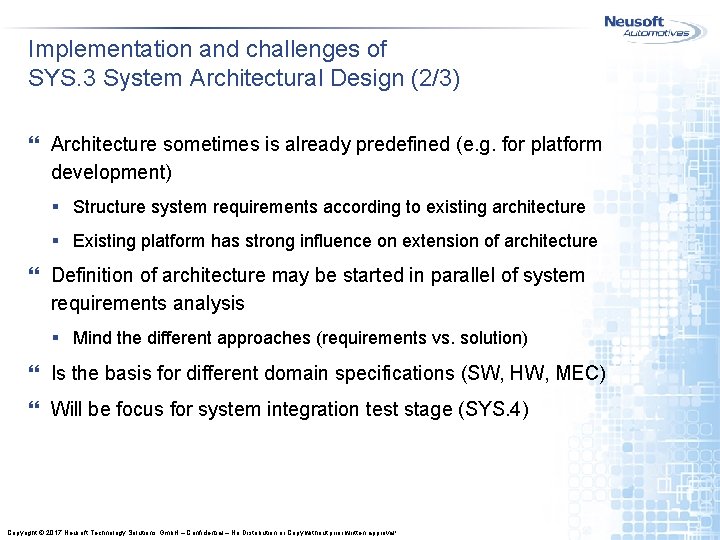

Implementation and challenges of SYS. 3 System Architectural Design (2/3) } Architecture sometimes is already predefined (e. g. for platform development) § Structure system requirements according to existing architecture § Existing platform has strong influence on extension of architecture } Definition of architecture may be started in parallel of system requirements analysis § Mind the different approaches (requirements vs. solution) } Is the basis for different domain specifications (SW, HW, MEC) } Will be focus for system integration test stage (SYS. 4) Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!

Implementation and challenges of SYS. 3 System Architectural Design (3/3) Challenges: } System engineers with experience and overview on system level are often not available } Sometimes architecture needs to be shown to customer in proposal phase } Predefined architecture might limit the margin for decisions } Traceability is implemented but consistency is not ensured Copyright © 2017 Neusoft Technology Solutions Gmb. H – Confidential – No Distribution or Copy without prior written approval!
