System Requirements Specification Specifying the Specifications Uses of
- Slides: 18
System Requirements Specification Specifying the Specifications
Uses of the SRS ¡ Design ¡ Validation ¡ Customer Contract – sometimes
When is a requirement not a specification? ¡ ¡ ¡ Requirement – understanding between customer and supplier Specification – what the software must do Requirements that are not in the SRS l l Costs Delivery dates Acceptance procedures etc

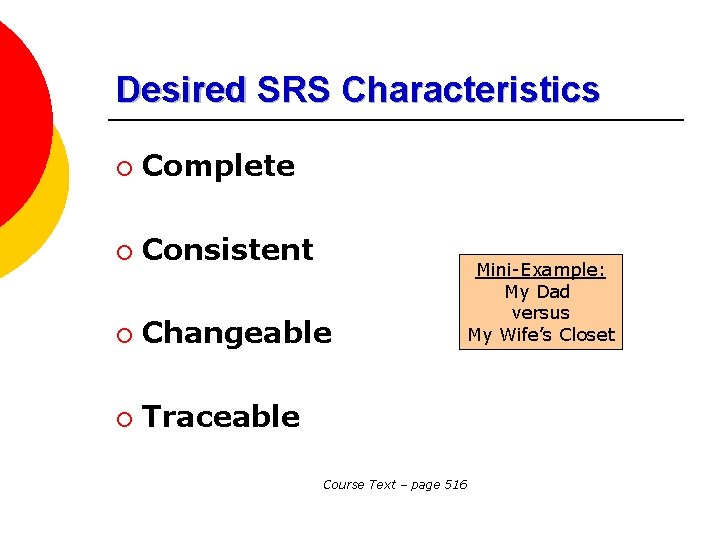

Desired SRS Characteristics ¡ Complete ¡ Consistent ¡ Changeable ¡ Traceable Mini-Example: My Dad versus My Wife’s Closet Course Text – page 516
IEEE 830 Role of SRS 1. “The SRS must correctly define all of the software requirements, but no more. ” 2. “The SRS should not describe design, verification, or project management details, except for required design constraints. ”

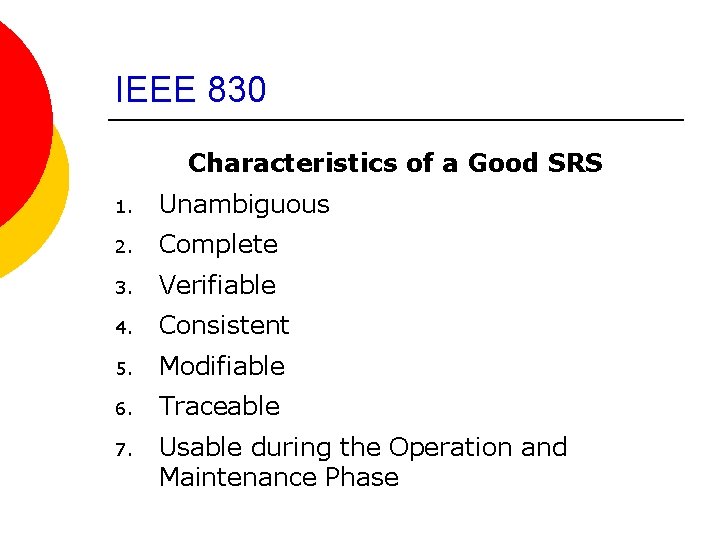

IEEE 830 Characteristics of a Good SRS 1. Unambiguous 2. Complete 3. Verifiable 4. Consistent 5. Modifiable 6. Traceable 7. Usable during the Operation and Maintenance Phase
Ambiguousness – example one The control total is taken from the last record. 1. The total is taken from the record at the end of the file. 2. The total is taken from the latest record. 3. The total is taken from the previous record. IEEE 830 -1984
Ambiguousness – example two All customers have the same control field. 1. All customers have the same value in their control field. 2. All control fields have the same format. 3. One control field is issued for all customers. IEEE 830 -1984
Expressing Requirements ¡ Through input/output specs ¡ Use of Representative Examples ¡ Specification of Models IEEE 830 -1984
SRS Table of Contents 1. Introduction 1. 2. 3. 4. 5. 2. General Description 1. 2. 3. 4. 5. 3. Purpose Scope Definitions References Overview Product Perspective Product Functions User Characteristics General Constraints Assumptions and Dependencies Specific Requirements IEEE 830 -1984
3. Specific Requirements 3. 1 Functional Requirements 3. 1. 1 Func Req 1 3. 1. 1. 1 Introduction 3. 1. 1. 2 Inputs 3. 1. 1. 3 Processing 3. 1. 1. 4 Outputs 3. 1. 2 Func Req 2 … 3. 2 External Interface Requirements 3. 2. 1 User Interface 3. 2. 2 Hardware Interfaces 3. 2. 3 Software Interfaces 3. 2. 4 Communication Interfaces 3. 3 Performance Requirements 3. 4 Design Constraints 3. 4. 1 Standards Compliance 3. 4. 2 Hardware Limitations 3. 5 Attributes 3. 5. 1 Security 3. 5. 2 Maintainability 3. 6 Other Requirements 3. 6. 1 Database IEEE 830 -1984
Non-830 -Style Requirements User stories encourage the team to defer collecting details. An initial place-holding goal-level story ("A Recruiter can post a new job opening") can be written and then replaced with more detailed stories once it becomes important to have the details. This technique makes user stories perfect for time-constrained projects. A team can very quickly write a few dozen stories to give them an overall feel for the system. They can then plunge into the details on a few of the stories and can be coding much sooner than a team that feels compelled to complete an IEEE 830–style software requirements specification Quote from "Advantages of User Stories for Requirements" By Mike Cohn http: //www. awprofessional. com/articles/article. asp? p=342885&seq. Num=3
Other Specification Techniques ¡ Use Cases ¡ Formal Specification Languages
System Modeling ¡ ¡ ¡ Data Model Function and Information Flow Model Behavior Model
Data Modeling ¡ Data Objects, Attributes, Relationships l ¡ Formatted as Lists or Tables Entity Relationship Diagrams
Functional and Information Flow Modeling Data Flow Diagrams source code characters Syntax Analysis tokens characters Semantic Analysis machine compiler instructions yadda object code machine instructions
Behavior Modeling State Transition Diagram done start 1 2 read msg send compose 4 file name save msg 3
Next Time… ¡ Midterm Exam
