System Architecture of Networked Sensor Platforms and Sensor

System Architecture of Networked Sensor Platforms and Sensor Networks Applications

Introduction Wireless sensor networks (WSN) consists of group of sensor nodes to perform distributed sensing task using wireless medium. Characteristics - low-cost, low-power, lightweight - densely deployed - prone to failures - two ways of deployment: randomly, pre-determined or engineered Objectives - Monitor activities - Gather and fuse information - Communicate with global data processing unit

Introduction – Recent sensor networks research involves almost all the layers and can be categorized into the following three aspects: [Akyildiz+2002, Elson+2002]: Ø Energy Efficiency: small devices, limited amount of energy, essential to prolong system lifetime Ø Scalability: deployment of thousands of sensor nodes, low-cost Ø Locality: smallest networks cannot depend on having global states

Why Sensor Platforms? – Traditional mechanisms of exploring the network (analysis and simulation) are not satisfied for exploring such a large-scale, dynamic and resource-constrained networks due to their difficulties to modeling every aspect of the system as a whole – For example, energy consumption model of the hardware platforms, including sensing, computation and communication, is not fully considered and overly-simplified assumptions have been made – Application-specific property of WSN makes the existing research mechanisms even harder to obtain meaningful results – Therefore, the demand to build a platform is increasing; e. g. , Berkeley’s motes and MANTIS

Why Sensor Platforms? – Compared to analysis and simulation techniques, designing a system platform has the following advantages: Ø Provides genuine executive environment: various proposed algorithms can be exactly evaluated; good way to examine existing design principles and discover new ones under different configurations Ø More attention can be focused on the application-layer Ø A real system platform can accelerate the pace of research and development

General WSN System Architecture – Constructing a platform for WSN falls into the area of embedded system development which usually consists of developing environment, hardware and software platforms. 1. Hardware Platform Consists of the following four components: a) Processing Unit Associates with small storage unit (tens of kilo bytes order) and manages the procedures to collaborate with other nodes to carry out the assigned sensing task b) Transceiver Unit Connects the node to the network via various possible transmission medias such as infra, light, radio and so on

General WSN System Architecture 1. Hardware Platform c) Power Unit Supplies power to the system by small size batteries which makes the energy a scarce resource d) Sensing Units Usually composed of two subunits: sensors and analog-to-digital Converters (ADCs). The analog signal produced by the sensors are converted to digital signals by the ADC, and fed into the processing unit e) Other Application Dependent Components Location finding system is needed to determine the location of sensor nodes with high accuracy; mobilizer may be needed to move sensor nodes when it is required to carry out the task

General WSN System Architecture 1. Hardware Platform Figure 1: The components of a sensor node [Akyildiz+2002]

General WSN System Architecture 2. Software Platform Consists of the following four components: a) Embedded Operating System (EOS) Manages the hardware capability efficiently as well as supports concurrency-intense operations. Apart from traditional OS tasks such as processor, memory and I/O management, it must be real-time to rapidly respond the hardware triggered events, multi-threading to handle concurrent flows b) Application Programming Interface (API) A series of functions provided by OS and other system-level components for assisting developers to build applications upon itself

General WSN System Architecture 2. Software Platform c) Device Drivers A series of routines that determine how the upper layer entities communicate with the peripheral devices d) Hardware Abstract Layer (HAL) Intermediate layer between the hardware and the OS. Provides uniform interfaces to the upper layer while its implementation is highly dependent on the lower layer hardware. With the use of HAL, the OS and applications easily transplant from one hardware platform to another

General WSN System Architecture 2. Software Platform Figure 2: The software platform for WSN

General WSN System Architecture 3. System Development Environment Provides various of tools for every stage of software development over the specific hardware platform a) Cross-Platform Development Generally, an embedded system unlike PC and does not have the ability of self-development. The final binary code run on that system, termed as target system, will be generated on the PC, termed as host system, by cross-platform compilers and linkers, and download the resulted image via the communication port onto the target system

General WSN System Architecture 3. System Development Environment Provides various of tools for every stage of software development over the specific hardware platform b) Debug Techniques Due to the difficulties introduced by cross-platform development mode, the debug techniques become critical for the efficiency of software production. For this reason, many chips on the system provide the on-chip debugger, such as JTAF, to reduce the development time.

Berkeley Motes [Hill+ 2000] – Motes are tiny, self-contained, battery powered computers with radio links, which enable them to communicate and exchange data with one another, and to self-organize into ad hoc networks – Motes form the building blocks of wireless sensor networks – Tiny. OS [Tiny. OS], component-based runtime environment, is designed to provide support for these motes which require concurrency intensive operations while constrained by minimal hardware resources Figure 3: Berkeley Mote

Berkeley Motes [Hill+ 2000] Hardware Platform – Consists of o micro-controller with internal flash program memory o data SRAM o data EEPROM o a set of actuator and sensor devices, including LEDs o a low-power transceiver o an analog photo-sensor o a digital temperature sensor o a serial port o a small coprocessor unit

Berkeley Motes [Hill+ 2000] Hardware Platform Figure 4: The schematic for representative network sensor platform

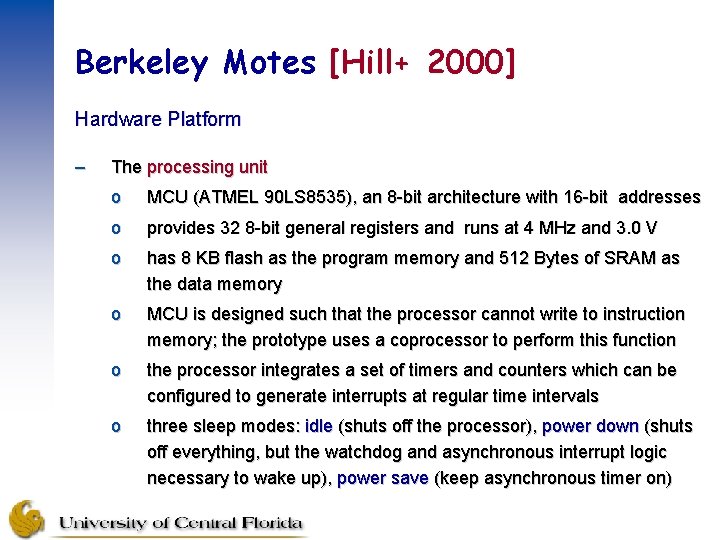

Berkeley Motes [Hill+ 2000] Hardware Platform – The processing unit o MCU (ATMEL 90 LS 8535), an 8 -bit architecture with 16 -bit addresses o provides 32 8 -bit general registers and runs at 4 MHz and 3. 0 V o has 8 KB flash as the program memory and 512 Bytes of SRAM as the data memory o MCU is designed such that the processor cannot write to instruction memory; the prototype uses a coprocessor to perform this function o the processor integrates a set of timers and counters which can be configured to generate interrupts at regular time intervals o three sleep modes: idle (shuts off the processor), power down (shuts off everything, but the watchdog and asynchronous interrupt logic necessary to wake up), power save (keep asynchronous timer on)

Berkeley Motes [Hill+ 2000] Hardware Platform – The sensing units o contains two sub-components: photo sensor and temperature sensor o photo sensor represents an analog input device with simple control lines which eliminate power drain through the photo resistor when not in use o temperature sensor (Analog Devices AD 7418) represents a large class of digital sensors which have internal A/D converters and interface over a standard chip-to-chip protocol (the synchronous twowire I 2 C protocol with software on the micro-controller synthesizing the I 2 C master over general I/O pins. There is no explicit arbiter and bus negotiations are carried out by the software on the microcontroller

Berkeley Motes [Hill+ 2000] Hardware Platform – The transceiver unit o consist of an RF Monolithics 916. 50 MHz transceiver (TR 1000), antenna, and a collection of discrete components to configure the physical layer characteristics such as signal strength and sensitivity o operates in an ON-OFF key mode at speeds up to 19. 2 Kbps o control signals configure the radio to operate in either transmit, receive, or power-off mode o the radio contains no buffering, so each bit must be serviced by the controller on time o the transmitted value is not latched by the radio, so the jitter at the radio input is propagated into the transmission signal

Berkeley Motes [Hill+ 2000] Hardware Platform – The transceiver unit is an Energizer CR 2450 lithium battery rated at 575 m. Ah – The other auxiliary components include: The coprocessor o represents a synchronous bit-level device with byte-level support o MCU (AT 09 LS 2343, with 2 KB instruction memory, 128 bytes of SRAM and EEPROM) that uses I/O pins connected to an SPI controller where SPI is a synchronous serial data link, providing high speed full-duplex connections (up to 1 Mbit) between peripherals o the sensor can be reprogrammed by transferring data from the network into the coprocessor’s 256 KB EEPROM (24 LC 256) o can be used as a gateway to extra storage by the main processor

Berkeley Motes [Hill+ 2000] Hardware Platform – The other auxiliary components include: The serial port o represents a synchronous bit-level device with byte-level controller support o uses I/O pins that are connected to an internal UART controller o in transmit mode, the UART takes a byte of data and shifts it out serially at a specified interval o in receive mode, it samples the input pin for a transition and shifts in bits at a specified interval from the edge o interrupts are triggered in the processor to signal completion of the events

Berkeley Motes [Hill+ 2000, Tiny. OS] Hardware Platform – The other auxiliary components include: Three LEDs o represent outputs connected through general I/O ports; they may be used to display digital values or status Software Platform – based on Tiny Micro-Threading Operating System (Tiny. OS) which is designed for resource-constrained MEMS sensors – Tiny. OS adopts an event model so that high levels of concurrency can be handled in a small amount of space – A stack-based threaded approach would require that stack space be reserved for each execution context

Berkeley Motes [Hill+ 2000, Tiny. OS] Software Platform – A complete system configuration consists of a tiny scheduler and a graph of components – A component has four interrelated parts: a set of o a set of command handlers o a set of event handlers o an encapsulated fixed-size frame o Bundle of simple tasks – tasks, commands and event handlers execute in the context of the frame and operate on its state – each component declares the commands it uses and the events it signals – these declarations are used to compose the modular components in a per -application configuration

Berkeley Motes [Hill+ 2000, Tiny. OS] Software Platform – the composition process creates layers of components where higher-level components issue commands to lower-level components and lower-level components signal events to the higher-level components Frames – fixed-size and statistically allocated which allows us to know memory requirements of a component at a compile time -- prevents overhead associated with dynamic allocation Commands – non-blocking requests made to lower level components – typically, a command will deposit request parameters into its frame and conditionally post a task for later execution

Berkeley Motes [Hill+ 2000, Tiny. OS] Software Platform Commands – can invoke lower commands, but it must not wait for long – must provide feedback to its caller by returning status indicating whether it was successful or not Event handlers – Invoked to deal with hardware events, either directly or indirectly – The lowest level components have handlers connected directly to hardware interrupts which may be external interrupts, timer events, or counter events – An event handler can deposit information into its frame, post tasks, signal higher level events or call lower level commands

Berkeley Motes [Hill+ 2000, Tiny. OS] Software Platform Event handlers – in order to avoid cycles in the command/event chain, commands cannot signal events – both signals and events are intended to perform a small, fixed amount of work, which occurs within the context of their component’s state Tasks – perform the primary work – atomic entities with respect to other tasks, run to completion and can be preempted by events – can call lower level commands, signal higher level events, and schedule other tasks within a component

Berkeley Motes [Hill+ 2000, Tiny. OS] Software Platform Tasks – run-to-completion semantics make it possible to allocate a single stack that is assigned to the currently executing task which is essential in memory constrained systems – allows to simulate concurrency within each component, since tasks execute asynchronously with respect to the events – must never block or spin wait, otherwise, they will prevent progress in other components Task scheduler – Utilizes a bounded size scheduling data structure to schedule various tasks base on FIFO, priority-based or deadline-based policy which is dependent on the requirements of the application

Berkeley Motes [Hill+ 2000, Tiny. OS] Software Platform Figure 5: The schematic for the architecture of Tiny. OS

MANTIS [Abrach+ 2003] – MANTIS (Multimod. Al system for Ne. Tworks of In-situ wireless Sensors) provides a new multi-threaded embedded operating system integrated with a general-purpose single-board hardware platform to enable flexible and rapid prototyping of wireless sensor networks – the key design goals of MANTIS are o ease of use, i. e. , a small learning curve that encourages novice programmers to rapidly prototype sensor applications o flexibility such that expert researchers can continue to adapt and extend the hardware/software system to suit the needs of advanced research

MANTIS [Abrach+ 2003] – MANTIS OS is called MOS o MOS selects its model as classical structure of layered multithreaded operating systems which includes multi-threading, preemptive scheduling with time slicing, I/O synchronization via mutual exclusion, a standard network stack, and device drivers o MOS choose a standard programming language that the entire kernel and API are written in standard C. This design choice not only almost eliminates the learning curve, but also accrues many of the other benefits of a standard programming language, including crossplatform support and reuse of a vast legacy code base. C also eases development of cross-platform multimodal prototyping environments on X 86 PCs

MANTIS [Abrach+ 2003] Hardware Platform – MANTIS hardware nymph’s design was inspired by the Berkeley MICA an MICA 2 Mote architecture – MANTIS Nymph is a single-board design, incorporating the microcontroller, analog sensor ports, RF communication, EEPROM, and serial ports on one dual-layer 3. 5 x 5. 5 cm printed circuit board – the Nymph is centered around the AMTEL ATmega 128(L) MCU, including interfaces for two UARTs, an SPI bus, an I 2 C bus, and eight analog-todigital converter channels. It provides additional 64 KB EEPROM external to MCU in addition to 4 KB EEPROM included in MCU – the unit is powered either by batteries or an AC adapter, and a set of three on-board LEDs are included to aid in the debugging process. It is designed to hold a 24 mm diameter lithium ion coin cell battery (CR 2477), but any battery in the range of 1. 8 V to 3. 6 V can be connected

MANTIS [Abrach+ 2003] Hardware Platform – in order to facilitate rapid prototyping in research environment, the Nymph has solderless plug connections for both analog and digital sensors, which eliminates the external sensor board for many applications – each connector provides lines for ground, power and sensor signal, allowing basic sensors such as photo sensors or complex devices such as infrared an ultra sounds receivers to be connected easily – the Chipcon CC 1000 radio was chosen to handle wireless communication. It supports four carrier frequency bands (315, 433, 868, and 915 MHz) and allows for frequency hopping which is useful for multi-channel communication. It is one of the lowest power commercial radios and allows MOS to optimize the radio to further reduce the power consumption

MANTIS [Abrach+ 2003] Hardware Platform – for additional modules, the Nymph includes JTAG interface which allows the user to easily download code to the hardware. This addition eliminates a need for separate programming board, simplifying the process of reprogramming the nodes while reducing the cost of overall system. As added benefit, the JTAG port allows the user to single-step through code on the MCU and also supports the remote shell – the Nymph uses one of the UARTs to supply a serial port (RS 232) for connection to a PC while the second one is used as an interface to the optional GPS unit – MAX 3221 RS 232 serial chip is used and may be set in three different power saving modes: power-down, receive only and shut down

MANTIS [Abrach+ 2003] Hardware Platform Figure 6: MANTIS Nymph

MANTIS [Abrach+ 2003] Software Platform – MANTIS OS (MOS) adheres to classical layered multi-threaded design – top application and API layers show a simple C API which promotes the ease of use, cross-platform portability, and reuse of a large installed code base – in lower layers of MOS, it adapts the classical OS structures to achieve small memory footprint System APIs – MANTIS provides comprehensive System APIs for I/O and system interaction – the choice of C language API simplifies cross-platform support and the development of a multimodal prototyping environment

MANTIS [Abrach+ 2003] Software Platform System APIs – since MANTIS System API is preserved across both physical sensor nodes as well as virtual sensor nodes running on X 86 platforms, the same C code developed for MANTIS sensor Nymphs with AMTEL MCU can be compiled to run on X 86 PCs with little or no alteration Kernel and Scheduler – design of MOS kernel resembles classical UNIX-style schedulers – The services provided are subset of POSIX threads, most notably prioritybased thread scheduling with round-robin semantics within a priority level – binary (mutex) and counting semaphores are also supported – the goal of the kernel design is to implement these familiar services in an efficient manner for resource-constrained environment of a sensor node

MANTIS [Abrach+ 2003] Software Platform Network Stack – focused on efficient use of limited memory, flexibility, and convenience – implemented as one or more user-level threads – different layers can be implemented in different threads, or all layers in the stack can be implemented in one thread – the tradeoff is between performance and flexibility – designed to minimize memory buffer allocation through layers – the data body for a packet is common through all layers within a thread – the headers for a packet is variably-sized and are pre-pended to the single data body – designed in a modular manner with standard APIs between each layers, thereby allowing developers easily modify or replace layer modules

MANTIS [Abrach+ 2003] Software Platform Device Drivers – Adopts the traditional logical/physical partitioning with respect to device driver design for the hardware – The application developer need not to interact with the hardware to accomplish a given task

MANTIS [Abrach+ 2003] Software Platform Figure 7: MANTIS OS Architecture

MANTIS [Abrach+ 2003] System Development – application developers need to be able to prototype and test applications prior to distribution and physical deployment in the field – during deployment, in-situ sensor nodes need to be capable of being both dynamically reprogrammed and remotely debugged – in order to facilitates these issues, MANTIS identifies and implements three key advanced features for expert users of general-purpose sensor systems o multimodal prototyping environment o dynamic reprogramming o remote shell and commander server

MANTIS [Abrach+ 2003] System Development Multimodal Prototyping Environment – Provides a framework for prototyping diverse applications across heterogeneous platforms – A key requirement of sensor systems is the need to provide a prototyping environment to test sensor networking applications prior to deployment – Postponing testing of an application until after its deployment across a distributed sensor network can incur severe consequences – MANTIS prototyping environment extends beyond simulation to provide larger framework for development of network management and visualization applications as virtual nodes within a MANTIS network o MANTIS has property of enabling an application developer to test execution of the same C code on both virtual sensor nodes and later on in-situ physical sensor nodes

MANTIS [Abrach+ 2003] System Development Multimodal Prototyping Environment o Seamlessly integrates virtual environment with the real deployment network such that both virtual and physical nodes can co-exit and communicate with each other in the prototyping environment o Permits a virtual node to leverage other APIs outside of the MANTIS API, e. g. , a virtual node with the MANTIS API could be realized as a UNIX X windows application that communicates with other rendering or database APIs to build visualization and network management applications

MANTIS [Abrach+ 2003] System Development Multimodal Prototyping Environment Figure 8: Multimodal prototyping integrates both virtual and physical sensor nodes across heterogeneous X 86 and AMTEL sensor platforms

MANTIS [Abrach+ 2003] System Development Dynamic Reprogramming – Sensor nodes should be remotely reconfigurable over a wireless multi-hop network after being deployed in the field. Since sensor nodes may be deployed in inaccessible areas and may scale to thousands of nodes, this simplifies management of the sensor network – MOS achieves dynamic reprogramming in several granularities: re-flashing the entire OS; reprogramming of a single thread; and changing of variables within a thread – Another useful feature would be the ability to remotely debug a running thread. MOS provides a remote shell that enables a user to login and inspect the sensor node’s memory – MOS includes two programming modes (simpler and more advanced) in order to overcome the difficulty of reprogramming the network

MANTIS [Abrach+ 2003] System Development Dynamic Reprogramming – The simpler programming mode is similar to that used in many other systems and involves a direct communication with a specific MANTIS node – On a Nymph, this would be accomplished via a serial port: the user simply connects the node to a PC and opens the MANTIS shell – Upon reset, MOS enters a boot loader that checks for communication from the shell. At this point, the node will accept a new code image, which is downloaded from the PC over the direct communication line – From the shell, the user has the ability to inspect and modify the node’s memory directly as well as spawn threads and retrieve debugging information including thread status, stack fill, and other statistics from OS – The boot loader transfers control to the MOS kernel on command from the shell, or at a startup if the shell is not present

MANTIS [Abrach+ 2003] System Development Dynamic Reprogramming – The more advanced programming mode is used when a node is already deployed, and does not require direct access to the node – The spectrum of dynamic reprogramming of in-situ sensor networks ranges from fine grained reprogramming to complete reprogramming – MOS has a provision for reprogramming any portion of the node up to and including the OS itself while the node is deployed in the field – This is accomplished through the MOS dynamic reprogramming interface

MANTIS [Abrach+ 2003] System Development Remote Shell and Commander Server – MOS includes the MANTIS Command Server (MCS) which is implemented as an application thread – From any device in the network equipped with a terminal, the user may invoke the command server client (also referred to as the shell) and log in to either a physical node (e. g. , on a Nymph or Mica board) or a virtual node running as a process on a PC – MCS listens on a network port for commands and replies with the results, in a manner similar to RPC – The shell gains the ability to control a node remotely through MCS

MANTIS [Abrach+ 2003] System Development Remote Shell and Commander Server – The user may alter the node’s configuration settings, run or kill programs, display the thread table and other OS data, inspect and modify the node’s data memory, and call arbitrary user-defined functions – The shell is powerful debugging tool since it allows the user to examine and modify the state of any node, without requiring physical access to the node

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Introduction – Habitat and environmental monitoring represent essential class of sensor network applications by placing numerous networked micro-sensors in an environment where long-term data collection can be achieved – The sensor nodes perform filtering and triggering functions as well as application-specific or sensor-specific data compression algorithms thru the integration of local processing and storage – The ability to communicate allows nodes to cooperate in performing tasks such as statistical sampling, data aggregation, and system health and status monitoring – Increased power efficiency assists in resolving fundamental design tradeoffs, e. g. , between sampling rates and battery lifetimes

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Introduction – The sensor nodes can be reprogrammed or retasked after deployment in the field by the networking and computing capabilities provided – Nodes can adapt their operation over time in response to changes in the environment – The application context helps to differentiate problems with simple and concrete solutions from open research areas – An effective sensor network architecture and general solutions should be developed for the domain – The impact of sensor networks for habitat and environmental monitoring is measured by their ability to enable new applications and produce new results

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Introduction – This paper develops a specific habitat monitoring application, but yet a representative of the domain – It presents a collection of requirements, constraints and guidelines that serve as a basis for general sensor network architecture – It describes the core components of the sensor network for this domain– hardware and sensor platforms, the distinct networks involved, their interconnection, and the data management facilities – The design and implementation of the essential network services – power management, communications, re-tasking, and node management can be evaluated in this context

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Habitat Monitoring – Researchers in the Life Sciences are concerned about the impacts of human presence in monitoring plants and animals in the field conditions – It is possible that chronic human disturbance may adversely effect results by changing behavioral patterns or distributions – Disturbance effects are of concern in small island situations where it may be physically impossible for researchers to avoid some impact on an entire population – Seabird colonies are extreme sensitive to human disturbance – Research in Maine [Anderson 1995], suggests that a 15 minute visit to a cormorant colony can result in up to 20% mortality among eggs and chicks in a given breeding year. Repeated disturbance can lead to the end of the colony

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Habitat Monitoring – On Kent Island, Nova Scotia, research learned that Leach’s Storm Petrels are likely to desert their nesting burrows in case of disturbance during the first two weeks of incubation – Sensor networks advances the monitoring methods over the traditional invasive ones – Sensors can be deployed prior to the breeding season or other sensitive period or while plants are dormant or the ground is frozen on small islets where it would be unsafe or unwise to repeatedly attempt field studies – Sensor network deployment may be more economical method for conducting long-term studies than traditional personnel-rich methods – A “deploy ‘em and leave ‘em” strategy of wireless sensor usage would decrease the logistical needs to initial placement and occasional servicing

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Great Duck Island – The College of Atlantic (COA) is field testing in-situ sensor networks for habitat monitoring – Great Duck Island (GDI) is a 237 acre island located 15 km south of Mount Desert Island, Maine – At GDI, three major questions in monitoring the Leach’s Storm Petrel [Anderson 1995]: 1. What is the usage pattern of nesting burrows over the 24 -72 hour cycle when one or both members of a breeding pair may alternate incubation duties with feeding at sea? 2. What changes can be observed in the burrow and surface environmental parameters during the course of the approximately 7 month breeding season (April-October)?

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Great Duck Island 3. What are the differences in the micro-environments with and without large numbers of nesting petrels? – Presence/absence data is obtained through occupancy detection and temperature differentials between burrows with adult birds and burrows that contain eggs, chicks, or are empty – Petrels will most likely enter or leave during the daytime; however, 5 -10 minutes during late evening and early morning measurements are needed to capture the entry and exit timings – More general environmental differentials between burrow and surface conditions can be captured by records every 2 -4 hours during the extended breeding season; whereas, the differences between “popular” and “unpopular” sites benefit from hourly sampling

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Great Duck Island Requirements 1. Internet Access – The sensor networks at GDI must be accessible via the Internet since the ability to support remote interactions with in-situ networks is essential 2. Hierarchical Network – Habitats of interest are located up to several kilometers away. A second tier of wireless networking provides connectivity to multiple patches of sensor networks deployed at each of the areas. 3. Sensor Network Longevity – Sensor networks that runs for several month from non-rechargeable power sources would be desirable since studies at GDI can span multiple field seasons

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Great Duck Island Requirements 4. Operating off-the grid – Every level of the network must operate with bounded energy supplies – Renewable energy such as solar power may be available some locations, disconnected operation is a possibility – GDI has enough solar power that run the application 24 x 7 with small probabilities of service interruptions due to power loss 5. Management at-a-distance – Remoteness of the field sites requires the ability to monitor and manage sensor networks over the Internet. The goal is no on-site presence for maintenance and administration during the field season, except for installation and removal of nodes

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Great Duck Island Requirements 6. Inconspicuous operation – It should not disrupt the natural processes or behaviors under study – Removing human presence from the study areas would eliminate a source of error and variation in data collection and source of disturbance 7. System behavior – Sensor networks should present stable, predictable, and repeatable behavior at all times since unpredictable system is difficult to debug and maintain – Predictability is essential in developing trust in these new technologies for life scientists

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Great Duck Island Requirements 8. In-situ interactions – Local interactions are required during initial development, maintenance and on-site visits – PDAs can be useful in accomplishing these tasks – they may directly query a sensor, adjust operational parameters and so on 9. Sensors and sampling – The ability to sense light, temperature, infrared, relative humidity, and barometric pressure are essential set of measurements – Additional measurements may include acceleration/vibration, weight, chemical vapors, gas concentrations, p. H, and noise levels

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Great Duck Island Requirements 10. Data archiving – Sensor readings must be achieved for off-line data mining and analysis – The reliable offloading of sensor logs to databases in the wired, powered infrastructure is essential – It is desirable to interactively “drill-down” and explore sensors in near real -time complement log-based studies. In this mode of operation, the timely delivery of sensor data is the key – Nodal data summaries and periodic health-and-status monitoring also requires timely delivery of the data

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] System Architecture – A tiered architecture is developed – The lowest level consists of the sensor nodes that perform general purpose computing and networking as well as application-specific sensing – The sensor nodes may be deployed in dense patches and transmit their data through the sensor network to the sensor network gateway – Gateway is responsible for transmitting sensor data from the sensor patch through a local transit network to the remote base station that provides WAN connectivity and data logging – The base station connects to database replicas across the internet – At last, the data is displayed to researchers through a user interface

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] System Architecture Figure 1: System architecture for habitat monitoring

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] System Architecture – The autonomous sensor nodes are placed in the areas of interest where each sensor node collects environmental data about its immediate surroundings – Since these sensors are placed close to the area of interest, they can be built using small and inexpensive individual sensors – high spatial resolution can be achieved through dense deployment of sensor nodes – This architecture offers higher robustness compared to traditional approaches which use a few high quality sensors with complex signal processing – The computational module is a programmable unit that provides computation, storage and bidirectional communication with other nodes

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] System Architecture – The computational module interfaces with the analog and digital sensors on the sensor module, performs basic signal processing and dispatches the data according to the needs of the application – Compared to traditional data logging systems, networked sensors offer two main advantages: they can be re-tasked in the field and they can communicate with the rest of the system – In-situ re-tasking gives researchers the ability to refocus their observations based on the analysis of the initial results – initially, absolute temperature readings are desired, after a while, only significant temperature changes exceeding a threshold may become more useful

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] System Architecture – Individual sensor nodes communicate and coordinate with one another – These nodes form a multi-hop network by forwarding each other’s messages and if needed, the network can perform in-network aggregation (e. g. , relaying the average temperature across the region) – Eventually, data from each sensor needs to be propagated to the Internet – The propagated data may be raw, filtered or processed data – Since direct wide area connectivity cannot be brought to each sensor path due to several reasons (e. g. , cost of equipment, power, disturbance created by the installation of the equipment in the environment), wide are connectivity is brought to a base station instead

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] System Architecture – The base station may communicate with the sensor patch using a wireless LAN where each sensor patch is equipped with a gateway that can communicate with the sensor network and provides connectivity to the transit network – The transit network may consist of a single hop link or series of networked wireless nodes and each transit network design has different characteristics with respect to expected robustness, bandwidth, energy efficiency, cost and manageability – To provide data to remote end-users, the base station includes WAN connectivity and persistent data storage for the collection of sensor patches

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] System Architecture – It is expected that WAN connection will be wireless – The architecture needs to address the disconnection possibilities – Each layer (sensor nodes, gateways, base stations) has some persistent storage to protect against data loss due to power outage as well as data management services – At the sensor level, these will be primitive, taking the form of data logging – The base station may provide relational database service while the data management at the gateways falls somewhere in between – When it comes to data collection, long-latency is preferable to data loss – Users interact with the sensor network in two ways

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] System Architecture – Remote users access the replica of the base station database – This approach assists on integration with data analysis and mining tools while masking the potential wide area disconnections with the base stations – On-site users may require direct interaction with the network and this can be accomplished with a small, PDA-sized device, referred to as gizmo – Gizmo allows the user to interactively control the network parameters by adjusting the sampling rates, power management parameters and other network parameters – The connectivity between any sensor node and gizmo may or may not rely on functioning on multi-hop sensor network routing

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Implementation Strategies Sensor Network Node – UC Berkeley motes are used as the sensor nodes – Mica uses a single channel, 916 MHz radio from RF Monolithics to provide bi-directional communication at 40 Kbps, an Atmel Atmega 103 microcontroller running at 4 MHz and 512 KB nonvolatile storage – A pair of conventional AA batteries and a DC boost converter provide the power source; however, other renewable energy sources can be used

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Implementation Strategies Sensor Board – The Mica Weather Board provides sensors that monitor changing environmental conditions with the same functionality as a traditional weather station – The Mica Weather Board includes temperature, photoresistor, barometric pressure, humidity, and passive infrared (thermopile) sensors Table 1: Mica Weather Board

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Implementation Strategies Sensor Board Figure 2: Mica Hardware Platform: The Mica sensor node (left) with the Mica Weather Board developed for environmental monitoring applications

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Implementation Strategies Energy Budget – Typical habitat monitoring applications need to run for nine months – The application chooses how to allocate the energy budget between sleep modes, sensing, local calculations and communications – Since different nodes have different functions, they also have different power requirements, for instance, the nodes near the gateway may need to forward all messages from a patch while a node in a nest may only need to report its own readings – When a set of power limited nodes exhaust their power supplies, the network can become disconnected and inoperable – There is a need to budget the power with respect to the energy bottlenecks of the network

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Implementation Strategies Energy Budget – The baseline life time of the node is determined by the current draw in the sleep state – Minimizing power in sleep mode means turning off the sensors, the radio and putting the processor into a deep sleep mode Table 2: Power required by various Mica operations

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Implementation Strategies Sensor Deployment – A wireless sensor network using Mica motes with Mica Weather Board has been deployed in July 2002 – Environmental protective packaging has been designed which minimally obstruct sensing functionality Figure 3: Acrylic enclosure used for deploying the Mica mote

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Implementation Strategies Patch Gateways – Usage of different gateway nodes directly affects the underlying available transit network – Two designs implemented: an 802. 11 b single hop with an embedded Linux system and a single hop mote-to-mote network – Initially, Cerf. Cube [Cerfcube] which is a small Strong. ARM-based embedded system to act as a sensor patch gateway, is chosen – Each gateway is equipped with a Compact. Flash 802. 11 b adapter – Gateway use permanent storage of up to 1 GB – The mote-to-mote solution consisted of a mote connected to the base station and a mote in the sensor patch

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Implementation Strategies Patch Gateways – The differences between the mote and Cerf. Cube include different o communication frequency o power requirements o software components – The mote’s MAC layer does not require bi-directional link like 802. 11 b – In addition, the mote sends raw data with a small packet header (4 bytes) directly over the radio as opposed to overheads imposed by 802. 11 b and TCP/IP connections

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Implementation Strategies Base-station installation – For achieve remote access, collection of sensor patches is connected to the Internet through a wide-area link – On GDI, Internet connectivity is accomplished through a two-way satellite connection provided by Hughes and similar to Direc. TV system – The satellite system is connected to a laptop which coordinates the sensor patches and provides a relational database service Database Management System – The base station uses Postgres SQL database which stores timestamped readings from the sensors, health status of the individual sensors, and metadata (e. g. , sensor locations)

Wireless Sensor Networks for Habitat Monitoring [Mainwaring+ 2002] Implementation Strategies Database Management System – The GDI database is replicated every fifteen minutes over the wide-area satellite link to Postgres database in Berkeley User Interfaces – Many user interfaces can be implemented on top of the sensor database – GIS systems provide a widely used standard for analyzing geographical data and most statistics and data analysis packages implement interfaces to relational databases – Number of web interfaces can be implemented to provide the ubiquitous interfaces to the habitat data

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Introduction – Focus is on issues related to dynamic sensor networks with mobile nodes and wireless communication between them – In this system, the sensor nodes collars carried by the animals under study; wireless ad hoc networking techniques are used to swap and store data in a peer-to-peer manner and to pass it towards a mobile base station that sporadically traverses the area to upload data – Biology and biocomplexity research has been focused on gathering data and observations on a range of species to understand their interactions and influences on each other – For example, how human development into wilderness areas affects indigenous species there; understand the migration patterns of wild animals and how they may be affected by changes in weather patterns or plant life, by introduction of non-native species, and by other influences

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Introduction – Finding and learning these details require long-term position logs and other biometric data such as heart rate, body temperature, and frequency feeding – Current wildlife tracking studies rely on simple technology, for example, many studies rely on collaring a sample subset of animals with simple VHF transmitters – Researchers periodically drive through and/or fly over an area with a receiver antenna, and listen for pings from previously collared animals – Once animal is found, its behavior can be observed and its observed position can be logged; however, there are limits to such studies – First, data collection is infrequent and can miss many “interesting events”

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Introduction – Second, data collection is mostly limited to daylight hours, but animal behavior and movements in night hours can be different – Third, data collection is impossible or very limited for secluded species that avoid human contact – The most elegant trackers commercially available use GPS to track position and use satellite uploads to transfer data to a base station – These systems also suffer from several limitations – First, at most a log of 3000 position samples can be logged and no biometric data – Second, since satellite uploads are slow and uses high power consumption, they are done infrequently – this limits how often position samples can be gathered without overflowing 3000 -entry log storage

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Introduction – Third, downloads of data from the satellite to the researchers are both slow and expensive, therefore, constraining the amount of data collected – Finally, these systems operate on batteries without recharge – when power is drained, the system become unusable unless it is retrieved, recharged and re-deployed – Zebra. Net project is building tracking nodes that include a low-power miniature GPS system with user-programmable CPU, non-volatile storage for data logs, and radio transceivers for communicating either with other nodes or with a base station

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Introduction – One of the key principles of Zebra. Net is that the system should work in arbitrary wilderness locations; no assumptions are made about the presence of of fixed antenna towers or cellular phone service – The system uses peer-to-peer data swaps to move the data around; periodic researcher drives bys and/or fly-overs can collect logged data from several animals despite encountering relatively few within range – Even though ad hoc sensor networks have been heavily studied, not much has been published about the characteristics of mobile sensor networks with mobile base stations and very few studies focus on building real systems

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Introduction – This paper has the following unique contributions: o To the best knowledge of authors, this is the first study of mobile sensor networks protocols in which the base station is also mobile. It is presumed that researchers will upload data while driving or flying by the region o Zebra-tracking is a domain in which the node mobility models are unknown which makes it a research goal. Understanding how, when and why zebras undertake long-term migrations is the most essential biological question of this work. o Zebra. Net’s data collection has communication patterns in which data can be cooperatively passed towards a base station o Energy tradeoffs are examined in detail using real system energy measurements for Zebra. Net prototype hardware in operation

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Introduction – – Some of the interesting research questions to be explored are: o How to make the communications protocol both effective and powerefficient? o To what extent can we rely on ad hoc, peer-to-peer transfers in a sparsely-connected spatially-huge sensor network? o How can we provide comprehensive tracking of a collection of animals, even if some of the animals are reclusive and rarely are close enough to humans to have their data logs updated directly? This research work gives quantitative explorations of the design decisions behind some of these questions

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Zebra. Net Design Goals – The Zebra. Net project is a direct and ongoing collaboration between researchers in experimental computer systems and in wildlife biology – The wildlife biologists have determined the tracker’s overall design goals: o GPS position samples are taken every three minutes o Detailed activity logs taken for three minutes every hour o One year of operation without direct human intervention – that is, not counting on tranquilizing and re-collaring an animal more than once per year o No fixed base stations, antennas, or cellular service o A high success rate for eventually delivering all logged data is essential while latency is not as critical o For a zebra collar, a weight limit of 3 -5 lbs is recommended

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Zebra. Net Design Goals – Ultimately, this detailed information may include several position estimates, temperature information, weather data, environmental data, and body movements that will serve as signatures of behavior; however, in this initial system, the focus is only on position data – Overall, the key goal is to deliver to researchers a very high fraction of the data collected over the months or years that the system is in operation – Therefore, Zebra. Net must be power-efficient, designed with appropriate data log storage, and must be rugged to ensure reliability under tough environmental conditions

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Zebra. Net Problem Statement – The biologists design goals need to be translated into the engineering task at hand – Success rate at delivering position data to the researchers –data homing rate– should approach 100% – Weight limits on each node translate almost directly to computational energy limits since weight of the battery and solar panel takes bulk of the total weight of a Zebra. Net node; therefore, collar and protocol design decisions must manage the number and size of data transmissions required – System design choices must be made that limit the range of transmissions since the required transmitter energy increases dramatically with the distance transmitted

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Zebra. Net Problem Statement – The amount of storage needed to hold position logs must be limited – if many redundant copies are stored and swapped, the storage requirements can scale as O(n 2) – Although the energy cost of storage is small compared to that of transmissions, it is still necessary to develop storage-efficient design – Due to limited transceiver, coverage and a base station only sporadically available, Zebra. Net must forward data through other nodes in peer-topeer manner and store redundant copies of position logs in other tracking nodes – Some of the key challenges in Zebra. Net come from the spatial and temporal scale of the system

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Zebra. Net Problem Statement – In terms of temporal scale, keeping a system running autonomously months at a time is challenging; it requires tremendous design-time attention to both hardware and software reliability – In terms of spatial scale, Zebra. Net is also aggressive; it is the specific intent of the system to operate over an area of hundreds or thousands of square kilometers – Due to the large distances involved and sparse sensor coverage, energy/connectivity tradeoffs become key

Energy-Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net [Juang+ 2002] Zebra. Net Problem Statement – These challenges mentioned here tackles several open problems: – Zebra. Net protocol promises good communication behavior on mobile sensors forwarding data towards a mobile base station – Zebra. Net explores design issues for sensors that are more coarsegrained than many prior sensor proposals. Larger the weight limits and storage budgets allow researchers to consider different protocols with improved leverage for sparsely-connected, physicallywidespread sensors

References [Abrach+ 2003] H. Abrach, S. Bhatti, J. Carlson, H. Dai, J. Rose, A. Sheth, B. Shucker, J, Deng and R. Han, MANTIS: System Support for Multimod. Al Ne. Tworks of In-Situ Sensors, 2 nd ACM International Workshop on Wireless Sensor Networks and Applications (WSNA 2003), September 2003. [Akyildiz+ 2002] I. F. Akyildiz, W. Su, Y. Sankarasubramaniam, and E. Cayirci, A Survey on Sensor Networks, IEEE Communications Magazine, Vol. 40, No. 8, pp. 102 -114, August 2002. [Anderson 1995] J. G. T. Anderson, Pilot survey of mid-coast Maine seabird colonies: an evaluation of techniques, Bangor, ME, 1995. Report to the State of Maine Dept. of Inland Fisheries and Wildlife. [Cerfcube] Cerfcube embedded Strong. ARM system, http: //www. intrinsys. com/products/cerfcube [Elson+ 2002] J. Elson and K. Romer, Wireless Sensor Networks: A New Regime for Time Synchronization, First Workshop on Hot Topics in Networks (Hotnets-I), Princeton, USA, October 2002. [Hill+ 2000] J. Hill, R. Szewczyk, A. Woo, S. Hollar, D. Culler, and K. Pister, System Architecture Directions for Networked Sensors, Architectural Support for Programming Languages and Operating Systems (ASPLOS) 2000. [Juang+ 2002] P. Juang, H. Oki, Y. Wang, M. Martonosi, L-S Peh, and D. Rubenstein, Energy. Efficient Computing for Wildlife Tracking: Design Tradeoffs and Early Experiences with Zebra. Net, ACM SIGARCH Computer Architecture News, vol. 30, no. 5, December 2002. [Mainwaring+ 2002] A. Mainwaring, J. Polastre, R. Szewczyk, D. Culler, and J. Anderson, Wireless Sensor Networks for Habitat Monitoring, 1 st ACM International Workshop on Wireless Sensor Networks and Applications (WSNA 2002), Atlanta, Georgia, September 28, 2002. [Tiny. OS] Tiny. OS: a component-based OS for the networked sensor regime.
