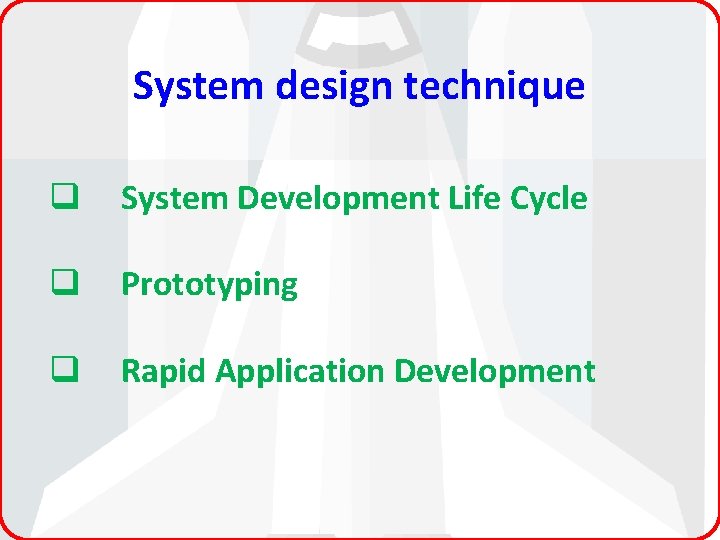

System design technique q System Development Life Cycle q Prototyping q Rapid Application Development

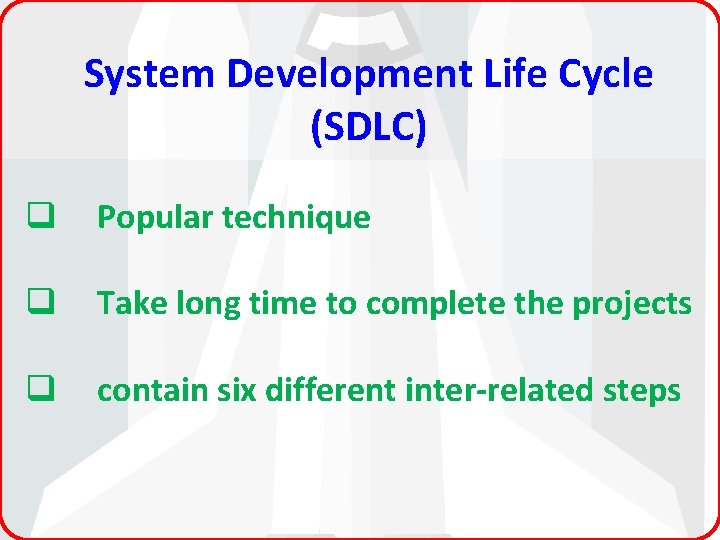

System Development Life Cycle (SDLC) q Popular technique q Take long time to complete the projects q contain six different inter-related steps

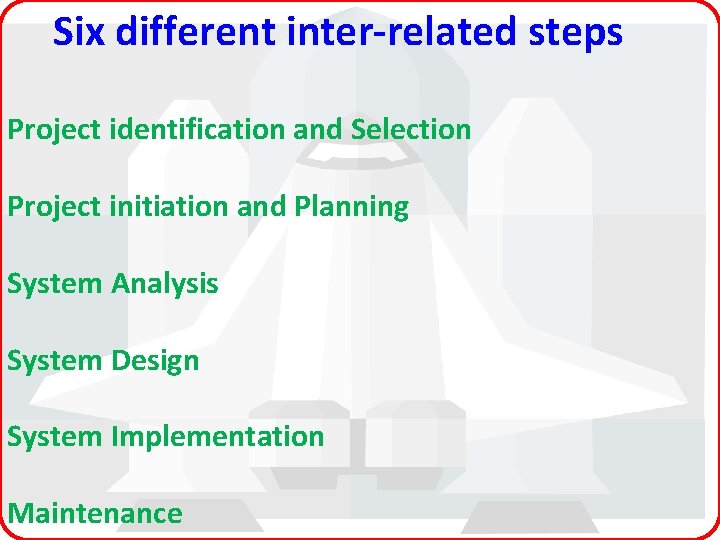

Six different inter-related steps Project identification and Selection Project initiation and Planning System Analysis System Design System Implementation Maintenance

Project identification and Selection This step consists of the following three activities q Identifying potential development projects q Classifying and ranking projects q Selecting projects for development

Identifying potential development projects This process performed by, q Key members of top management q Steering committee q User departments q Development group

Classifying and ranking projects Possible evaluation criteria when classifying and ranking projects q q q Value chain analysis Strategic alignment Potential benefit Resource availability Project size/duration Technical difficulty/Risk

Selecting projects for development Factors consider when selecting the project, q Existing and available recourses q Current organizational environment q List of Potential and ongoing projects q Evaluation criteria

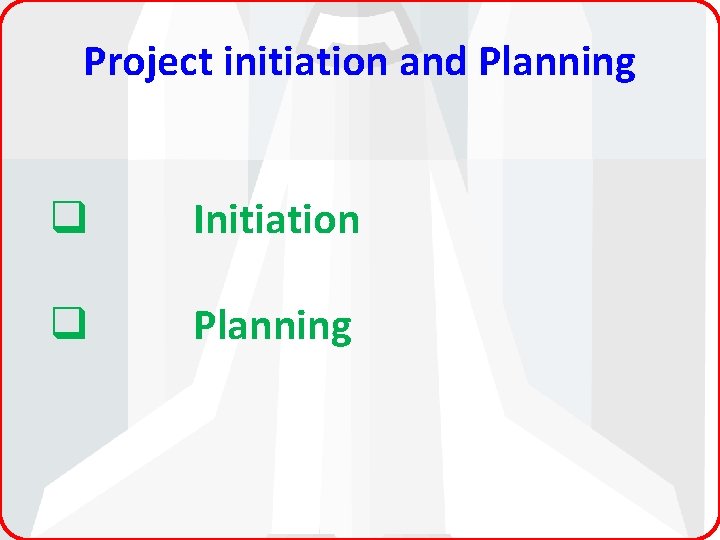

Project initiation and Planning q Initiation q Planning

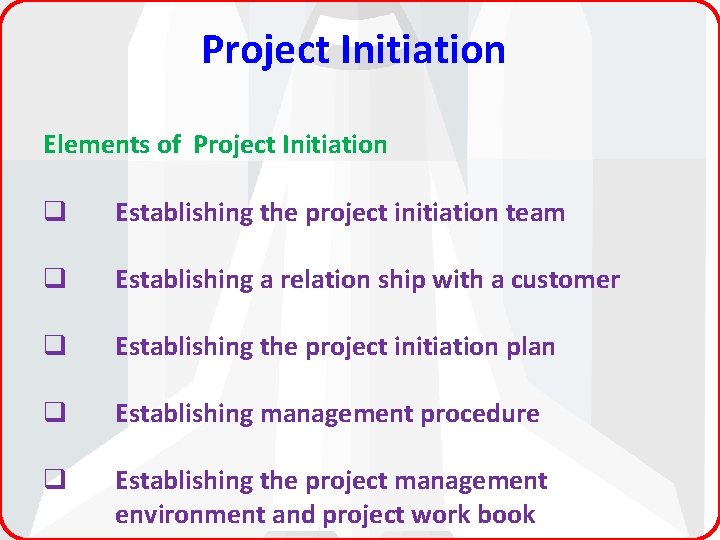

Project Initiation Elements of Project Initiation q Establishing the project initiation team q Establishing a relation ship with a customer q Establishing the project initiation plan q Establishing management procedure q Establishing the project management environment and project work book

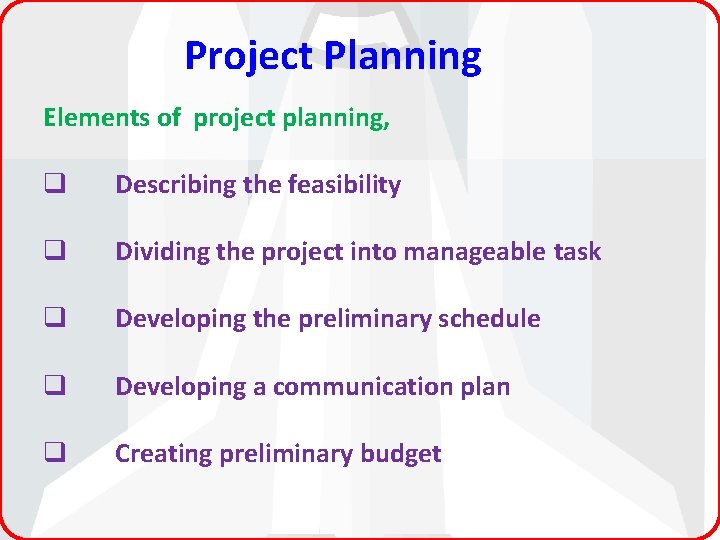

Project Planning Elements of project planning, q Describing the feasibility q Dividing the project into manageable task q Developing the preliminary schedule q Developing a communication plan q Creating preliminary budget

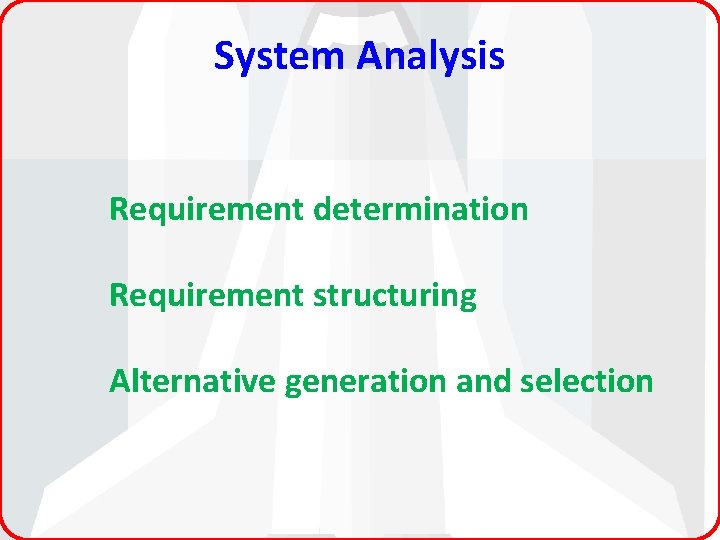

System Analysis Requirement determination Requirement structuring Alternative generation and selection

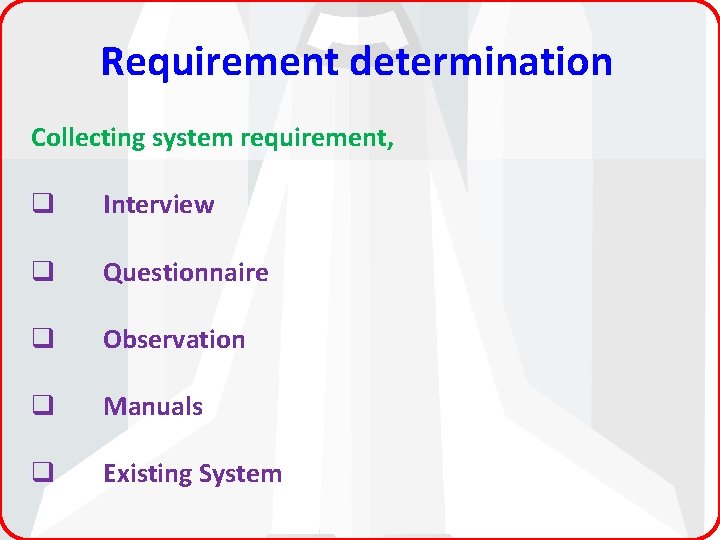

Requirement determination Collecting system requirement, q Interview q Questionnaire q Observation q Manuals q Existing System

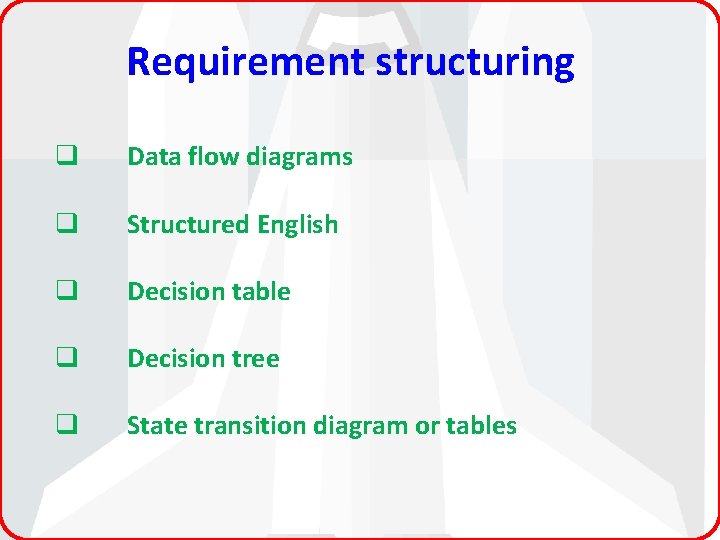

Requirement structuring q Data flow diagrams q Structured English q Decision table q Decision tree q State transition diagram or tables

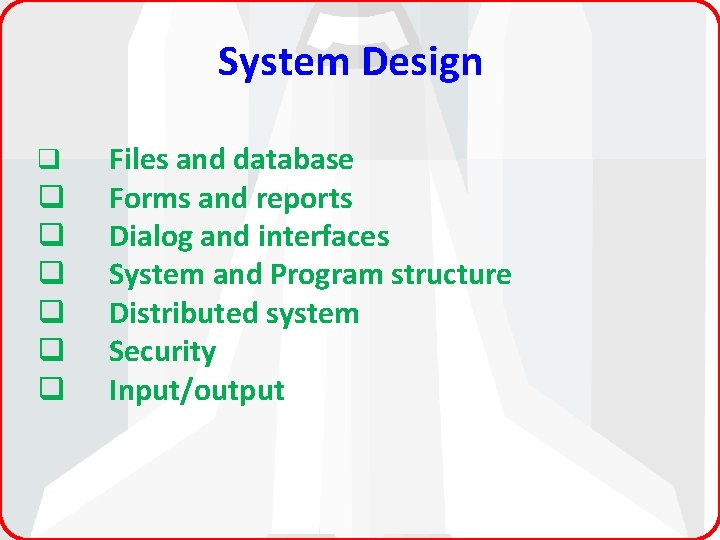

System Design q q q q Files and database Forms and reports Dialog and interfaces System and Program structure Distributed system Security Input/output

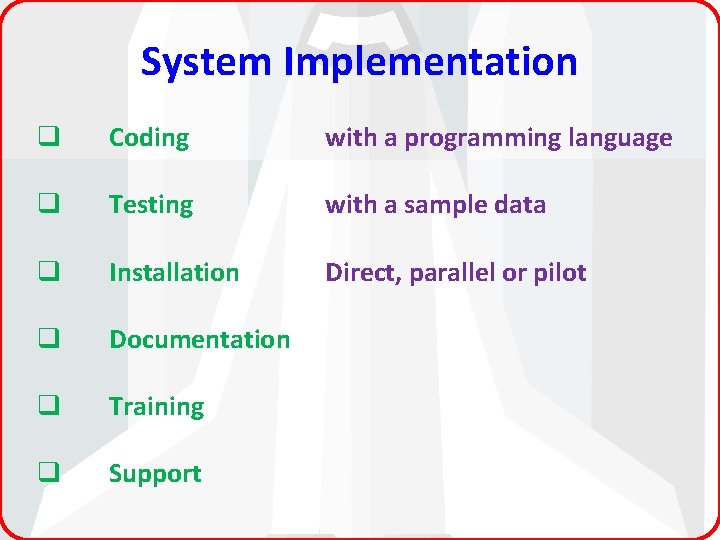

System Implementation q Coding with a programming language q Testing with a sample data q Installation Direct, parallel or pilot q Documentation q Training q Support

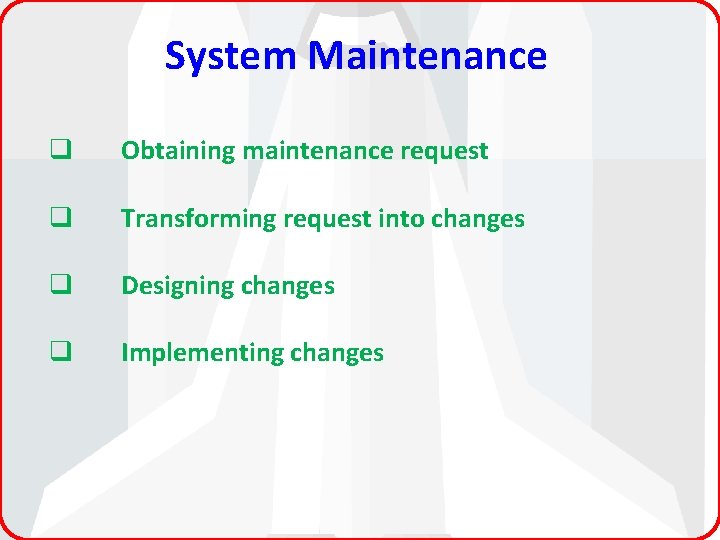

System Maintenance q Obtaining maintenance request q Transforming request into changes q Designing changes q Implementing changes
