Synco TM 700 RMU modular HVAC Controllers Synco

  • Slides: 22
Download presentation

Synco. TM 700 RMU modular HVAC Controllers Synco. TM 700 universal controllers control, regulate,

Synco. TM 700 RMU modular HVAC Controllers Synco. TM 700 universal controllers control, regulate, monitor and communicate. Page 2 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

The All-rounder Page 3 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

The All-rounder Page 3 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

Modular and flexible Modular design Modular in operation also Extension modules provide additional inputs

Modular and flexible Modular design Modular in operation also Extension modules provide additional inputs and outputs Flexible in application § For universal use in ventilation / air conditioning / refrigeration § Applications can be straightforwardly configured via operation Page 4 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

Example: Modular and flexible Single-speed fans, temperature control with air heating and air cooling

Example: Modular and flexible Single-speed fans, temperature control with air heating and air cooling coil. 1 T + T T 1 Commissioning Basic configuration. . . Extra configuration. . . Settings. . . Communication. . . M M RMU 710 B Page 5 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

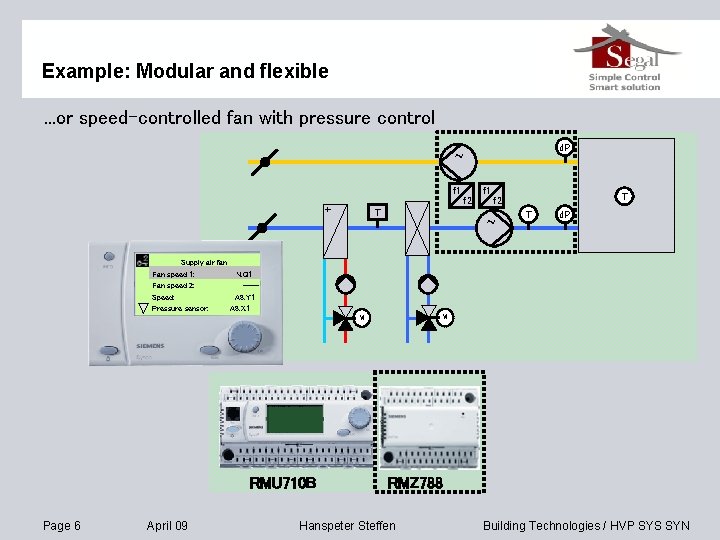

Example: Modular and flexible. . . or speed-controlled fan with pressure control d. P

Example: Modular and flexible. . . or speed-controlled fan with pressure control d. P ~ f 1 f 2 + T ~ Supply air fan Fan speed 1: N. Q 1 Fan speed 2: ---Speed: A 8. Y 1 Pressure sensor: A 8. X 1 Page 6 April 09 T d. P M M RMU 710 B T f 2 RMZ 788 Hanspeter Steffen Building Technologies / HVP SYS SYN

Example: Modular and flexible. . . and twin pump control with the preheating coil

Example: Modular and flexible. . . and twin pump control with the preheating coil d. P ~ f 1 f 2 + T ~ Basic configuration Plant type: A Position 1: RMZ 788 Position 2: RMZ 787 Position 3: --- Page 7 April 09 T d. P M M RMU 710 B T f 2 RMZ 788 Hanspeter Steffen RMZ 787 Building Technologies / HVP SYS SYN

Example: Modular and flexible. . . and additional I/Os for fault status messages or

Example: Modular and flexible. . . and additional I/Os for fault status messages or additional sensors, for example. d. P ~ f 1 f 2 + T f 2 T ~ T d. P Faults Fault - input 1: input 2: input 3: A 5. X 1 A 5. X 2 --- input 4: --- Ext. fault RMU 710 B Page 8 April 09 T M M RMZ 788 Hanspeter Steffen Ext. temp. RMZ 787 Fault relays T RMZ 785 Building Technologies / HVP SYS SYN

Synco. TM 700 speaks clear Text Press button to display up-to-date information Time switch

Synco. TM 700 speaks clear Text Press button to display up-to-date information Time switch 0 6 12 18 24 Press and select – it‘s as easy as that! With Synco. TM you are always in control of the plant. Page 9 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

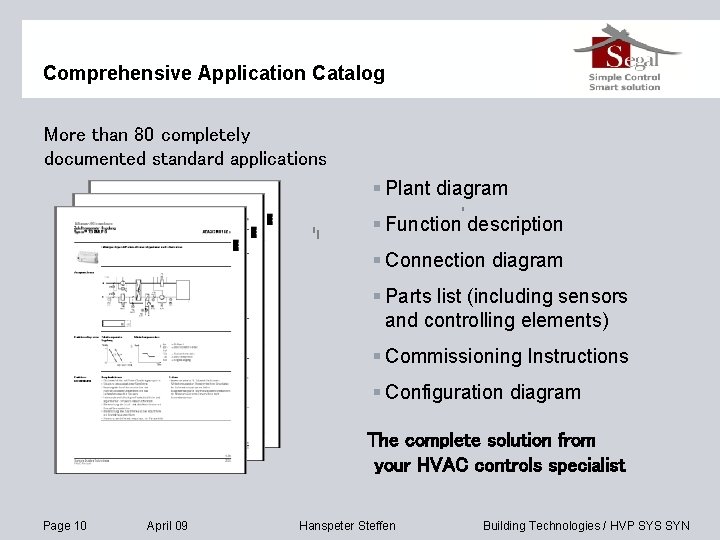

Comprehensive Application Catalog More than 80 completely documented standard applications § Plant diagram §

Comprehensive Application Catalog More than 80 completely documented standard applications § Plant diagram § Function description § Connection diagram § Parts list (including sensors and controlling elements) § Commissioning Instructions § Configuration diagram The complete solution from your HVAC controls specialist Page 10 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

Engineering and Commissioning Basic configuration. . . Extra configuration. . . Settings. . .

Engineering and Commissioning Basic configuration. . . Extra configuration. . . Settings. . . Communication… § Entire functionality can simply be activated via local operation § Controller can easily be matched to local requirements on site § Preprogrammed functions have been fully tested, thus considerably simplifying commissioning Page 11 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

Synco. TM 700 RMU – Components Modular universal controllers RMU … § RMU 710

Synco. TM 700 RMU – Components Modular universal controllers RMU … § RMU 710 B § RMU 720 B § RMU 730 B Extension modules RMZ 7. . . § RMZ 785 § RMZ 787 § RMZ 788 Operator units § Plug-in type RMZ 790 § Detached type RMZ 791 § Bus Operator Unit RMZ 792 Page 12 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

Synco. TM 700 RMU – Key Functions of Controllers 3 different types of universal

Synco. TM 700 RMU – Key Functions of Controllers 3 different types of universal controllers RMU 710 B RMU 730 B 6 UI 8 UI 2 AO 3 AO 4 AO 2 DO 4 DO 6 DO 1 Page 13 RMU 720 B PID April 09 2 PID Hanspeter Steffen 3 PID PID Building Technologies / HVP SYS SYN

Functions of Extension Modules Universal Input module Universal I/O module RMZ 785 RMZ 787

Functions of Extension Modules Universal Input module Universal I/O module RMZ 785 RMZ 787 RMZ 788 8 DI 4 UI 4 DO 2 AO 2 DO Page 14 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

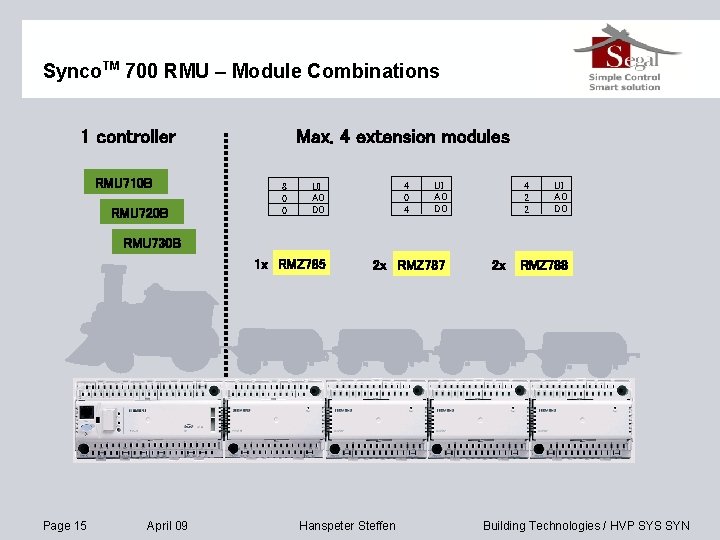

Synco. TM 700 RMU – Module Combinations 1 controller RMU 710 B RMU 720

Synco. TM 700 RMU – Module Combinations 1 controller RMU 710 B RMU 720 B Max. 4 extension modules 8 0 0 4 UI AO DO 4 2 2 UI AO DO RMU 730 B 1 x RMZ 785 Page 15 April 09 2 x RMZ 787 Hanspeter Steffen 2 x RMZ 788 Building Technologies / HVP SYS SYN

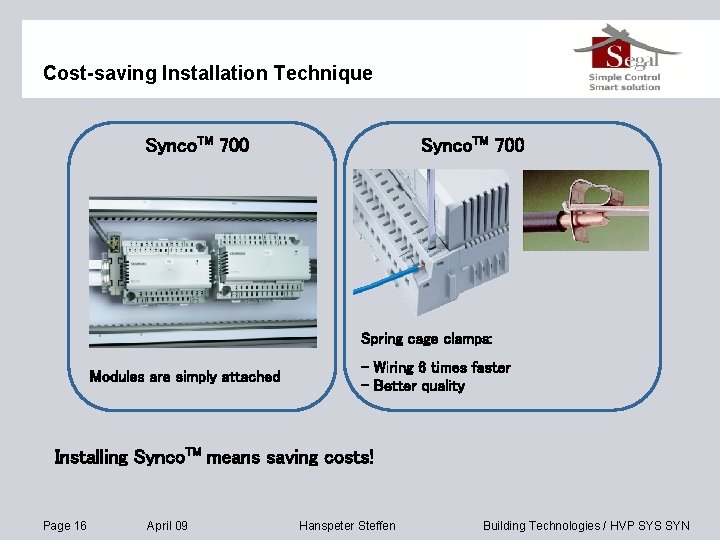

Cost-saving Installation Technique Synco. TM 700 Spring cage clamps: Modules are simply attached -

Cost-saving Installation Technique Synco. TM 700 Spring cage clamps: Modules are simply attached - Wiring 6 times faster - Better quality Installing Synco. TM means saving costs! Page 16 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

Synco. TM 700 RMU – peripheral Devices Universal inputs Passive: LG-Ni 1000, T 1,

Synco. TM 700 RMU – peripheral Devices Universal inputs Passive: LG-Ni 1000, T 1, Pt 1000 Active: DC 0. . . 10 V Digital: Potential free contacts Signal outputs Analog: DC 0. . . 10 V Digital: Relay outputs potential free AC 230 V Page 17 April 09 Hanspeter Steffen Setpoint adjusters and room units • • BSG 21. . QAA 24 QAA 25 / QAA 27 QAW 740 Building Technologies / HVP SYS SYN

Room Unit QAW 740 Series B Function § Room temperature § Set point shifting

Room Unit QAW 740 Series B Function § Room temperature § Set point shifting § Timer function § Selection of operating mode § Display operating state § Display of faults Features § KNX connection facility § Powered directly via bus § No own power supply required Page 18 April 09 Timer button Setting knob Hanspeter Steffen Mode button Building Technologies / HVP SYS SYN

Standard Communication KNX (LTE Mode) Only a few settings and data are automatically exchanged:

Standard Communication KNX (LTE Mode) Only a few settings and data are automatically exchanged: § Energy demand (heat, refrigeration) § Time and holiday programs § Time synchronization With KNX, communication § Faults, etc. works right from the start, with no need for costly engineering Optimum coordination of HVAC plant: § Enhanced comfort § Lower operating costs Page 19 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

Synco. TM 700 Topology ACS 7… Power Tx. D Rx. D DTR DSR RTS

Synco. TM 700 Topology ACS 7… Power Tx. D Rx. D DTR DSR RTS CTS DCD QAW 740 OZW 771 RXB/L. . . OZW 775 KNX TP 1 RMZ 792 RMZ 791 RMZ 790 RMB 795 RMS 705 RMH 760 B RMK 770 ACS 7… RMU 7. . . RMZ 78. . . OCI 700. 1 Page 20 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN

Synco. TM 700 Positioning Synco. TM 700 Synco. TM RXB Extended functionality, such as

Synco. TM 700 Positioning Synco. TM 700 Synco. TM RXB Extended functionality, such as switching functions, or communication Synco. TM 200 Basic functionality Synco. TM 100 Ventilation and air conditioning applications Heating applications Page 21 April 09 Complete HVAC applications Hanspeter Steffen Room control Building Technologies / HVP SYS SYN

Synco. TM 700 modular universal Controllers § Flexible, modular design § Intuitive operation §

Synco. TM 700 modular universal Controllers § Flexible, modular design § Intuitive operation § Pre-programmed applications § Freely configured applications § Straightforward commissioning § Open Konnex standard communication § Cost-saving installation technique Page 22 April 09 Hanspeter Steffen Building Technologies / HVP SYS SYN
