Synchronized Strobe for Video Camera Jeff Baskett Jason
Synchronized Strobe for Video Camera Jeff Baskett & Jason Zubo Project Advisor: Dr. Irwin
Contents of Presentation • • • Project Summary Strobe Light Microprocessor DMX Interface Video Camera Hardware Results Problems Encountered Unfinished Work

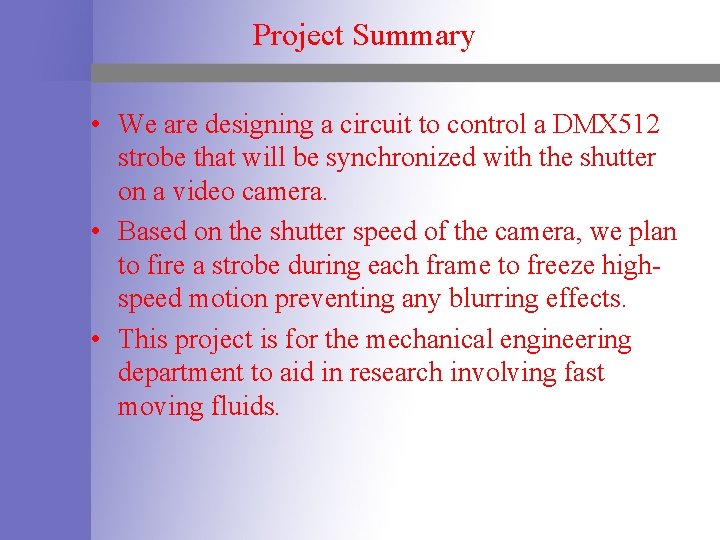

Project Summary • We are designing a circuit to control a DMX 512 strobe that will be synchronized with the shutter on a video camera. • Based on the shutter speed of the camera, we plan to fire a strobe during each frame to freeze highspeed motion preventing any blurring effects. • This project is for the mechanical engineering department to aid in research involving fast moving fluids.

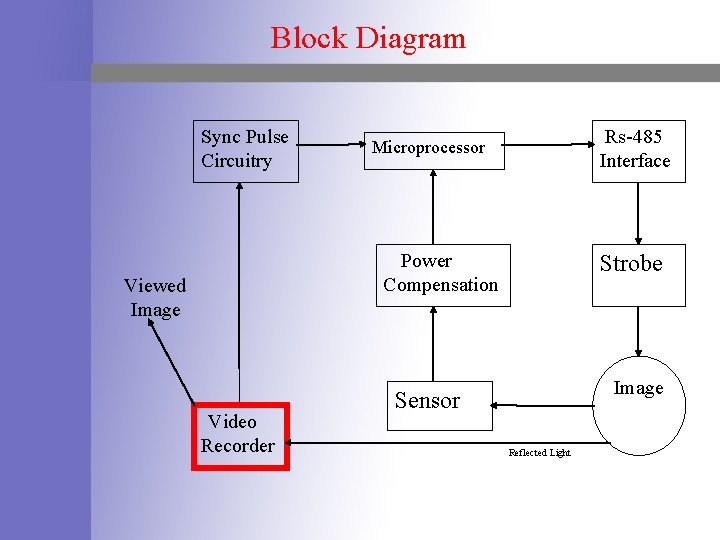

Block Diagram Sync Pulse Circuitry Rs-485 Interface Microprocessor Power Compensation Viewed Image Video Recorder Strobe Image Sensor Reflected Light
Block Diagram Sync Pulse Circuitry Rs-485 Interface Microprocessor Power Compensation Viewed Image Video Recorder Strobe Image Sensor Reflected Light
Strobe • Snapshot DMX/D – Requires differential input of DMX 512 signal – Will operate in DMX mode where intensity is the first byte of data received, the duration will be preset and the rate will be determined by the refresh rate.
Standards
Block Diagram Sync Pulse Circuitry Rs-485 Interface Microprocessor Power Compensation Viewed Image Video Recorder Strobe Image Sensor Reflected Light
Microprocessor (DMX Interface) • Increment or decrement strobe intensity based on output from power compensation circuitry. • Use preset duration value (found experimentally) to maximize strobe effectiveness. • Output appropriate DMX signals to strobe at 250 Kbaud.
Microprocessor (DMX Interface) • The rate is determined by DMX refresh – The strobe will fire at the end of a packet of data • Sample packet of data (RS-485 levels) Break - 88 us Mark after break - 8 us Start code - 44 us Intensity Data Start bit for data Duration Data Stop Bits for data Idle line
Software Flowchart
Microprocessor • Timing circuitry and DMX interface will be implemented in software. • Serial data will be designed to meet DMX 512 standards. • UART will output serial data to RS-485 interface. • Output (TTL levels) must be inverted (RS 485 levels). • Additional data packets were sent due to DMX addressing problems.
UART • UART will output data at an extended rate of 250 Kbits/sec. • Data will be accompanied by one start bit and two stop bits • UART implementation requires Mod 515. inc header file
DMX Output
Block Diagram Sync Pulse Circuitry Rs-485 Interface Microprocessor Power Compensation Viewed Image Video Recorder Strobe Image Sensor Reflected Light

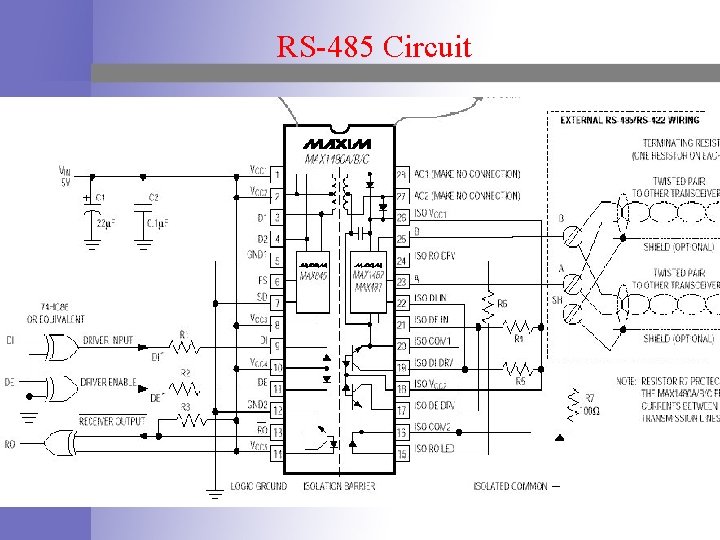

RS-485 Circuit
Block Diagram Sync Pulse Circuitry Rs-485 Interface Microprocessor Power Compensation Viewed Image Video Recorder Strobe Image Sensor Reflected Light
Video Camera • Sony XC-75 CCD Black and White Video Camera Module – On loan from ME department – Sync output was not functional - embedded in video signal
Block Diagram Sync Pulse Circuitry Rs-485 Interface Microprocessor Power Compensation Viewed Image Video Recorder Strobe Image Sensor Reflected Light
Sync Pulse Circuitry • Converts Video signal into sync signal • Uses Precision Rectifier, inverter and Schmitt Trigger
Sync Pulse Circuitry • Sync Pulse is used to trigger software interrupt to output Dmx data to fire strobe Video Signal Sync Pulse
Block Diagram Sync Pulse Circuitry Rs-485 Interface Microprocessor Power Compensation Viewed Image Video Recorder Strobe Image Sensor Reflected Light
Sensor • We are using a photodiode with a current to voltage converter to sense the light output from the strobe
Sensor Circuit • Added a low pass filter to clean up output of the photodiode circuit
Block Diagram Sync Pulse Circuitry Rs-485 Interface Microprocessor Strobe Power Compensation Viewed Image Video Recorder Image Sensor Reflected Light

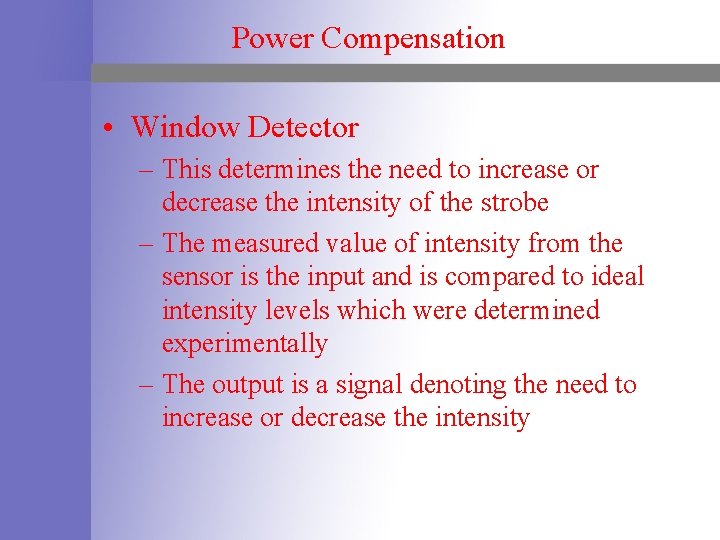

Power Compensation • Window Detector – This determines the need to increase or decrease the intensity of the strobe – The measured value of intensity from the sensor is the input and is compared to ideal intensity levels which were determined experimentally – The output is a signal denoting the need to increase or decrease the intensity
Window Detector
Results • System is functional minus power compensation • We are able to view stop-motion effects • We performed several experiments to show functionality
Experiments • Performed with and without synchronized video strobe – Light Bulb breaking – Spinning Wheel – Spinning Football – Spinning Frisbee – Golf Swing
Light Bulb - Room Light
Light Bulb - With SVS
Water Drop - Room Light
Water Drop - With SVS
Spinning Football - Room Light
Spinning Football - With SVS
Spinning Frisbee - Room Light
Spinning Frisbee - With SVS
Golf Swing - Room Light
Golf Swing - With SVS
Problems Encountered • • • UART troubles DMX Inversion Number of DMX data packets to send Expo troubles Inconsistency of Strobe
Strobe Inconsistency • Strobe was designed for theatre and stage show usage - not for precision • Delay between receiving data and firing varies by about 15 ms
Work in Progress • Purchase more precise strobe • Integrate Window Detector into system • Eliminate EMAC board - Place software on to a programmable chip
Questions?
