Synchronization CSCI 4780/6780

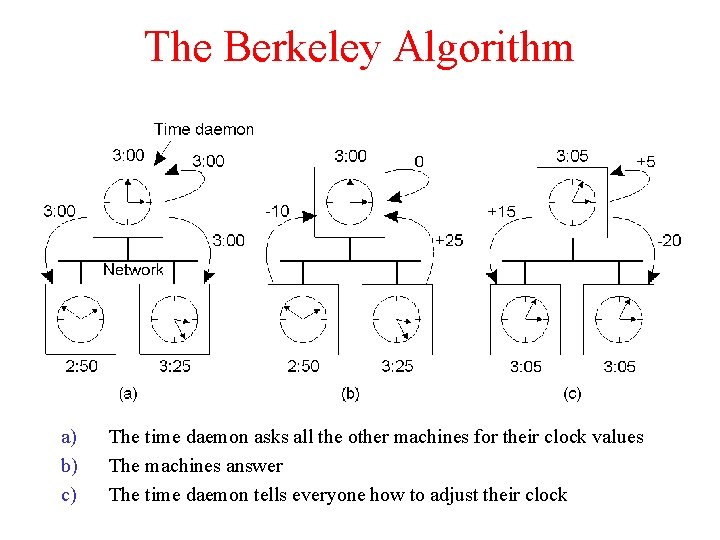

The Berkeley Algorithm a) b) c) The time daemon asks all the other machines for their clock values The machines answer The time daemon tells everyone how to adjust their clock

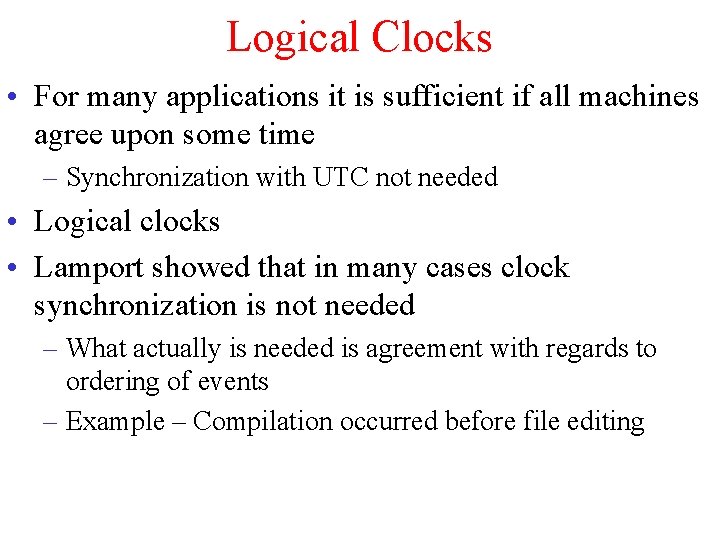

Logical Clocks • For many applications it is sufficient if all machines agree upon some time – Synchronization with UTC not needed • Logical clocks • Lamport showed that in many cases clock synchronization is not needed – What actually is needed is agreement with regards to ordering of events – Example – Compilation occurred before file editing

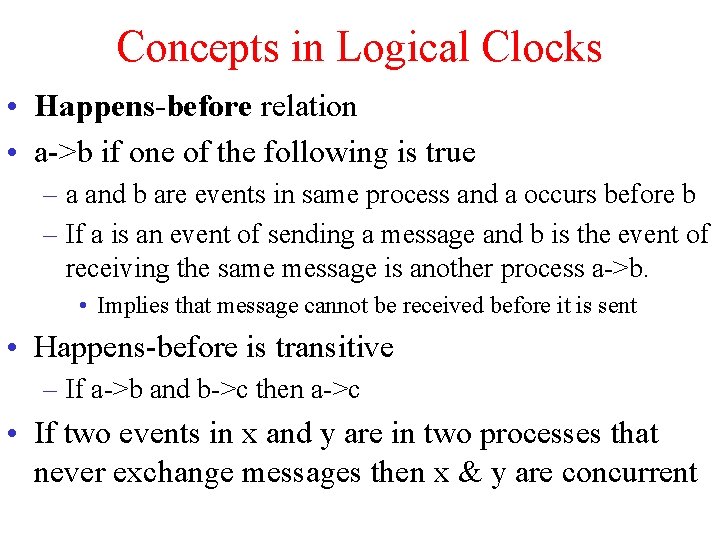

Concepts in Logical Clocks • Happens-before relation • a->b if one of the following is true – a and b are events in same process and a occurs before b – If a is an event of sending a message and b is the event of receiving the same message is another process a->b. • Implies that message cannot be received before it is sent • Happens-before is transitive – If a->b and b->c then a->c • If two events in x and y are in two processes that never exchange messages then x & y are concurrent

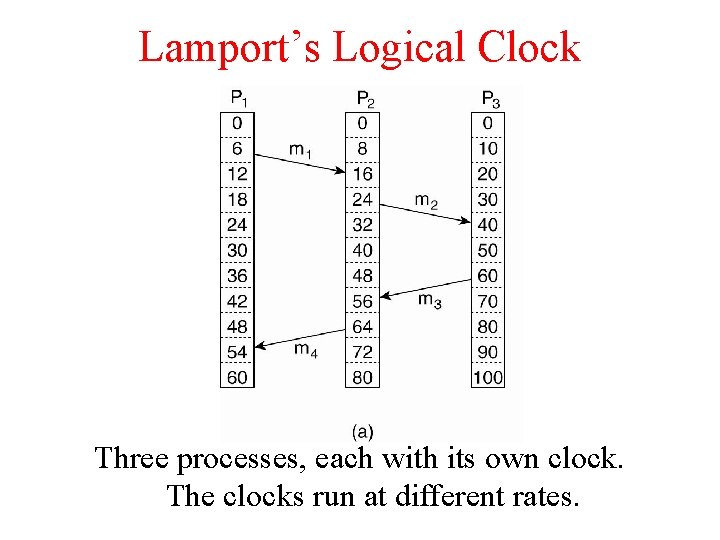

Lamport’s Logical Clock Three processes, each with its own clock. The clocks run at different rates.

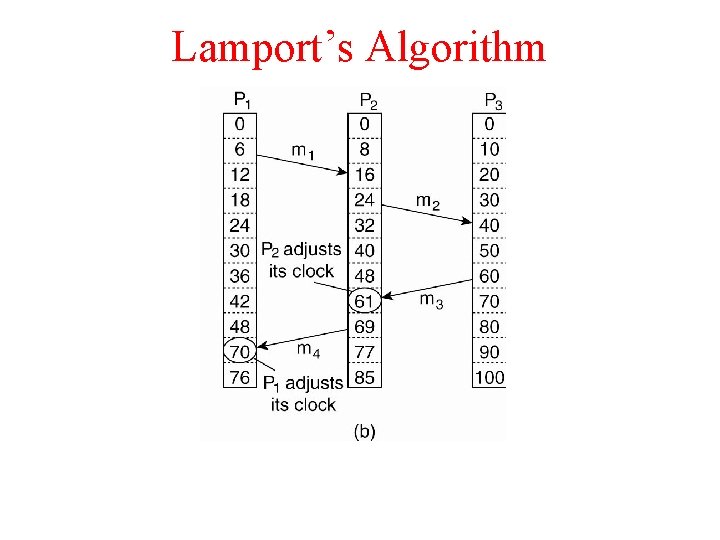

Lamport’s Algorithm

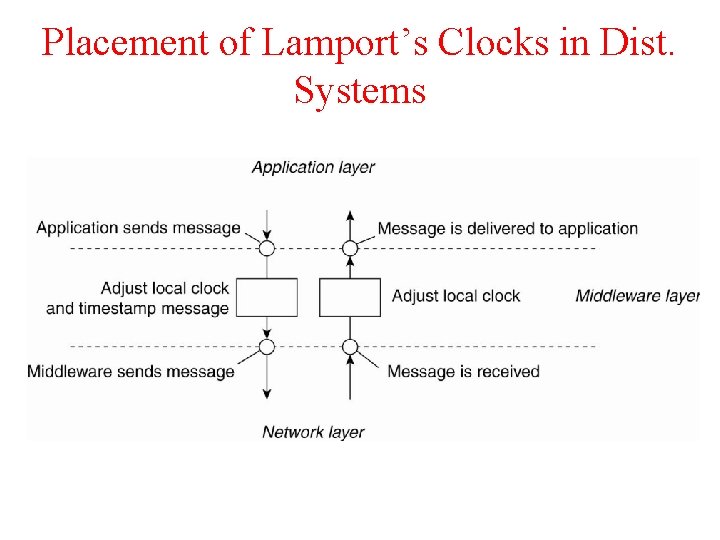

Placement of Lamport’s Clocks in Dist. Systems

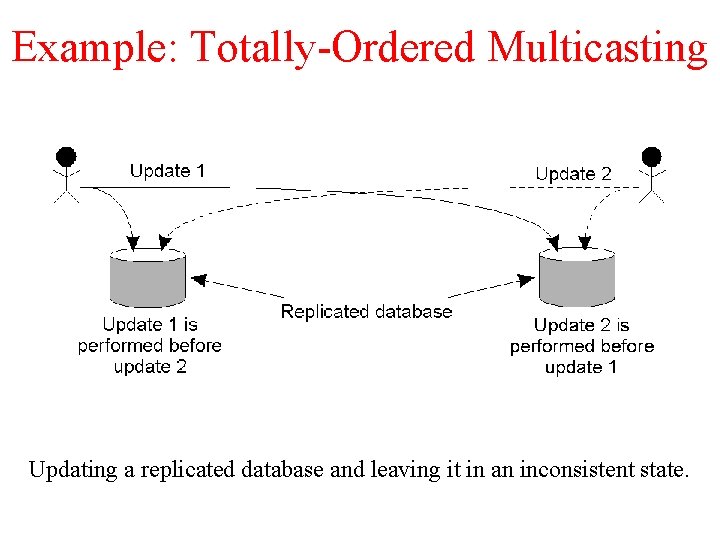

Example: Totally-Ordered Multicasting Updating a replicated database and leaving it in an inconsistent state.

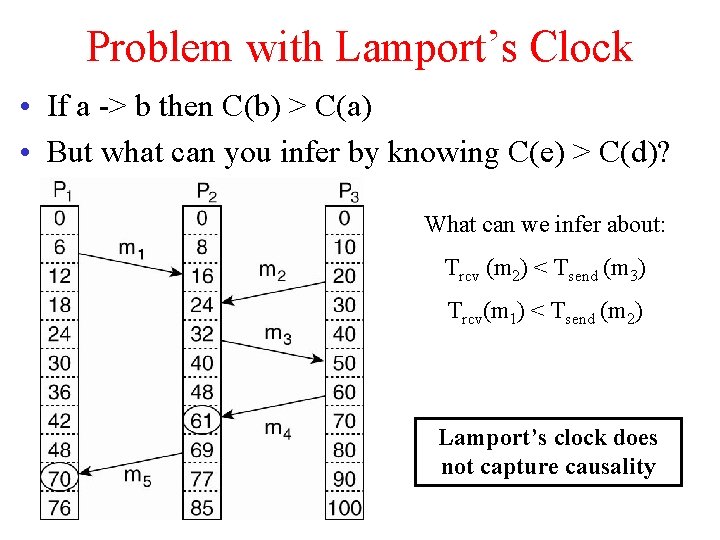

Problem with Lamport’s Clock • If a -> b then C(b) > C(a) • But what can you infer by knowing C(e) > C(d)? What can we infer about: Trcv (m 2) < Tsend (m 3) Trcv(m 1) < Tsend (m 2) Lamport’s clock does not capture causality

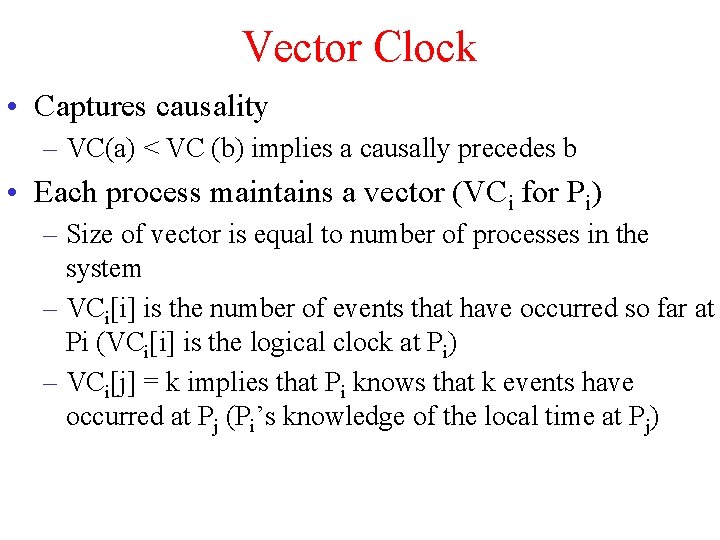

Vector Clock • Captures causality – VC(a) < VC (b) implies a causally precedes b • Each process maintains a vector (VCi for Pi) – Size of vector is equal to number of processes in the system – VCi[i] is the number of events that have occurred so far at Pi (VCi[i] is the logical clock at Pi) – VCi[j] = k implies that Pi knows that k events have occurred at Pj (Pi’s knowledge of the local time at Pj)

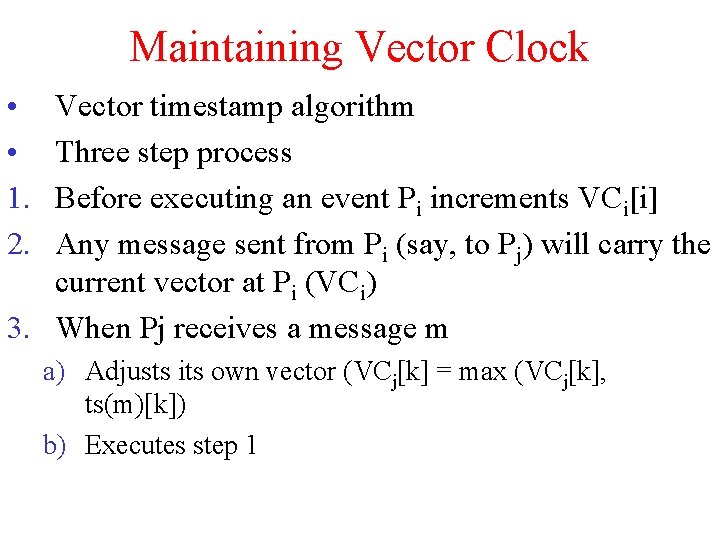

Maintaining Vector Clock • • 1. 2. Vector timestamp algorithm Three step process Before executing an event Pi increments VCi[i] Any message sent from Pi (say, to Pj) will carry the current vector at Pi (VCi) 3. When Pj receives a message m a) Adjusts its own vector (VCj[k] = max (VCj[k], ts(m)[k]) b) Executes step 1
