Symphony SYMPHONY Page 1 Symphony n 80Network90 n

Symphony 系统介绍 SYMPHONY 系统介绍 Page 1

Symphony系统介绍：系统发展 n 第一代（80年）Network-90 n 第二代（88年）Infi-90 n 第三代（94年）Infi-90 Open n 第四代（96年）Symphony SYMPHONY 系统介绍 Page 3

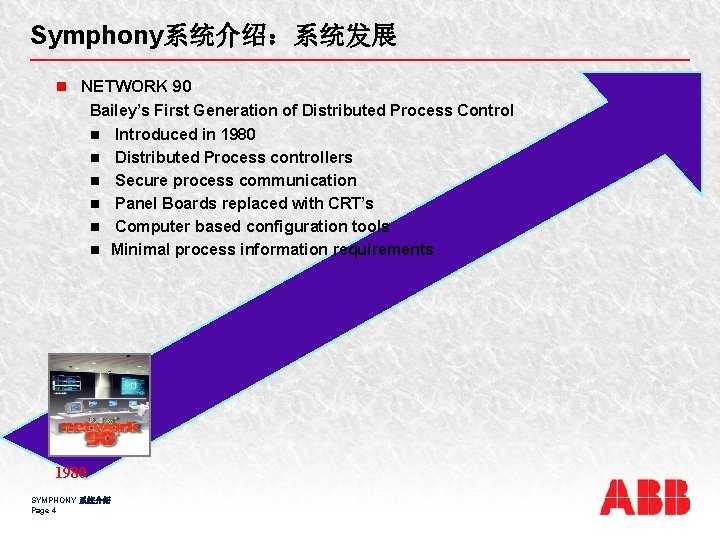

Symphony系统介绍：系统发展 n NETWORK 90 Bailey’s First Generation of Distributed Process Control n Introduced in 1980 n Distributed Process controllers n Secure process communication n Panel Boards replaced with CRT’s n Computer based configuration tools n Minimal process information requirements 1980 SYMPHONY 系统介绍 Page 4

Symphony系统介绍：系统发展 n INFI 90 The Evolution n Introduced in 1988 n Bigger, faster process controllers n High speed, secure process communication n “Windows”based operator consoles n Advanced automation tools n Backward compatible with NETWORK 90 1988 1980 SYMPHONY 系统介绍 Page 5

Symphony系统介绍：系统发展 n INFI 90 OPEN The Evolution Continues n Introduced in 1994 n Technology platform for Strategic Enterprise Management n Advanced automation solutions and Open System integration n Embedded third-party applications n Standard operating systems n Advanced ergonomic design 1988 1980 SYMPHONY 系统介绍 Page 6 1994

Symphony系统介绍：系统发展 n Symphony “The Next Generation” in Enterprise Management and Control Systems is introduced n Enterprise scope 1996 n Open architecture n System scalability n Compatibility with INFI 90 / Network 90 systems 1994 1988 1980 SYMPHONY 系统介绍 Page 7 Bailey merges with Hartmann & Braun (1996)

Symphony系统介绍：系统发展 SYMPHONY 系统介绍 Page 8

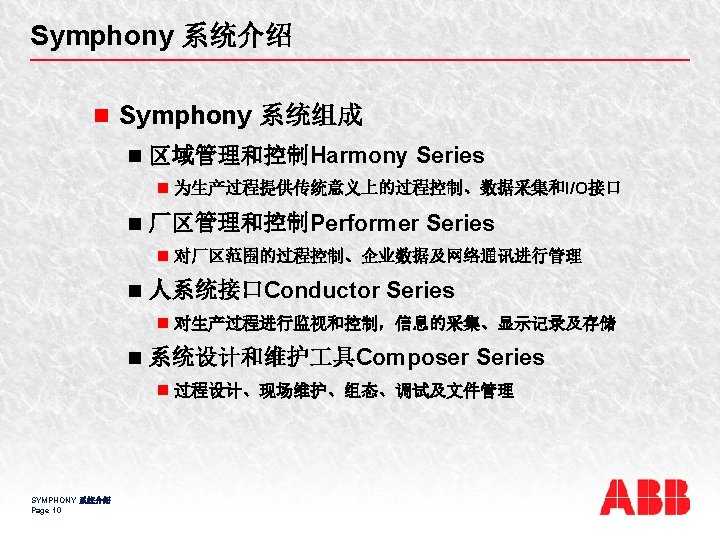

Symphony 系统介绍 Performer Series Information Processing Domain Conductor Series Human-System Interface Harmony Series Signal and Logic Processing Domain Area Management and Control SYMPHONY 系统介绍 Page 11 Plant/Enterprise Management and Control Composer Series Operations Network System Engineering, Operation and Maintenance Tools Control Network Field Network

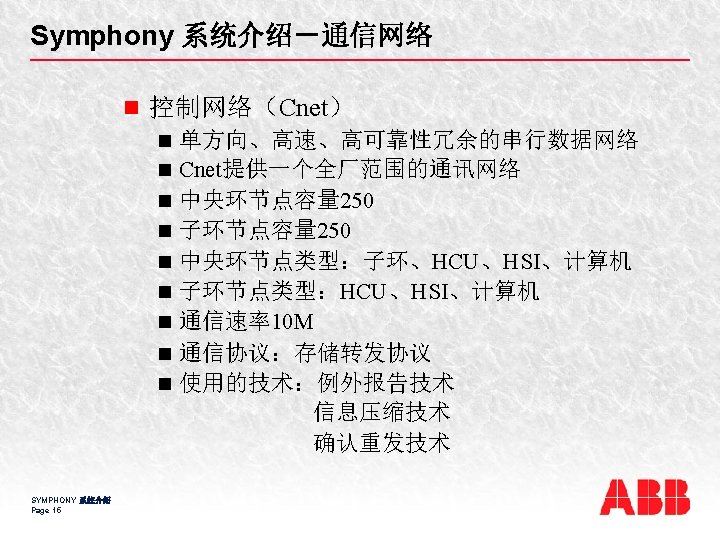

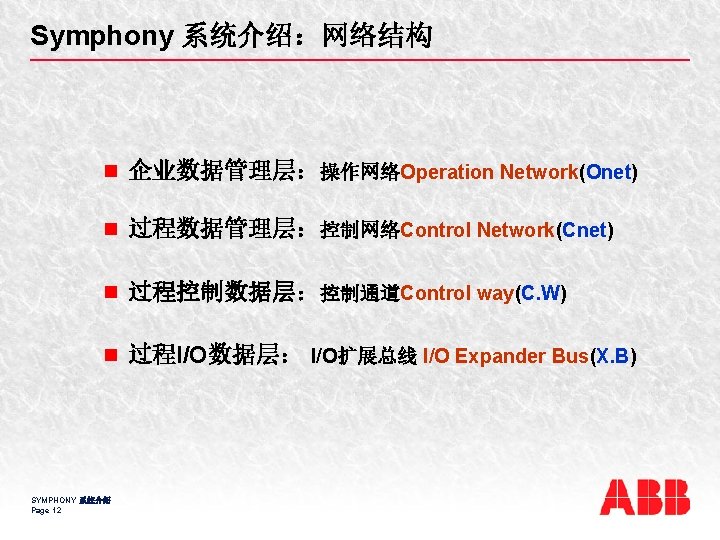

Symphony 系统介绍－Cnet Structure of Contral Network Composer Control Network Subring 10 MB 250 Nodes Control Network Subring Control Network Central Ring 10 MB 250 Nodes Plant Loop Subring 500 KB 63 Nodes HSI HCU ICI Remote Ring 10 MB 250 Nodes IIR IIL IPL SYMPHONY 系统介绍 Page 14

Symphony 系统介绍－Cnet Main Node Types on Cnet Node: Hardware Devices on Control Network (Cnet). n Control Network Subring (Only for Cnet Central Ring) Communication Interface: Cnet - to - Cnet local Interface (IIL) or Cnet - to - Cnet Remote Interface (IIR) n Plant Loop Subring (Only for Cnet Central Ring) Communication Interface: Cnet - to - Plant Loop local Interface (IPL) n Harmony Control Unit (HCU) Communication Interface: Cnet - to - PCU Interface n Human System Interface (HSI) Communication Interface: Cnet - to - Computer Interface (ICI) (For Conductor NT) n Composer Communication Interface: Cnet - to - Computer Interface (ICI) n Communication rates: 2 MB or 10 MB; n Max. Cable Distance between nodes: Coaxial: 2000 m (for 10 MB); 4000 m (for 2 MB) Twisted Cable: 1000 m (for 10 MB); 2000 m (for 2 MB) n Max. Cable Distance of NIS to TU: 25 m n System Capability: 250 nodes on a central ring; 250 nodes on a subring; SYMPHONY 系统介绍 62, 500 system nodes maximum. Page 20

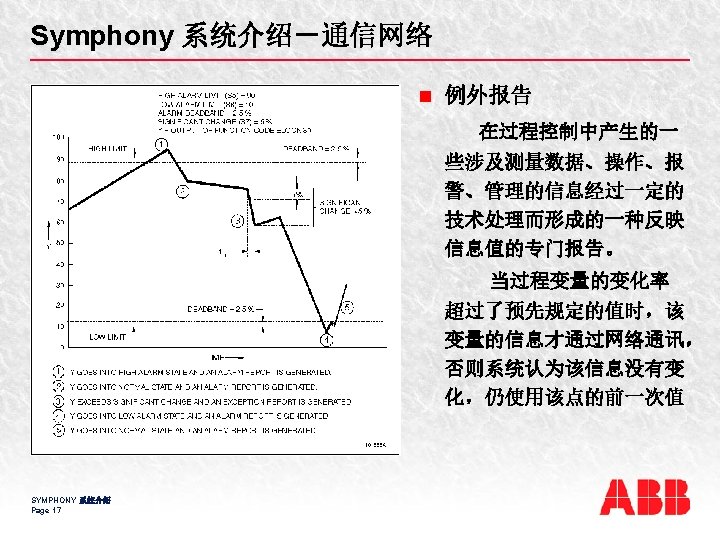

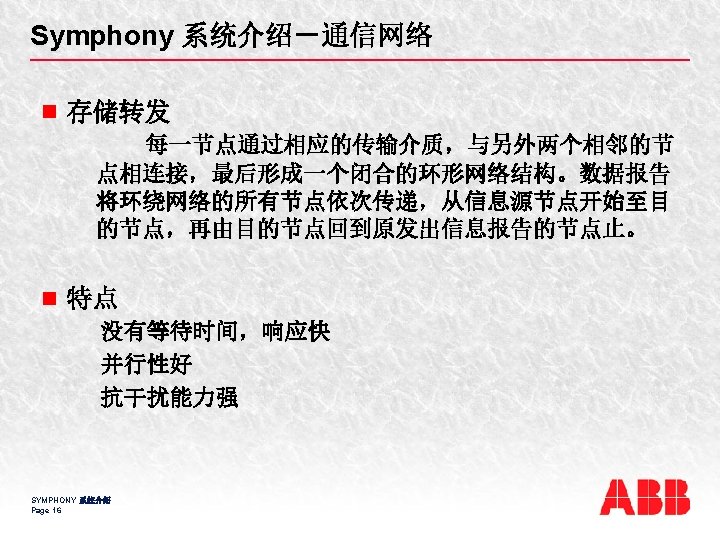

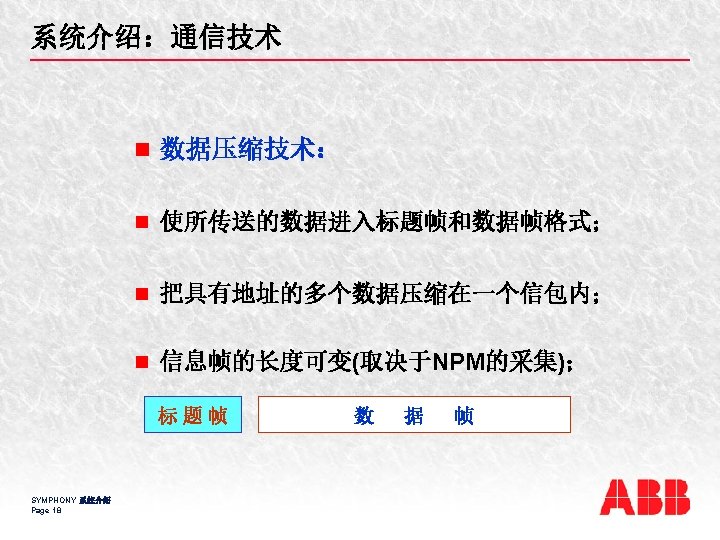

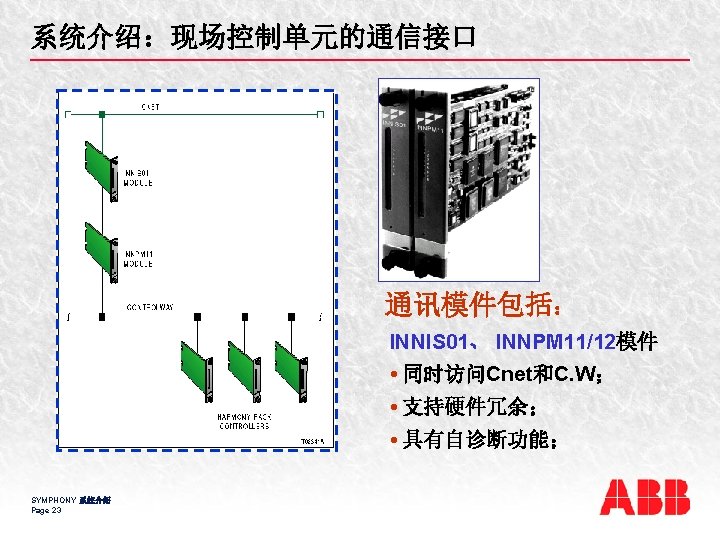

Symphony 系统介绍－Cnet - to - HCU Interface The HCU Interface can support hardware redundancy. In a redundant configuration, there are two NIS and two NPM Modules. One pair of modules is the primary. If the primary fails, the backup comes on-line. SYMPHONY 系统介绍 Page 24

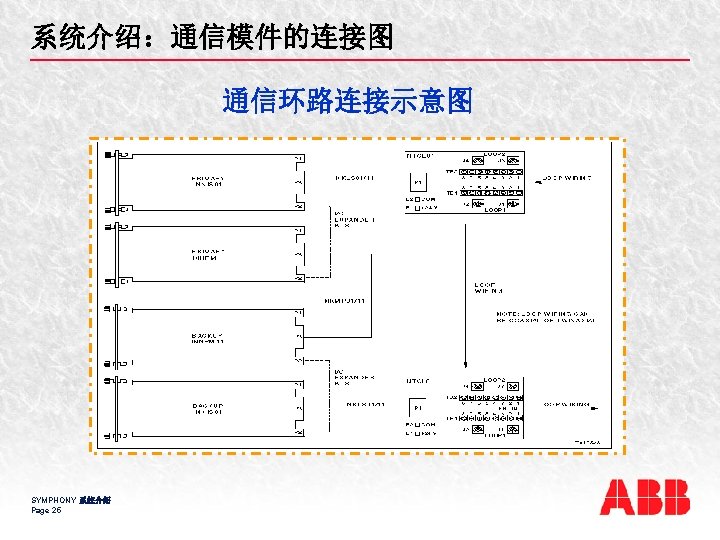

系统介绍：通信环路端子NTCL 01 Input Output SYMPHONY 系统介绍 Page 26 Input Output

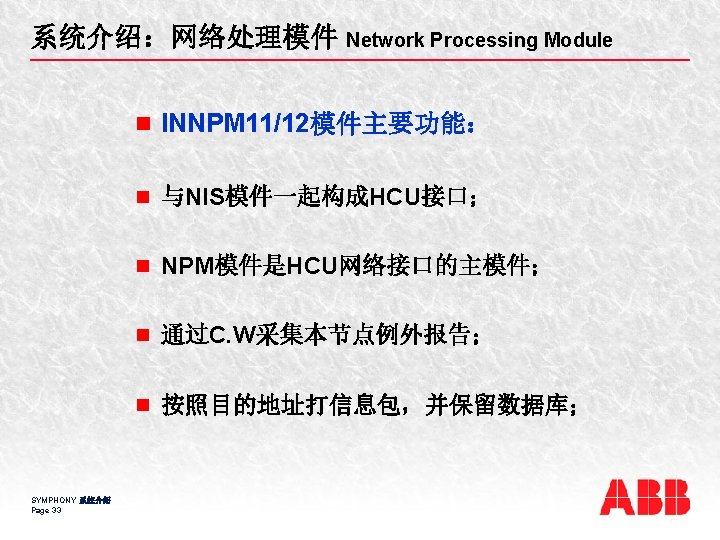

Symphony 系统介绍－Cnet - to - Computer Interface (ICI) SYMPHONY 系统介绍 Page 39 The Cnet - to - Computer Interface (ICI) consists of a Network Interface Slave (INNIS 01), a Cnet to Computer Transfer Module (ICT 03) and a Multifunction Processor Interface module （IMMPI 01). This interface gives a host computer access to point data over Cnet. The computer connects through either an RS-232 -C serial link at rates up to 19. 2 KB or through a SCSI parallel port. The interface is command driven through software on the host computer. It receives a command from the host computer, executes it, then replies to the host computer.

Symphony 系统介绍－Cnet - to - Computer Interface (ICI) SYMPHONY 系统介绍 Page 40 The INNIS 01 Network Interface module is the front end of every Cnet communication interface. It is the intelligent link between a node and the Cnet network. The INICT 03 Computer Transfer module handles all communication with a host computer. The module is command driven through software on the host computer. The INICT 03 module receives a command from the host computer, executes it, then replies. The INICT 03 module can store up to 30, 000 point definitions (depending on point types). It uses an IMMPI 01 module for host computer connection.

Symphony 系统介绍－Cnet - to - Computer Interface (ICI) The IMMPI 01 Multifunction Processor Interface module handles the I/O interface between the host computer and the INICT 03 module. The IMMPI 01 module supports either SCSI or RS-232 -C computer interface. When communicating through the RS-232 -C port, the module can act as data communication equipment (DCE) or data terminal equipment (DTE). SYMPHONY 系统介绍 Page 41

Symphony 系统介绍－Cnet - to - Cnet Local Interface (Il. L) The INIIL 02 Local Interface consists of two INNIS 01 Network Interface modules and the INIIT 03 Local Transfer module. This interface acts as a bridge between two local Cnet networks. One of the INNIS 01 modules operates on the central network side and the other operates on the satellite network side. Bidirectional communication from the central network to the local, satellite network is through cable connection to the NTCL 01 termination unit. The maximum distance between termination units on the two communication networks is 45. 8 meters (150 feet). SYMPHONY 系统介绍 Page 42

Symphony 系统介绍－Cnet - to - Cnet Local Interface (Il. L) SYMPHONY 系统介绍 Page 43

Symphony 系统介绍－Cnet - to - Cnet Remote Interface (Il. R) The INIIR 01 Remote Interface consists of the INNIS 01 Network Interface module and the INIIT 12 Remote Transfer module. This interface is a node on the central network that can communicate to an interface node on a remote, satellite network. In this arrangement, two interfaces are required: one for the central network and the other for the satellite network. Bidirectional communication from the central network to the remote, satellite network is through standard RS 232 -C ports. SYMPHONY 系统介绍 Page 44

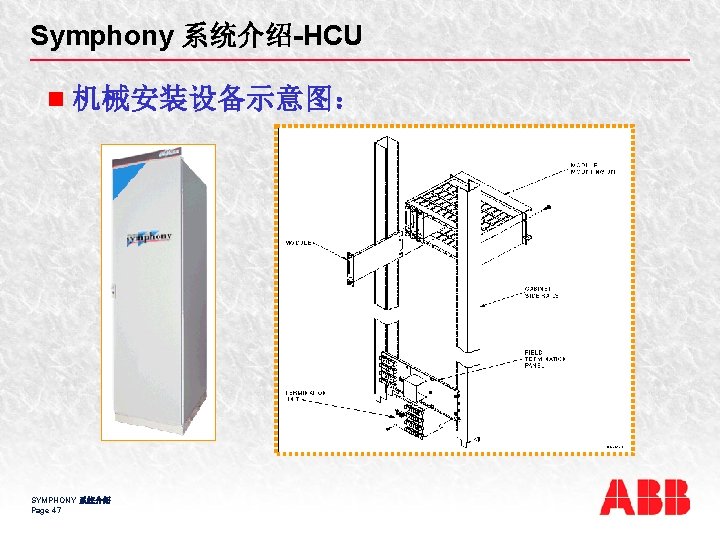

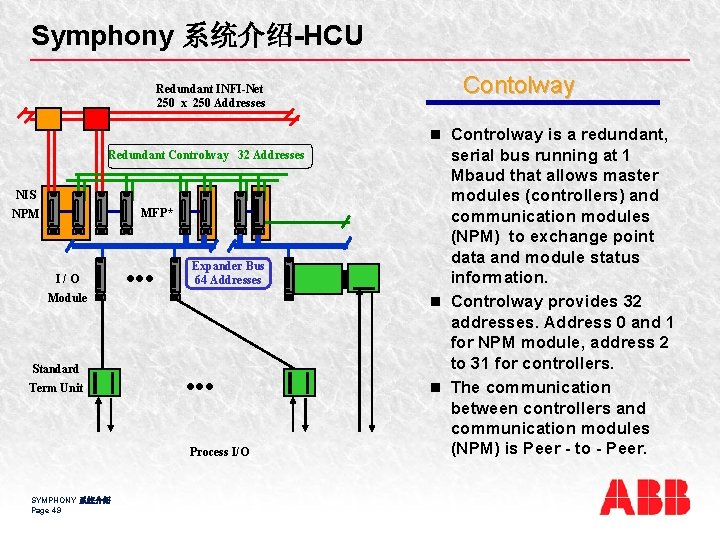

Symphony 系统介绍-HCU Redundant INFI-Net 250 x 250 Addresses Contolway n Controlway is a redundant, Redundant Controlway 32 Addresses NIS MFP* NPM I/O Module Standard Term Unit • • • Expander Bus 64 Addresses • • • Process I/O SYMPHONY 系统介绍 Page 49 serial bus running at 1 Mbaud that allows master modules (controllers) and communication modules (NPM) to exchange point data and module status information. n Controlway provides 32 addresses. Address 0 and 1 for NPM module, address 2 to 31 for controllers. n The communication between controllers and communication modules (NPM) is Peer - to - Peer.

Symphony 系统介绍-HCU Redundant INFI-Net 250 x 250 Addresses Expender Bus n The Expander Bus is a Redundant Controlway 32 Addresses NIS MFP* NPM I/O Module Standard Term Unit • • • Expander Bus 64 Addresses • • • Process I/O SYMPHONY 系统介绍 Page 50 parallel communication path between the Harmony rack controller and its Rack I/O module. The communication rate is 500 KB. n A controller’s Expander Bus provides 64 addresses for I/O slaves, that means a controller can supports up to 64 slaves in any combination for a wide variety of field I/O signals without external signal converters.

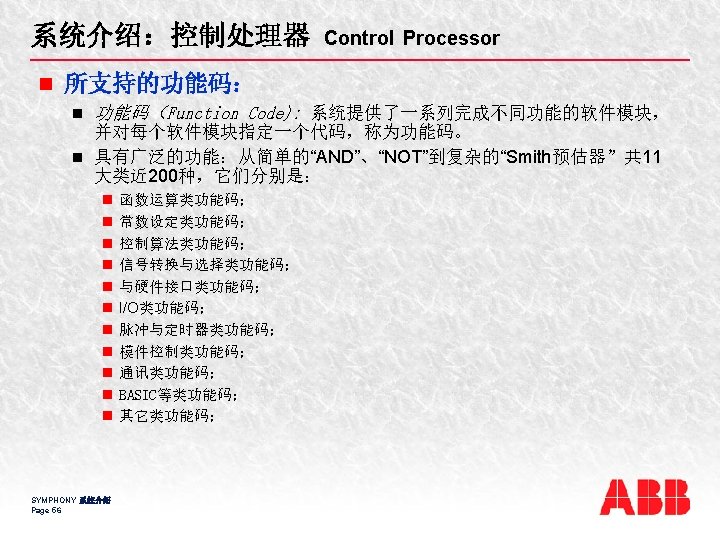

Symphony 系统介绍-HCU n Rack I/O 和控制器连接图 SYMPHONY 系统介绍 Page 70

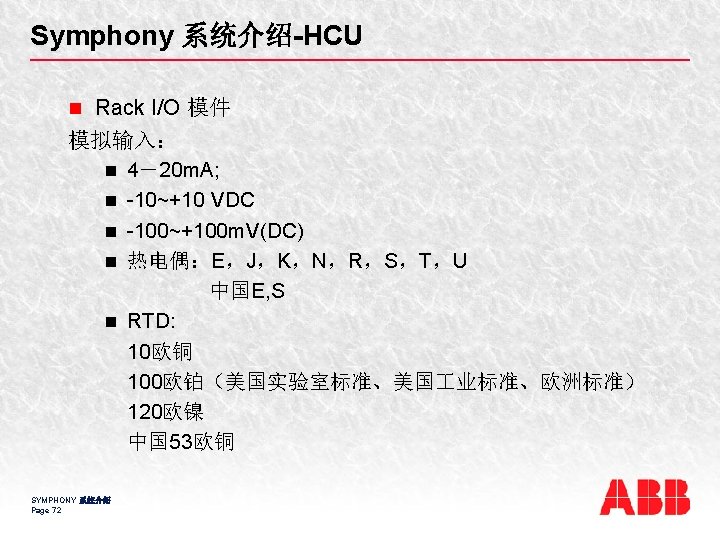

Symphony 系统介绍－HCU n Rack I/O 模件 模拟输出 n 4－20 m. A n 1 -5 VDC 数字输入 n 24，48和125 VDC n 120 VAC 数字输出 n 24和48 VDC n 120 VAC SYMPHONY 系统介绍 Page 73

系统介绍： I/O子模件 n IMMFP 11/12支持的I/O 模件： 模拟输入：IMASI 13、IMFEC 12； 模拟输出：IMASO 11； 控制输入/输出：IMCIS 12、IMQRS 12； 数字输入：IMDSI 12/13/14/15、IMDSM 04； 数字输出：IMDSO 14/15； 专用输入/输出：IMFCS 01、IMHSS 03、IMSED 01； SYMPHONY 系统介绍 Page 74

Symphony 系统介绍－HCU n Rack I/O 模件列表 SYMPHONY 系统介绍 Page 75

Symphony 系统介绍-HCU Analog Input Modules SYMPHONY 系统介绍 Page 76

Symphony 系统介绍-HCU Analog Output and Control Loop Modules SYMPHONY 系统介绍 Page 77

Symphony 系统介绍-HCU Digital Input Modules SYMPHONY 系统介绍 Page 78

Symphony 系统介绍-HCU Digital Output Modules SYMPHONY 系统介绍 Page 79

Symphony 系统介绍-HCU Special Modules SYMPHONY 系统介绍 Page 80

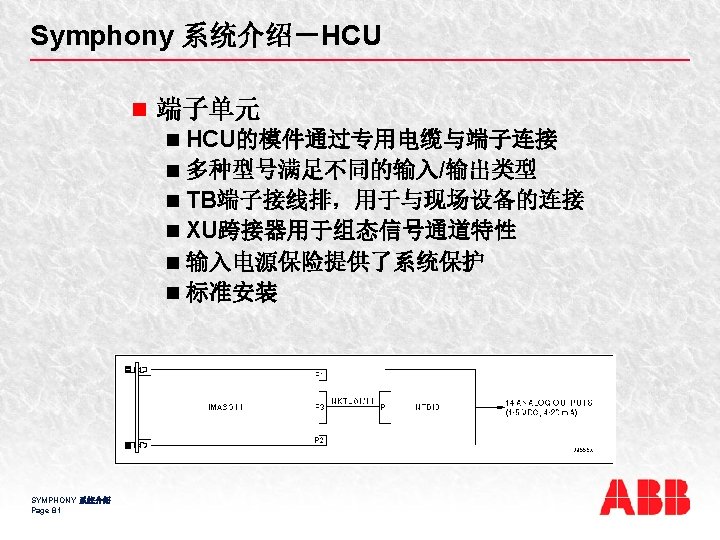

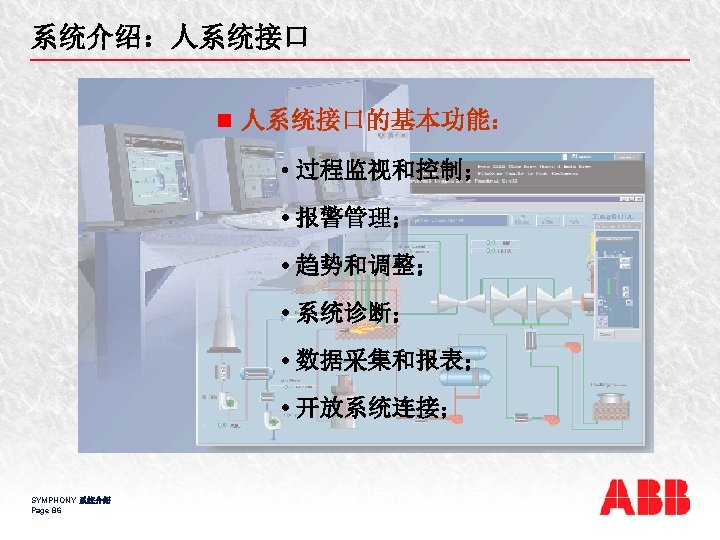

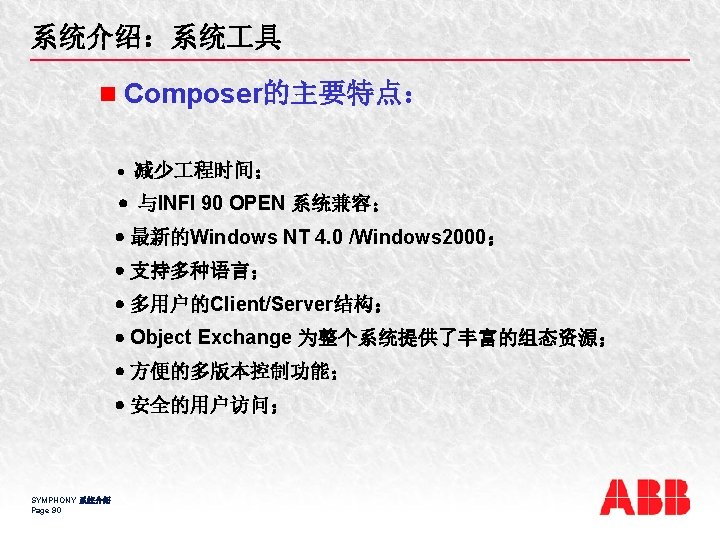

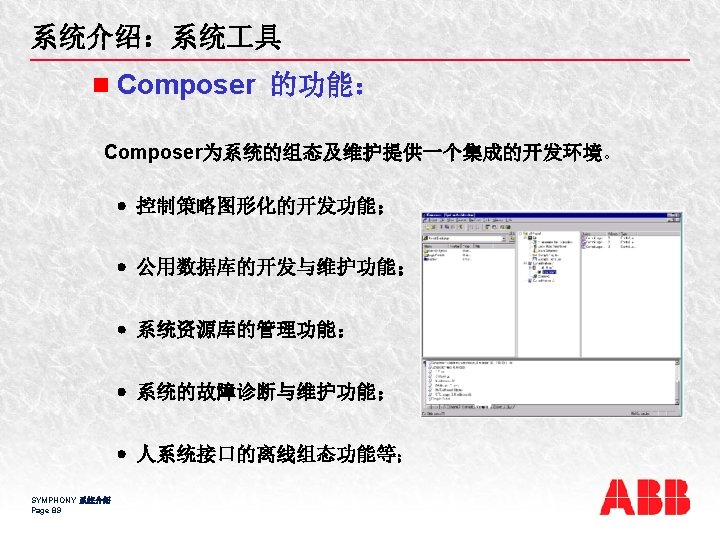

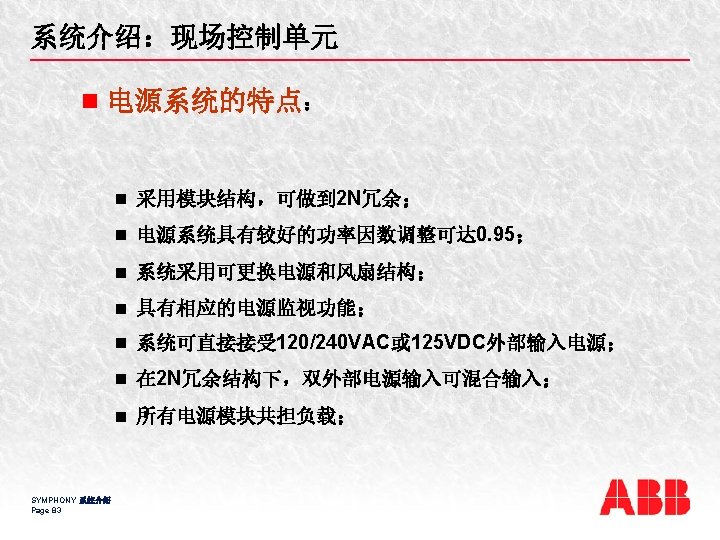

系统介绍：人系统接口 n CONDUCTOR NT 建立在Windows NT/2000基础上的计算机 n CONDUCTOR VMS 建立在Open VMS基础上的计算机 SYMPHONY 系统介绍 Page 85
