Symbol Mobile Terminal Scan gun MC 9090 G

Symbol “Mobile Terminal” (Scan gun) § § § MC 9090 G Windows CE 5. 0 Sterling 7 X Mobile Application 11/23/2020

Getting started Symbol 9090 G Quickstart Guide and Training Power. Point For Fire Cache Warehouse Operations 11/23/2020

11/23/2020

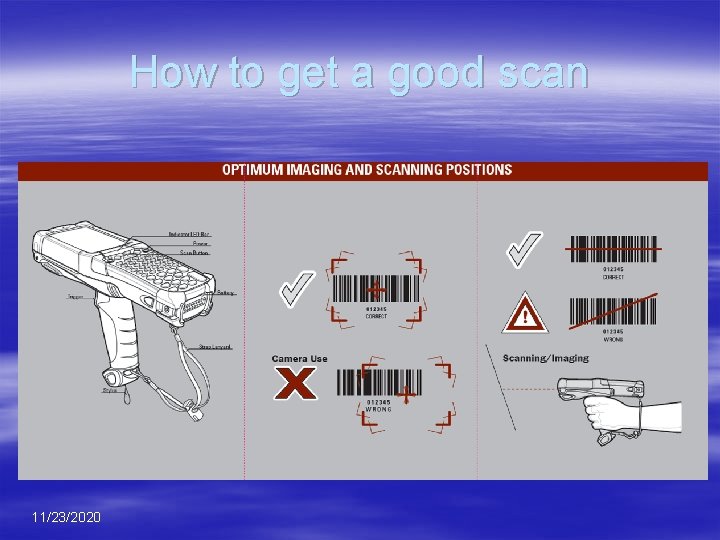

How to get a good scan 11/23/2020

Don’t hurt yourself! 11/23/2020

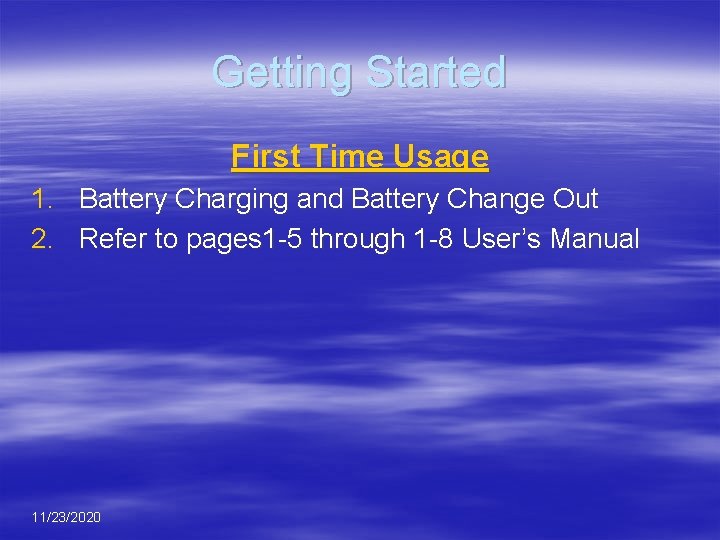

Getting Started First Time Usage 1. Battery Charging and Battery Change Out 2. Refer to pages 1 -5 through 1 -8 User’s Manual 11/23/2020

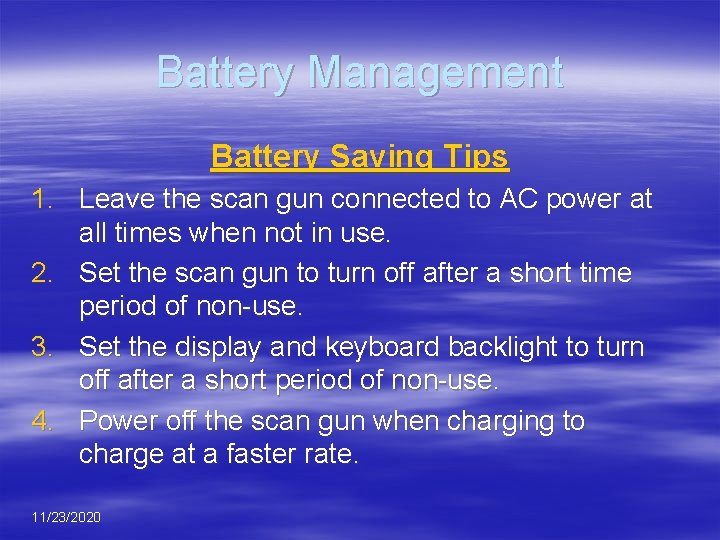

Battery Management Battery Saving Tips 1. Leave the scan gun connected to AC power at all times when not in use. 2. Set the scan gun to turn off after a short time period of non-use. 3. Set the display and keyboard backlight to turn off after a short period of non-use. 4. Power off the scan gun when charging to charge at a faster rate. 11/23/2020

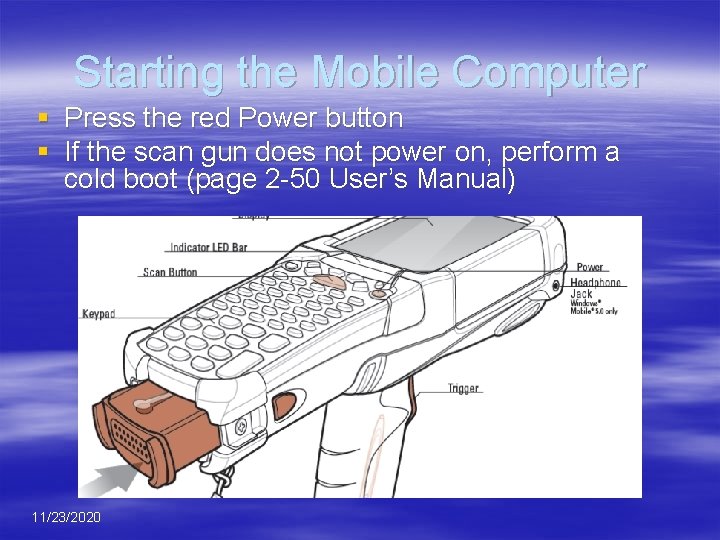

Starting the Mobile Computer § Press the red Power button § If the scan gun does not power on, perform a cold boot (page 2 -50 User’s Manual) 11/23/2020

Changing the Power Setting To Turn the scan gun Off After a Short Period of Non -Use: 1. Devices equipped with CE 5. 0 tap: Start>Settings>Control Panel>Power icon>Power Off tab. 2. Select the On battery power: Turn off device if not used for: check box and select value from the drop down menu. 3. Tap OK. 11/23/2020

Scanning Bar Codes 1. Ensure that a scan enabled application is loaded on the scan gun. 2. Aim the scan exit window at the bar code. 3. Pull the trigger. § 11/23/2020 For scan guns with a laser scanner, ensure the red scan beam covers the entire bar code.

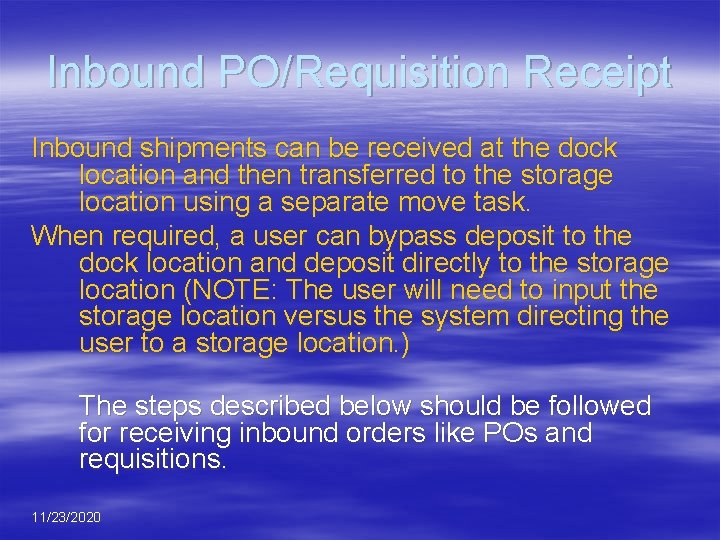

Inbound PO/Requisition Receipt Inbound shipments can be received at the dock location and then transferred to the storage location using a separate move task. When required, a user can bypass deposit to the dock location and deposit directly to the storage location (NOTE: The user will need to input the storage location versus the system directing the user to a storage location. ) The steps described below should be followed for receiving inbound orders like POs and requisitions. 11/23/2020

Inbound PO/Requisition Receipt (cont) 1. Login to the scan gun 2. From the menu page, select ‘Receive’ and hit Enter 3. The Receive window displays the list of available document types 4. Select the ‘Inbound’ document type and hit Enter 5. In the resulting screen, enter the Shipment # if known, or else hit the ‘Go’ button to display a list of all shipments that can be received. The user can then click on the relevant shipment to 11/23/2020 be received.

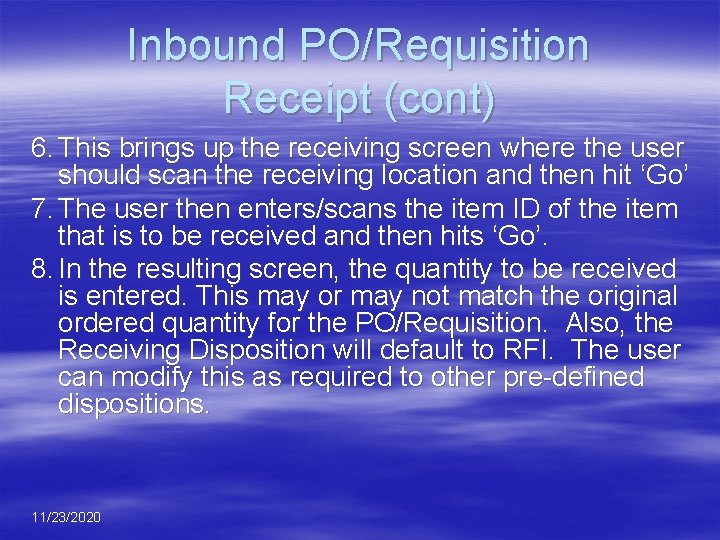

Inbound PO/Requisition Receipt (cont) 6. This brings up the receiving screen where the user should scan the receiving location and then hit ‘Go’ 7. The user then enters/scans the item ID of the item that is to be received and then hits ‘Go’. 8. In the resulting screen, the quantity to be received is entered. This may or may not match the original ordered quantity for the PO/Requisition. Also, the Receiving Disposition will default to RFI. The user can modify this as required to other pre-defined dispositions. 11/23/2020

Inbound PO/Requisition Receipt (cont) 9. If there are more items to be scanned for the particular shipment, then step 8 can be repeated, else hit the ‘Done’ button until the shipment entry screen in step 5 is displayed. 10. If there any more shipments to be received, steps 5 through 9 should be followed. 11. After a receipt is completed, the receipt can be closed using the “console” (PC-based application screens) 11/23/2020

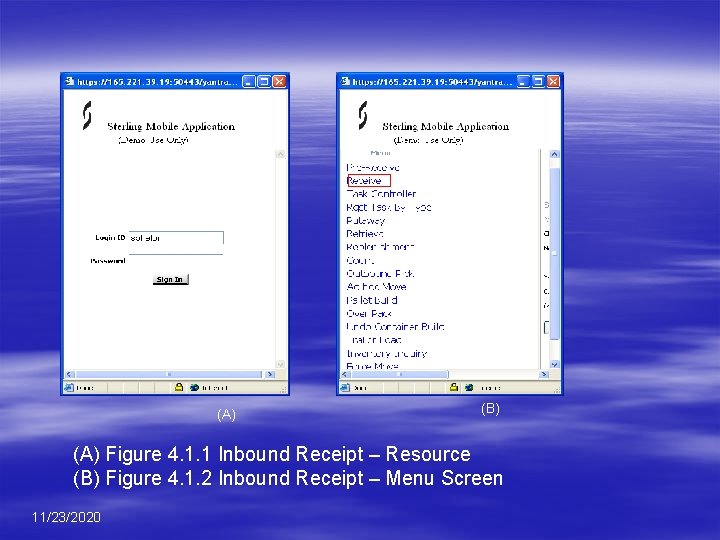

(A) (B) (A) Figure 4. 1. 1 Inbound Receipt – Resource (B) Figure 4. 1. 2 Inbound Receipt – Menu Screen 11/23/2020

(C) 11/23/2020 (D) (C) Figure 4. 1. 2 Inbound Receipt – Document Type (D) Figure 4. 1. 3 Inbound Receipt – Details-choose go or enter Order Number

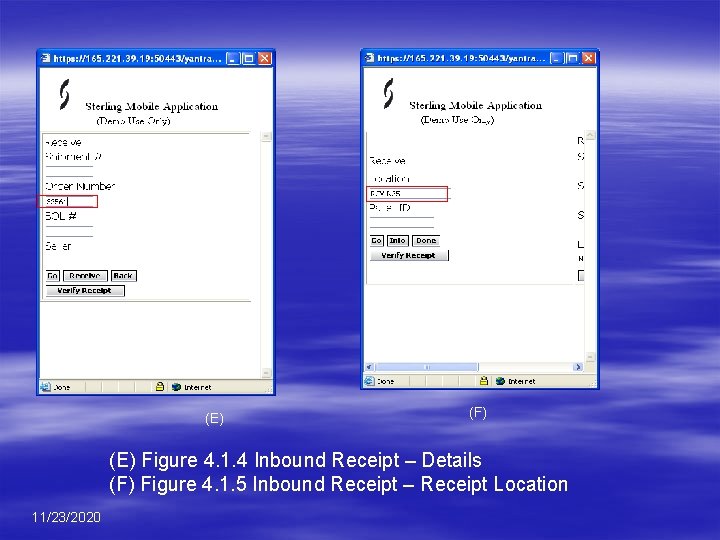

(E) (F) (E) Figure 4. 1. 4 Inbound Receipt – Details (F) Figure 4. 1. 5 Inbound Receipt – Receipt Location 11/23/2020

(G) (H) (G) Figure 4. 1. 6 Inbound Receipt – Receipt Item ID (H) Figure 4. 1. 7 Inbound Receipt – Receipt Quantity (NOTE: Disposition Code defaults to RFI. 11/23/2020

Inbound Orders § The example NFES item in the previous screenshot is a 001238 § The user will choose “go” on the scan gun screen § The user is done receipting in the “Inbound Order” § If there are multiple items to receipt in, then the user will scan the item bar code and then enter the number to receive in and select “go” for each item. § A separate move to storage location task will be generated for each item received. 11/23/2020

Receipt of Items With Trackable IDs – Items that have Trackable IDs are received in the same manner as non-Trackable items except that the Trackable ID is also scanned/entered during receipt. – Depending on the quantity of items to be received, multiple Trackable IDs can be scanned one after another. 11/23/2020

Receipt of Items With Trackable IDs (cont) – For purchase order receiving, the serial capture window appears only if the “Serial Numbers Tracked in Inventory” is checked in the ICBS Configurator. For returns receiving, the serial capture window appears if “Serial Numbers Tracked in Inventory” or “Serial Numbers tracked in Returns and Outbound” is checked. – The scan gun screen for receiving Trackable items is shown in the figure below: 11/23/2020

11/23/2020 (I) Figure 4. 1. 8 Trackable Items Receipt (II) The Trackable number entered into the dialog box will correspond with the standardized Alpha -Numeric number established for that particular cache. (III) The Manufacturing date will display

Receiving Screen-Tag Controlled Items – Items that are tag controlled can be received in the same manner as non-tag controlled items except that the user will be prompted to enter tag information like manufacturer information during the receipt. 11/23/2020

Putaway Process for Inbound Orders Putaway tasks are automatically generated whenever there is a receipt at the warehouse. Since a typical warehouse has several different locations, the putaway process first asks for a reference location to be scanned. This reference location tells the system where the operator is located in the warehouse. 11/23/2020

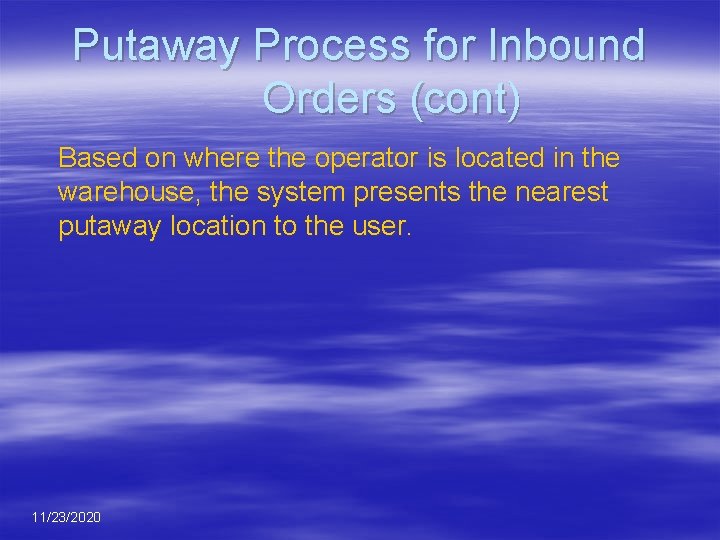

Putaway Process for Inbound Orders (cont) Based on where the operator is located in the warehouse, the system presents the nearest putaway location to the user. 11/23/2020

Putaway Process for Inbound Orders (cont) The following steps describe the putaway process using the scan gun: – Login to the scan gun – In the resulting menu, click on the “Task Controller” menu option 11/23/2020

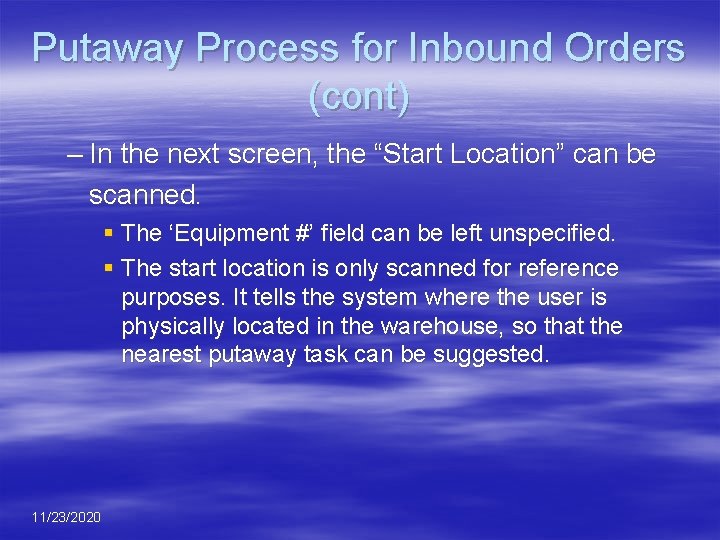

Putaway Process for Inbound Orders (cont) – In the next screen, the “Start Location” can be scanned. § The ‘Equipment #’ field can be left unspecified. § The start location is only scanned for reference purposes. It tells the system where the user is physically located in the warehouse, so that the nearest putaway task can be suggested. 11/23/2020

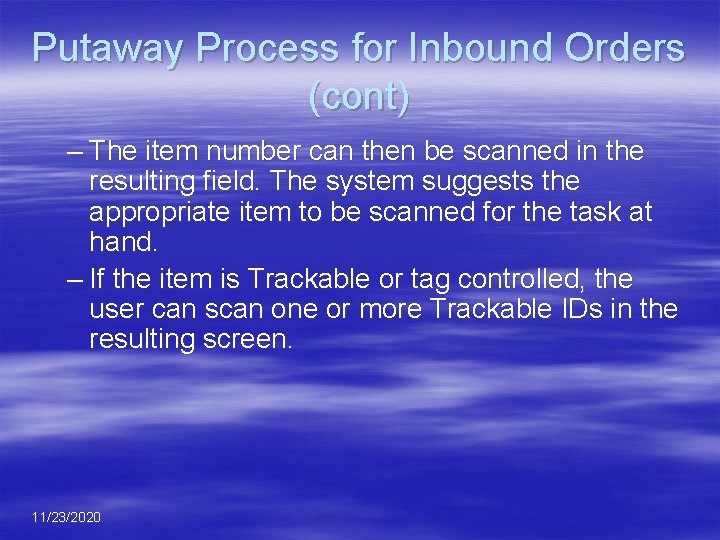

Putaway Process for Inbound Orders (cont) – The item number can then be scanned in the resulting field. The system suggests the appropriate item to be scanned for the task at hand. – If the item is Trackable or tag controlled, the user can scan one or more Trackable IDs in the resulting screen. 11/23/2020

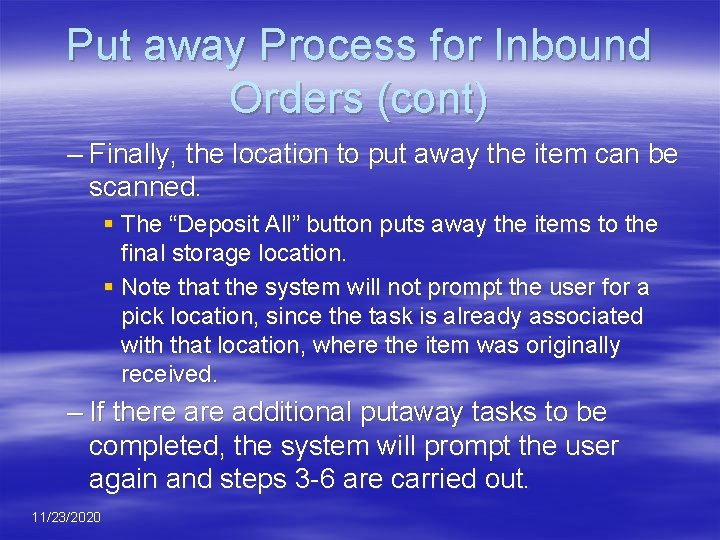

Put away Process for Inbound Orders (cont) – Finally, the location to put away the item can be scanned. § The “Deposit All” button puts away the items to the final storage location. § Note that the system will not prompt the user for a pick location, since the task is already associated with that location, where the item was originally received. – If there additional putaway tasks to be completed, the system will prompt the user again and steps 3 -6 are carried out. 11/23/2020

The following screen shots illustrate the Putaway process in ICBS 11/23/2020

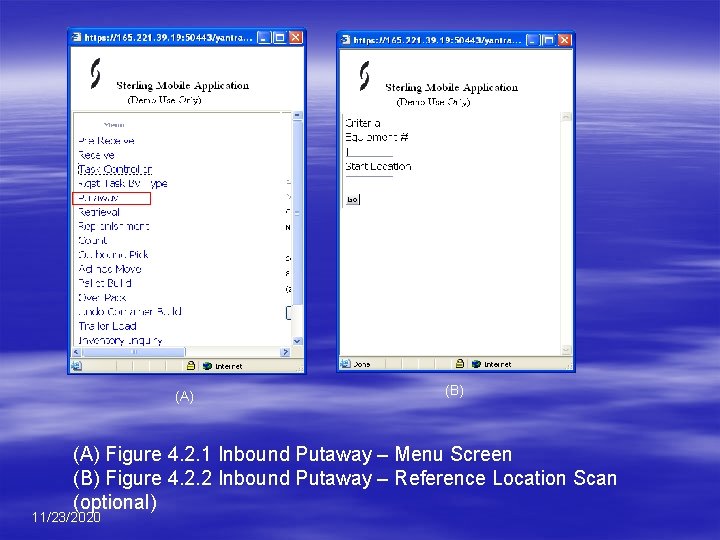

(A) (B) (A) Figure 4. 2. 1 Inbound Putaway – Menu Screen (B) Figure 4. 2. 2 Inbound Putaway – Reference Location Scan (optional) 11/23/2020

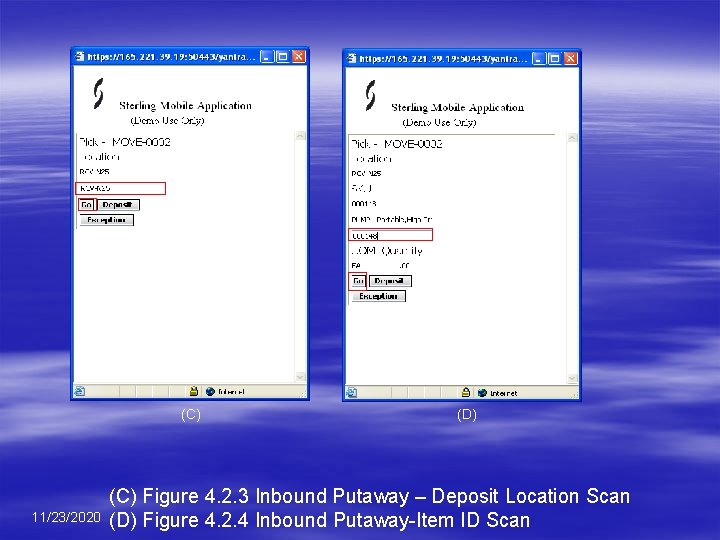

(C) 11/23/2020 (D) (C) Figure 4. 2. 3 Inbound Putaway – Deposit Location Scan (D) Figure 4. 2. 4 Inbound Putaway-Item ID Scan

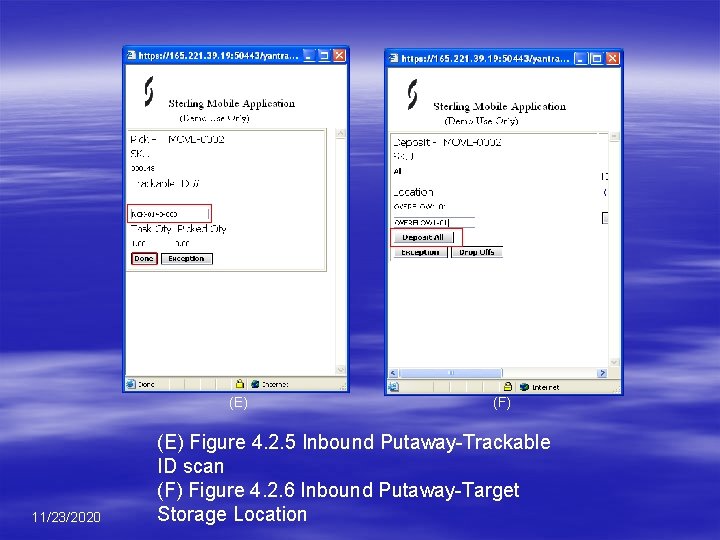

(E) 11/23/2020 (F) (E) Figure 4. 2. 5 Inbound Putaway-Trackable ID scan (F) Figure 4. 2. 6 Inbound Putaway-Target Storage Location

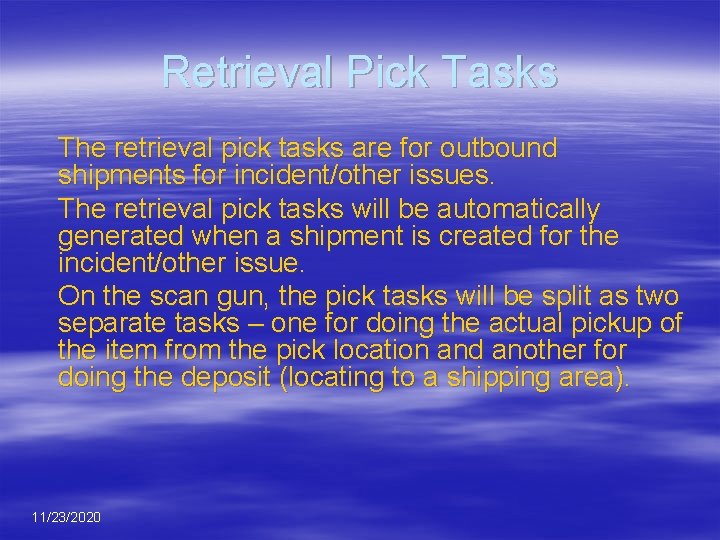

Retrieval Pick Tasks The retrieval pick tasks are for outbound shipments for incident/other issues. The retrieval pick tasks will be automatically generated when a shipment is created for the incident/other issue. On the scan gun, the pick tasks will be split as two separate tasks – one for doing the actual pickup of the item from the pick location and another for doing the deposit (locating to a shipping area). 11/23/2020

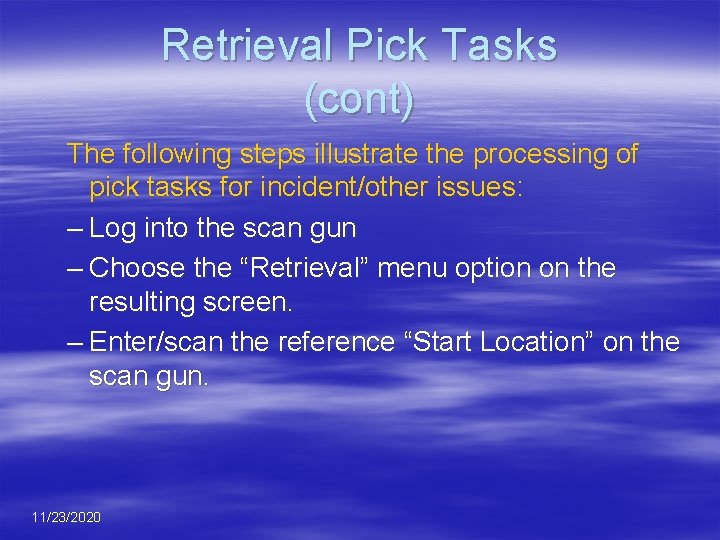

Retrieval Pick Tasks (cont) The following steps illustrate the processing of pick tasks for incident/other issues: – Log into the scan gun – Choose the “Retrieval” menu option on the resulting screen. – Enter/scan the reference “Start Location” on the scan gun. 11/23/2020

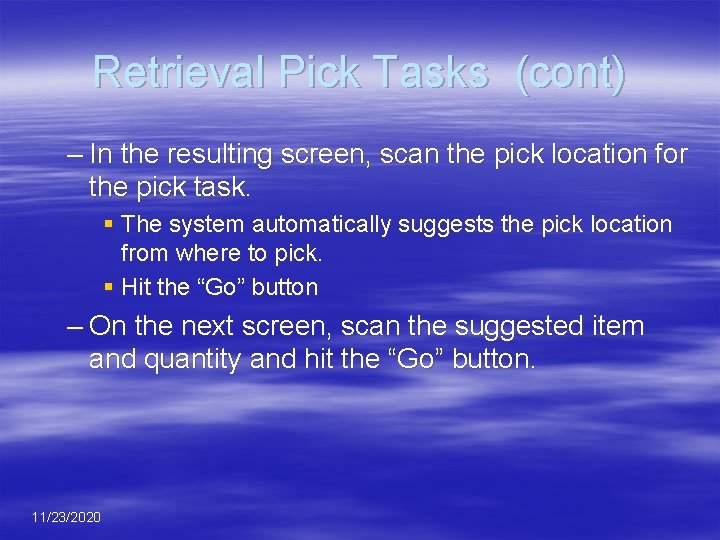

Retrieval Pick Tasks (cont) – In the resulting screen, scan the pick location for the pick task. § The system automatically suggests the pick location from where to pick. § Hit the “Go” button – On the next screen, scan the suggested item and quantity and hit the “Go” button. 11/23/2020

Retrieval Pick Tasks (cont) – If all the pick tasks have been completed, the system suggests the next deposit task. – Scan the deposit location and item on the deposit screen and hit “Deposit All” button. This will deposit all items into the shipping location This will complete the pick task cycle. 11/23/2020

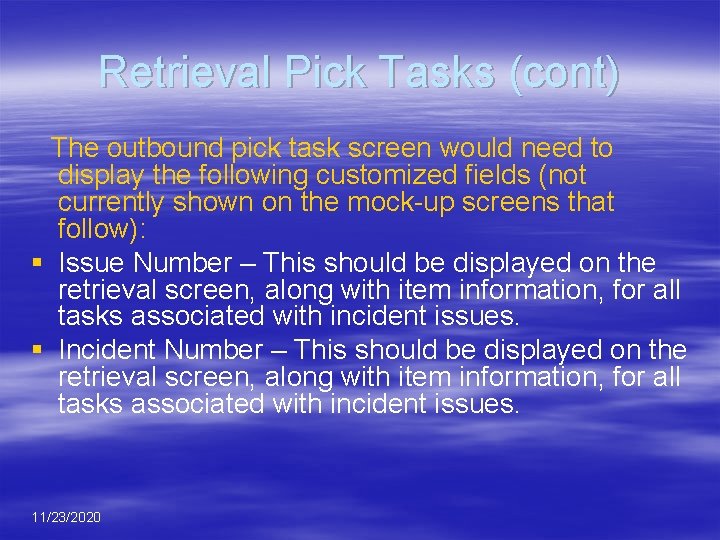

Retrieval Pick Tasks (cont) The outbound pick task screen would need to display the following customized fields (not currently shown on the mock-up screens that follow): § Issue Number – This should be displayed on the retrieval screen, along with item information, for all tasks associated with incident issues. § Incident Number – This should be displayed on the retrieval screen, along with item information, for all tasks associated with incident issues. 11/23/2020

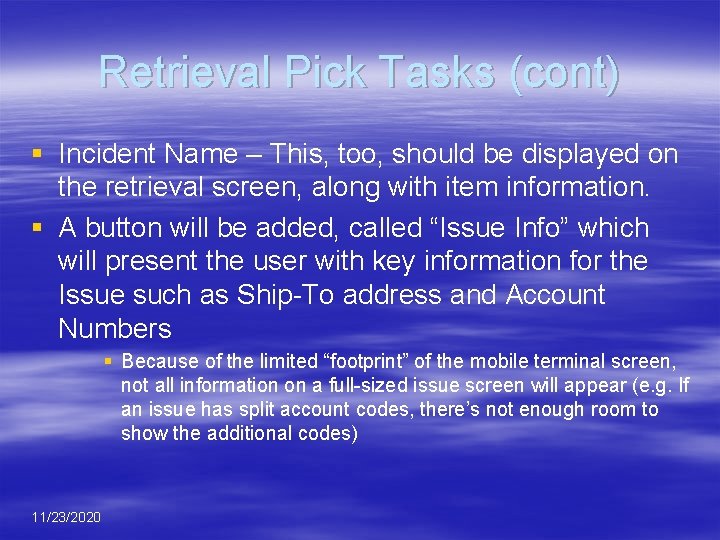

Retrieval Pick Tasks (cont) § Incident Name – This, too, should be displayed on the retrieval screen, along with item information. § A button will be added, called “Issue Info” which will present the user with key information for the Issue such as Ship-To address and Account Numbers § Because of the limited “footprint” of the mobile terminal screen, not all information on a full-sized issue screen will appear (e. g. If an issue has split account codes, there’s not enough room to show the additional codes) 11/23/2020

The following screen shots illustrate the pick cycle for outbound shipments 11/23/2020

(A) (B) (A) Figure 5. 1. 1 Outbound Pick – Retrieval (B) Figure 5. 1. 2 Outbound Pick – Reference Location Scan (optional) 11/23/2020

(C) (D) (C) Figure 5. 1. 3 Outbound Pick – Item & Qty Scan (D) Figure 5. 1. 4 Outbound Pick – Location scan 11/23/2020

(E) (F) (E) Figure 5. 1. 5 Outbound Pick – Item ID scan (F) Figure 5. 1. 6 Outbound Pick – Target Location scan and Deposit All 11/23/2020

(G) Figure 5. 1. 7 No Open Tasks 11/23/2020

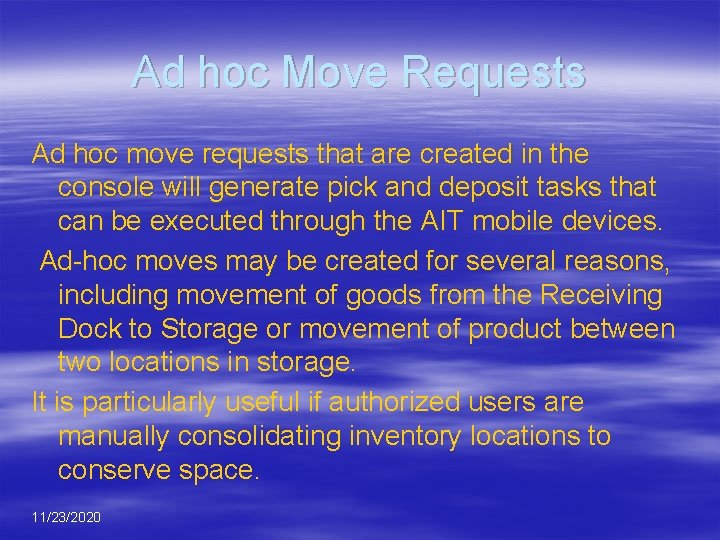

Ad hoc Move Requests Ad hoc move requests that are created in the console will generate pick and deposit tasks that can be executed through the AIT mobile devices. Ad-hoc moves may be created for several reasons, including movement of goods from the Receiving Dock to Storage or movement of product between two locations in storage. It is particularly useful if authorized users are manually consolidating inventory locations to conserve space. 11/23/2020

Ad hoc Move Requests (cont) The process for executing ad-hoc move tasks is described below: – Log into the scan gun. – Choose “Ad-Hoc Move” – On the ensuing screen enter the reference location for the start location. – In the resulting screen, scan the suggested pick location for the move task and hit “Go”. 11/23/2020

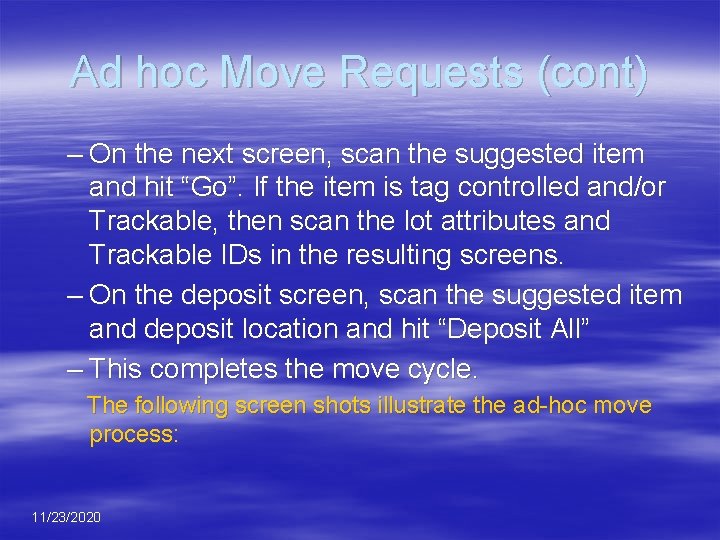

Ad hoc Move Requests (cont) – On the next screen, scan the suggested item and hit “Go”. If the item is tag controlled and/or Trackable, then scan the lot attributes and Trackable IDs in the resulting screens. – On the deposit screen, scan the suggested item and deposit location and hit “Deposit All” – This completes the move cycle. The following screen shots illustrate the ad-hoc move process: 11/23/2020

(A) (B) (A) Figure 6. 1. 1 Ad Hoc Move – Main Menu (Ad Hoc Move) (B) Figure 6. 1. 2 Ad Hoc Move – Equipment # (go) 11/23/2020

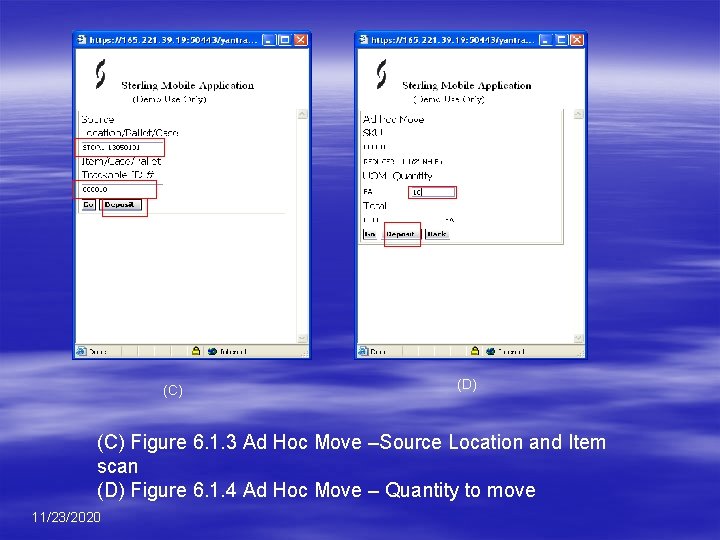

(C) (D) (C) Figure 6. 1. 3 Ad Hoc Move –Source Location and Item scan (D) Figure 6. 1. 4 Ad Hoc Move – Quantity to move 11/23/2020

(E) (F) (E) Figure 6. 1. 5 Ad Hoc Move – Target location scan (Deposit All) (F) No Open Tasks 11/23/2020

Executing Count Tasks The ICBS mobile terminal can be used to perform count tasks like: – Count pallets – Count items in pallets and locations – Count serial tracked items in a pallet or location 11/23/2020

Executing Count Tasks (cont) The execution of counts may be either userdirected or system-directed. In system-directed count tasks, the system suggests the count tasks to be executed and the user can scan the location or item to signify the acceptance of the count task. In user-directed process, the user chooses the count tasks that need to be executed. 11/23/2020

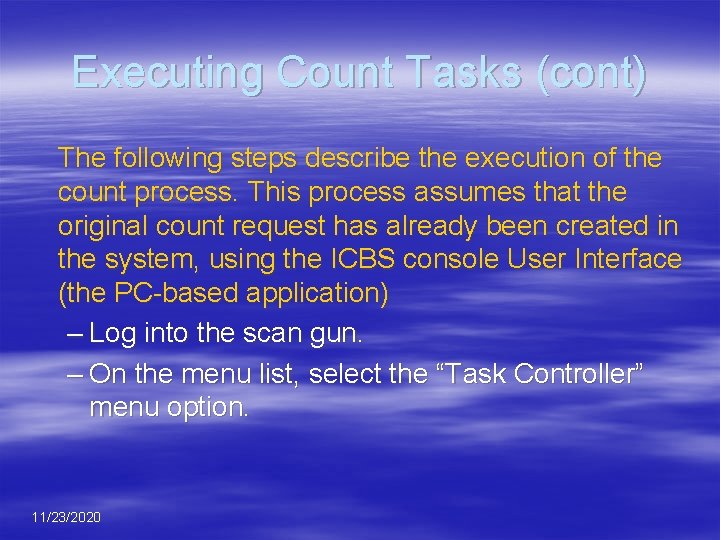

Executing Count Tasks (cont) The following steps describe the execution of the count process. This process assumes that the original count request has already been created in the system, using the ICBS console User Interface (the PC-based application) – Log into the scan gun. – On the menu list, select the “Task Controller” menu option. 11/23/2020

Executing Count Tasks (cont) – Enter the start location as the reference location which indicates where the user is physically located in the warehouse. – The count task for the location that is nearest to the physical location of the user is presented – The user scans in the suggested location and the suggested item for the count task. 11/23/2020

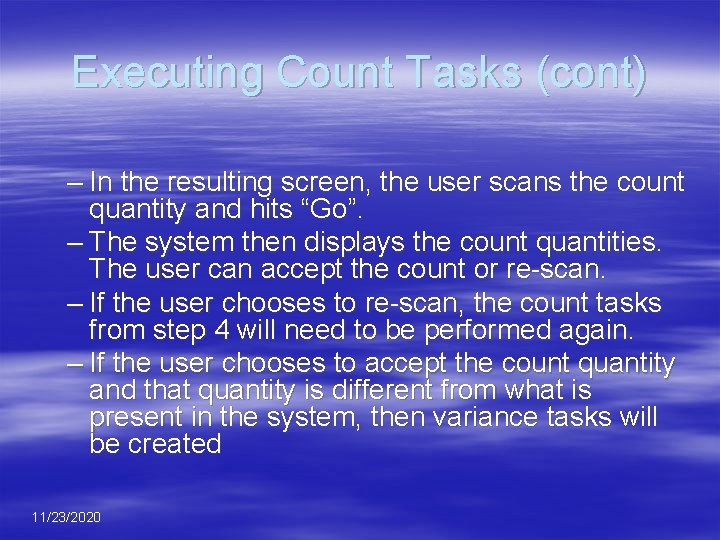

Executing Count Tasks (cont) – In the resulting screen, the user scans the count quantity and hits “Go”. – The system then displays the count quantities. The user can accept the count or re-scan. – If the user chooses to re-scan, the count tasks from step 4 will need to be performed again. – If the user chooses to accept the count quantity and that quantity is different from what is present in the system, then variance tasks will be created 11/23/2020

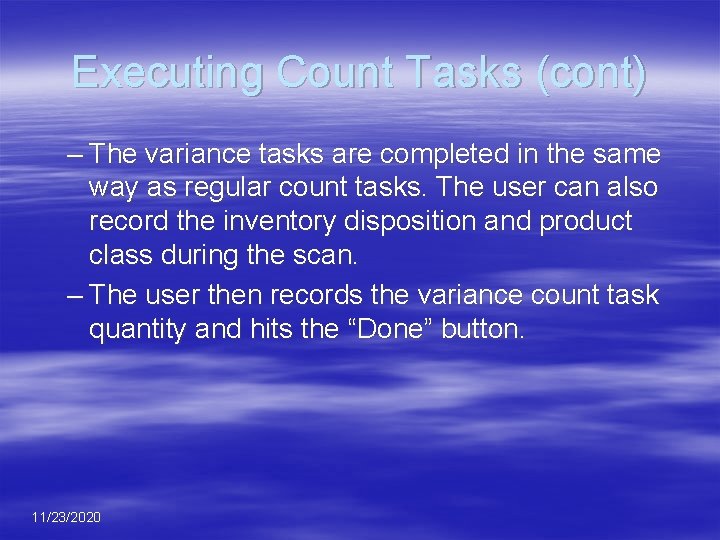

Executing Count Tasks (cont) – The variance tasks are completed in the same way as regular count tasks. The user can also record the inventory disposition and product class during the scan. – The user then records the variance count task quantity and hits the “Done” button. 11/23/2020

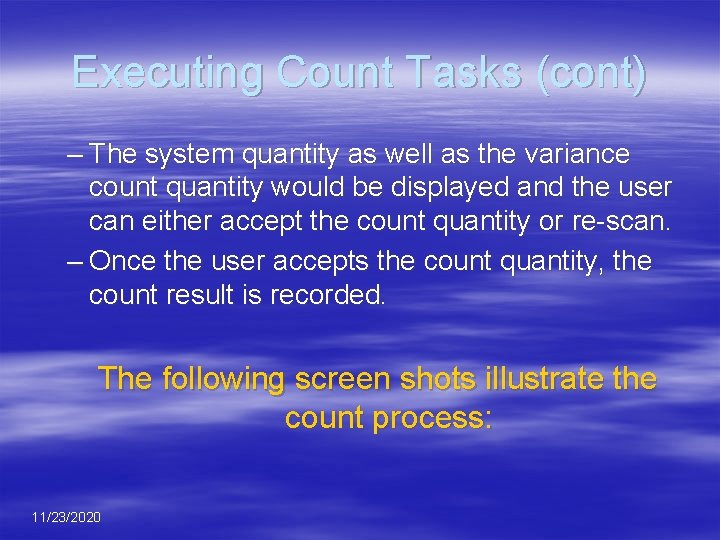

Executing Count Tasks (cont) – The system quantity as well as the variance count quantity would be displayed and the user can either accept the count quantity or re-scan. – Once the user accepts the count quantity, the count result is recorded. The following screen shots illustrate the count process: 11/23/2020

(A) Figure 7. 1. 1 Physical/Cycle Count – Reference Location Scan (B) Figure 7. 1. 2 Physical/Cycle Count – Count Location Scan 11/23/2020

(C) (D) (C) Figure 7. 1. 3 Physical/Cycle Count – Item ID Scan (D) Figure 7. 1. 4 Physical/Cycle Count – Count Quantity Scan 11/23/2020

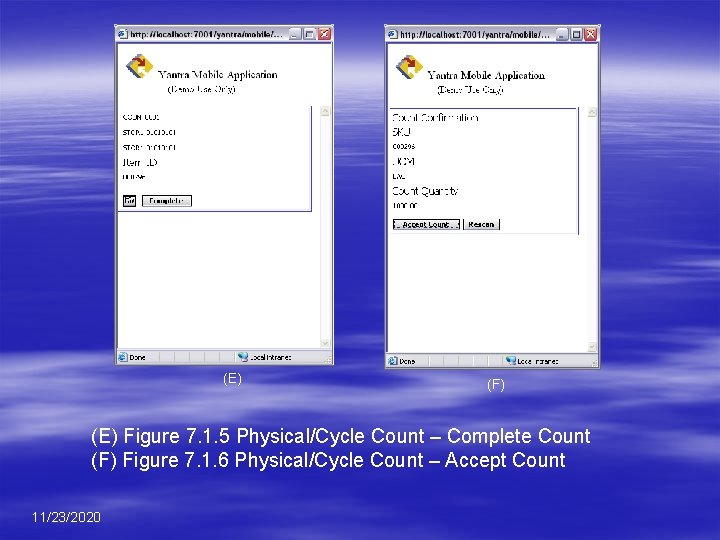

(E) (F) (E) Figure 7. 1. 5 Physical/Cycle Count – Complete Count (F) Figure 7. 1. 6 Physical/Cycle Count – Accept Count 11/23/2020

Count Task Variance Note § The information for Count Task Variances listed below has not been updated since the 8. 0 release. § There is still work being done on this portion of the application, which includes testing to ensure accuracy. § Once this has been done this Power. Point will be updated to include any changes that are necessary 11/23/2020

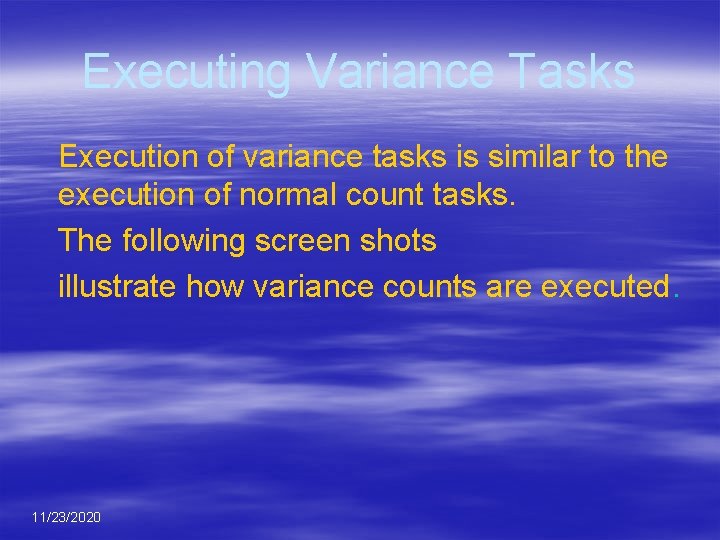

Executing Variance Tasks Execution of variance tasks is similar to the execution of normal count tasks. The following screen shots illustrate how variance counts are executed. 11/23/2020

(A) (B) (A) Figure 7. 2. 1 Variance Tasks – Location Scan (B) Figure 7. 2. 2 Variance Tasks – Inv Status Scan 11/23/2020

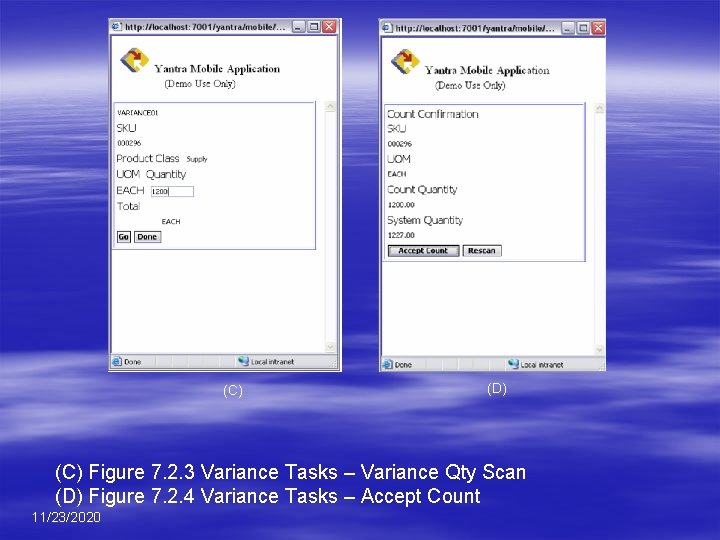

(C) (D) (C) Figure 7. 2. 3 Variance Tasks – Variance Qty Scan (D) Figure 7. 2. 4 Variance Tasks – Accept Count 11/23/2020

Returns Receipt § Returns information needs to be entered into the ICBS Application, but until a module has been developed for scan-gun based returns, you’ll enter this information similar to the way you’ve done it with the legacy ICBS § Two options are: -Enter returns in real-time using a PC console in the Returns Zone -Record returns on paper forms for later entry into the PC console 11/23/2020
