SYEN 3330 Digital Systems Chapter 4 – Part 2 SYEN 3330 Digital Systems Jung H. Kim 1
Overview of Chapter 4 – Part 2 • Programmable Logic Technologies • • • Introduction Read-Only Memory Programmable Logic Array Programmable Array Logic VLSI Programmable Logic SYEN 3330 Digital Systems 2
Programmable Logic SYEN 3330 Digital Systems 3

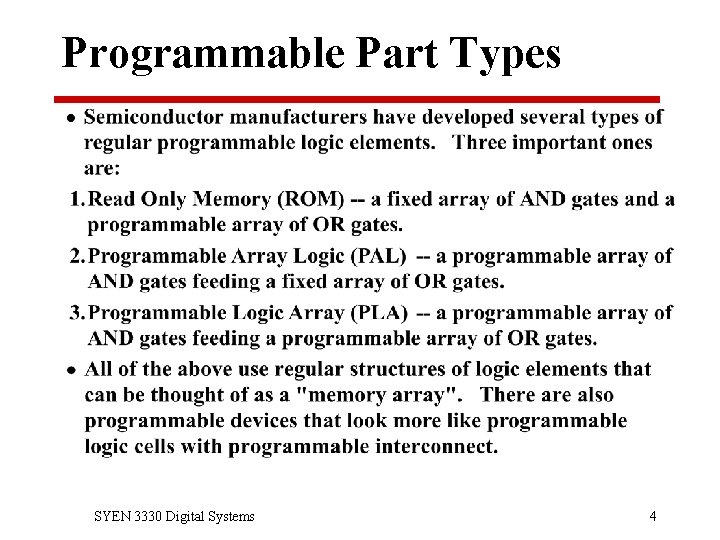

Programmable Part Types SYEN 3330 Digital Systems 4
Programming Devices SYEN 3330 Digital Systems 5
Read Only Memory SYEN 3330 Digital Systems 6
Read Only Memories (Continued) A B C A 2 A 1 A 0 D 7 D 6 D 5 D 4 D 3 D 2 D 1 D 0 F 0 SYEN 3330 Digital Systems F 1 F 2 F 3 7
Read Only Memories (Continued) SYEN 3330 Digital Systems 8
Programmable Array Logic (PAL) SYEN 3330 Digital Systems 9
Programmable Array Logic (Cont. ) In 1 Out 1 In 2 "0" Out 2 In 3 "0" Out 3 In 4 SYEN 3330 Digital Systems "0" 10
Programmable Array Logic (Cont. ) In 1 Out 1 In 2 "0" Out 2 In 3 "0" Out 3 In 4 SYEN 3330 Digital Systems "0" 11
Programmable Array Logic (Cont. ) In 1 Out 1 In 2 "0" Out 2 In 3 "0" Out 3 In 4 SYEN 3330 Digital Systems "0" 12
Programmable Logic Array (PLA) SYEN 3330 Digital Systems 13

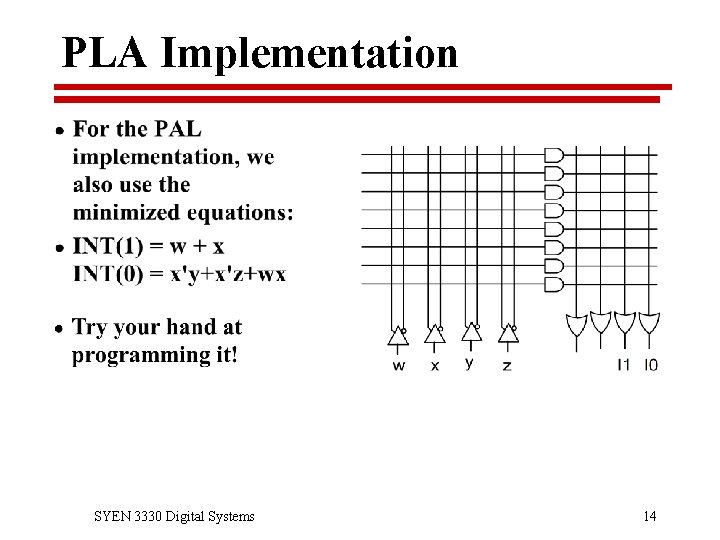

PLA Implementation SYEN 3330 Digital Systems 14
PLA Implementation (Continued) SYEN 3330 Digital Systems 15
Summary of Programmable Logic SYEN 3330 Digital Systems 16
ROM, PAL, PLA Examples SYEN 3330 Digital Systems 17
ROM, PAL, PLA Implementations SYEN 3330 Digital Systems 18
ROM Implementation SYEN 3330 Digital Systems 19
ROM Implementation (Continued) SYEN 3330 Digital Systems 20
PAL Implementation SYEN 3330 Digital Systems 21
PAL Implementation (Continued) SYEN 3330 Digital Systems 22
PLA Implementation SYEN 3330 Digital Systems 23
PLA Implementation (Continued) SYEN 3330 Digital Systems 24
